2APPT-314AT-314

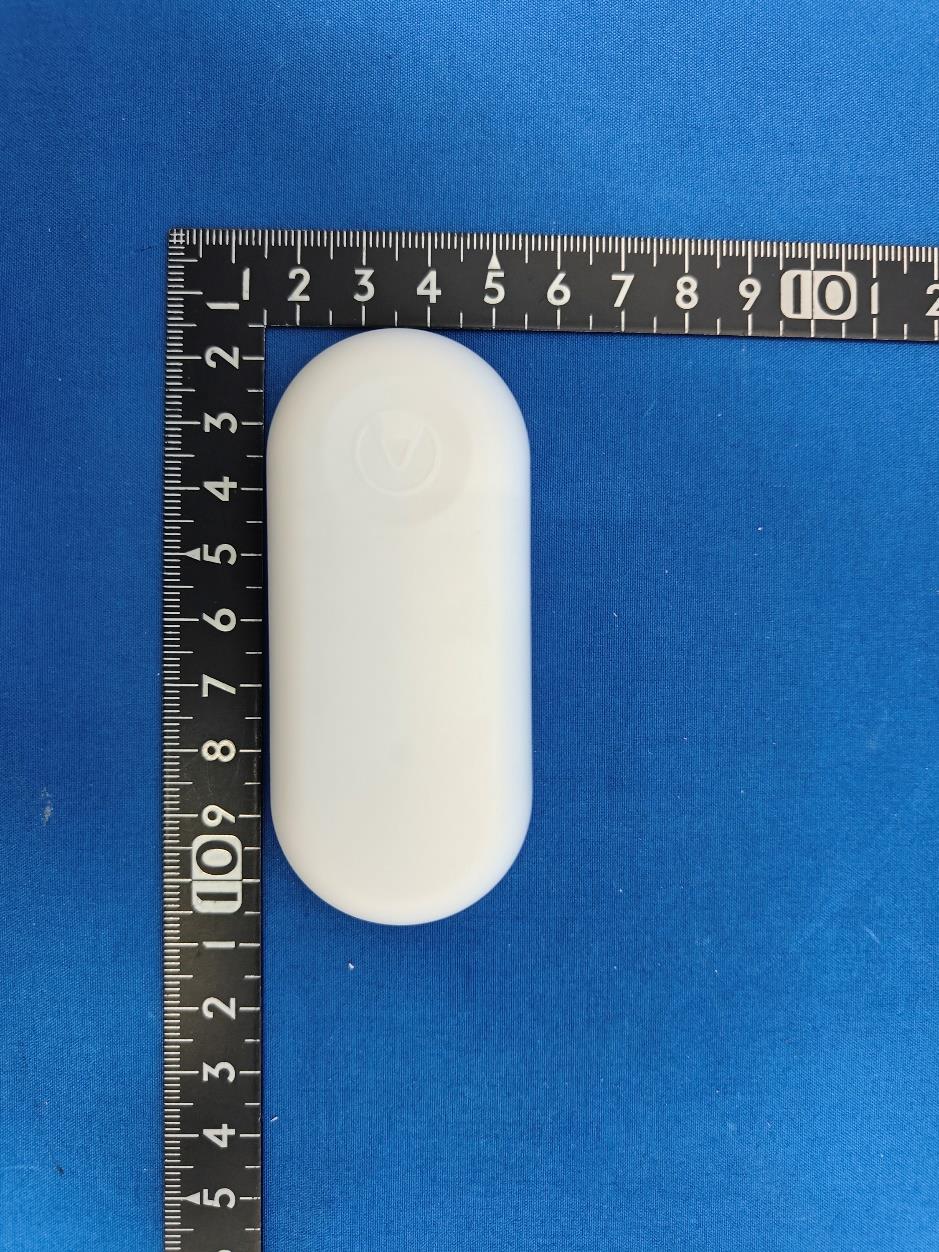

SpaceNano Space Nano is the discreet answer to increasing focus on monitoring in schools, public buildings and of fices. Offered in a 2-pack, Space Nano helps cover more spaces in your building, ensuring optimal temperature humidity. Apply even outdoor. Wireless, with more than 10 years battery lifetime. 2 devices included in package Weight: TBD Dimensions: 4.5 x 4.1 x 1.4 in (115 x 105 x 36 mm) REQUIREMENTS Dimensions: ~ 37 x 84 x 22 mm) Weight: TBDg with batteries Space Hub is needed to post sensor values to cloud PRODUCT CODES EU and UK 313xxxxxxx - serial number 2-pack EU and UK SKU 13130, EAN TBD UPC NA US and CA 314xxxxxxx - serial number 2-pack US and CA SKU 13140, EAN NA UPC TBD PACKAGE CONTENT Space Nano 2 x Lithium AA 1.5V batteries 2x Double-sided tape MOUNTING Optimum product placement is on wall 4 - 6 ft (1.2 m - 1.8 m) above floor. Double sided tape for mounting included. Alternatively use two fully threaded countersunk screws 3.5 x 25mm or longer (not included). For masonry/concrete add expansion plug. For plaster walls, special plugs should be used. If needed, the product can also be placed > 6 ft (1.8 m) above floor, but in this case mounting with screws is mandatory. Can also be mounted outdoor with screws. PACKAGE PRODUCT FEATURES Sensors: Temperature, Relative Humidity, Pressure, Light (lux) Virtual sensors included: Ventilation on/off, please consult web dashboard for latest Battery life more than 10 years PRODUCT SPECIFICATIONS Operational Environment (Temperature, Relative Humidity): -22°F to 140°F (-30 ºC to 60 °C) TBD / 5% - 99% Do not submerge in water IP protection grade: IP64 Firmware updates are automatically downloaded and installed over the air (OTA) via the Space Hub SmartLink frequencies: 865-870 / 902-928 MHz depending product SpaceNano SENSOR SPECIFICATIONS Sensor sampling interval:5 min default and 2.5 min optional TEMPERATURE AND RELATIVE HUMIDITY SENSORS Temperature Accuracy: ± 0.2°C/± 0.4 F and Humidity Accuracy: ± 2.0 % RH within product operating range PRESSURE SENSOR Absolute pressure accuracy: ± 30 Pa Unit-to-unit pressure accuracy: ± 10 Pa Operating range for full accuracy 300 - 1250 hPa LIGHT SENSOR Light sensor is measured in received luminousflux per unit area, also known as lux Light sensitivity varies with incoming light direction as shown in graph. Absolute Accuracy in most sensitive direction: ±5 lux ±10% within 0 - 5000lux VIRTUAL SENSORS Ventilation on/off TBD. Please consult web dashboard for latest RADIO SPECIFICATIONS BLUETOOTH LOW ENERGY Used for commissioning only Output power: <10 mW Frequency Range (MHz): 2400.0 - 2483.5 AIRTHINGS SMARTLINK Used to post sensor values Output power: < 25 mW Frequency range (MHz): Europe 868 - 870 North America 902-928 PRODUCT ON-BOARDING AND DAILY USE Wake up device from shelf life: Take products out of packaging and touch Airthings logo on product with finger. Product blinks blue when device wakes up from shelf life until on-boarded in Airthings Business App. If not completed on-boarding in Airthings Business App within 10 minutes, device will go back into shelf life mode. To wake up device again, touch Airthings logo on product with finger Once completed on-boarding in Airthings Business App, LED pulses white while device connects to Space Hub and continues to pulse white until device is connected all the way to Airthings cloud. When completely connected, LED pulse stops. Successful connection can then at any time be confirmed by touching Airthings logo on product front with finger: single white blink if connected via Space Hub to cloud, single blue blink if not connected. In case SmartLink connection is lost, within 10 min LED will blink green one time followed by white LED pulse for up to 1 min or until connected to Space Hub. In case no connection is established, the connection retries and blink pattern will repeat at increased intervals, to not deplete batteries. Touching Airthings logo on product front any time with finger: single white blink if connected via Space Hub to cloud, single blue blink if not connected.

06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup1/24 Airthings for Business Solution Setup Remote access to your ecosystem Getting started October 4th, 2022 Congratulations on taking this important step toward a healthier building! The Airthings for Business solution keeps track of your indoor air quality, enabling you to make informed decisions that lead to increased productivity, reduced sick leave and greater energy eciency. The Airthings Space Hub provides you 24/7 access to real time sensor data as well as historical sensor data on your Airthings for Business Dashboard. At Airthings, we deliver indoor air insights so that you can nd the ideal balance between building health and energy eciency. The Airthings Team Get in touch 06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup2/24 For technical support or if you have any questions or comments that we did not answer here, you can reach us at [email protected] or through the chat widget on the bottom right when you log into your account at dashboard.airthings.com. Warning The Airthings Space Hub only works with Airthings for Business devices. Connection to consumer Airthings devices could upset your subscription and cause additional charges. Please do NOT try to connect with any devices other than Airthings for Business devices. Click the section you want to go to Getting startedWhat's in the box 06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup3/24 What's in the box Space Hub Airthings Space HubCharger and plug adapters eSIM/SIM card (pre- installed) Space Hub specicationsSetting up Regulatory information 06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup4/24 Rubber bumper padsDouble-sided tapeEthernet cable Airthings Devices Airthings Space Pro, Space CO, Space Plus, Space CO Mini AA batteries (pre- inserted) Double-sided tape Space Hub Specifications 2 2 06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup5/24 1Light indicator 2Ethernet port 3Power input 4Mounting bracket Light indicators Power Supply: Green when there is power to the Space Hub Cloud: Green if Hub is connected to cloud. O no connection OR if no successful transfer to cloud occurred within the last 6 minutes Airthings SmartLink: Green when sensor data is received within the last 6 minutes Connectivity Ethernet OR 06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup6/24 Cellular LTE Cat.M1 & EGPRS(2G) Space Hub Cellular Model 2820 can operate with ethernet connection or with the built-in eSIM Space Hub Model 2810 can only operate with ethernet connection App & Software Manage your account and access your data at dashboard.airthings.com Install your devices using the Airthings for Business app: Protocol Airthings SmartLink, 865-870/902-928MHz long-range wireless connection 06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup7/24 Remote Access Live data streaming to the cloud and accessible at dashboard.airthings.com or through Airthings API Power Supply 100-240V AC / 50-60 Hz Adapter to 5V DC2A Important information Regional operation The Hub can operate in EU / UK / UAE, US / Canada, Hong Kong / Macao / Singapore / Malaysia / Thailand, Australia / New Zealand / Japan and India. Space Pro, Space CO2 and Space CO2 Mini cover the same regions, while Space Plus covers a sub-set of regions. During the setup of the Airthings for Business account and when devices are added, the user needs to add an address for each location/building, which will set the correct region for the Hub and devices. Correct information must be set to operate the Hub in compliance with regional radio regulations. The region of the devices will be set by registering the devices in the Airthings for Business app. 06/08/2023, 15:27Solution Setup | Airthings for Business https://www.airthings.com/business/setup8/24 Device packages are marked with the region they are supported within. Devices that have a coloured sticker underneath the battery cover have a pre-programmed region. You can change this region by registering the devices using the Airthings business app. The coloured stickers have the following meaning: EU / UK / UAE is blue, US / CA (North America) is red, Singapore, Hong Kong, Macao, Malaysia and Thailand are black, Australia / New Zealand / Japan is yellow, and India is green. Business sensor devices connection & monitoring Do NOT connect your consumer Airthings devices to Airthings Space Hub. That will cause additional charges to your Airthings for Business subscription due to the additional consumer devices connected. Monitor your Airthings for Business devices via the Airthings Dashboard at dashboard.airthings.com or in the Airthings Business app. Do not use the Airthings or Airthings Wave app with the business devices. Optimum radio range The SmartLink radio signal has a typical indoor range of more than 50 meters or 150 feet indoors (Hub to sensor device). The signal can normally penetrate 10 drywalls (non-load bearing walls), or 3 thick walls or oors. Place the Hub somewhere in the center of the area you want to cover. If the area is too large, or if conditions are not optimal for the SmartLink radio signal, multiple Hubs are required. When multiple Hubs are present, sensor devices will connect to the nearest Hub as long as the Hubs are registered and installed before installing sensor devices. Avoid placing the devices near large metal objects as they will disrupt the SmartLink radio signal. Moving sensor devices closer to the Hub will usually improve the signal strength, but in some cases, a sensor device might be in a local “radio shadow” where the Hub cannot see the device. Should a device display less radio signal strength than expected, try m…
