2APPUD21000Digital Mobile Radio

D2-1000U Digital Mobile Radio User Manual Tel: 888-404-2337 Add: 710 W. Jefferson St. Joliet, IL 60435 Thank you for purchasing DMR Digital Mobile Radio SERIES. We believe that the quality and function of this radio will meet your requirements and bring you stable, reliable, clear and high- efficient communication. Preface 01 Diga-Talk DMR Mobile Radio – USER MANUAL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device , pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void FCC Statement the user's authority to operate the equipment. -This radio is designed for and classified as “Occupational/ Controlled Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards; NOT intended for use in an General population /uncontrolled environment. -DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio, and the antenna gain shall not exceed 3.5 dBi by the manufacturer declared. -DO NOT transmit for more than 50% of total radio use time, more than 50% of the time can cause RF exposure compliance requirements to be exceeded. -During operation, the separation distance between user and the antenna shall be at least 80.79 cm, this separation distance will ensure that there is sufficient distance from a properly installed externally-mounted antenna to satisfy the RF exposure requirements -During transmissions, your radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. Please read the following safety guidelines. Nonobservance of these guidelines may cause danger or violation of law. Safety Information 0302 Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. • The radio operates with cathode-grounded power supply of 13.6V ± 15% only. Please check polarity and voltage of the power supply on the vehicle before you install the radio. • Please check how long the screws will extend from the bottom surface of the radio, before you install the radio. Drill the mounting hole cautiously to avoid damage to the vehicle wiring and other parts. • Please connect supplied antenna and power cord to the radio, before you install it in the bracket. And make sure the antenna and power cord is dedicated for our digital radios. • Install the radio with supplied mounting bracket, to avoid radio looseness in case of accidents. The loose radio may cause bodily injury. • Install the radio in a location where it’s easy to reach the front panel controls. • Please make sure there’s sufficient space at back of the radio for wiring. • When the fuse for DC power cord needs replacement, it must be replaced by a fuse with the same specification. Product Inspection Items Radio Microphone Hanger and Screws Power Cord Fuse Mounting Bracket KitUser Manual User Manual User Manual Basic Instructions 0504 Installation Steps Microphone A、Install the bracket in a location where it’s easy to operate the radio. B、Connect accessories such as antenna and power cord to the radio. C、Slide the radio into the mounting bracket and secure it using the locking knobs. D、Install the microphone hanger in a location where it can be reached easily. E、Plug the palm microphone into the microphone jack on the front panel (but at first align the triangle index on the palm microphone with the microphone installation index), and place it on the hanger when you do not use it. Mounting Bracket 4.8 * 20 mm Self-tapping Screws Locking Knobs Radio Unit RF Antenna Connector Power Inlet GPS Antenna Connector Black Power Cord Red Power Cord Fuse Microphone Hanger 4 * 16 mm Self-tapping Screws Palm Microphone 1 2 3 4 5 6 7 8 9 10 11 12 13 Part NameNO. Radio Overview Front Panel Rear Panel NO.NO. Power Inlet GPS Antenna Connector Part NamePart Name RF Antenna Connector Accessory Jack 1 3 2 4 0706 1 234567 89 101112 1234 Emergency Key Up/ Down Keys Speaker Programmable Key Select Key LED Indicator LCD Display Programmable Keys Back Key Programmable Key Palm Microphone Jack Volume Control / Channel Selector/ Po…

Text truncated - open the document above for the full version.

A Beep, LLC Add: 710 W JEFFERSON ST,Joliet, IL, 60435,United States Tel: 8157401780 Fax: 8157401357 Attestation letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, A Beep, LLC hereby declare that our product: Digital Mobile Radio FCC ID: 2APPUD21000 is capable of supporting a voice channel and a minimum data rate of 4800 bits per second per 6.25 kHz of channel bandwidth. DMR interphone’s bandwidth is 12.5 kHz, and it has a double time slot, one is the speech time slot, one is the data time slot, just language sequence is satisfied with 4800 bps/6.25 kHz BW. For Part 90 frequency user, the radio is disabled 25kHz channel bandwidth mode by radio firmware at factory in order to comply with FCC mandate for part 90 frequencies. Sincerely, Frank Anderson Signature: 2021-05-11

2021-05-11 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2APPUD21000 Product Name: Digital Mobile Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this May 11, 2021 By: Frank Anderson Signature Printed Title: Manager On behalf of : A Beep, LLC Telephone: 8157401780

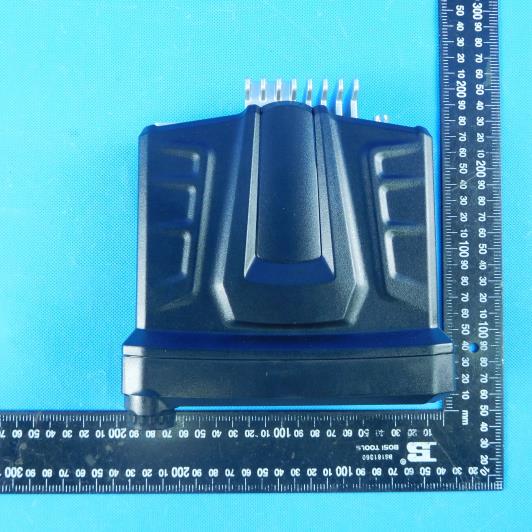

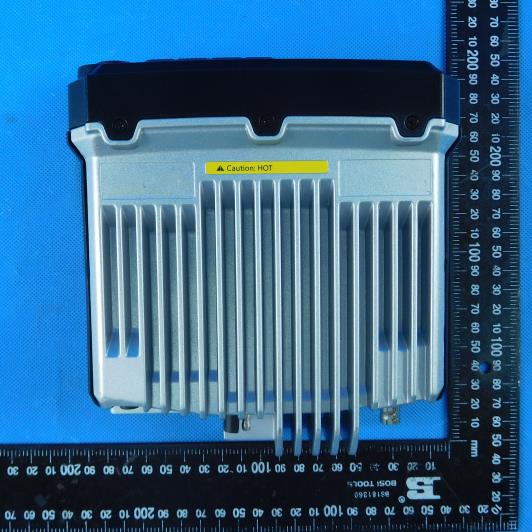

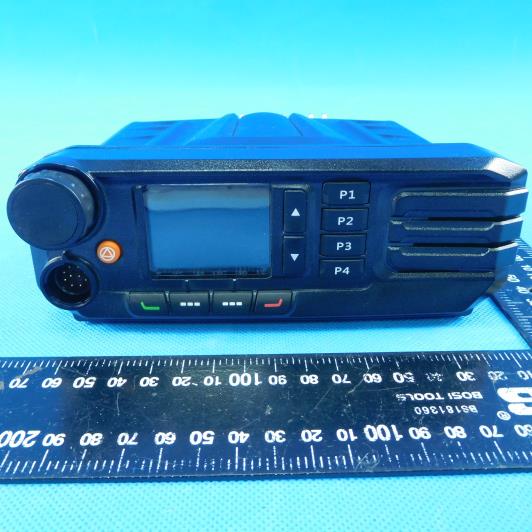

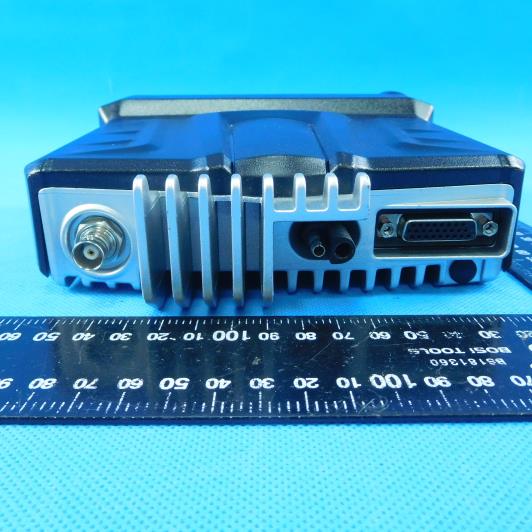

External Photos of the EUT

Internal Photos of the EUT

Page 1 of 11 MPE TEST REPORT Report No. ....................................... : CHTEW2104010801 Report verification Project No. ................................. : SHT2101077005EW FCC ID ............................................. : 2APPUD21000 Applicant’s name ........................... : A Beep, LLC Address ............................................. : 710 W JEFFERSON ST,Joliet, IL, 60435,United States Test item description .................... : Digital Mobile Radio Trade Mark ....................................... : Model/Type reference ....................... : D2-1000U Listed Model(s) ................................. : - Standard ......................................... : FCC Per 47 CFR 2.1091(b) Date of receipt of test sample.........: Feb.20, 2021 Date of testing.............................: Feb.20, 2021- Apr.20, 2021 Date of issue................................: Apr.21, 2021 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators Echo Wei Supervised by ( position+printed name+signature) .. : Project Engineer Aaron Fang Approved by ( position+printed name+signature) .. : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely corresponds to the test sample. Report No.: CHTEW2104010801 Page: 2 of 11 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1 T E S T S T A N D A R D S A N D REPOR T V E R S I O N 3 1.1. Test Standards 3 1.2. Report revised information 3 2 S U M M A R Y 4 2.1 Client Information 4 2.2 Product Description 4 2.3 Radio Specification Description 4 2.4 Testing Laboratory Information 5 3 T E S T C O N F I G U R A T I O N 6 3.1 Test frequency list 6 3.2 Operation mode 6 3.3 Support unit used in test configuration and system 6 3.4 Equipment Used during the Test 6 3.5 Applicable Standard 7 4 T E S T C O N D I T I O N S A N D R E S U L T S 8 4.1. Limit 8 4.2. MPE Calculation Method 8 4.3. Antenna Information 8 4.4. Measurement Procedure 9 4.5. Test Results 10 4.6. Conclusion 10 5 T E S T S E T U P P H O T O S O F T H E E U T 11 Report No.: CHTEW2104010801 Page: 3 of 11 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1 TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 1.1310: Radiofrequency radiation exposure limits. FCC Rules Part 1.1307: Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. FCC Rules Part 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies IEEE Std C95.1: 2005: “IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz”. FCC OET Bulletin 65, Edition 97-01: “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields”. FCC Supplement C to OET Bulletin 65, Edition 01-01: “Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emission”. IEEE Std C95.3: 2002: “IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields with Respect to Human Exposure to Such Fields,100 kHz – 300 GHz”, 1.2. Report revised information Revised No. Date of issued Description N/A 2021-04-21 Original Report No.: CHTEW2104010801 Page: 4 of 11 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2 SUMMARY 2.1 Client Information Applicant: A Beep, LLC Address: 710 W JEFFERSON ST,Joliet, IL, 60435,United States Manufacturer: A Beep, LLC Address: 710 W JEFFERSON ST,Joliet, IL, 60435,United States Factory: Shenzhen HQT Science & Technology Co., Ltd. Address: Room 1705 & 1706, 17th Floor, Weisheng Technology Building, No.9966, Shennan Road, Maling Community, Yuehai Sub-district, Nanshan District, Shenzhen City,China 2.2 Product Description Name of EUT: Digital Mobile Radio Trade mark: Model/Type reference: D2-1000U Listed model(s): - Power supply: DC 13.6V Hardware version: D2-1000CPS Software version: D2-1000U 2.3 Radio Specification Description Support Frequency Range: 400MHz~480MHz Permitted frequency range: * 1 400MHz~406MHz, 406.1MHz~480MHz Rated Output Power: High Power: 45W Low Power: 5W Modulation Type: Analog: FM Digital : 4FSK Supported Digital Protocol: * 2 DMR Channel Separation: Analog: 12.5kHz Digital : 6.25kHz 12.5kHz Emission Designator: * 3 Analog: 11K0F3E Digital: 7K60FXW, 7K60FXD Support data rate: 9.6kbps Antenna Type: External Report No.: CHTEW2104010801 Page: 5 of 11 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2.4 Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Connect information: Tel: 86-755-26715499 E-mail: [email protected] http://www.szh…

Text truncated - open the document above for the full version.

Page: 1 of 44 TEST REPORT Report No. ....................................... : CHTEW21040108 Report verification: Project No. ................................. : SHT2101077005EW FCC ID ............................................. : 2APPUD21000 Applicant’s name ........................... : A Beep, LLC Address ............................................ : 710 W JEFFERSON ST,Joliet, IL, 60435,United States Test item description ..................... : Digital Mobile Radio Trade Mark ....................................... : Model/Type reference ...................... : D2-1000U Listed Model(s) ................................. : - Standard .......................................... : FCC CFR Title 47 Part 90 Date of receipt of test sample.........: Feb.20, 2021 Date of testing.............................: Feb.20, 2021- Apr.20, 2021 Date of issue...............................: Apr.21, 2021 Result ................. ........................: PASS Compiled by (Position - Printed name - Signature): File administrators Echo Wei Supervised by (Position - Printed name - Signature): Project Engineer Aaron Fang Approved by (Position - Printed name - Signature): RF Manager Hans Hu Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................ : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21040108 Page: 2 of 44 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1 T E S T S T A N D A R D S A N D RE P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report revised information 3 2 T E S T D E S C R I P T I O N 4 3 S U M M A R Y 5 3.1 Client Information 5 3.2 Product Description 5 3.3 Radio Specification Description 5 3.4 Testing Laboratory Information 6 4 T E S T C O N F I G U R A T I O N 7 4.1 Test frequency list 7 4.2 Operation mode 7 4.3 Support unit used in test configuration and system 8 4.4 Environmental conditions 9 4.5 Measurement uncertainty 9 4.6 Equipments Used during the Test 10 5 T E S T C O N D I T I O N S A N D R E S U L T S 11 5.1 Conducted Carrier Output Power 11 5.2 99% Occupied Bandwidth & 26dB Bandwidth 12 5.3 Emission Mask 14 5.4 Modulation Limit 16 5.5 Audio Frequency Response 17 5.6 Frequency stability VS Temperature 19 5.7 Frequency stability VS Voltage 20 5.8 Transmitter Frequency Behavior 21 5.9 Transmit Conducted Spurious Emission 23 5.10 Transmitter Radiated Spurious Emission 24 6 T E S T S E T U P P H O T O S 37 7 E X T E R N A L A N D I N T E R N AL P H O T O S 39 7.1 External Photos of the EUT 39 7.2 Internal Photos of the EUT 42 8 A P P E N D I X R E P O R T 44 Report No.: CHTEW21040108 Page: 3 of 44 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1 TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 2: Frequency allocations and radio treaty matters; General rules and regulations FCC Rules Part 90: Private land mobile radio services. ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services ANSI/TIA-603-E(2016): Land Mobile FM or PM Communications Equipment and Performance Standards ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 1.2. Report revised information Revised No. Date of issued Description N/A 2021-04-21 Original Report No.: CHTEW21040108 Page: 4 of 44 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2 TEST DESCRIPTION Test Item Section in CFR 47 Result Test Engineer Conducted Carrier Output Power Part 90.205 Part 2.1046(a) Pass Zijian Li 99% Occupied Bandwidth & 26dB bandwidth Part 90.209 & 210 Part 2.1049 Pass Zijian Li Emission Mask Part 90.209 & 210 Part 2.1049 Pass Zijian Li Modulation Limit Part 2.1047(b) Pass Zijian Li Audio Frequency Response Part 2.1047(a) Pass Zijian Li Frequency Stability VS Temperature Part 90.213 Part 2.1055 Pass Zijian Li Frequency Stability VS Voltage Part 90.213 Part 2.1055 Pass Zijian Li Transient Frequency Behavior Part 90.214 Pass Zijian Li Transmit Conducted Spurious Emission Part 90.210 Part 2.1051 Pass Zijian Li Transmit Radiated Spurious Emission Part 90.210 Part 2.1053 Pass Zijian Li Report No.: CHTEW21040108 Page: 5 of 44 Issued: 2021-04-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3 SUMMARY 3.1 Client Information Applicant: A Beep, LLC Address: 710 W JEFFERSON ST,Joliet, IL, 60435,United States Manufacturer: A Beep, LLC Address: 710 W JEFFERSON ST,Joliet, IL, 60435,United States Factory: Shenzhen HQT Science & Technology Co., Ltd. Address: Room 1705 & 1706, 17th Floor, Weisheng Technology Building, No.9966, Shennan Road, Maling Community, Yuehai Sub-district, Nanshan District, Shenzhen City,China 3.2 Product Description Name of EUT: Digital Mobile Radio Trade mark: Model/Type reference: D2-1000U Listed model(s): - Power supply: DC 13.6V Hardware version: D2-1000CPS Software version: D2-1000U 3.3 Radio Specification Description Support Frequency Range: 400MHz~480MHz Permitted frequency range: * 1…

Text truncated - open the document above for the full version.

Appendix Report FCC PART 90 Test Form QRE315 V 3.1 (2019-11) Appendix clause Test Result (PASS/FAIL) APASS BPASS CPASS DPASS EPASS FPASS GPASS HPASS IPASS Auditor YPHT21010770001 Model No. DM-9800 2021/2/26 Finish date 2021/3/1 Frequency Stability Test & Temperature Frequency Stability Test & Voltage Test sample No. Start test date Emission Mask 59% Test Item Test date ˄M/D) Maximum Transmitter Power Temperature 21.9ć Humidity Test Engineer Project No. SHT2101077005EW 3/1 Transmitter Frequency Behavior Spurious Emission On Antenna Port 3/1 3/1 2/26 2/26 3/1 3/1 3/1 3/3 Modulation Limit Audio Frequency Response Occupied Bandwidth Appendix Page:1 of 36 Project No.:SHT2101077005EW Appendix A:Maximum Transmitter Power Operation Mode Modulation Type Test Channel Measured Power(dBm) Measured Power(W) Rated Power(W) Percentage (%) Limit (%)Result TX-DNH 4FSK CH L 47.0050.11945.011.4±20PASS TX-DNH 4FSK CH M1 47.0750.93345.013.2±20PASS TX-DNH 4FSK CH M2 47.0650.81645.012.9±20PASS TX-DNH 4FSK CH M3 47.2252.72345.017.2±20PASS TX-DNH 4FSK CH H 46.8348.19545.07.1±20PASS TX-DNL 4FSK CH L 37.615.7685.015.4±20PASS TX-DNL 4FSK CH M1 37.565.7025.014.0±20PASS TX-DNL 4FSK CH M2 37.635.7945.015.9±20PASS TX-DNL 4FSK CH M3 37.755.9575.019.1±20PASS TX-DNL 4FSK CH H 37.335.4085.08.2±20PASS TX-ANH FM CH L 46.7347.09845.04.7±20PASS TX-ANH FM CH M1 46.9449.43145.09.8±20PASS TX-ANH FM CH M2 46.8948.86545.08.6±20PASS TX-ANH FM CH M3 46.9349.31745.09.6±20PASS TX-ANH FM CH H 46.3443.05345.0-4.3±20PASS TX-ANLFM CH L 37.505.6235.012.5±20PASS TX-ANLFM CH M1 37.505.6235.012.5±20PASS TX-ANLFM CH M2 37.495.6105.012.2±20PASS TX-ANLFM CH M3 37.725.9165.018.3±20PASS TX-ANLFM CH H 37.325.3955.07.9±20PASS $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth 99%(kHz)26dB(kHz) TX-DNH4FSK CH L 7.5029.205 İ11.25 PASS TX-DNH4FSK CH M1 7.4469.214 İ11.25 PASS TX-DNH4FSK CH M2 7.4379.206 İ11.25 PASS TX-DNH4FSK CH M3 7.4669.231 İ11.25 PASS TX-DNH4FSK CH H 7.1869.162 İ11.25 PASS TX-DNL4FSK CH L 7.1939.184 İ11.25 PASS TX-DNL4FSK CH M1 7.3809.204 İ11.25 PASS TX-DNL4FSK CH M2 7.3389.195 İ11.25 PASS TX-DNL4FSK CH M3 7.5769.222 İ11.25 PASS TX-DNL4FSK CH H 7.4459.208 İ11.25 PASS TX-ANHFM CH L 9.94210.150 İ11.25 PASS TX-ANHFM CH M1 9.94110.150 İ11.25 PASS TX-ANHFM CH M2 9.92610.140 İ11.25 PASS TX-ANHFM CH M3 9.94410.160 İ11.25 PASS TX-ANHFM CH H 9.94310.150 İ11.25 PASS TX-ANLFM CH L 9.93910.150 İ11.25 PASS TX-ANLFM CH M1 9.93810.140 İ11.25 PASS TX-ANLFM CH M2 9.92910.140 İ11.25 PASS TX-ANLFM CH M3 9.93010.140 İ11.25 PASS TX-ANLFM CH H 9.94310.150 İ11.25 PASS Operation Mode Test Channel Occupied Bandwidth 99% Limit(kHz) Result Modulation Type $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TX-DNH4FSK CH L TX-DNH4FSK CH M1 TX-DNH4FSK CH M2 TEST PLOT RESULT $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH M3 TX-DNH4FSK CH H TX-DNL4FSK CH L $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH M1 TX-DNL4FSK CH M2 TX-DNL4FSK CH M3 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH H TX-ANHFM CH L TX-ANHFM CH M1 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M2 TX-ANHFM CH M3 TX-ANHFM CH H $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH L TX-ANLFM CH M1 TX-ANLFM CH M2 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH M3 TX-ANLFM CH H $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH 4FSK CH L TX-DNH 4FSK CH L TX-DNH 4FSK CH M1 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH 4FSK CH M1 TX-DNH 4FSK CH M2 TX-DNH 4FSK CH M2 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH 4FSK CH M3 TX-DNH 4FSK CH M3 TX-DNH 4FSK CH H $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH 4FSK CH H TX-DNL 4FSK CH L TX-DNL 4FSK CH L $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL 4FSK CH M1 TX-DNL 4FSK CH M1 TX-DNL 4FSK CH M2 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL 4FSK CH M2 TX-DNL 4FSK CH M3 TX-DNL 4FSK CH M3 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL 4FSK CH H TX-DNL 4FSK CH H TX-ANHFM CH L $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH L TX-ANHFM CH M1 TX-ANHFM CH M1 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M2 TX-ANHFM CH M2 TX-ANHFM CH M3 $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M3 TX-ANHFM CH H TX-ANHFM CH H $SSHQGL[3DJHRI Project No.:SHT2101077005EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH L TX-ANLFM CH L TX-ANLFM CH…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS
