2APQU-T2310Moxee T2310

Quick Guide | Guía Rápida T2310 Key Functions Home Recent Apps Back Front Camera Volume Power Button Rear Camera Flash 1 1 2 2 3 4 5 5 6 7 7 8 8 64 3 Power On/Off Used to power on/off the device and to lock the screen. • Long press the power button to power on • While the phone is powered on, press the power button and volume + simultaneously to access the power off menu VolumeAdjusts the ringer volume, call volume, and multimedia volume. HomeThe home button pauses any current action and returns to the home screen. Recent AppsOpens a list of recently opened applications that allows you to switch conveniently between them. This option can also close any open applications by swiping to the side. BackReturns to the previous screen; Closes the keyboard, any open program, or any menu option. USB PortCharges the device and transfers data such as documents, music, and video between your device and a PC. Headset PortConnect earphones to this port for hands-free capabilities. You may also to listen to music or FM radio. Front CameraA high-resolution front camera to take pictures and video. This option is ideal for self-portraits. Rear CameraA high-resolution rear camera to take pictures and video. FlashProvides light for pictures in low-light conditions. 修改 项数 描述 日期 变更人 1 变更符号 > Plastic CNC Stamping Silicon Gasket& Adhesive Angle 0 5 10 5 30 120 ~ 120 30 10 ` 0.05 ` 0.07 ` 0.10 ` 0.12 ` 0.15 ` 0.03 ` 0.05 ` 0.05 ` 0.07 ` 0.10 ` 0.10 ` 0.10 ` 0.15 ` 0.15 ` 0.20 ` 0.10 ` 0.10 ` 0.15 ` 0.25 ` 0.30 ` 0.15 ` 0.15 ` 0.15 ` 0.15 ` 0.15 0-180 ~ ` 0.5 ~ 未注公差表 XXXXXXX 1:1 V0.1 深圳天珑移动 技术有限公司 零件名称物料图号物料编号 材料 处理 单位 绘图 检查 批准 日期日期日期 比例 版本 页码 尺寸 A3 杨凡 肖安文肖安文 1 第三视角 SIZE:A3 特别说明：*本文属天珑机密文件，未经允许禁止外泄！* 1 A B C D E F 2 3 4 5 6 7 8 A B C D E F 1 2 3 4 5 6 7 8 20230303 20230303 20230303 SIM2 SIM1 Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when carrying, installing, or taking out the SIM card. Note: Please contact your cellular phone service provider directly to obtain your SIM card. To insert SIM card(s): Eject the SIM/SD card holder using the SIM removal tool. Insert/Remove SIM & SD Card SIM 1SIM 2 When you initially power on your Tablet, there will be a series of steps to set up basic features. Insert SIM Insert your SIM card so the tablet can register to the network. Select language While on the Welcome screen, please scroll to select your language. In this step, you also have the option to adjust Vision Settings such as magnification, font, and display size. Select WI-FI This step allows the device to connect to the internet. Click on the desired Wi- Fi network that the device that will be connected. Please note that any unsecured Wi-Fi networks can be connected to without credentials and any secured Wi-Fi networks require a password for credentials prior to connection. It is recommended that you connect to a Wi-Fi network to check for software updates prior to startup to avoid any data overages. Copy apps & data This step allows you to select transfer options such as applications, pictures, music and more from a previous device. You may also setup as new if you choose not to from a previous device. Add your account Sign into your Google account in order to keep accounts streamlined with Google services. Your account will be used for Google programs such as Google Play, Google Drive, Google+ and Google Pay. If you do not have a Google account, click to create a new account. If the device is not recognized by your Google account, you will have to complete a security verification. Google services Click to add or remove Google services that include Backup and Restore, Location Service, Install Updates and Apps. Finalize setup The last step allows you to set up Google Assistant and Google Pay. It also allows you to add another email address. You can also control what information is visible through the tablet lock screen and lets you also review any additional apps. You may skip this step and setup later. Configuration Google, Google Play and other marks are trademarks of Google LLC. Approved firmware versions This device will only operate with firmware versions that have been approved for use by your wireless carrier and the device manufacturer. If unauthorized firmware is placed on the device, it will not function. Information about safeguarding handsets. The wireless carrier and device manufacturer encourages customers to take appropriate measures to secure their handsets and invites them to take advantage of the features available on this handset to help secure it from theft and/or other unauthorized access and use. This handset has a locking function (e.g., user-defined codes or patterns) that can serve as a first line of defense against unauthorized use or access to stored information. Preloaded security applications that allow customers to track or locate misplaced devices can be found on several devices. Lost or stolen devices should be immediately reported to your wireless carrier so that proper measures can be taken to protect accounts. For additional information, visit your wireless carrier’s website for privacy policies. Additional information Use may require qualifying service. Device and screen images simulated. Coverage not available in some areas. See Terms and Conditions (including arbitration provision) at your wireless carrier website, for rate plan information, charges for features and services, and restrictions and details. Safety • Electrical equipment may be susceptible to electromagnetic interference. Position the device away from electronic equipment to avoid potential interference. • Consult a medical physician prior to using the device near any medical devices which may be affected, such as hearing aids and pacemakers. • Do not use your device where there are explosive gases or explosive products being processed. • Aftermarket accessories may affect device performance or devic…

Text truncated - open the document above for the full version.

Rev 1/26/2023 KonnectONE Inc. 40 Lake Bellevue, Suite 340, Bellevue, WA 98005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05-11-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code: 2APQU-T2310 KonnectONE Inc. (“Jesus Garsilaso”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0027501725 Name: KonnectONE Inc. Address: 40 Lake Bellevue, Suite 340, Bellevue, WA 98005 Contact Person: Jesus Garsilaso Tel.: 001-(956) 534-5323 Email: [email protected] Sincerely, KonnectONE Inc. Jesus Garsilaso _______________________________ DocuSign Envelope ID: E9575923-799D-4A48-9934-4DBEA665751E Director of Product Management. May 15, 2023

Rev 1/26/2023 KonnectONE Inc. 40 Lake Bellevue, Suite 340, Bellevue, WA 98005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05-11-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2APQU-T2310 KonnectONE Inc. (“Jesus Garsilaso”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, _____________________________ Contact Person: Jesus Garsilaso E-mail: [email protected] DocuSign Envelope ID: 1E2CF374-CB62-412C-9F55-F13299340EB9 Rev 1/26/2023 KonnectONE Inc. 40 Lake Bellevue, Suite 340, Bellevue, WA 98005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 05-11-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2APQU-T2310 KonnectONE Inc. (“Jesus Garsilaso”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, _____________________________ Contact Person: Jesus Garsilaso E-mail: [email protected] DocuSign Envelope ID: 1E2CF374-CB62-412C-9F55-F13299340EB9

Rev 11/20/07 KonnectONE Inc. 40 Lake Bellevue, Suite 340, Bellevue, WA 98005 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2APQU-T2310. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Parts List Operational Description Tune up Software operational & meet 15.407 requirement description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 180days: External Photos, Internal Photos, Test Setup Photos User Manual Sincerely, _____________________________ Contact Person: Jesus Garsilaso E-mail: [email protected] DocuSign Envelope ID: 5CA23485-F0A5-4C6E-BF9A-BCE685E49800

KonnectONE Inc. 40 Lake Bellevue, Suite 340, Bellevue, WA 98005 Power of Attorney Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: October 11, 2022 SUBJECT: FCC Application for (2APQU-T2310) To Whom It May Concern: We, the undersigned, hereby authorize Peter Tan at SGS-CSTC STANDARDS TECHNICAL SERVICES (XI 'AN) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SGS- CSTC STANDARDS TECHNICAL SERVICES (XI 'AN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Must be signed by the person that is listed on the FCC Website) _____________________________ Contact Person: Jesus Garsilaso E-mail: [email protected] DocuSign Envelope ID: C2CC4846-06F5-408E-A2DB-191E8E829413

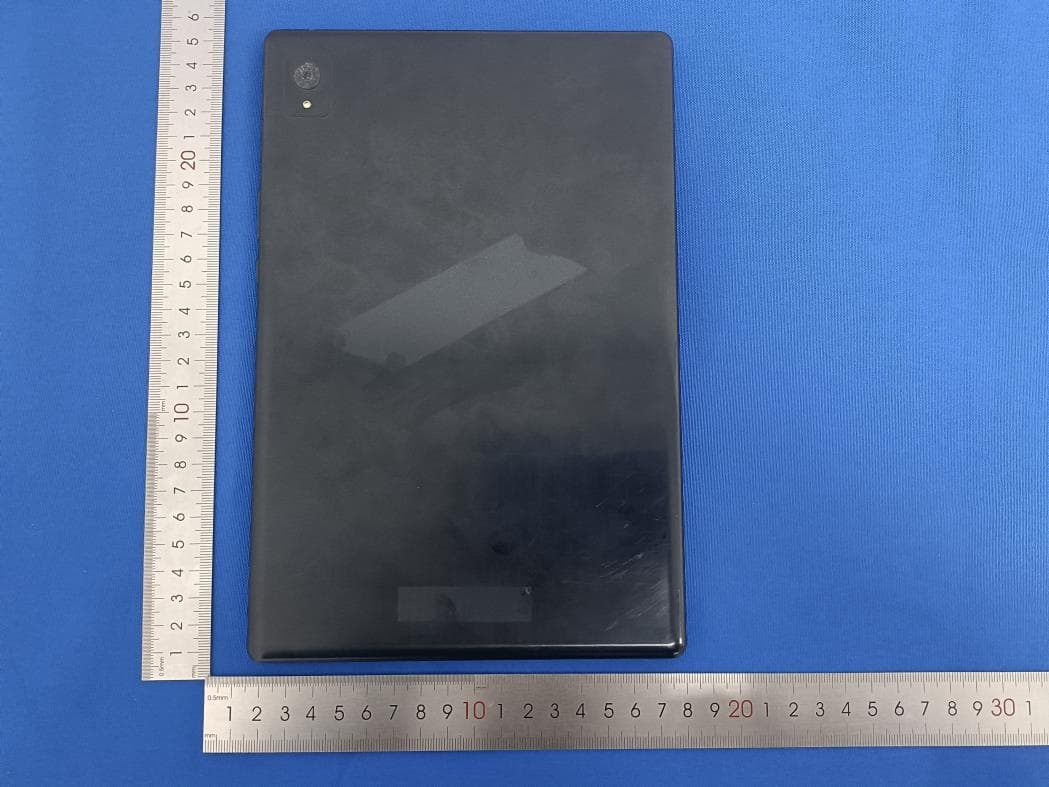

Page 1 of 3 1 Photographs - EUT Constructional Details Page 2 of 3 Page 3 of 3

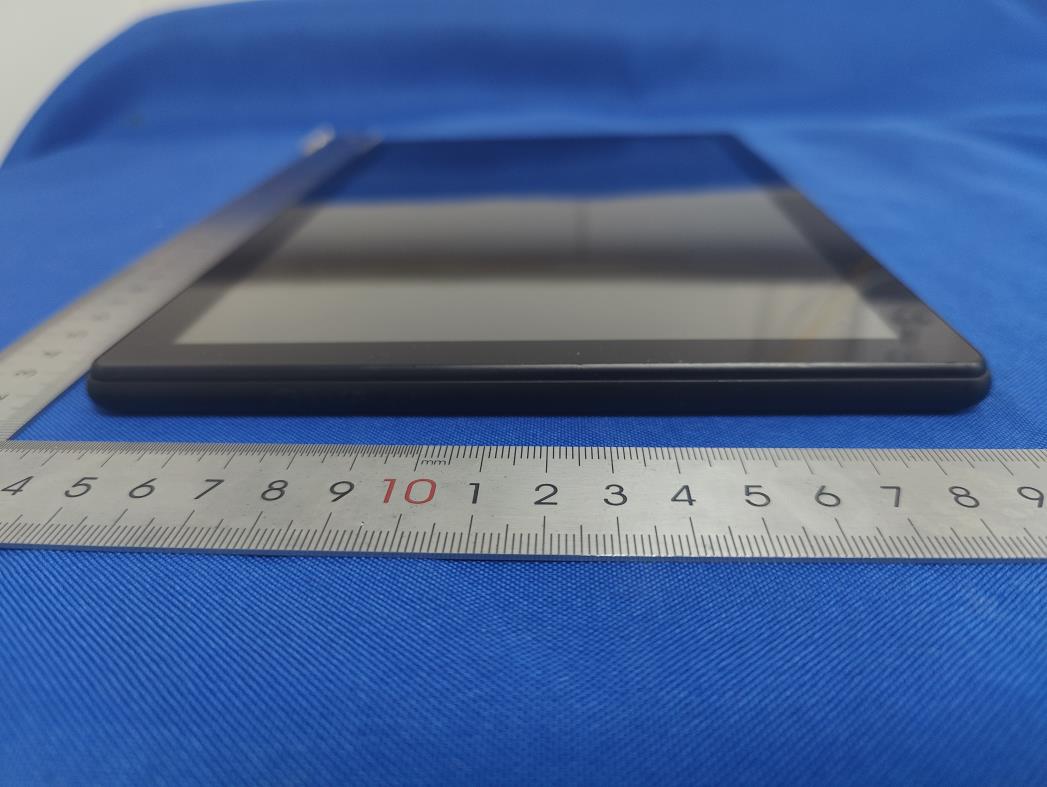

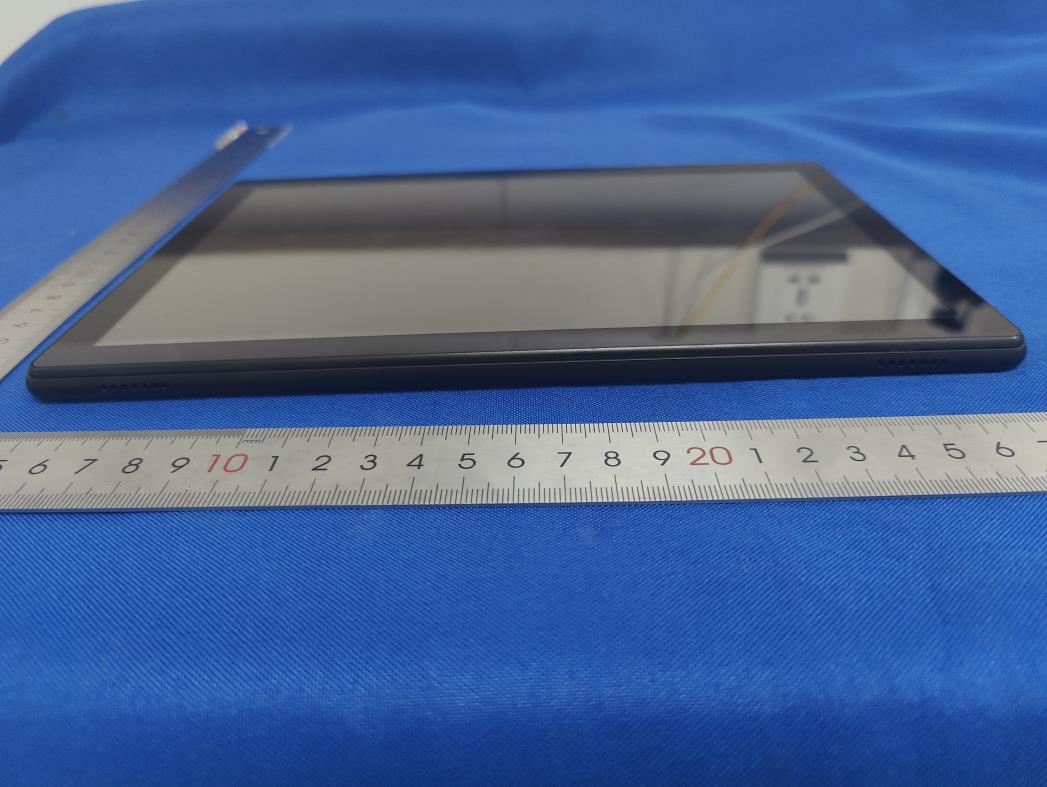

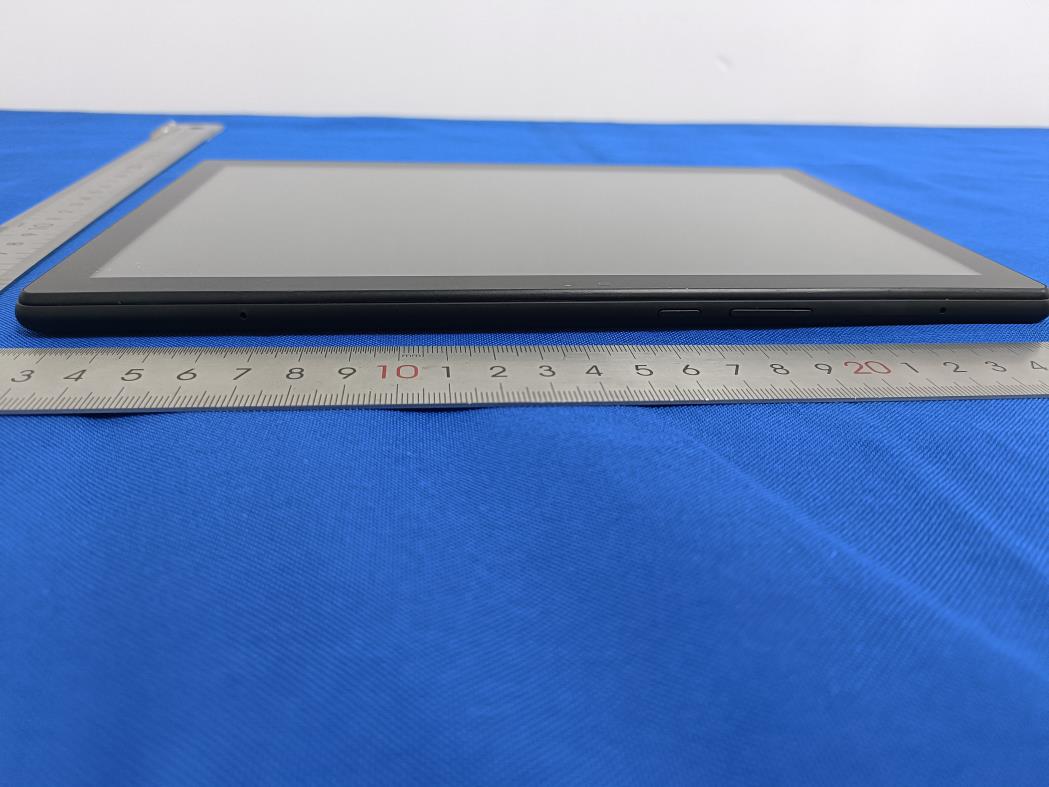

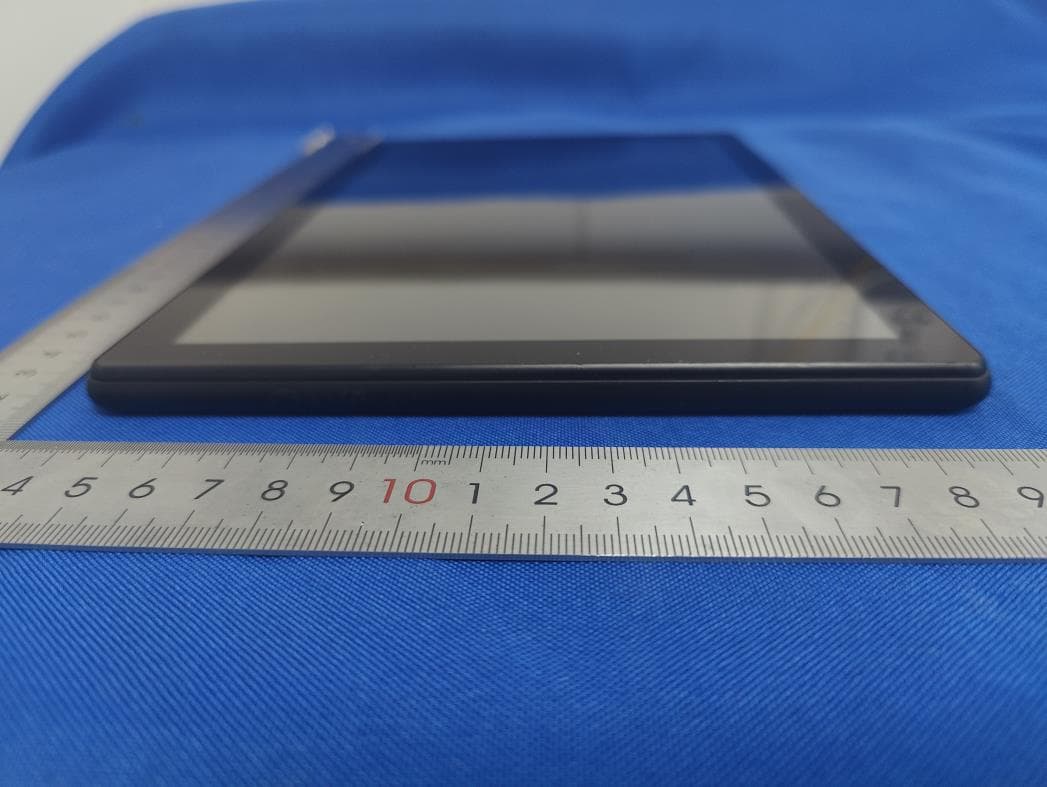

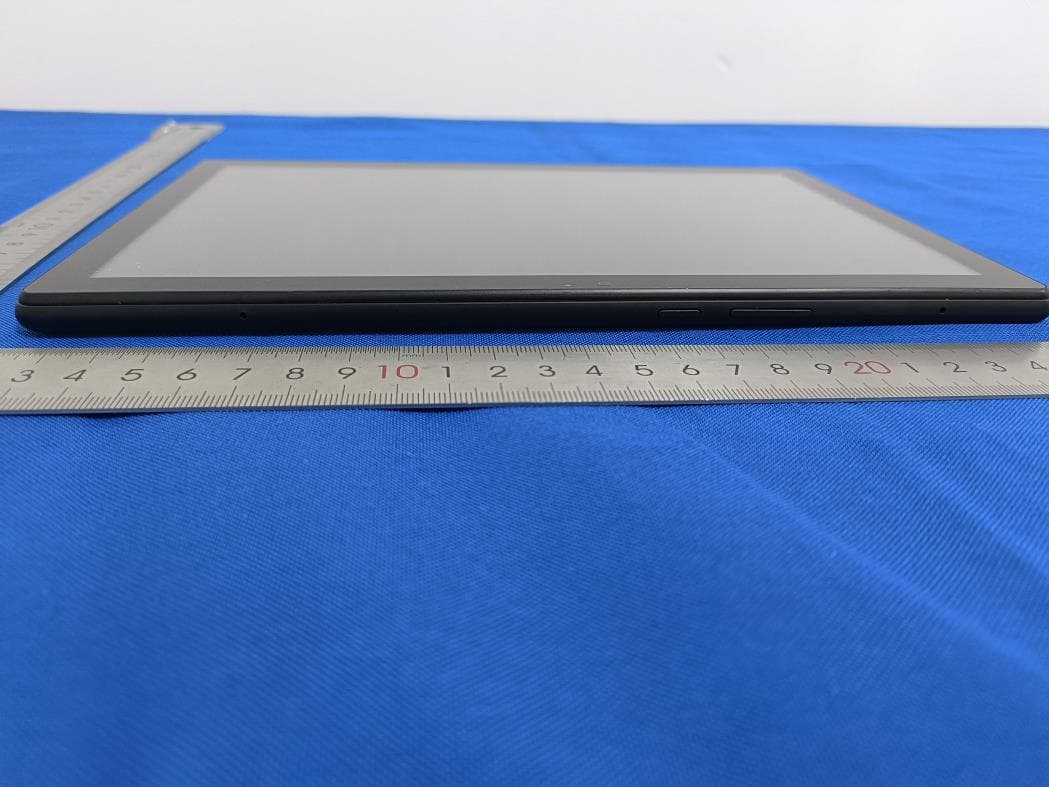

Page 1 of 6 1 Photographs - EUT Constructional Details Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

Report No.: XEWM2303000130RG06 Appendix A Detailed System Check Results 1. System Performance Check System Performance Check 750 MHz Head System Performance Check 835 MHz Head System Performance Check 1750 MHz Head System Performance Check 1900 MHz Head System Performance Check 2450 MHz Head System Performance Check 5250 MHz Head System Performance Check 5600 MHz Head System Performance Check 5750 MHz Head Date: 2023/5/7 Test Laboratory: SGS-SAR Lab System Performance Check 750 MHz DUT: D750V3; Type: Dipole; Serial: 1214 Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL750;Medium parameters used: f = 750 MHz; σ = 0.891 S/m; ε r = 42.746; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(10.1, 10.1, 10.1); Calibrated: 2022/5/26 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=15mm, Pin=250mW/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.49 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.48 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 2.06 W/kg; SAR(10 g) = 1.38 W/kg Maximum value of SAR (measured) = 2.74 W/kg 0 dB = 2.49 W/kg = 3.97 dBW/kg Date: 2023/5/6 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz DUT: D835V2; Type: Dipole; Serial: 4d161 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.911 S/m; ε r = 41.59; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.35, 10.35, 10.35); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE3 Sn414; Calibrated: 2023/1/30 Phantom: SAM 8; Type: SAM; Serial: 1824 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=15mm, Pin=250mW/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.54 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.44 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.43 W/kg SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.90 W/kg 0 dB = 2.54 W/kg = 4.04 dBW/kg Date: 2023/5/9 Test Laboratory: SGS-SAR Lab System Performance Check 1750 MHz DUT: D1750V2; Type: Dipole; Serial: 1038 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL1750;Medium parameters used: f = 1750 MHz; σ = 1.374 S/m; ε r = 39.406; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(8.75, 8.75, 8.75); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE3 Sn414; Calibrated: 2023/1/30 Phantom: SAM 8; Type: SAM; Serial: 1824 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.70 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 81.17 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 15.2 W/kg SAR(1 g) = 8.45 W/kg; SAR(10 g) = 4.57 W/kg Maximum value of SAR (measured) = 12.9 W/kg 0 dB = 9.70 W/kg = 9.87 dBW/kg Date: 2023/5/8 Test Laboratory: SGS-SAR Lab System Performance Check 1900MHz DUT: D1900V2; Type: Dipole; Serial: 5d028 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900;Medium parameters used: f = 1900 MHz; σ = 1.396 S/m; ε r = 40.201; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(8.16, 8.16, 8.16); Calibrated: 2022/5/26 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.7 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 81.44 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 17.2 W/kg SAR(1 g) = 9.61 W/kg; SAR(10 g) = 5.16 W/kg Maximum value of SAR (measured) = 14.4 W/kg 0 dB = 11.7 W/kg = 10.67 dBW/kg Date: 2023/5/10 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz DUT: D2450V2; Type: Dipole; Serial: 922 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2450 MHz; σ = 1.801 S/m; ε r = 37.754; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(7.95, 7.95, 7.95); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE3 Sn414; Calibrated: 2023/1/30 Phantom: SAM 8; Type: SAM; Serial: 1824 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 18.4 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.79 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 25.0 W/kg SAR(1 g) = 12.5 W/kg; SAR(10 g) = 5.87 W/kg Maximum value of SAR (measured) = 20.6 W/kg 0 dB = 18.4 W/kg = 12.65 dBW/kg Date: 2023/5/11 Test Laboratory: SGS-SAR Lab System Performance Check D5.25GHz DUT: D5GHzV2; Type: Dipole; Serial: 1174 Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL5250;Medium parameters used: f = 5250 MHz; σ = 4.609 S/m; ε r = 35.918; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(5.4, 5.4, 5.4); Calibrated: 2022/5/26 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/1…

Text truncated - open the document above for the full version.

Report No.: XEWM2303000130RG06 Appendix B Detailed Test Results GSM850 for Body GSM1900 for Body WCDMA Band II for Body WCDMA Band IV for Body WCDMA Band V for Body LTE Band 12 for Body LTE Band 25 for Body LTE Band 26 for Body LTE Band 66 for Body LTE Band 71 for Body WIFI 2.4G for Body WIFI 5G for Body BT for Body Date: 2023/5/6 Test Laboratory: SGS-SAR Lab T2310 GSM850 GPRS 2TS 251CH Back side 0mm DUT: T2310; Type: Moxee T2310; Serial: 350119040000857 Communication System: UID 0, GPRS/EGPRS Mode(2up) Communication System (0); Frequency: 848.8 MHz;Duty Cycle: 1:4.14954 Medium: HSL835;Medium parameters used: f = 849 MHz; σ = 0.925 S/m; ε r = 41.313; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.35, 10.35, 10.35); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE3 Sn414; Calibrated: 2023/1/30 Phantom: SAM 8; Type: SAM; Serial: 1824 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.49 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.799 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 2.11 W/kg SAR(1 g) = 0.988 W/kg; SAR(10 g) = 0.538 W/kg Maximum value of SAR (measured) = 1.53 W/kg 0 dB = 1.49 W/kg = 1.73 dBW/kg Date: 2023/5/8 Test Laboratory: SGS-SAR Lab T2310 GSM1900 GPRS 4TS 512CH Back side 0mm DUT: T2310; Type: Moxee T2310; Serial: 350119040000857 Communication System: UID 0, GPRS/EGPRS Mode(4up) Communication System (0); Frequency: 1850.2 MHz;Duty Cycle: 1:2.0797 Medium: HSL1900;Medium parameters used: f = 1850.2 MHz; σ = 1.353 S/m; ε r = 40.348; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(8.16, 8.16, 8.16); Calibrated: 2022/5/26 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.61 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.782 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 2.08 W/kg SAR(1 g) = 0.881 W/kg; SAR(10 g) = 0.401 W/kg Maximum value of SAR (measured) = 1.58 W/kg 0 dB = 1.61 W/kg = 2.06 dBW/kg Date: 2023/5/8 Test Laboratory: SGS-SAR Lab T2310 WCDMA Band II 9538CH Back side 0mm DUT: T2310; Type: Moxee T2310; Serial: 350119040000857 Communication System: UID 0, WCDMA (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: HSL1900;Medium parameters used: f = 1908 MHz; σ = 1.403 S/m; ε r = 40.227; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(8.16, 8.16, 8.16); Calibrated: 2022/5/26 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.11 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.9830 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 2.05 W/kg SAR(1 g) = 0.887 W/kg; SAR(10 g) = 0.400 W/kg Maximum value of SAR (measured) = 1.24 W/kg 0 dB = 1.11 W/kg = 0.45 dBW/kg Date: 2023/5/9 Test Laboratory: SGS-SAR Lab T2310 WCDMA Band IV 1513CH Back side 0mm DUT: T2310; Type: Moxee T2310; Serial: 350119040000857 Communication System: UID 0, WCDMA (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL1750;Medium parameters used: f = 1753 MHz; σ = 1.37 S/m; ε r = 39.389; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(8.75, 8.75, 8.75); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE3 Sn414; Calibrated: 2023/1/30 Phantom: SAM 8; Type: SAM; Serial: 1824 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.02 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.211 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 2.02 W/kg SAR(1 g) = 0.929 W/kg; SAR(10 g) = 0.447 W/kg Maximum value of SAR (measured) = 1.28 W/kg 0 dB = 1.02 W/kg = 0.09 dBW/kg Date: 2023/5/6 Test Laboratory: SGS-SAR Lab T2310 WCDMA Band V 4182CH Back side 0mm DUT: T2310; Type: Moxee T2310; Serial: 350119040000857 Communication System: UID 0, WCDMA (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 836.4 MHz; σ = 0.913 S/m; ε r = 41.687; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.35, 10.35, 10.35); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE3 Sn414; Calibrated: 2023/1/30 Phantom: SAM 8; Type: SAM; Serial: 1824 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (5x5x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.22 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.936 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.70 W/kg SAR(1 g) = 0.791 W/kg; SAR(10 g) = 0.465 W/kg Maximum value of SAR (measured) = 0.998 W/kg 0 dB = 1.22 W/kg = 0.86 dBW/kg Date: 2023/5/7 Test Laboratory: SGS-SAR Lab T2310 LTE Band 12 10M QPSK 1RB25 23130CH Back side 0mm DUT: T2310; Type: Moxee T2310; Serial: 350119040000857 Communication System: UID 0, LTE-FDD BW 10MHZ (0); Frequency: 711 MHz;Duty Cycle: 1:1 Medium: HSL750;Medium parameters used: f = 711 MHz; σ = 0.829 S/m; ε r = 43.316; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 -…

Text truncated - open the document above for the full version.

Dipole D750V3 SN 1214 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2022-02-07 -28.3 / 53.2 / 2023-0 2-06 -28.1 0.71% 52.9 0.3Ω Dipole D835V2 SN 4d161 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-08-28 -27.1 / 52.8 / 2022-08-27 -27.6 1.85% 52.1 0.7Ω Dipole D1750V2 SN 1038 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2021-12-16 -36.6 / 51.0 / 2022-12-15 -36.8 0.55% 50.6 0.4Ω Dipole D2450V2 SN 922 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-08-27 -24.7 / 56.0 / 2022-08-27 -25.2 2.02% 55.2 0.8Ω Dipole D5GHzV2 SN 1174 5250MHz Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-08-27 -23.3 / 46.7 / 2022-08-27 -23.8 2.15% 46.1 0.6Ω 5600MHz Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-08-27 -26.1 / 55.1 / 2022-08-27 -26.7 2.30% 54.5 0.6Ω 5750MHz Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-08-27 -26.6 / 51.5 / 2022-08-27 -27.2 2.26% 50.8 0.7Ω

Report No.: XEWM2303000130RG06 Appendix C Calibration certificate 1. Dipole D750V3-SN 1214 D835V2-SN 4d161 D1750V2-SN 1038 D1900V2-SN 5d028 D2450V2-SN 922 D5GHzV2-SN 1174 2. DAE DAE3-SN 414 DAE4-SN 1327 3. Probe EX3DV4-SN 3923 EX3DV4-SN 3962

SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2303000130RG06 Page : 1 of 115 Authorized Signature: Peter Tan Regulatory Technical Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. FCC SAR TEST REPORT Application No.: XEWM2303000130RG Applicant: KonnectONE Inc. Manufacturer: KonnectONE Inc. Product Name: Moxee T2310 Model No.(EUT): T2310 Trade Mark: Moxee FCC ID: 2APQU-T2310 Standards: FCC 47CFR §2.1093 Date of Receipt: 2023-04-10 Date of Test: 2023-05-06 to 2023-05-11 Date of Issue: 2023-05-12 Test Result: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2303000130RG06 Page: 2 of 115 REVISION HISTORY Report Number Revision Description Issue Date XEWM2303000130RG06 01 Original 2023-05-12 Prepared By Yuan Zhao Reviewed by Mark Liu SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2303000130RG06 Page: 3 of 115 TEST SUMMARY Frequency Band Test position Max Report SAR1-g (W/kg) SAR limit (W/kg) GSM850 Body 1.15 1.60 GSM1900 Body 1.29 1.60 WCDMA Band II Body 1.24 1.60 WCDMA Band IV Body 1.30 1.60 WCDMA Band V Body 1.04 1.60 LTE Band 2 Body 1.29 1.60 LTE Band 4 Body 1.38 1.60 LTE Band 5 Body 1.09 1.60 LTE Band 12 Body 1.32 1.60 LTE Band 17 Body 1.32 1.60 LTE Band 25 Body 1.29 1.60 LTE Band 26 Body 1.09 1.60 LTE Band 66 Body 1.38 1.60 LTE Band 71 Body 1.39 1.60 WI-FI (2.4GHz) Body 1.19 1.60 WI-FI (5GHz) Body 1.06 1.60 BT Body 0.39 1.60 Maximum Simultaneous Transmission SAR (W/kg) Scenario Body Sum SAR 1.53 SPLSR 0.02 SPLSR Limited 0.04 Note: 1) According to TCB workshop October,2014 RF Exposure Procedures Update (Overlapping Bands): SAR for LTE Band2(Frequency range:1850 - 1910 MHz)/LTE Band 4(Frequency range:1710 - 1755 MHz)/LTE Band 5(Frequency range:824 - 849 MHz MHz)/LTE Band 17(Frequency range:704 - 716 MHz MHz) is respectively covered by LTE Band 25 (Frequency range:1850 - 1915 MHz)/ LTE Band 66 (Frequency range:1710 - 1780 MHz)/LTE Band 26 (Frequency range:814 - 849 MHz)/LTE Band 12 (Frequency range: 699 - 716 MHz) due to similar frequency range, same maximum tune up limit and same channel bandwidth. 2) The Simultaneous transmission SAR is the same test position of the WWAN antenna + WiFi/BT antenna. SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2303000130RG06 Page: 4 of 115 CONTENTS 1 GENERAL INFORMATION .....................................................................................................................................7 1.1 Details of Client..............................................................................................................................................7 1.2 Test Location..................................................................................................................................................7 1.3 Test Facility ....................................................................................................................................................8 1.4 General Description of EUT .........................................................................................................................9 1.5 Test Specification ........................................................................................................................................ 10 1.6 RF exposure limits ...................................................................................................................................... 11 2 SAR MEASUREMENTS SYSTEM CONFIGURATION ...................................................................................... 12 2.1 The SAR Measurement System ................................................................................................................ 12 2.2 Isotropic E-field Probe EX3DV4 ................................................................................................................ 13 2.3 Data Acquisition Electronics (DAE) ......................................................................................................... 14 2.4 SAM Twin Phantom ..................................................................................................................................... 14 2.5 ELI Phantom ................................................................................................................................................. 15 2.6 Device Holder for Transmitters ................................................................................................................. 16 2.7 Measurement procedure ............................................................................................................................ 17 2.7.1 Scanning procedure .................................................................................................................................. 17 2.7.2 Data Storage ............................................................................................................................................. 19 2.7.3 Data Evaluation by SEMCAD..............................................................................................................…
