2APRE-JH-803L2Headphone

Headphone UserManual 1.Productfunctioninstructions ①“+”:Volumeup/Nextsong ②“-”:Volumedown/Previoussong ③””:Poweron/off,Musicplay/pause ④3.5mmjack ⑤Bluetoothindicator,chargingindicator，LEDlighton/off ⑥Type-Cchargingport ⑦Microphone ⑧Call/EQswitch 2.Productoperationinstructions 2.1Poweron/off Poweron:Pressandhold“”around2secondsuntiltheblueindicatorwillbeon3 seconds,thentheredandblueindicatorblinksalternately,itwillbepairingstatus; Poweroff:Pressandhold“”around2seconds,theredindicatorwillbeonaround1second andgoesoff. 2.2Pairing TurnontheBluetoothswitchofthemobilephoneorotherdevices(suchasPC,Tabletetc),and enterintotheBluetoothlist,searchforthepairingname“JH-803L2”; Whenseeingthepairingname“JH-803L2”onthelist,clickittoconnecttheheadsetwithyour device;Oncepairedsuccessfully,theblueindicatorwouldblinksevery6seconds. 2.3EQmodeswitch Thereare3differentEQmodesforoption,theyare:Bassmode,Popmodeandvocalmode. Whenplayingmusic,clickthe⑧buttontoswitchdifferentEQmode. 2.4Musicplaying Volumeup:Clickthe①buttontoincreasevolume Volumedown:Clickthe②buttontodecreasevolume Nextsong:Pressandholdthe①buttonaround2seconds Previoussong:Pressandholdthe②buttonaround2seconds Musicplay/pause:Clickthe③button 2.5Calling(Mobile) Answercall:Clickthe⑧buttonwhencalliscoming Endcall:Clickthe⑧buttonwhencallisover Cancelcall:Clickthe⑧buttonwhencalling Rejectcall:Pressandholdthe⑧buttonaround2secondswhencalliscoming Redial:Doubleclickthe⑧buttontorediallastcallnumber 2.6Reset: Pressandholdthe“+”and”-”buttonatthesametimearound3secondsuntiltheredandblue indicatorblinksalternately. 2.7Siriorgoogleassistant: Instandbymodeormusicmode,Pressandholdthe⑧buttonaround2seconds 2.8.LEDlighton/off LEDindicatoron/off:Doubleclickthe“”button 3.Bluetoothindicatorinstructions ConnectsuccessfullyTheblueindicatorblinksevery6seconds PairingstatusTheredandblueindicatorblinkalternately ResetTheredandblueindicatorblinkalternately ListentomusicTheblueindicatorblinksevery6seconds ChargefullyTheindicatorwillbeoff PoweroffTheredindicatorwillbeonaround1secondthengoesoff ChargingTheindicatorwillbesolidred 5.AUXmode Connectoneendofthe3.5mmaudiocableintotheaudiojackoftheheadset ； Connecttheotherendintoyourmobilephonesorotherdevice,thencanplaymusicdirectly Note:Theheadphonewillbepoweroffonceplugthe3.5mmaudiocableintoaudiojack(When headphoneispoweron),the3.5mmaudiocablemustbetakenoutfromtheheadphoneifneed toturnontheheadphone 6.Charginginstruction Beforeusing,pleasecheckandassurethebatteryisenough. Whiletheheadphoneisinlowbattery,pleaseuseType-Cchargingcabletochargeandthe chargingindicatorwillberedwhencharging.Onceit’sfullycharged,theindicatorwillbeoff. 7.Techni cal pa rameters Model nameJH-803L2 Bluetooth versionV5.3 Working distance>10m Fr equency response2402-2480MHz Input Voltage Charging tim DC 5V,0.5A eAbout 2H Charging portType-C Sp eaker driver unitΦ 40 mm,32 Ω 8.FAQ 7.1 Headphone can’t be turned on Please ensure the battery is enough. 7.2 Pairing failure Please ensure the headphone is in power on and pairing status, and the mobile or other device locates within 1 m range; And then redo again. 7.3 Connect automatically The headphone will automatically connect the mobile or other devices which used last time 7.4 So und cut off/stuck Check whether the mobile or other devices locates valid range (10m) and whether there are obstacles be tween the headphone and mobile . 7.5 Charging way Please ensure the charging adaptor is DC 5V/1A,or Car charger or power bank to charge the headphone. FCC Statement 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause und esired operation. 2.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note:This equipment has been tested and found to comply with the limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.if this equipmemt does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHENZHEN JIUHU TECHNOLOGY CO., LTD 2024-08-23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2APRE-JH-803L2) [SHENZHEN JIUHU TECHNOLOGY CO., LTD ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ji xia General manager SHENZHEN JIUHU TECHNOLOGY CO., LTD 4F, HE Sheng Teng Tech Industrial Park, HuanGuan South Road.10 Guanlan, LongHua, ShenZhen, 518110 China SHENZHEN JIUHU TECHNOLOGY CO., LTD 2024-08-23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2APRE-JH-803L2) [SHENZHEN JIUHU TECHNOLOGY CO., LTD ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, ji xia General manager SHENZHEN JIUHU TECHNOLOGY CO., LTD 4F, HE Sheng Teng Tech Industrial Park, HuanGuan South Road.10 Guanlan, LongHua, ShenZhen, 518110 China

Attestation Statements (2023/12/13) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (GC: 2APRE) (SHENZHEN JIUHU TECHNOLOGY CO., LTD), the undersigned, hereby authorize Wilson Tech Service LLC to act as our designated U.S. agent for service of process, (SHENZHEN JIUHU TECHNOLOGY CO., LTD) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Wilson Tech Service LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: SHENZHEN JIUHU TECHNOLOGY CO., LTD Contact Name: Ji Xia Address: 4F, HE Sheng Teng Tech Industrial park, HuanGuan South Road.10 Guanlan, LongHua, Shenzhen, 518110 China FRN:0027506252 Telephone No: 0755-36633515 Email: [email protected] Signature [Ji Xia] U.S. Agent Information: Company Name: Wilson Tech Service LLC Address: 1312 17th Street Suite 692, Denver, CO, 80202, US FRN: 0033402033 Contact Name: Wilson Cheung Telephone No: +1-716-965-5112 Email: [email protected] Signature [Wilson Cheung]

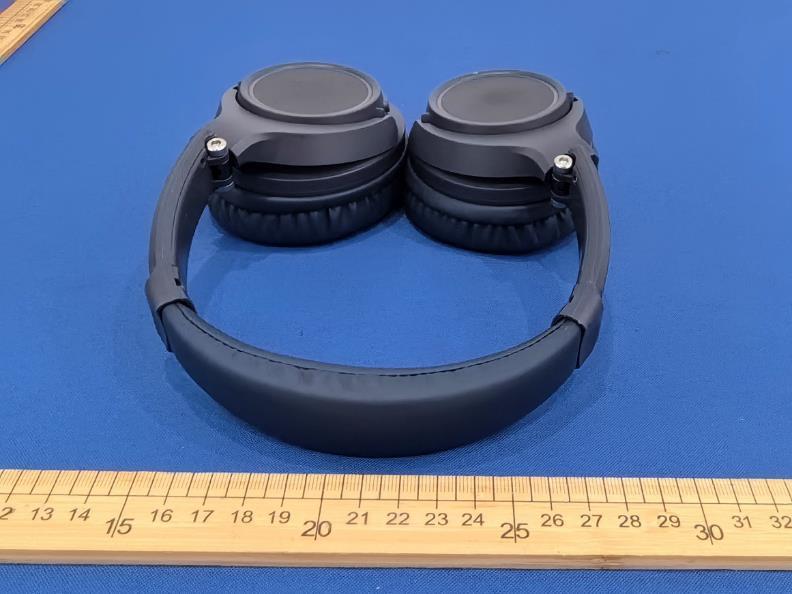

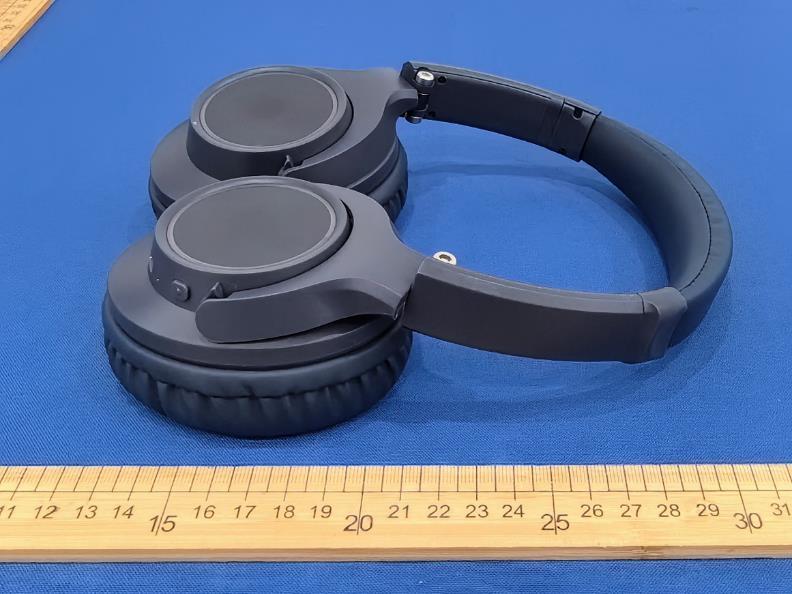

External

右耳壳JH-803L2 丝印图 日期： 2024.08.14 比例： 颜色：冷灰7C 7.7MM
    
      R R L 7.0MM L

Internal 2.4GHz Bluetooth Antenna

RF EXPOSURE EVALUATION EUT Specification EUT Headphone Model Number JH-803L2 Serial Model JH-803L2-BT, JH-803, EMBT-01 Model Difference Note: Name differences only. FCC ID 2APRE-JH-803L2 Antenna gain (Max) -0.58 dBi Operation Frequency 2402-2480MHz Rating DC 5V 0.5A Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK, π/4-DQPSK, 8DPSK Max. output power BR + EDR: 3.43 dBm(2.203 mW) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. BR + EDR: The Product unsupported at the same time to Transmitting. According to KDB 447498, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2024-08-20 Transmit Frequency (MHz) Mode Measur ed Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR 2441 8DPSK 3.43 3±1 4 0.784899 3

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DSS) TEST REPORT For Headphone MODEL NUMBER: JH-803L2, JH-803L2-BT, JH-803, EMBT-01 REPORT NUMBER: E04A24061049F01301 ISSUE DATE: August 20, 2024 FCC ID: 2APRE-JH-803L2 Prepared for SHENZHEN JIUHU TECHNOLOGY CO., LTD 4F, HE Sheng Teng Tech Industrial Park, HuanGuan South Road.10 Guanlan, LongHua, ShenZhen, 518110 China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A24061049F01301 Page 2 of 111 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 August 20, 2024 Initial Issue REPORT NO.: E04A24061049F01301 Page 3 of 111 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Complianc e AC Power Line Conducted Emission ANSI C63.10-2013 Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2013 Clause 7.8.5 FCC Part 15.247 (b)(1) Pass 20 dB Bandwidth ANSI C63.10-2013 Clause 6.9.2 FCC Part 15.247 (a)(1) Pass Carrier Hopping Channel Separation ANSI C63.10-2013 Clause 7.8.2 FCC Part 15.247 (a)(1) Pass Number of Hopping Frequency ANSI C63.10-2013 Clause 7.8.3 FCC Part 15.247 (b)(1) Pass Time of Occupancy (Dwell Time) ANSI C63.10-2013 Clause 7.8.4 FCC Part 15.247 (a)(1) Pass Conducted Bandedge and Spurious Emission ANSI C63.10-2013 Clause 6.10.4 & Clause 7.8.8 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013 Clause 6.3 & 6.5 & 6.6 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DSS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A24061049F01301 Page 4 of 111 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM EIRP ....................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. EUT ACCESSORY ................................................................................................. 10 5.8. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 5.9. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth ..................................................................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 16 7.4. Number of Hopping Frequency ............................................................................... 18 7.5. Time of Occupancy (Dwell Time) ............................................................................ 19 7.6. Conducted Bandedge and Spurious Emission ........................................................ 21 7.7. Duty Cycle .............................................................................................................. 23 8. RADIATED TEST RESULTS ............................................................................................... 24 8.1. Radiated Band edge and Spurious Emission .......................................................... 30 9. ANTENNA REQUIREMENT ................................................................................................ 42 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 43 11. TEST DATA - Appendix A ..................................................................................…
