Smart Light User Manual Model: WL-35W 1. Introduction Thanks to use our WL-35W series smart LED Light and before using it, please read this manual carefully for reference. SAFETY & MAINTAINANCE WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions listed below may Result in electric shock, fire, and/or serious injury. SAVE THESE INSTRUCTIONS ★This appliance is for indoor use only ★Strictly prohibit disassembling this device without authorization. ★Strictly prohibit placing this device near high magnetic field, which will damage it and make it can’t work well. ★Strictly prohibit making the device exposed to the rain or becoming damp. ★Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. ★There may be no naked part when the plug is in the socket. ★Prevent children from direct use of this Product. ★Please pull out the plug before clearing this Product using dry cloth. ★Please deal with the scrap device according to related rule. CAUTION! THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE;WHEN THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL BE REPLACED RF exposure statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Cet équipement est conforme à l'exemption des limites d'évaluation habituelle de la section 2.5 de la norme RSS-102. Il doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et toute partie de votre corps. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 1. Product Overview 2.KEY function description Mode/Dim:Press Mode/Dim key to select white light luminance level or enter RGB mode. 3. How to use the product White light Mode: Press Mode/Dim key on the top for a ① Mode/Dim ② DC 12V input 2. Light/SNO OZE 3. Passive Speaker 4. +12V DC input 5. Active short time to select white light luminance level between Low/Middle/High/Offmode. RGB light Mode:Press Mode/Dim key on the top for a long time to switch RGB light mode,the light color automatic working cycle,press Mode/Dim key for a short time to select current color and press Mode/Dim key for a long time again to exit RGB mode. 4. How to use smart home function 4.1. The smart light supports linkage via mobile device to Smart Control Network, like Amazon Echo series, Google Home etc. 4.1.How to use mobile devices to control the Smart Light. 4.1.1Download TUYA APP from Apple APP Store or Google Play Store, or scan the QR code below. 4.1.2 Prepare for paring: Open the TUYA app, register and login. Click the “+” button on the upper-right coner to add device, and click “all devices” button, click “ lighting devices ” button to enter paring mode. 4.1.3 Paring: Pressing the Mode/Dim Key on the top of the light (longer than 10 seconds), the light will be change the mode between “white light mode/RGB light Mode/Smart paring mode(white light flashing)/Compatibility paring mode(Red light flash). The white light flashing means the smart paring mode is activated. User can pare and add device or rename device. Note: I. Smart Mode:White Light Flash II. Compatibility mode:Red light flash III. If you want tocancel or exit paring,Pressing the Mode/Dim Key on the top of the light (longer than 10 seconds until the white light turn on again and stop flash. 4.1.4 Device linkage or anto control are available by Scene Setup on the mobile device via TUYA APP. Remark: Device linkage function needs TUYA Smart control compatible. 4.2 Use Amazon Echo series for Alexa voice control. 4.2.1 Install the Amazon Echo APP 4.2.2 Connect the Amazon Echo and the Smart Light in the same network in Echo APP 4.2.3 In “ SKILL” section, search device with the name of “TUYA SMART ” to add the light that already been named in TUYA APP. 4.2.4 Now you can use voice command to control the smart light via Amazon Echo. Voice command examples: Alexa, discover my smart home devices Alexa, turn on the “device name” Alexa, turn off the “device name” Alexa, set the “device name” to red Alexa, change the “device name” to the color blue Alexa, make the “device name” warm white Alexa, increas…

Text truncated - open the document above for the full version.

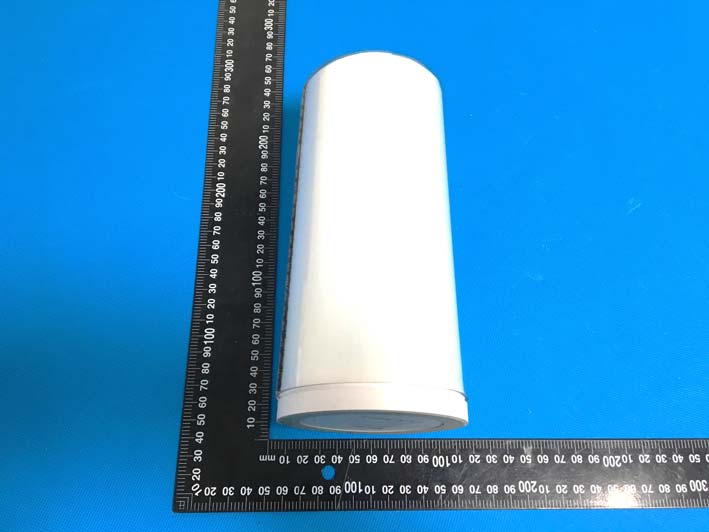

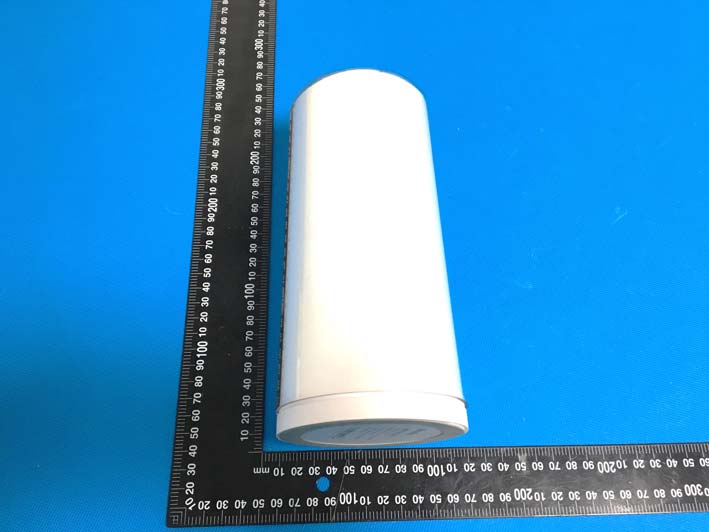

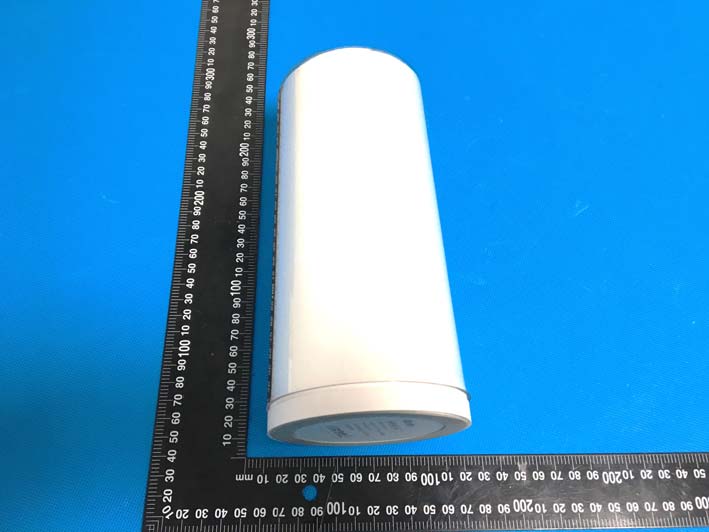

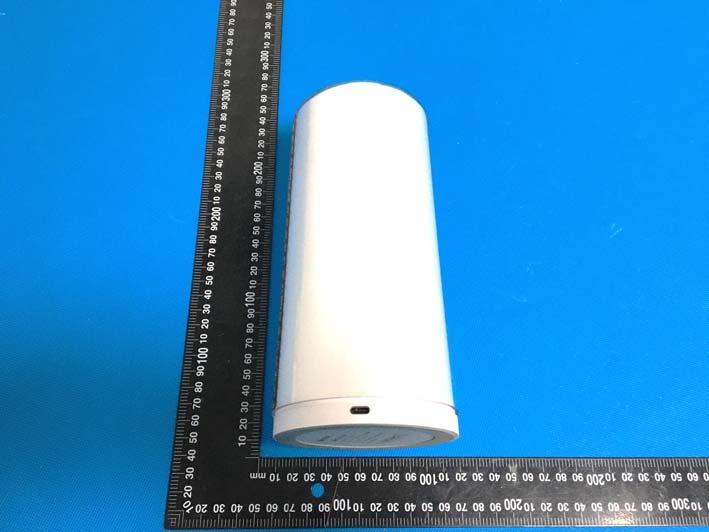

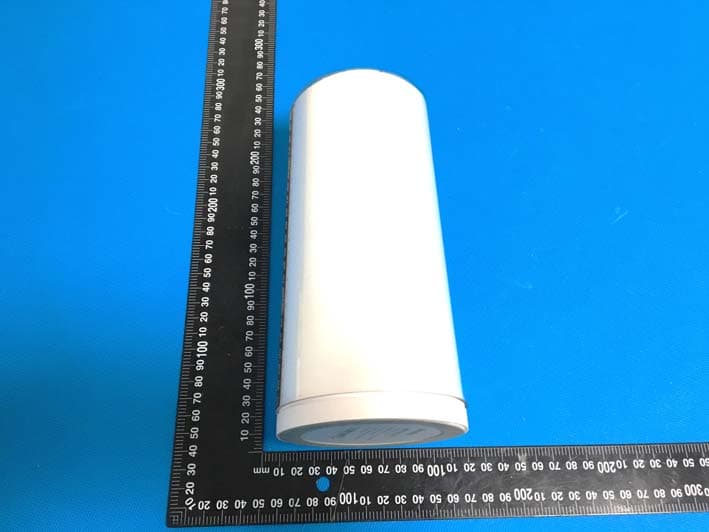

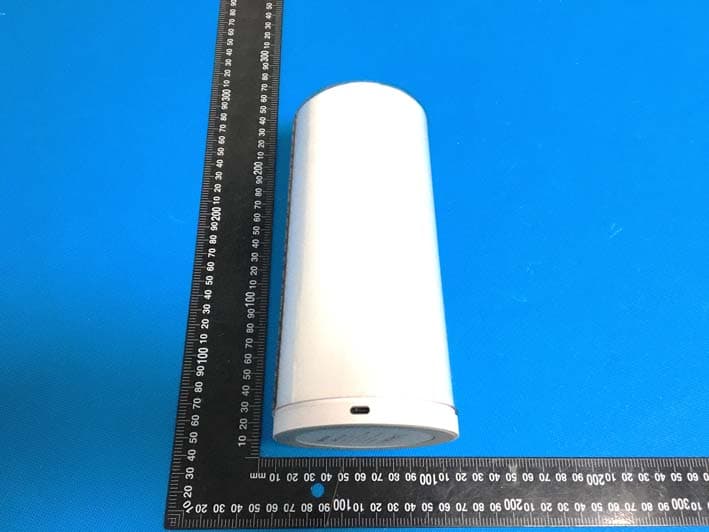

Reference No.: WTX21X04040864W-1 Page 2 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X04040864W-1 Page 3 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X04040864W-1 Page 4 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX21X04040864W-1 Page 5 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX21X04040864W-1 Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Product Name: Smart light Model No.: WL-35W Trade Name: E-safe FCC ID: 2APT2WL-35W Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X04040864W-1 Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX21X04040864W-1 Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX21X04040864W-1 Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX21X04040864W-1 Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: E-safe Technology Limited Address of applicant: Room316,Block B,Baoyuan huafeng Economic Building, Xixiang Avenue,Bao’an District,Shenzhen,Guangdong China 518130 Manufacturer: E-safe Technology Limited Address of manufacturer: Room316,Block B,Baoyuan huafeng Economic Building, Xixiang Avenue,Bao’an District,Shenzhen,Guangdong China 518130 General Description of EUT: Product Name: Smart light Trade Name: E-safe Model No.: WL-35W Adding Model(s): / Rated Voltage: DC12V Power Adapter MODEL: K12V120060U INPUT: AC100-240V, 50/60Hz, 0.35A OUTPUT: DC12V, 0.6A FCC ID: 2APT2WL-35W Technical Characteristics of EUT: Support Standards: 802.11b, 802.11g, 802.11n Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) RF Output Power: 15.92dBm (Conducted) Type of Modulation: DBPSK,BPSK,DQPSK,QPSK,16QAM Quantity of Channels: 11 for 802.11b/g/n(HT20) Channel Separation: 5MHz Type of Antenna: PCB Antenna Antenna Gain: 2.5dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result Maximum Tune-Up output power: 16(dBm) Maximum peak output power at antenna input terminal: 39.81 (mW) Prediction distance: >20(cm) Prediction frequency: 2462 (MHz) Antenna gain: 2.5 (dBi) Directional gain (numeric gain): 1.78 The worst case is power density at prediction frequency at 20cm: 0.0141 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 56 TEST REPORT Reference No. ....................: WTX21X04040864W-1 FCC ID ............................... .: 2APT2WL-35W Applicant .......................... .: E-safe Technology Limited Address ............................ .: Room316,Block B,Baoyuan huafeng Economic Building, Xixiang Avenue,Bao’an District,Shenzhen,Guangdong China 518130 Product Name .................. .: Smart light Test Model. ....................... .: WL-35W Standards ......................... .: FCC Part 15.247 Date of Receipt sample ... .: Apr.28, 2021 Date of Test....................... .: Apr.28, 2021 to May.12, 2021 Date of Issue .................... .: May.12, 2021 Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X04040864W-1 Page 2 of 56 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. ANTENNA REQUIREMENT ................................................................................................................................ 11 3.1 STANDARD APPLICABLE ....................................................................................................................................... 11 3.2 EVALUATION INFORMATION ................................................................................................................................ 11 4. POWER SPECTRAL DENSITY ........................................................................................................................... 12 4.1 STANDARD APPLICABLE ....................................................................................................................................... 12 4.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 12 4.3 TEST PROCEDURE ................................................................................................................................................. 12 4.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 5. DTS BANDWIDTH ................................................................................................................................................. 13 5.1 STANDARD APPLICABLE ....................................................................................................................................... 13 5.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 13 5.3 TEST PROCEDURE ................................................................................................................................................. 13 5.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 6. RF OUTPUT POWER ............................................................................................................................................ 14 6.1 STANDARD APPLICABLE ....................................................................................................................................... 14 6.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 14 6.3 TEST PROCEDURE ................................................................................................................................................. 14 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. FIELD STRENGTH OF SPURIOUS EMISSIONS .....................................................................................…
