2APTA-FA-24AG-T100Portable Audio Guide Transmitter

User manual Manufacturer: FLUENT AUDIO INC Address: 8362 TAMARACK VILLAGE SUITE# 119-252 WOODBURY, MINNESOTA 55125 USA  1. POWER ON/OFF button 2. Language button 3. Play/Pause button 4. Volume and channel buttons 5. Backward and Forward buttons OPERATIONS 1. POWER ON Press the PWR button to turn on the transmitter. It takes a few seconds for the transmitter to read the mp3 files. After reading the mp3 files, the display will show the current mp3 file number then you may start use the transmitter. 2. NORMAL SETUP Press the LANGUAGE button to scroll through the language list. Press the Volume UP or Volume Down button to adjust the volume. Press digits 0-9 to input the mp3 number (001-999). Press the >II (play/stop) button to play or stop a mp3 file. Press the>>I or I IRUZDUGRUEDFNZDUG button to forward or backward. 3. CHANNEL SETUP In OFF status, press the Volume Down and POWER button to enter channel setting page. Then press the Volume UP or Volume Down buttons to change the channel. 4. LED Status Green: Power ON Blue: Receiving signal from transmitter Red: charging Red off: charging complete )&&:$51,1* 7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&UXOHV2SHUDWLRQLVVXEMHFWWR WKHIROORZLQJWZRFRQGLWLRQV  WKLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG  WKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJLQWHUIHUHQFH WKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ 1RWH7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRU D&ODVV%GLJLWDOGHYLFHSXUVXDQWWRSDUWRIWKH)&&5XOHV7KHVHOLPLWV DUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQ DUHVLGHQWLDOLQVWDOODWLRQ7KLVHTXLSPHQWJHQHUDWHVXVHVDQGFDQUDGLDWH UDGLRIUHTXHQF\HQHUJ\DQGLIQRWLQVWDOOHGDQGXVHGLQDFFRUGDQFHZLWKWKH LQVWUXFWLRQVPD\FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRFRPPXQLFDWLRQV +RZHYHUWKHUHLVQRJXDUDQWHHWKDWLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODU LQVWDOODWLRQ,IWKLVHTXLSPHQWGRHVFDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRU WHOHYLVLRQUHFHSWLRQZKLFKFDQEHGHWHUPLQHGE\WXUQLQJWKHHTXLSPHQWRII DQGRQWKHXVHULVHQFRXUDJHGWRWU\WRFRUUHFWWKHLQWHUIHUHQFHE\RQHRU PRUHRIWKHIROORZLQJPHDVXUHV ²5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD ²,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU ²&RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWR ZKLFKWKHUHFHLYHULVFRQQHFWHG ²&RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS &DXWLRQ&KDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\ UHVSRQVLEOHIRUFRPSOLDQFHFRXOGYRLG\RXUDXWKRULW\WRRSHUDWHWKH HTXLSPHQW 5DGLDWLRQ([SRVXUH6WDWHPHQW 7KHGHYLFHKDVEHHQHYDOXDWHGWRPHHWJHQHUDO5)H[SRVXUHUHTXLUHPHQW 7KHGHYLFHFDQEHXVHGLQSRUWDEOHH[SRVXUHFRQGLWLRQZLWKRXWUHVWULFWLRQ

Differences Description We FLUENT AUDIO INC state: Product name: Portable Audio Guide Transmitter Model: FA-24AG-T100, OEM-24AG1PT, OEM-24AG2PT, OEM-24AG3PT, OEM-24AG4PT, OEM-24AG5PT, OEM-24AG6PT, OEM-24AG7PT, OEM-24AG8PT, OEM-24AG9PT, ARG-TXAG2400BP All model’s the software and electric circuit are the same, only with the appearance color and model name different. Signature: Signatory Name JOE VAUGHAN Position CEO Company Name FLUENT AUDIO INC Address 8362 TAMARACK VILLAGE SUITE# 119-252 WOODBURY, MINNESOTA 55125 USA Tel (800) 826-2677 Fax (800) 272-1819 Email [email protected]

2020-01-08 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2APTA-FA-24AG-T100 Product Name: Portable Audio Guide Transmitter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name JOE VAUGHAN Position CEO Company Name FLUENT AUDIO INC Address 8362 TAMARACK VILLAGE SUITE# 119-252 WOODBURY, MINNESOTA 55125 USA Tel (800) 826-2677 Fax (800) 272-1819 Email [email protected]

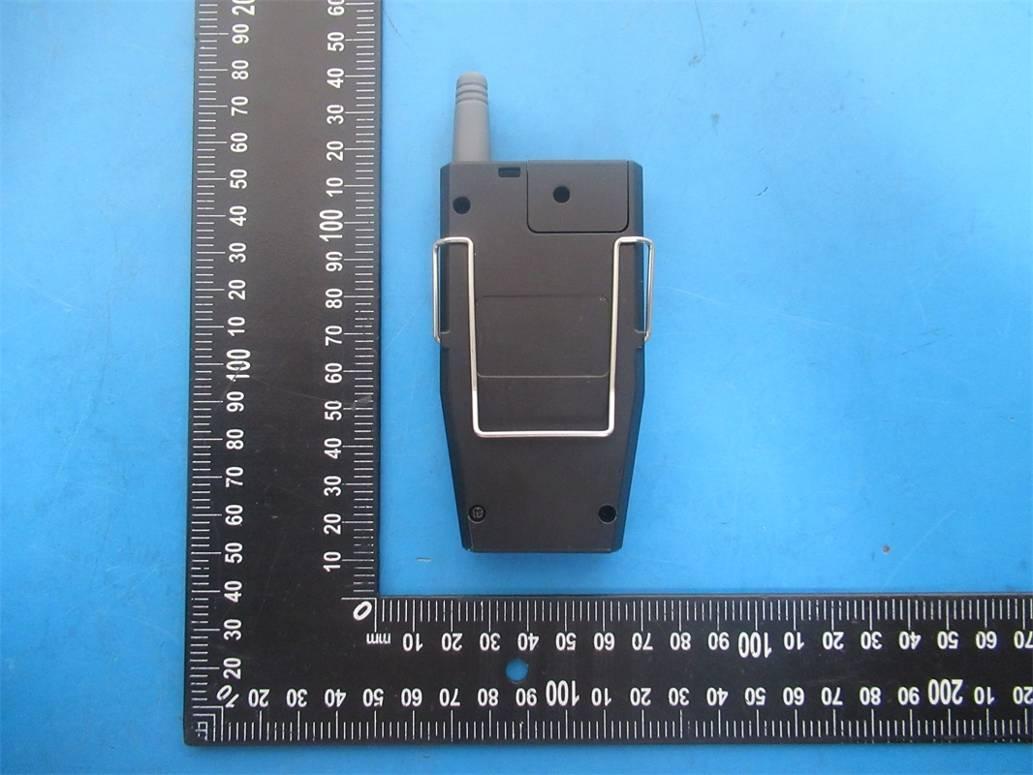

FCC ID: 2APTA-FA-24AG-T100

Size: 2 cm (L)*1cm (W) FCC ID: 2APTA-FA-24AG-T100 Model name: Portable Audio Guide Transmitter Model No.: FA-24AG-T100 Location

FCC ID: 2APTA-FA-24AG-T100 2.4G Antenna

FCC ID: 2APTA-FA-24AG-T100 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. The result is rounded to one decimal place for comparison. eirp = p t x g t = (E x d) 2 /30 where: p t = transmitter output power in watts, g t = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 , d = measurement distance in meters (m)--- 3m. So p t = (E x d) 2 /(30 x g t ) Worse case is as below: Field strength = 98.90 dBuV/m @3m Ant gain 1 dBi; so Ant numeric gain=1.26 So p t ={[10 (98.90/20) /10 6 x3] 2 /(30x1.26)}x1000mW =1.85mW So (1.85mW/5mm)x √2.480GHz = 0.58<3.0 for 1-g SAR Then SAR evaluation is not required.
