2APU5-WPC900Fast Wireless Charger

201216 Steven WPC900-SMS-JMT001 WPC900 70431-0167-01 Fast Wireless Charger Instruction Manual Please read the following carefully before using the device to ensure safe and proper use. . This charger works with all Qi-compatible devices (please make sure your device is Qi-compatible) . For normal operati on, no weaker than DC 5V, 2A adapter is required. . For fast wireless charging mode, use the QC 2.0/QC 3.0or PD adapter and compatible smartphones. . This wireless charger can charge smartphones with non-metal protective case or silicone covers that are no thicker than 6mm. Connect the USB cable(included) to a power outlet rated at DC 5V/2A or 9V/2A, the Type-C plug to the Type-C input of the wireless charger. Place your Qi compatible phone with inductive (wireless) charge feature onto the charger (back of phone to charger), then wireless charging of the phone will start immediately. Note- only devices which support Qi wireless charge technology can be wirelessly charged from this charger, please check your device specifications. some phone cases do not support Wireless Charging due to the thickness and design. If your phone is compatible with Wireless Charging and you are unable to charge it wirelessly, please remove your phone case and retry. Caution: Do not drop, disassemble or modify this product. Do not expose this product to fire or excessive heat. Do not expose this product to water or excessive humidity. Do not put any bare metal on the surface area of the wirel ess charger when it is operating. . Wireless Charger . USB A to USB-C fast charging cable . User Manual . Input: DC 5V,2A/ DC 9V,2A . Output: 5W/7.5W/10W/15W . Charging Distance≤6mm Package Content Specifications Instructions General information i Wireless Charger Instruction Manual Please read the following carefully before using the device to ensure safe and proper use. . This charger works with all Qi-compatible devices (please make sure your device is Qi-compatible) . For normal operati on, no weaker than DC 5V, 2A adapter is required. . For fast wireless charging mode, use the QC 2.0/QC 3.0or PD adapter and compatible smartphones. . This wireless charger can charge smartphones with non-metal protective case or silicone covers that are no thicker than 6mm. Connect the USB cable(included) to a power outlet rated at DC 5V/2A or 9V/2A, the Type-C plug to the Type-C input of the wireless charger. Place your Qi compatible phone with inductive (wireless) charge feature onto the charger (back of phone to charger), then wireless charging of the phone will start immediately. Note- only devices which support Qi wireless charge technology can be wirelessly charged from this charger, please check your device specifications. some phone cases do not support Wireless Charging due to the thickness and design. If your phone is compatible with Wireless Charging and you are unable to charge it wirelessly, please remove your phone case and retry. Caution: Do not drop, disassemble or modify this product. Do not expose this product to fire or excessive heat. Do not expose this product to water or excessive humidity. Do not put any bare metal on the surface area of the wirel ess charger when it is operating. . Wireless Charger . USB A to USB-C fast charging cable . User Manual . Input: DC 5V,2A/ DC 9V,2A . Output: 5W/7.5W/10W/15W . Charging Distance≤6mm Package Content Specifications Instructions General information i Wireless Charger Instruction Manual Please read the following carefully before using the device to ensure safe and proper use. . Wireless Charger . USB A to USB-C fast charging cable . User Manual . Input: DC 5V,2A/ DC 9V,2A . Output: 5W/7.5W/10W/15W . Charging Distance≤6mm Package Content Specifications General information i . This charger works with all Qi-compatible devices (please make sure your device is Qi-compatible) . For normal operati on, no weaker than DC 5V, 2A adapter is required. . For fast wireless charging mode, use the QC 2.0/QC 3.0or PD adapter and compatible smartphones. . This wireless charger can charge smartphones with non-metal protective case or silicone covers that are no thicker than 6mm. Connect the USB cable(included) to a power outlet rated at DC 5V/2A or 9V/2A, the Type-C plug to the Type-C input of the wireless charger. Place your Qi compatible phone with inductive (wireless) charge feature onto the charger (back of phone to charger), then wireless charging of the phone will start immediately. Note- only devices which support Qi wireless charge technology can be wirelessly charged from this charger, please check your device specifications. some phone cases do not support Wireless Charging due to the thickness and design. If your phone is compatible with Wireless Charging and you are unable to charge it wirelessly, please remove your phone case and retry. Caution: Do not drop, disassemble or modify this product. Do not expose this product to fire or excessive heat. Do not expose this product to water or excessive humidity. Do not put any bare metal on the surface area of the wirel ess charger when it is operating. Instructions FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi…

Text truncated - open the document above for the full version.

JMTek Industries(Shenzhen) co., Ltd Model Difference Product description: Fast Wireless Charger Model name: WPC900 WPC900B, WPC900W Trade Name: JMTEK FCC ID: 2APU5-WPC900 All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : Cici Jiang ( GM) Contact information / address: 14G, Innovation Tech Building, Quanzhi Science and Technology innovation Park, ShaJing Street, Bao'an District, ShenZhen, China

C5266091_X8_Ed.1 1/1 Letter of Authorization <JMTek Industries(Shenzhen) co., Ltd> Company:JMTek Industries(Shenzhen) co., Ltd Address:14G, Innovation Tech Building, Quanzhi Science andTechnology innovationPark, ShaJing Street, Bao'an District, ShenZhen, China Product Name: Fast Wireless Charger Model Number: WPC900 WPC900B, WPC900W FCC Identifier: 2APU5-WPC900 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name:Cici Jiang Date: 2021-02-01 Title: GM Signature of applicant:

C5266091_X10_Ed.1 1/1 <JMTek Industries(Shenzhen) co., Ltd> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-02 -01 Subject: Request for Confidentiality FCC ID: 2APU5-WPC900 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Cici Jiang Title: GM

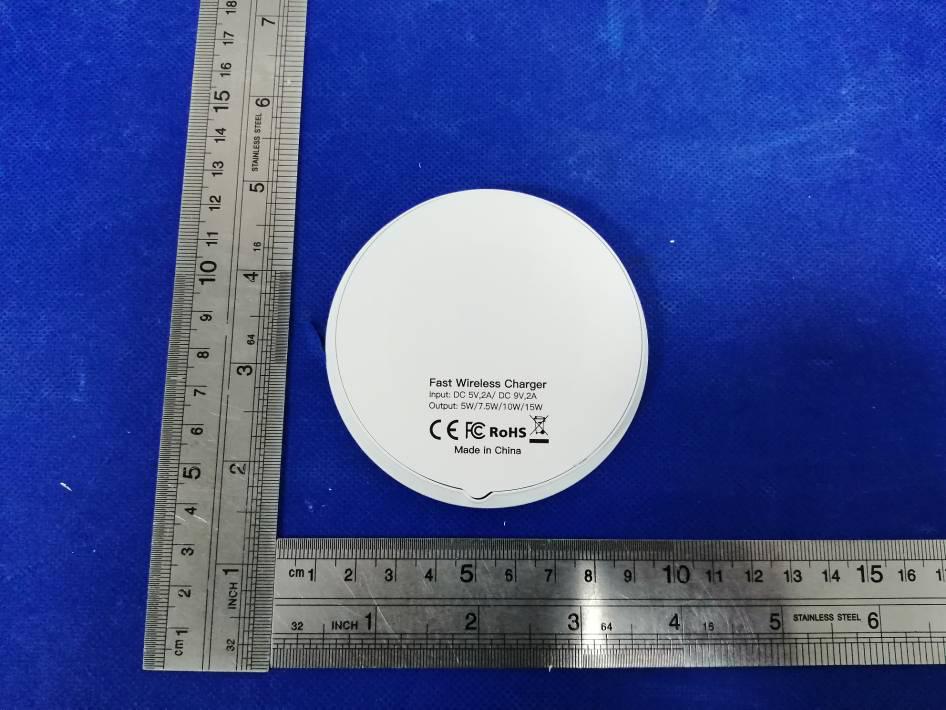

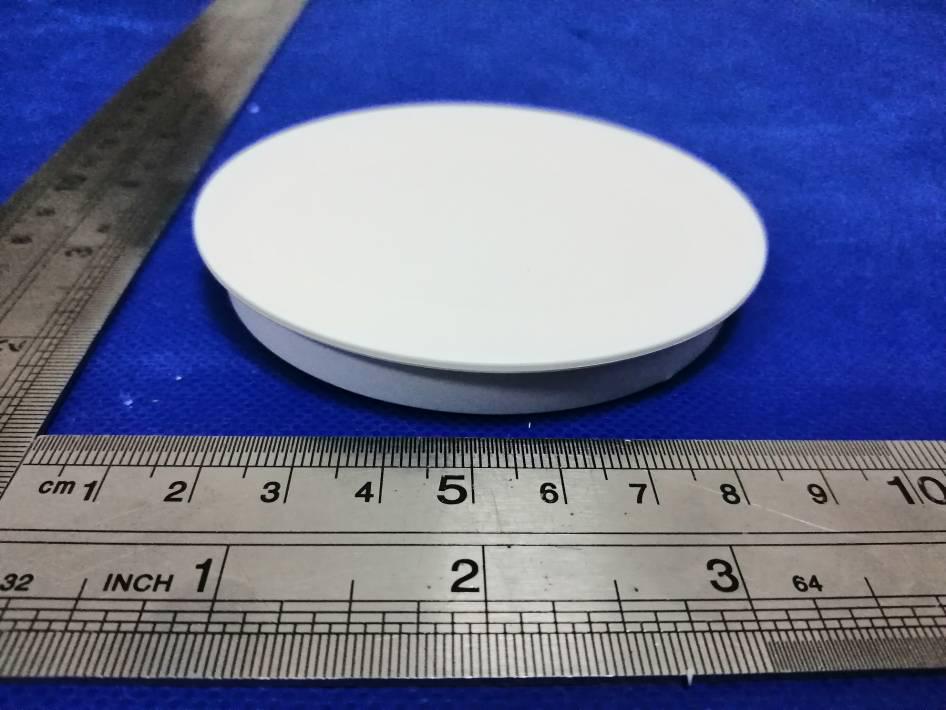

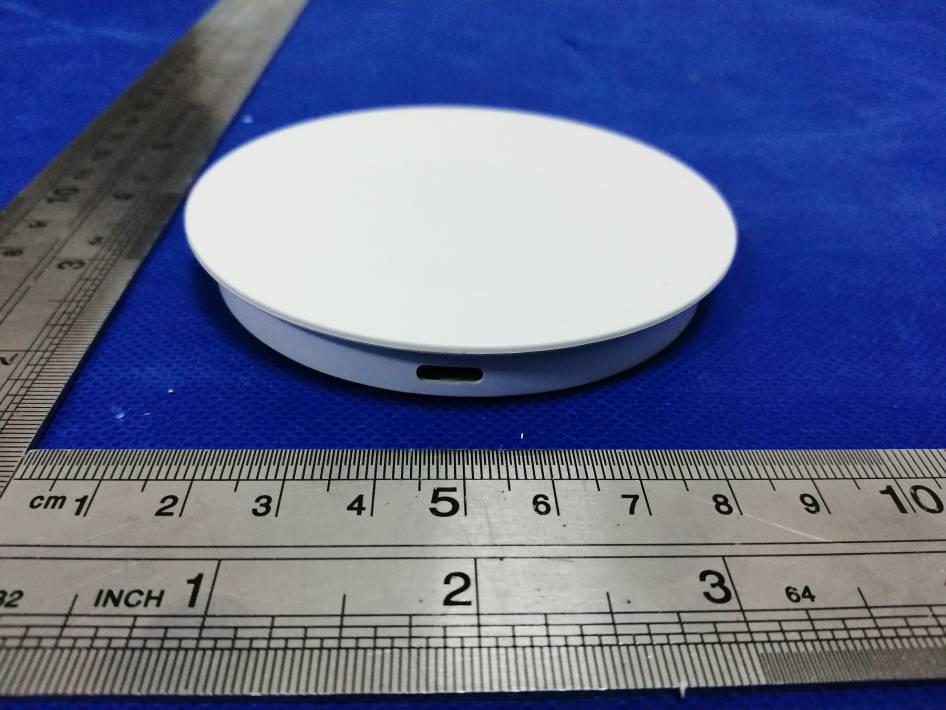

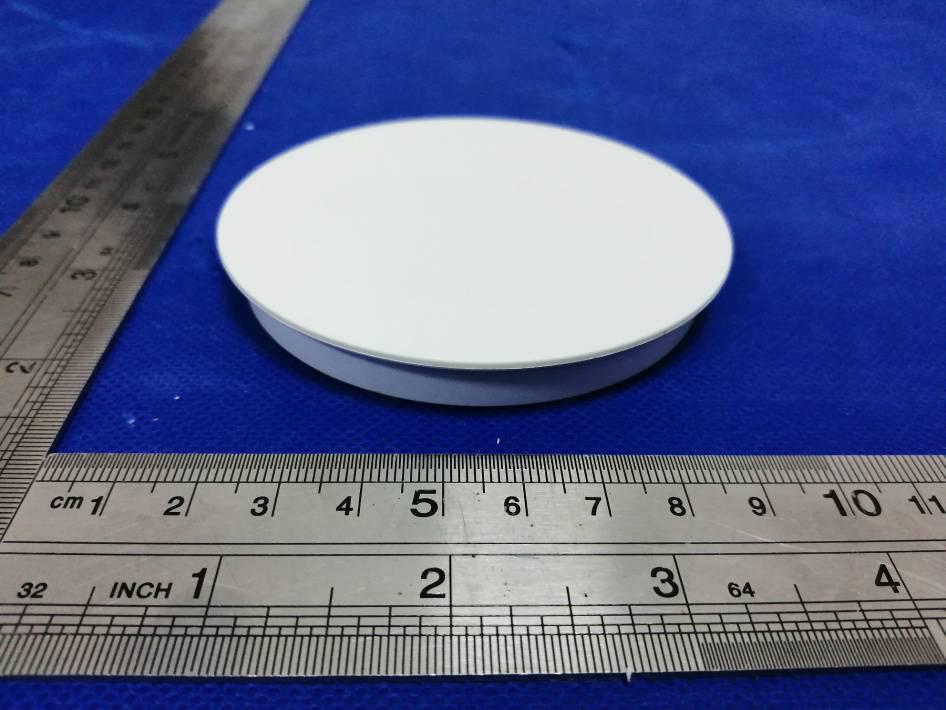

EUT PHOTO(External Photos) FCC ID:2APU5-WPC900 Base

Label and label location

EUT PHOTO(Internal Photos) ANT FCC ID:2APU5-WPC900 ※※※※※END OF REPORT※※※※※ FNK5046

Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 4 FCC ID:2APU5-WPC900 RF Exposure Evaluation 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 2 Requirements According to the item 5 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 4 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 4 5 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June. 26 2020 June. 25 2021 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June. 26 2020 June. 25 2021 6 Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.75 0.76 0.74 0.74 614 E-Filed Strength at 20 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.75 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 0.110-0.205 0.16 0.15 0.16 0.15 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Frequency Range (MHz) Test Position E Limits (A/m) 0.110-0.205 0.16 1.63 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 4 7 Test Set-up Photo

Global United Technology Services Co., Ltd. Report No.: GTSL202101000058F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 19 TEST REPORT Applicant: JMTek Industries (Shenzhen) co., Ltd Address of Applicant: 14G, Innovation Tech Building , Quanzhi Science and Technology innovation Park, ShaJing Street, Bao’an District , ShenZhen , China Manufacturer/Factory: JMTek Industries(Shenzhen) co., Ltd Address of Manufacturer/Factory: 14G, Innovation Tech Building, Quanzhi Science and Technology innovation Park, ShaJing Street, Bao'an District, ShenZhen, China Equipment Under Test (EUT) Product Name: Fast Wireless Charger Model No.: WPC900, WPC900B, WPC900W Trade Mark: JMTEK FCC ID: 2APU5-WPC900 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Date of sample receipt: Jan. 04, 2021 Date of Test: Jan. 04, 2021 to Jan. 18, 2021 Date of report issued: Jan. 18, 2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202101000058F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 19 2 Version Version No. Date Description 00 Jan. 18, 2021 Original Prepared By: Date: Jan. 18, 2021 Project Engineer Check By: Date: Jan. 18, 2021 Reviewer Report No.: GTSL202101000058F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 19 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 6 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.4 TEST FACILITY .................................................................................................................................... 6 5.5 TEST LOCATION ................................................................................................................................. 6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 SPURIOUS EMISSION ......................................................................................................................... 13 7.4 20DB OCCUPY BANDWIDTH .............................................................................................................. 18 8 TEST SETUP PHOTO ............................................................................................................................ 19 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 19 Report No.: GTSL202101000058F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 19 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Pass AC Power Line Conducted Emission 15.207 Pass Spurious Emission 15.209(a)(f) Pass 20dB Bandwidth 15.215 Pass Pass: The EUT complies with the essential requirements in the standard. 4.1 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 30MHz-200MHz 3.8039dB (1) Radiated Emission 200MHz-1GHz 3.9679dB (1) Radiated Emission 1GHz-18GHz 4.29dB (1) Radiated Emission 18GHz-40GHz 3.30dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz 3.44dB (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. Report No.: GTSL202101000058F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jiny…

Text truncated - open the document above for the full version.

EUT TEST PHOTO FCC ID:2APU5-WPC900
