2APU9-HRD-777Multifunctional mini radio

1 Mini Multi-band Radio Bluetooth | TF Card | APP Intelligent Remote Control | SOS Alarm User’s Manual (Model: HRD-777) Sustainable innovation and satisfying users’ needs have always been our company’s principle in new product R&D. HRD-777 is a digital tuning mini multi-band/multi-functional radio produced by us with all efforts. Please read this manual carefully before use. Thank you for buying our product and please keep this manual properly. 2 1: Outside view and functions 1-1: Functions on the front 3 1-2: Functions on the back 4 1-3: Buttons on the top M 1: Time mode: Long press it to set the light. If the radio is connected to an APP, you can double click it to exit APP connection quickly. 2: Receiving mode: Lightly press it to go to the mode of taking a channel (see provision 8.1-8.4). Double click it to search a stored channel automatically. Long press it to select an EQ. 3: TF card mode: Lightly press it to select a play mode (see provision 8.6). Long press it to go to EQ selection, and lightly press it again to select an EQ. 4: Bluetooth mode: Long press it to select an EQ (see provision 8.5). Double click it to disconnect Bluetooth. ▲ 1: Clock display status: At the position of “▲”, push it forward. When the symbol of alarm clock appears, at the position of “▲”, push it forward again to set the alarm clock/auto power on (see provision 10). 2: Working mode: At the position of “▲”, push it forward to reduce the volume progressively. ▼ 1: Clock display status: At the position of “▼”, push it backward to set the time (see provision 9). 2: Working mode: At the position of “▼”, push it backward to increase the volume progressively. ◀ 1: Set/adjust the time: At the position of “◀”, push it to the right to adjust the time. 2: Receiving mode: At the position of “◀”, push it to the right to increase the frequency progressively. At the position of “◀”, push it to the right for 2 seconds to search a channel automatically. In the mode of taking a channel, at the position of “◀”, push it to the right to select a channel. 3: TF card mode: at the position of “◀”, push it to the right to select the next song. At the position of “◀”, push it to the right and hold it for fast forward play. 4: Bluetooth mode: at the position of “◀”, push it to the right to select the next song. ▶ 1: Set/adjust the time: At the position of “▶”, push it to the left to adjust the time. 2: Receiving mode: At the position of “▶”, push it to the left to reduce the frequency progressively. At the position of “▶”, push it to the left for 2 seconds to search a channel automatically. In the mode of taking a channel, at the position of “▶”, push it to the left to select a channel. 3: TF card mode: at the position of “▶”, push it to the left to select the previous song. At the position of “▶”, push it to the left and hold it for fast backward play. 4: Bluetooth mode: at the position of “▶”, push it to the left to select the previous song. 5 2: Power ON/OFF This product uses lithium batteries. Please charge it first before the first use. The radio is locked in factory by default. Please unlock it first before the first use. Lightly press “” and “SOS” on the left to turn on the screen and show the time display status. The lock symbol “” appears on the top right corner of LCD. In the time display status, double click “SOS” to unlock the radio. Lightly press “” within 10 seconds of unlocking to turn on the radio. Long press “” to turn off the radio. 3: Set the time of auto power off In the time display status, long press “” to show the sleep power off symbol “”. Lightly press “” to select the time of sleep auto power off from 90, 80, 70, 60, 50, 40, 30, 20 and 10 minutes. The radio is turned on after two seconds of selecting the time of sleep auto power off. After the radio is turned on, the symbol “” appears on LCD. The radio will be turned off automatically at the adjusted time of power off. 4: Replacement of batteries Push up in direction of arrow to open the battery cover and replace the BL5C lithium batteries. Align the positive and negative contact points of batteries with the three contact points of battery jar and push up. Pay attention to the positive and negative anodes. Close the battery cover. 6 5: Adjust the volume When the radio is turned on, push “” on the top up to increase the volume (level 32 is the max volume) and push it down to reduce the volume (level 0 is the min volume). 5.1 Enable/disable the mute function In the receiving mode, lightly press “” to enable the mute function. The symbol “” appears on LCD. Lightly press “” again to disable the mute function. The symbol “” disappears. 5.2 Enable the pause/play function In the TF card/Bluetooth mode, lightly press “” to enable the pause function. The symbol “” appears on LCD. Lightly press “” again to disable the pause function. The symbol “” disappears and the play symbol “” appears. 6: TYPE-C USB: charge Charge: We recommend to charge the radio with DC5V/1A-DC3A charger to prevent damage to the lithium batteries or the radio. If the lithium batteries are not in use for a long time, please charge them every month. The symbol “” flashes after inserting the USB cable, which means it’s charging. “” means the radio is charged fully. The time of charging fully is 4-5 hours. Note: The level light on the right means battery level: The red light is on when battery level is ≦30% The orange light is on when battery level is >30% and ≦80% The orange and green light are on when battery level is >80% The level light flashes when charging. The level light stops flashing when the radio is charged fully. 7: Symbols on LCD 7 Signal intensity in the receiving mode Electric screen in the Bluetooth/TF card mode FM Frequency modulation AM Amplitude modulation/clock display mode: Morning of 12-hour system SW Short wave reception WB Weather band reception of North American countries PRESET Search, store/taking channels automatically All buttons are locked Shuttle lock FM mode: fre…

Text truncated - open the document above for the full version.

Shenzhen Hanrongda Electronic Co., Ltd. No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-10-13 To whom it may concern: We, Shenzhen Hanrongda Electronic Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2APU9-HRD-777) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Dan Ling Manager Shenzhen Hanrongda Electronic Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Hanrongda Electronic Co., Ltd. No.21, LiYuanxia, Xin Li Road, Ping Hu Town, Long Gang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/10/12 U.S. Agent Designation Shenzhen Hanrongda Electronic Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2APU9-HRD-777): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Hanrongda Electronic Co., Ltd. Shenzhen Hanrongda Electronic Co., Ltd. with the FRN [0027534858] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Dan Ling Manager Shenzhen Hanrongda Electronic Co., Ltd. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Shenzhen Hanrongda Electronic Co., Ltd. Add: No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Date: 2024-10-13 FCC ID: 2APU9-HRD-777 Dear Sir/Madam, We, Shenzhen Hanrongda Electronic Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Multifunctional mini radio Model no.: HRD-777, HRD-777X, ZWS-777, ZWS-777X Sincerely, Name/Title： Dan Ling/Manager Company: Shenzhen Hanrongda Electronic Co., Ltd. Address: No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Phone: +86 75528498283 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-10-13> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2APU9-HRD-777 HRD-777 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Dan Ling/Manager Company: Shenzhen Hanrongda Electronic Co., Ltd. Address: No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Phone: +86 75528498283 Fax: N/A E-Mail: [email protected]

Shenzhen Hanrongda Electronic Co., Ltd. No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-10-13 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2APU9-HRD-777 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Dan Ling/Manager Company: Shenzhen Hanrongda Electronic Co., Ltd. Address: No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Phone: +86 75528498283 Fax: N/A E-Mail: [email protected]

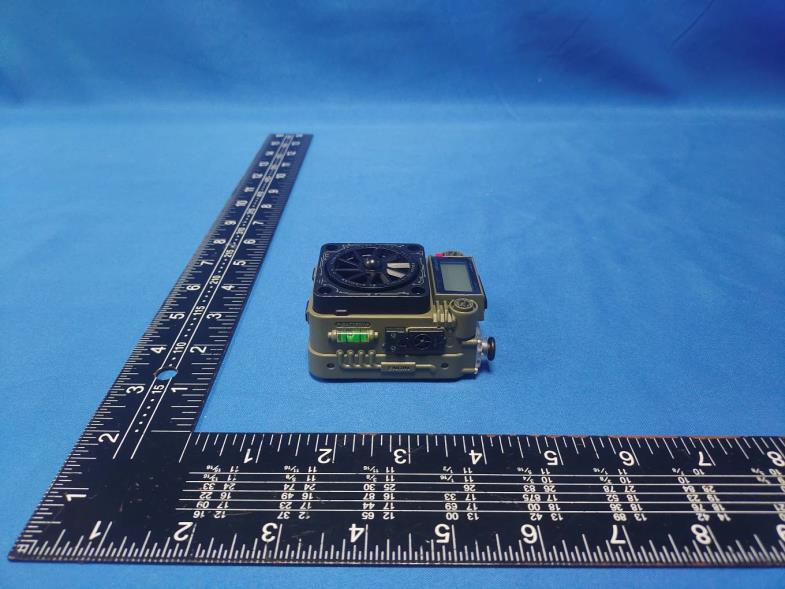

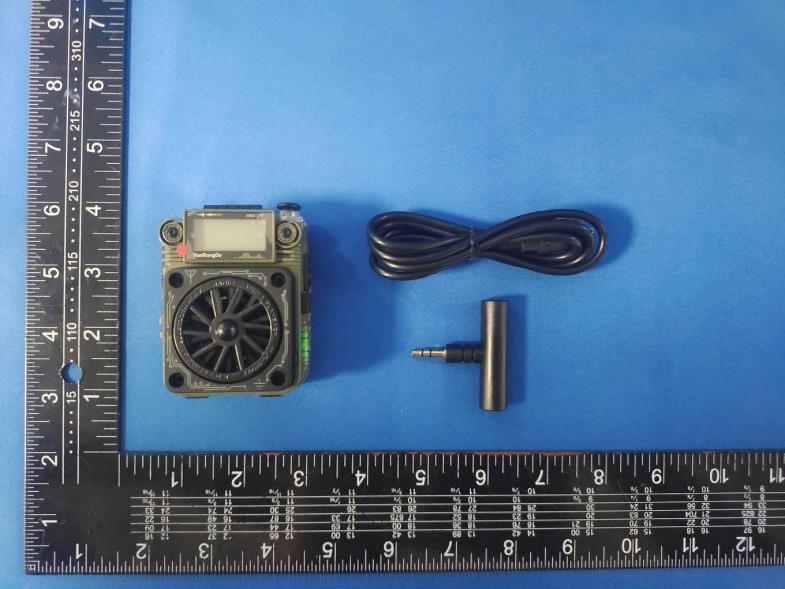

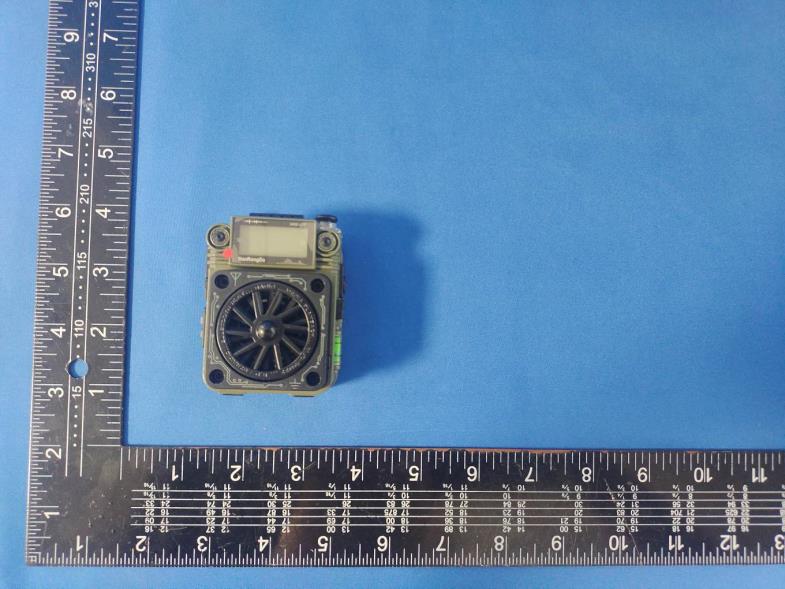

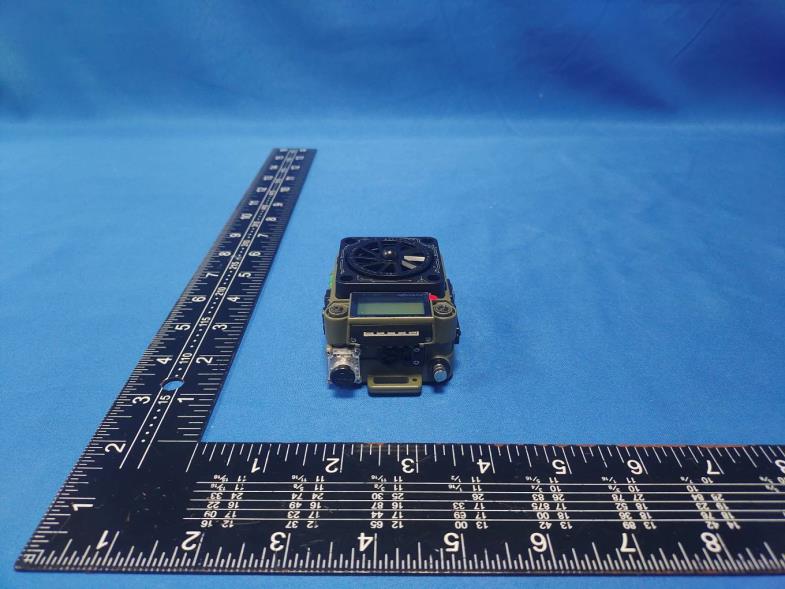

FCC ID: 2APU9-HRD-777 External Photos of the EUT FCC ID: 2APU9-HRD-777 FCC ID: 2APU9-HRD-777 FCC ID: 2APU9-HRD-777

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2APU9-HRD-777

FCC ID: 2APU9-HRD-777 Internal Photos of the EUT FCC ID: 2APU9-HRD-777 FCC ID: 2APU9-HRD-777 ANT FCC ID: 2APU9-HRD-777 FCC ID: 2APU9-HRD-777 FCC ID: 2APU9-HRD-777

RF Exposure evaluation FCC ID: 2APU9-HRD-777 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -2.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 4.0 2.5119 0.7863<3.0 Yes BLE 2.450 5 0.0 1.0000 0.3130<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model HRD-777 Frequency range 2400-2500MHz Manufacturer Shenzhen Hanrongda Electronic Co.,Ltd ANT Peak Gain 1.05 dBi 2. Antenna Photo: Length: 14.48mm Width: 4.23mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24092700602 2APU9-HRD-777 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 09, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Hanrongda Electronic Co.,Ltd Address ............................................ : No.21, LiYuan Xia, XinLi Road, PingHu Town, LongGang District Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Multifunctional mini radio Trade Mark ....................................... : N/A Manufacturer .................................... : Dongguan chang 'an yaosu electronic business department Model/Type reference ...................... : HRD-777 Listed Models .................................. : HRD-777X, ZWS-777, ZWS-777X Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24092700602 Page 2 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Multifunctional mini radio Model /Type : HRD-777 Listed Models : HRD-777X, ZWS-777, ZWS-777X Applicant : Shenzhen Hanrongda Electronic Co.,Ltd Address : No.21, LiYuan Xia, XinLi Road, PingHu Town, LongGang District Shenzhen, China Manufacturer : Shenzhen Hanrongda Electronic Co.,Ltd Address : No.21, LiYuan Xia, XinLi Road, PingHu Town, LongGang District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24092700602 Page 3 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 25 4.6 Number of hopping frequency 27 4.7 Time of Occupancy (Dwell Time) 29 4.8 Out-of-band Emissions 33 4.9 Pseudorandom Frequency Hopping Sequence 42 4.10 Antenna Requirement 43 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 44 6 P H O T O S O F T H E E U T ............................................................. 45 Report No.: CTA24092700602 Page 4 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24092700602 Page 5 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] We…

Text truncated - open the document above for the full version.

Report No.: CTA24092700602 Page 35 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn GFSK(CH78) π/4DQPSK (CH00) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24092700602 Page 36 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK (CH39) π/4DQPSK (CH78) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24092700602 Page 37 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH00) 8DPSK (CH39) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24092700602 Page 38 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH78) reference 30MHz-1G 1G-25G Report No.: CTA24092700602 Page 39 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: GFSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24092700602 Page 40 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24092700602 Page 41 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24092700602 Page 42 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.9 Pseudorandom Frequency Hopping Sequence TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1) requirement: Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29-1=511 bits ● Longest sequence of zeros:8(non-inverted signal) An example of pseudorandom frequency hopping sequence as follows: Each frequency used equally one the average by each transmitter. The system receiver have input bandwidths that match the hopping channel bandwidths of their corresponding transmitter and shift frequencies in synchronization with the transmitted signals. Report No.: CTA24092700602 Page 43 of 45 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.10 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (c), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. Refer to statement below for compliance The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. Antenna Connected Construction The maximum gain of antenna was 1.05 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not a…

Text truncated - open the document above for the full version.

FCC ID: 2APU9-HRD-777 Test Setup Photos of the EUT
