2APV2-CSC6CN8B4Smart Home Camera

Regulatory Information This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. EC DECLARATION OF CONFORMITY Hereby, Hangzhou EZVIZ Software Co., Ltd. declares that the radio equipment type [refer to the cover of the quick start guide] is in compliance with Directive 2014/53/EU. The full text of the EC DECLARATION OF CONFORMITY is available at the following web link: http://www.ezvizlife.com/declaration-of-conformity. 2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Important Safety Information Note: Please read the manual before using the device. This symbol on the device indicates that the safety compatibility manual and / or installation manual must be read, which contains information related to the safe operation of the device. Caution: Be sure to read these instructions before operating the equipment. Warning: The separate earthing terminal must be permanently connected to earth. Warning: For SELV DC input: the DC power source shall comply with the Safety Extra-Low Voltage (SELV) requirements of EN/IEC 60950-1, EN/IEC 62368-1. Warning: The power source should meet limited power source or PS2 requirements according to IEC/EN 60950-1 or IEC/EN 62368-1. This symbol on the device indicates that the surface or component is overheating. If you touch this surface, you may cause personal injury. Warning: To reduce the risk of personal injury due to overheating of the components, wait until the surface cools down before touching it. Alternating current. Direct current. Caution: Do not block ventilation openings while the system is on, and keep at least 2 cm distance from ventilation openings and walls or other things which may block the openings. Warning: Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion. Warning: Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. Warning: A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Warning: Dispose of used batteries according to the instructions. Warning: Replace only with the same or equivalent type recommended by the manufacturer. Caution: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. Warning: Do not ingest battery, Chemical Burn Hazard. Caution: This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Caution: Keep new and used batteries away from children. Caution: If the battery compartment does not close securely, stop using the product and keep it away from children. Caution: If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Caution: Risk of fire or explosion if the battery is replaced by an incorrect type. Warning: Do not attempt to disassemble, repair, or alter the device Warning: To avoid electric shock, please wear shoes with rubber soles. To avoid injuries, please wear glooves when maintaining the device. Warning: If you are not familiar with knowledge of cable laying and cable connection, please make sure that the power switch has been turned off before installation and maintenance. Warning: If you want to disconnect the device from the power source, please unplug the DC power terminal that connects the power adapter and device. Warning: Flame may spread outside and ignite nearby combustible material without front cover! Please reinstall the front cover correctly before normal operation. Warning: Do not detach the front cover when the device is working properly. The front cover can only be detached when you need to restart the device. After restarting the device, please reinstall the front cover correctly before normal operation. FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the …

Text truncated - open the document above for the full version.

For additional information and resources, please visit the EZVIZ support.ezvizlife.com or email our support team at [email protected]. Get the EZVIZ APP Connect your mobile phone to Wi-Fi. Search for “EZVIZ” in App Store or Google Play . Download and install the EZVIZ app. Launch the app, and register an EZVIZ account. Follow the detailed user manual to set your device: Get the detailed user manual Power on your device. Connect the device to the LAN port of your router with the Ethernet cable (Optional). 1. 2. 3. 4. Add your device to your EZVIZ account Notice Log in to your EZVIZ account. On the Home screen, tap “+” on the upper-right corner to go to the Scan QR Code interface. Scan the QR code on the cover of this paper or on the body of your device. Follow the wizard to add your device to the EZVIZ app. QR Code Please delete this device from your account in advance, if you need to return it to purchasing point or change its ownership. 1. 2. 3. 4. 1. 2. English TM COPYRIGHT © Hangzhou EZVIZ Software Co., Ltd.. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou EZVIZ Software Co., Ltd. (hereinafter referred to as “EZVIZ”). This user manual (hereinafter referred to as “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated, EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to the Manual. About this Manual The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ™ website (http://www.ezvi- zlife.com). Revision Record New release – January, 2021 Trademarks Acknowledgement ™, ™, and other EZVIZ’s trademarks and logos are the properties of EZVIZ in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT. EZVIZ DOES NOT UNDERTAKE ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE AS THE RESULT OF PRODUCT INTERRUPTION OR SERVICE TERMINATION CAUSED BY: A) IMPROPER INSTALLATION OR USAGE OTHER THAN AS REQUESTED; B) THE PROTECTION OF NATIONAL OR PUBLIC INTERESTS; C) FORCE MAJEURE; D) YOURSELF OR THE THIRD PARTY, INCLUDING WITHOUT LIMITATION, USING ANY THIRD PARTY’S PRODUCTS, SOFTWARE, APPLICATIONS, AND AMONG OTHERS. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS AND DATA PROTECTION LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. EZVIZ SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATTER PREVAILS. Safety Instruction Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package. Customer Service For more information, please visit www.ezvizlife.com. Need help? Please visit “www.ezvizlife.com/inter/page/contact-us” for our local contact details. Instrucciones de seguridad Debido a la forma y las dimensiones del producto, el nombre y la dirección del importador/fabricante está impresa en el paquete. Servicio la cliente Para más información, visite www.ezvizlife.com. ?Necesita ayuda? Visite "www.ezvizlife.com/inter/page/contact-us" para obtener contactos locales. Directives de sécurité En raison de la forme et des dimensions du produit, le nom et l’adresse de l’importateur ou du fabricant sont imprimés sur l’emballage. Service clientes Pour plus d'informations, veuillez-vous visiter www.ezvizlife.com. Besoin d'aide ? veuillez-vous visiter "www.ezvizlife.com/inter/page/contact-us" pour avoir nos coordonnées locales. DERECHOS DE AUTOR © Hangzhou EZVIZ Software Co., Ltd. TODOS LOS DERECHOS RESERVADOS. Toda la información, incluyendo, textos, imágenes, gráficos, entre otros, son propiedad de Hangzhou EZVIZ Software Co., Ltd. (en lo sucesivo, "EZVIZ"). Este manual del usuario (en lo sucesivo, "el Manual") no se puede reproducir, cambiar, traducir o distribuir, parcial o totalmente, por ningún medio, sin el permiso previo por escrito de EZVIZ. Salvo que se disponga lo contrario, EZVIZ no garantiza, ni realiza declaraciones de ningún tipo, de forma expresa o implícita, en relación con el Manual. Acerca de este Manual El manual incluye instrucciones para el uso y el manejo del producto. Las fotografías, cuadros, imágenes …

Text truncated - open the document above for the full version.

Applicant’s Company Letterhead file: declaration letter-template Page 1 of 1 To: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Attention: From: Date: March 18, 2022 Fax No: Total Page (Cover Included): 1 Project No.: Subject: Declaration letter We: Hangzhou Ezviz Software Co., Ltd. Room 302, Unit B, Building 2, 399 Danfeng Road, Binjiang District 310052 Hangzhou, Zhejiang, PEOPLE'S REPUBLIC OF CHINA Officially notify TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch that the CS- C6CN (4MP, W2) have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction, with CS- C6CN, CS-C6CN-R100-8B4WF. The difference lies only color and model name of the different models. <<Model A>>: CS-C6CN, CS-C6CN-R100-8B4WF <<Model B>>: CS-C6CN (4MP, W2) <<Product>>: Smart Home Camera Applicant: ___________ __________________________________________ (Date) (Applicant’s authorized signature and company Chop)

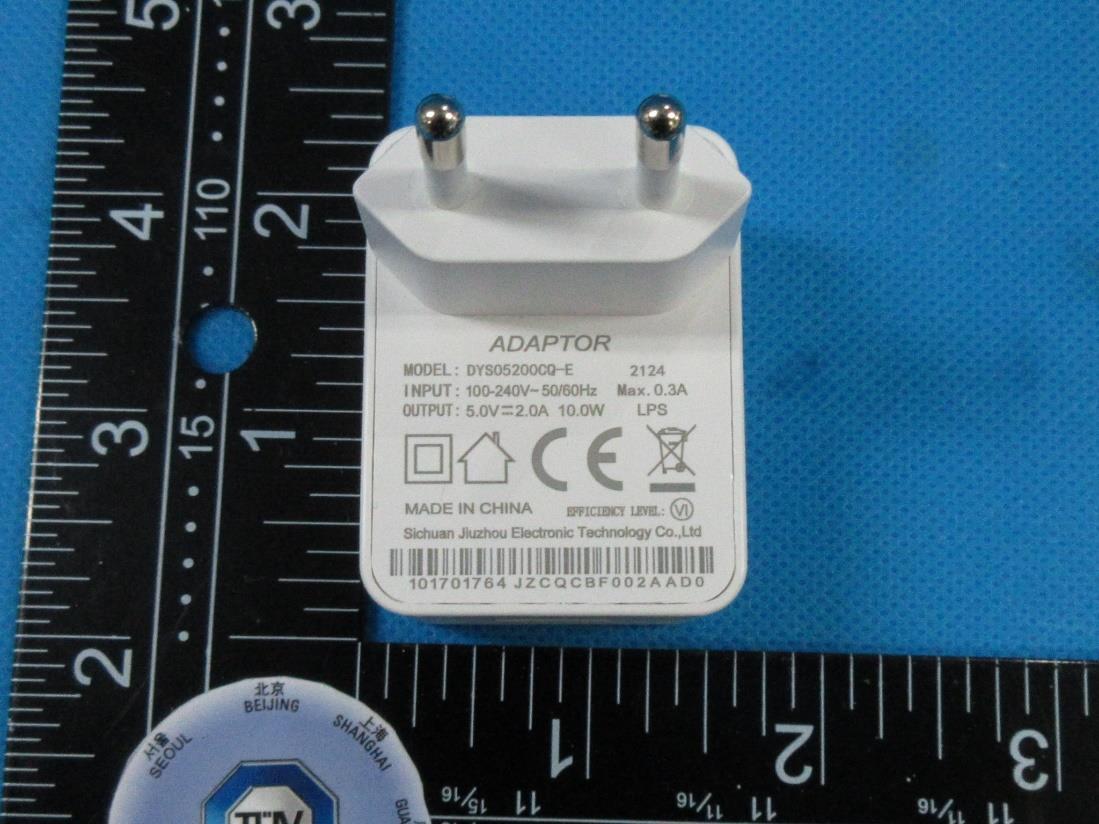

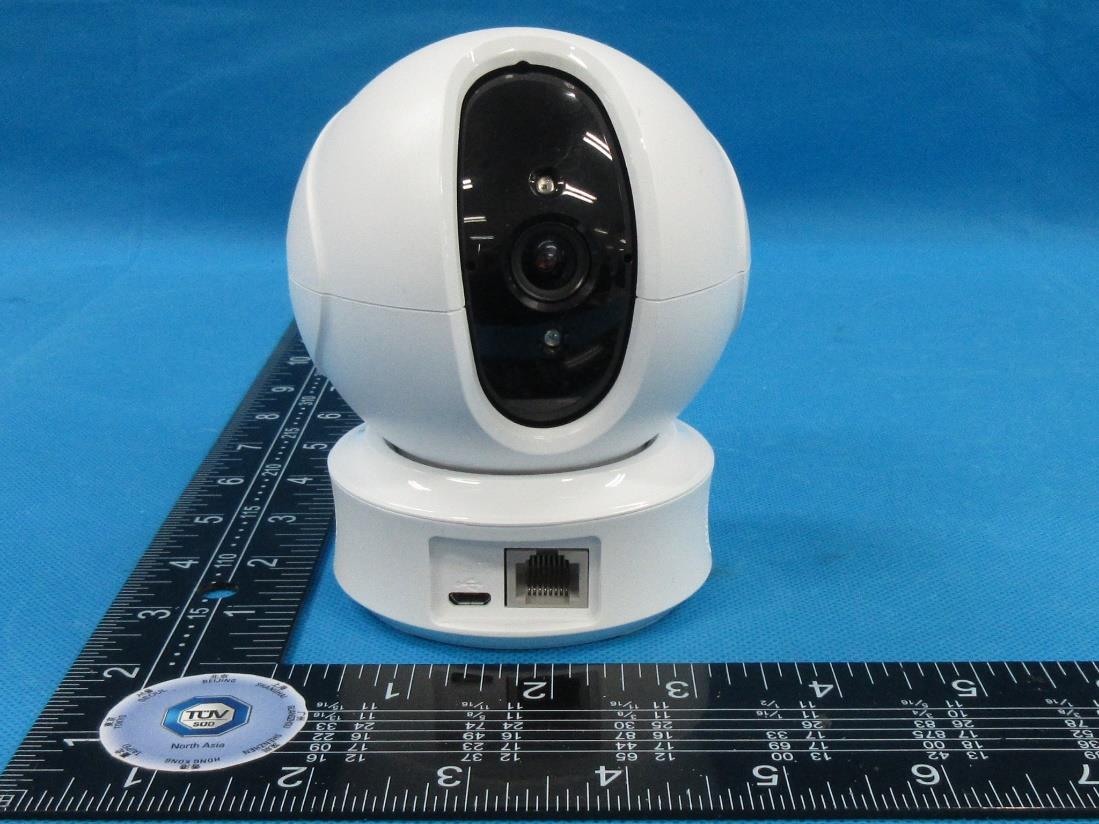

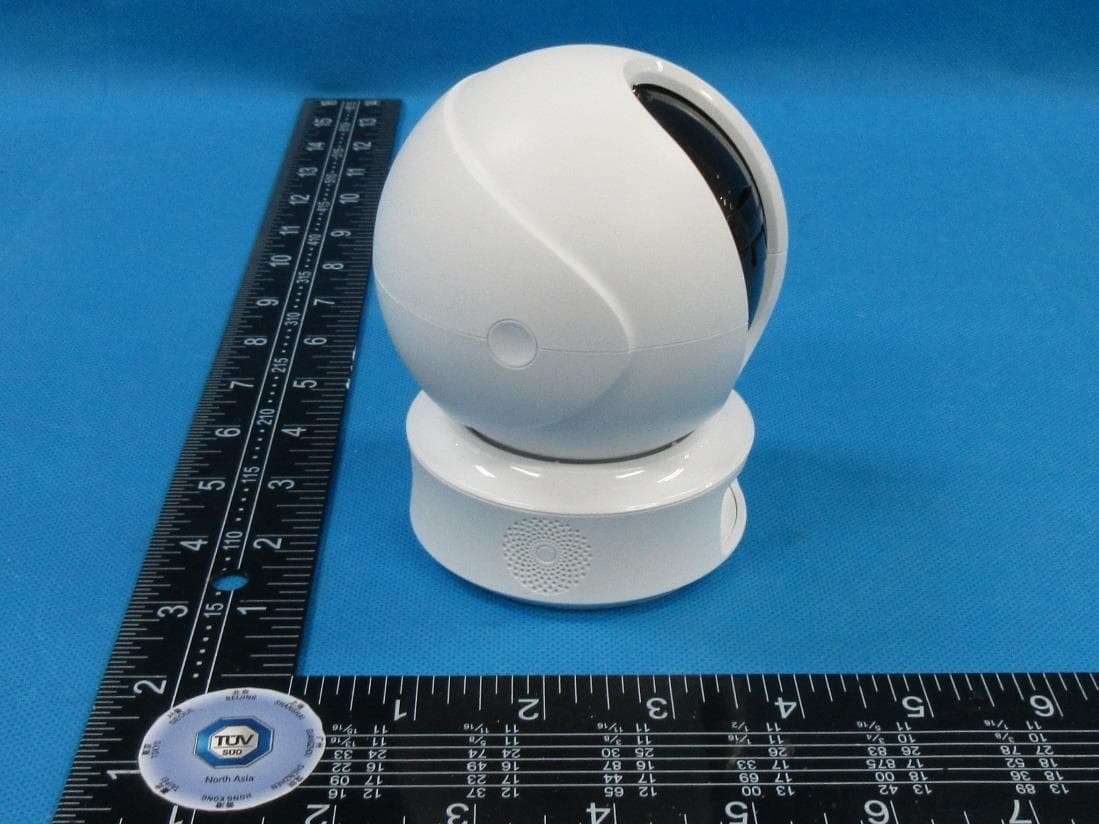

External Photos: Adapter:

Internal Photos: RF Aantenna 2 RF Aantenna 1

Report Number: 68.950.22.0242.01 EMC_SZ_FR_39.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 2 MPE Calculation Product: Smart Home Camera Model no.: CS-C6CN, CS-C6CN (4MP, W2), CS-C6CN-R100-8B4WF FCC ID: 2APV2-CSC6CN8B4 Rating: 5VDC, 2A by adapter RF Transmission Frequency: For 2.4 Wi-Fi: 2412~2462 MHz Modulation: DSSS, OFDM Antenna Type: Internal Antenna Max Antenna Gain: 2.73dBi for Ant1 2.5dBi for Ant2(PCB Antenna) Description of the EUT: The Equipment Under Test (EUT) is Smart Home Camera supports 2.4G Wi-Fi. According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1,500 / / f/1500 30 1,500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² = power density (in appropriate units, e.g. mW/cm2); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Report Number: 68.950.22.0242.01 EMC_SZ_FR_39.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 2 Calculated Data: For 2.4G Wi-Fi Maximum peak output power at antenna input terminal (dBm): 15.77 Maximum peak output power at antenna input terminal (mW): 37.76 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 2.73 Maximum Antenna Gain (numeric): 1.87 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.0075 MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 The max power density 0.0075 (mW/cm 2 ) < 1 (mW/cm 2 ) The result compliant Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091). TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: John Zhi/ Project Manager Warlen Song/Project Engineer Date: 2022-03-10 Date: 2022-03-10

Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 94 FCC - TEST REPORT Report Number : 68.950.22.0103.01 Date of Issue: 2022-03-10 Model : CS-C6CN, CS-C6CN (4MP, W2), CS-C6CN-R100-8B4WF Product Type : Smart Home Camera Applicant : Hangzhou Ezviz Software Co., Ltd. Address : Room 302, Unit B, Building 2, 399 Danfeng Road, Binjiang District 310052 Hangzhou, Zhejiang, PEOPLE'S REPUBLIC OF CHINA Manufacturer : Hangzhou Ezviz Software Co., Ltd. Address : Room 302, Unit B, Building 2, 399 Danfeng Road, Binjiang District 310052 Hangzhou, Zhejiang, PEOPLE'S REPUBLIC OF CHINA Test Result : ◼ Positive  Negative Total pages including Appendices : 94 Any use for advertising purposes must be granted in writing. This technical report may only be quoted in full. This report is the result of a single examination of the object in question and is not generally applicable evaluation of the quality of other products in regular production. For further details, please see testing and certification regulation, chapter A-3.4. Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 94 1 Table of Contents 1 Table of Contents ..................................................................................................................................................2 2 Details about the Test Laboratory .........................................................................................................................3 3 Description of the Equipment Under Test .............................................................................................................4 4 Summary of Test Standards .................................................................................................................................5 5 Summary of Test Results ......................................................................................................................................6 6 General Remarks ..................................................................................................................................................7 7 Test Setups ...........................................................................................................................................................8 8 Systems test configuration ....................................................................................................................................9 9 Technical Requirement ...................................................................................................................................... 10 9.1 Conducted Emission .................................................................................................................................. 10 9.2 Conducted peak output power ................................................................................................................... 15 9.3 6dB bandwidth and 99% Occupied Bandwidth .......................................................................................... 16 9.4 Power spectral density ............................................................................................................................... 31 9.5 Spurious RF conducted emissions ............................................................................................................. 38 9.6 Band edge testing ...................................................................................................................................... 58 9.7 Spurious radiated emissions for transmitter ............................................................................................... 64 10 Test Equipment List ........................................................................................................................................ 93 11 System Measurement Uncertainty ................................................................................................................. 94 Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 94 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12 & 13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District Shenzhen 518052 P.R. China Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 FCC Registration No.: 514049 FCC Designation Number: CA5009 IC Registration No.: 10320A Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 4 of 94 3 Description of the Equipment Under Test Product: Smart Home Camera Model no.: CS-C6CN, CS-C6CN (4MP, W2), CS-C6CN-R100-8B4WF FCC ID: 2APV2-CSC6CN8B4 Rating: 5VDC, 2A by adapter Options and accessories: Adapter Adapter 1: Model: DYS05200CQ-E Input:100-240V~50/60Hz 0.3A Max Output:5.0V, 2.0A 10.0W Adapter 2: Model: ADS-10RH-06 05010EPB Input:100-240V~50/60Hz 0.3A Max Output:5.0V, 2.0A 10.0W RF Transmission Frequency: 2412MHz-2462MHz…

Text truncated - open the document above for the full version.

Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 49 of 94 11B_Ant2_2412_0~Reference 11B_Ant2_2412_30~1000 11B_Ant2_2412_1000~26500 11B_Ant2_2437_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 50 of 94 11B_Ant2_2437_30~1000 11B_Ant2_2437_1000~26500 11B_Ant2_2462_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 51 of 94 11B_Ant2_2462_30~1000 11B_Ant2_2462_1000~26500 11G_Ant2_2412_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 52 of 94 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 11G_Ant2_2437_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 53 of 94 11G_Ant2_2437_30~1000 11G_Ant2_2437_1000~26500 11G_Ant2_2462_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 54 of 94 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 11N20SISO_Ant2_2412_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 55 of 94 11N20SISO_Ant2_2412_30~1000 11N20SISO_Ant2_2412_1000~26500 11N20SISO_Ant2_2437_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 56 of 94 11N20SISO_Ant2_2437_30~1000 11N20SISO_Ant2_2437_1000~26500 11N20SISO_Ant2_2462_0~Reference Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 57 of 94 11N20SISO_Ant2_2462_30~1000 11N20SISO_Ant2_2462_1000~26500 Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 58 of 94 9.6 Band edge testing Test Method 1. The RF output of EUT was connected to the spectrum analyzer by RF cable. The path loss was compensated to the results for each measurement. 2. Use the following spectrum analyzer settings: Span = wide enough to capture the peak level of the in-band emission and all spurious RBW = 100 kHz, VBW≥RBW, Sweep = auto, Detector function = peak, Trace = max hold 3. Allow the trace to stabilize, use the peak and delta measurement to record the result. 4. The level displayed must comply with the limit specified in this Section. 5. Repeat the test at the hopping off and hopping on mode, submit all the plots. Limit: According to §15.247(d), in any 100 kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in 15.209(a) (see Section 15.205(c)). Frequency Range Limit (dBc) MHz 30-25000 -20 Report Number: 68.950.22.0103.01 EMC_SZ_FR_23.03 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 59 of 94 Band edge testing TestMode Antenna ChName Channel (MHz) RefLevel (dBm) Result (dBm) Limit (dBm) Verdict 11B Ant1 Low 2412 4.33 -39.15 <=-15.67 PASS Ant1 High 2462 4.13 -56.19 <=-15.87 PASS 11G Ant1 Low 2412 2.36 -40.61 <=-17.64 PASS Ant1 High 2462 1.19 -49.45 <=-18.81 PASS 11N20 Ant1…

Text truncated - open the document above for the full version.

Conducted Disturbance Emissions on AC mains Radiated Spurious emission 30MHz-1GHz Radiated Spurious emission 1GHz - 18 GHz Radiated Spurious emission Above 18 GHz
