All contentscurrentat time ofpublication.117C –V1.0 –07/23/2021 User Manual –CX2176/CX6176/CX8176 Assemblethesquarepin Preparedoor Insert the square onto the retaining pin and into the square holder. 11 / 16 " (17.5mm) for Door Thickness 1 3 / 8 " 2 3 / 4 " (70mm) 2 3 / 4 " (70mm) or 2 3 / 8 " (60mm) 7 / 8 " (22mm) for Door Thickness 1 3 / 4 " Insert the spiral clamping pin into the square. A B All contentscurrentat time ofpublication.117C –V1.0 –07/23/2021 User Manual –CX2176/CX6176/CX8176 C D Insert the mechanical door handle keeping it in a horizontal position. For door handles pointing to the left, tighten the rosette towards the right, guide it over the handle holder and engage the bayonet lock. Accordingly, tighten the rosette towards the left for door handles pointing to the right. Insert thelockingscrewfromthebottomofthe mechanicaldoorhandle andtightenit. Installation A B Slide mortiselock intoedgeboreofthedoor. Check that thefaceplatedoesnot projectoutside door, but itshould also not beinstalledsunk. Usewashers(s) toadjustpenetrationdepthofthemortise lock. Fix lock byscrewingittothedoor. Insert the square pin of the electronic door handle into the square nut of the lock. Insert the holder of the mechanical door handle from the other side and screw it along with the electronic door handle through the door panel. Use the supplied mounting screws. 1 1 2 2 All contentscurrentat time ofpublication.117C –V1.0 –07/23/2021 User Manual –CX2176/CX6176/CX8176 FCC Compliance Statement This device(EDH420 –FCC ID : 2APV6-EDH420) complieswithPart 15 oftheFCC Rules. Operation is subjecttothefollowingtwoconditions: (1)thisdevicemaynot causeharmfulinterference, and (2)thisdevicemust acceptanyinterferencereceived, includinginterferencethatmaycauseundesired operation. The Federal Communications Commission(FCC) warnstheusersthatchangesormodificationstotheunit not expresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser ́sauthoritytooperatethe equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Canadian Compliance Statement This device (EDH420 –IC : 24382-EDH420) complies with Industry Canada ́s license-exempt RSSs. Operation is subject to the following two conditions 1.This device may not cause interference; and 2.This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil (EDH420 –IC : 24382-EDH420) est conforme aux CNR d ́Industrie Canada applicables aux appareils radio exempts de licence. L ́exploitation est autorisée aux deux conditions suivantes: 1.I’appareilne doit pas produire de brouillage; 2.I’utilisateurde I ́appareildoit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d ́en compromettre le functionnement.

All contentscurrentat time ofpublication.0C97 –V1.0 –02/13/2019 User Manual –CX2178/CX6178/CX8178 1 2 Assemblethesquarepin Preparedoor Insert the square onto the retaining pin and into the square holder. Insert the spiral clamping pin into the square. 1 2 11 / 16 " (17.5mm) for Door Thickness 1 3 / 8 " 2 3 / 4 " (70mm) 2 3 / 4 " (70mm) or 2 3 / 8 " (60mm) 7 / 8 " (22mm) for Door Thickness 1 3 / 4 " Installation A B Slide latchintoedgeboreofthedoor. Check thatthe faceplatedoesnot projectoutside door, but itshould also not beinstalledsunk. Usewashers(s) toadjustpenetrationdepthofthelatch. Insert the square pin of the electronic door handle into the square nut of the lock. Insert the threaded bolts provided. Insert the mechanical door handle from the other side and screw it along with the electronic door handle through the door panel. 1 2 1 2 All contentscurrentat time ofpublication.0C97 –V1.0 –02/13/2019 User Manual –CX2178/CX6178/CX8178 C D Attachthecoversofboththedoorhandlesby placingiton theholder andturningit. Insert thelockingscrewfromthebottomofthemechanical doorhandle andtightenit. All contentscurrentat time ofpublication.0C97 –V1.0 –02/13/2019 User Manual –CX2178/CX6178/CX8178 FCC Compliance Statement This device(EDH420 –FCC ID : 2APV6-EDH420) complieswithPart 15 oftheFCC Rules. Operation is subjecttothefollowingtwoconditions: (1)thisdevicemaynot causeharmfulinterference, and (2)thisdevicemust acceptanyinterferencereceived, includinginterferencethatmaycauseundesired operation. The Federal Communications Commission(FCC) warnstheusersthatchangesormodificationstotheunit not expresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser ́sauthoritytooperatethe equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Canadian Compliance Statement This device (EDH420 –IC : 24382-EDH420) complies with Industry Canada ́s license-exempt RSSs. Operation is subject to the following two conditions 1.This device may not cause interference; and 2.This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil (EDH420 –IC : 24382-EDH420) est conforme aux CNR d ́Industrie Canada applicables aux appareils radio exempts de licence. L ́exploitation est autorisée aux deux conditions suivantes: 1.I’appareilne doit pas produire de brouillage; 2.I’utilisateurde I ́appareildoit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d ́en compromettre le functionnement.

FRN: 0033401258 Hualing Dong, President FRN:0027542372

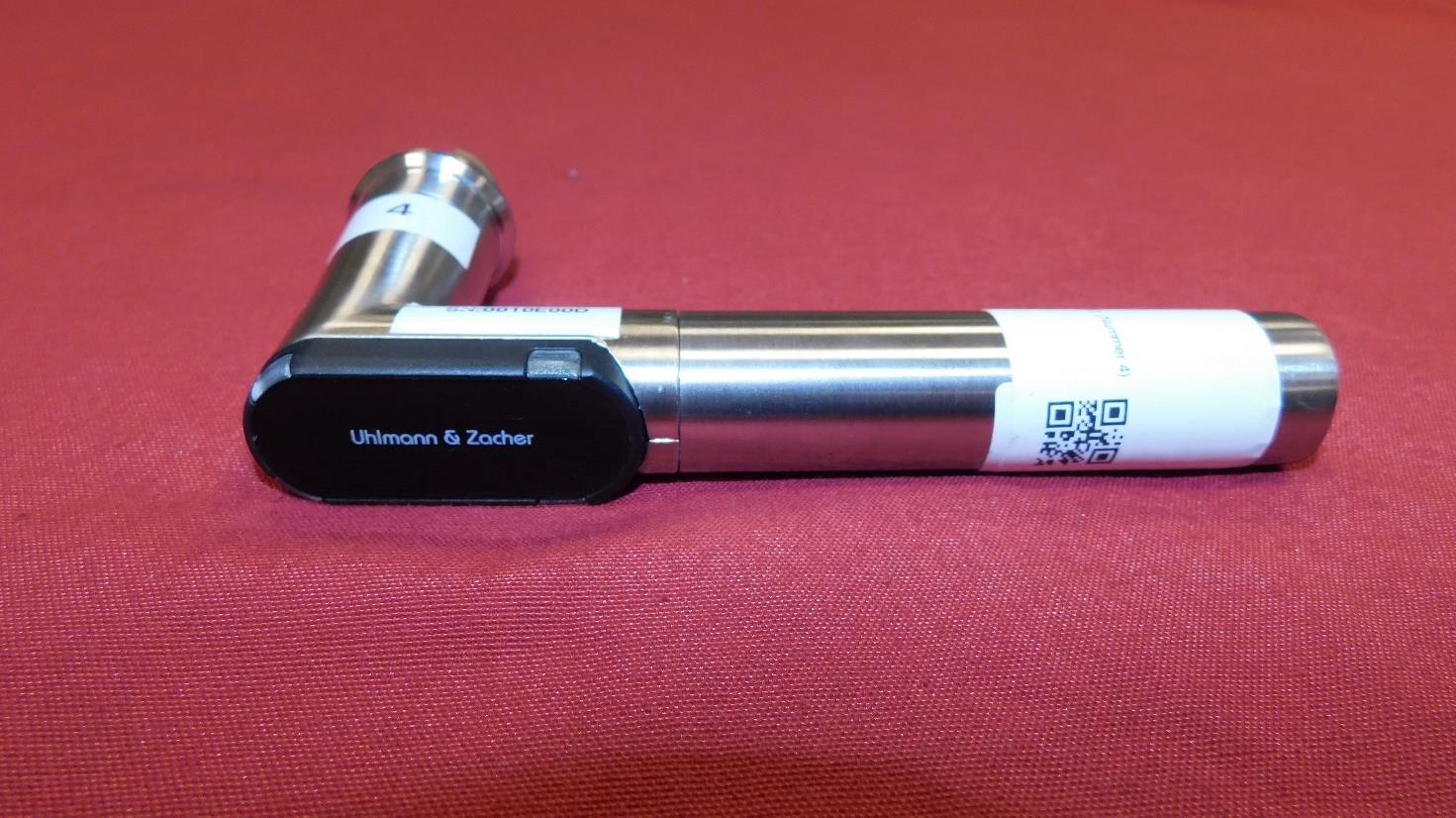

220470-AU01+W01 Page 1 of 3 1 Annex B – EUT pictures external 1.1 List of Pictures Picture 1: EUT – front view ................................................................................................................................. 2 Picture 2: EUT - rear view .................................................................................................................................. 2 Picture 3: EUT - bottom view .............................................................................................................................. 3 Picture 4: Name plate of EUT ............................................................................................................................. 3 220470-AU01+W01 Page 2 of 3 Picture 1: EUT – front view Picture 2: EUT - rear view 220470-AU01+W01 Page 3 of 3 Picture 3: EUT - bottom view Picture 4: Name plate of EUT

220470-AU01+W02 Page 1 of 5 1 Annex B – EUT pictures external 1.1 List of Pictures Picture 1: EUT with temporary antenna port – top view ..................................................................................... 2 Picture 2: EUT with temporary antenna port – rear view ................................................................................... 2 Picture 3: EUT with temporary antenna port – front view ................................................................................... 3 Picture 1: Final version of EUT – front view ....................................................................................................... 3 Picture 2: Final version of EUT - rear view ......................................................................................................... 4 Picture 3: Final version of EUT - bottom view .................................................................................................... 4 Picture 4: Name plate of EUT ............................................................................................................................. 5 220470-AU01+W02 Page 2 of 5 Picture 1: EUT with temporary antenna port – top view Picture 2: EUT with temporary antenna port – rear view 220470-AU01+W02 Page 3 of 5 Picture 3: EUT with temporary antenna port – front view Picture 4: Final version of EUT – front view 220470-AU01+W02 Page 4 of 5 Picture 5: Final version of EUT - rear view Picture 6: Final version of EUT - bottom view 220470-AU01+W02 Page 5 of 5 Picture 7: Name plate of EUT

220470-AU01+W04 Page 1 of 4 1 Annex B – EUT pictures external 1.1 List of Pictures Picture 1: EUT– front view .................................................................................................................................. 2 Picture 2: EUT– rear view ................................................................................................................................... 2 Picture 3: EUT - top view .................................................................................................................................... 3 Picture 4: EUT - bottom side .............................................................................................................................. 3 Picture 4: Name plate of EUT ............................................................................................................................. 4 220470-AU01+W04 Page 2 of 4 Picture 1: EUT– front view Picture 2: EUT– rear view 220470-AU01+W04 Page 3 of 4 Picture 3: EUT - top view Picture 4: EUT - bottom side 220470-AU01+W04 Page 4 of 4 Picture 5: Name plate of EUT

220480-AU01+W04 Page 1 of 1 1 Label & Location Picture 1: Location of permanently affixed Label on EUT Picture 2: Name plate of EUT

220470-AU01+W01 Page 1 of 9 1 Annex C – EUT pictures internal 1.1 List of Pictures Picture 1: EUT without handle housing – front view .......................................................................................2 Picture 2: EUT without handle housing – top view .........................................................................................2 Picture 3: EUT with battery and without handle housing – front view ..............................................................3 Picture 4: EUT without cover – front view ......................................................................................................3 Picture 5: EUT without cover and RF module– front view...............................................................................4 Picture 6: RF module – top view ....................................................................................................................4 Picture 7: RF module – bottom view ..............................................................................................................5 Picture 8: EUT without border – front view .....................................................................................................5 Picture 9: Disassembled EUT – top view .......................................................................................................6 Picture 10: Left side of disassembled EUT – top view ....................................................................................6 Picture 11: Right side of disassembled EUT – top view .................................................................................7 Picture 12: Right side of disassembled EUT without module– top view ..........................................................7 Picture 13: Module of right side of disassembled EUT– top view ...................................................................8 Picture 14: Module of right side of disassembled EUT– bottom view ..............................................................8 Picture 15: Lock of EUT – top view ................................................................................................................9 220470-AU01+W01 Page 2 of 9 Picture 1: EUT without handle housing – front view Picture 2: EUT without handle housing – top view 220470-AU01+W01 Page 3 of 9 Picture 3: EUT with battery and without handle housing – front view Picture 4: EUT without cover – front view 220470-AU01+W01 Page 4 of 9 Picture 5: EUT without cover and RF module– front view Picture 6: RF module – top view 220470-AU01+W01 Page 5 of 9 Picture 7: RF module – bottom view Picture 8: EUT without border – front view 220470-AU01+W01 Page 6 of 9 Picture 9: Disassembled EUT – top view Picture 10: Left side of disassembled EUT – top view 220470-AU01+W01 Page 7 of 9 Picture 11: Right side of disassembled EUT – top view Picture 12: Right side of disassembled EUT without module– top view 220470-AU01+W01 Page 8 of 9 Picture 13: Module of right side of disassembled EUT– top view Picture 14: Module of right side of disassembled EUT– bottom view 220470-AU01+W01 Page 9 of 9 Picture 15: Lock of EUT – top view

Applicant: Uhlmann & Zacher GmbH Gutenbergstraße 2-4 97297 Waldbüttelbrunn Tel.: +49 931 40672-0 Test report no.: 220470-AU01+W03 for: Uhlmann & Zacher GmbH Electronic Door Handle EDH420 according to: 47 CFR Part 2 RSS-102 Safety Safety Safety Safety Safety Sa fety Safety Safety Safety Safety 220470-AU01+W03 Page 2 of 19 Accreditation: FCC test firm accreditation expiration date: 2023-04-06 MRA US-EU, FCC designation number: DE0010 Test firm registration number: 997268 FCC Registration Number (FRN): 0032245045 BnetzA-CAB-02/21-02/6 Valid until 2023-11-26 Recognized until 2023-03-16 by the Department of Innovation, Science and Economic Development Canada (ISED) as a recognized testing laboratory CAB identifier: DE0011 Company number: 3472A Location of Testing: Element Materials Technology Straubing GmbH Tel.: +49 9421 56868-0 Fax: +49 9421 56868-100 Email: [email protected] Gustav-Hertz-Straße 35 94315 Straubing, Germany The technical accuracy is guaranteed through the quality management of Element Materials Technology Straubing GmbH. D-PL-12155-01-03 220470-AU01+W03 Page 3 of 19 Table of contents 1 Summary of test results .............................................................................................................................. 4 1.1 FCC standard ...................................................................................................................................... 4 1.2 IC standard .......................................................................................................................................... 4 2 Test regulations .......................................................................................................................................... 5 2.1 FCC standards .................................................................................................................................... 5 2.2 IC standards ........................................................................................................................................ 6 3 Equipment under Test ................................................................................................................................ 7 3.1 General information ............................................................................................................................. 7 3.2 Photographs of EUT ............................................................................................................................ 7 4 Test results ................................................................................................................................................. 8 4.1 FCC ..................................................................................................................................................... 8 4.2 Canada .............................................................................................................................................. 14 5 Revision history ......................................................................................................................................... 19 List of tables Table 1: Formula for calculation P th .................................................................................................................... 9 Table 2: Table 1 to §1.1307(b)(3)(i)(C)—Single RF Sources Subject to Routine Environmental Evaluation .... 9 Table 3: Result of SAR test exclusion, exposure to the head and body .......................................................... 10 Table 4: Result of SAR test exclusion, exposure to the head and body .......................................................... 11 Table 5: Result of SAR test exclusion, simultaneous transmissions ............................................................... 13 Table 6: Result of SAR test exclusion, exposure to the head and body .......................................................... 15 Table 7: Result of SAR test exclusion, exposure to the head and body .......................................................... 16 Table 8: SAR exemption limits ......................................................................................................................... 17 Table 9: Result of SAR exemption, simultaneous transmissions ..................................................................... 18 220470-AU01+W03 Page 4 of 19 1 Summary of test results 1.1 FCC standard FCC standard Requirement Page Result 47 CFR Part 2, § 2.1093 SAR test exclusion, except WPT 8 Passed 47 CFR Part 2, § 2.1093 Simultaneous transmissions - SAR test exclusion, except WPT 12 Passed 1.2 IC standard IC standard Requirement Page Result RSS-102 Issue 5, section 2.5.1 SAR test exclusion, except 3 kHz – 10 MHz 14 Passed RSS-102 Issue 5, section 2.5.1 Simultaneous transmissions SAR test exclusion, except 3 kHz – 10 MHz 17 Passed Straubing, August 17, 2023 Tested by Konrad Graßl Department Manager Radio Approved by Christian Kiermeier Reviewer 220470-AU01+W03 Page 5 of 19 2 Test regulations 2.1 FCC standards Standard Title OET Bulletin 65, 65A, 65B Edition 97-01, August 1997 Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields Part 1, Subpart I, Section 1.1307 October 2022 Actions that may have a significant environmental effect, for which Environmental Assessment (EAs) must be prepared. Part 1, Subpart I, Section 1.1310 October 2022 Radiofrequency radiation exposure limits Part 1, Subpart 2, Section 2.1093 October 2022 Radiofrequency radiation exposure evaluation: portable devices. KDB 447498 D04 v01 November 29, 2021 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices KDB 865664 D01 v01r04 August 7, 2015 SAR Measurement requirements for 100 MHz to 6 GHz ANSI C96.1: 2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz ANSI C63.10 June, 2013 American Nat…
