2APVRFB32681RC SHARK STUNT CAR

27.145M XTAL MODULATION SIGNAL DECODE OUTPUT MIXING SIGNAL AMPLIFICATION ANTENNA TRANSMITTING SIGNAL FR INSTRUCTION INPUT BL INSTRUCTION INPUT

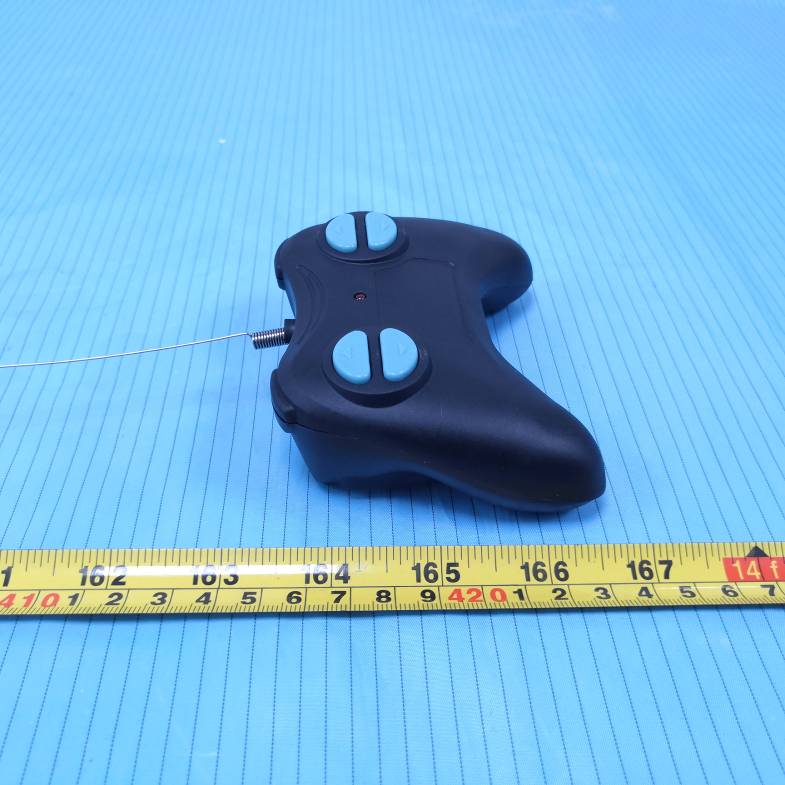

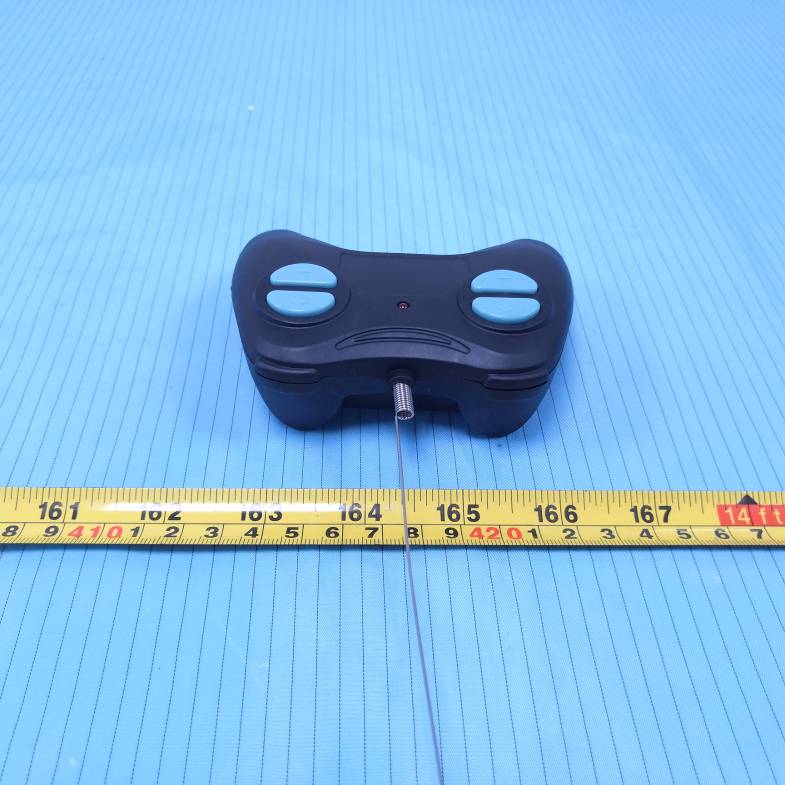

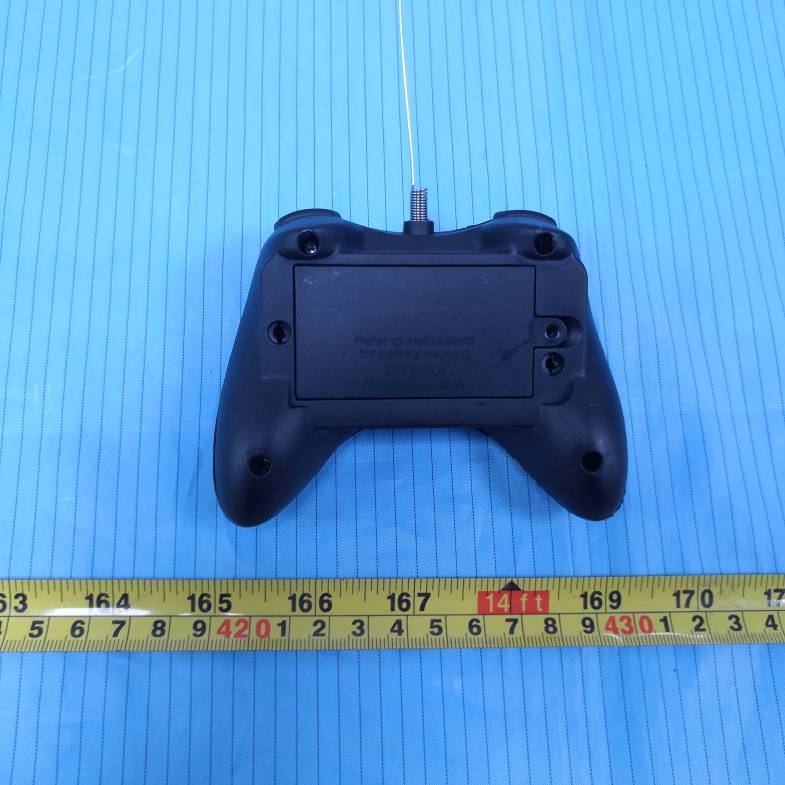

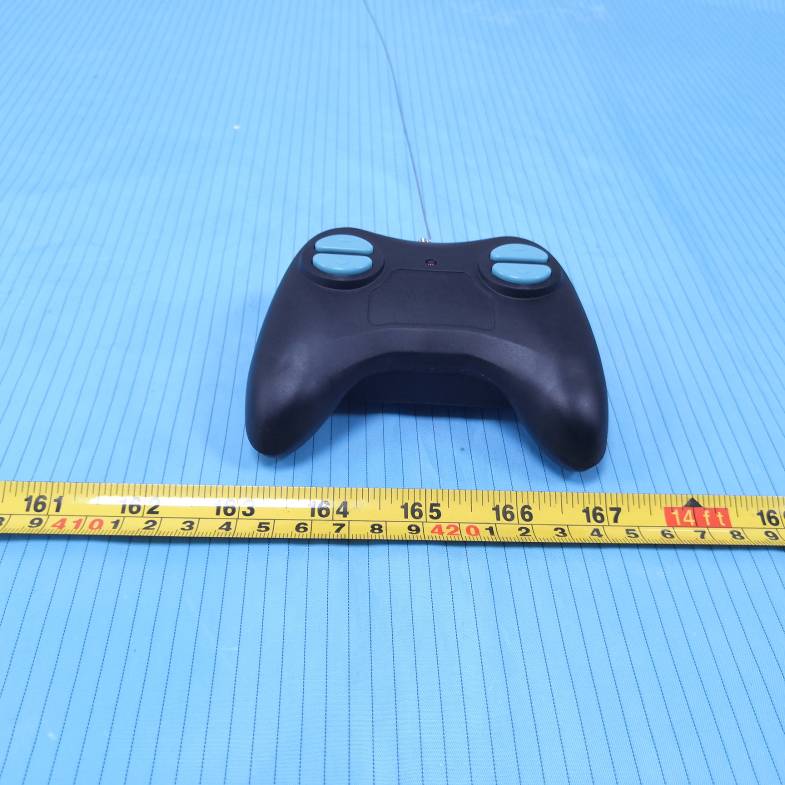

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

Technical Description The launch uses the remote control car special Coding IC TX-2A and the peripheral oscillation modulation amplification circuit is composed. When the function button is pressed, the IC encoded into a set of binary serial code, by the modulation circuit to load the encoded signal into carrier, amplified by amplification circuit and emitted by the antenna.

1234 A B C D 4 321 D C B A 图名 图号 设计审核 版次 A 2019-12-9 余平东 DZ1940T 27M原理图 东创电子厂 DC1940T 18 7 6 54 3 2 T X- 2A 47 K 10 K 20 0P 10 0P 10 0P 10 4P 94 5 80 50 8.2 UH4.7 UH K1 K4 2.2 UH 27 .145 M K2 K3 68 0R LED 10 0P JZ AA-2 3V R1 R4 R5 R6 C1 C2 C3 C4 C5 L3L2L1 IC1 Q1 Q2 6-6-5MM 6-6-5MM 6-6-5MM 6-6-5MM

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.227 MEASUREMENT AND TEST REPORT For HUADA TOYS CO.,LTD TONGYI ROAD, GUANGYI DISTRICT, CHENGHAI AREA, SHANTOU CITY, GUANGDONG, CHINA FCC ID: 2APVRFB32681 Report Type: Original Report Product Type: RC SHARK STUNT CAR Report Number: RSZ191210830-00 Report Date: 2020-01-20 Reviewed By: Nancy Wang RF En gineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ191210830-00 FCC Part 15.227 Page 2 of 13 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 TEST EQUIPMENT LIST ........................................................................................................................................... 6 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC§15.205, §15.209, §15.227(A), §15.227 (B) – FIELD STRENGTH AND RESTRICTED BAND EMISSIONS ................................................................................................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC§15.215(C) - 20DB EMISSION BANDWIDTH ................................................................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST DATA ..................................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 30 MHz) Radiated Emissions View (30 MHz~1 GHz)
