2APVYCLIMBER24Toy car

SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL, CO., LTD. Date: 2022-12-13 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2APVYCLIMBER24 To whom it may concern: We, the undersigned, hereby authorize Compliance Certification Services (Kunshan) Inc and Winkey Wang in Compliance Certification Services (Kunshan) Inc to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own.. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL, CO., LTD. This authorization is valid until further written notice from the applicant. Print Name: Ivy Liu Title: SALES MANAGER Signature: On behalf of Company: SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL CO., LTD Telephone: 86-754-85178839 E-mail: [email protected]

SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL CO., LTD TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2APVYCLIMBER24 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY（Remark：如下资料需要短期保密请选择天数0，45,90或者180天，短期保密期间产品不能在美国市场上售卖。 Additionally, the applicant requests the following documents be held confidential until the device is marketed or 0 days from the grant date, whichever is less. If the device is marketed within 0 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. Delete any document that is NOT included in your application External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Ivy Liu Title: SALES MANAGER Signature: On behalf of Company: SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL CO., LTD Telephone: 86-754-85178839 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL CO., LTDi Address NANWAN INDUSTRIAL AREA, LIANNAN ROAD, CHENGHAI DISTRICT,SHANTOU, CHINA Grantee Code 2APVY FCC ID 2APVYCLIMBER24 Authorized Contact Name Ivy Liu Contact Email [email protected] Contact Phone 86-754-85178839 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1)labeling the equipment with the exact FCC ID as specified in this application, (2)compliance statement labeling pursuant to the applicable rules, (3)compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1)the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2)the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3)the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2022-12-13 Print Name: Ivy Liu Title: SALES MANAGER *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

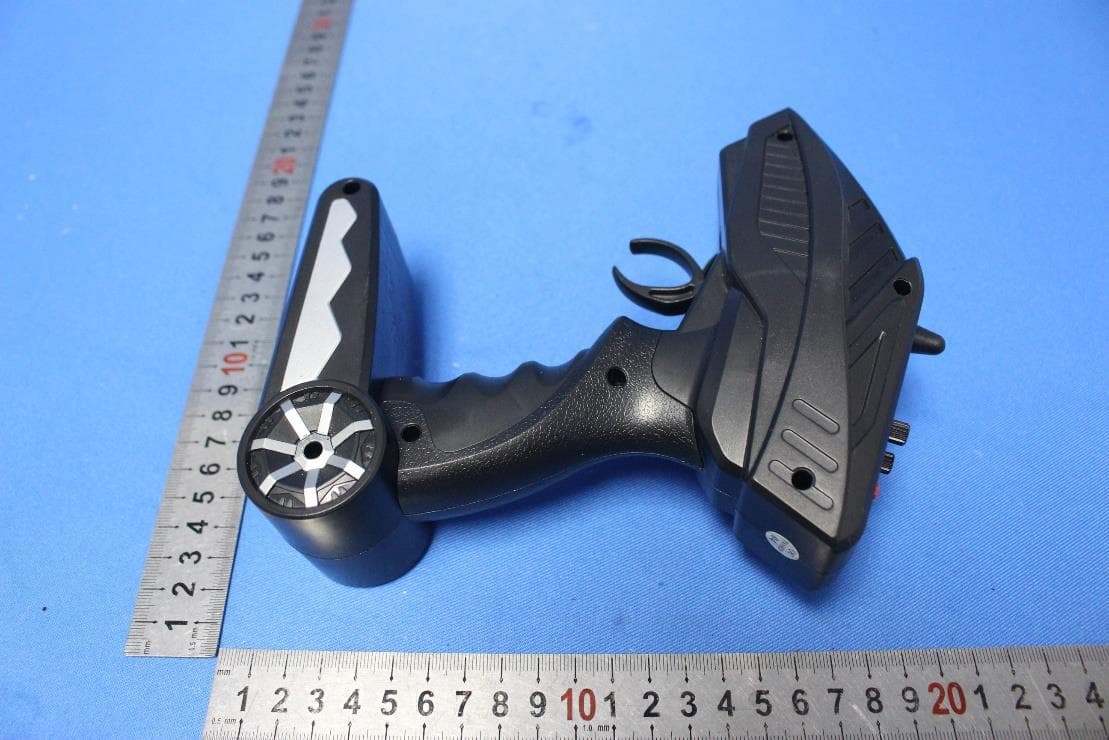

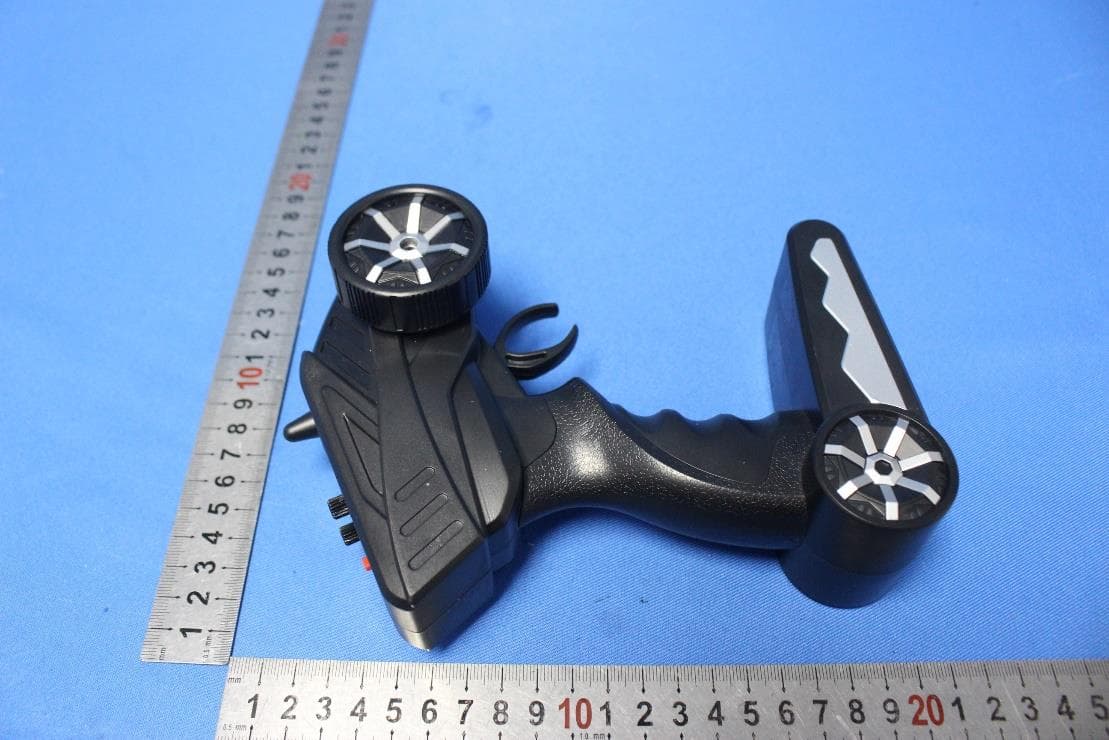

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 1 of 4 Appendix External Photos for FYCR2212000508AT FCC ID: 2APVYCLIMBER24 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 4 of 4 - End of the Appendix -

FCC ID：2APVYCLIMBER24 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Size:9cm*2.5cm Label Size:8cm*3cm

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 1 of 3 Appendix Internal Photos for FYCR2212000508AT FCC ID: 2APVYCLIMBER24 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 2 of 3 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 3 of 3 - End of the Appendix -

Antenna Technical Part Name: 2.4GHz Antenna Model Name: TXS 1． Dimensions Match Network 1.5mm 70mm HK(ASIA) INT'L LTD 2． Electrical Characteristics No. Item Specifications 1 Working Frequency 2400~2500MHz 2 Gain 0dBi 3 V.S.W.R (in BW) <2.0 4 Polarization Linear 5 Azimuth Beam width Omni-directional 6 Impedance 50 Ω 3． Return Loss and Smith Chat -40 -35 -30 -25 -20 -15 -10 -5 0 20002100220023002400250026002700280029003000 M1M2M3 Return Loss Current Std: ---Channel: N/A Resolution: 517FlexCAL:ON(COAX)CW: ON dB Frequency (2000.0 - 3000.0 MHz) M1: -8.94 dB @ 2397.387 MHzM2: -20.87 dB @ 2443.898 MHzM3: -11.84 dB @ 2482.658 MHz HK(ASIA) INT'L LTD HK(ASIA) INT'L LTD 3D Radiation Pattern Frequency (GHz) 2.4GHz 2.41GHz2.42GHz 2.43GHz2.44GHz2.45GHz2.46GHz2.47GHz 2.48GHz2.5GHz Efficiency(dB) -5.1 -4.81 -4.60 -4.19 -4.00 -4.10 -3.78 -3.69 -3.81 -3.51 Efficiency(%) 52.98 55.36 58.09 63.39 66.01 65.09 70.01 70.26 68.74 73.51 Pick Gain (dBi) 0.00 -0.07 -0.11 -0.05 -0.01 -0.15 -0.03 0.00 -0.06 -0.10

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221200050802 Page: 1 of 44 Winkey Wang EMC Technical Manager TEST REPORT Application No.: FYCR2212000508AT Applicant: SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL CO., LTD Address of Applicant: NANWAN INDUSTRIAL AREA, CHENGHAI, SHANTOU, CHINA Manufacturer: SHANTOU CITY CHENGHAI JINGWEI INDUSTRIAL CO., LTD Address of Manufacturer: NANWAN INDUSTRIAL AREA, CHENGHAI, SHANTOU, CHINA Equipment Under Test (EUT): EUT Name: Toy car Model No.: 866-243, 866-240, 866-241, 866-242, 866-244, 866-245, 866-246, 866-247, 866-248, 866-249   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. FCC ID: 2APVYCLIMBER24 Standard(s) : 47 CFR Part 15, Subpart C 15.249 Date of Receipt: 2022-12-13 Date of Test: 2022-12-15 to 2023-01-03 Date of Issue: 2023-01-05 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221200050802 Page: 2 of 44 Revision Record Version Chapter Date Modifier Remark 01 2023-01-05 Original Authorized for issue by: Tree Zhan/Project Engineer Winkey Wang/Reviewer Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221200050802 Page: 3 of 44 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.249 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.249 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.215 Pass Field Strength of the Fundamental Signal (15.249(a)) ANSI C63.10 (2013) Section 6.5&6.6 47 CFR Part 15, Subpart C 15.249(a) Pass Restricted Band Around Fundamental Frequency ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.249(d) & 15.209 Pass Radiated Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4&6.5 47 CFR Part 15, Subpart C 15.209 & 15.249 (a),(d) Pass Radiated Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.209 & 15.249 (a),(d) Pass Declaration of EUT Family Grouping: Model No.: 866-243, 866-240, 866-241, 866-242, 866-244, 866-245, 866-246, 866-247, 866-248, 866-249 Only the model 866-243 was tested, since according to the declaration from the applicant, the electrical circuit design, PCB layout, components used, internal wiring and functions were identical for all the above models, with only difference on model No. and color, appearance and packaging. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221200050802 Page: 4 of 44 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 4.4 TEST LOCATION ............................................................................................................................. 8 4.5 TEST FACILITY ............................................................................................................................... 8 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 8 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 EQUIPMENT LIST ............................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................12 6.1 ANTENNA REQUIREMENT ................................................................................................................12 6.1.1 Test Requirement: ..................................................................................................................12 6.1.2 Conclusion ..............................................................................................................................12 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................13 7.1 20DB BANDWIDTH .........................................................................................................................13 7.1.1 E.U.T. Operation .....................................................................................................................13 7.1.2 Test Mode Description ............................................................................................................13 7.1.3 Test Setup Diagram ................................................................................................................13 7.1.4 Measurement Procedure and Data .........................................................................................13 7.2 FIE…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A04 Rev.A/0 Page: 1 of 3 Appendix Test Setup Photos for FYCR2212000508AT FCC ID: 2APVYCLIMBER24 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A04 Rev.A/0 Page: 2 of 3 Test Setup Photo Field Strength of the Fundamental Signal (15.249(a)) Restricted Band Around Fundamental Frequency Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A04 Rev.A/0 Page: 3 of 3 Radiated Emissions Below 1GHz Radiated Emissions Above 1GHz - End of the Appendix -
