2APWA-Z23GGigabit SIP IP Phone

Quick Start Guide Z 23G Gigabit Business IP Phone WWW.ZULTYS.COM Z 23G END CALL Assembling the Phone 2 Packaging Contents The following items are included in your package. If you find anything missing, contact your system administrator. Package Contents Assembling the Phone 1. Attach the stand, as shown below: Stand Handset Cord Handset IP Phone Ethernet Cable Power Adapter Wall Mount Bracket (Optional)(Optional) Quick Start Guide Desk Mount Method BBB AAA Note: 2. Connect the handset and optional headset, as shown below: Note: A compatible headset may be purchased separately. Note: We recommend that you use the accessories provided or approved by ZULTYS. The use of unapproved third-party accessories may result in reduced performance or damage. The phone may also be wall mounted using the optional Z 23G wall mount bracket. Refer to wall mount installation guide for additional information. Handset Headset Z 23G END CALL 3 Screen Icons 3. Connect the network and power as shown below: Note: The IP phone should only be used with a ZULTYS 5V DC power adapter. The use of a third-party power adapter may cause damage to the phone. If you are connecting a PC to the Network port of the phone, it is recommended that you use the Ethernet cable provided with the phone. If inline power (PoE) is provided, you do not need to connect a power adapter. Make sure the switch is PoE-compliant per the IEEE 802.3af standard. Power Adapter (DC 5V) The phone may be powered using the optional ZULTYS 5V DC power adapter or via Power over Ethernet (PoE). Your system administrator will advise which method to use. PC (Optional)Network In hands-free mode In headset mode In handset mode Mute activated Ringer off Call is on hold Network Quality Indicator Received call(s) Dialed call(s) Network connected Network disconnected X No IP address ! Auto-answering activated Call Forward activated VLAN activated Do not disturb activated (Red) New Voicemail Messages Keypad locked Missed call(s) Wireless network connected Wireless network disconnected Wireless network failure Bluetooth device paired Optional USB Wi-Fi Adapter 4. Connecting to a wireless network: To connect to a wireless network using the optional ZULTYS Wi-Fi Adapter, perform the following steps: 1. Connect the optional ZULTYS 5V DC power adapter and allow the phone to reach the idle screen. 2. Plug the ZULTYS Wi-Fi Adapter into the USB port on the rear of the phone. 3. When the phone displays ‘WLAN adapter is added’ press OK to scan for available networks. 4. Scroll down to ‘Available networks’ and press Enter. 5. Select the network you wish to connect to then press the Link button. 6. Enter the password and press OK. A green tick icon indicates a successful connection. 5. Connecting a Bluetooth headset: To connect a compatible Bluetooth headset perform the following steps: 1. Select Menu > Basic > Bluetooth, set Bluetooth to Enabled and then press OK. 2. Place the Bluetooth headset into pairing mode then press Scan to locate the headset. 3. Select the headset from the list and then press Link to connect. Placing a Call Answering a Call Ending a Call Using the handset: Using the speakerphone: Using the headset: Using the handset: Using the speakerphone: Using the headset: Using the handset: 1. With the handset on-hook, enter the number. 1. Pick up the handset. 2. Then press or the Dial soft key. 1. With the headset connected, press to activate the headset mode. 2. Enter the number, and then press the Dial soft key or . Pick up the handset. Press or the Answer soft key. Hang up the handset or press the -End Call key. Press or the Answer soft key if headset mode is active. 4 Basic Call Features Note: During a call, you can alternate between the headset, hands-free speakerphone and handset modes by pressing the HEADSET key, the Speakerphone key or by picking up the handset. Note: Reject an incoming call by pressing the Reject soft key or silence the ringer by pressing the Mute key. Call Mute and Un-mute Call Hold and Resume To place a call on hold: To resume the call, do one of the following: Press to mute the microphone during a call. Press again to un-mute the call. If there is only one call on hold, press the Resume soft key. Press the Hold soft key during an active call. Press twice when the phone is idle to dial the last dialed number. Using the speakerphone: Using the headset: Press or press the -End Call key. Press the -End Call key. Redial Press to enter the Out Calls list, press or to select the desired entry, and then press or the Dial soft key. If there is more than one call on hold, press or to select the desired call, and then press the Resume soft key. 2. Enter the number, and then press the Dial soft key or . --Alternatively-- Enter the number and then lift the handset to initiate the call. 5 Conference Call 1. Press the Conf soft key during an active call. The call is placed on hold. Call Forward To enable call forward: Unconditional----Incoming calls are forwarded unconditionally. Busy Forward----Incoming calls are forwarded when the phone is busy. No Answer----Incoming calls are forwarded if not answered after a period of time. 2. Select the SIP Line (usually #1) and then the desired forward type: 4. Press the OK soft or hard key to accept the change. 3. Select ‘Enable’ and enter the ‘Forward to’ number. For No Answer Forward, enter the ‘Time’ in seconds to wait before forwarding. 4. Press the End soft key to disconnect all parties. 2. Enter the number of the second party, and then press the Dial soft key or . 3. Press the Conf soft key again when the second party answers. All parties are now joined in the conference. Note: You can split the conference call into two individual calls by pressing the Split soft key. 1. Press the Menu soft key when the phone is idle, and then select Features->Call Forward. Semi-Attended Transfer Attended Transfer Blind Transfer Call Transfer You can transfer a call in the following ways: 1. Press the Trans soft key dur…

Text truncated - open the document above for the full version.

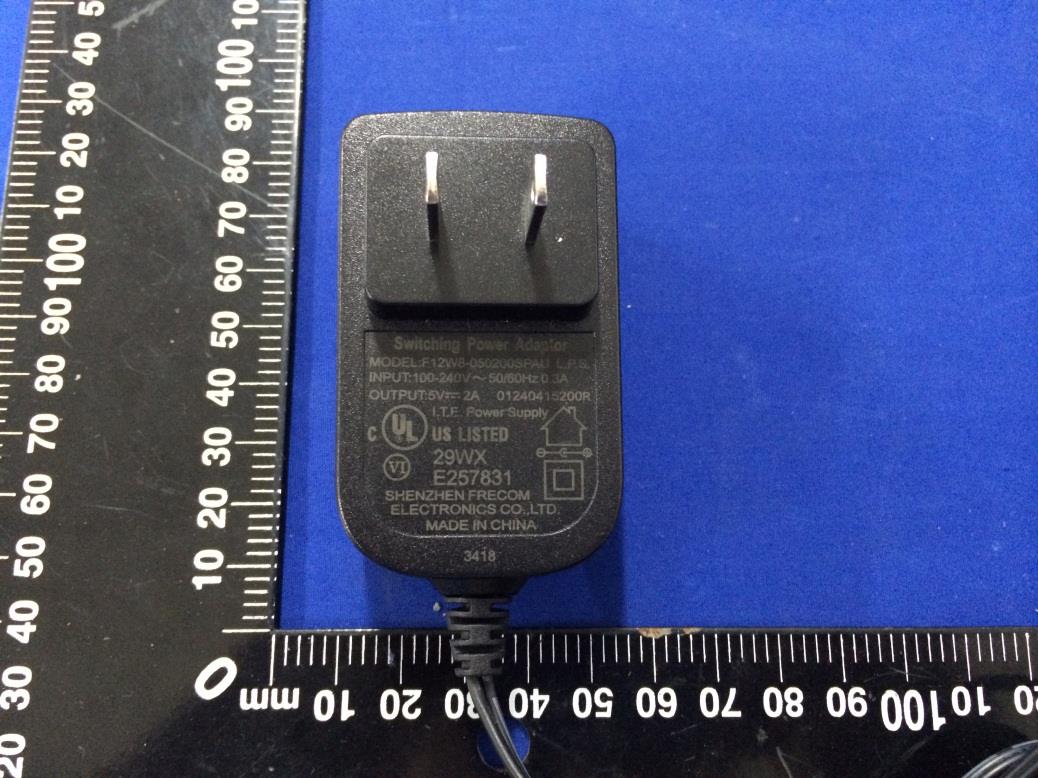

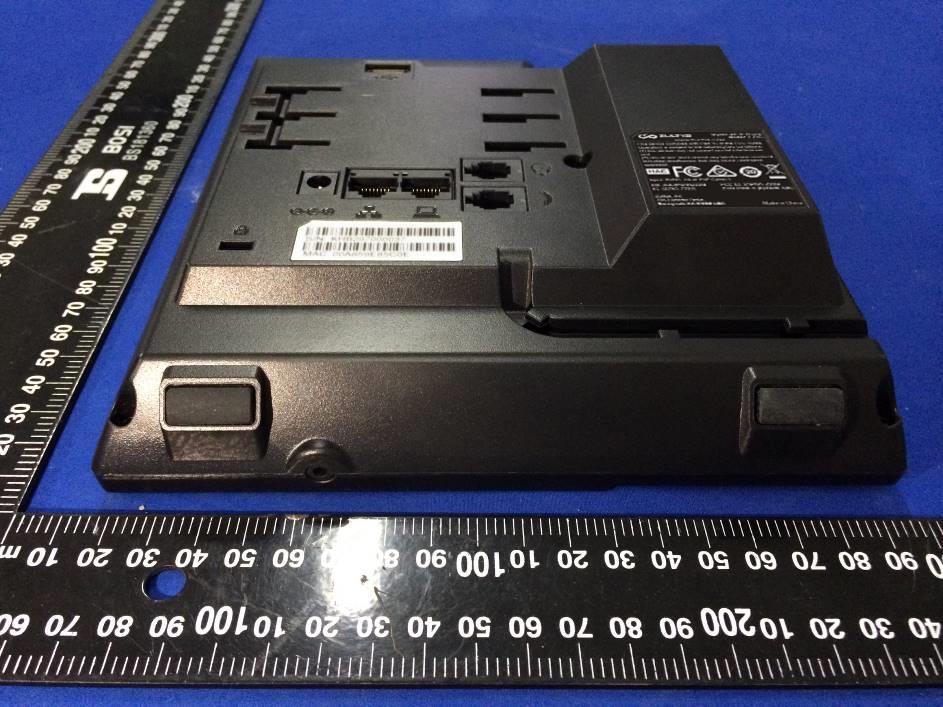

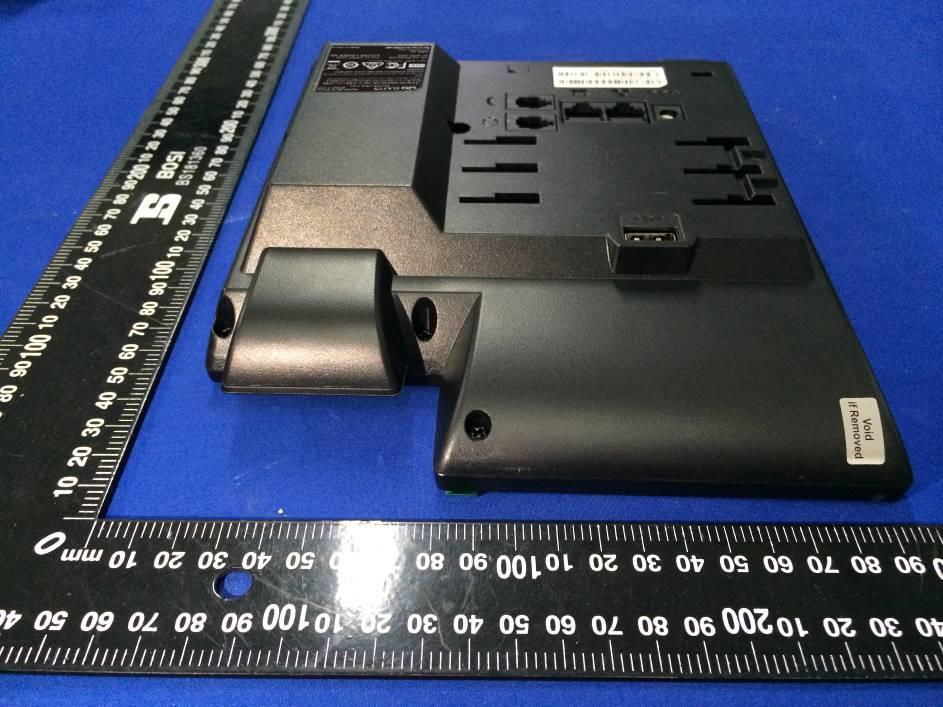

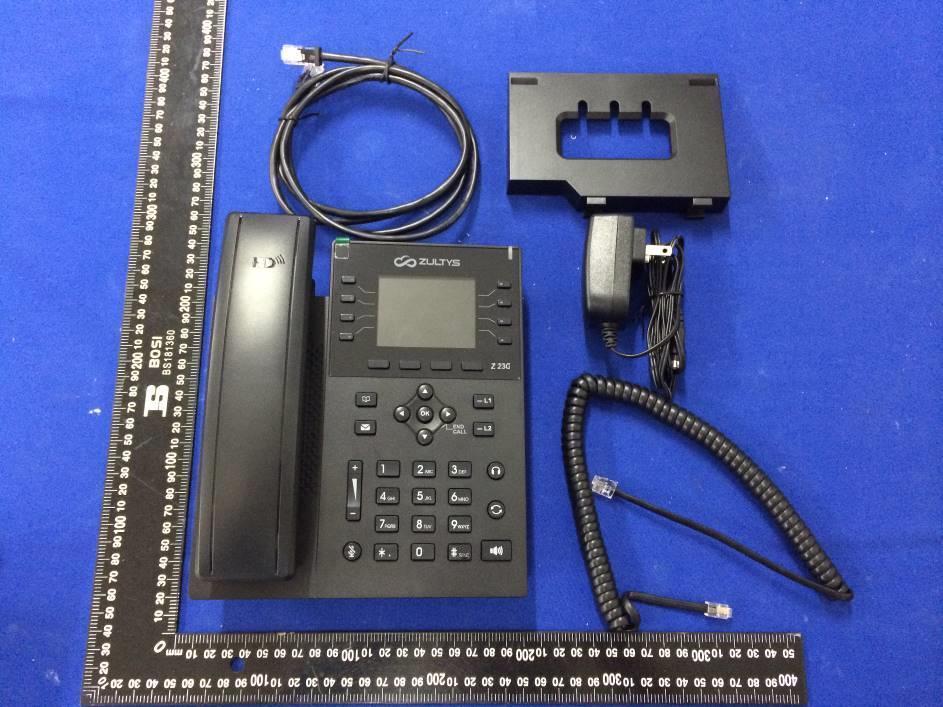

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn External Photographs Page 2 of 5 Report No.: CTC20210202E Label Location Page 3 of 5 Report No.: CTC20210202E Page 4 of 5 Report No.: CTC20210202E Page 5 of 5 Report No.: CTC20210202E Label

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Label Label Location 1.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Internal Photographs Page 2 of 5 Report No.: CTC20210202E Page 3 of 5 Report No.: CTC20210202E Page 4 of 5 Report No.: CTC20210202E Page 5 of 5 Report No.: CTC20210202E BT Antenna

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn RF Exposure Evaluation FCC ID: 2APWA-Z23G According to KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) EUT Specification EUT Gigabit SIP IP Phone Model/Type reference: Z 23G Listed Model(s): N/A Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz WLAN: 2.412GHz ~ 2.462GHz Others Device category Portable (<20cm separation) Mobile (<5mm separation) fixed (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain (Max) 2.8dBi Limit [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 Where -f (GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. Page 2 of 2 Report No.: CTC20210202E09 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Measurement Result Type Channel frequency (MHz) Max. Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Calculation Value Threshold Value Result GFSK 2402 5.93 5±1 6 2.351 3.0 PASS 2441 5.54 5±1 6 2.370 3.0 2480 5.22 5±1 6 2.389 3.0 π/4-DQPSK 2402 5.71 5±1 6 2.351 3.0 2441 5.48 5±1 6 2.370 3.0 2480 5.17 5±1 6 2.389 3.0 8-DPSK 2402 5.70 5±1 6 2.351 3.0 2441 5.46 5±1 6 2.370 3.0 2480 5.14 5±1 6 2.389 3.0 Note For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20210202E08 FCC ID································: 2APWA-Z23G IC ID···································: 4478A-Z23G Applicant····························: ZULTYS, INC Address·······························: 785 Lucerne Drive, Sunnyvale, CA 94085 USA Manufacturer·························: Fanvil Technology Co., Ltd Address·······························: 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Product Name······················: Gigabit SIP IP Phone Trade Mark···························: ZULTYS Model/Type reference·············: Z 23G Listed Model(s) ·····················: N/A Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Mar. 19, 2021 Date of testing.......................: Mar. 19, 2021 to Mar. 25, 2020 Date of issue.........................: Mar. 25, 2021 Result.................................: PASS Compiled by: (Printed name+signature) Lucy Lan Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Walter Chen $英文检测章$ $Walter$ Testing Laboratory Name ........... :CTC Laboratories, Inc. Address ........................................ : 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY .................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION .......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 4 1.4. TEST FACILITY .............................................................................................................................................................. 5 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. CLIENT INFORMATION ................................................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. OPERATION STATE ......................................................................................................................................................... 8 2.4. MEASUREMENT INSTRUMENTS LIST ................................................................................................................................. 9 3. TEST ITEM AND RESULTS ..................................................................................................................................... 11 3.1. CONDUCTED EMISSION ................................................................................................................................................ 11 3.2. RADIATED EMISSION ................................................................................................................................................... 14 3.3. BAND EDGE EMISSIONS ............................................................................................................................................... 45 3.4. OCCUPIED CHANNEL BANDWIDTH AND 20DB BANDWIDTH ................................................................................................ 62 3.5. CHANNEL SEPARATION................................................................................................................................................. 70 3.6. NUMBER OF HOPPING CHANNEL ................................................................................................................................... 75 3.7. DWELL TIME .............................................................................................................…

Text truncated - open the document above for the full version.

Page 61 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Page 62 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3.4. Occupied Channel Bandwidth and 20DB Bandwidth Limit N/A Test Configuration Test Procedure 1. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 2. Spectrum Setting: (1 ) Set RBW = 100 kHz. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. Note: The EUT was set to continuously transmitting in each mode and low, Middle and high channel for the test. Test Mode Please refer to the clause 2.3. Test Results Modulation type Channel 99% Bandwidth (MHz) 20dB Bandwidth (MHz) 20dB Bandwidth *2/3 (MHz) GFSK 00 0.875 0.948 0.632 39 0.878 0.948 0.632 78 0.878 0.948 0.632 π/4-DQPSK 00 1.067 1.176 0.784 39 1.064 1.131 0.754 78 1.07 1.176 0.784 8-DPSK 00 1.061 1.167 0.778 39 1.064 1.170 0.780 78 1.067 1.170 0.780 Page 63 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 99% Bandwidth DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 64 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 65 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 66 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 20dB Bandwidth: DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 68 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 69 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 70 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 3.5. Channel Separation Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (a)(1)/ RSS-247 5.1 b : Test Item Limit Frequency Range(MHz) Channel Separation >25KHz or >two-thirds of the 20 dB bandwidth Which is greater 2400~2483.5 Test Configuration Test Procedure 3. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 4. Spectrum Setting: (1) Set RBW = 100 kHz. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. Test Mode Please refer to the clause 2.3. Page 71 of 89 Report No.: CTC20210202E08 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.c…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Radiated Emission Below 1G Above 1G Page 2 of 2 Report No.: CTC20210202E08 Conducted Emission
