2APX9-TC2Car DVR

Thank you for choosing Dual Camera DVR. For proper usages and application, please read this manual thoroughly before using this product. Gotrec DVR A2pro User Manual Content: 1. Feature: ................................................................... 2. Precaution: .............................................................. 3. Appearance and Parts: .......................................... 4. Operation Instruction: .......................................... 5. Application: ........................................................... 6. Specification: .......................................................... 7. Troubleshooting: ................................................... 8. Accessories: ........................................................... Features 1. Genuine product of Car DVR performance is compiled to genuine manufacture requirement. 2. Dual Full HD Front /Rear camera. 3. Front Camera use 140-degree wide angle Lens to capture every moment. 4. Rear camera use 120-degree wide angle Lens to focus the key image. 5. WDR function improve the good video quality. 6. Built-in G-sensor, the device will automatically record the emergency record upon an even. 7. User friendly smart phone APP can link the derive via WiFi , user can share their happy video and pictures to social media. Features 1. Do not operate the Car DVR while you are driving. 2. The product is for safety driving only, it records the video when you are driving. 3. The best video capture quality for this product is around 2.5~10 meters. 4. The video quality may be reducing in extremely dark environment. 5. Please configure the date and time with APP in first time start the device and re- configure every month or replace the battery. 6. Tinted glass are not allowed on the camera area, to avoid affecting video quality. 7. Avoid touching camera lens, except for cleaning purpose. 8. Do nor disassemble the product to avoid damage. 9. To avoid malfunction, this product can only be installed/repaired by TCAT sales and service centre. 10. To avoid damaging the recorded video, please do not remove the Micro SD card during recording. 11. It is recommended to format the Micro SD card every three months, to prolong the Micro SD card’s life span. 12. The video record file will have two files, one is normal video record file and other is emergency record file. 13. RGB three-color light status: press the WiFi key, turn on the WiFi, the green light flashes; when connected to the mobile phone APP, the green light is always on; turn off the WiFi, the green light is off The card is abnormal when the red light is on, and the blue light flashes during normal recording. 14. When manually stop the recording, the device will not automatically continue recording until restart the engine. User must manually restart the recording. 15. The warranty conditions of this product is 3 year. Precaution A. Key Functions The keys and definitions are shown in the following table: No Button Definition 1 M (Menu) Function 1: In recording mode / photographing mode, short press [Menu key / MEMU] to enter the main menu function setting table, short press [Up key / UP] or [Down key / DOWN] to select the option to be set in the submenu, short Press 【OK】 / OK Appearance and Parts Operation Instruction to confirm. After setting, press 【Menu key / MEMU】 shortly to exit the menu setting function (Press OK button stop recording first.). Function 2: Mode key / MODE function In standby mode, press and hold [Menu key / MEMU] to switch between the three modes of recording mode / photographing mode / playback mode. 2 OK (confirm) Function 1: start/Stop video / photo / play function In standby mode, short press [Confirm key / OK] to start recording, and short press [Confirm key / OK] again to stop recording. Take photo: In the photo mode, short press [confirm key / OK] to take a photo. Play Video: In the playback mode, short press [confirm key / OK] to play the file. Function 2: Confirm function In addition to recording mode / photographing mode, short press [Menu key / MENU] to enter the main menu mode, press [Up key / UP] / [Down key / DOWN] to browse, and press [OK] Key / OK] to confirm. 3 (Up) Function 1: page up function Page up function in menu setting and playback mode. Function 2: Manual emergency record, press “up “in video recording, the recording file will keep in emergency file fold. Function 3: Change front camera or rear camera in photographing mode. 4 (Down) Function 1: page down function Page down function in menu setting and playback mode. Function 2: Turn off the recording function In standby mode and recording mode, short press [DOWN / DOWN] to turn off the recording function. At this time, the icon at the bottom left of the screen becomes a prohibition icon to indicate that the recording function has been turned off. Short press again to start recording, and the prohibition icon disappears. 5 Wifi One click to open WiFi connection, Configuration with APP: Press and hold for 3 seconds-configuration mode B. Video Interface 1. Current recording time 2. Video icon 3. Loop recording / 3 minutes 4. Gravity sensing / Medium 5. Motion detection ON 6 WDR ON 7. Current time 8. Mic audio recording 9. WIFI Status 10. GPS signal (optional) 11. Resolution Status 12. Memory card size 13. Speed status (optional-GPS support) 14. Memory card status C. System Setting Menu Interface In the recording interface (Under the state of stopping recording), short press [ Menu Button ] to enter the system function setting interface, short press [ Up button ] or [ Down Button ] to select the option that needs to be set and press [ Confirm Button ] to confirm ; Press [ Menu Button ] again to return to the previous menu. D. Camera Interface 1. On the recording interface ( with the recording stopped ), press and hold[ Menu Button ] once to switch to the camera interface. 2. Photograph: Short press [ Confirm Button ] to take a picture ; 3. Photograph setting: On the camera int…

Text truncated - open the document above for the full version.

AAPICO ELECTRONICS CO., LTD Agent Authorization Company: AAPICO ELECTRONICS CO., LTD Address: 99 Moo 1 Hitech Industrial Estate,Tambol Ban Lane, Ampur Bang-Pa- In,Ayuthaya 13160 Thailand Product Name: Car DVR Trade Mark: Gotrec Model Number: DVR A2pro FCC ID: 2APX9-TC2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-07-24 Name: Koh Lian King Title: Manager Company: AAPICO ELECTRONICS CO., LTD

AAPICO ELECTRONICS CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-07-15 Subject; Request for Confidentiality FCC ID: 2APX9-TC2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Koh Lian King Title: Manager

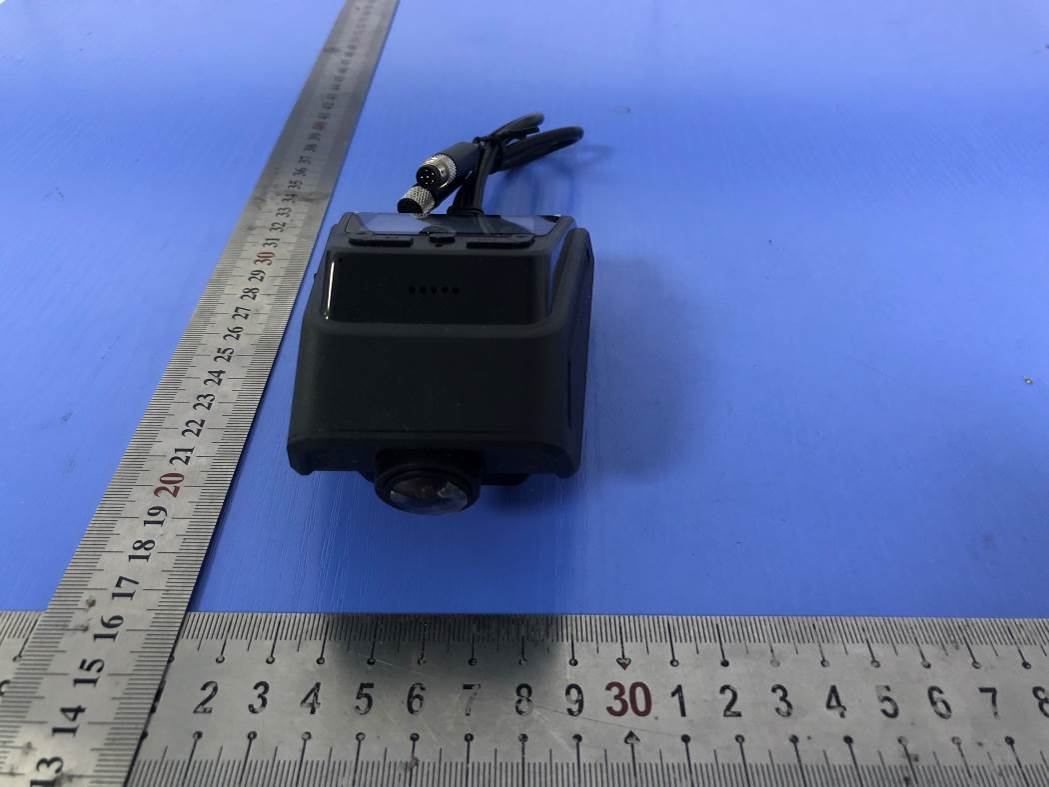

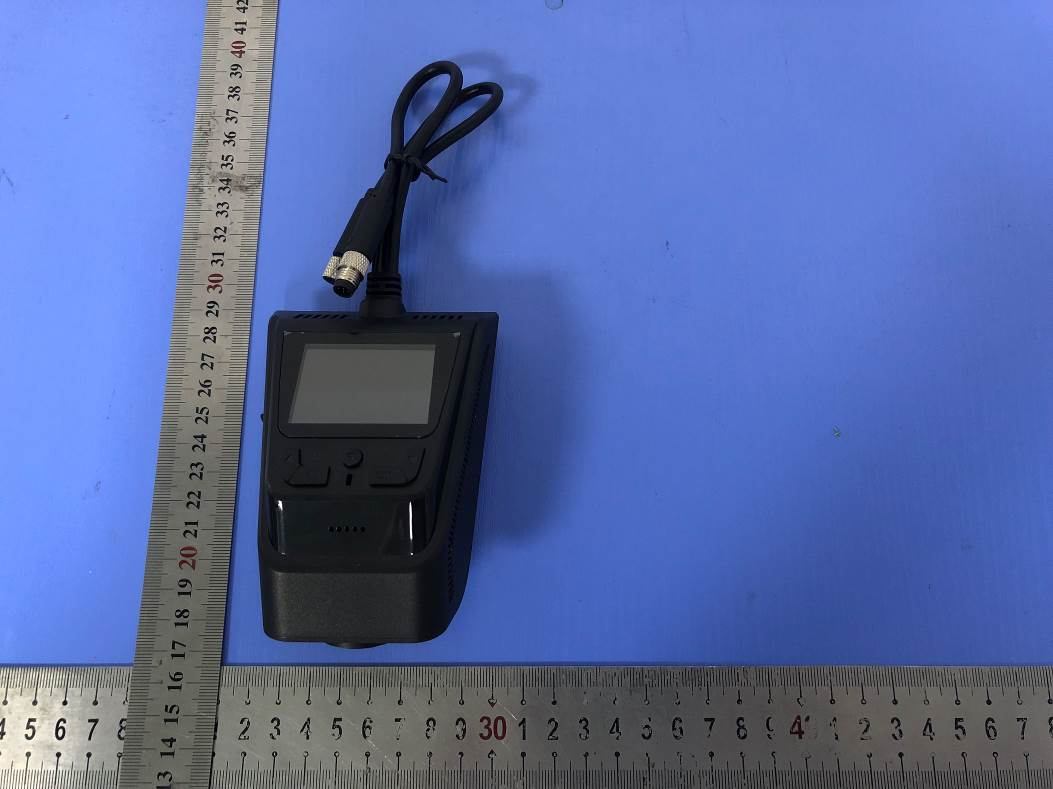

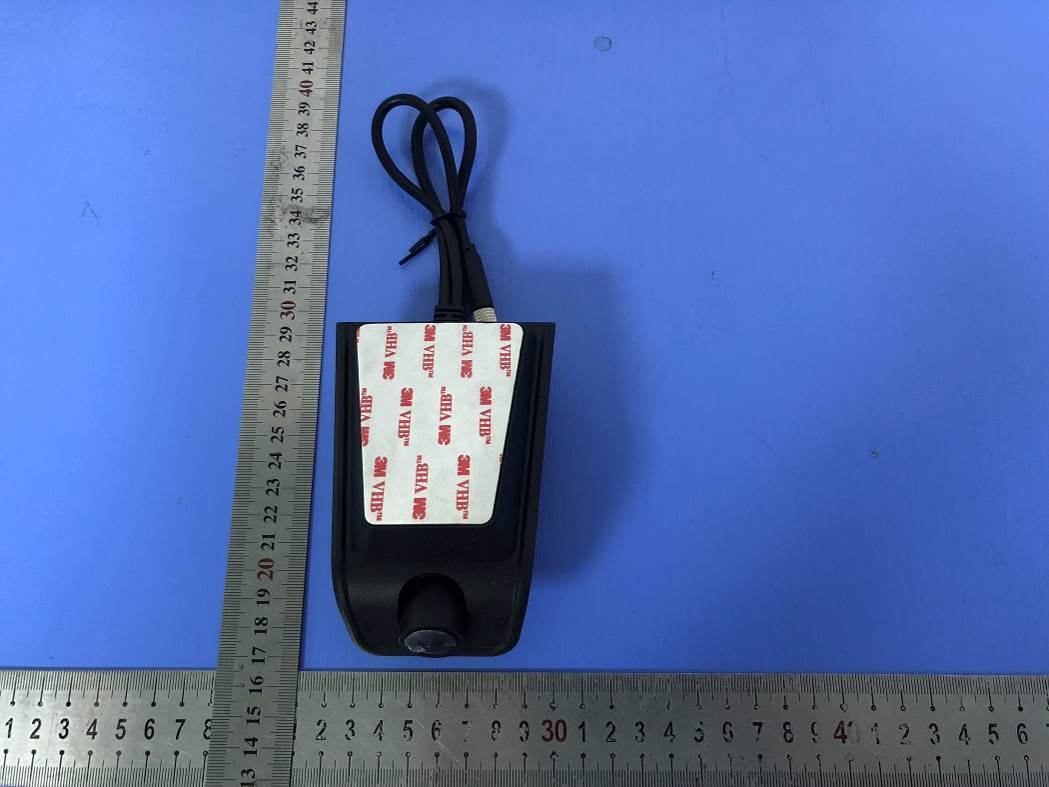

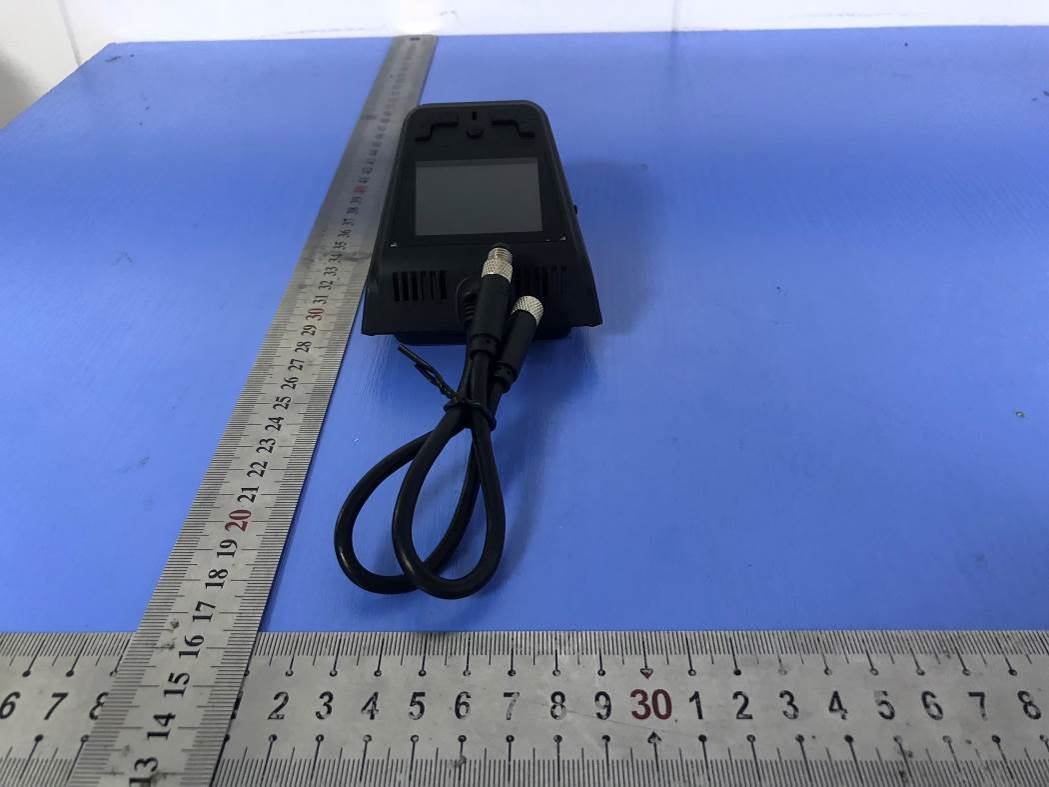

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L3.0m x 2.0cm) Label Location Car DVR Model No.: DVR A2pro FCC ID: 2APX9-TC2 Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2APX9-TC2 Product name Car DVR Test Model DVR A2pro Power supply Input: DC 12V Operation frequency 2.412-2.462GHz for 2.4G WIFI Antenna Type Internal Antenna Antenna Gain 0 dBi Hardware version V1.0 Software version V0.2 Channel Number 11 channels for 20MHz bandwidth (2412~2462MHz) 7 channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information C2M can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna Internal Antenna 2400 MHz –5850 MHz 0 dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) IEEE 802.11b 1 2412 13.23 6 2437 13.86 11 2462 10.80 IEEE 802.11g 1 2412 13.27 6 2437 12.86 11 2462 12.83 IEEE 802.11n HT20 1 2412 13.02 6 2437 13.66 11 2462 13.56 IEEE 802.11n HT40 3 2422 12.60 6 2437 12.91 9 2452 12.98 7. Measurement Results 2.4GWIFI IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.0 13.0 10.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.0 12.0 12.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.0 13.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 12.0 12.0 12.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Evaluation Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Car DVR Trade Mark: Gotrec Test Model: DVR A2pro Environmental Conditions Temperature: 22.7  C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 13.23 30 PASS MCH 13.86 30 PASS HCH 10.80 30 PASS 11G LCH 13.27 30 PASS MCH 12.86 30 PASS HCH 12.83 30 PASS 11N20SISO LCH 13.02 30 PASS MCH 13.66 30 PASS HCH 13.56 30 PASS 11N40SISO LCH 12.6 30 PASS MCH 12.91 30 PASS HCH 12.98 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -19.592 8 PASS MCH -19.036 8 PASS HCH -19.573 8 PASS 11G LCH -23.078 8 PASS MCH -23.077 8 PASS HCH -23.353 8 PASS 11N20SISO LCH -22.411 8 PASS MCH -21.631 8 PASS HCH -22.712 8 PASS 11N40SISO LCH -24.442 8 PASS MCH -24.348 8 PASS HCH -24.006 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.14 ≥0.5 PASS MCH 10.14 ≥0.5 PASS HCH 10.14 ≥0.5 PASS 11G LCH 16.55 ≥0.5 PASS MCH 16.56 ≥0.5 PASS HCH 16.58 ≥0.5 PASS 11N20SISO LCH 17.71 ≥0.5 PASS MCH 17.74 ≥0.5 PASS HCH 17.72 ≥0.5 PASS 11N40SISO LCH 36.48 ≥0.5 PASS MCH 36.50 ≥0.5 PASS HCH 36.51 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 0.37 -38.236 -19.630 PASS MCH 1.008 -37.627 -18.992 PASS HCH 0.389 -37.987 -19.611 PASS 11G LCH -8.087 -37.842 -28.087 PASS MCH -8.748 -38.045 -28.748 PASS HCH -8.786 -37.873 -28.786 PASS 11N20 SISO LCH -8.764 -37.401 -28.764 PASS MCH -8.167 -37.903 -28.167 PASS HCH -8.213 -38.035 -28.213 PASS 11N40 SISO LCH -12.326 -37.710 -32.326 PASS MCH -11.903 -37.201 -31.903 PASS HCH -12.278 -36.391 -32.278 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA Page 29 of 46 11N40SISO_LCH_Graphs Pref/11N40 SISO/LCH Puw/11N40 SISO/LCH SHENZHEN LCS COMPLIANCE TESTIN…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT For AAPICO ELECTRONICS CO., LTD Car DVR Test Model: DVR A2pro Prepared for : AAPICO ELECTRONICS CO., LTD Address : 99 Moo 1 Hitech Industrial Estate, Tambol Ban Lane, Ampur Bang-Pa-In, Ayuthaya 13160 Thailand Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 03, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : July 03, 2020 ~ July 13, 2020 Date of Report : July 15, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200701016AEA Date of Issue ................................... : July 15, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : AAPICO ELECTRONICS CO., LTD Address ........................................... : 99 Moo 1 Hitech Industrial Estate, Tambol Ban Lane, Ampur Bang-Pa-In, Ayuthaya 13160 Thailand Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Car DVR Trade Mark ...................................... : Gotrec Model/ Type reference .................... : DVR A2pro Ratings ............................................ : Input: DC 12V Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ Administrators Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT EUT......................................... : Car DVR Type / Model........................... : DVR A2pro Applicant............................... : AAPICO ELECTRONICS CO., LTD Address.................................. : 99 Moo 1 Hitech Industrial Estate, Tambol Ban Lane, Ampur Bang-Pa-In, Ayuthaya 13160 Thailand Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Haizhen Auto Technology Co., Ltd Address................................... : 101, No.43, Rifu Road, Fuyong Street, East Area, Baishixia Community, Bao'an District, Shenzhen, China Telephone............................... : Fax.......................................... : Factory................................... : Shenzhen Haizhen Auto Technology Co., Ltd Address................................... : 101, No.43, Rifu Road, Fuyong Street, East Area, Baishixia Community, Bao'an District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200701016AEA July 15, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 July 15, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 Report No.: LCS200701016AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FA…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APX9-TC2 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Test Setup Photos of the EUT Radiated Emissions Measurement Fig. 1 Fig. 2
