2AQ22-BRTRGB30LED Strip

6.Enable Smart Life ,sign in your account to complete the account linking.Smart Life 7.After successful account linking,ask Alexa to discover devices.After a 20-second device discovery, Alexa will s how all t he discovered devices. 8.Back to Menu by clicking button ,and then click button. Smart Home 9.In Smart Home page,you can group your devices for different categories.Your APP has been skilled with Alexa.Now you can control your Smart Plug through Alexa. Smart Life 1.Launch the Google Home App and make sure Google Home speaker is installed, If not,please follow Google Home speaker installation instruction to complete the installation. 2.Once Google Home is installed, in the upper left corner of App Home page,click button to show APP menu.The clicks“HomeControl”in the menu. 3.On "Add devices"page,scroll down to find“Smart Life”and then click it,Sign in Smart Life App with your Smart Life App account and password choose App in the dropdown menu to complete the account linking. Smart Life 4.After successful account linking, in Google Home App you can see all the smart devices from your Smart Life App account.You can assign rooms for each device. 5.Now you can use Google Home to control your smart devices, you can say like: O k Google, turn on /off wall light O k Google, set bedroom light to red When the strip light is powered on, press and hold the switch to maintain for 5S until the light flashes in red then let go. The factory reset successfully. When the strip light is connected with new Wi-Fi, you need to restore the factory settings, and then re-gain connection. Safety Precautions 1. Please confirm the working voltage before using this product, the use of inappropriate voltage may cause damage to the product and security risks. 2. L ED module can’t be replaced, pls don’t dismantle the product by yourself. 3.The strip light will generate heat when working, plea se keep the air circulation for heat dissipation. The harmful substances in the product Parts Strip Light Controller Adapter Wire Packing Box Harmful Substances leadmercury OO O X X O O O O O O O O O O O O O O O O O O O O O O O O O (Pb)(Hg)(Cd)(Cr(VI)) (PBB)(PBDE) This chart is made in accordance with the provisions of SJ / T 11364. O: The content of the hazardous material in all homogeneous materials of the par t is within the limit requirement of GB / T26572. X: The content of the hazardous substance in at least one homogeneous material of the par t exceeds the limit requirement of GB / T 267572. * Factory Reset cadmium Hexavalent chromium Polybro minated biphenyls Polybrominated diphenyl ethers Product Information Color Adjustment Product Features --- RGBRGBW 2A 12W(LED Strip） Model NO. S50123010-XX RGB 12V --- 2A 12V --- 3A 12V --- 4A 12V RGBW S50123010-XXS50123010-XXS50123010-XX Brightness AdjustmentOne-key OperationScene Mode Switch Timing Switchvoice controlPhone ControlFirmware Upgrade About 25000Hr A n d r o i d&i O S W i-Fi I EEE 80 2.1 1 b/g/n 2.4 GH z.. Lifespan : Supported Platforms: Wireless Connect: Working Temperature: -20~+40°C Working Humidity:0%-85%RH Power Input:100-240V-50/60Hz 1.5A Color Strip Input Rated Power 16W(LED Strip）30W(LED Strip）40W(LED Strip） Warranty Instructions After-sales service of lights with products in strict accordance with the "People's Republic of China Consumer Protection Law", "People's Republic of China Product Quality Law," the implementation of three bags of service, the service as follows: Product Name 1. Within 7-day receiving of the product, you are free to enjoy the return or replacement if it fails within the list of "Product Performance Fault List", after the service center tested and determined. 2. Within 8-15 days receiving of the product, you are free to enjoy the return or maintenance if it fails within the list of "Product Performance Fault List", after the service center tested and determined. 3. Within 12-day receiving of the product, you are free to enjoy the replacement or maintenance if it fails within the list of "Product Performance Fault List", after t he service center tested and determined. Warranty Revocation Rules 1. Unauthorized repairs, misuse, collision, negligence, liquid intrusion, accident, alteration, or tearing, alteration, labeling, security markings. 2. Exceeds warranty period. 3. Damage caused by force major. 4. Failures which are not listed in "Product Performance Fault List". 5. Failures listed in "Product Performance Fault List" but caused by man-made. Such as the use of dimmers, the use of non-rated voltage, the use of non-standard adapters, use in the not specified enviro nment, resulting in product performance failure. Product Performance Fault List Strip Light Controller Adapter Performance Breakdown Light Failure Lack of Light Color Unable to search for the Strip Light Button unable to Function Reset Failure Unable to power the Strip Light normally Warranty Card Customer NameContact Number (Mr./Ms.) Address Product Model Serial Number Purchase Shop Name Shop Address Invoice Number Purchased Date Purchased Stamp Warranty Card Customer NameContact Number (Mr./Ms.) Address Product Model Serial Number Purchase Shop Name Shop Address Invoice Number Purchased Date Purchased Stamp FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause interference. 2) This device must accept any interference, including interference that may cause undesired operation of the device. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer…

Text truncated - open the document above for the full version.

Shenzhen Bright Lighting Technology Co., Ltd * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 10/11/2024 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2AQ22-BRTRGB30 FRN of applicant: 0027805803 Per section 2.911(d)(7) of the FCC rules, [Shenzhen Bright Lighting Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: UA INTERNATIONAL INC. FCC Registration Number (FRN): 0033510736 Physical U.S. Company Address: 5030 Boardwalk Dr Suite 818 Colorado Springs,COLORADO 80919,USA Contact Person: Jessica Zhong Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Lily Zou Title: Sales Manager Company Name: Shenzhen Bright Lighting Technology Co., Ltd Date: 11/22/2024 Agent Signed (if different from Applicant): Signed: Printed name: Jessica Zhong Title: General Manager Company Name: UA INTERNATIONAL INC. Date: 11/22/2024

COMPANY LETTERHEAD Covered Equipment Certification Attestation Letter 11/19/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AQ22-BRTRGB30 Shenzhen Bright Lighting Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Bright Lighting Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Bright Lighting Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Lily Zou Title: Sales Manager Company Name: Shenzhen Bright Lighting Technology Co., Ltd Date: 11/19/2024

DATE: 2024/11/19 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Dongguan New Testing Centre Co., Ltd；1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808. (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Bright Lighting Technology Co., Ltd; Building #28, Shancheng Industrial Park, Shiyan Street, Bao'an District, Shenzhen City, Guangdong, P.R. China (Applicant Name and address) <Signature> Name: Lily Zou Title: Sales Manager Applicant Company: Shenzhen Bright Lighting Technology Co., Ltd

Date:2024/11/19 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Lily Zou Title: Sales Manager Company: Shenzhen Bright Lighting Technology Co., Ltd

DATE：2024.11.13 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AQ22-BRTRGB30 Product Name: LED Strip Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  Bom These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Lily Zou Title：Sales Manager Company：Shenzhen Bright Lighting Technology Co.,Ltd

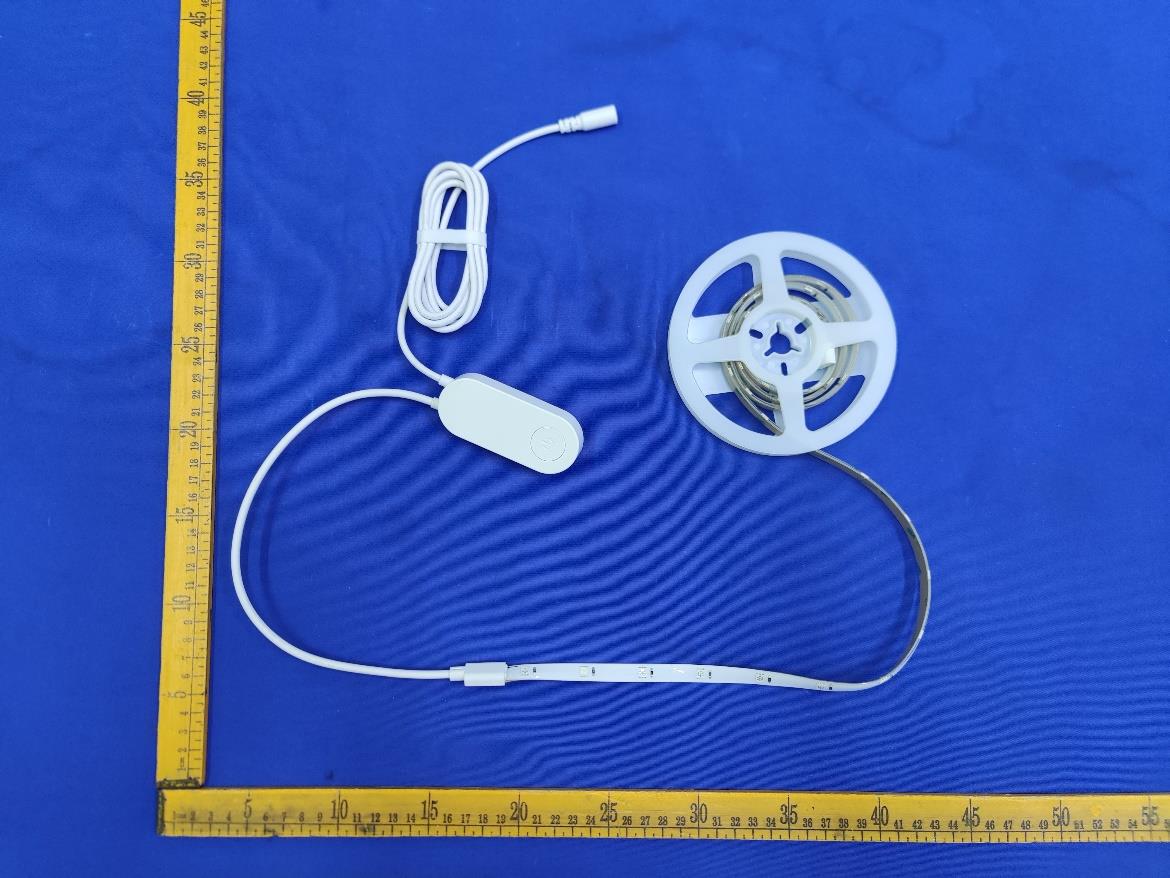

External photos Model No. BRT-SFN-RGB30-5010

LED STRIP Model: BRT-SFN-RGB30-5010 FCC ID: 2AQ22-BRTRGB30 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation.

Internal photos Model No. BRT-SFN-RGB30-5010 Antenna

Page 1 of 2 FCC-ID: 2BHFA-300-WIFI-SS RF Exposure evaluation FCC ID: 2AQ22-BRTRGB30 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Page 2 of 2 FCC-ID: 2BHFA-300-WIFI-SS 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.31 dBi for 2.4 GHz , the RF power density can be obtained. For 2.4GHz wifi Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11b 10.161 10.3777 1.3521 0.0021 1.0000 PASS 802.11g 10.115 10.2683 1.3521 0.0020 1.0000 PASS 802.11n20 10.172 10.4040 1.3521 0.0020 1.0000 PASS Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results GFSK 5.146 3.2704 1.3521 0.0007 1.0000 PASS 5. Conclusion The SAR evaluation is not required.

Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 0 of 46 No.:NTC-ER2408071 FCC TEST REPORT Report No. ................................ NTC-ER2408071 Applicant’s name ..................... Shenzhen Bright Lighting Technology Co.,Ltd Address..................................... Building#28, Shancheng Industrial Park, Shiyan Street, Bao'an District,Shenzhen City, Guangdong Province, China. DONGGUAN NEW TESTING CENTRE CO., LTD ◎Address: 31F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Tel: +86-769-22212079 Web: http://www.ntc-cert.com E-mail: dave@ntc- cert.com Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 1 of 46 No.:NTC-ER2408071 TABLE OF CONTENTS 1. SUMMARY OF TEST RESULTS................................................................................................................................. 4 2. GENERAL TEST INFORMATION .............................................................................................................................. 4 2.1. DETAIL MODELS ........................................................................................................................................................... 5 2.2. TEST PERIPHERAL LIST................................................................................................................................................... 5 2.3. BLOCK DIAGRAM EUT CONFIGURATION FOR TEST ............................................................................................................... 5 2.4. TEST ENVIRONMENT CONDITIONS .................................................................................................................................... 5 2.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 6 3. POWER LINE CONDUCTED EMISSION TEST ............................................................................................................ 7 3.1. TEST EQUIPMENT ......................................................................................................................................................... 7 3.2. BLOCK DIAGRAM OF TEST SETUP ............................................................................................................................ 7 3.3. POWER LINE CONDUCTED EMISSION LIMITS (CLASS B) ....................................................................................................... 7 3.4. TEST PROCEDURE......................................................................................................................................................... 8 3.5. TEST RESULT ............................................................................................................................................................... 8 4. RADIATED EMISSION TEST ................................................................................................................................... 10 4.1. TEST EQUIPMENT ....................................................................................................................................................... 10 4.2. BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 11 4.3. LIMIT....................................................................................................................................................................... 13 4.4. TEST PROCEDURE....................................................................................................................................................... 14 4.5. TEST RESULT.............................................................................................................................................................. 14 5. OUTPUT POWER .................................................................................................................................................. 20 5.1. TEST EQUIPMENT ....................................................................................................................................................... 20 5.2. BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 20 5.3. LIMIT....................................................................................................................................................................... 20 5.4. TEST PROCEDURE....................................................................................................................................................... 20 5.5. TEST RESULT.............................................................................................................................................................. 21 6. -6DB BANDWIDTH ............................................................................................................................................... 23 6.1. TEST EQUIPMENT ....................................................................................................................................................... 23 6.2. BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 23 6.3. LIMIT....................................................................................................................................................................... 23 6.4. TEST PROCEDURE.........................................…

Text truncated - open the document above for the full version.

Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 0 of 67 No.:NTC-ER2408062 FCC TEST REPORT Report No. ................................ NTC-ER2408062 Applicant’s name ..................... Shenzhen Bright Lighting Technology Co.,Ltd Address..................................... Building#28, Shancheng Industrial Park, Shiyan Street, Bao'an District,Shenzhen City, Guangdong Province, China. DONGGUAN NEW TESTING CENTRE CO., LTD ◎Address: 31F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Tel: +86-769-22212079 Web: http://www.ntc-cert.com E-mail: dave@ntc- cert.com Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 1 of 67 No.:NTC-ER2408062 TABLE OF CONTENTS 1. SUMMARY OF TEST RESULTS................................................................................................................................. 4 2. GENERAL TEST INFORMATION .............................................................................................................................. 4 2.1. DETAIL MODELS ........................................................................................................................................................... 5 2.2. TEST PERIPHERAL LIST................................................................................................................................................... 5 2.3. BLOCK DIAGRAM EUT CONFIGURATION FOR TEST ............................................................................................................... 6 2.4. TEST ENVIRONMENT CONDITIONS .................................................................................................................................... 6 2.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 6 3. POWER LINE CONDUCTED EMISSION TEST ............................................................................................................ 7 3.1. TEST EQUIPMENT ......................................................................................................................................................... 7 3.2. BLOCK DIAGRAM OF TEST SETUP ............................................................................................................................ 7 3.3. POWER LINE CONDUCTED EMISSION LIMITS (CLASS B) ....................................................................................................... 7 3.4. TEST PROCEDURE......................................................................................................................................................... 8 3.5. TEST RESULT ............................................................................................................................................................... 8 4. RADIATED EMISSION TEST ................................................................................................................................... 10 4.1. TEST EQUIPMENT ....................................................................................................................................................... 10 4.2. BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 11 4.3. LIMIT....................................................................................................................................................................... 13 4.4. TEST PROCEDURE....................................................................................................................................................... 14 4.5. TEST RESULT.............................................................................................................................................................. 14 5. OUTPUT POWER .................................................................................................................................................. 20 5.1. TEST EQUIPMENT ....................................................................................................................................................... 20 5.2. BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 20 5.3. LIMIT....................................................................................................................................................................... 20 5.4. TEST PROCEDURE....................................................................................................................................................... 20 5.5. TEST RESULT.............................................................................................................................................................. 21 6. -6DB BANDWIDTH ............................................................................................................................................... 27 6.1. TEST EQUIPMENT ....................................................................................................................................................... 27 6.2. BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 27 6.3. LIMIT....................................................................................................................................................................... 27 6.4. TEST PROCEDURE.........................................…

Text truncated - open the document above for the full version.

1 Antenna Specification Manufacture：TUYA Product Name：CB3S Antenna Antenna Type：PCB Test Date：2021.04.16 Tested by：Jianwei Wang Approved by：Licco Antenna Test Report Global Intelligent Platform 2 Content 1.General Description ................................................................................. 3 2.Test Configurations .................................................................................. 4 2.1 Test Environment ............................................................................ 4 2.2 Test Equipment ............................................................................... 4 2.3 Test Principle .................................................................................. 4 3.Test Results .............................................................................................. 5 3.1 Gain and Efficiency ........................................................................ 5 3.2 Radiation Pattern ............................................................................. 6 4.Antenna Dimensions ................................................................................ 9 5.EUT Photo ............................................................................................... 9 6.Test Setup Photo .................................................................................... 10 3 1.General Description Manufacturer Hangzhou Tuya Information Technology Co.,Ltd Address Room 701,Building 3,More Center,No.87 GuDun Road, Hangzhou, Zhejiang,China Test Location Room 106, Building 3, Letong Science Park, No. 500, Qiuyi Road, Binjiang District, Hangzhou Product Name CB3S Antenna Product model CB3S Antenna Type PCB Antenna Test Items Gain; Efficiency; Radiation Pattern Test Frequency 2400-2500MHz Test Standard ANSI/IEEE Std 149-1979 4 2.Test Configurations 2.1 Test Environment Temperature (°C) 25 Humidity (%RH) 60 Atmospheric Pressure (kPa) 100.5 2.2 Test Equipment Test System TEM 24 Multi-probe Microwave Chamber Test Instrument Agilent E5071B 2.3 Test Principle 5 3.Test Results 3.1 Gain and Efficiency Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 0.46 44.36 2410 0.71 45.71 2420 0.92 45.92 2430 0.91 45.6 2440 0.95 45.6 2450 0.93 45.29 2460 1.27 46.45 2470 1.37 46.88 2480 1.25 47.21 2490 1.24 46.67 2500 1.05 44.87 6 3.2 Radiation Pattern Phi 0 7 Phi 90 8 Theta 90 9 4.Antenna Dimensions 5.EUT Photo 10 6.Test Setup Photo

Set up photos Model No. BRT-SFN-RGB30-5010
