2AQ2W-BQ10Phone holder bluetooth speaker wireless charger

5. Statement of Matters FCC StatementChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help  This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 7KLVHTXLSPHQWFRPSOLHVZLWK)&&UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRU DQXQFRQWUROOHGHQYLURQPHQWFor charging the mobile phone: 7KLVHTXLSPHQWVKRXOGEHLQVWDOOHGDQGRSHUDWHGZLWKPLQLPXPGLVWDQFH FPEHWZHHQWKHUDGLDWRU \RXUERG\ FCC ID 2AQ2W-BQ10 3KRQHKROGHUEOXHWRRWKVSHDNHUZLUHOHVVFKDUJHU

2.911 (d)(5)(ii) Applicant Attestation v1.3 Shenzhen Doageas Technology Co., Ltd. Section 2.911(d)(5)(ii) Certification – Applic ant (Covered List ) Company name: Shenzhen Doageas Technology Co., Ltd. Address: 5/F, 4th Bldg, Hedian Indus trial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China. Product Name: Phone holder bluetooth speaker wireless charger FCCID: 2AQ2W-BQ10 Model(s): BQ10 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Doageas Technology Co., Ltd. ] ( “t he applicant”) certify that, as of t he date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Denly Zheng Date: 2023-11-08 Ti tle and Company name: Manager/Shenzhen Doageas Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist R eferences; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Doageas Technology Co., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“Baihetian Innovative Solutions) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Nov 8, 2023 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Doageas Technology Co., Ltd. Grantee Code: 2AQ2W FRN: 0027805738 Contact Name: Denly Zheng Street Address: 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, City/Province/Zip: Shenzhen, Guangdong 518110, China. Telephone No: 0755-82956575 Email: [email protected] Applicant Signature: Date:2023-11-08 Signed by (Printed Name/Title): Denly Zheng/ Manager FCC ID: 2AQ2W-BQ10

Office o Federa 7435 O Columb USA Subjec t FCC ID To Who Pursua are req u docume Th ese d propriet might b It is ou r corresp docume authoriz Sinc er e Signa t u Na me: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AQ2W- om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schemat Block Di Parts Lis Operatio Tune-up r understand pondence du ents and thi zation is iss ely, ure: Denly Zhe n anager She ing Techno cations Com s Road 046 for Long Te BQ10 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp tic Diagram agram st onal Descrip Procedure ding that all uring the ce s informatio sued. ng nzhen Do logy mmission rm Confide the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption l measurem ertification re on will be av ageas Tec ntiality ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for chnology s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e Co., Ltd. Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: 2023 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 3 -11-08 0.459, we al dered as documents the market . ntial quipment .

Shenzhen Doageas Technology Co., Ltd. 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China. Agent Authorization Company: Shenzhen Doageas Technology Co., Ltd. Address: 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China. Product Name: Phone holder bluetooth speaker wireless charger M odel Number(s): BQ10 Product Description: Phone holder bluetooth speaker wireless charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-11-08 Name: Denly Zheng Title: Manager Company: Shenzhen Doageas Technology Co., Ltd.

LabelArtworkandLocation Model:BQ10 Label: Size:L*W=40*28mm Location Phoneholderbluetoothspeakerwirelesscharger Model:BQ10 FCCID:2AQ2W-BQ10 Thisdevicecomplieswithpart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesired operation.

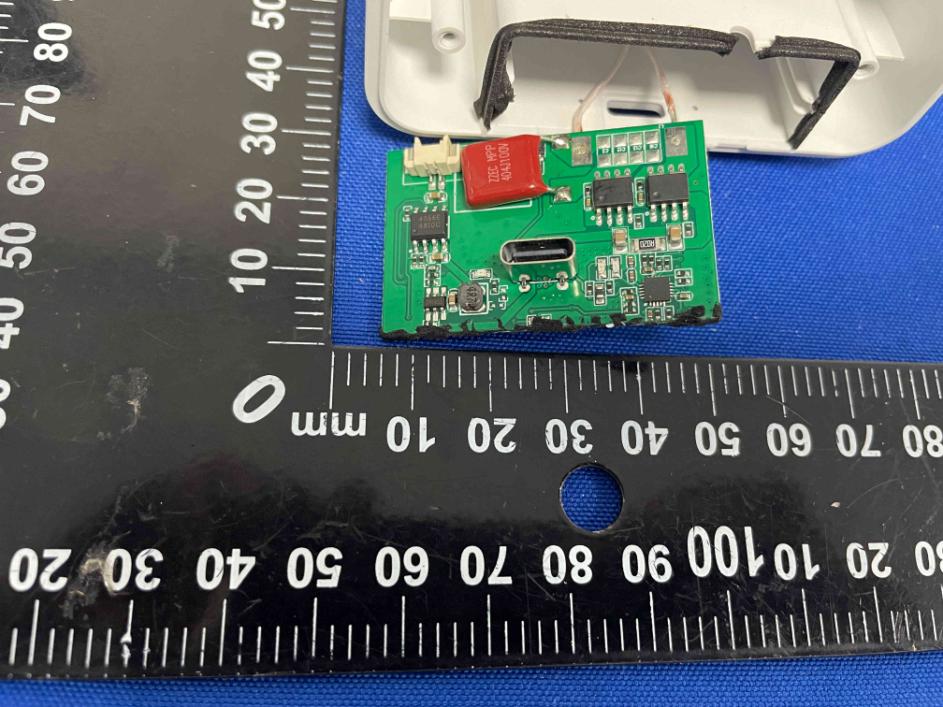

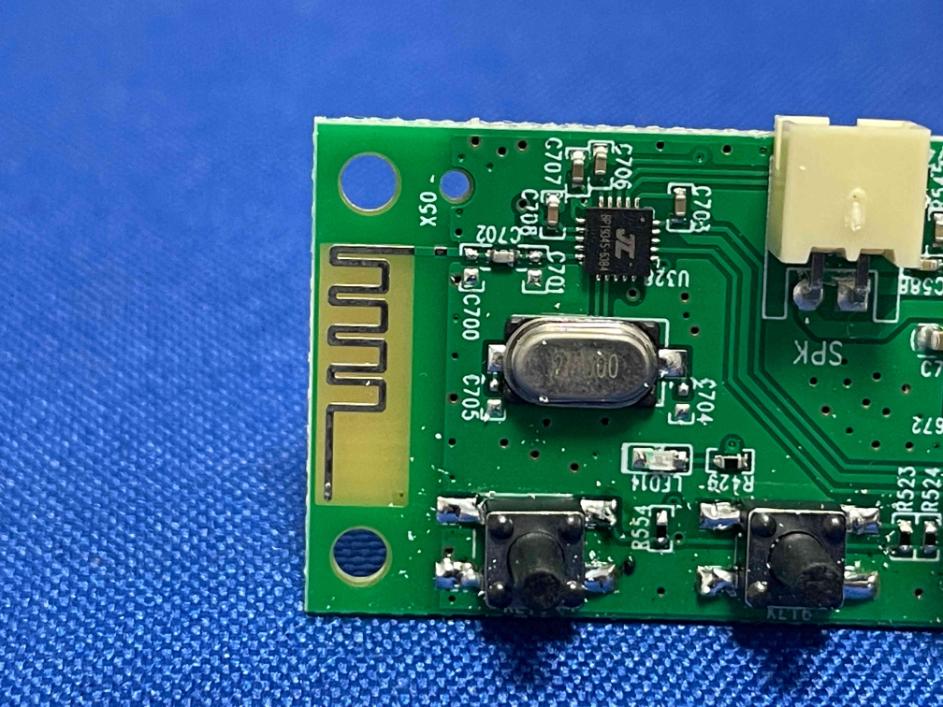

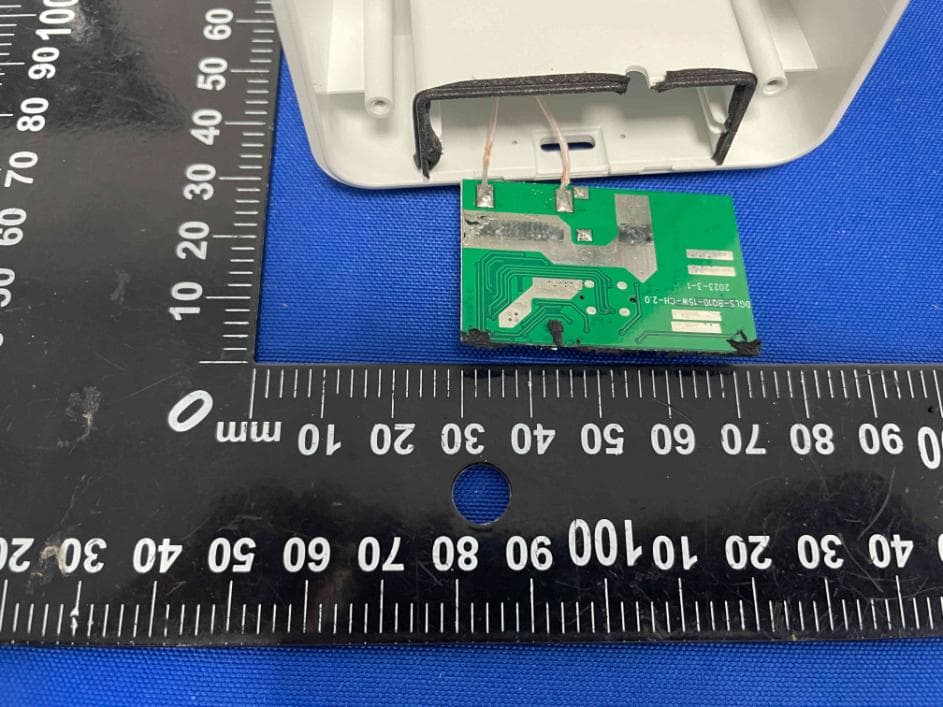

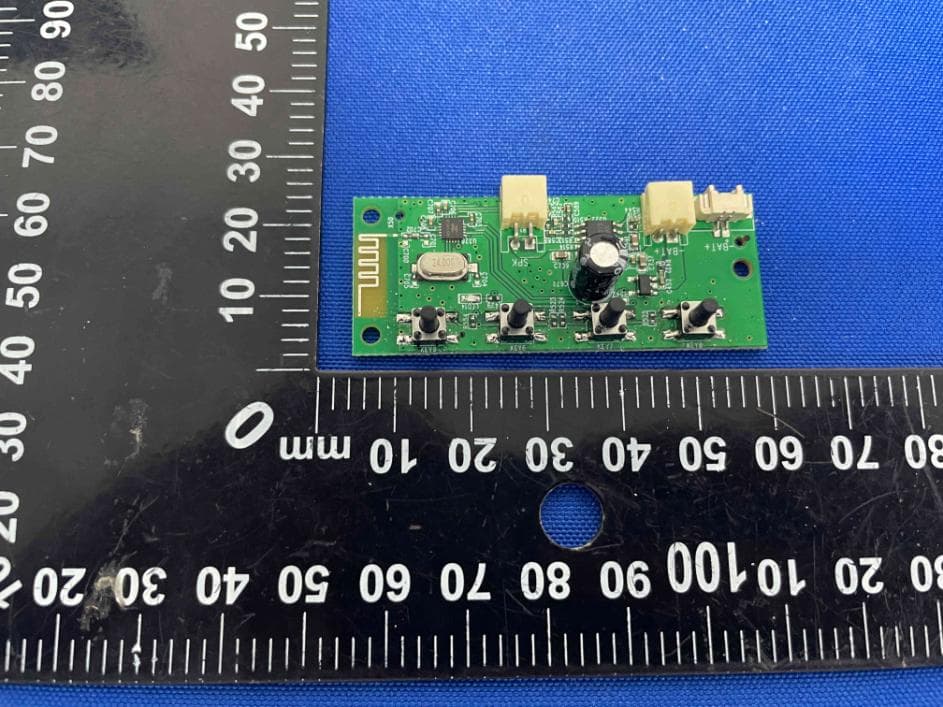

Page 1 of 5 Appendix C: Photographs of EUT Product: Phone holder bluetooth speaker wireless charger Model: BQ10 Internal Photos BT ANT Page 2 of 5 Page 3 of 5 WPT ANT Page 4 of 5 Page 5 of 5

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2AQ2W-BQ10 Test Report No. ............... : TCT231018E033 Date of issue ................... : Oct. 25, 2023 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shenzhen Doageas Technology Co., Ltd. Address ........................... : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China. Manufacturer's name ... : Shenzhen Doageas Technology Co., Ltd. Address ........................... : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China. Standard(s) ..................... : KDB 447498 D01 General RF Exposure Guidance v06 Product Name ................. : Phone holder bluetooth speaker wireless charger Trade Mark ...................... : Model/Type reference..... : BQ10 Rating(s).......................... : DC 9V or Rechargeable Li-ion Battery DC 3.7V Date of receipt of test item ......................................... : Oct. 18, 2023 Date (s) of performance of test ................................... : Oct. 18, 2023 - Oct. 25, 2023 Tested by (+signature) ... : Ronaldo LUO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT231018E033 Page 2 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. General Information ................................................................................. 4 2.1. Test environment and mode ................................................................................. 4 2.2. Description of Support Units ................................................................................ 4 3. Facilities and Accreditations .................................................................. 5 3.1. Facilities ................................................................................................................. 5 3.2. Location ................................................................................................................. 5 4. Test Results and Measurement Data ..................................................... 6 Report No.: TCT231018E033 Page 3 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Phone holder bluetooth speaker wireless charger Model/Type reference........... : BQ10 Sample Number....................: TCT231018E003-0101 Operation Frequency ........... : 2402MHz~2480MHz Modulation Type ................... : GFSK, π/4-DQPSK, 8DPSK Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : -0.68dBi Rating(s)................................ : DC 9V or Rechargeable Li-ion Battery DC 3.7V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT231018E033 Page 4 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. General Information 2.1. Test environment and mode Item Normal condition Temperature +25ºC Voltage DC 3.7V Humidity 56% Atmospheric Pressure: 1008 mbar Test Mode: Transmitting mode: Keep the EUT in continuous transmitting by select channel 2.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Trade Name / / / / / Note: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3. For conducted measurements (Output Power, 20dB Occupied Bandwidth, Carrier Frequencies Separation, Hopping Channel Number, Dwell Time, Spurious Emissions), the antenna of EUT is connected to the test equipment via temporary antenna connector, the antenna connector is soldered on the antenna port of EUT, and the temporary antenna connector is listed in the Test Instruments. Report No.: TCT231018E033 Page 5 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. Facilities and Accreditations 3.1. Facilities The test facility is recognized, certified, or accredited by the following organizations: ● FCC - Registration No.: 645098 SHENZHEN TONGCE TESTING LAB Designation Number: CN1205 The testing lab has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. ● IC - Registration No.: 10668A-1 SHENZHEN TONGCE TESTING LAB CAB identifier: CN0031 The testing lab has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing. 3.2. Locat…

Text truncated - open the document above for the full version.

ANTENNA SPECIFICATION Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2450MHz 2500MHz2400MHz 2450MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68 PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.88mm Manufacture Antenna Photo & Length (mm) ZHUHAI JIELI TECHNOLOGY CO.,LTD Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2AQ2W-BQ10 Test Report No. ............... : TCT231018E003 Date of issue ................... : Oct. 25, 2023 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shenzhen Doageas Technology Co., Ltd. Address ........................... : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China. Manufacturer's name ... : Shenzhen Doageas Technology Co., Ltd. Address ........................... : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China. Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Product Name ................. : Phone holder bluetooth speaker wireless charger Trade Mark ...................... : Model/Type reference..... : BQ10 Rating(s).......................... : DC 9V or Rechargeable Li-ion Battery DC 3.7V Date of receipt of test item ......................................... : Oct. 18, 2023 Date (s) of performance of test ................................... : Oct. 18, 2023 - Oct. 25, 2023 Tested by (+signature) ... : Ronaldo LUO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT231018E003 Page 2 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 1.3. Operation Frequency ............................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test environment and mode ................................................................................. 5 3.2. Description of Support Units ................................................................................ 5 4. Facilities and Accreditations .................................................................. 6 4.1. Facilities ................................................................................................................. 6 4.2. Location ................................................................................................................. 6 4.3. Measurement Uncertainty ..................................................................................... 6 5. Test Results and Measurement Data ..................................................... 7 5.1. Antenna requirement ............................................................................................ 7 5.2. Conducted Emission ............................................................................................. 8 5.3. Conducted Output Power ................................................................................... 12 5.4. 20dB Occupy Bandwidth .................................................................................... 13 5.5. Carrier Frequencies Separation ......................................................................... 14 5.6. Hopping Channel Number .................................................................................. 15 5.7. Dwell Time ............................................................................................................ 16 5.8. Pseudorandom Frequency Hopping Sequence ................................................ 17 5.9. Conducted Band Edge Measurement ................................................................ 18 5.10.Conducted Spurious Emission Measurement .................................................. 19 5.11.Radiated Spurious Emission Measurement ..................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT231018E003 Page 3 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Phone holder bluetooth speaker wireless charger Model/Type reference........... : BQ10 Sample Number....................: TCT231018E003-0101 Bluetooth Version ................ : V5.0 Operation Frequency ........... : 2402MHz~2480MHz Transfer Rate ........................ : 1/2/3 Mbits/s Number of Channel .............. : 79 Modulation Type ................... : GFSK, π/4-DQPSK, 8DPSK Modulation Technology ....... : FHSS Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : -0.68dBi Rating(s)................................ : DC 9V or Rechargeable Li-ion Battery DC 3.7V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. 1.3. Operation Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency 0 2402MHz 20 2422MHz 40 2442MHz 60 …

Text truncated - open the document above for the full version.

Report No.: TCT231018E003 Page 61 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Emission Report No.: TCT231018E003 Page 62 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Emission Report No.: TCT231018E003 Page 63 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted RF Spurious Emission Condition Mode Frequency (MHz) Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH1 2402 -46.57 -20 Pass NVNT 1-DH1 2441 -47.13 -20 Pass NVNT 1-DH1 2480 -46.19 -20 Pass NVNT 2-DH1 2402 -46.17 -20 Pass NVNT 2-DH1 2441 -46.90 -20 Pass NVNT 2-DH1 2480 -47.09 -20 Pass NVNT 3-DH1 2402 -47.19 -20 Pass NVNT 3-DH1 2441 -47.13 -20 Pass NVNT 3-DH1 2480 -47.00 -20 Pass Report No.: TCT231018E003 Page 64 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs Tx. Spurious NVNT 1-DH1 2402MHz Ref Tx. Spurious NVNT 1-DH1 2402MHz Emission Report No.: TCT231018E003 Page 65 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 1-DH1 2441MHz Ref Tx. Spurious NVNT 1-DH1 2441MHz Emission Report No.: TCT231018E003 Page 66 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 1-DH1 2480MHz Ref Tx. Spurious NVNT 1-DH1 2480MHz Emission Report No.: TCT231018E003 Page 67 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 2-DH1 2402MHz Ref Tx. Spurious NVNT 2-DH1 2402MHz Emission Report No.: TCT231018E003 Page 68 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 2-DH1 2441MHz Ref Tx. Spurious NVNT 2-DH1 2441MHz Emission Report No.: TCT231018E003 Page 69 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 2-DH1 2480MHz Ref Tx. Spurious NVNT 2-DH1 2480MHz Emission Report No.: TCT231018E003 Page 70 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 3-DH1 2402MHz Ref Tx. Spurious NVNT 3-DH1 2402MHz Emission Report No.: TCT231018E003 Page 71 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 3-DH1 2441MHz Ref Tx. Spurious NVNT 3-DH1 2441MHz Emission Report No.: TCT231018E003 Page 72 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT 3-DH1 2480MHz Ref Tx. Spurious NVNT 3-DH1 2480MHz Emission Report No.: TCT231018E003 Page 73 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Number of Hopping Channel Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.: TCT231018E003 Page 74 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.: TCT231018E003 Page 75 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Hopping No. NVNT 3-DH1 2441MHz Report No.: TCT231018E003 Page 76 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell Time Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH1 2441 0.38 120.46 317 31600 400 Pass NVNT 1-DH3 2441 1.63 259.17 159 31600 400 Pass NVNT 1-DH5 2441 2.88 319.68 111 31600 400 Pass NVNT 2-DH1 2441 0.39 195.39 501 31600 400 Pass NVNT 2-DH3 2441 1.64 250.92 153 31600 400 Pass NVNT 2-DH5 2441 2.89 271.66 94 31600 400 Pass NVNT 3-DH1 2441 0.39 123.24 316 31600 400 Pass NVNT 3-DH3 2441 1.64 262.40 160 31600 400 Pass NVNT 3-DH5 2441 2.89 248.54 86 31600 400 Pass Report No.: TCT231018E003 Page 77 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Dwell NVNT 1-DH1 2441MHz Accumulated Report No.: TCT231018E003 Page 78 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 1-DH3 2441MHz One Burst Dwell NVNT 1-DH3 2441MHz Accumulated Report No.: TCT231018E003 Page 79 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Report No.: TCT231018E003 Page 80 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 2-DH1 2441MHz One Burst Dwell NVNT 2-DH1 2441MHz Accumulated Report No.: TCT231018E003 Page 81 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 2-DH3 2441MHz One Burst Dwell NVNT 2-DH3 2441MHz Accumulated Report No.: TCT231018E003 Page 82 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 2-DH5 2441MHz One Burst Dwell NVNT 2-DH5 2441MHz Accumulated Report No.: TCT231018E003 Page 83 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 3-DH1 2441MHz One Burst Dwell NVNT 3-DH1 2441MHz Accumulated Report No.: TCT231018E003 Page 84 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 3-DH3 2441MHz One Burst Dwell NVNT 3-DH3 2441MHz Accumulated Report No.: TCT231018E003 Page 85 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dwell NVNT 3-DH5 2441MHz One Burst Dwell NVNT 3-DH5 2441MHz Accumulated Report No.: TCT231018E003 Page 86 of 96 Hotline: 400-6611-140 Tel: 86-755-…

Text truncated - open the document above for the full version.

Page 1 of 4 Appendix B: Photographs of Test Setup Product: Phone holder bluetooth speaker wireless charger Model: BQ10 BT Radiated Emission Page 2 of 4 BT Conducted Emission Page 3 of 4 Product: Phone holder bluetooth speaker wireless charger Model: BQ10 WPT Radiated Emission Page 4 of 4 WPT Conducted Emission
