2AQ3A-VT3PLUSSmart Watch

QUICK START MANUAL VT3PLUS EN 1. Package Contents Charging Your Watch 2.1 Properly attach the magnetic charging base to the back of the watch, then plug the USB end into a USB port on the computer, charging dock or power bank for charging. 2. How to Operate VT3PLUS WatchQuick Start ManualCharging Cable QUICK START MANUAL VT3PLUS Navigating Your Watch Power Key  Long pressShort press 2.2 Input current: <0.3A Input voltage: 5V DC Charging time: about 2 hours Note: It is recommended to use the universal 5V/1A charger with certification mark on the market. 1. Power on or off 2. To end the exercise from the activity pause interface 1. Wake up or lock screen from the home screen 2. Return to the previous menu, or pause /continue the exercise Long press the power key to turn on your watch. Please make sure to fully charge the watch first if it Doesn’ t turn on. Gestures Instruction Tap the screen Confirm to use this feature/Enter the sub-interface Swipe right to return to the previous menu Switch screen/Swipe up from the home screen to access Power Saving Mode, Flashlight Mode , DND Mode and brightness Change watch face Swipe left/right Swipe up/down Long press on the home screen Powering on Your Watch 2.3 Download the “Zeroner Health Pro” app from the App Store or Google Play Store, or scan the QR code below to download. Downloading App 2.4 Please follow the below instructions to complete the pairing. 1.Please make sure that you have enabled Bluetooth on your phone before starting paring. 2.Launch Zeroner Health Pro on your phone and register an account. 3.Fill in your personal information(height, weight, date or birth), and then follow the onscreen instructions to create your profile. 4.Tap “device” > “Watch +” > “VIRMEE-VT3plus-xxxx” on the app to connect your watch to the phone. Pairing Your Watch with Your Phone 2.5 1. For optimized tracking of the measured values, we recommend wearing the watch with one finger’ s width below your wrist bone. 2. Please make sure the watch is fairly snug against your skin and does not slide up or down your wrist during exercise. Wearing Your Watch 2.6 NOTE The app needs permission to access your location if you are using an Android phone, so you need to ALLOW LOCATION ACCESS in System Settings in order to connect successfully. Please choose the strap with a width of 20mm if you want to replace it. 1. Remove the strap from the watch by sliding the snap lock on the strap. 2. Align the new strap with the watch and buckle the strap in. Replacing the Strap 2.7 B Heart Rate Monitoring 3.1 Professional Swimming Tracking 3.2 1. The watch can monitor 24-hour real-time heart rate, resting heart rate and heart rate zones during exercise, you can choose to enable or disable this func- tion on the app. 2. You can set the upper and lower limit of heart rate on the Zeroner Health Pro app. If the heart rate is out of the scope of limit value, the watch will remind you. 3. Multiple heart rate zones display during exercise: all detailed data can be viewed after connecting and syncing to the app. 1. The watch can record swimming distance, SWOLF, strokes, total energy and Note: the light signal transmission might be blocked if your skin is too dark or with excess hair, or improper wearing also may lead to measurement failure. 3. Main Features Multiple Sports Modes 3.3 1. The watch supports various sports modes, such as Run, Swimming, Cycle and so on. You can choose one that suits you, set goals and obtain real-time data. 2. You can enable Illumi Run in the Sports Settings when running, the color display will change with cadence and heart rate zones. Making running at night safer and more fun. other data. 2. End exercise: press the right button once to enter pause interface, then long press the right button to end swimming. Note: 1. The watch is only used for swimming. If you wear it for diving, it may cause damage to the device. Such damage is not within the scope of warranty. 2. The watch cannot obtain heart rate data when swimming. 3. Under the swimming mode, the touch function is automatically disabled. 4. In the pool mode, please set the distance of the swimming pool correctly. If the swimming distance is less than one lap, then the distance cannot be calculated. 1. The watch supports various sports modes, such as Run, Swimming, Cycle and so on. You can choose one that suits you, set goals and obtain real-time data. 2. You can enable Illumi Run in the Sports Settings when running, the color display will change with cadence and heart rate zones. Making running at night safer and more fun. Sleep Monitoring 3.4 The watch goes into sleep monitoring from 8:00pm to 9:00am of the next day, you can check your sleep data on the app after paring and synchronizing the watch with the app. Note: 1. The sleep monitoring will be stopped after you get up and move for 5-10 minutes. 2. The watch does not record daytime sleep data. Water Resistance Instruction 4.1 The water resistance rating: 5ATM 4. More Information The water resistance performance of the device is not permanently valid, it may diminish as time passes. The device can be used during washing hands, rain or swimming in the shallow water, but not support hot water shower, diving, surfing, etc. It does not have waterproof effect on corrosive liquids such as seawater, acidic and alkaline solutions, and chemical reagents. If you inadver- tently encounter corrosive liquid, please clean with clear water and wipe it dry. The damage caused by abuse or improper use is not covered by the warranty. The following conditions may affect the water resistance performance, and should be avoided when using: 1. The watch falls, bumps, or suffers from other impacts. 2. The watch is exposed to soap water, shower gel, detergent, perfume, lotion, oil, etc. 3. Hot and humid scenes such as hot baths and saunas. Specification Parameter 4.2 Firmware Upgrade 4.3 1. Firmware Upgrade When there is an new firmware version, there will be a notificat…

Text truncated - open the document above for the full version.

Shenzhen VanTop Technology & Innovation Co., Ltd. Agent Authorization Company: Shenzhen VanTop Technology & Innovation Co., Ltd. Address: 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China Product Name: Smart Watch Model Number(s ): VT3 Plus, VT3 Pro, VT4, VT4 Plus, VT4 Pro, VT4+, VT4 Lite, VT4 Mini, VT5, VT6, VT7, VT8, VT9 Product Description: Smart Watch We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sept. 21, 2020 Name: Zhibao Deng Title: Product Director Company: Shenzhen VanTop Technology & Innovation Co., Ltd.

Shenzhen VanTop Technology & Innovation Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Sept. 21, 2020 Subject; Request for Confidentiality FCC ID: 2AQ3A-VT3PLUS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zhibao Deng Title: Product Director

Model Difference Declaration To Whom It May Concern, We, Shenzhen VanTop Technology & Innovation Co., Ltd.(Smart Watch) Trademark:VIRMEE; Model Number: VT3 Plus, VT3 Pro, VT4, VT4 Plus, VT4 Pro, VT4+, VT4 Lite, VT4 Mini, VT5, VT6, VT7, VT8, VT9; All model’s the function, software and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model: VT3 Plus . Please contact me if you have any question. Name: Zhibao Deng Date: Sept. 21, 2020 Title: Product Director Signature of applicant:

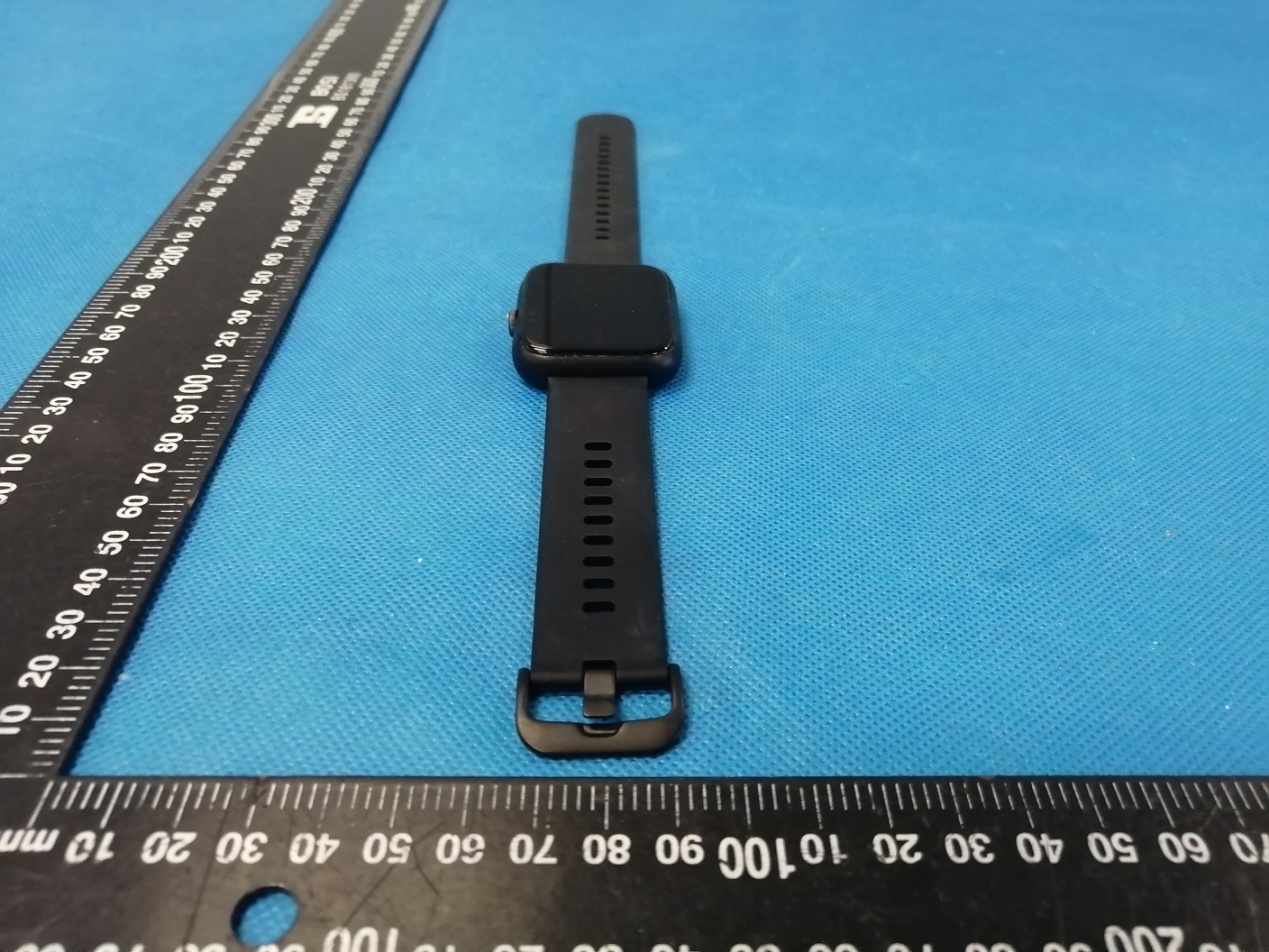

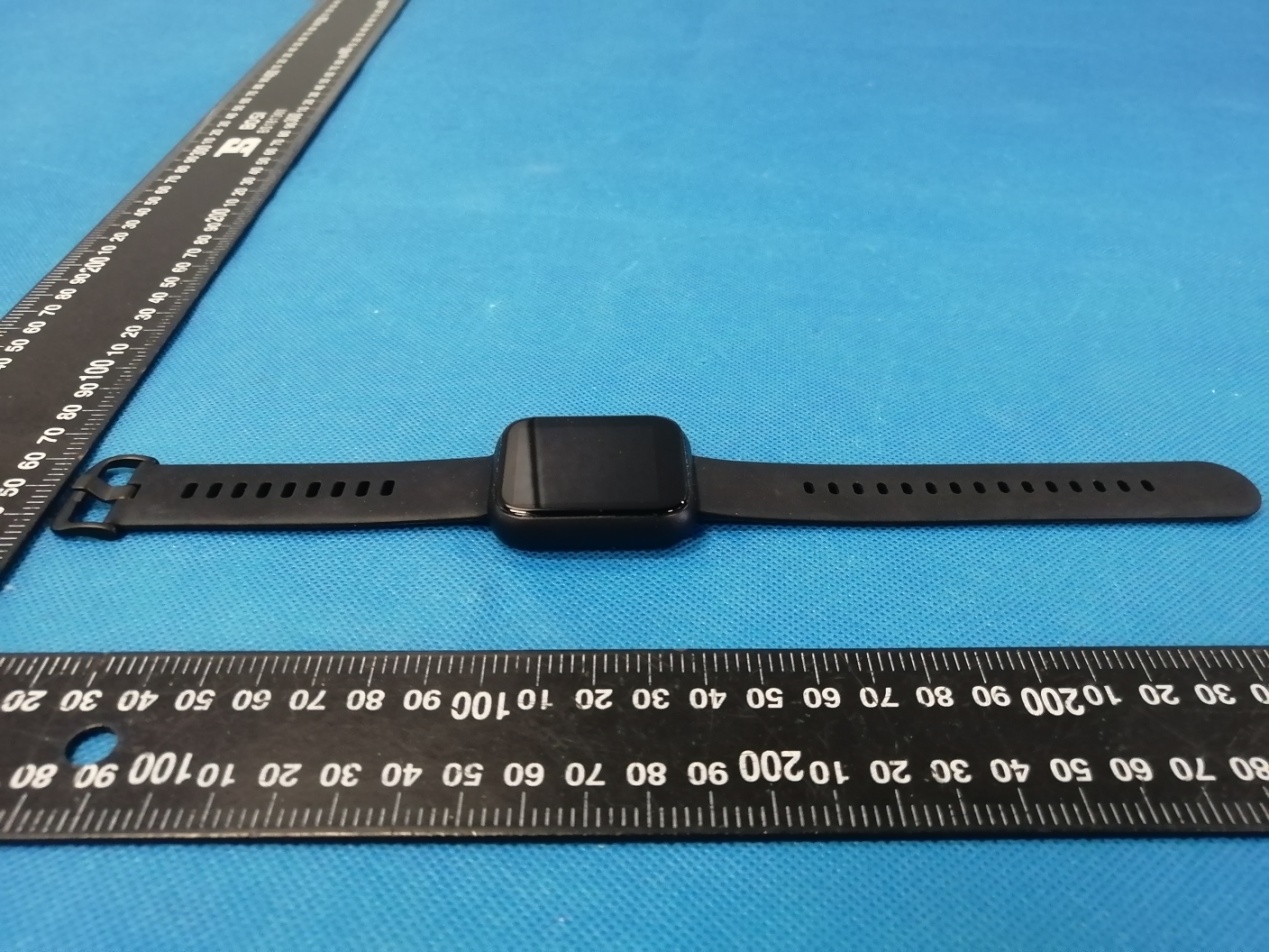

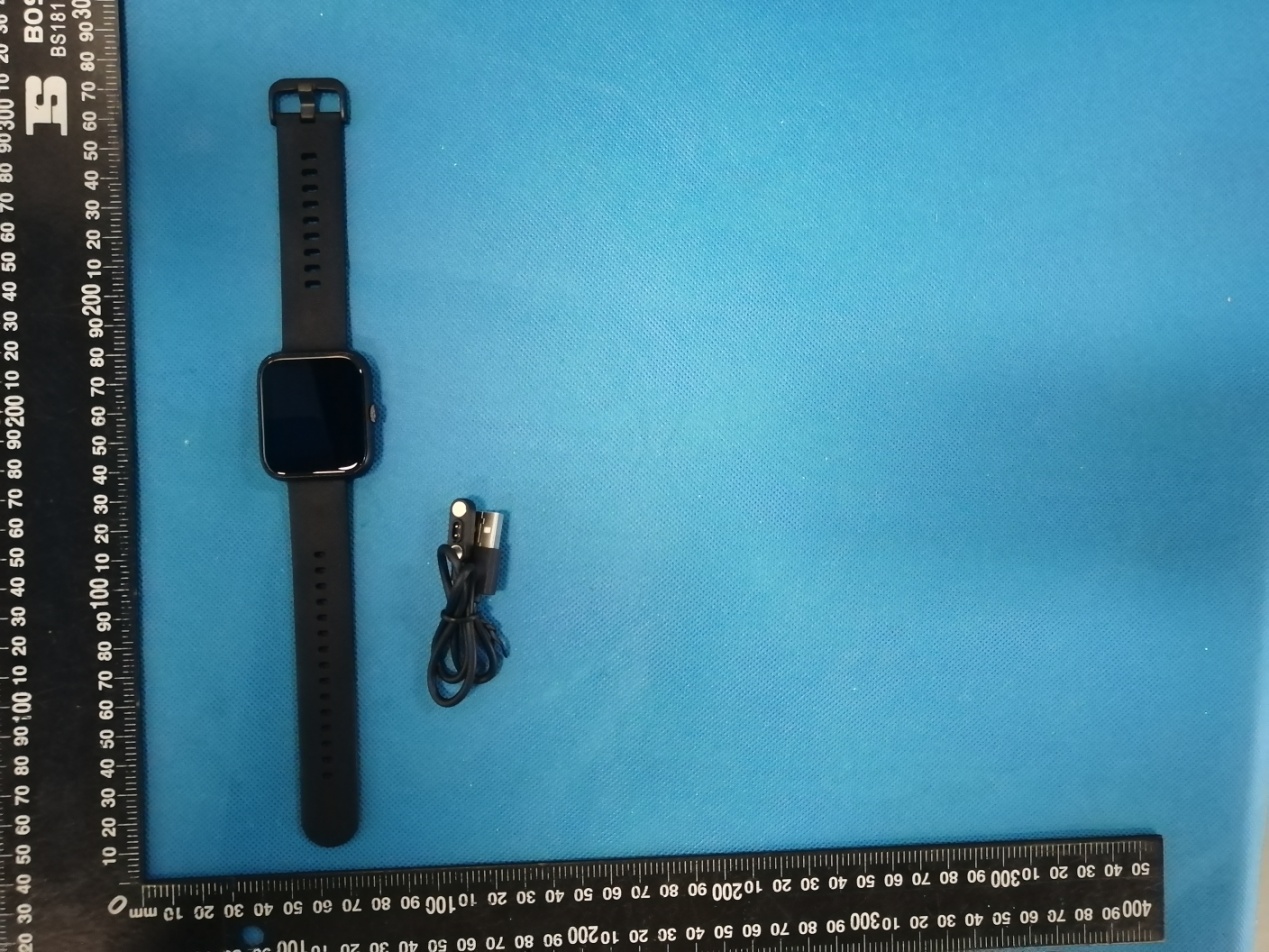

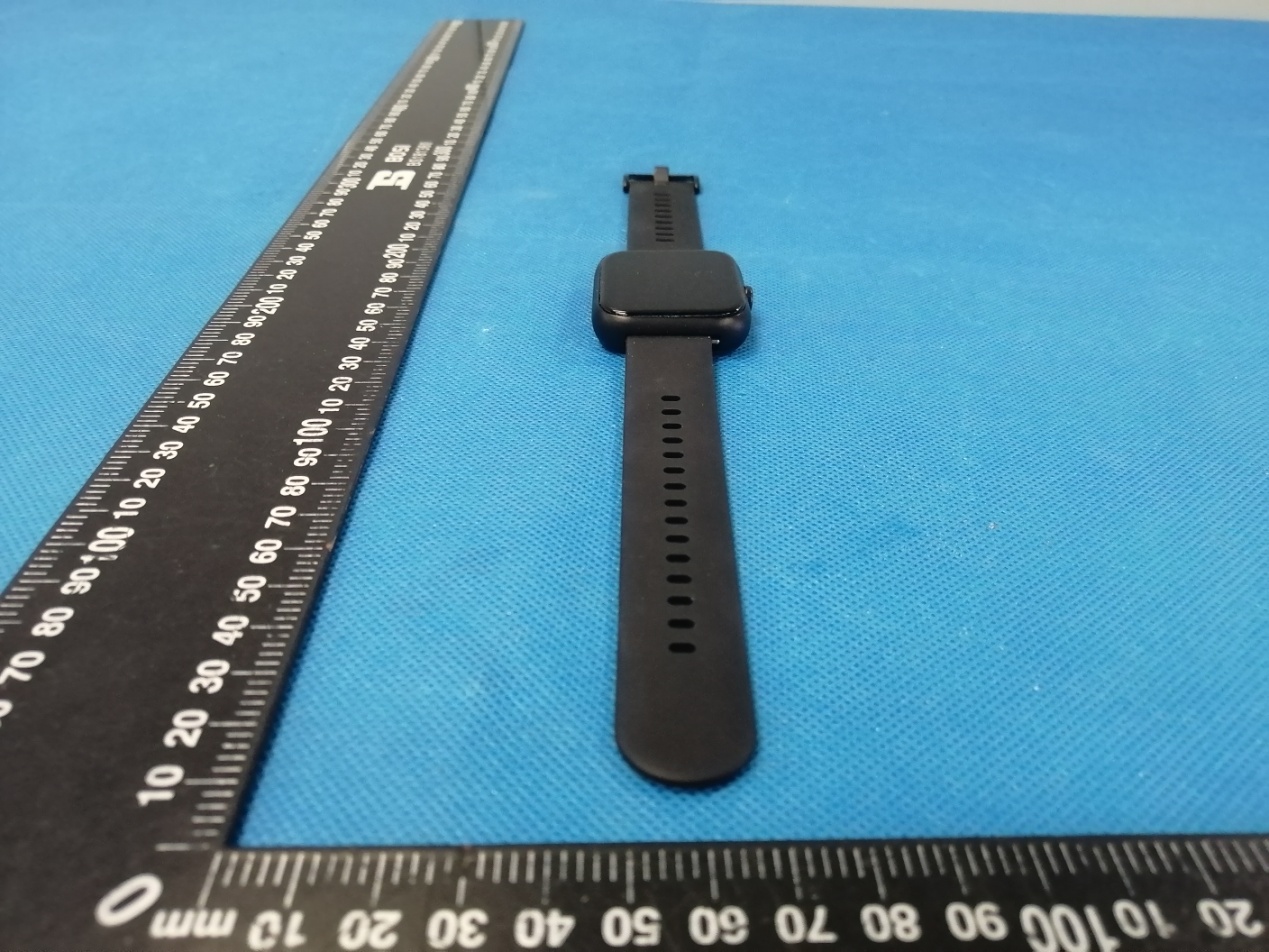

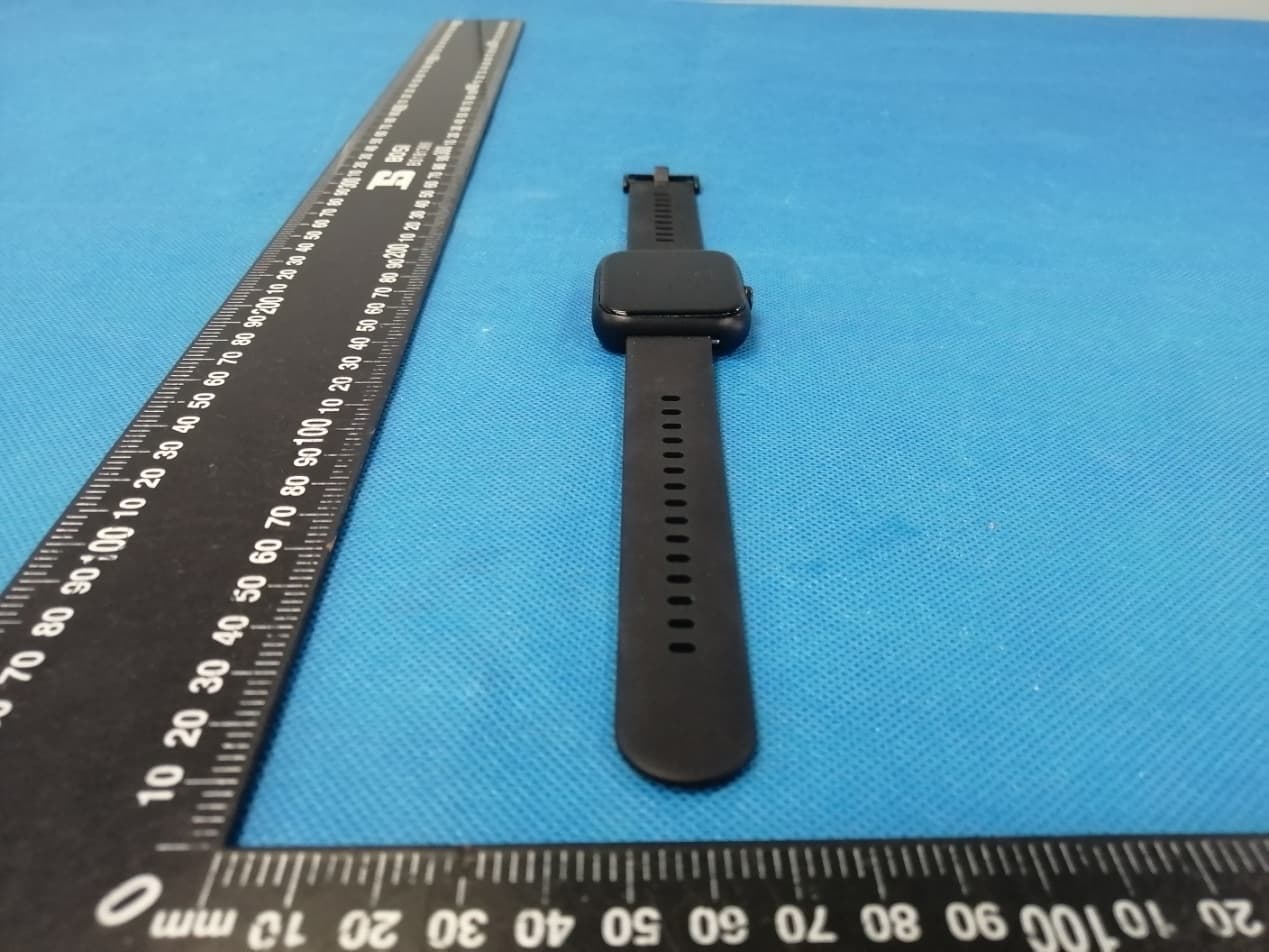

Annex A External Photos Report No.: HK2009012467-1E/2E Page 1 of 4 Report No.: HK2009012467-1E/2E Page 2 of 4 Report No.: HK2009012467-1E/2E Page 3 of 4 Report No.: HK2009012467-1E/2E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AQ3A-VT3PLUS

Annex B Internal Photos Report No.: HK2009012467-1E/2E Page 1 of 3 Report No.: HK2009012467-1E/2E Page 2 of 3 BT Antenna Report No.: HK2009012467-1E/2E Page 3 of 3

FCC RF Exposure EUT Description: Smart Watch Model No.: VT3 Plus FCC ID: 2AQ3A-VT3PLUS 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation BT Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) S A R Te s t Exclusion 2480 1.275 1±1 2/1.58 5 0.498 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2009012467-1E, antenna gain=2.93dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.498 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 44 Report No.: HK2009012467-1E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen VanTop Technology & Innovation Co., Ltd. For Smart Watch Model No.: VT3 Plus, VT3 Pro, VT4, VT4 Plus, VT4 Pro, VT4+, VT4 Lite, VT4 Mini, VT5, VT6, VT7, VT8, VT9 FCC ID: 2AQ3A-VT3PLUS Prepared for : Shenzhen VanTop Technology & Innovation Co., Ltd. 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Sept. 03, 2020 ~ Sept. 10, 2020 Date of Report: Sept. 10, 2020 Report Number: HK2009012467-1E Page 2 of 44 Report No.: HK2009012467-1E TEST RESULT CERTIFICATION Applicant’s name ................... : Shenzhen VanTop Technology & Innovation Co., Ltd. Address .................................... : 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China Manufacture's Name .............. : Shenzhen VanTop Technology & Innovation Co., Ltd. Address .................................... : 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China Product description Trade Mark: VIRMEE Product name ............................. : Smart Watch Model and/or type reference .. : VT3 Plus, VT3 Pro, VT4, VT4 Plus, VT4 Pro, VT4+, VT4 Lite, VT4 Mini, VT5, VT6, VT7, VT8, VT9 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Sept. 03, 2020 ~ Sept. 10, 2020 Date of Issue ............................................. : Sept. 10, 2020 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 44 Report No.: HK2009012467-1E Contents Page CONTENTS .............................................................................................................................................................. 3 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ...................................................................................................................................... 6 1.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 7 2 TEST FACILITY ............................................................................................................................................... 8 3 GENERAL INFORMATION ............................................................................................................................. 8 3.1 GENERAL DESCRIPTION OF EUT .................................................................................................................. 8 3.2 DESCRIPTION OF TEST CONDITIONS ............................................................................................................ 10 3.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 4 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 5 TEST RESULT .............................................................................................................................................. 13 5.1 ANTENNA REQUIREMENT ............................................................................................................................ 13 5.1.1 Standard requirement ...................................................................................................................... 13 5.1.2 EUT Antenna ................................................................................................................................... 13 5.2 CONDUCTION EMISSIONS MEASUREMENT ................................................................................................... 14 5.2.1 Applied procedures / Limit ............................................................................................................... 14 5.2.2 Test procedure ................................................................................................................................. 14 5.2.3 Test setup ........................................................................................................................................ 15 5.2.4 Test results ...................................................................................................................................... 16 5.3 RADIATED EMISSIONS MEASUREMENT ........................................................................................................ 18 5.3.1 Applied procedures / Limit ............................................................................................................... 18 5.3.2 Test setup ........................................................................................................................................ 18 5.3.3 Test Result ....................................................................................................................................... 20 5.4 MAXIMUM OUTPUT …

Text truncated - open the document above for the full version.

Test Model：VT3 Plus Radiated Emission Conducted Emission
