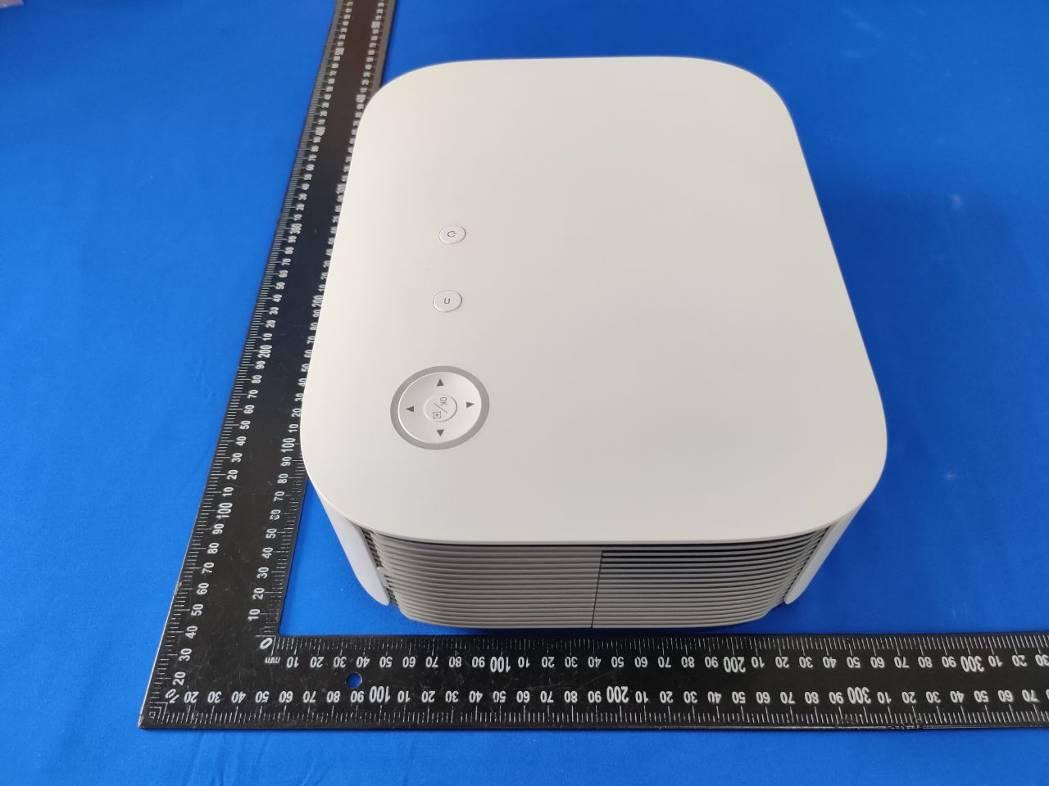

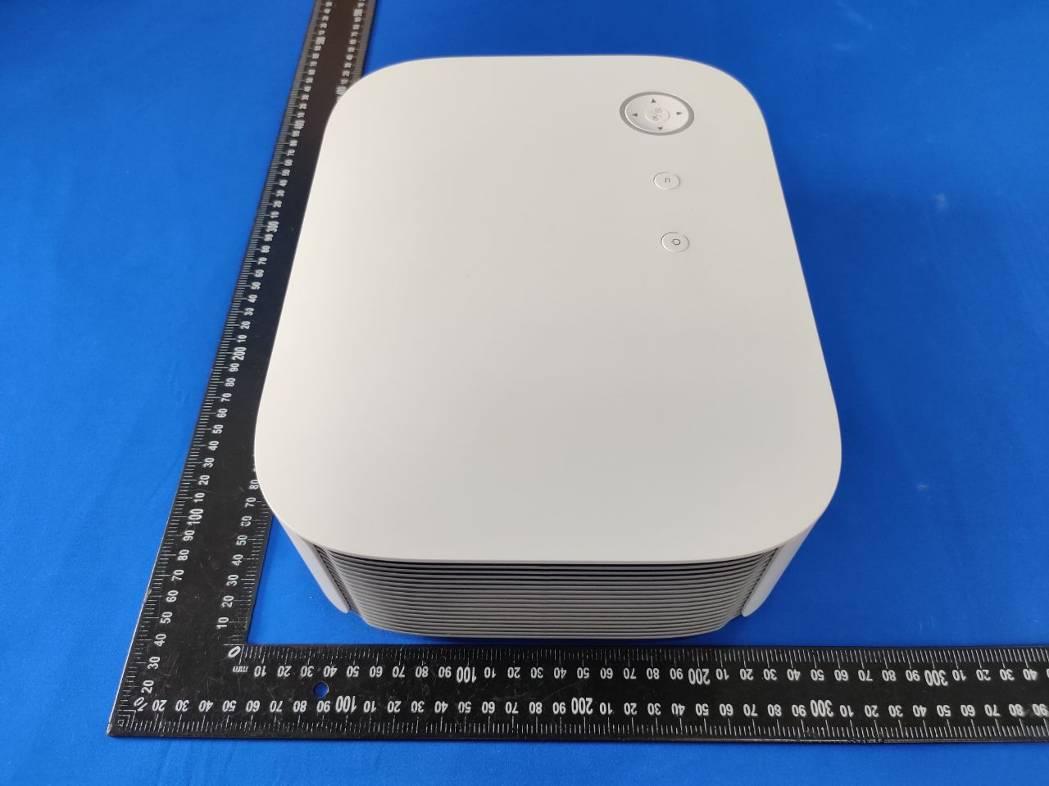

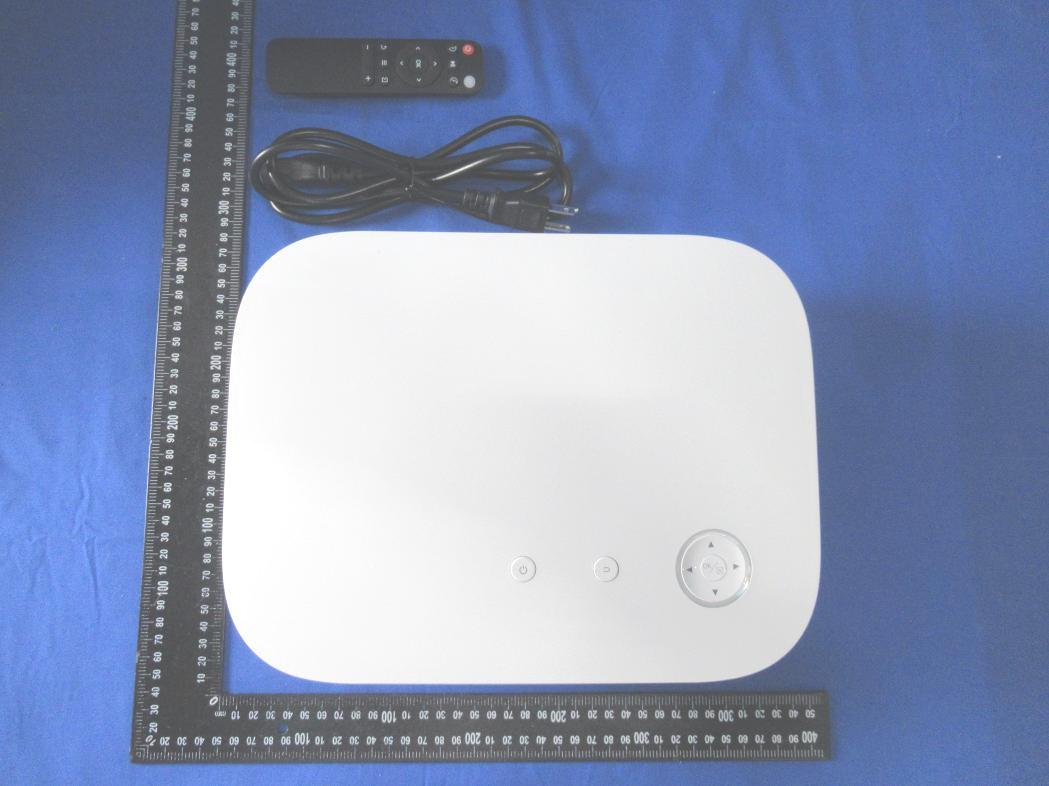

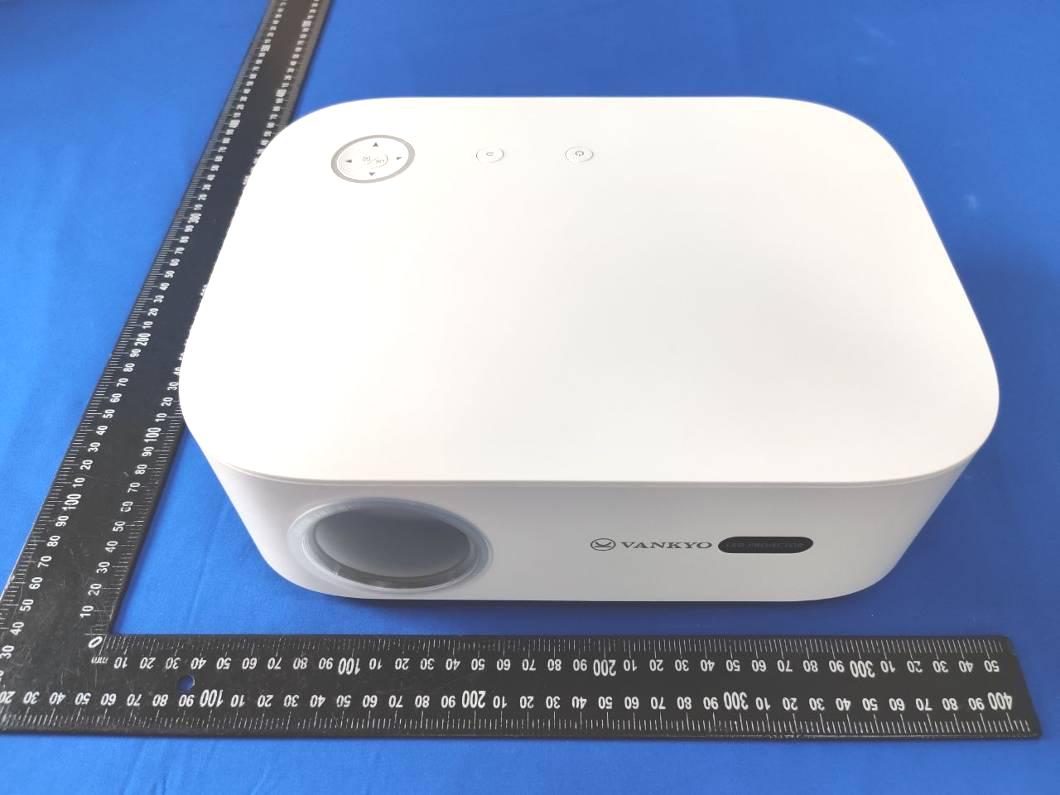

2AQ3A-YG551Projector

FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0.5cm between the radiator & your body.

2022-06-01 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AQ3A-YG551 Product Name: Projector Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Davy Wong Position Project Manager Company Name Shenzhen VanTop Technology & Innovation Co., Ltd. Address 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China Tel +86-755-84652162 Fax +86-755-84652162 Email [email protected]

Differences Description We Shenzhen VanTop Technology & Innovation Co., Ltd. state: Product name: Projector Model: YG551, PERFORMANCE V700W All model’s the function, software and electric circuit are the same, except the model numbers difference. Date: 2022/6/2 Signature: Name Davy Wong Position Project Manager Company Name Shenzhen VanTop Technology & Innovation Co., Ltd. Address 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China Tel +86-755-84652162 Fax +86-755-84652162 Email [email protected]

FCC ID: 2AQ3A-YG551

5.0*2.0cm Label Location FCC ID: 2AQ3A-YG551 Projector Model No.: YG551

FCC ID: 2AQ3A-YG551 WIFI ANT BT ANT

RF Exposure evaluation According to 447498 D04 Interim General RF Exposure Guidance v01 1-mW Test Exemption A single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 1-mW Test Exemption for Multiple Sources The 1-mW exemption intended for single transmitters may be also applied to simultaneous transmission conditions, within the same host device, according one of the following criteria: a) When maximum available power each individual transmitting antenna within the same time averaging period is ≤ 1 mW, and the nearest parts of the antenna structures of the simultaneously operating transmitters are separated by at least 2 cm. b) When the aggregate maximum available power of all transmitting antennas is ≤ 1 mW in the same time-averaging period. This exemption may not be combined with any other exemption. SAR-Based Exemption This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements. This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by follow Formulas “f” is in GHz, “d” is the separation distance (cm) Simultaneous Transmission with SAR-based Exemptions For these cases, a device with multiple RF sources transmitting simultaneously will be considered an RF exempt device if the condition of following Formula is satisfied. (SAR-Based Exemption) EDR: P th =ERP 20cm *(d/20) -log(60/(ERP20cm*√f) =3060*(20/20) -log(60/(3060*√2.402) =3060mW 2.4G WiFi: P th =ERP 20cm *(d/20) -log(60/(ERP20cm*√f) =3060*(20/20) -log(60/(3060*√2.422) =3060mW 5G WiFi: P th =ERP 20cm *(d/20) -log(60/(ERP20cm*√f) =3060*(20/20) -log(60/(3060*√5.230) =3060mW As this equipment: EIRP = Pm + Gi (if Gi＜0, to treat Gi value as 0) Pt=10 (EIRP/10) Where: Pm = measured transmitter output power in dBm, Pt = transmitter output power in milliwatts, Gi = numeric gain of the transmitting antenna (unit-dBi), EDR: Ant gain Gi= -0.68dBi Pm= 3.565dBm So Pt=10 (2.885/10) mW =1.94mW< P th (3060mW) 2.4G WiFi: Ant gain Gi=4.24dBi Pm=20.771dBm So Pt=10 (25.011/10) mW =317.03mW< P th (3060mW) 5G WiFi: Ant gain Gi=3.89dBi Pm=13.088dBm So Pt=10 (16.978/10) mW =49.87mW< P th (3060mW) Maximum Simultaneous transmission MPE Ratios for BT+WIFI: Max MPE Ratio BT /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.0004 0.0631 0.0635 1 PASS Then the SAR test is exempted.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. FCC TEST REPORT FCC ID: 2AQ3A-YG551 On Behalf of Shenzhen VanTop Technology & Innovation Co., Ltd. Projector Model No.: YG551, PERFORMANCE V700W Prepared for : Shenzhen VanTop Technology & Innovation Co., Ltd. Address : 502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road, Taoyuan Street, Nanshan District, Shenzhen, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2204237-C01-R04 Date of Receipt : May 16, 2022 Date of Test : May 17, 2022 – May 30, 2022 Date of Report : May 31, 2022 Version Number : V0 Page 2 of 63 Report No.: A2204237-C01-R04 TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ----------------------------------------------------------------------------------- 5 1.1. Description of Standards and Results --------------------------------------------------------------------------- 5 2. General Information --------------------------------------------------------------------------------------------------------- 6 2.1. Description of Device (EUT) --------------------------------------------------------------------------------------- 6 2.2. Accessories of Device (EUT) -------------------------------------------------------------------------------------- 7 2.3. Tested Supporting System Details-------------------------------------------------------------------------------- 7 2.4. Block Diagram of connection between EUT and simulators ----------------------------------------------- 7 2.5. Test Mode Description ----------------------------------------------------------------------------------------------- 8 2.6. Test Conditions -------------------------------------------------------------------------------------------------------- 9 2.7. Test Facility ------------------------------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty ---------------------------------------------------------------------------------------- 10 2.9. Test Equipment List ------------------------------------------------------------------------------------------------ 11 3. Spurious Emission --------------------------------------------------------------------------------------------------------- 12 3.1. Test Limits ------------------------------------------------------------------------------------------------------------ 12 3.2. Test Procedure ------------------------------------------------------------------------------------------------------ 14 3.3. Test Setup ------------------------------------------------------------------------------------------------------------ 14 3.4. Test Results ---------------------------------------------------------------------------------------------------------- 16 4. Power Line Conducted Emission ------------------------------------------------------------------------------------- 29 4.1. Test Limits ------------------------------------------------------------------------------------------------------------ 29 4.2. Test Procedure ------------------------------------------------------------------------------------------------------ 29 4.3. Test Setup ------------------------------------------------------------------------------------------------------------ 29 4.4. Test Results ---------------------------------------------------------------------------------------------------------- 30 5. Conducted Maximum Output Power --------------------------------------------------------------------------------- 32 5.1. Test limits ------------------------------------------------------------------------------------------------------------- 32 5.2. Test Procedure ------------------------------------------------------------------------------------------------------ 32 5.3. Test Setup ------------------------------------------------------------------------------------------------------------ 32 5.4. Test Results ---------------------------------------------------------------------------------------------------------- 32 6. Peak Power Spectral Density ------------------------------------------------------------------------------------------- 34 6.1. Test limits ------------------------------------------------------------------------------------------------------------- 34 6.2. Test Procedure ------------------------------------------------------------------------------------------------------ 34 6.3. Test Setup ------------------------------------------------------------------------------------------------------------ 34 6.4. Test Results ---------------------------------------------------------------------------------------------------------- 35 7. Bandwidth -------------------------------------------------------------------------------------------------------------------- 42 7.1. Test limits ------------------------------------------------------------------------------------------------------------- 42 7.2. Test Procedure ------------------------------------------------------------------------------------------------------ 42 7.3. Test Setup ------------------------------------------------------------------------------------------------------------ 42 7.4. Test Results ---------------------------------------------------------------------------------------------------------- 42 8. Band Edge Check ---------------------------------------------------------------------------------------------------------- 56 8.1. Test limits ------------------------------------------------------------------------------------------------------------- 56 8.2. Test Procedure ------------------------------------------------------------------------------------------------------ 56 8.…
