2AQ5RWBL-8812AF1-AWIFI Module

Shenzhen KTC Commercial Display Technology CO.,LTD. WIFI Module Model Number: BL-R8812AF1-A Product Descr ition： BL-R8822BU1-A module design is based on Realtek BL-R8812AF1-A solution, The BL- R8812AF1-A is a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. The Module is a highly integrated MAC/BBP and 2.4/5GHz PA/LNA single chip which supportsa 433.3Mbps PHY rate. The Module is designed to support standard- based features in the areas of security, quality of service, and international regulations, giving end users the greatestperformance anytime and in any circumstance. This documentation describes the engineering requirements specification. Product Specification For 2.4 GHz ISM Band of Wi-Fi Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2412 MHz to 2472 MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n-HT20, IEEE 802.11n- HT40 Type of Modulation: IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n-HT20: OFDM(64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n-HT40: OFDM(64-QAM, 16-QAM, QPSK, BPSK) Data Rate: IEEE 802.11b: Up to 11 Mbps IEEE 802.11g: Up to 54 Mbps IEEE 802.11n-HT20: Up to MCS15 IEEE 802.11n-HT40: Up to MCS15 Number of Channels: IEEE 802.11b: 13 IEEE 802.11g: 13 IEEE 802.11n-HT20: 13 IEEE 802.11n-HT40: 9 Channel Separation: 5 MHz Antenna Type: PCB Antenna Antenna Gain: 5 dBi Maximum Peak Power: IEEE 802.11b: 20±2 dBm IEEE 802.11g: 20±12dBm IEEE 802.11n-HT20: 16.5±2 dBm IEEE 802.11n-HT40: 16.5±2 dBm For 5 GHz U-NII Bands of Wi-Fi Frequency Bands: 5150 MHz to 5250 MHz (U-NII-1) 5250 MHz to 5350 MHz (U-NII-2A) 5470 MHz to 5725 MHz (U-NII-2C) 5 725 MHz to 5 850 MHz (U-NII-3) Frequency Ranges: 5180 MHz to 5240 MHz 5260 MHz to 5320 MHz 5500 MHz to 5700 MHz 5 745 MHz to 5 825 MHz Support Standards: IEEE 802.11a/n/ac TPC Function: Not Support DFS Operational mode: Slave without radar Interference detection function Shenzhen KTC Commercial Display Technology CO.,LTD. Type of Modulation: IEEE 802.11a: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM(256QAM, 64QAM, 16QAM, QPSK, BPSK) Channel Spacing: IEEE 802.11a/n-HT20/ac-VHT20: 20 MHz IEEE 802.11n-HT40/ac-VHT40: 40 MHz IEEE 802.11ac-VHT80: 80 MHz Data Rate: IEEE 802.11a: Up to 54 Mbps IEEE 802.11n-HT20: Up to MCS15 IEEE 802.11n-HT40: Up to MCS15 IEEE 802.11ac-VHT20: Up to MCS8 IEEE 802.11ac-VHT40: Up to MCS9 IEEE 802.11ac-VHT80: Up to MCS9 Number of Channels: 5150 MHz to 5250 MHz: 4 for IEEE 802.11a/n-HT20/ac-VHT20 2 for IEEE 802.11n-HT40)/ac-VHT40 1 for IEEE 802.11acVHT80 5250 MHz to 5350 MHz: 4 for IEEE 802.11a/n-HT20/ac-VHT20 2 for IEEE 802.11n-HT40)/ac-VHT40 1 for IEEE 802.11acVHT80 5470 MHz to 5725 MHz: 11 for IEEE 802.11a/n-HT20/ac-VHT20 5 for IEEE 802.11n-HT40/ac-VHT40 2 for IEEE 802.11ac-VHT80 5725 MHz to 5850 MHz: 5 for IEEE 802.11a/n-HT20/ac-VHT20 2 for IEEE 802.11n-HT40/ac-VHT40 1 for IEEE 802.11ac-VHT80 Antenna Type: PCB Antenna Antenna Gain: 5150 MHz to 5250 MHz: 5 dBi 5250 MHz to 5350 MHz: 5 dBi 5470 MHz to 5725 MHz: 5 dBi 5725 MHz to 5850 MHz: 5 dBi Maximum conducted output power (dBm): U-NII-1 U-NII-2A U-NII-2C U-NII-3 IEEE 802.11a: 6±2 6±2 6±2 6±2 IEEE 802.11n-HT20: 6±2 4±2 5±2.5 2±2 IEEE 802.11n-HT40: 6±2 4±2 5±2.5 2±2 IEEE 802.11ac-VHT20 6±2 4±2 5±2.5 2±2 IEEE 802.11ac-VHT40 6±2 4±2 5±2.5 2±2 IEEE 802.11ac-VHT80: 6±2 4±2 5±2.5 2±2 2.4G WIFI-Operation Frequency Each of Channel IEEE 802.11b, IEEE 802.11g, IEEE 802.11n-HT20 f = 2407 + 5k MHz, k = 1,...,13 IEEE 802.11n-HT40 f = 2407 + 5k MHz, k = 3,...,11 Note: f is the operating frequency (MHz); k is the operating channel. 5GWIFI-Operation Frequency Each of Channel U-NII-1 U-NII-2A U-NII-2C U-NII-3 IEEE 802.11a, IEEE 802.11n-HT20, f = 5000 + 5k, k = 32 + 4n f = 5000 + 5k, k = 145 + 4n Shenzhen KTC Commercial Display Technology CO.,LTD. IEEE 802.11ac-VHT20 n = 1,..., 4 n = 5,..., 8 n = 17,..., 27 n = 1,..., 5 IEEE 802.11n-HT40, IEEE 802.11ac-VHT40 f = 5000 + 5k, k = 30 + 8n f = 5000 + 5k, k = 143 + 8n n = 1, 2 n = 1,..., 5 n = 9,..., 13 n = 1, 2 IEEE 802.11ac-VHT80 f = 5000 + 5k, k = 26 + 16n f = 5000 + 5k, k = 155 n = 1 n = 1, 2 n = 5, 6 Note: f is the operating frequency (MHz); k is the operating channel. NOTICE: ◆please keep this product and accessori es attached to the places which children can't touch; ◆do not splash water or other liq uid onto this pro duct, otherwise it may cause damage; ◆do not put this product near the heat sourc e or dire ct sun lig ht, otherwise it may cause deformation or malfun ction; ◆please keep this product away fro m flammable or naked flame; ◆please do not repair this pro duct by yours elf. Only qualif ied personnel can be repaire d. FCC Statement - List of applicable FCC rules This device complies with FCC part 15C : 15.247&15.407 - Summarize the specific operational use conditions This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. And the module should be installed at a minimum distance of 20 cm away from person nearby. The host product manufacturer should state this information to the host instruction manual. - Trace antenna designs Not applicable. - RF exposure considerations This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. - Antennas - AntennaType: PCB Antenna Antenna Gain: 2.4G WIFI：5.0 dBi 5.2G WIFI：5.0 dBi 5.2G WIFI：5.0 dBi 5.6G WIFI：5.0 dBi 5.8G WIFI：5.0 dBi The antenna is permanently attached and not consideration of replacement. Shenzhen KTC Commercial Display Technology CO.,LTD. - Label and compliance information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not c…

Text truncated - open the document above for the full version.

Shenzhen KTC Commercial Display Technology CO.,LTD. FCC ID: 2AQ5RWBL-8812AF1-A To the certification reviewer: We are hereby applying for full modular approval of the above-referenced FCC ID, based on compliance with all of the criteria as detailed below. Sincerely, [signature] [Hongbo Tang] [Certification Engineer] Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a metal cover over the circuitry. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is connected to the module with the means of unique coupling (through UFL type connector) . (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed with the module extended outside of the host on a special extender board, as shown in the test setup photos. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. A sample of the host label is provided as an exhibit, showing the FCC identifier of the module. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The module complies fully with the operating requirements of Part 15 section C &E as demonstrated in the test report exhibit. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes, Please see the MPE report, the modular meets MPE calculation of 47 CFR 1.107 (b)(1).

10mm FCC ID: 2AQ5RWBL -8812AF1-A IC: 24301-BLR8812AF1A BL-R881 2AF1-A 10mm Label Location

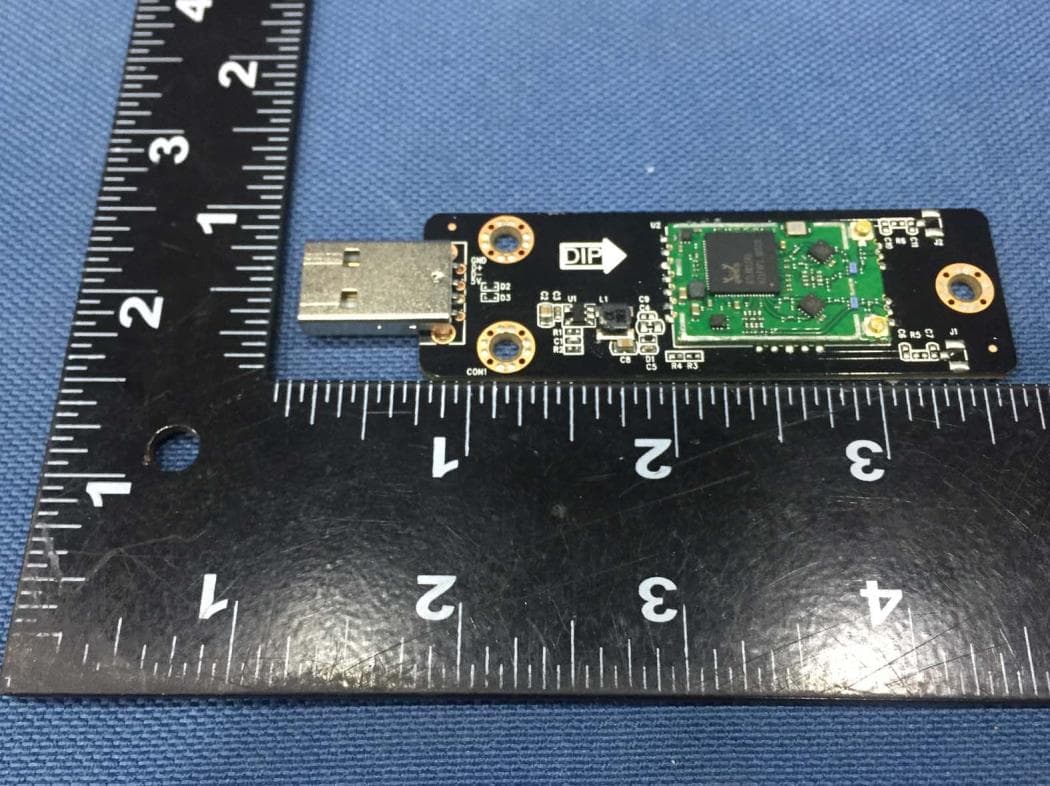

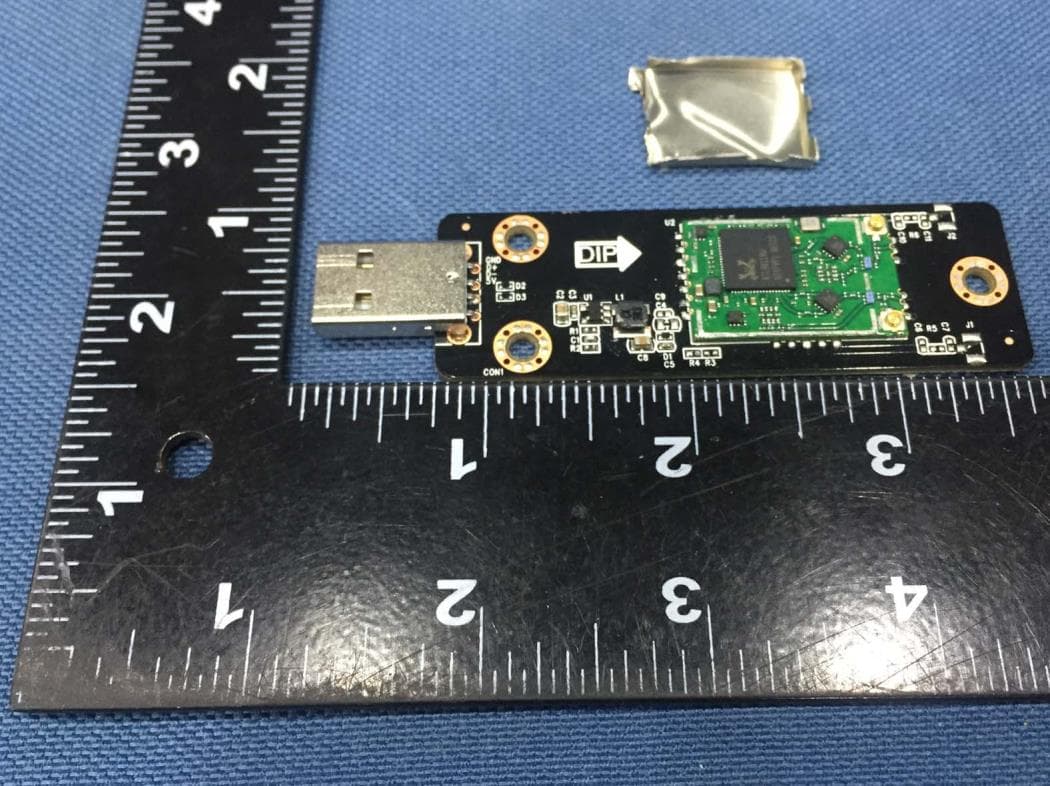

Page 1 of 3 FCC ID: 2AQ5RWBL-8812AF1-A IC: 24301-BLR8812AF1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 3 FCC ID: 2AQ5RWBL-8812AF1-A IC: 24301-BLR8812AF1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 3 FCC ID: 2AQ5RWBL-8812AF1-A IC: 24301-BLR8812AF1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Page 2 of 15 Report No.: 200111002RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 Version Version No. Date Description V1.0 April 19, 2020 Original Page 3 of 15 Report No.: 200111002RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 7 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 8 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 8 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 8 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 8 2. EQUIPMENT LIST .................................................................................................................................................... 8 3. MPE EVALUATION ................................................................................................................................................... 9 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 9 3.2 MPE COMPLIANCE REQUIREMENT ..................................................................................................................... 9 3.2.1 LIMITS ................................................................................................................................................... 9 3.2.2 TEST PROCEDURE ............................................................................................................................... 10 3.3 MPE CALCULATION METHOD ........................................................................................................................... 10 3.4 MPE CALCULATION RESULTS .......................................................................................................................... 10 3.4.1 FOR WLAN ......................................................................................................................................... 10 3.4.2 SIMULTANEOUS MULTI-BAND TRANSMISSION MPE ANALYSIS .................................................................. 14 APPENDIX 1 PHOTOS OF TEST SETUP ..................................................................................................................... 15 APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................. 15 Page 4 of 15 Report No.: 200111002RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: Shenzhen KTC Commercial Display Technology CO.,LTD. Address of Applicant: No.4023,Northern Wuhe Road,Bantian Street,Longgang District,Shenzhen City,Guangdong Province,P.R.China Manufacturer: Shenzhen KTC Commercial Display Technology CO.,LTD. Address of Manufacturer: No.4023,Northern Wuhe Road,Bantian Street,Longgang District,Shenzhen City,Guangdong Province,P.R.China 1.2 EUT INFORMATION Product Name: WIFI Module Model No. / HVIN: BL-R8812AF1-A Add. Model No. / HVIN: N/A Trade Mark: N/A DUT Stage: Production Unit EUT Supports Function: 2.4 GHz ISM Band: IEEE 802.11b/g/n 5 GHz U-NII Bands: 5 150 MHz to 5 250 MHz IEEE 802.11a/n/ac 5 250 MHz to 5 350 MHz IEEE 802.11a/n/ac 5 470 MHz to 5 725 MHz IEEE 802.11a/n/ac 5 725 MHz to 5 850 MHz IEEE 802.11a/n/ac Software Version: V62.10 Hardware Version: V1 Sample Received Date: January 15, 2020 Sample Tested Date: January 15, 2020 to April 7, 2020 Page 5 of 15 Report No.: 200111002RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD For 2.4 GHz ISM Band of Wi-Fi Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2412 MHz to 2462 MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n-HT20, IEEE 802.11n-HT40 Type of Modulation: IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n-HT20: OFDM(64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n-HT40: OFDM(64-QAM, 16…

Text truncated - open the document above for the full version.

Page 2 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Version Version No. Date Description V1.0 April 19, 2020 Original Page 3 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.6 TEST LOCATION ................................................................................................................................................. 5 1.7 TEST FACILITY ................................................................................................................................................... 5 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 3. EQUIPMENT LIST .................................................................................................................................................... 8 4. TEST CONFIGURATION .......................................................................................................................................... 9 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ........................................................................................................ 9 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................... 9 4.1.2 RECORD OF NORMAL ENVIRONMENT....................................................................................................... 9 4.2 TEST CHANNELS ............................................................................................................................................... 9 4.3 EUT TEST STATUS .......................................................................................................................................... 10 4.4 PRE-SCAN ....................................................................................................................................................... 10 4.5 TEST SETUP .................................................................................................................................................... 11 4.5.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 11 4.5.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 12 4.5.3 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 13 4.6 SYSTEM TEST CONFIGURATION ........................................................................................................................ 13 4.7 DUTY CYCLE ................................................................................................................................................... 14 5. RADIO TECHNICAL REQUIREMENTS SPECIFICATION .................................................................................... 17 5.1 REFERENCE DOCUMENTS FOR TESTING ............................................................................................................ 17 5.2 ANTENNA REQUIREMENT ................................................................................................................................. 17 5.3 CONDUCTED PEAK OUTPUT POWER ................................................................................................................. 18 5.4 6 DB BANDWIDTH & OCCUPIED BANDWIDTH ..................................................................................................... 20 5.5 POWER SPECTRAL DENSITY .......…

Text truncated - open the document above for the full version.

Page 56 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 11 Page 57 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 12 Channel 13 Page 58 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 IEEE 802.11n-HT40 In-Band Reference Level Out of Band Emission Channel 3 Channel 6 Page 59 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 9 Page 60 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 10 Channel 11 Page 61 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 SISO_ Chain 1_ IEEE 802.11b In-Band Reference Level Out of Band Emission Channel 1 Channel 6 Page 62 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 11 Page 63 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 12 Channel 13 Page 64 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 IEEE 802.11g In-Band Reference Level Out of Band Emission Channel 1 Channel 6 Page 65 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 11 Page 66 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 12 Channel 13 Page 67 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 IEEE 802.11n-HT20 In-Band Reference Level Out of Band Emission Channel 1 Channel 6 Page 68 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 11 Page 69 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 12 Channel 13 Page 70 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 IEEE 802.11n-HT40 In-Band Reference Level Out of Band Emission Channel 3 Channel 6 Page 71 of 112 Report No.: 200111002RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Channel 9 Page 72 of 112…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AQ5RWBL-8812AF1-A IC: 24301-BLR8812AF1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 1 PHOTOS OF TEST SETUP Radiated emission Test Setup (Below 1GHz) Radiated emission Test Setup (Above 1 GHz) Page 2 of 2 FCC ID: 2AQ5RWBL-8812AF1-A IC: 24301-BLR8812AF1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com Conducted Emission Test Setup RF Conducted Test Setup
