  1. Home/
  2. Shenzhen KTC Commercial Display Technology CO.,LTD./
  3. 2AQ5RWBL-8822BU1-A

2AQ5RWBL-8822BU1-AWIFI Module

Shenzhen KTC Commercial Display Technology CO.,LTD.
WIFI Module - FCC ID 2AQ5RWBL-8822BU1-A - Shenzhen KTC Commercial Display Technology CO.,LTD.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 18, 2020
Application Purpose
Original Equipment
Date of Application
Jul 18, 2020
Equipment Note
WIFI Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Shenzhen KTC Commercial Display Technology CO.,LTD.
Country
China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

โ†—
โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

RF Exposure Info

โ†—

Test Report

โ†—
โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

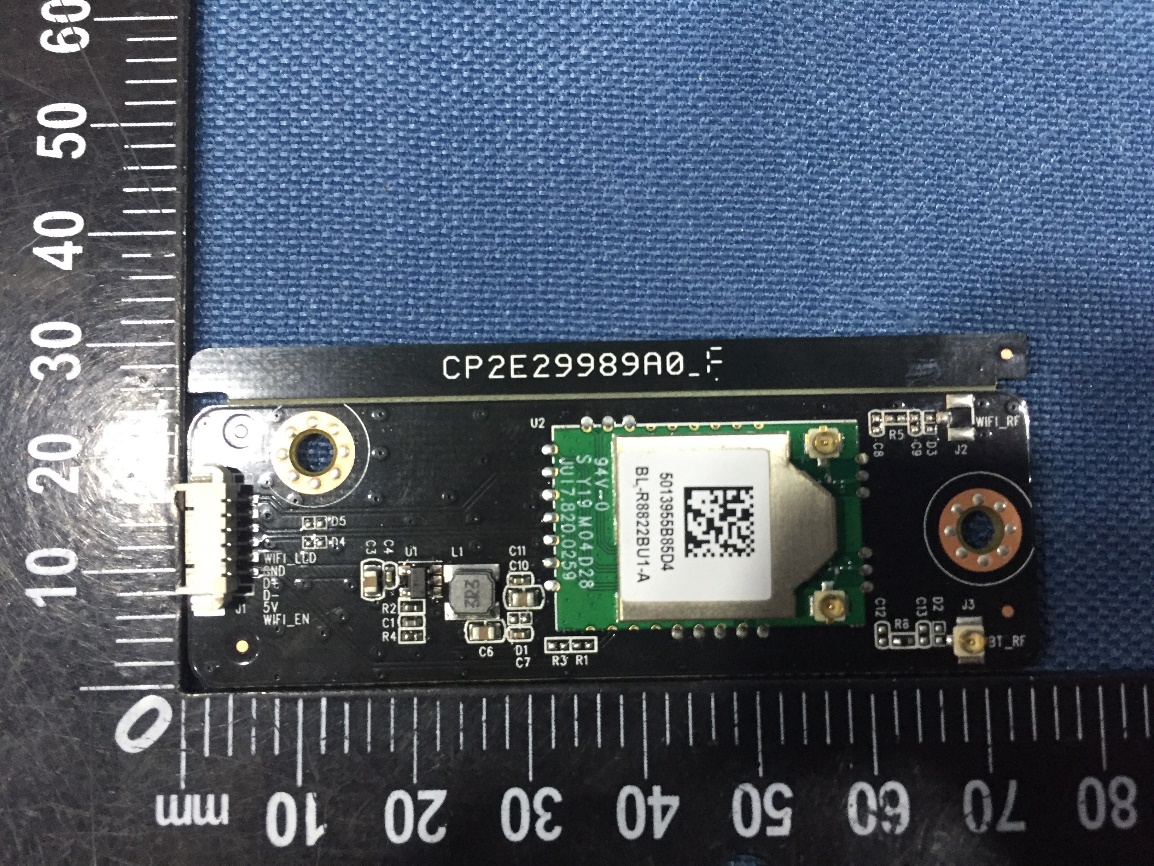

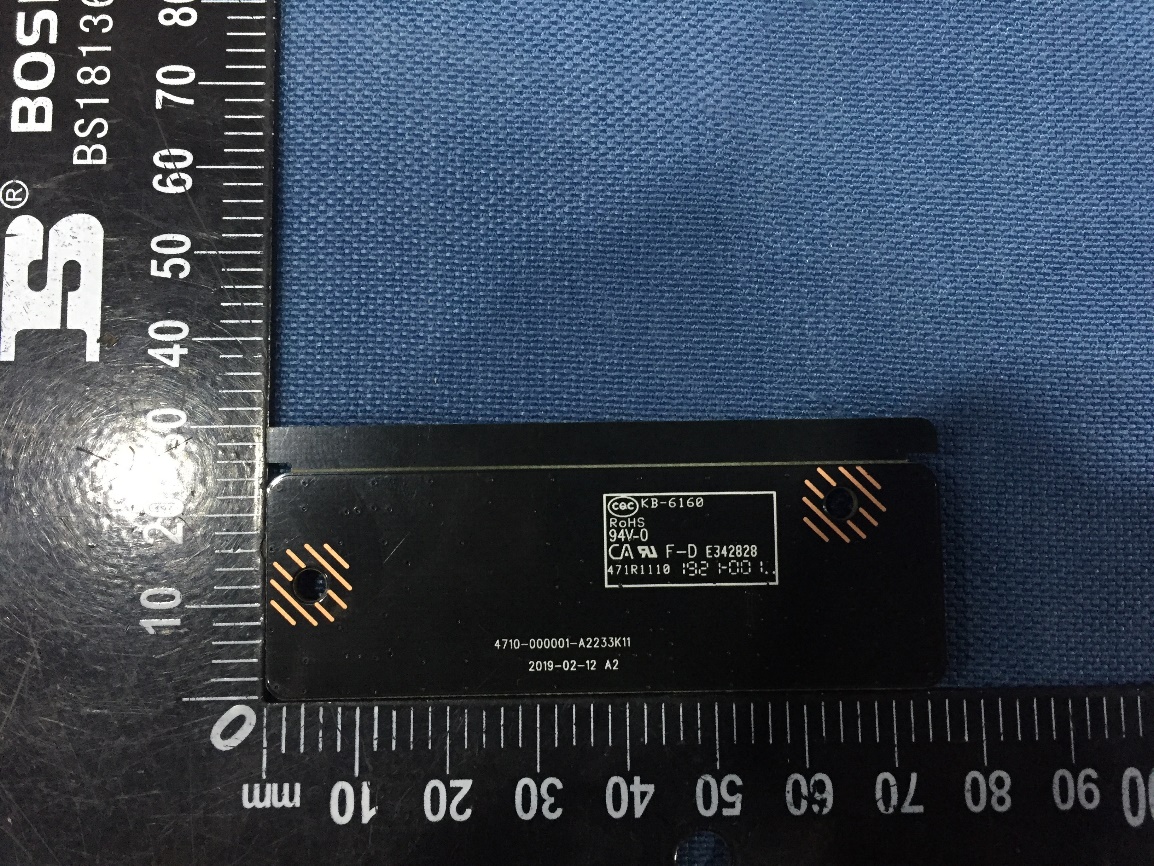

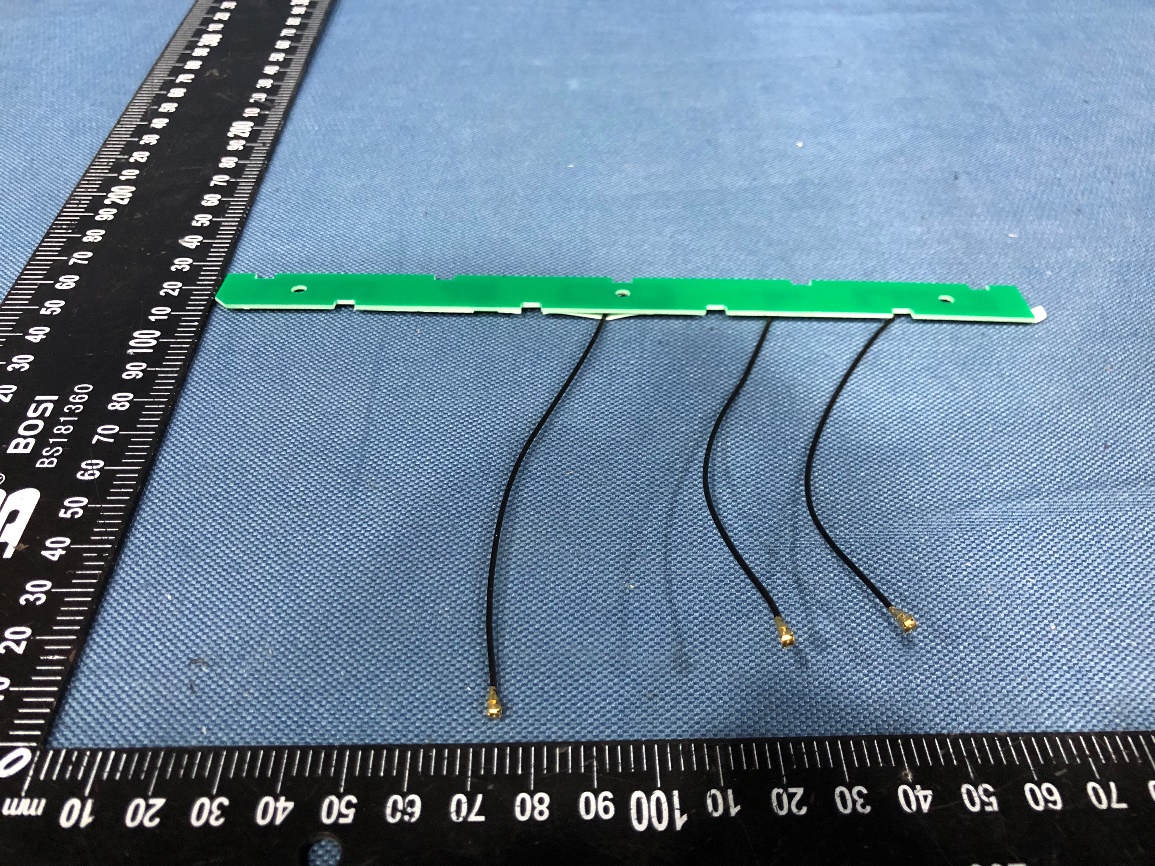

Page 1 of 2 FCC ID: 2AQ5RWBL-8822BU1-A IC: 24301-BLR8822BU1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo BT&WIFI Antenna Page 2 of 2 FCC ID: 2AQ5RWBL-8822BU1-A IC: 24301-BLR8822BU1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Internal Photos

Page 1 of 2 FCC ID: 2AQ5RWBL-8822BU1-A IC: 24301-BLR8822BU1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 2 FCC ID: 2AQ5RWBL-8822BU1-A IC: 24301-BLR8822BU1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

RF Exposure Info

Page 2 of 15 Report No.: 200302010RFC-5 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 Version Version No. Date Description V1.0 May 12, 2020 Original Page 3 of 15 Report No.: 200302010RFC-5 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 6 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 8 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 8 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 8 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 8 2. EQUIPMENT LIST .................................................................................................................................................... 8 3. MPE EVALUATION ................................................................................................................................................... 9 3.1 REFERENCE DOCUMENTS FOR EVAL U AT I O N ........................................................................................................ 9 3.2 MPE COMPLIANCE REQUIREMENT ..................................................................................................................... 9 3.2.1 LIMITS ................................................................................................................................................... 9 3.2.2 TEST PROCEDURE ............................................................................................................................... 10 3.3 MPE CALCULATION METHOD ........................................................................................................................... 10 3.4 MPE CALCULATION RESULTS .......................................................................................................................... 10 3.4.1 FOR WLAN ......................................................................................................................................... 10 3.4.2 FOR BT ............................................................................................................................................... 13 3.4.3 SIMULTANEOUS MULTI-BAND TRANSMISSION MPE ANALYSIS .................................................................. 14 APPENDIX 1 PHOTOS OF TEST SETUP ..................................................................................................................... 15 APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................. 15 Page 4 of 15 Report No.: 200302010RFC-5 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: Shenzhen KTC Commercial Display Technology CO.,LTD. Address of Applicant: No.4023,Northern Wuhe Road,Bantian Street,Longgang District,Shenzhen City,Guangdong Province,P.R.China Manufacturer: Shenzhen KTC Commercial Display Technology CO.,LTD. Address of Manufacturer: No.4023,Northern Wuhe Road,Bantian Street,Longgang District,Shenzhen City,Guangdong Province,P.R.China 1.2 EUT INFORMATION Product Name: WIFI Module Model No. / HVIN: BL-R8822BU1-A Trade Mark: N/A DUT Stage: Identical Prototype EUT Supports Function: 2.4 GHz ISM Band: IEEE 802.11b/g/n Bluetooth V4.0 5 GHz U-NII Bands: 5 150 MHz to 5 250 MHz IEEE 802.11a/n/ac 5 250 MHz to 5 350 MHz IEEE 802.11a/n/ac 5 470 MHz to 5 725 MHz IEEE 802.11a/n/ac 5 725 MHz to 5 850 MHz IEEE 802.11a/n/ac Sample Received Date: March 2, 2020 Sample Tested Date: March 2, 2020 to April 14, 2020 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD For BT_LE Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth LE Type of Modulation: GFSK Number of Channels: 40 Channel Separation: 2 MHz Antenna Type: PCB Antenna Antenna Gain: 2.5 dBi Maximum Peak Power: 6.83 dBm For BT_EDR Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth EDR Modulation Technique: Frequency Hopping Spread Spectrum(FHSS) Type of Modulation: GFSK, ฯ€/4DQPSK, 8DPSK Number of Channels: 79 Channel Separation: 1 MHz Antenna Type: PCB Antenna Antenna Gain: 2.5 dBi Maximum Peak Power: 8โ€ฆ

Text truncated - open the document above for the full version.

Test Report

Page 2 of 35 Report No.: 200302010RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Version Version No. Date Description V1.0 May 12, 2020 Original Page 3 of 35 Report No.: 200302010RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.6 TEST LOCATION ................................................................................................................................................. 6 1.7 TEST FACILITY ................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 8 3. EQUIPMENT LIST .................................................................................................................................................... 9 4. TEST CONFIGURATION ........................................................................................................................................ 10 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 10 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 10 4.1.2 RECORD OF NORMAL ENVIRONMENT..................................................................................................... 10 4.2 TEST CHANNELS ............................................................................................................................................. 10 4.3 EUT TEST STAT U S .......................................................................................................................................... 10 4.4 TEST SETUP .................................................................................................................................................... 11 4.4.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 11 4.4.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 12 4.4.3 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 13 4.5 SYSTEM TEST CONFIGURATION ........................................................................................................................ 13 4.6 DUTY CYCLE ................................................................................................................................................... 14 5. RADIO TECHNICAL REQUIREMENTS SPECIFICATION .................................................................................... 15 5.1 REFERENCE DOCUMENTS FOR TESTING ............................................................................................................ 15 5.2 ANTENNA REQUIREMENT ................................................................................................................................. 15 5.3 CONDUCTED PEAK OUTPUT POWER ................................................................................................................. 16 5.4 6 DB BANDWIDTH & OCCUPIED BANDWIDTH ..................................................................................................... 17 5.5 POWER SPECTRAL DENSITY ............................................................................................................................ 19 5.6 CONDUCTED OUT OF BAND EMISSION ...................โ€ฆ

Text truncated - open the document above for the full version.

Test Report

Page 2 of 56 Report No.: 200302010RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 Version Version No. Date Description V1.0 May 12, 2020 Original Page 3 of 56 Report No.: 200302010RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.6 TEST LOCATION ................................................................................................................................................. 6 1.7 EST FACILITY ..................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 2. TEST SUMMARY ...................................................................................................................................................... 8 3. EQUIPMENT LIST .................................................................................................................................................... 9 4. TEST CONFIGURATION ........................................................................................................................................ 10 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 10 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 10 4.1.2 RECORD OF NORMAL ENVIRONMENT..................................................................................................... 10 4.2 TEST CHANNELS ............................................................................................................................................. 10 4.3 EUT TEST STAT U S .......................................................................................................................................... 11 4.4 PRE-SCAN ....................................................................................................................................................... 11 4.5 TEST SETUP .................................................................................................................................................... 12 4.5.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 12 4.5.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 13 4.5.3 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 14 4.6 SYSTEM TEST CONFIGURATION ........................................................................................................................ 14 4.7 DUTY CYCLE ................................................................................................................................................... 15 5. RADIO TECHNICAL REQUIREMENTS SPECIFICATION .................................................................................... 18 5.1 REFERENCE DOCUMENTS FOR TESTING ............................................................................................................ 18 5.2 ANTENNA REQUIREMENT ................................................................................................................................. 18 5.3 CONDUCTED PEAK OUTPUT POWER ................................................................................................................. 19 5.4 6 DB BANDWIDTH & OCCUPIED BANDWIDTH ..................................................................................................... 20 5.5 POWER SPECTRAL DENSITY .............โ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

Page 1 of 3 FCC ID: 2AQ5RWBL-8822BU1-A IC: 24301-BLR8822BU1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 1 PHOTOS OF TEST SETUP Radiated emission Test Setup (30 MHz~1 GHz) Radiated emission Test Setup (Above 1 GHz) Page 2 of 3 FCC ID: 2AQ5RWBL-8822BU1-A IC: 24301-BLR8822BU1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com Conducted Emission Test Setup RF Conducted Test Setup Page 3 of 3 FCC ID: 2AQ5RWBL-8822BU1-A IC: 24301-BLR8822BU1A Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com DFS Test Setup

Contact Information

Applicant

Liu Huan(Certification Director)
[email protected]86-755-33615330Fax: 86-755-33615330

Technical Contact

Shenzhen UnionTrust Quality and Technology Co., LtBilly Li
(86-755) 2823 0888

16/F, Block A, Building 6, Baoneng Science and Tec ยท Shenzhen ยท China

Non-Technical Contact

Shenzhen UnionTrust Quality and Technology Co., LtBilly Li
(86-755) 2823 0888

Test Firm

Shenzhen UnionTrust Quality and Technology Co., LtGeorge Luo
[email protected]+86-755-28230888

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.41 GHz - 2.46 GHz129.40 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. Colocation of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. The module shall be only used with the integral antennas that has been originally tested and certified with this module. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. The module grantee is responsible for providing the documentation to the system integrator on restrictions of use, for continuing compliance of the module. The host integrator installing this module into their product must follow the integration instructions provided by the module manufacturer and must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369. This filing covers Bluetooth BLE and 2.4GHz Wi-Fi functions. The Wi-Fi function has 20MHz and 40MHz bandwidth modes.
