2AQ8SCHAPERONT300Mobile Phone

6 7 8 9 10 11 12 13 14 Chaperon-T300 supports GPS function. GPS can help your family get your location information. They need to edit the text "EGPS" and send it to your phone number. Chaperon-T300 will send a Maplink message to the sender. When your phone is indoors or basement or the weather is cloudy or rainy, it is highly likely and normal that GPS may not get position. It will send 3 messages(5 minutes interval) to the sender that GPS signal is weak . If your phone not open GPS, it will send a message to the sender that GPS function is closed. 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 T300 4G. 34 35 36 37 38 39 40 41 42 43 44 45 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is1.6 W/kg averaged over one gram of this Device Chaperon-T300 (FCC ID: 2AQ8SCHAPERONT300) has been tested against this SAR limit. SAR information on this can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search. This device was tested for typical operations 10mm from the body. To maintain compliance with FCC RF exposure requirements, 10mm separation distance should. maintained to the user's bodies NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: 2AQ8SCHAPERONT300 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is1.6 W/kg averaged over one gram of this Device Chaperon-T300 (FCC ID: 2AQ8SCHAPERONT300) has been tested against this SAR limit. SAR information on this can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search. This device was tested for typical operations 10mm from the body. To maintain compliance with FCC RF exposure requirements, 10mm separation distance should. maintained to the user's bodies NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: 2AQ8SCHAPERONT300

Shen Zhen Yixun Electronic Technology Co., Ltd. Agent Authorization Letter (2022-07-12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Nick Zhou / Manager Date/City: 2022-07-12 / Shenzhen Phone: +86 13620210469 Fax: +86 13620210469 E-mail: [email protected]

Shen Zhen Yixun Electronic Technology Co., Ltd. Long Term Confidentiality Request Letter (2022-07-12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: Chaperon-T300 FCC ID: 2AQ8SCHAPERONT300 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Part List / BOM List / PCB Layout  Operational Description  Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Nick Zhou / Manager Date/City: 2022-07-11 / Shenzhen Phone: +86 13620210469 Fax: +86 13620210469 E-mail: [email protected]

Shen Zhen Yixun Electronic Technology Co., Ltd. Short Term Confidentiality Request Letter (2022-07-12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: Mobile Phone Model No.: Chaperon-T300 FCC ID: 2AQ8SCHAPERONT300 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < Shen Zhen Yixun Electronic Technology Co., Ltd. >. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < Shen Zhen Yixun Electronic Technology Co., Ltd. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < Shen Zhen Yixun Electronic Technology Co., Ltd. > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Nick Zhou / Manager Date/City: 2022-07-12 / Shenzhen Phone: +86 13620210469 Fax: +86 13620210469 E-mail: [email protected]

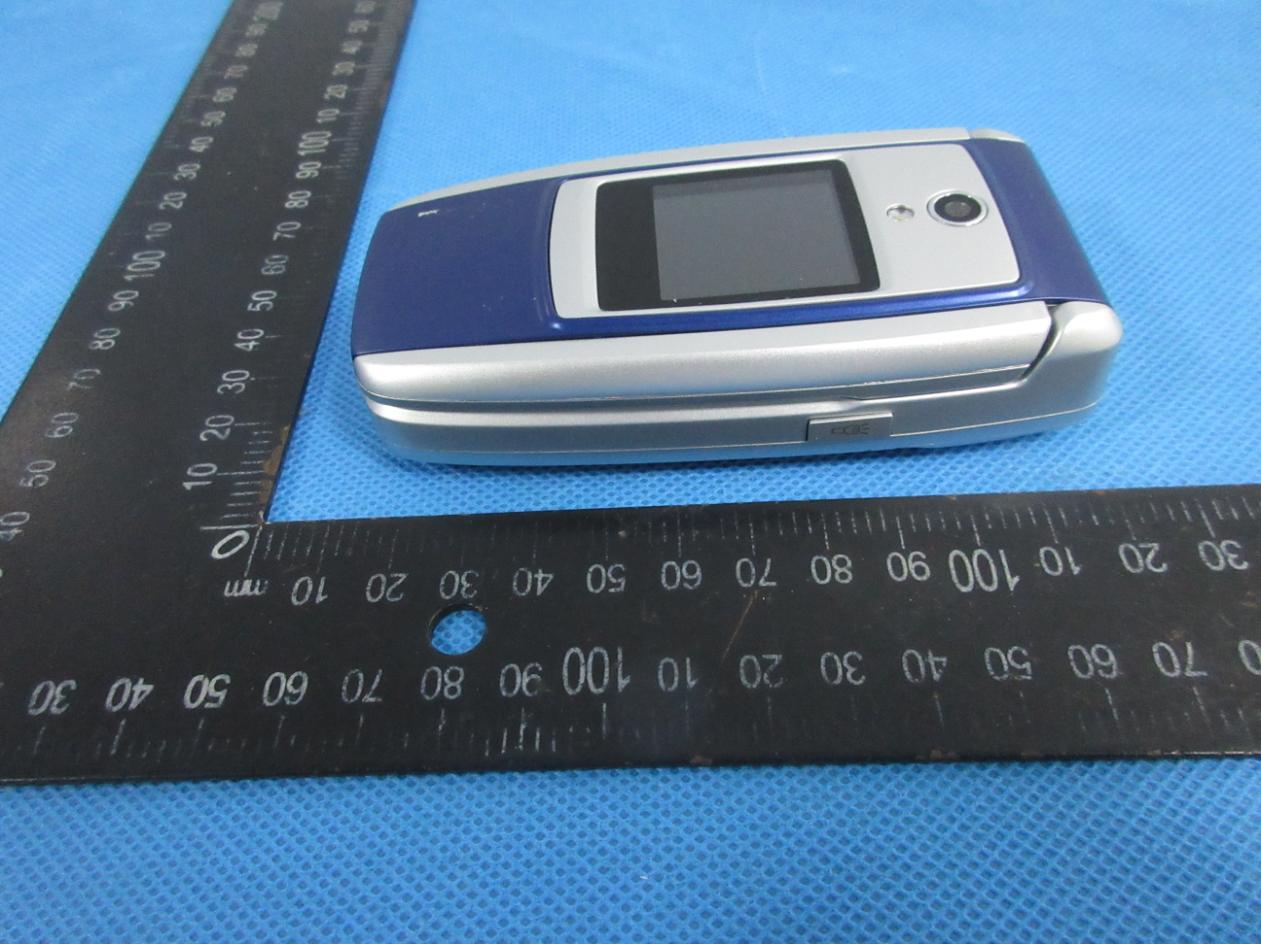

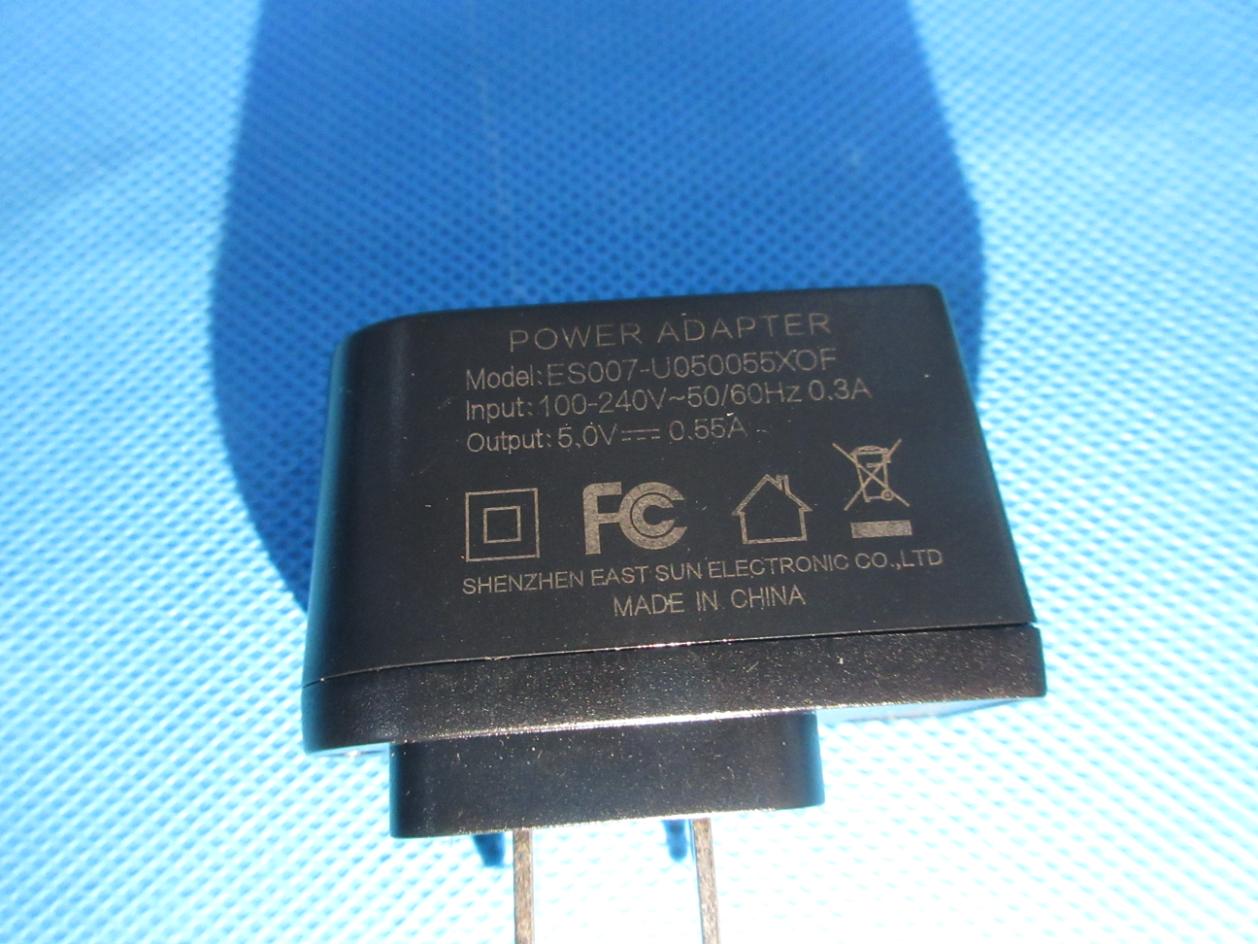

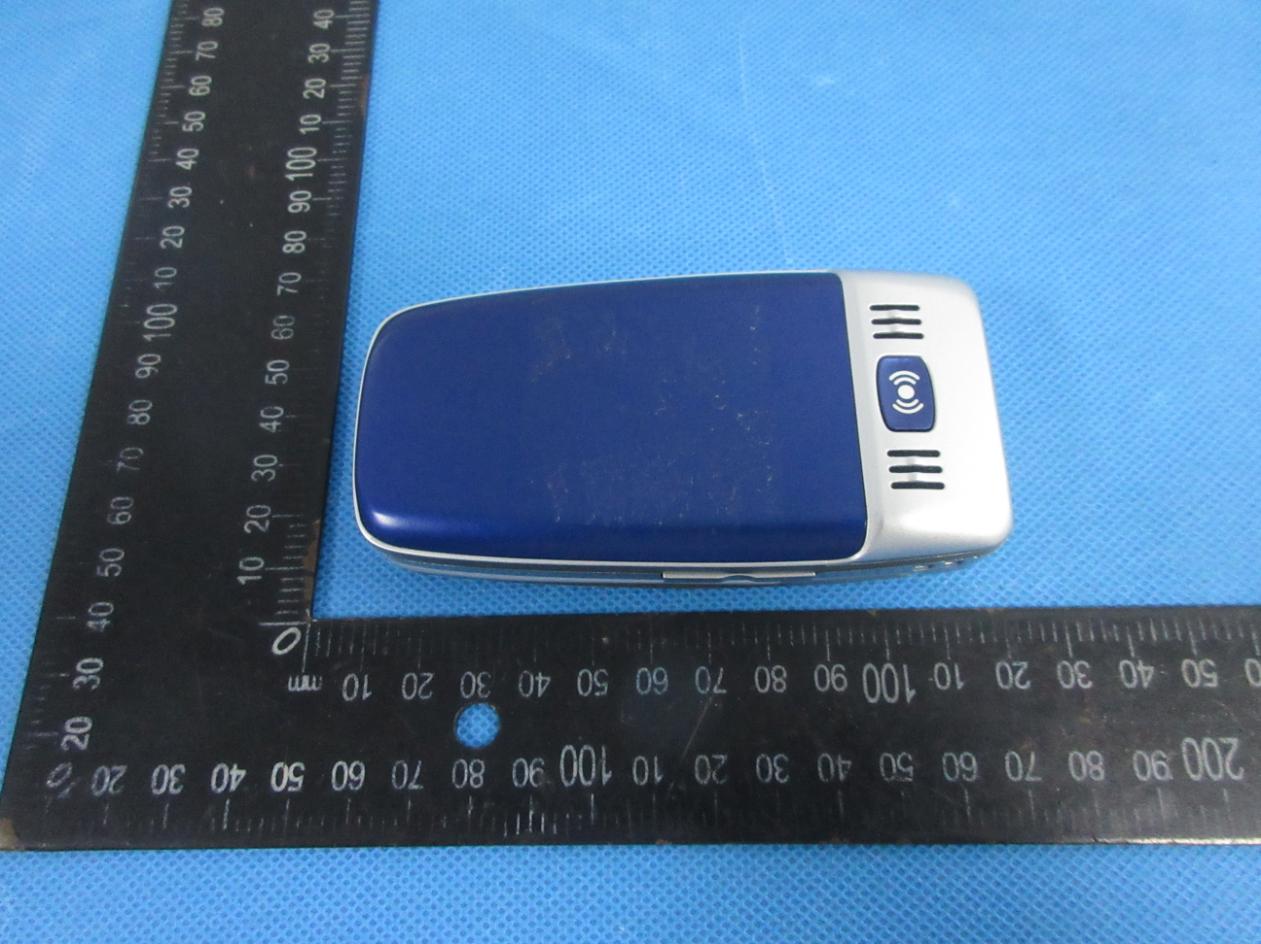

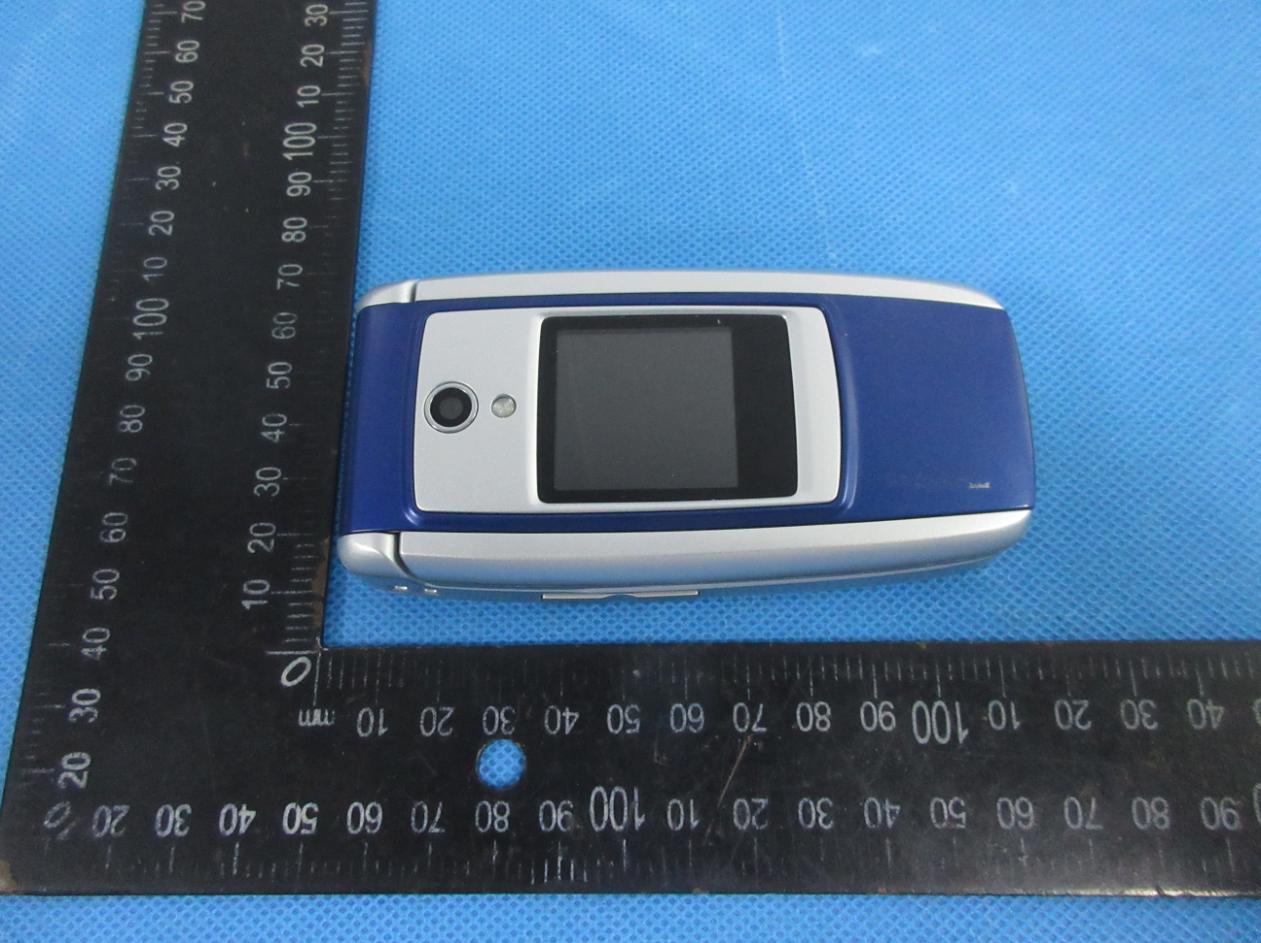

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 BT ANT WIFI ANT Photo 17 Photo 18 Photo 19

Page 1 of 137 Report No.: STR220517001005E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Trademark： Easyfone Model Name： Chaperon-T300 Family Model： N/A Report No.： STR220517001005E FCC ID： 2AQ8SCHAPERONT300 Prepared for Shen Zhen Yixun Electronic Technology Co., Ltd. 14D, HuaqiaoXinyuan, WanzhongCity, Xinniu Community, Minzhi St., Longhua Dist., Shenzhen, Guangdong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel.: 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 137 Report No.: STR220517001005E TEST RESULT CERTIFICATION Applicant’s name ................. : Shen Zhen Yixun Electronic Technology Co., Ltd. Address .................................. : 14D, HuaqiaoXinyuan, WanzhongCity, Xinniu Community, Minzhi St., Longhua Dist., Shenzhen, Guangdong, China Manufacturer's Name ........... : Shen Zhen Yixun Electronic Technology Co., Ltd. Address .................................. : 14D, HuaqiaoXinyuan, WanzhongCity, Xinniu Community, Minzhi St., Longhua Dist., Shenzhen, Guangdong, China Product description Product name ......................... : Mobile Phone Trademark ............................ : Easyfone Model Name ......................... : Chaperon-T300 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992;IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : May. 20, 2022 ~ Jun. 06, 2022 Date of Issue .......................................... : Jun. 28, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 137 Report No.: STR220517001005E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jun. 28, 2022 Jacob Chen Page 4 of 137 Report No.: STR220517001005E TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncer…

Text truncated - open the document above for the full version.

Page 101 of 137 Report No.: STR220517001005E Page 102 of 137 Report No.: STR220517001005E Page 103 of 137 Report No.: STR220517001005E Page 104 of 137 Report No.: STR220517001005E Page 105 of 137 Report No.: STR220517001005E Page 106 of 137 Report No.: STR220517001005E Page 107 of 137 Report No.: STR220517001005E Page 108 of 137 Report No.: STR220517001005E Page 109 of 137 Report No.: STR220517001005E Page 110 of 137 Report No.: STR220517001005E Page 111 of 137 Report No.: STR220517001005E Page 112 of 137 Report No.: STR220517001005E Page 113 of 137 Report No.: STR220517001005E Page 114 of 137 Report No.: STR220517001005E Page 115 of 137 Report No.: STR220517001005E Page 116 of 137 Report No.: STR220517001005E Page 117 of 137 Report No.: STR220517001005E Page 118 of 137 Report No.: STR220517001005E Page 119 of 137 Report No.: STR220517001005E Page 120 of 137 Report No.: STR220517001005E Page 121 of 137 Report No.: STR220517001005E Page 122 of 137 Report No.: STR220517001005E Page 123 of 137 Report No.: STR220517001005E Page 124 of 137 Report No.: STR220517001005E Page 125 of 137 Report No.: STR220517001005E Page 126 of 137 Report No.: STR220517001005E Page 127 of 137 Report No.: STR220517001005E Page 128 of 137 Report No.: STR220517001005E Page 129 of 137 Report No.: STR220517001005E Page 130 of 137 Report No.: STR220517001005E Page 131 of 137 Report No.: STR220517001005E Page 132 of 137 Report No.: STR220517001005E Page 133 of 137 Report No.: STR220517001005E Page 134 of 137 Report No.: STR220517001005E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 135 of 137 Report No.: STR220517001005E <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 136 of 137 Report No.: STR220517001005E <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 137 of 137 Report No.: STR220517001005E <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _____________________________________ END_______________________________________

Report No.: STR220517001003E 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 27.14 PASS EGPRS1900 1 Slot 661 1880 27.37 PASS EGPRS1900 1 Slot 810 1909.8 26.61 PASS EGPRS1900 2 Slot 512 1850.2 25.82 PASS EGPRS1900 2 Slot 661 1880 26.15 PASS EGPRS1900 2 Slot 810 1909.8 24.93 PASS EGPRS1900 3 Slot 512 1850.2 22.79 PASS EGPRS1900 3 Slot 661 1880 23.40 PASS EGPRS1900 3 Slot 810 1909.8 22.59 PASS EGPRS1900 4 Slot 512 1850.2 20.21 PASS EGPRS1900 4 Slot 661 1880 21.48 PASS EGPRS1900 4 Slot 810 1909.8 19.72 PASS EGPRS850 1 Slot 128 824.2 26.39 PASS EGPRS850 1 Slot 189 836.4 27.18 PASS EGPRS850 1 Slot 251 848.8 26.25 PASS EGPRS850 2 Slot 128 824.2 25.38 PASS EGPRS850 2 Slot 189 836.4 26.49 PASS EGPRS850 2 Slot 251 848.8 25.23 PASS EGPRS850 3 Slot 128 824.2 21.89 PASS EGPRS850 3 Slot 189 836.4 23.22 PASS EGPRS850 3 Slot 251 848.8 22.20 PASS EGPRS850 4 Slot 128 824.2 19.43 PASS EGPRS850 4 Slot 189 836.4 20.58 PASS EGPRS850 4 Slot 251 848.8 19.70 PASS 15 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 6.070065789 13.00 PASS EGPRS1900 661 1880 5.670652681 13.00 PASS EGPRS1900 810 1909.8 6.753874346 13.00 PASS EGPRS850 128 824.2 9.570638298 13.00 PASS EGPRS850 189 836.4 8.6266486 13.00 PASS EGPRS850 251 848.8 9.257748691 13.00 PASS EGPRS1900 Channel=512 Report No.: STR220517001003E EGPRS1900 Channel=661 EGPRS1900 Channel=810 Report No.: STR220517001003E EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: STR220517001003E EGPRS850 Channel=189 16 Occupied bandwidth Report No.: STR220517001003E Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 250.413 313.195 PASS EGPRS1900 661 1880 252.770 325.640 PASS EGPRS1900 810 1909.8 248.424 322.787 PASS EGPRS850 128 824.2 255.206 339.099 PASS EGPRS850 189 836.4 250.898 303.732 PASS EGPRS850 251 848.8 238.490 303.003 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: STR220517001003E EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: STR220517001003E EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: STR220517001003E 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.99 -34.45 -13 PASS EGPRS1900 810 1909.8 1910.01 -34.44 -13 PASS EGPRS850 128 824.2 823.99 -35.11 -13 PASS EGPRS850 251 848.8 849.00 -32.19 -13 PASS EGPRS1900 Channel=512 Report No.: STR220517001003E EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: STR220517001003E EGPRS850 Channel=251 18 Out-of-band emissions Report No.: STR220517001003E Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 26010.97 -18.29 -13 PASS EGPRS1900 661 1880 25942.81 -18.81 -13 PASS EGPRS1900 810 1909.8 25864.06 -17.96 -13 PASS EGPRS850 128 824.2 25993.76 -20.03 -13 PASS EGPRS850 189 836.4 26016.26 -20.17 -13 PASS EGPRS850 251 848.8 25526.57 -20.16 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No.: STR220517001003E EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: STR220517001003E EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: STR220517001003E 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 30.37 PASS GPRS1900 1 Slot 661 1880 30.50 PASS GPRS1900 1 Slot 810 1909.8 30.51 PASS GPRS1900 2 Slot 512 1850.2 28.40 PASS GPRS1900 2 Slot 661 1880 28.17 PASS GPRS1900 2 Slot 810 1909.8 27.90 PASS GPRS1900 3 Slot 512 1850.2 26.92 PASS GPRS1900 3 Slot 661 1880 26.65 PASS GPRS1900 3 Slot 810 1909.8 26.35 PASS GPRS1900 4 Slot 512 1850.2 24.91 PASS GPRS1900 4 Slot 661 1880 24.65 PASS GPRS1900 4 Slot 810 1909.8 24.34 PASS GPRS850 1 Slot 128 824.2 33.49 PASS GPRS850 1 Slot 189 836.4 33.64 PASS GPRS850 1 Slot 251 848.8 33.44 PASS GPRS850 2 Slot 128 824.2 31.35 PASS GPRS850 2 Slot 189 836.4 31.44 PASS GPRS850 2 Slot 251 848.8 31.25 PASS GPRS850 3 Slot 128 824.2 29.43 PASS GPRS850 3 Slot 189 836.4 29.49 PASS GPRS850 3 Slot 251 848.8 29.32 PASS Report No.: STR220517001003E GPRS850 4 Slot 128 824.2 27.17 PASS GPRS850 4 Slot 189 836.4 27.21 PASS GPRS850 4 Slot 251 848.8 27.04 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.694616788 13.00 PASS GPRS1900 661 1880 2.679956003 13.00 PASS GPRS1900 810 1909.8 2.679584317 13.00 PASS GPRS850 128 824.2 2.653786089 13.00 PASS GPRS850 189 836.4 2.656923077 13.00 PASS GPRS850 251 848.8 2.641018078 13.00 PASS GPRS1900 Channel=661 GPRS1900 Channel=512 Report No.: STR220517001003E GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: STR220517001003E GPRS850 Channel=251 GPRS850 Channel=189 Report No.: STR220517001003E 10 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 244.948 313.140 PASS GPRS1900 661 1880 243.741 313.026 PASS GPRS1900 810 1909.8 238.736 310.718 PASS GPRS850 128 824.2 248.584 319.425 PASS GPRS850 189 836.4 246.559 320.278 PASS GPRS850 251 848.8 248.126 316.429 PASS GPRS1900 Channel=661 Report No.: STR220517001003E GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: STR220517001003E GPRS850 Channel=128 GPRS850 Channel=189 Report No.: STR220517001003E GPRS850 Channel=251 11 Band edge Report No.: STR220517001003E Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1850.00 -29.61 -13 PASS GPRS1900 810 1909.8 1910.02 -29.70 -13 PASS GPRS850 128 824.2 823.98 -28.00 -13 PASS GPRS850 251 848.8 849.02 -26.25 -13 PASS GPRS1900 Channel=810 GPRS1900 Channel=512 Report No.: STR220517001003E GPRS850 Channel=251 GPRS850 Channel=128 Report No.: STR220517001003E 12 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 25851.49 -18.65 -13 PASS GPRS1900 661 1880 26051.33 -17.92 -13 PASS GPRS1900 810 1909.8 25951.41 -18.28 -13 PASS GPRS850 128 824.2 26169.13 -20.35 -13 PASS GPRS850 189 836.4 26018.91 -19.93…

Text truncated - open the document above for the full version.

Report No.: STR220517001004E 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band2 1.4 18607 1 #0 QPSK 23.68 PASS Band2 1.4 18607 1 #Mid QPSK 23.95 PASS Band2 1.4 18607 1 #Max QPSK 23.91 PASS Band2 1.4 18607 3 #0 QPSK 24.07 PASS Band2 1.4 18607 3 #Mid QPSK 24.10 PASS Band2 1.4 18607 3 #Max QPSK 24.09 PASS Band2 1.4 18607 6 #0 QPSK 22.94 PASS Band2 1.4 18607 1 #0 QAM16 23.40 PASS Band2 1.4 18607 1 #Mid QAM16 23.40 PASS Band2 1.4 18607 1 #Max QAM16 23.33 PASS Band2 1.4 18607 3 #0 QAM16 23.42 PASS Band2 1.4 18607 3 #Mid QAM16 23.45 PASS Band2 1.4 18607 3 #Max QAM16 23.38 PASS Band2 1.4 18607 6 #0 QAM16 22.27 PASS Band2 1.4 18900 1 #0 QPSK 24.17 PASS Band2 1.4 18900 1 #Mid QPSK 24.24 PASS Band2 1.4 18900 1 #Max QPSK 24.25 PASS Band2 1.4 18900 3 #0 QPSK 24.06 PASS Band2 1.4 18900 3 #Mid QPSK 24.14 PASS Band2 1.4 18900 3 #Max QPSK 24.08 PASS Band2 1.4 18900 6 #0 QPSK 23.07 PASS Band2 1.4 18900 1 #0 QAM16 23.28 PASS Band2 1.4 18900 1 #Mid QAM16 23.29 PASS Band2 1.4 18900 1 #Max QAM16 23.26 PASS Band2 1.4 18900 3 #0 QAM16 23.21 PASS Band2 1.4 18900 3 #Mid QAM16 23.16 PASS Band2 1.4 18900 3 #Max QAM16 23.18 PASS Band2 1.4 18900 6 #0 QAM16 22.12 PASS Band2 1.4 19193 1 #0 QPSK 24.29 PASS Band2 1.4 19193 1 #Mid QPSK 24.29 PASS Band2 1.4 19193 1 #Max QPSK 24.27 PASS Band2 1.4 19193 3 #0 QPSK 24.20 PASS Band2 1.4 19193 3 #Mid QPSK 24.17 PASS Band2 1.4 19193 3 #Max QPSK 24.21 PASS Band2 1.4 19193 6 #0 QPSK 23.10 PASS Band2 1.4 19193 1 #0 QAM16 23.46 PASS Band2 1.4 19193 1 #Mid QAM16 23.52 PASS Band2 1.4 19193 1 #Max QAM16 23.44 PASS Band2 1.4 19193 3 #0 QAM16 23.59 PASS Band2 1.4 19193 3 #Mid QAM16 23.58 PASS Band2 1.4 19193 3 #Max QAM16 23.57 PASS Report No.: STR220517001004E Band2 1.4 19193 6 #0 QAM16 22.38 PASS Band2 3 18615 1 #0 QPSK 22.87 PASS Band2 3 18615 1 #Mid QPSK 23.85 PASS Band2 3 18615 1 #Max QPSK 23.93 PASS Band2 3 18615 8 #0 QPSK 22.99 PASS Band2 3 18615 8 #Mid QPSK 22.90 PASS Band2 3 18615 8 #Max QPSK 22.81 PASS Band2 3 18615 15 #0 QPSK 22.95 PASS Band2 3 18615 1 #0 QAM16 23.03 PASS Band2 3 18615 1 #Mid QAM16 23.03 PASS Band2 3 18615 1 #Max QAM16 23.05 PASS Band2 3 18615 8 #0 QAM16 22.03 PASS Band2 3 18615 8 #Mid QAM16 22.01 PASS Band2 3 18615 8 #Max QAM16 22.04 PASS Band2 3 18615 15 #0 QAM16 22.11 PASS Band2 3 18900 1 #0 QPSK 24.32 PASS Band2 3 18900 1 #Mid QPSK 24.33 PASS Band2 3 18900 1 #Max QPSK 24.31 PASS Band2 3 18900 8 #0 QPSK 23.10 PASS Band2 3 18900 8 #Mid QPSK 23.09 PASS Band2 3 18900 8 #Max QPSK 23.00 PASS Band2 3 18900 15 #0 QPSK 23.07 PASS Band2 3 18900 1 #0 QAM16 23.76 PASS Band2 3 18900 1 #Mid QAM16 23.75 PASS Band2 3 18900 1 #Max QAM16 23.74 PASS Band2 3 18900 8 #0 QAM16 22.07 PASS Band2 3 18900 8 #Mid QAM16 22.08 PASS Band2 3 18900 8 #Max QAM16 22.06 PASS Band2 3 18900 15 #0 QAM16 22.14 PASS Band2 3 19185 1 #0 QPSK 24.16 PASS Band2 3 19185 1 #Mid QPSK 24.10 PASS Band2 3 19185 1 #Max QPSK 24.15 PASS Band2 3 19185 8 #0 QPSK 23.08 PASS Band2 3 19185 8 #Mid QPSK 23.06 PASS Band2 3 19185 8 #Max QPSK 23.13 PASS Band2 3 19185 15 #0 QPSK 23.12 PASS Band2 3 19185 1 #0 QAM16 23.23 PASS Band2 3 19185 1 #Mid QAM16 23.34 PASS Band2 3 19185 1 #Max QAM16 23.31 PASS Band2 3 19185 8 #0 QAM16 22.29 PASS Band2 3 19185 8 #Mid QAM16 22.30 PASS Band2 3 19185 8 #Max QAM16 22.27 PASS Band2 3 19185 15 #0 QAM16 22.20 PASS Band2 5 18625 1 #0 QPSK 24.00 PASS Report No.: STR220517001004E Band2 5 18625 1 #Mid QPSK 23.90 PASS Band2 5 18625 1 #Max QPSK 23.99 PASS Band2 5 18625 12 #0 QPSK 22.89 PASS Band2 5 18625 12 #Mid QPSK 22.95 PASS Band2 5 18625 12 #Max QPSK 22.93 PASS Band2 5 18625 25 #0 QPSK 22.91 PASS Band2 5 18625 1 #0 QAM16 22.73 PASS Band2 5 18625 1 #Mid QAM16 22.73 PASS Band2 5 18625 1 #Max QAM16 22.76 PASS Band2 5 18625 12 #0 QAM16 21.90 PASS Band2 5 18625 12 #Mid QAM16 21.90 PASS Band2 5 18625 12 #Max QAM16 21.91 PASS Band2 5 18625 25 #0 QAM16 22.16 PASS Band2 5 18900 1 #0 QPSK 23.89 PASS Band2 5 18900 1 #Mid QPSK 23.88 PASS Band2 5 18900 1 #Max QPSK 23.92 PASS Band2 5 18900 12 #0 QPSK 23.05 PASS Band2 5 18900 12 #Mid QPSK 23.11 PASS Band2 5 18900 12 #Max QPSK 22.96 PASS Band2 5 18900 25 #0 QPSK 23.08 PASS Band2 5 18900 1 #0 QAM16 23.09 PASS Band2 5 18900 1 #Mid QAM16 23.08 PASS Band2 5 18900 1 #Max QAM16 23.05 PASS Band2 5 18900 12 #0 QAM16 22.26 PASS Band2 5 18900 12 #Mid QAM16 22.17 PASS Band2 5 18900 12 #Max QAM16 22.18 PASS Band2 5 18900 25 #0 QAM16 22.15 PASS Band2 5 19175 1 #0 QPSK 24.11 PASS Band2 5 19175 1 #Mid QPSK 24.15 PASS Band2 5 19175 1 #Max QPSK 24.11 PASS Band2 5 19175 12 #0 QPSK 23.17 PASS Band2 5 19175 12 #Mid QPSK 23.01 PASS Band2 5 19175 12 #Max QPSK 23.09 PASS Band2 5 19175 25 #0 QPSK 23.00 PASS Band2 5 19175 1 #0 QAM16 23.72 PASS Band2 5 19175 1 #Mid QAM16 23.74 PASS Band2 5 19175 1 #Max QAM16 23.73 PASS Band2 5 19175 12 #0 QAM16 22.22 PASS Band2 5 19175 12 #Mid QAM16 22.28 PASS Band2 5 19175 12 #M…

Text truncated - open the document above for the full version.
