2AQAA-Z1Tablet

，－...，，....丰田 Notice en Franc;ais--37-45 User Manual ／~－千． lntr。duction Thank you for ch。。singthis product. The device brings you much E。nveniencefor your business (supports Word飞Exce忡， send & receive e-mails勺andentertainment. Running on Micros。ftWindows 10 operating system, It brings y。uwonderful user experience. This guide serves to enable users to getto know and famlllar with the product as soon as posslble. Here we have made a brief I ntrodu ctlon In figures and w。rds.Before beglnnlnιplease refer to this use『manualcarefully. •software not includad c。ntents I. Precautions bef，。reUse, Intended Use......• •1,2 II. I ntr。ducti。nt。Deskt。p........................z l. Images about select applications.....................··3 Ill. Basic Operations.................................•4 l. Sleep, restart and shutdown ........................•4 2.Secu「ityManagement...........................• •4,5 3. Wi- Fi, Bluetooth, Flight mode ........................•6 4.Cortana , , , , , , , ..................................... 5 IV. Batterycharging................................... 7 v. BIOS-Setting &Bootmanger.....................7 VI. Troublesh。。ting..............................•7,8,9 Important Notti•: Charge the bltt.,y for at』east12hou，罗btJfortJ加，ifialstart-up. I I • Precautions befo刚』” 1. This productls sultable for use In non-tropic areas below 2,000 meters 2. Prevent this productfrom falllngtothe gr。undIt c。uldbe str。nglydamaged. 3. Keep the device away from rain, m。isture,direct sunlight and heat source. 4.Awlduslng祉Inthe亚rongmagm吐lcandstrongstatlcenv1ronmentas much as possible. 5. Onceanywa幅rorotherllquld splash回onto由Isproduct,close ltlmmedlately and do n。tuse it until it dries out. 6. Do notclean由isproduct with any dete唱，ntcontaining chem i日lelement 。rother liquid to avoid causing damage due to c。rrosl。nand becomlngdamp. If cleanlngls really necessary, clean It with dry so眈clothtissue paper. 7. Handled、esa回ngently. To c阳叶『鸣，rprintsordustonthescr，四n,use目的｜抽出dicated for camera lens instead of gauze. 8. Please backup your Important flies atanytlme t。avoidloss. 9. Please do not disassemble this product byy。urself;otherwi皿youwilllosethe right to warranty. 1 O.Do not disc。nnectthe device from p剧Nersuddenly, when formatting。rupload Ing and d。wnl。adlng,which can lead to program errors. 11.PI回seusetheoriginalACadap恒rforcharging.N。n四”forming由町’目may臼useharms. 12,Protect thl! powe『cord,When connect the power cord, do not step onto It or place any object on It, which may cause extrusion. Protect the connect。r。fthe power cord c。nnecteddevices specially. 13.Batteries The batter I回Inthis product臼nnotb剖面lly陪”缸刨by喝ersthemselves. Replacement with Inc。rrecttype batteries may cause explosl。n. 14.Whdeusi暗theearphone, if伽evolumeis田cessivelyhighit may cause h回ringdamage. Sopl田里画啕ustthevolumeof由eplayer to a mode阳也阳启Iand balance世1etlmeofuslng. 15.Plctures In this manual are for demonstration purpose only and may di伽rfromthe real pr。duct. 16. Caution I This unit con回Insbattery. Ifthe battery Is defect！·帽，ltsh。uldnotbedlsp田edohvlth household waste. Batteries can p。ssiblyc。ntainharmful substances /\ that can harm曲目『lllironmentand people‘s health. Please dispose of the f.1i<s)\ battery commercially or at a munlclp刮目cycllngplants.Return Is~ free。fcharge and Is prescribed bylaw. Please。nlydlsposeof empty batteries .........叫 .... Intended Use Thlsproducto伯阳町圃’iyopportunltl田伯rtheuse. Far目由mplesu斤Intern眈，read,..books, lo。km。vles,playgames and c。mmunlcatlonwlththewh。lew。rid. This product is intended for home and 。fficeuse and not for industrial application. -2- ”. Introduction to Deskt叩 Images ab。utselect applicati。ns＿咽 Sa me exp e rl en ce as you use Desktop PC. click E再Zfirst at left-hand side corne『， then click- 4咽a目ι二』 ’ 由自 .. . ’且h &: 画，l ：？＇立自 ’句·”“ 由何、kl 且 ,. ＇帽 - 』 I .. , 电d① . = • 13 After call outthe APP list, and select APP you need. 。 回 ” . 卢~－1 ＠匾。圃 ! o.l圄 奇怪句，，.••• / ( ~ ）。、K/Si w ① 画面 圄cJ -3- I Ill. Basic Operati。ns 1,Sleep, restart• nd Shut down More ways to pl.,y Join u,• @ ......·‘· .. Xbo, ’~』。－、“民 M刷刷<s&lV 、 lt't'μ 、hutdυwn 世咽:>I.LN宅电，砸自LM dl毡，－~• ’ ......·· ......，一 ’ ,.;!.I H』N.EC:目RFl飞．．． ...... --- ~ .. _...· .. ....筐’00芳’－...’ 、r!,1,r.. cc，向c M，凰”RMli>舶工 阳》、tar1 。 一一 －－ 28 λII• A’引叫．‘’f ".4<>’"...'" 阳而』 2, security Man•1ement User and password setup -Get in Settings呻Accounts呻Sign-inoptions to setup password. -4- ＠刷刷 ＠“刷刷 ~ E三言》 g 如 咱 问 一 (y ．．呻． ι~－－－ @ 百已 ① 凸 。 r,:::;;::c:: ---, -5- 3. WI-Fl, Bluetooth, Fll1ht mode τ。ucht。OpenSetting Tablet to set up Airplane mode I Wi-Fi I & Bluetooth,and this device can connect to 2.4G and SG Wifi. 4,Cortana y。ucan use Cortana (voice control) to set remind町s,w『itee『nails,search, and chat with friends and family on messengers. c 国 :..: .~ ... a .,~. ”『k"" 、， .! . h『.' .. ,~ 。4’A F 回l G n 昏－』‘. ·, .. e ... ”“·- •• 、NMlhlf ’如S ·,,,,1庐’＇.萨 @ • CJ -6- ·---··-·· 一...·－ 冒 ...__ .. ..., __ E一... I IV. Battery charging Connect power adapter to the powe『portofthedevl阻，Connectth叩跚erad叩阳plugInt。”。隅r outlet for cha唱Ingthe b•ttery Pleose。nlyuse the provided orlgln1l power ad•pter During charging. the icon仙甜町willbG, and when cha圳 • You日nst111 use the d凹Icewhile cha咆Ing,but this will prol。ngthecharging time. ·υsethe device at least once every week. • Fully charge the b1眈＠叩regularly. • D。n’tkeep the battery empty for I longtlme. "- 且即由V胆f1Mi.曹阳＂＂good醉月帽，t抽e/Mm,,y皿四•klbuh唱r,edfr1r• mlnlmumof 3'膺目 I V.BIOS-Setting & B。。tmanager Press and hold "ESC" bu悦。nofkeyb。ardand switch on the device {Press power button). A screen with the d『ferentoptlonsw111 appear. Use optlon-scu•for田口Sse回ngand"Boot M•nager• for operatlngsy且：emboot option. I VI. Tro1刷eshooting 1.cannotturnonth•d•词” Press the power button阳r5iecondstoturn。nthe device.If the ab。v•meth。ddoesn't work, please charge It for 30 minutes before目artlng Z,”...und fn,m urphane Che<k ifvoh』mei..目to＇口•.Tostifea叩honeis broken, iho ,pleas• <hange旬ranother earphone. 1.•l1nalH Che<k If there Is dust In the earph。ne。rspeaker. Check If the sound Ille l…

Text truncated - open the document above for the full version.

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen Jumper Technology Co., Ltd. Address: Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Phone: +86-755-83698151 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. FCC ID: 2AQAA-Z1 If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-06-22 Name / Title: Zhijun Jiang / CEO Company: Shenzhen Jumper Technology Co.,Ltd Address: Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Phone: +86-755-83698151 Fax: +86-755-83698151 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AQAA-Z1 Z1 We, applicant Company Name: Shenzhen Jumper Technology Co., Ltd. Address: Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Phone: +86-755-83698151 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-06-22 Name / Title: Zhijun Jiang / CEO Company: Shenzhen Jumper Technology Co.,Ltd Address: Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Phone: +86-755-83698151 Fax: +86-755-83698151 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AQAA-Z1 Z1 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-06-22 Name / Title: Zhijun Jiang / CEO Company: Shenzhen Jumper Technology Co.,Ltd Address: Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Phone: +86-755-83698151 Fax: +86-755-83698151 E-Mail: [email protected]

Shenzhen Jumper Technology Co.,Ltd Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Date: June 22, 2024 FCC ID: 2AQAA-Z1 Model Number: Z1 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Jumper Technology Co., Ltd. hereby declare that our product (Tablet) Model Number: Z1 will disable Cellular function by software, although hardware support., end-user will only WLAN/BT and GPS function in United States market. Shenzhen Jumper Technology Co., Ltd. will require new FCC certification if open Cellular function if market requirement. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Zhijun Jiang / CEO Company: Shenzhen Jumper Technology Co., Ltd. Address: Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Phone: +86-755-83698151 Fax: +86-755-83698151 E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Shenzhen Jumper Technology Co.,Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AQAA-Z1 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Zhijun Jiang / CEO Signature: Phone: +86-755-83698151 Email: [email protected] Date: 2024-06-22

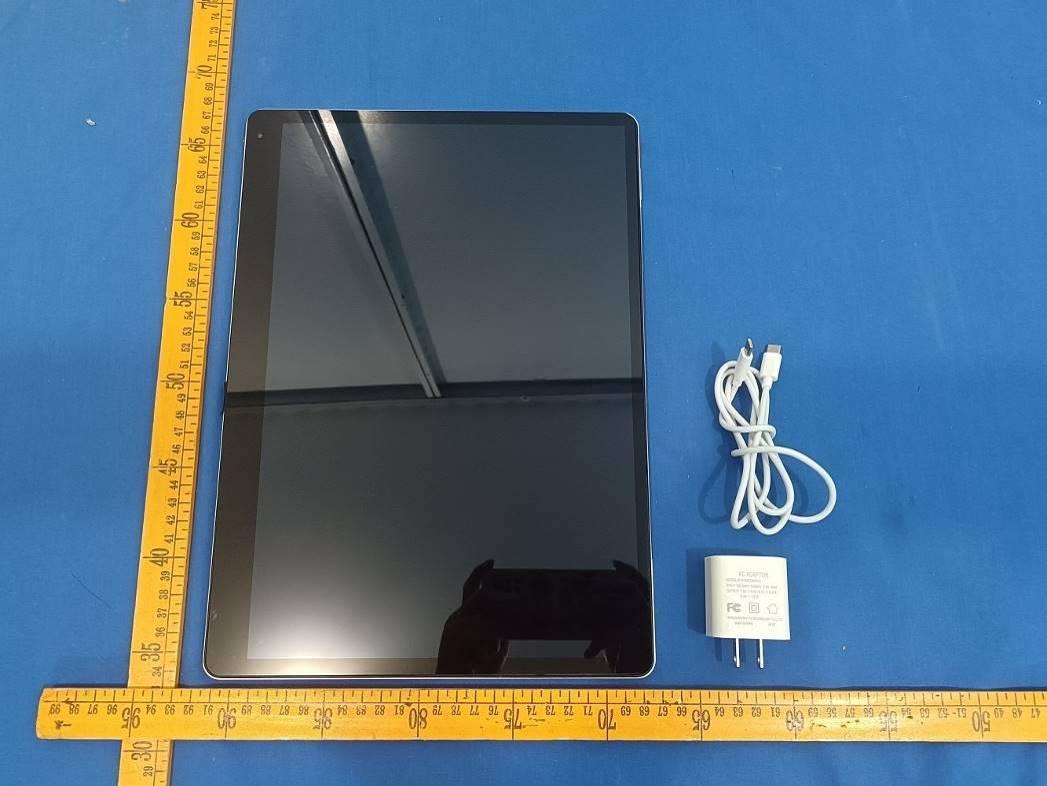

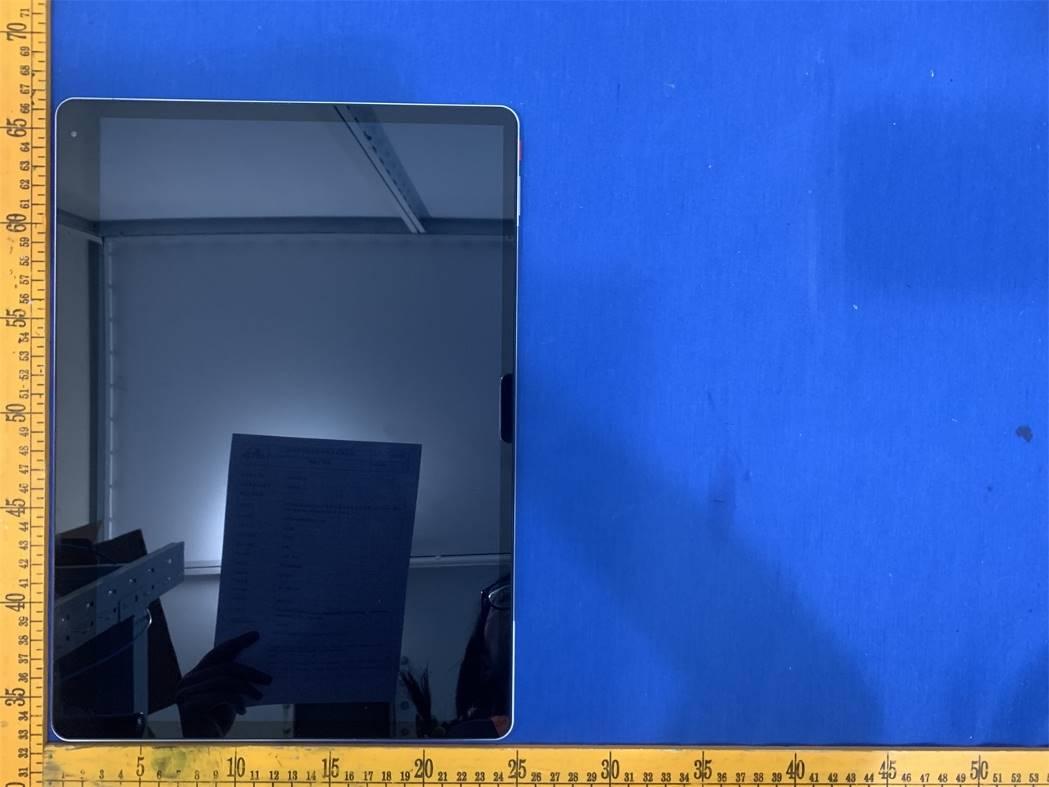

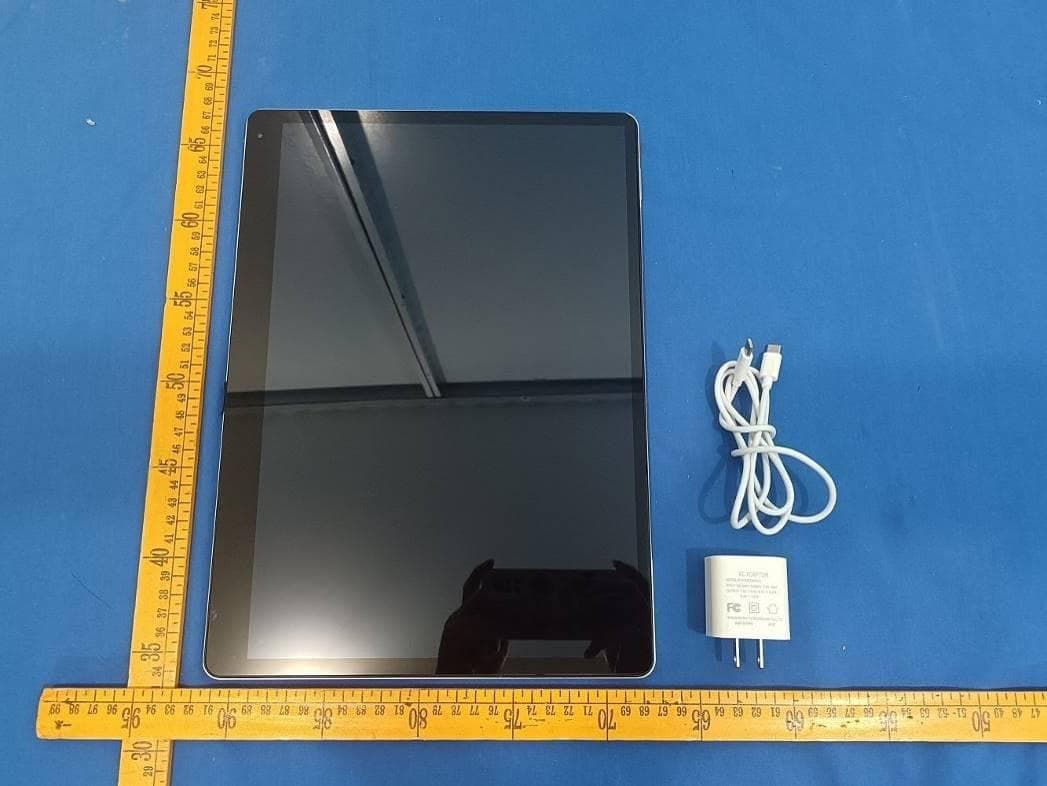

FCC ID: 2AQAA-Z1 Fig. 1 Fig. 2 FCC ID: 2AQAA-Z1 Fig. 3 Fig. 4 FCC ID: 2AQAA-Z1 Fig. 5 Fig. 6 FCC ID: 2AQAA-Z1 Fig. 7 Fig. 8

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L6.0cm x 2.5cm) Label Location

FCC ID: 2AQAA-Z1 Fig. 1 Fig. 2 FCC ID: 2AQAA-Z1 Fig. 3 Fig. 4 BT&WLAN Antenna LTE Antenna (Disable) FCC ID: 2AQAA-Z1 Fig. 5 Fig. 6 FCC ID: 2AQAA-Z1 Fig. 7 Fig. 8 FCC ID: 2AQAA-Z1 Fig. 9 Fig. 10 FCC ID: 2AQAA-Z1 Fig. 11 Fig. 12 FCC ID: 2AQAA-Z1 Fig. 13 Fig. 14

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPORT Report Reference No. ..................... : FCC ID ........................................... : CTA24052201909 2AQAA-Z1 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : June 20, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................. : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Jumper Technology Co.,Ltd Address ............................................. : Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : IEC 62209-2:2010; IEEE 1528:2013; FCC 47 CFR Part 2.1093; ANSI/IEEE C95.1:2005; Reference FCC KDB 447498; KDB 865664; KDB 248227; KDB 616217 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Tablet Trade Mark........................................ : N/A Manufacturer ..................................... : Shenzhen Jumper Technology Co.,Ltd Model/Type reference ....................... : Z1 Listed Models .................................. : N/A Rating ............................................... : DC 3.8V From battery and DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA24052201909 Page 2 of 69 T E S T R E P O R T Equipment under Test : Tablet Model /Type : Z1 Listed Models : N/A Applicant : Shenzhen Jumper Technology Co.,Ltd Address : Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Jumper Technology Co.,Ltd Address : Room B601, C601, JMD Industrial Park, No. 39 Qingfeng Blvd., Baolong Community, Baolong Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24052201909 Page 3 of 69 ※ ※ Revision History ※ ※ REV. ISSUED DATE DESCRIPTION Rev.1.0 June 20, 2024 Initial Test Report Release Report No.: CTA24052201909 Page 4 of 69 Contents 1 Statement of Compliance ............................................................................................... 6 2 General Information ........................................................................................................ 7 General Remarks ............................................................................................................................................. 7 Description of Equipment Under Test (EUT) ..................................................................................................... 7 Device Category and SAR Limits ..................................................................................................................... 8 Applied Standard .............................................................................................................................................. 8 Test Facility ....................................................................................................................................................... 8 Environment of Test Site ................................................................................................................................... 9 Test Configuration ............................................................................................................................................. 9 3 Specific Absorption Rate (SAR) ................................................................................... 10 Introduction ..................................................................................................................................................... 10 SAR Definition ................................................................................................................................................ 10 4 SAR Measurement System .......................................................................................... 11 E-Field Probe ................................................................................................................................................... 11 Data Acquisition Electronics (DAE) ................................................................................................................. 12 Robot .............................................................................................................................................................. 13 Measurement Server ...................................................................................................................................... 13 Phantom ......................................................................................................................................................... 14 Device Holder .............................................…

Text truncated - open the document above for the full version.

SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6 / F, Building B, Hexi Hangcheng Industrial Zone, No.135 Qianjin Second Road, Baoan District, Shenzhen 电话：0755-29985185 传真：0755-27487028 第 1 页 天 线 规 格 书 Antennaspecificationforapproval 客户名称 Customername 中柏 机型 Model S16-16寸塑胶壳-卓创G142K-MB主板 -3165模块 天线 频段 Antenna frequency 2.4GHZ&5GHz 天线 功能 Antenna function WIFI&BT&5Gwifi(副）天线 天线 材质 Antenna material FPC FPC 颜色 FPC color 黑色 型号 model SF2146B-1B2-A 料号 Materialnumber SF2146B-1R24G-475-A 客户料号 CustomerPart Number 索 沃 德 承 认 签 章 Wardacceptedthesignature 客 户 承 认 签 章 Clientacknowledgessignature 结构 structure 采购 Purchase 文控 Documentcontrol 结构 structure 射频 radiofrequency 工程 engineering 审核 To examine 品质 QC 承辦人 Responsible李婷婷 审核 To examine 日期date 2023.01.03 盖章区 Sealarea 日期date 2023.01.03 盖章区 Sealarea SWARD深圳市索沃德通讯技术有限公司 Shenzhen Suo Ward Communication Technology Co., Ltd. 6 / F, Building B, Hexi Hangcheng Industrial Zone, No.135 Qianjin Second Road, Baoan District, Shenzhen 电话：0755-29985185 传真：0755-27487028 第 5 页 二:概述 (1)Antenna performance 1.This approval sheet supports for MID project. FPC antennas include in this project. This report is for the performance of WIFI&BT antenna. 2.Antenna shape size：Meet the requirement of MID 3.Antenna band：2.4GHz~5GHz 4.Antenna material：Antenna material meet the requirement of MID 5.Adhesive performance：Adhesive performance meet the requirement of MID 6.Antenna performance meet the spec below： Description 2.4GHz~6GHz Units VSWR≤2.0 Average Antenna Gain 2.0dbi max dB Antenna Efficiency≥40% Feed Impedance50 ohms Operating Temperature-40 to +85 deg C Polarization / AzimuthLinear / Omni-directional (2)Mechanical Information Mechanical Dimension Cable Length475mm/GRAY DescriptionWIFI&BT antenna MaterialFPC Coaxial Cable50Ω/O.D.0.81mm Environmental Operation Temperature-40 to +85 deg C Storage Temperature-40 to +85 deg C SWARD深圳市索沃德通讯技术有限公司 Shenzhen Suo Ward Communication Technology Co., Ltd. 第 6 页 三:匹配电路图&机器图片&天线图片 (1)Matching circuit NA RF NA NA NA NA NA 6 / F, Building B, Hexi Hangcheng Industrial Zone, No.135 Qianjin Second Road, Baoan District, Shenzhen 电话： 0755-29985185 传真：0755-27487028 SWARD深圳市索沃德通讯技术有限公司 Shenzhen Suo Ward Communication Technology Co., Ltd. 第 7 页 四:Standing wave ratio and Gain 6 / F, Building B, Hexi Hangcheng Industrial Zone, No.135 Qianjin Second Road, Baoan District, Shenzhen 电话： 0755-29985185 传真：0755-27487028 SWARD深圳市索沃德通讯技术有限公司 Shenzhen Suo Ward Communication Technology Co., Ltd. 第 8 页 6 / F, Building B, Hexi Hangcheng Industrial Zone, No.135 Qianjin Second Road, Baoan District, Shenzhen 电话： 0755-29985185 传真：0755-27487028 SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 第 10 页 6 / F, Building B, Hexi Hangcheng Industrial Zone, No.135 Qianjin Second Road, Baoan District, Shenzhen 电话： 0755-29985185 传真：0755-27487028 SWARD深圳市索沃德通讯技术有限公司 Shenzhen Suo Ward Communication Technology Co., Ltd. 第 12 页 五: 3D pattern 6 / F, Building B, Hexi Hangcheng Industrial Zone, No.135 Qianjin Second Road, Baoan District, Shenzhen 电话： 0755-29985185 传真：0755-27487028 ① ② ③ 0.81±0.05 85 +2-0 1.00±0.2 2.00±0.2 2.00±0.2 4代端子 49.91±0.2 10.60±0.2 10.00±0.2 20.00±0.2

FCC ID: 2AQAA-Z1 1 Case No. : CTA24053000402 Ambient Condition: 24 °C, 49 %RH According Standard: ■Part15C Test Date: 2024.5.28 Test Engineer: Evan ouyang Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.712 2401.652 2402.364 0.5 PASS 2440 0.704 2439.660 2440.364 0.5 PASS 2480 0.664 2479.672 2480.336 0.5 PASS FCC ID: 2AQAA-Z1 2 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2AQAA-Z1 3 FCC ID: 2AQAA-Z1 4 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] BLE Ant1 2402 1.0370 2401.4894 2402.5264 2440 1.0521 2439.4876 2440.5397 2480 1.0428 2479.4903 2480.5331 FCC ID: 2AQAA-Z1 5 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2AQAA-Z1 6 FCC ID: 2AQAA-Z1 7 Appendix B.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 -4.00 ≤30 PASS 2440 -3.85 ≤30 PASS 2480 -4.72 ≤30 PASS FCC ID: 2AQAA-Z1 8 Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -20.72 ≤8.00 PASS 2440 -15.58 ≤8.00 PASS 2480 -21.39 ≤8.00 PASS Note： 1. The Duty Cycle Factor and RBW Factor is compensated in the graph. FCC ID: 2AQAA-Z1 9 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2AQAA-Z1 10 FCC ID: 2AQAA-Z1 11 Appendix B.5: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 -4.65 -49.91 ≤-24.65 PASS High 2480 -5.32 -49.42 ≤-25.32 PASS FCC ID: 2AQAA-Z1 12 Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCC ID: 2AQAA-Z1 13 Appendix B.6: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference -5.54 -5.54 --- PASS 30~1000 -5.54 -60.48 ≤-25.54 PASS 1000~26500 -5.54 -47.77 ≤-25.54 PASS 2440 Reference -5.02 -5.02 --- PASS 30~1000 -5.02 -60.51 ≤-25.02 PASS 1000~26500 -5.02 -47.68 ≤-25.02 PASS 2480 Reference -5.49 -5.49 --- PASS 30~1000 -5.49 -60.64 ≤-25.49 PASS 1000~26500 -5.49 -47 ≤-25.49 PASS FCC ID: 2AQAA-Z1 14 Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCC ID: 2AQAA-Z1 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCC ID: 2AQAA-Z1 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCC ID: 2AQAA-Z1 17 BLE_Ant1_2480_1000~26500 FCC ID: 2AQAA-Z1 18 Appendix B.7: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz ) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE Ant1 Low 2402 AV 2310.000 -49.22 ≤-41.20 45.98 ≤54 PASS AV 2386.205 -48.77 ≤-41.20 46.43 ≤54 PASS AV 2390.000 -48.82 ≤-41.20 46.38 ≤54 PASS Peak 2310.000 -42.15 ≤-21.20 53.05 ≤74 PASS Peak 2363.525 -38.05 ≤-21.20 57.15 ≤74 PASS Peak 2390.000 -41.68 ≤-21.20 53.52 ≤74 PASS High 2480 AV 2483.500 -48.58 ≤-41.20 46.62 ≤54 PASS AV 2498.640 -48.41 ≤-41.20 46.79 ≤54 PASS AV 2500.000 -48.5 ≤-41.20 46.70 ≤54 PASS Peak 2483.500 -41.74 ≤-21.20 53.46 ≤74 PASS Peak 2498.880 -38.36 ≤-21.20 56.84 ≤74 PASS Peak 2500.000 -41.84 ≤-21.20 53.36 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The Duty Cycle Factor and RBW Factor is compensated in the graph. 3. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. FCC ID: 2AQAA-Z1 19 Test Graphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCC ID: 2AQAA-Z1 20 BLE_Ant1_High_2480_Peak

FCC ID: 2AQAA-Z1 1 Case No. : CTA24053000403 Ambient Condition: 24 °C, 49 %RH, Test Date: 2024.5.28 Test Engineer: Evan ouyang Appendix C.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.520 2407.480 2416.000 0.5 PASS 2437 8.560 2432.960 2441.520 0.5 PASS 2462 7.600 2457.960 2465.560 0.5 PASS 11G Ant1 2412 15.480 2404.080 2419.560 0.5 PASS 2437 15.720 2429.440 2445.160 0.5 PASS 2462 15.640 2453.880 2469.520 0.5 PASS 11N20SISO Ant1 2412 16.120 2403.440 2419.560 0.5 PASS 2437 15.080 2429.480 2444.560 0.5 PASS 2462 14.880 2454.640 2469.520 0.5 PASS 11N40SISO Ant1 2422 35.680 2404.480 2440.160 0.5 PASS 2437 35.040 2419.560 2454.600 0.5 PASS 2452 26.160 2437.040 2463.200 0.5 PASS FCC ID: 2AQAA-Z1 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AQAA-Z1 3 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AQAA-Z1 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AQAA-Z1 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AQAA-Z1 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2AQAA-Z1 7 Appendix C.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] 11B Ant1 2412 12.789 2405.4413 2418.2303 2437 13.014 2430.6492 2443.6632 2462 12.943 2455.4109 2468.3539 11G Ant1 2412 16.769 2403.4709 2420.2399 2437 16.919 2428.5995 2445.5185 2462 16.896 2453.5288 2470.4248 11N20SISO Ant1 2412 17.786 2403.0229 2420.8089 2437 17.887 2428.1421 2446.0291 2462 17.848 2453.0823 2470.9303 11N40SISO Ant1 2422 36.529 2403.8133 2440.3423 2437 36.290 2418.8686 2455.1586 2452 35.723 2434.1589 2469.8819 FCC ID: 2AQAA-Z1 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AQAA-Z1 9 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AQAA-Z1 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AQAA-Z1 11 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AQAA-Z1 12 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2AQAA-Z1 13 Appendix C.3: Maximum conducted output power Note： 1.The Duty Cycle Factor and RBW Factor is compensated in the datC. Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.89 ≤30.00 PASS 2437 14.40 ≤30.00 PASS 2462 14.58 ≤30.00 PASS 11G Ant1 2412 18.06 ≤30.00 PASS 2437 18.60 ≤30.00 PASS 2462 18.69 ≤30.00 PASS 11N20SISO Ant1 2412 18.02 ≤30.00 PASS 2437 18.55 ≤30.00 PASS 2462 18.58 ≤30.00 PASS 11N40SISO Ant1 2422 18.30 ≤30.00 PASS 2437 18.81 ≤30.00 PASS 2452 19.10 ≤30.00 PASS FCC ID: 2AQAA-Z1 14 Appendix C.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.75 ≤8.00 PASS 2437 -11.00 ≤8.00 PASS 2462 -11.03 ≤8.00 PASS 11G Ant1 2412 -13.13 ≤8.00 PASS 2437 -12.77 ≤8.00 PASS 2462 -11.95 ≤8.00 PASS 11N20SISO Ant1 2412 -12.89 ≤8.00 PASS 2437 -13.75 ≤8.00 PASS 2462 -13.36 ≤8.00 PASS 11N40SISO Ant1 2422 -16.65 ≤8.00 PASS 2437 -14.98 ≤8.00 PASS 2452 -15.19 ≤8.00 PASS Note： 1. The Duty Cycle Factor and RBW Factor is compensated in the graph. FCC ID: 2AQAA-Z1 15 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AQAA-Z1 16 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AQAA-Z1 17 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AQAA-Z1 18 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AQAA-Z1 19 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2AQAA-Z1 20 Appendix C.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 2.82 -47.5 ≤-17.19 PASS High 2462 3.41 -48.93 ≤-16.59 PASS 11G Ant1 Low 2412 0.74 -33.61 ≤-19.27 PASS High 2462 1.42 -48.59 ≤-18.58 PASS 11N20SISO Ant1 Low 2412 0.62 -33.17 ≤-19.38 PASS High 2462 1.39 -46.51 ≤-18.61 PASS 11N40SISO Ant1 Low 2422 -2.22 -33.61 ≤-22.22 PASS High 2452 -0.23 -43.47 ≤-20.23 PASS FCC ID: 2AQAA-Z1 21 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCC ID: 2AQAA-Z1 22 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCC ID: 2AQAA-Z1 23 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCC ID: 2AQAA-…
