2AQNX-SS36Smart Outlet

1:1

ShenZhen Longtour Photology Co., Ltd To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: ShenZhen Longtour Photology Co., Ltd 202, Ying 'An Building, Shangtang Intersection, Minzhi Ave., Minzhi St., Longhua New Dist. Shenzhen, China Regarding: Confidentiality Request regarding application for FCC ID: 2AQNX-SS36 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely,

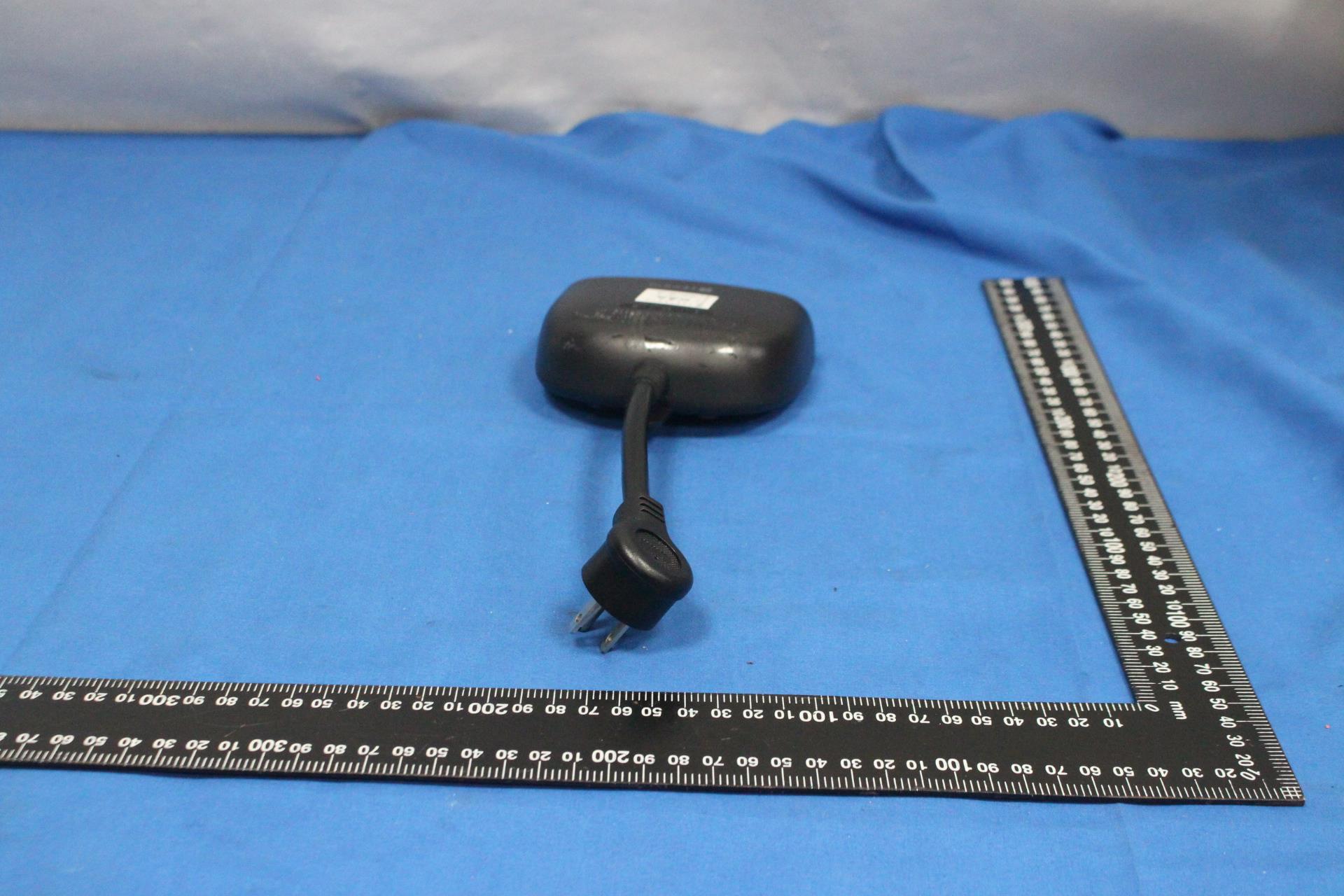

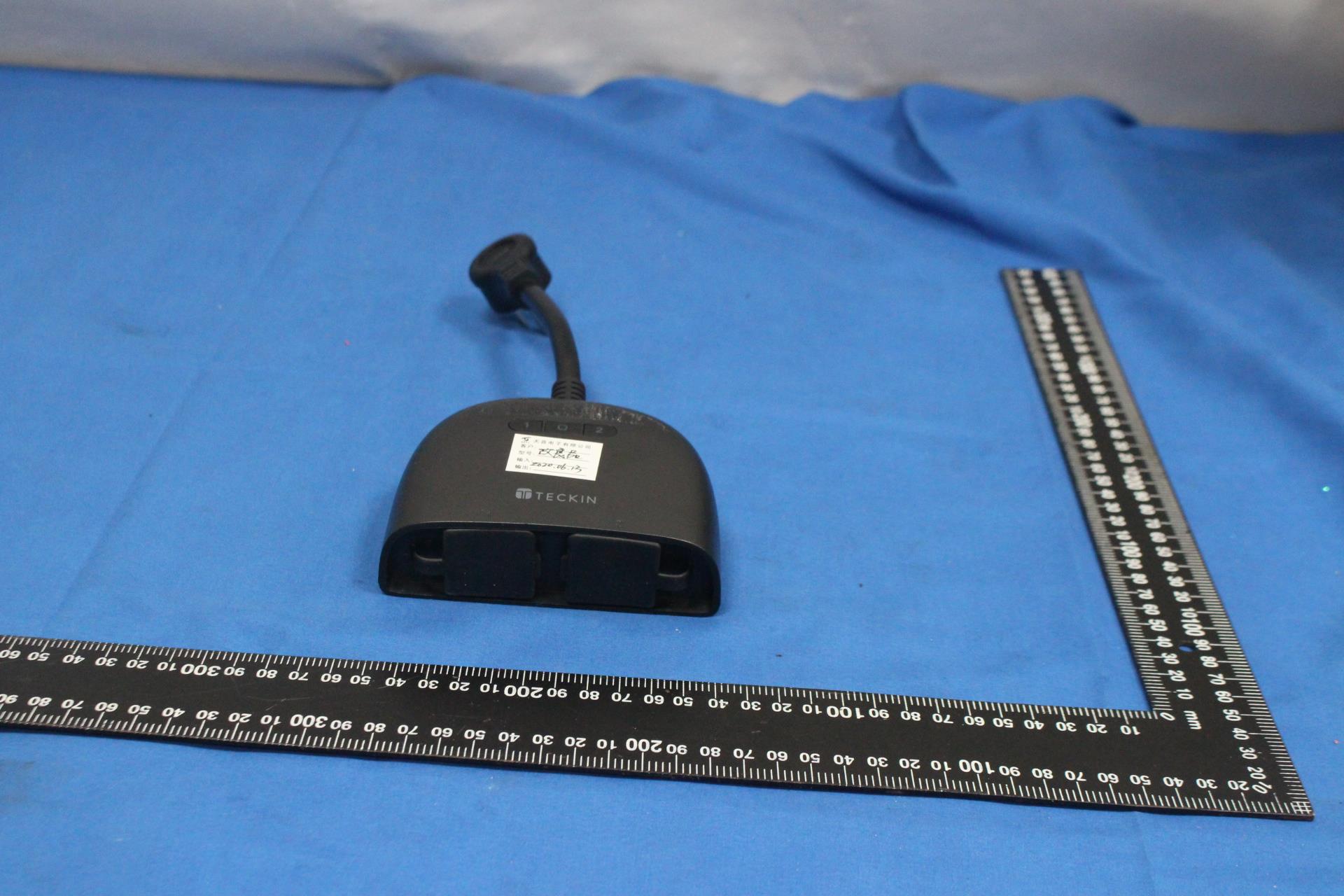

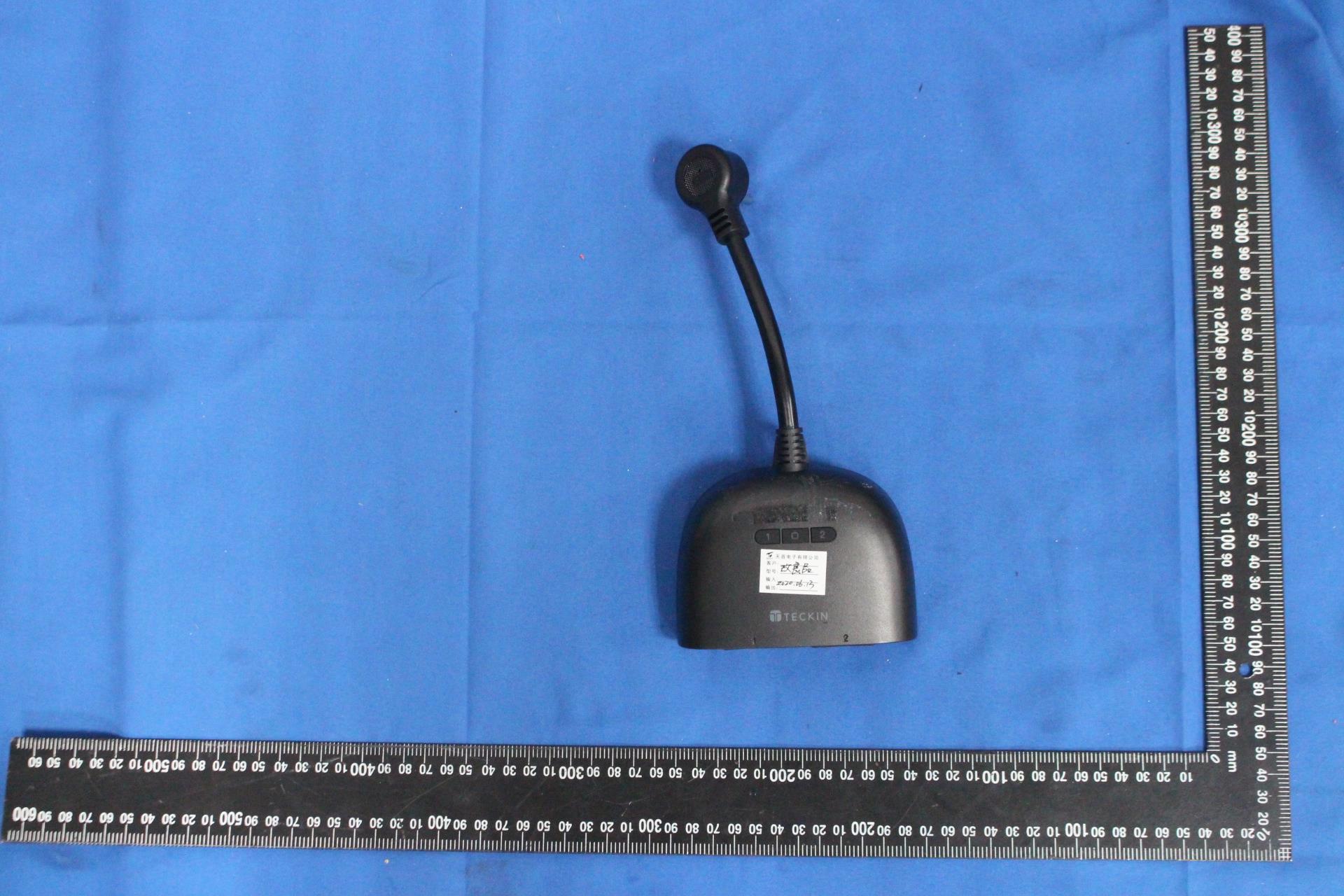

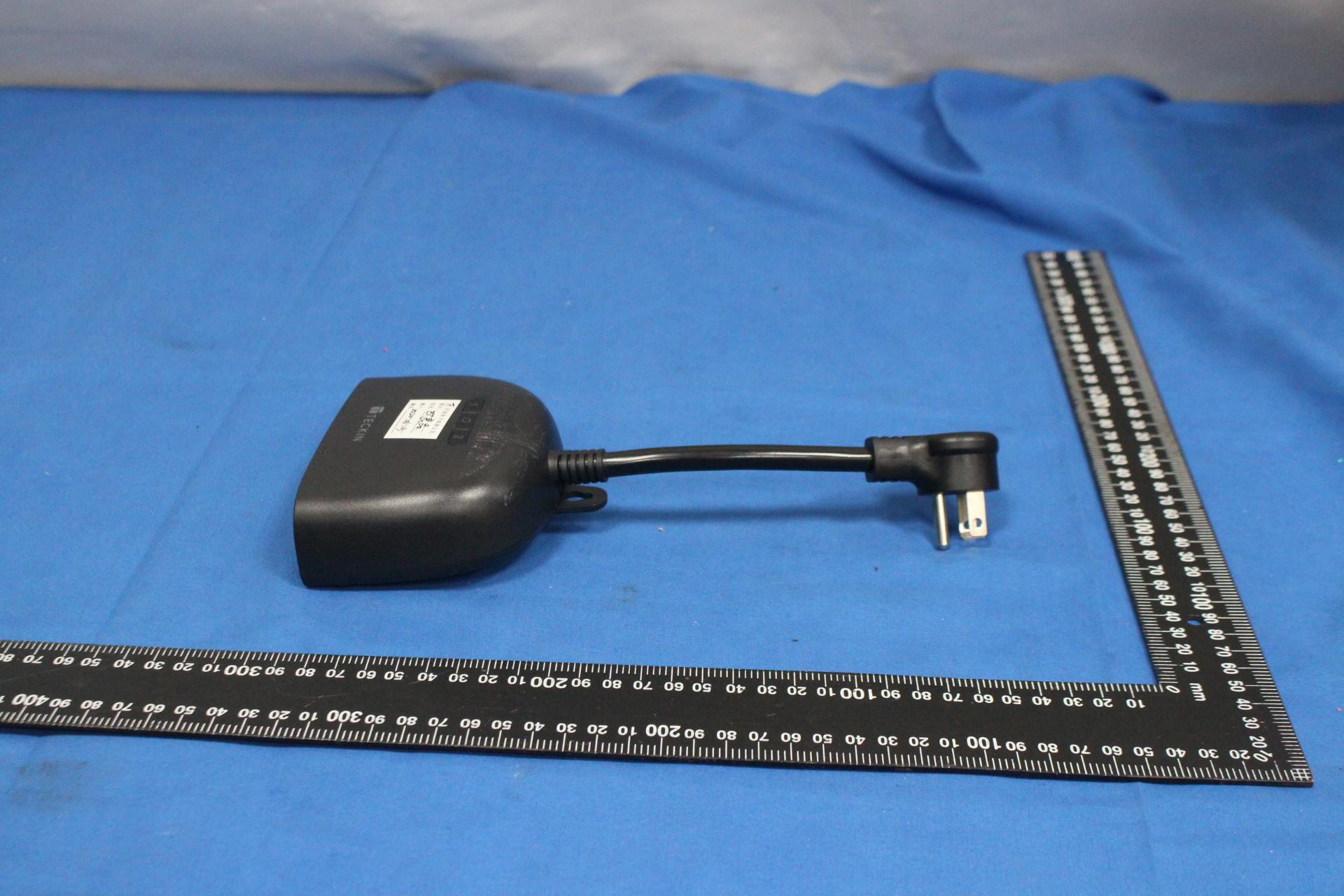

External photo

Internal photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308403 Page: 1 of 10 FCC ID: 2AQNX-SS36 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2006013084CR Applicant: Shenzhen Longtour Photology Co., Ltd Address of Applicant: 202, Ying'an Building, Shangtang Intersection, Minzhi Ave., Minzhi St., Longhua New Dist., Shenzhen China Manufacturer: The same as applicant Address of Manufacturer: The same as applicant Factory: SHENZHEN TIANYIN ELECTRONICS CO., LTD Address of Factory: BUILDING 9, SANZHULI INDUSTRIAL AREA, SHIYAN TOWN, BAO'AN DISTRICT, SHENZHN, CHINA 518108 Equipment Under Test (EUT): EUT Name: Smart Outlet Model No.: SS36, SS31, SS32, SS33, SS34, SS35, SS37, SS38, SS39 ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. FCC ID: 2AQNX-SS36 Trade Mark: Teckin Standard(s): 47 CFR Part 1.1307, Part 1.1310 Date of Receipt: 2020-06-15 Date of Test: 2020-06-28 to 2020-07-06 Date of Issue: 2020-07-08 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308403 Page: 2 of 10 Revision Record Version Chapter Date Modifier Remark 01 2020-07-08 Original Authorized for issue by: Tested By 2020-06-28 to 2020-07-06 Kevin_Zhang /Project Engineer Date Checked By 2020-07-08 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308403 Page: 3 of 10 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 1.1310 CFR 47 Part 1.1310 CFR 47 Part 1.1310 Pass ¤ Declaration of EUT Family Grouping: Model No.: SS36, SS31, SS32, SS33, SS34, SS35, SS37, SS38, SS39 According to the declaration from the applicant, the electrical circuit design, layo ut, components used and internal wiring were identical for all models, with only difference on appearance and color. Therefore only one model SS36 was tested in this report. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308403 Page: 4 of 10 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 5 4.1 Details of E.U.T. ..................................................................................................................................... 5 4.2 Description of Support Units .................................................................................................................. 5 4.3 Test Location ......................................................................................................................................... 5 4.4 Test Facility ............................................................................................................................................ 6 4.5 Deviation from Standards ...................................................................................................................... 7 4.6 Abnormalities from Standard Conditions ............................................................................................... 7 5 Radio Spectrum Technical Requirement ................................................................................................... 8 5.1 RF Exposure .......................................................................................................................................... 8 5.1.1 Test Requirement: ............................................................................................................................. 8 5.1.2 Conclusion ......................................................................................................................................... 9 6 Photographs ............................................................................................................................................... 10 6.1 EUT Constructional Details .................................................................................................................. 10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308403 Page: 5 of 10 4 General Information 4.1 Details of E.U.T. Power Supply: AC 125V, 50-60Hz Cable: AC mains (unshielded, 30cm) Antenna Gain 0dBi Antenna Type Integrated Antenna Channel Spacing 5MHz Modulation Type 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SN: 2020000X Hardware: AF-003 v01 Firmware: 1.0 Test Software: UI_mptool_1V15 Power Setting: 42 (19dBm max) 4.2 Description of Support Units The EUT has been tested as an independent unit. 4.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308403 Page: 6 of 10 4.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations:  NVLAP (Lab Code: 20061…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 1 of 114 FCC ID: 2AQNX-SS36 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2006013084CR Applicant: Shenzhen Longtour Photology Co., Ltd Address of Applicant: 202, Ying'an Building, Shangtang Intersection, Minzhi Ave., Minzhi St., Longhua New Dist., Shenzhen China Manufacturer: The same as applicant Address of Manufacturer: The same as applicant Factory: SHENZHEN TIANYIN ELECTRONICS CO., LTD Address of Factory: BUILDING 9, SANZHULI INDUSTRIAL AREA, SHIYAN TOWN, BAO'AN DISTRICT, SHENZHN, CHINA 518108 Equipment Under Test (EUT): EUT Name: Smart Outlet Model No.: SS36, SS31, SS32, SS33, SS34, SS35, SS37, SS38, SS39 ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. FCC ID: 2AQNX-SS36 Trade Mark: Teckin Standard(s): 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-06-15 Date of Test: 2020-06-28 to 2020-07-06 Date of Issue: 2020-07-08 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 2 of 114 Revision Record Version Chapter Date Modifier Remark 01 2020-07-08 Original Authorized for issue by: Tested By 2020-06-28 to 2020-07-06 Kevin_Zhang /Project Engineer Date Checked By 2020-07-08 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 3 of 114 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass ¤ Declaration of EUT Family Grouping: Model No.: SS36, SS31, SS32, SS33, SS34, SS35, SS37, SS38, SS39 According to the declaration from the applicant, the electrical circuit design, layout, components used and internal wiring were identical for all models, with only difference on appearance and color. Therefore only one model SS36 was tested in this report. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 4 of 114 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 6 4.1 Details of E.U.T. ..................................................................................................................................... 6 4.2 Description of Support Units .................................................................................................................. 6 4.3 Measurement Uncertainty ...................................................................................................................... 6 4.4 Test Location ......................................................................................................................................... 7 4.5 Test Facility ............................................................................................................................................ 8 4.6 Deviation from Standards ...................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................... 9 5 Equipment List ............................................................................................................................................ 10 6 Radio Spectrum Technical Requirement ................................................................................................. 13 6.1 Antenna Requirement .......................................................................................................................... 13 6.1.1 Test Requirement: ........................................................................................................................... 13 6.1.2 Conclusion ....................................................................................................................................... 13 7 Radio Spectrum Matter Test Res…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 81 of 114 Maximum peak conducted output power_11N20SISO_2412_Ant1 Maximum peak conducted output power_11N20SISO_2442_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 82 of 114 Maximum peak conducted output power_11N20SISO_2462_Ant1 Maximum peak conducted output power_11N40SISO_2422_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 83 of 114 Maximum peak conducted output power_11N40SISO_2442_Ant1 Maximum peak conducted output power_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 84 of 114 3.Maximum Peak power spectral density Test Mode Test Channel Ant Result Limit[dBm/3kHz] Verdict 11B 2412 Ant1 -17.775 8.00 PASS 11B 2442 Ant1 -14.637 8.00 PASS 11B 2462 Ant1 -14.725 8.00 PASS 11G 2412 Ant1 -16.216 8.00 PASS 11G 2442 Ant1 -16.061 8.00 PASS 11G 2462 Ant1 -16.115 8.00 PASS 11N20SISO 2412 Ant1 -16.395 8.00 PASS 11N20SISO 2442 Ant1 -16.549 8.00 PASS 11N20SISO 2462 Ant1 -16.823 8.00 PASS 11N40SISO 2422 Ant1 -17.257 8.00 PASS 11N40SISO 2442 Ant1 -17.073 8.00 PASS 11N40SISO 2452 Ant1 -16.962 8.00 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 85 of 114 TEST PLOT Maximum Peak power spectral density_11B_2412_Ant1 Maximum Peak power spectral density_11B_2442_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 86 of 114 Maximum Peak power spectral density_11B_2462_Ant1 Maximum Peak power spectral density_11G_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 87 of 114 Maximum Peak power spectral density_11G_2442_Ant1 Maximum Peak power spectral density_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 88 of 114 Maximum Peak power spectral density_11N20SISO_2412_Ant1 Maximum Peak power spectral density_11N20SISO_2442_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 89 of 114 Maximum Peak power spectral density_11N20SISO_2462_Ant1 Maximum Peak power spectral density_11N40SISO_2422_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 90 of 114 Maximum Peak power spectral density_11N40SISO_2442_Ant1 Maximum Peak power spectral density_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 91 of 114 4.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 2.148 -48.027 -17.85 PASS 11B 2462 Ant1 5.104 -47.904 -14.9 PASS 11G 2412 Ant1 -2.295 -47.317 -22.3 PASS 11G 2462 Ant1 -2.011 -48.090 -22.01 PASS 11N20SISO 2412 Ant1 -2.659 -47.721 -22.66 PASS 11N20SISO 2462 Ant1 -2.584 -47.330 -22.58 PASS 11N40SISO 2422 Ant1 -5.761 -47.618 -25.76 PASS 11N40SISO 2452 Ant1 -5.363 -47.728 -25.36 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 92 of 114 TEST PLOT Band-edge for RF Conducted Emissions_11B_2412_Ant1 Band-edge for RF Conducted Emissions_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 93 of 114 Band-edge for RF Conducted Emissions_11G_2412_Ant1 Band-edge for RF Conducted Emissions_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 94 of 114 Band-edge for RF Conducted Emissions_11N20SISO_2412_Ant1 Band-edge for RF Conducted Emissions_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 95 of 114 Band-edge for RF Conducted Emissions_11N40SISO_2422_Ant1 Band-edge for RF Conducted Emissions_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 96 of 114 5.RF Conducted Spurious Emissions Test Mode Test Channel Ant StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 30 10000 100 300 1.986 -37.472 <-18.014 PASS 11B 2412 Ant1 10000 26000 100 300 1.986 -51.608 <-18.014 PASS 11B 2442 Ant1 30 10000 100 300 5.106 -35.034 <-14.894 PASS 11B 2442 Ant1 10000 26000 100 300 5.106 -52.006 <-14.894 PASS 11B 2462 Ant1 30 10000 100 300 5.075 -37.677 <-14.925 PASS 11B 2462 Ant1 10000 26000 100 300 5.075 -51.842 <-14.925 PASS 11G 2412 Ant1 30 10000 100 300 -2.37 -41.875 <-22.37 PASS 11G 2412 Ant1 10000 26000 100 300 -2.37 -52.210 <-22.37 PASS 11G 2442 Ant1 30 10000 100 300 -2.163 -43.389 <-22.163 PASS 11G 2442 Ant1 10000 26000 100 300 -2.163 -51.619 <-22.163 PASS 11G 2462 Ant1 30 10000 100 300 -2.02 -44.443 <-22.02 PASS 11G 2462 Ant1 10000 26000 100 300 -2.02 -51.559 <-22.02 PASS 11N20SISO 2412 Ant1 30 10000 100 300 -2.849 -42.036 <-22.849 PASS 11N20SISO 2412 Ant1 10000 26000 100 300 -2.849 -51.170 <-22.849 PASS 11N20SISO 2442 Ant1 30 10000 100 300 -2.829 -43.010 <-22.829 PASS 11N20SISO 2442 Ant1 10000 26000 100 300 -2.829 -51.954 <-22.829 PASS 11N20SISO 2462 Ant1 30 10000 100 300 -2.711 -43.578 <-22.711 PASS 11N20SISO 2462 Ant1 10000 26000 100 300 -2.711 -51.576 <-22.711 PASS 11N40SISO 2422 Ant1 30 10000 100 300 -5.591 -42.999 <-25.591 PASS 11N40SISO 2422 Ant1 10000 26000 100 300 -5.591 -51.533 <-25.591 PASS 11N40SISO 2442 Ant1 30 10000 100 300 -5.566 -43.157 <-25.566 PASS 11N40SISO 2442 Ant1 10000 26000 100 300 -5.566 -51.540 <-25.566 PASS 11N40SISO 2452 Ant1 30 10000 100 300 -5.208 -43.679 <-25.208 PASS 11N40SISO 2452 Ant1 10000 26000 100 300 -5.208 -51.137 <-25.208 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200601308402 Page: 97 of 114 TEST PLOT RF Conduct…

Text truncated - open the document above for the full version.

Test Setup photo 1.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 1.2 Conducted Peak Output Power Test Setup 1.3 Radiated Spurious Emissions & Radiated Emissions which fall in the restricted bands Test Setup
