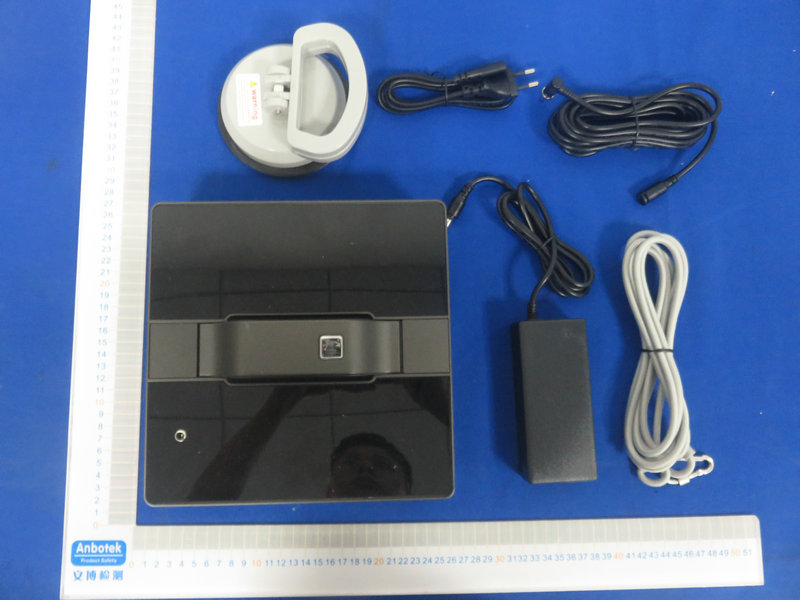

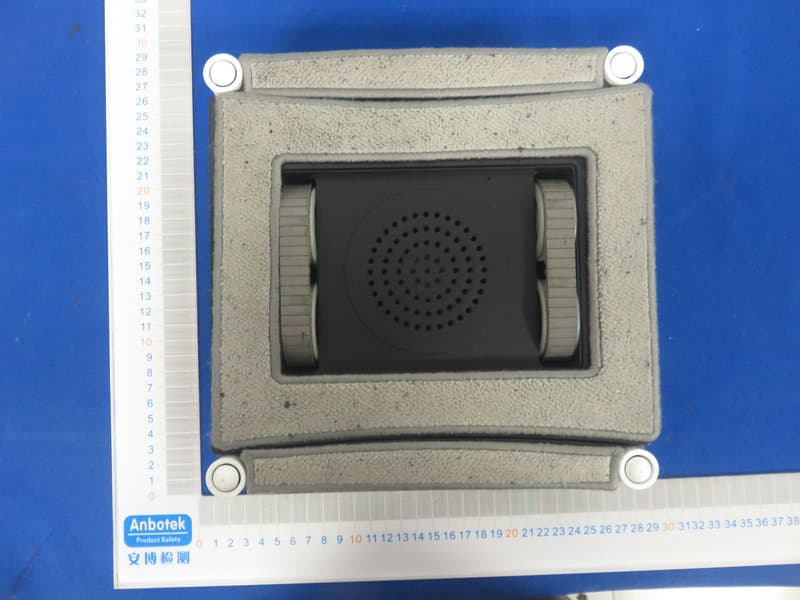

WINDOW CLEANING ROBOT Official app Download Track wipe video Product calibration video Product operation video CONTENTS 1. Safety Criteria 2. Product Composition 2.1 Package contents 2.2 Technical parameters 3. Product Manual 3.1 Precautions before use 3.2 Install the cleaning cloth 3.3 Connect the adapter 3.4 Assemble the safety rope assembly 3.5 Product work 3.7 End the work 3.6 Product pause 4. Maintenance 4.1 Cleaning cloth 4.2 Bottom components 7. Fault Description 8. Warranty Card 1.Safety Criteria Please read this manual carefully before using the product. Save the manual. When using the product, please maintain consistent vigilance and keep the following precautions: 1.This product is strictly forbidden to use under the following conditions: 1.1 Products can not be used by children under 12 years old and the person physically or mentally impaired. Please do not allow children close to the working robot or as robot be a toy to play. 1.2 Do not use this product on glass that has broken marks, ad paper, or bumps to avoid the risk of broken glass, dropped product, and so on. 1.3 Do not use this product on non-planar glass such as curved surface and beveled surfaces. 1.4 Do not use this product on framed glass with a glass frame thickness of less than 5 mm. 1.5 Prohibit the use of large areas of wet or oily glass to avoid slipping products caused by the risk of falling. 1.6 After cleaning, you can use detergent to clean the cleaning cloth. After cleaning, please dry it in time. 1.7 Do not place this product in water or other liquids to reduce the risk of electrical shock. Do not store this product where it may fall or be pulled into the tub or sink. 1.8 Do not use the product in a situation where the product is not completely adsorbed or has been significantly damaged. 1.9 Do not touch the plug or the product with wet hands. 1.10 Do not place the machine on household appliances, damp or have a fire source to charge, so as to avoid unnecessary losses. 1.11 Even if the product has been seriously damaged, the products can be banned. The battery may cause an explosion. 1.12 Strictly prohibit the use of this product without fixing safety rope assemblies. 1.13 Do not use the product with a damaged power cord or an electrical 2 5 5 5 6 7 7 8 9 9 10 12 13 14 14 15 18 19 21 6. Route Plan 17 5. APP Usage outlet. Do not use the product when it is not working properly due to dropping, damaging or water ingress. To avoid injury, the product sho- uld be repaired by the manufacturer or its after-sales service department. 1.14 The cleaning cloth can be applied to the wet glass surface, Non- reflux of water droplets on glass. When the flow of water on the glass is left, it is strictly prohibited to use this product. 2.The following conditions should be noted when using this product: 2.1 Products just can use for outside when the temperature at 0-40 degrees, no heavy wind, no rain and dry air. When using the product through the safety rope and safety buckle must be properly connected. 2.2 Always keep the product powered on while the product is in operation. Products built-in security backup battery is only used to maintain the product and then a sudden power failure, in a limited period of time to maintain adsorption on the glass does not fall, not as a normal work power supply, so as not to bring the risk. 2.3 Use only in a domestic environment. Do not use in commercial or industrial areas. 2.4 Please use the product as indicated in the instructions, use only the accessories recommended or sold by the manufacturer; use only the original rechargeable battery and adapter made by the manufacturer, and ensure that the voltage of the power supply is in line with the voltage marked on the adapter. 2.5 Please use the power line carefully to avoid the damage. It is forbidden to use the power line to drag, pull the product or use the power line as a handle; it is forbidden to close the glass window with the power line or put the goods on the power line in the process of use, and the power line should be far away from the heat source. 2.6 If the soft wires of the power cord are damaged, they must be replaced by the manufacturer, his or her maintenance department or similar professionals in order to avoid danger. 2.7 The plug must be unplugged from the socket before maintaining or cleaning the product, but not from the socket by pulling the power cord. 2.8 Battery charging can not be carried out in an overheated or undercooled environment to avoid affecting battery life. If you don't use it for a long time, please charge the battery every 1-2 months for 2 hours. 2.9 The battery must be replaced by the professional staff of the manufacturer, its maintenance department or similar department. Before the product is scrapped, the battery must be removed and discarded according to local laws, regulations and environmental regulations. 2.10 If you need to scrap the product, please cut off the power supply and remove the battery from the product.Please comply with local laws and regulations and environmental regulations to handle used batteries. 1.Safety Criteria Please use the product in accordance with the instructions of this manual. The company is not responsible for any loss or injury caused by improper use. 1.Safety Criteria 2. Product Composition Safety Rope Components Remote ControlCleaning Cloth 2.2 Technical Parameters Operating Voltage (V) Rated power (W) Remote control Rated input voltage (V) Adapter Type: WT-2403750 Input: AC110-240V 50/60Hz Output: DC24V 3.75A 2.3 Part name 1. Start/Pause 2. Handle 3. Power Switch/Safety Lock 4. Supply Hub 5. Movable chassis 6. Guide Roller 7. Anti-falling Sensor 8. Driving wheel 9. Suction Sensor 10. Air Inlet 11. Area 1 for Cleaning Cloth 12. Area 2 for Cleaning Cloth Host 2.1 Package Contents Host Adapter Components Instruction Manual 1. Alternate key /Match code key (short press water spray / long press match code) 2. Arrow key(forward/reverse/ left rotation/right rota…

Text truncated - open the document above for the full version.

FCC ID: 2AQQO-1080

Label Location On EUT Label Product Name: WINDOW CLEANING ROBOT Model No.: 1080 FCC ID: 2AQQO-1080 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AQQO-1080 ANT

version01 Zhengzhou Bangmi Smart Technology CO.,LTD. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: 1080 FCC ID : 2AQQO-1080 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna:PCB Antenna Gain of the antenna: 0 dBi Frequency range:2402~2480MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Zhengzhou Bangmi Smart Technology CO.,LTD. Address: 96 Ruida Road, Zhengzhou City, Henan Province, China City: Zhengzhou ZIP / Postal code: N/A Country:China Place:ChinaDate: 2020-07-23 Signature:

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2AQQO-1080 EUT Specification EUTWINDOW CLEANING ROBOT Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5.825GHz Others: 2.402GHz~2.480GHz (BLE) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classificationOccupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversitySingle antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power-2.678dBm (0.0005W) Antenna gain (Max)0dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/15006 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm2 ) (MHz)(dBm)(dBm)(dBm)(dBi)(mW/ cm2 ) BLE 2402-2.809 -2.809±1 -1.80900.00011 2440-2.678 -2.678±1 -1.67800.00011 2480-2.957 -2.957±1 -1.95700.00011

Report No.: 18220WC00070901FCC ID: 2AQQO-1080Page 1 of 54 Code:AB-RF-05-a FCC TEST REPORT Client Name: Zhengzhou Bangmi Smart Technology CO.,LTD. Address: 96 Ruida Road, Zhengzhou City, Henan Province, China Product Name: WINDOW CLEANING ROBOT Date: Jul. 23, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00070901FCC ID: 2AQQO-1080Page 2 of 54 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 6 1.6. Description Of Test Setup ......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 11 4. Radiation Spurious Emission and Band Edge ................................................................................................ 16 4.1. Test Standard and Limit .......................................................................................................................... 16 4.2. Test Setup .................................................................................................................................................. 16 4.3. Test Procedure .......................................................................................................................................... 17 4.4. Test Data .................................................................................................................................................... 18 5. Maximum Peak Output Power Test .................................................................................................................. 26 5.1. Test Standard and Limit .......................................................................................................................... 26 5.2. Test Setup .................................................................................................................................................. 26 5.3. Test Procedure .......................................................................................................................................... 26 5.4. Test Data .................................................................................................................................................... 26 6. 6DB Occupy Bandwidth Test ............................................................................................................................. 29 6.1. Test Standard and Limit .......................................................................................................................... 29 6.2. Test Setup ............................................................................................................................... ................... 29 6.3. Test Procedure .......................................................................................................................................... 29 6.4. Test Data .................................................................................................................................................... 29 7. Power Spectral Density Test .............................................................................................................................. 32 7.1. Test Standard and Limit .......................................................................................................................... 32 7.2. Test Setup .................................................................................................................................................. 32 7.3. Test Procedure .......................................................................................................................................... 32 7.4. Test D…

Text truncated - open the document above for the full version.

FCC ID: 2AQQO-1080 Photo of Conducted Emission Measurement Photo of Radiation Emission Test
