2AQQTXV-110Smart Wireless Charger

CNA MANUAL _제작데이터 접지 사이즈 / 100 x 78 전체크기 : 100 * 390 2020. 5. 26 A 전면후 NFC Passive Tag Antenna

CNA Co., Ltd. 1-204, 160, Hyanggyo-ro, Paldal-gu, Suwon-si, Gyeonggi-do, Republic of Korea November 05, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : CNA Co., Ltd. FCC Application for FCC ID : 2AQQTXV-110 To whom it may concern: We, the undersigned, hereby attest to the fact that we will apply the Supplier’s Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Sincerely, Sangki Woo / Manager CNA Co., Ltd.

CNA Co., Ltd. 1-204, 160, Hyanggyo-ro, Paldal-gu, Suwon-si, Gyeonggi-do, Republic of Korea November 05 , 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AQQTXV-110 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from CNA Co., Ltd. LTA Co.,LTD. (Contact Person) Contact name: Ja-Beom Koo Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Sangki Woo / Manager CNA Co., Ltd.

CNA Co., Ltd. 1-204, 160, Hyanggyo-ro, Paldal-gu, Suwon-si, Gyeonggi-do, Republic of Korea November 5, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : CNA Co., Ltd. FCC ID : 2AQQTXV-110 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), CNA Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give CNA Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX 2AQQTXV-110 SCH DIA.pdf Parts list CONF APPENDIX 2AQQTXV-110 PL.pdf Block diagram CONF APPENDIX 2AQQTXV-110 BLK DIA.pdf Operational description CONF APPENDIX 2AQQTXV-110 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF 2AQQTXV-110 EXT Photo.pdf Internal Photos SHORT-TERM CONF 2AQQTXV-110 INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF 2AQQTXV-110 Test Photo.pdf User’s Manual SHORT-TERM CONF 2AQQTXV-110 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Sangki Woo / Manager CNA Co., Ltd.

November 5, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover letter FCC ID : 2AQQTXV-110 Gentlemen: 1. Add a Variant model. Basic model name Add Variant model Reason XV-110 XV-110A, XV-110B, XV-110C, XV-110D, XV-110E, XV-110F, XV-110G, XV-110H, XV-110I, XV-110J Marketing for Simple model addition All of the above models are the same specification and there is no hardware change corresponding to the technical standard. Sincerely, Sangki Woo / Manager CNA Co., Ltd. CNA Co., Ltd. 1-204, 160, Hyanggyo-ro, Paldal-gu, Suwon-si, Gyeonggi-do, Republic of Korea

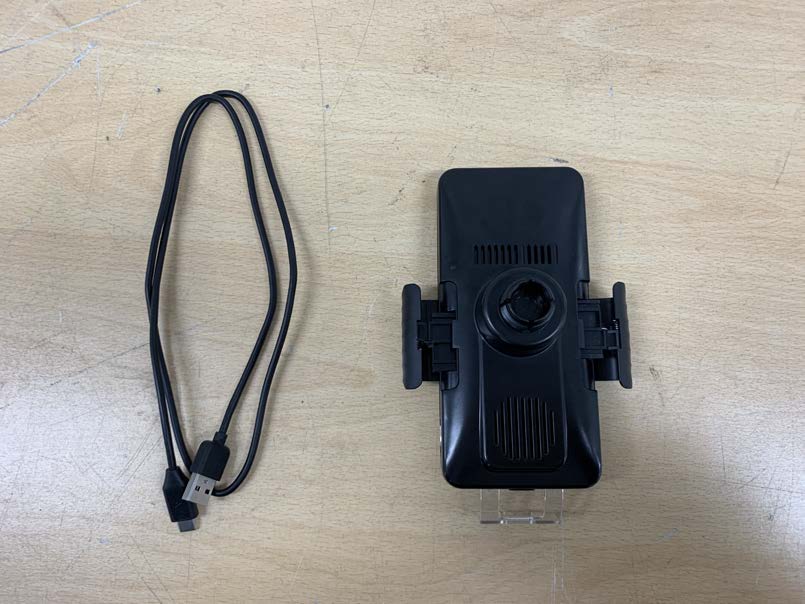

FCC ID: 2AQQTXV-110 Front Rear Copyright ○ c 2020, LTA Co., Ltd .Page 1 of 4 FCC ID: 2AQQTXV-110 To p Bottom Copyright ○ c 2020, LTA Co., Ltd .Page 2 of 4 FCC ID: 2AQQTXV-110 Left Right Copyright ○ c 2020, LTA Co., Ltd .Page 3 of 4 FCC ID: 2AQQTXV-110 ANTENNA Copyright ○ c 2020, LTA Co., Ltd .Page 4 of 4

FCC ID: 2AQQTXV-110 SAMPLE LABEL & LOCATION Rear CNA Co., Ltd. Model : XV-11 0 FCC ID : 2AQQTXV-110 DC 9 V Made in Korea Copyright Ⓒ 2019, LTA Co., Ltd.

FCC ID: 2AQQTXV-110 MainBoard–Front MainBoard–Rear Copyright ○ c 2020, LTA Co., Ltd. Page 1 of 2 FCC ID: 2AQQTXV-110 Total internal Copyright ○ c 2020, LTA Co., Ltd. Page 2 of 2

FCC ID: 2AQQTXV-110 ATTACHMENT RF EXPOSURE EVULATION 1.1 Limit According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3 – 3.0 614 1.63 *(100) 6 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 *(100) 30 F = frequency in MHz * = Plane-wave equivalent power density 1.2 Test setup a. The test was performed on 360 degree turn table in anechoic chamber. b. The probe was placed at 15 cm surrounding the device and 20 cm above the top of the charger and the geometric centre of the probe. c. The highest emission level was recorded and compared with limit as soon as measurement of each point; A, B, C, D, E were completed. FCC ID: 2AQQTXV-110 ATTACHMENT 1.3 Equipment Approval Considerations Requirement Device 1) Power transfer frequency is less that 1 MHz Yes - the device operated in the frequency range from 110-146 KHz. 2) Output power from each primary coil is less than or equal to 15 watts. Yes – Maximum power is 10 Watts. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes 4) Client device is placed directly in contact with the transmitter. Yes 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes – The aggregate field at 15cm from the device are 7.73 % of the FCC H field limit. 1.4 Equpments List Description Model No. Serial No. Manufacturer Interval Next Cal. Date Exposure Level Meter E LT-400 N-0693(probe:m-1149) Narda 1 year 2021-06-12 FCC ID: 2AQQTXV-110 ATTACHMENT 1.5 Test Result H-Field Test Result Test Mode Full Load Half Load Empty Load Frequency range (KHz) 110 – 146 KHz Position Top(V/m) 0.124 0.126 0.123 Position Bottom(V/m) 0.109 0.111 0.114 Position Front(V/m) 0.102 0.104 0.105 Position Rear(V/m) 0.116 0.113 0.115 Position Left(V/m) 0.112 0.115 0.116 Position Right(V/m) 0.104 0.105 0.102 Limits (V/m) 1.63 FCC RF Exposure Maximum meas data(A/m) Percentage (%) 0.126 7.73 E-Field Test Result Test Mode Full Load Half Load Empty Load Frequency range (KHz) 110 – 146 KHz Position Top(V/m) 0.519 0.524 0.526 Position Bottom(V/m) 0.488 0.485 0.489 Position Front(V/m) 0.495 0.496 0.491 Position Rear(V/m) 0.461 0.464 0.468 Position Left(V/m) 0.474 0.471 0.476 Position Right(V/m) 0.480 0.483 0.475 Limits (V/m) 614 FCC RF Exposure Maximum meas data(A/m) Percentage (%) 0.526 0.086

Ref. No.: LR500112011T 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 17159 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: Sep 26 ~ November 02, 2020 Test Report S/N: LR500112011T Test Sit e : LTA C O . , LT D . CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : DCD - Low Power Transmitter Below 1705 kHz Manufacturing Description : Wireless Charger Manufacturer : CNA Co., Ltd. Model name : XV-110 Variant name : XV-110A, XV-110B, XV-110C, XV-110D, XV-110E, XV-110F, XV-110G, XV-110H, XV-110I, XV-110J Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.209 Subpart C ; ANSI C-63.10-2013 Frequency Range : 110 ~ 146 KHz Data of issue : November 05, 2018 This test report is issued under the authority of: The test was supervised by: JaBeom, Koo / Manager Yeon Jae Hum, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 2AQQTXV-110 CNA Co., Ltd. Copyright ○ c 2018, LTA Co., Ltd. Page 1 of 16 Ref. No.: LR500112011T TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST -------------------- ----------------------------------- 3.2.1 Antenna requirement ----------------------------------------------------------------------------- 3.2.2 Spurious Emission ------------------------------------------------------------------------------- 3.2.3 AC Conducted Emissions ----------------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 7 15 16 Copyright ○ c 2018, LTA Co., Ltd. Page 2 of 16 Ref. No.: LR500112011T 1. General information 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 17159 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2021-09-30 ECT accredited Lab. RRA KOREA U.S.A CANADA VIETNAM KR0049 - 2021-04-11 2021-06-16 2021-04-12 RRA accredited Lab. VCCI J APA N C-14948 T-12416 R-14483 G-10847 2023-09-10 2023-09-10 2023-10-15 2021-12-13 VCCI registration KOLAS KOREA KT551 2021-08-20 KOLAS accredited Lab. Copyright ○ c 2018, LTA Co., Ltd. Page 3 of 16 Ref. No.: LR500112011T 2. Information about test item 2-1 Client & Manufacturer Company name : CNA Co., Ltd. Address : 1-204, 160, Hyanggyo-ro, Paldal-gu, Suwon-si, Gyeonggi-do, Republic of Korea Tel / Fax : +82-010-3886-2007 / - 2-2 Equipment Under Test (EUT) Trade name : Wireless Charger Model name : XV-110 Variant name : XV-110A, XV-110B, XV-110C, XV-110D, XV-110E, XV-110F, XV- 110G, XV-110H, XV-110I, XV-110J Serial number : Identical prototype Date of receipt : June 19, 2020 EUT condition : Pre-production, not damaged Antenna type : inductive loop coil antenna Frequency Range : 110 ~ 146 kHz Modulation Technology : MSK Power Source : DC 9 V by USB Port 2- 3 Tested frequency LOW MID HIGH Frequency (KHz) 110 130 146 Copyright ○ c 2018, LTA Co., Ltd. Page 4 of 16 Ref. No.: LR500112011T 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Test Condition Status (note 1) 15.203 Antenna requirement Radiation C 15.209(a)(f) Radiated Spurious Emission C 15.207 AC Conducted Emissions N/A Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Copyright ○ c 2018, LTA Co., Ltd. Page 5 of 16 Ref. No.: LR500112011T 3.2 Technical Characteristics Test 3.2.1 Antenna requirement Standard requirement FCC Part15 C Section 15.203 An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. EUT Antenna Inductive loop coil Antenna The antenna is inductive loop coil antenna which permanently attached Copyright ○ c 2018, LTA Co., Ltd. Page 6 of 16 Ref. No.: LR500112011T 3.2.2 Radiated Spurious Emisson Procedure: Radiated emissions from 30 MHz to 25 GHz were measured according to the methods defines in ANSI C63.10-2013. The EUT is a placed on as turn table. For emissions testing at or below 1 GHz, the table height shall be 0.8 m above the reference ground plane. For emission measurements above 1 GHz, the table height shall be 1.5 m. The turn table shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the max. emission, the relative positions of this hand-held transmitter (EUT) was rotated throug…

Text truncated - open the document above for the full version.

FCC ID: 2AQQTXV-110 Radiate Emission Copyright ○ c 2020, LTA Co., Ltd. Page 1 of 2 FCC ID: 2AQQTXV-110 Copyright ○ c 2020, LTA Co., Ltd. Page 2 of 2
