2AQRG-X12SLED Desk Lamp with Wireless Charger

Important Thank you for purchasing ou「products To guarantee your rights, please fill in this from properly, Thank you. Warranty Card Applicable for: *Since buying date, the user enjoys one year free repair service under normal use. *After one year, will be charged some cost (according to our company's component part repair price list). *When return to factory for repair,the user should make sure the LED lamp packed properly,to avoid any damage during transportation. * Factory is not responsible for the damages caused by the user's unproper disassemble *The repair service is not free of the following situations in warranty period: 1. Damage caused by natural earthquake, rat disaster, and unnormal use. 2. Damage caused in transportation, fall, and unproper storage 3. Consumable component, such as spare parts, batteries, light bulbs, etc. 4. Warranty information record is not complete (no purchase date, no buying shop seal). 5. Stored and used in special environment (such as humidity, sulfur area, high salty area and easy-corrosive area in the ship, etc). 6. Used not according to the instructions. 7. Special offer * Please don't disassemble and refit the product to avoid any electric shock * Please don'over-adjust the joint activity parts to avoid any damage. * Please don't put the lamp on the unstable table to avoid dropping out *Please don't put the lamp in high temperature or high hum心tyenvi「onment *Please don't look at the LED light source straightly to protect your eyes *Please use the supplier given adapter. The adapter should be unplugged from the power socket for safety when not use the lamp for long time * Please unplug the power cord and stop using in the following situations: *The power cord or plug is damaged *The lamp base gets wet in the rain or water *The shell and丿ointactivity parts of the lamp base is damaged *The lamp base smokes or sparks *LED bulb fiashes erratically or damaged *Children over 8 years old and the disabled in body or mentality can use the lamp wijh the adult's guidance and supervision in the situations of knowing clearly the functions & operations and operating attention matters. *Children should not operate, clean and maintain the lamp alone I Functions Instruction *Touch dimmer, makes operating more elegant and convenient *Cold-warm-natural light changes cyclically. provide you with better lighting experience. *Smart wireless charger can charge smart watches, phones and other devices that meet the standard of wireless charging. *LED lamp head uses s1raight view light source which imitates natural light, brings soft and not dazzling light and provides you with more natural and comfortable environment. LED lamp head ， ， 120• I 瀛 Goose rubber arm Name Address Telephone Invoice number Purchase date Item number Dealers 0 Note:this field requires the dealers seal! 心Warning:please keep this warranty paper for repair presentatio *Connect power adapler into the power jack behind the lamp base. 心�Please use the supplier given adapter Instruction Attention: 。 © *Wireless cha「geoperation Place the electronic products that support Qi wireless charge function on the middle of grey area to achieve charging as picture. (Charging when the indicator light is red, charging finished when green, charging abnormal when red light flickers) Instruction 妇 ＾V M ON/OFF UP DOWN MODE *operate the table lamp 1.Connect the adapter, touch the switch to turn on/off lamp (Cold light with highest brightness when turn on the lamp ) 2.Touch dimmer with 5-f「adebrightness adjustment, "A" to increase the brightness, "V " to decrease. 3.Touch" M" key to change the color temperature, cold-warm-natural light then cycle. 心【Attention】 Touch key is sens仆iveto subtle changes, it may not be able to achieve normal function in the following using statues *Touch except fingers *Slight or short-time touch *Used in environment that temperature changing quickly *Used in the external magnetic with big interference Specifications Power input : 12V/1.5 A Wireless charger ， , 5V/1A I I Normal rated power 1 1 BW Light sour ce power : aw Color temperature : Warm light 3000K士280k,natural light 4200K±400K, , cold light 5500K还OOK Luminous flux : >400LM Color rendering index : >80 FCC Statement The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Increase the separation between the equipment and any other radio device. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cau…

Text truncated - open the document above for the full version.

ShenzhenFeiheElectronicsCo.,Ltd AgentAuthorization Company:ShenzhenFeiheElectronicsCo.,Ltd Address:3/F,Bldg3,HongFaInnovativeParkHuangMaBuCommunity,Baoan District,Shenzhen,China ProductName:LEDDeskLampwithWirelessCharger TradeMark:N/A ModelNumber(s):X12S FCCID:2AQRG-X12S WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-04-28 Name:LiChen Title:Engineer Company:ShenzhenFeiheElectronicsCo.,Ltd

ShenzhenFeiheElectronicsCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021-04-28 Subject;RequestforConfidentiality FCCID:2AQRG-X12S ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:LiChen Title:Engineer

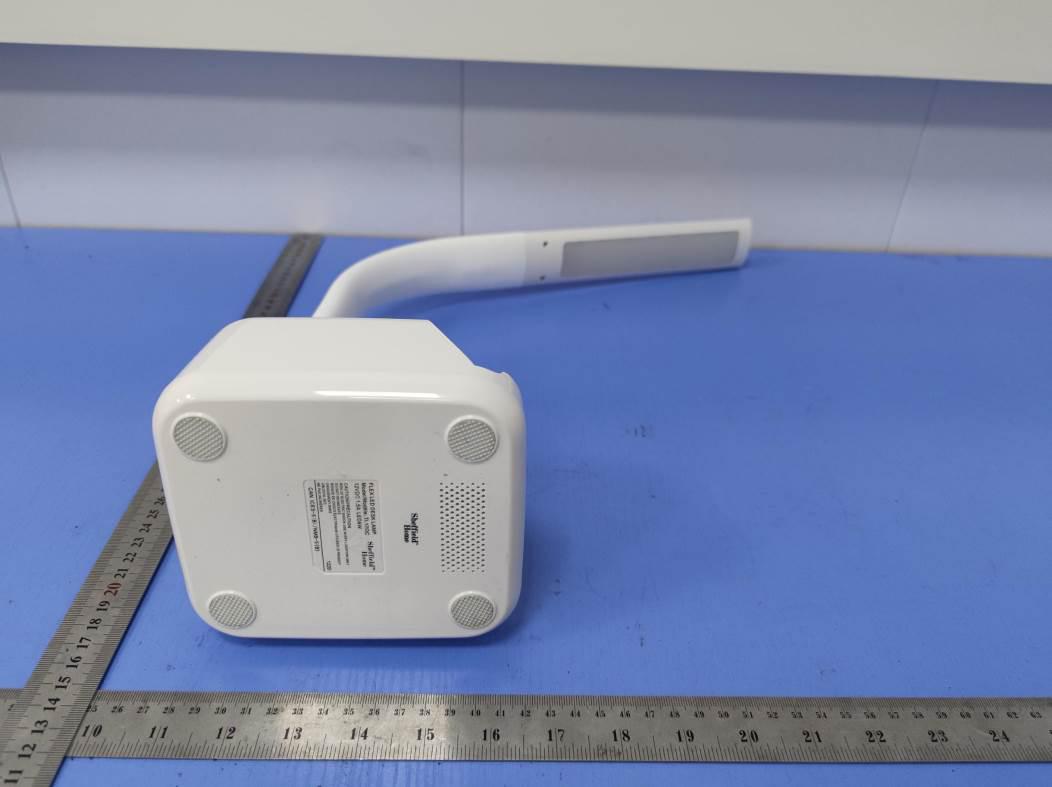

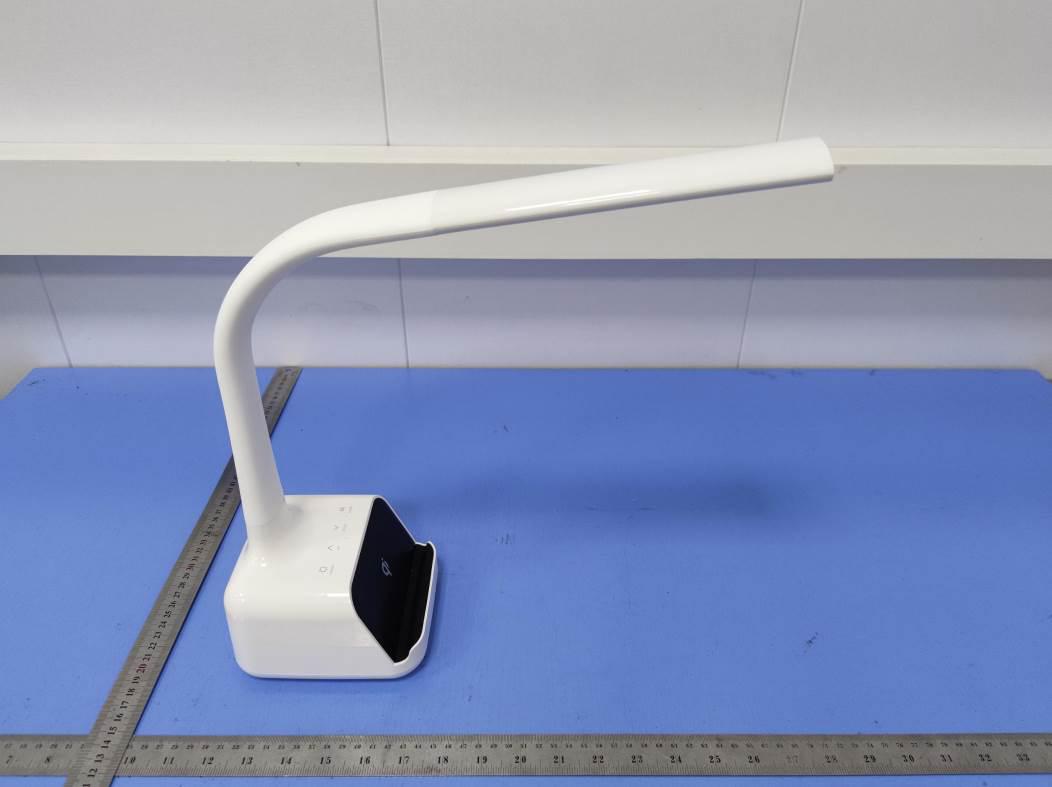

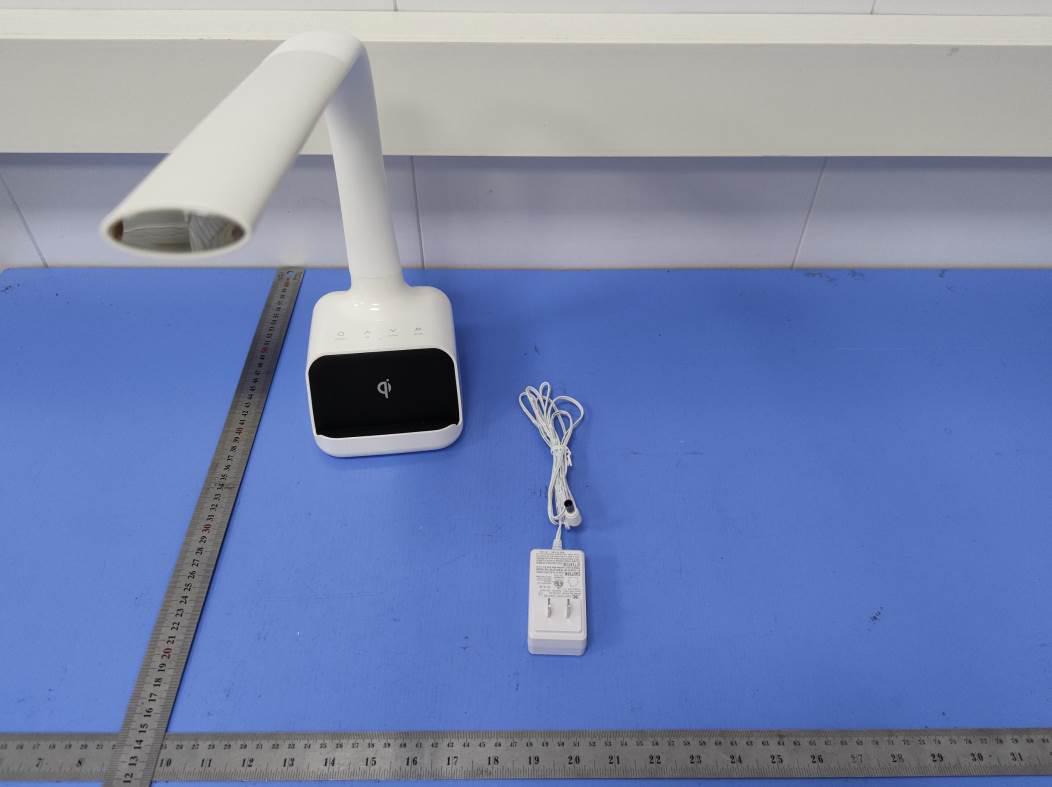

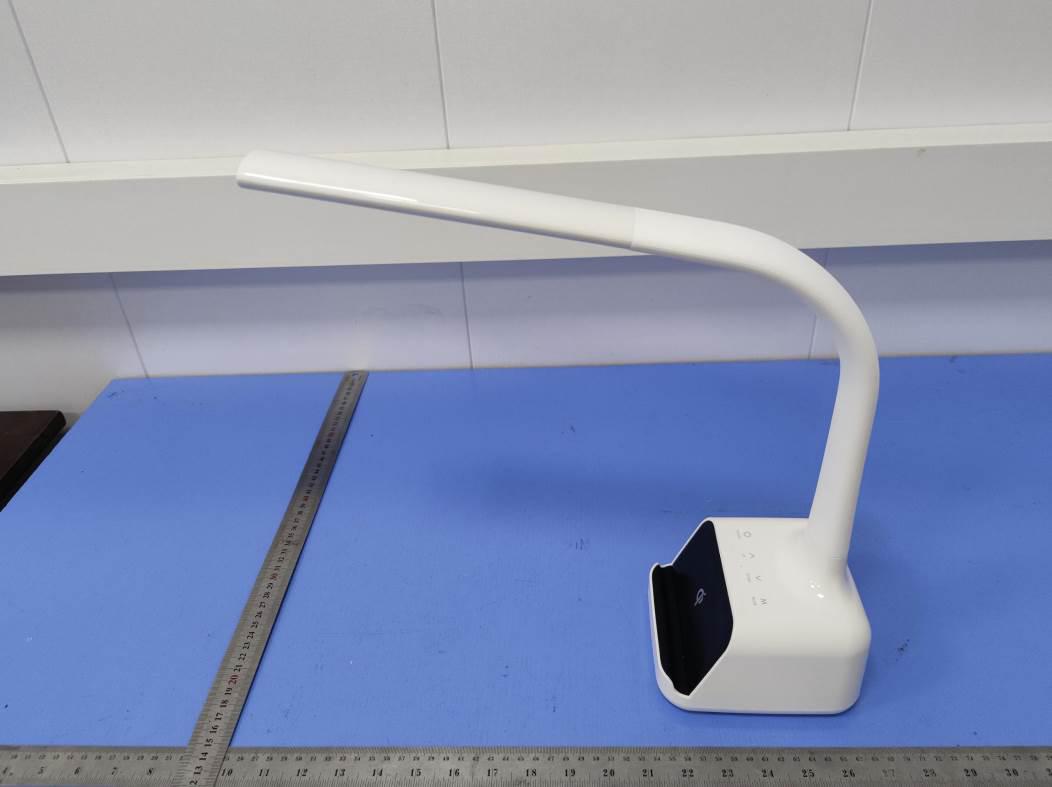

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of4 ExternalPhotosoftheEUT Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of4 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of4 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of4 Fig.7 Fig.8

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L:2.5cm*W:1.5cm LabelLocation LEDDeskLampwithWirelessCharger ModelNo.:X12S FCCID:2AQRG-X12S

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of4 InternalPhotosoftheEUT Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of4 Fig.3 Fig.4 CoilAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of4 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of4 Fig.7 Fig.8

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 10 RFExposureEvaluationReport 1.ProductInformation FCCID:2AQRG-X12S ProductNameLEDDeskLampwithWirelessCharger ModelNumberX12S PowerSupply ForACAdapter:Input:AC100-240V,50/60Hz,0.5AMax Output:DC12V,1.5A WirelessChargerOutput:5W ModulationTypeCW(ContinuousWave) FrequencyRange110KHz-205KHz OperationFrequency128.0KHz AntennaTypeCoilAntenna Hardwareversion/ Softwareversion/ AccessoriesMobilephone ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevice 2.EvaluationMethod PerKDB680106D01Section3.RFExposureRequirements; 1)ConsumerwirelesspowertransferdevicesapprovedunderPart18insomecaseshavetodemonstrate compliancewithRFexposurerequirements.Thepotentialforexposuremustbeassessedaccordingtothe operatingconfigurationsofthewirelesssystemandtheexposureconditionsofusersandbystanders.RF exposuremustbeevaluatedwiththeclientdevice(s)beingchargedbytheprimaryatmaximumoutput power.TheRFexposurerequirementsmustbedeterminedinconjunctionwiththedeviceoperating characteristics,accordingtothemobileandportableexposurerequirementsinSection2.1091andSection 2.1093oftherules.SARandMPElimitsdonotcoverthefrequencyrangeforwirelesspowertransfer applicationswhichoperatebelow100kHzand300kHzrespectively;therefore,RFexposurecompliance needstobedeterminedwithrespectto1.1307(c)and(d)oftheFCCrules. 2)Basedonthedesignandimplementationofthepowertransferapplication,itmustbeclearlyidentifiedif mobileorportableRFexposureconditionsapply.Devicesthatareinstalledtoprovideseparationofatleast 20cmfromusersandbystandersmayqualifyformobileexposureconditions.Forsomeconditionswhere usersandbystandersmaybeexposedatcloserthan20cm,section2.1091(d)(4)oftherulesmayapply. 3)Fordevicesdesignedfortypicaldesktopapplications,suchawirelesschargingpads,RFexposure evaluationshouldbeconductedassumingauserseparationdistanceof15cm.EandHfieldstrength measurementsornumericalmodelingmaybeusedtodemonstratecompliance.Measurementsshouldbe madefromallsidesandthetopoftheprimary/clientpair,withthe15cmmeasuredfromthecenterofthe probe(s)totheedgeofthedevice.Emissionsbetween100kHzto300kHzshouldbeassessedversusthe limitsat300kHzinTable1ofSection1.1310:614V/mand1.63A/m.AKDBinquiryisrequiredto determinetheapplicableexposurelimitsbelow100kHz. 4)Portableexposureconditionsfrom100kHzto6GHzaredeterminedwithrespecttoSARrequirements. ExistingSARsystemsandtestproceduresaregenerallyintendedformeasurementsabove100MHz.While numericalmodelingcanbeanalternative,theconstraintsofsubstantialcomputationalresourcesatlow frequenciescouldintroducefurtherlimitations.Underthesecircumstances,includingoperationsbelow100 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 10 kHz,theCommissionmayconsideracombinationofanalyticalanalysis,fieldstrength,radiatedand conductedpowermeasurements,inconjunctionwithsomelimitednumericalmodelingtoassesscompliance. 5)Dependingontheoperatingfrequency,existingSARandMPEmeasurementproceduresmaybeadapted toevaluatewirelesspowertransferdevicesforcompliancewithrespecttomobileorportableexposure conditions.IfthegranteeoritstestlabhaveanyquestionsregardingRFexposureevaluationtheyshould contacttheFCCLaboratorywithsufficientsystemoperatingconfigurationdetailstodetermineifRF exposureevaluationisnecessaryand,ifrequired,howtoapplyspecifictestprocedures.Below100MHz, whenSARtestingisrequiredandthedeviceisoperatingatcloseproximitytopersons,informationon devicedesign,implementation,operatingconfigurations,exposureconditionsofusersandbystandersare neededtodeterminetheevaluationandtestingrequirements.Inaddition,theinfluenceofnearbyobjectsmay alsoneedconsiderationaccordingtothewirelesspowertransfersystemimplementation;forexample,the effectsofplacingthedevice,itscoilsorradiatingelementsonornearmetallicsurfaces 3.EvaluationLimit 3.1Referevaluationmethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. FCCKDBpublication680106D01RFExposureWirelessChargingAppsv03:RFExposure ConsiderationsforLowPowerConsumerWirelessPowerTransferApplications FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices FCCCFR47part18.107:Indusial,Scientific,andMedicalEquipment 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40.1631.06 300-1,500//f/3006 1,500-100,000//56 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 10 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforGeneralPopulation/UncontrolledExposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1,500//f/150030 1,500-100,000//1.030 F=frequencyinMHz *=Plane-waveequivalentpowerdensity AccordingtoFCCKDB680106D01Section3.RFExposureRequirementsclause3the Emission-Limitsinthefrequencyrangefrom100KHzto300KHzshouldbeassessedversusthe limitsat300KHzinTable1ofCFR47–Section1.310asfollowing(measureddistanceshallbe15cm fromthecenteroftheprobetotheedgeofthedevice): E-Field*/*B-Field FrequencyV/mA/muT 0.3MHz–…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12SReportNo.:LCS210322099AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of20 FCCTESTREPORT For ShenzhenFeiheElectronicsCo.,Ltd LEDDeskLampwithWirelessCharger TestModel:X12S Preparedfor:ShenzhenFeiheElectronicsCo.,Ltd Address: 3/F,Bldg3,HongFaInnovativeParkHuangMaBuCommunity,Baoan District,Shenzhen,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:March25,2021 Numberoftestedsamples:1 Serialnumber:Prototype DateofTest:March25,2021~April13,2021 DateofReport:April15,2021 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12SReportNo.:LCS210322099AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of20 FCCTESTREPORT FCCCFR47PART18 ReportReferenceNo..........................:LCS210322099AEA DateOfIssue........................................:April15,2021 TestingLaboratoryName..................:ShenzhenLCSComplianceTestingLaboratoryLtd. Address.................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure................. : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName................................:ShenzhenFeiheElectronicsCo.,Ltd Address.................................................: 3/F,Bldg3,HongFaInnovativeParkHuangMaBuCommunity,Baoan District,Shenzhen,China TestSpecification Standard................................................:FCCCFR47PART18 TestReportFormNo............................:LCSEMC-1.0 TRFOriginator.....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF...........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhenLCS ComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen LCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. TestItemDescription.........................:LEDDeskLampwithWirelessCharger TradeMark...........................................:N/A TestModel............................................:X12S PowerSupply........................................: ForACAdapter:Input:AC100-240V,50/60Hz,0.5AMax Output:DC12V,1.5A WirelessChargerOutput:5W Result....................................................: Positive Compiledby:Supervisedby:Approvedby: JackLiu/FileadministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12SReportNo.:LCS210322099AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of20 FCCTESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS210322099AEA April15,2021 Dateofissue TestModel..............................:X12S EUT.........................................:LEDDeskLampwithWirelessCharger Applicant...............................:ShenzhenFeiheElectronicsCo.,Ltd Address..................................: 3/F,Bldg3,HongFaInnovativeParkHuangMaBuCommunity,Baoan District,Shenzhen,China Telephone...............................:/ Fax..........................................:/ Manufacturer........................:ShenzhenFeiheElectronicsCo.,Ltd Address...................................: 3/F,Bldg3,HongFaInnovativeParkHuangMaBuCommunity,Baoan District,Shenzhen,China Telephone...............................:/ Fax..........................................:/ Factory...................................:ShenzhenFeiheElectronicsCo.,Ltd Address...................................: 3/F,Bldg3,HongFaInnovativeParkHuangMaBuCommunity,Baoan District,Shenzhen,China Telephone...............................:/ Fax..........................................:/ SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12SReportNo.:LCS210322099AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of20 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000April15,2021InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12SReportNo.:LCS210322099AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of20 TABLEOFCONTENTS 1.GENERALINFORMATION...................................................................................................6 1.1DescriptionofDevice(EUT)..............................................................................................................6 1.2SupportequipmentList.......................................................................................................................6 1.3ExternalI/OCable..............................................................................................................................6 1.4DescriptionofTestFacility................................................................................................................6 1.5StatementoftheMeasurementUncertainty........................................................................................7 1.6MeasurementUncertainty...................................................................................................................7 1.7DescriptionofTestModes.....…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AQRG-X12S _______________________________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 1 AppendixA PhotographsofTestSetup ConductedEmission-ACadapterchargemode RadiatedEmissionbelow30MHz
