2AQSK-LR01LORA terminal

LR01SimpleInstructionsforUse 1.Theparametersoftheequipmenthavebeensetbeforeleavingthefactory.Tear offtheconductiveclothontheoutershell,andtheequipmentwillstartworking normally; 2.Stickconductiveclothonthedevicetoentertheshutdownstate; 3.Observetheindicatorlightsonthefrontpanel.Theredlightrepresentsthe powerlight,andthebluelightrepresentstheLORAsignallight.Whenthedevice sendsLORAdata,thedevicewillflashonce.Afterflashingfor5cycles,thesignal lightofthedevicewillnolongerflashinordertosavepower. 4.Usecases(Thedeviceisfixedinthetrunkofthecar) 5.Thedeviceispoweredbya5600mAhlithiumbattery,whichisnot rechargeable.Thisisadisposabledevicewithalifespanofaboutthreeyears.The operatingvoltageoftheequipmentis3Vandtheoperatingcurrentis33mA LR01productdetailedparameters 内置LED指示灯 Built-inLEDindicator LORA(Bule)，POWER（Red） 后备电池 backupbattery 1500*4mAH锂电池 1500*4mAHlithiumbattery 工作电压/电流 workingvoltage/current DC2.4-3.2V/33.38mA@3V 静止电流 staticcurrent 24.13uA 机身颜色 Hostcolor 黑色 Black 机身尺寸 Hostsize 93.37mm*59.37mm*32mm 工作温度 workingtemperature -20°Cto+70°C 储存温度 storagetemperature -40°Cto+85°C DC/DC芯片 DCchip SY7011AABC 震动传感器 Vibrationsensor DA218B 电池工作时间 Backupbattery 3年 3years GPS天线 GPSantenna 41.70*12.50*0.12MM LORAchip(ZSL64B3ALHA)workingfrequencyrange:922MHz ThedevicecanbeattachedtothereartrunkofthecarusingVelcroand screws 6.Thedevicecanworkaslongastheconductiveclothistorn,anditcannotwork withoutputtingitonthecar.Whenthedeviceisturnedon,andthesignallightwill flashwhenitisjustturnedon. 7.Thisdevicesendsadatatothesametypeofdevice40seconds,andother devicesuploadthedeviceinformation,thisdeviceisonlyusedforvehicleanti-theft, whenthedeviceislostwithin2KMofthedevicecanreceivethelostvehicledata, soastofindthelostvehicle. FCCStatement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,including nterferencethatmaycauseundesiredoperation. Caution:Anychangesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthorityto operatetheequipment. Note:Thisequipmenthasbeentestedandfoundtocomplywiththelimits foraClassBdigitaldeviceunderPart15oftheFCCRules.Theselimitsare designedtoprotectreasonablyagainstharmfulinterferenceinaresidential installation.Thisequipmentgeneratesusesandcanradiateradiofrequency energyand,ifnotinstalledandusedbytheinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Supposethisequipment doescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon.Inthatcase,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: (1)Reorientorrelocatethereceivingantenna. (2)Increasetheseparationbetweentheequipmentandreceiver. (3)Connecttheequipmenttoanoutletonacircuitdifferentfromthereceivers. (4)Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RadioFrequencyExposureStatement ThedevicehasbeenevaluatedtomeetgeneralRFexposure requirements.

(HuiZhouBoShiJieTechnologyCO.,Ltd) (7/31/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(2AQSK-LR01) [HuiZhouBoShiJieTechnologyCO.,Ltd](“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname)LingYu (HuiZhouBoShiJieTechnologyCO.,Ltd) (7/31/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(2AQSK-LR01) [HuiZhouBoShiJieTechnologyCO.,Ltd](“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname)LingYu

AttestationStatements (7/31/2024) TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(2AQSK-LR01) (HuiZhouBoShiJieTechnologyCO.,Ltd),theundersigned,herebyauthorize(WeFaSelection TradeTechnologyCo.,LTD)toactasourdesignatedU.S.agentforserviceofprocess, (HuiZhouBoShiJieTechnologyCO.,Ltd)acceptstomaintainanagentfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionof anyCommission-relatedproceedinginvolvingtheequipment. (WeFaSelectionTradeTechnologyCo.,LTD)acceptstheresponsibilitytoactas designatedU.S.agentforserviceofprocess. ApplicantInformation： Companyname:HuiZhouBoShiJieTechnologyCO.,Ltd FRN:0027741677 ContactName:LingYu Address:No.1,HuifengWestthreeroad,ZhongkaiHi-techZone,Huizhou TelephoneNo:13424388340 Email:[email protected] Signature [LingYu] U.S.AgentInformation: CompanyName:WeFaSelectionTradeTechnologyCo.,LTD Address:30N.GOULDST.STENSHERIDANWY,SHERIDAN,WY82801,UnitedStates FRN:0033767856 ContactName:JosonYe TelephoneNo:3023719847 Email: [email protected] Signature [ JosonYe ]

HuiZhouBoShiJieTechnologyCO.,Ltd (7/31/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(LORAterminal#2AQSK-LR01#) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthee(Blockdiagram,circuitdiagram,operational description,PCBlayoutandplacement)requiredtobesubmittedwiththisapplication bepermanentlywithheldfrompublicreview. SPECIFYREASONFORREQUEST(i.e.theabovedocumentsarecompany proprietaryinformationthatcouldnevergetintothepossessionofyour competition). Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely,

HuiZhouBoShiJieTechnologyCO.,Ltd (7/31/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(ShenzhenGUORENCertificationTechnologyServiceCo., Ltd.)toactonourbehalfinallmattersrelatingtoapplicationforequipmentauthorization, includingthesigningofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely,

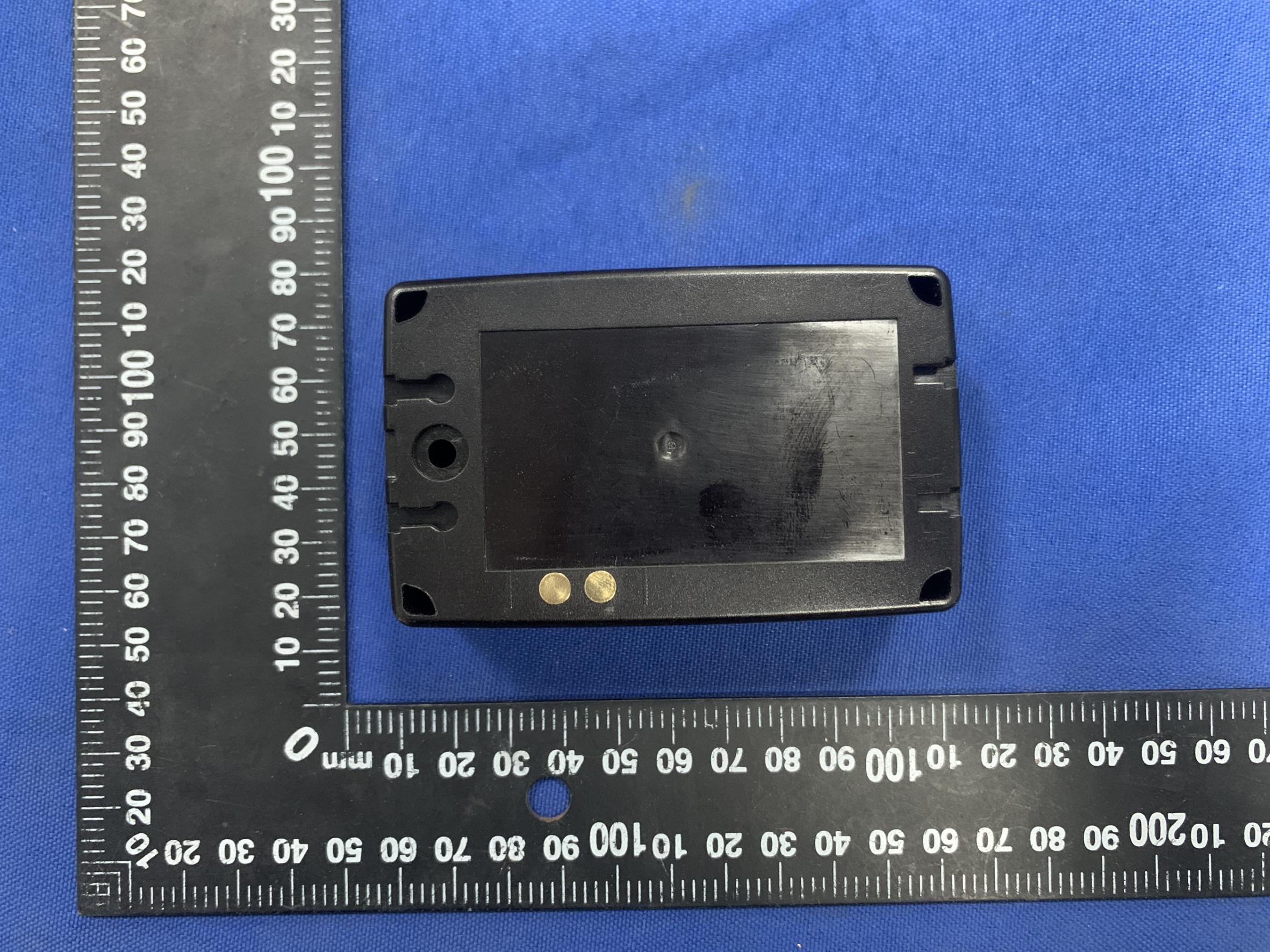

FCCID:2AQSK-LR01 ExternalPhoto FCCID:2AQSK-LR01 FCCID:2AQSK-LR01

Labeland Location

FCCID:2AQSK-LR01 INTERNALPHOTO FCCID:2AQSK-LR01 Antenna FCCID:2AQSK-LR01

RFExposureevaluation FCCID:2AQSK-LR01 1.ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498v06:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1Standalone SARtestexclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposure KDBprocedures,standalone1-gheadorbodyand10-gextremitySARevaluationforgeneral populationexposureconditions,bymeasurementornumericalsimulation,isnotrequired whenthecorrespondingSARTestExclusionThresholdcondition,listedbelow,issatisfied. Thesetestexclusionconditionsarebasedonsource-basedtime-averagedmaximum conductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-uptolerance, andtheminimumtestseparationdistancerequiredfortheexposureconditions.22The minimumtestseparationdistanceisdeterminedbythesmallestdistancefromtheantenna andradiatingstructuresoroutersurfaceofthedevice,accordingtothehostformfactor, exposureconditionsandplatformrequirements,toanypartofthebodyorextremityofauser orbystander(see5)ofsection4.1).ToqualifyforSARtestexclusion,thetestseparation distancesappliedmustbefullyexplainedandjustifiedbytheoperatingconfigurationsand exposureconditionsofthetransmitterandapplicablehostplatformrequirements,typicallyin theSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRF exposureKDBprocedures.WhennootherRFexposuretestingorreportingisrequired,a statementofjustificationandcompliancemustbeincludedintheequipmentapproval,inlieuof theSARreport,toqualifyfortheSARtestexclusion.Whenrequired,thedevicespecific conditionsdescribedintheotherpublishedRFexposureKDBproceduresmustbesatisfied beforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTTtwo-way radios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingto5)insection4.1isappliedto determineSARtestexclusion. 3.ManufacturingTolerance (Peak) LORA Channel922MHz Target(dBm)6.0 Tolerance±(dB)1.0 4.EvaluationResults Band/Modef(GHz) Antenna Distance (mm) RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW LORA2.48057.05.01120.96<3.0Yes 5.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091forthe uncontrolledRFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Lt LR01-868 Antenna Test Report d 目录 S11 CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Ltd Passive Test Efficiency CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Ltd Antenna Matching CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Lt and 4.3 NH inductance d Matching CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Lt Keep the battery as far away from the antenna as possible d ThankYou CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Ltd CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Lt LR01-915 Antenna Test Report d Catalogue S11 CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Ltd Passive Test Efficiency CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Ltd Antenna Matching CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Lt and 4.3 NH inductance d 装配 CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Lt Keep the battery as far away from the antenna as possible d ThankYou CopyrightbySHENZHENZHONGTIANXUNCommunicationTechnologyCo.,Ltd

ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: GRCTR240901020-01 2AQSK-LR01 Compiledby (position+printedname+signature) .. : TestingEngineerJimmyWang Supervisedby (position+printedname+signature)..: ProjectEngineerKelleyZhang Approvedby (position+printedname+signature)..: ManagerSamWang Dateofissue.........................................:Sep.23,2024 TestingLaboratoryName................: ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address ................................................. : 101#,BuildingK&BuildingT,TheSecondIndustrialZone,Jiazitang Community,FenghuangStreet,GuangmingDistrict,Shenzhen, China Applicant’sname...............................: HuiZhouBoShiJieTechnologyCO.,Ltd Address.................................................: No.1,HuifengWestthreeroad,ZhongkaiHi-techZone,Huizhou Testspecification .............................. : Standard................................................:FCCPart15.247 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerand sourceofthematerial.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesno responsibilityforandwillnotassumeliabilityfordamagesresultingfromthereader'sinterpretationofthe reproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ : LORAterminal TradeMark ............................................ : / Manufacturer.........................................: HuiZhouBoShiJieTechnologyCO.,Ltd Model/Typereference ......................... : LR01 ListedModels ...................................... :/ FirmwareVersion.................................:V1.0 HardwareVersion ................................ :V1.0 Modulation...........................................: GFSK Frequency .............................................. 922MHz Ratings...................................................: DC3.0bybattery Result ..................................................... : PASS ReportNo.:GRCTR240901020-01Page 2 of 27 TESTREPORT EquipmentunderTest:LORAterminal Model/Type:LR01 ListedModels:/ Applicant : HuiZhouBoShiJieTechnologyCO.,Ltd Address: No.1,HuifengWestthreeroad,ZhongkaiHi-techZone,Huizhou Manufacturer : HuiZhouBoShiJieTechnologyCO.,Ltd Address: No.1,HuifengWestthreeroad,ZhongkaiHi-techZone,Huizhou TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR240901020-01Page 3 of 27 Contents 1TESTSTANDARDS..............................................................................................................................4 2SUMMARY.................................................................................................................................................5 2.1GeneralRemarks..........................................................................................................................................5 2.2ProductDescription.....................................................................................................................................5 2.3EquipmentUnderTest.................................................................................................................................5 2.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................5 2.5EUToperationmode.....................................................................................................................................5 2.6BlockDiagramofTestSetup.......................................................................................................................6 2.7RelatedSubmittal(s)/Grant(s)...................................................................................................................6 2.8Modifications.................................................................................................................................................6 3TESTENVIRONMENT........................................................................................................................7 3.1Addressofthetestlaboratory....................................................................................................................7 3.2TestFacility...................................................................................................................................................7 3.3Environmentalconditions............................................................................................................................7 3.4Summaryofmeasurementresults..............................................................................................................8 3.5Statementofthemeasurementuncertainty..............................................................................................8 3.6EquipmentsUsedduringtheTest..............................................................................................................9 4TESTCONDITIONSANDRESULTS.......................................................................................10 4.1ACPowerConductedEmission................................................................................................................10 4.2RadiatedEmissionsandBandEdge........................................................................................................11 4.3MaximumPeakOutputPower...................................................................................................................16 4.4PowerSpectralDensity...................…
