2AQUQGB141TXSMART VIDEO DOORBELL KIT

Globe Electric Company Inc. 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 DATE : 05/23/2023 Globe Electric Company Inc. 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint below company and person: Name Damon Hu Position Manager Company Name Dongguan Dongdian Testing Service Co.,Ltd. Address 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel / Fax Tel: +86-0769-38826678-850 E-Mail [email protected] to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Applicant name Globe Electric Company Inc. Address 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Yours sincerely, Name Celine Zhu Position Senior Project Manager Company Name Globe Electric Company Inc. Address 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Tel / Fax +86-755-25192522 / 755 8225 7770 [email protected]

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Globe Electric FRN: 0033436957 Contact Name: Celine Zhu Address: 2264 East 6th Street, San Bernardino, CA 92410, United States Telephone No: (514) 694-0444 Email: [email protected] Applicant: Company name: Globe Electric Company Inc. Product Description: SMART VIDEO DOORBELL KIT Grantee code: 2AQUQ FCC ID: 2AQUQGB141TX Contact Name: Celine Zhu Address: 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Telephone No: +86-755-25192522 Email: [email protected] [Globe Electric Company Inc.] certifies that, as of the date of this filing of the application with the TCB, [Globe Electric] is our designated US agent for service of process for the above referenced FCC ID. [Globe Electric Company Inc.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Globe Electric] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/05/23 Applicant’s Name: Celine Zhu US Agent’s Name: Celine Zhu Title: Senior Project Manager Title: Senior Project Manager Signature: Signature:

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Globe Electric Company Inc. Grantee code: 2AQUQ FCC ID: 2AQUQGB141TX Contact Name: Celine Zhu Address: 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Telephone No: +86-755-25192522 Fax No: 755 8225 7770 Email: [email protected] i. Globe Electric Company Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. Globe Electric Company Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Globe Electric Company Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment . Date: 2023/05/23 Applicant’s Name: Celine Zhu Title: Senior Project Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 Letter of Authorization Globe Electric Company Inc. Company: Globe Electric Company Inc. Address: 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Product Name: SMART VIDEO DOORBELL KIT Model Number: GB141TX FCC Identifier: 2AQUQGB141TX We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Celine Zhu Date: 2023/05/23 Title: Senior Project Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 Globe Electric Company Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/05/23 Subject: Request for Confidentiality FCC ID: 2AQUQGB141TX To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Celine Zhu Title: Senior Project Manager

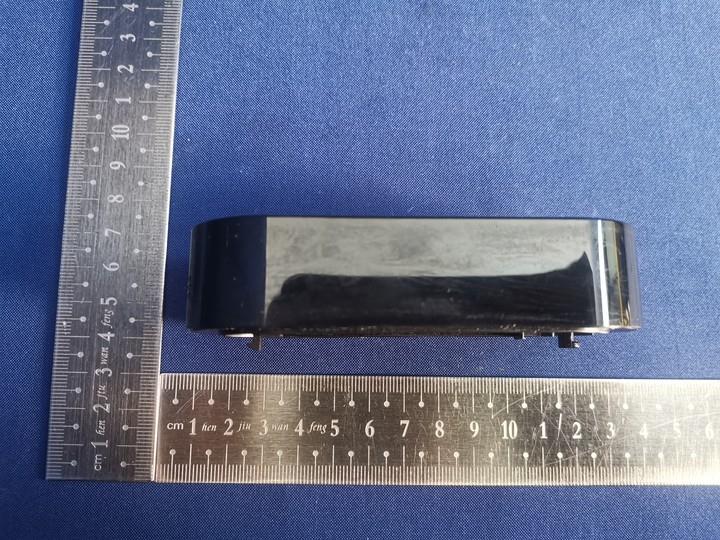

Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 1 of 10 AppendixI: Photos of the EUT Product Name: SMART VIDEO DOORBELL KIT Model Number: GB141TX Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 2 of 10 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 3 of 10 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 4 of 10

27 11.8 1.5

Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 4 of 10 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 5 of 10 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 6 of 10 315MHz Ant. Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 7 of 10 BLE Ant. Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 8 of 10 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 9 of 10 2.4G WIFI Ant. Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-RE23042404-2E01 Page 10 of 10 END OF REPORT

Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23042404-2E04 Page 1 of 7 RF EXPOSURE REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Equipment under Test : SMART VIDEO DOORBELL KIT Model No. : GB141TX Trade Mark : Globe FCC ID : 2AQUQGB141TX Manufacturer : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Report No.: DDT-RE23042404-2E04 Issued Date: May 30, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23042404-2E04 Page 2 of 7 Table of Contents Test report declares.......................................................................................................3 1. General Information .................................................................................................................. 5 1.1. Description of equipment ......................................................................................................... 5 1.2. Assess laboratory ..................................................................................................................... 5 2. RF Exposure Evaluation .......................................................................................................... 6 2.1. Requirement .............................................................................................................................. 6 2.2. Calculation method ................................................................................................................... 6 2.3. Estimation result ....................................................................................................................... 7 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23042404-2E04 Page 3 of 7 Test Report Declare Standard Used: KDB447498 D01 General RF Exposure Guidance v06 We Declare: The equipment described above is assessed by Dongguan Dongdian Testing Service Co., Ltd. and in the configuration assessed the equipment complied with the standards specified above. The assessed results are contained in this report and Dongguan Dongdian Testing Service Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these assess. After evaluation, our opinion is that the equipment In Accordance with above standard. Report No: DDT-RE23042404-2E04 Date of Receipt: Apr. 28, 2023 Date of Test: Apr. 28, 2023 ~ May 30, 2023 Prepared By: Approved By: ________________ ______________________ Tiger Mo/Engineer Damon Hu/EMC Manager Note: This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Dongguan Dongdian Testing Service Co., Ltd. Applicant : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Equipment under Test : SMART VIDEO DOORBELL KIT Model No. : GB141TX Trade mark : Globe Manufacturer : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 E S T T I N N A I G D S G E N R O V D I C E N A C U O G . , G L N T O D D . Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23042404-2E04 Page 4 of 7 Revision History Rev. Revisions Issue Date Revised By --- Initial issue May 30, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23042404-2E04 Page 5 of 7 1. General Information 1.1. Description of equipment 1.2. Assess laboratory Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808. Tel.: +86-0769-38826678, http://www.dgddt.com, Email: [email protected]. CNAS Accreditation No. L6451; A2LA Accreditation Number: 3870.01 FCC Designation Number: CN1182, Test Firm Registration Number: 540522 Innovation, Science and Economic Development Canada Site Registration Number: 10288A Conformity Assessment Body identifier: CN0048 VCCI facility registration number: C-20087, T-20088, R-20123, G-20118 EUT* Name : SMART VIDEO DOORBELL KIT Model Number : GB141TX EUT function description : Please reference user manual of this device Power Supply : AC 16V/60Hz 0.6A From transformer Radio Specification : SRD, Bluetooth V4.2, IEEE 802.11b/g/n Operation Frequency : SRD:315 MHz BLE:2402 MHz - 2480 MHz 2.4G WIFI : IEEE 802.11b: 2412MHz-2462MHz IEEE 802.11g: 2412MHz-2462MHz IEEE 802.11n HT20: 2412MHz-2462MHz IEEE 802.11n HT40: 2422MHz-2452MHz Modulation : SRD:OOK BLE: GFSK 2.4G WIFI : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n HT20, HT40: OFDM (64QAM, 16QAM, QPSK, BPSK) Data Rate : BLE: 1 Mbps 2.4G WIFI : IEEE 802.11b: up to 11 Mbps IEEE 802.11g: up to 54 Mbps IEEE 802.11n HT20: up to 72.2 Mbps IEEE 802.11n HT40: up to 150 Mbps Antenna Gain : SRD: Spring antenna, maximum PK gain: -3.5 dBi BLE: Chip Maximum PK gain: 0.97 dBi 2.4G WIFI: FPC antenna, Maximum PK gain: 2.71 dBi Serial Number : S23042404-02 for conductive S23042404-03 for radiation Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23042404-2E04 Page 6 of 7 2. RF Exposure Evaluation 2.1. Requirement Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure 2.2. Calculation method From the peak EUT RF output power, the minimum mobile separation distance, d= 0.2 m, as well as the gain of the used …

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 1 of 87 FCC AND ISED CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Equipment under Test : SMART VIDEO DOORBELL KIT Model No. : GB141TX Trade Mark : Globe FCC ID : 2AQUQGB141TX IC : 8290A-GB141TX Manufacturer : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Report No.: DDT-RE23042404-2E03 Issued Date: May 20, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 2 of 87 Table of Contents Test report declares.......................................................................................................4 1. Summary of Test Results ............................................................................................... 6 2. General Test Information ............................................................................................... 7 2.1. Description of EUT ......................................................................................................... 7 2.2. Accessories of EUT ........................................................................................................ 7 2.3. Assistant equipment used for test .................................................................................. 7 2.4. Block diagram of EUT configuration for test .................................................................. 8 2.5. Deviations of test standard............................................................................................. 8 2.6. Test environment conditions .......................................................................................... 8 2.7. Test laboratory ............................................................................................................... 9 2.8. Measurement uncertainty ............................................................................................... 9 3. Equipment Used During Test ....................................................................................... 10 4. 6dB Bandwidth ............................................................................................................. 12 4.1. Block diagram of test setup .......................................................................................... 12 4.2. Limits ............................................................................................................................ 12 4.3. Test procedure ............................................................................................................. 12 4.4. Test result ..................................................................................................................... 13 4.5. Test graphs .................................................................................................................. 13 5. 99% Bandwidth ............................................................................................................ 18 5.1. Block diagram of test setup .......................................................................................... 18 5.2. Limits ............................................................................................................................ 18 5.3. Test procedure ............................................................................................................. 18 5.4. Test Result ................................................................................................................... 18 5.5. Test Graphs .................................................................................................................. 19 6. Conducted Output Power ............................................................................................. 24 6.1. Block diagram of test setup .......................................................................................... 24 6.2. Limits ............................................................................................................................ 24 6.3. Test procedure ............................................................................................................. 24 6.4. Test result average ...................................................................................................... 25 7. Power Spectral Density ................................................................................................ 26 7.1. Block diagram of test setup .......................................................................................... 26 7.2. Limits ............................................................................................................................ 26 7.3. Test procedure ............................................................................................................. 26 7.4. Test result ..................................................................................................................... 27 7.5. Test graphs .................................................................................................................. 27 8. Band Edge Compliance (Conducted Method) ............................................................. 32 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 3 of 87 8.1. Block diagram of test setup .......................................................................................... 32 8.2. Limits ........................................................................................…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 57 of 87 Radiated Emission test (above 1GHz) TR-4-E-009 Radiated Emission Test Result Test Date: 2023-05-13 Tested By: Bairong EUT: SMART VIDEO DOORBELL KIT Model Number: GB141TX Test Mode: TX Mode Power Supply: AC 16V/60Hz 0.6A From transformer Condition: Temp:21.8°C;Humi:61.8% Test Site: DDT 3# Chamber File Path: d:\ts\2023 report data\Q23042404-2E GB141TX\FCC ABOVE 1G 2.4GWIFI\13 Memo: 11B 2412 Test Graph Suspected Data List N O. Freq. [MHz] Reading [dBμV/ m] Cable loss [dB] Antenna Factor [dB] AMP [dB] Level [dBμV /m] Limit [dBμV /m] Margin [dB] Detector Polarity 1 3860.61 47.50 5.65 30.42 -41.32 42.25 74.00 31.75 PK Horizontal 2 4822.83 49.60 5.99 32.39 -41.15 46.83 74.00 27.17 PK Horizontal 3 7548.31 45.55 7.14 36.40 -41.00 48.09 74.00 25.91 PK Horizontal 4 12090.35 41.81 8.46 39.08 -38.99 50.36 74.00 23.64 PK Horizontal 5 12564.12 42.87 8.91 39.16 -39.46 51.48 74.00 22.52 PK Horizontal 6 17922.14 39.75 11.89 41.33 -40.67 52.30 74.00 21.70 PK Horizontal Note: 1. Level = Reading + Cable loss + Antenna Factor + AMP 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 58 of 87 TR-4-E-009 Radiated Emission Test Result Test Date: 2023-05-13 Tested By: Bairong EUT: SMART VIDEO DOORBELL KIT Model Number: GB141TX Test Mode: TX Mode Power Supply: AC 16V/60Hz 0.6A From transformer Condition: Temp:21.8°C;Humi:61.8% Test Site: DDT 3# Chamber File Path: d:\ts\2023 report data\Q23042404-2E GB141TX\FCC ABOVE 1G 2.4GWIFI\14 Memo: 11B 2412 Test Graph Suspected Data List N O. Freq. [MHz] Reading [dBμV/ m] Cable loss [dB] Antenna Factor [dB] AMP [dB] Level [dBμV /m] Limit [dBμV /m] Margin [dB] Detector Polarity 1 1596.18 51.42 3.73 25.40 -39.09 41.46 74.00 32.54 PK Vertical 2 4822.83 50.93 5.99 32.39 -41.15 48.16 74.00 25.84 PK Vertical 3 7444.32 45.12 7.16 36.50 -41.00 47.78 74.00 26.22 PK Vertical 4 12010.25 42.62 8.39 38.92 -38.91 51.02 74.00 22.98 PK Vertical 5 12636.96 42.77 8.98 39.27 -39.54 51.48 74.00 22.52 PK Vertical 6 17865.25 39.81 11.82 40.96 -40.65 51.94 74.00 22.06 PK Vertical Note: 1. Level = Reading + Cable loss + Antenna Factor + AMP 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 59 of 87 TR-4-E-009 Radiated Emission Test Result Test Date: 2023-05-13 Tested By: Bairong EUT: SMART VIDEO DOORBELL KIT Model Number: GB141TX Test Mode: TX Mode Power Supply: AC 16V/60Hz 0.6A From transformer Condition: Temp:21.8°C;Humi:61.8% Test Site: DDT 3# Chamber File Path: d:\ts\2023 report data\Q23042404-2E GB141TX\FCC ABOVE 1G 2.4GWIFI\9 Memo: 11B 2437 Test Graph Suspected Data List N O. Freq. [MHz] Reading [dBμV/ m] Cable loss [dB] Antenna Factor [dB] AMP [dB] Level [dBμV /m] Limit [dBμV /m] Margin [dB] Detector Polarity 1 3978.41 46.66 5.72 30.66 -41.39 41.65 74.00 32.35 PK Horizontal 2 4873.27 50.10 6.01 32.55 -41.14 47.52 74.00 26.48 PK Horizontal 3 7310.01 49.21 7.19 36.50 -41.00 51.90 74.00 22.10 PK Horizontal 4 12111.33 42.24 8.48 39.10 -39.01 50.81 74.00 23.19 PK Horizontal 5 12441.27 42.28 8.79 39.10 -39.34 50.83 74.00 23.17 PK Horizontal 6 17834.30 40.06 11.78 40.74 -40.63 51.95 74.00 22.05 PK Horizontal Note: 1. Level = Reading + Cable loss + Antenna Factor + AMP 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 60 of 87 TR-4-E-009 Radiated Emission Test Result Test Date: 2023-05-13 Tested By: Bairong EUT: SMART VIDEO DOORBELL KIT Model Number: GB141TX Test Mode: TX Mode Power Supply: AC 16V/60Hz 0.6A From transformer Condition: Temp:21.8°C;Humi:61.8% Test Site: DDT 3# Chamber File Path: d:\ts\2023 report data\Q23042404-2E GB141TX\FCC ABOVE 1G 2.4GWIFI\10 Memo: 11B 2437 Test Graph Suspected Data List N O. Freq. [MHz] Reading [dBμV/ m] Cable loss [dB] Antenna Factor [dB] AMP [dB] Level [dBμV /m] Limit [dBμV /m] Margin [dB] Detector Polarity 1 3855.03 47.26 5.65 30.41 -41.31 42.01 74.00 31.99 PK Vertical 2 4873.27 48.78 6.01 32.55 -41.14 46.20 74.00 27.80 PK Vertical 3 7310.01 47.34 7.19 36.50 -41.00 50.03 74.00 23.97 PK Vertical 4 11421.22 43.44 8.17 39.08 -39.83 50.86 74.00 23.14 PK Vertical 5 12626.01 42.47 8.97 39.25 -39.53 51.16 74.00 22.84 PK Vertical 6 17942.87 39.16 11.92 41.46 -40.68 51.86 74.00 22.14 PK Vertical Note: 1. Level = Reading + Cable loss + Antenna Factor + AMP 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Test setup: RBW: 1 MHz, VBW: 3 MHz, Sweep time: auto. Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23042404-2E03 TRF No.: FCC Part 15C and RSS-247 WIFI Ver.1.0 Page 61 of 87 TR-4-E-009 Radiated Emission Test Result Test Date: 2023-05-13 Tested By: Bairong EUT: SMART VIDEO DOORBELL KIT Model Number: GB141TX Test Mode: TX Mode Power Supply: AC 16V/60Hz 0.6A From transformer Condition: Temp:21.8°C;Humi:61.8% Test Site: DDT 3# Chamber File Path: d:\ts\2023 report data\Q23042404-2E GB141TX\FCC ABOVE 1G 2.4GWIFI\11 Memo: 11B 2462 Test Graph Suspected Data List N O. Freq. [MHz] Reading [dBμV/ m] Cable loss [dB] Antenna Factor [dB] AMP [dB] Level [dBμV /m] Limit [dBμV /m] Margin [dB] Detector Polarity 1 1438.87 51.40 3.47 25.60 -38.86 41.61 74.00 32.39 PK Horizontal 2 3956.62 46.90 5.71 30.61 -41.37 41.85 74.00 32.15 PK Horizontal 3 4922.82 46.50 6.03 32.69 -41.12 44.10 74.00 29.90 PK Horizontal 4 7384.32 50.34 7.18 36.50 -41.00 53.02 7…

Text truncated - open the document above for the full version.

Shenzhen Xinhengyang Technology Co., LTD R & D, production and sales of professional wireless terminal antenna SPECIFICATION Customer Name： Zhejiang Bainuo Electric Co. LTD Product Model： Visual doorbell Customer P/N ： XINHENGYANG P/N： TC.001.RANT3216F245M0X SPECIFFCATIONS: 2.4G Production date： 2023-05-30 Sample Version： V2.0 Manufacturer: Shenzhen Xinhengyang Technology Co., LTD Address: 7A-909 Kanghesheng Building, No.1 Chuangsheng Road, Xili Street, Nanshan District, Shenzhen Email: xinhengyang1116@163,com Tel: 0755-83600916 Network address: https://www.xhy-2008.com XINHENGYANG FICTION DQE R&D Customer PUR QC R&D Shenzhen Xinhengyang Technology Co., LTD R & D, production and sales of professional wireless terminal antenna Number Effective date Change record V1.0 2023-05-30 Initial release Shenzhen Xinhengyang Technology Co., LTD R & D, production and sales of professional wireless terminal antenna 一、The basic parameters A. Electrical Characteristics Frequency 2400MHZ~2500MHZ 515 VSWR < 2.0 Avg Efficiency >27% Impedance 50 ± 25 Ohm Polarization Linear Peak Gain 2.4G:0.97dBi B. Material & Mechanical Characteristics Material of Radiator ceramic red Cable Type / Connector Type / Dimension / C. Environmental Operation Temperature - 20 ̊C ~ + 60 ̊C Storage Temperature - 30 ̊C ~ + 70 ̊C Shenzhen Xinhengyang Technology Co., LTD R & D, production and sales of professional wireless terminal antenna 二、Electrical Specification Those specifications were specially defined for Bainuo-Visual doorbell model. 三、VSWR 1 Measuring Method 1.A 50Ωcoaxial cable is connected to the antenna. Then this cable is connected to a network analyzer to measure the VSWR 2.Keeping this jig away from metal at least 20cm 2 Measurement frequency points and VSWR value 四、 Anechoic chamber Shenzhen Xinhengyang Technology Co., LTD R & D, production and sales of professional wireless terminal antenna Introduction: Microwave darkroom and no reflection chamber, absorbing short wave darkroom dark room. Microwave darkroom by electromagnetic shielding room, filtering and isolation, grounding device, the ventilation duct, indoor distribution system, monitoring system, ceiling wave material part. It is based on the wave absorbing material as the lining of the shield room, it can absorb the most of the electromagnetic energy into the six wall is a better simulation of the free space conditions. The main working principle of microwave anechoic chamber is according to the electromagnetic wave in the medium from the low magnetic guide magnetic direction of propagation rules, absorbing materials to guide the electromagnetic wave using high permeability, through resonance, a substantial absorption of electromagnetic wave radiation energy, by coupling the electromagnetic energy into heat energy. main performance ： Frequency range:400MHz ~ 6GHz ceiling reflected wave loss materials: 400MHz ~ 6GHz is equal to or more than 15dB (microwave absorbing material by composite wave absorbing materials, namely t…
