2AQUQGB34347WiFi LED Lamp

Globe Electric Company Inc.
WiFi LED Lamp - FCC ID 2AQUQGB34347 - Globe Electric Company Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 25, 2021
Application Purpose
Original Equipment
Date of Application
May 25, 2021
Equipment Note
WiFi LED Lamp
Frequency Range
2402.00000000 - 2480.00000000
Company
Globe Electric Company Inc.
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

DATE: Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 AuthoritytoActas Agent On our behalf, I appoint BLUEASIA OF TECHNICAL SERVICES (SHENZHEN) CO., LTD Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, GuangDong, 518000P.R.C. (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Globe Electric Company Inc, 150, Oneida, Montreal, Quebec, Canada, H9R 1A8 <Signature> NameCelineZhu Title SeniorProjectManager Applicant Company GlobeElectricCompanyInc.

Cover Letter(s)

DATE 2021/4/21 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AQUQGB34347 Product Name: WiFi LED Lamp Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name Celine Title Seniorprojectmanager Company GlobeElectricCompanyInc.

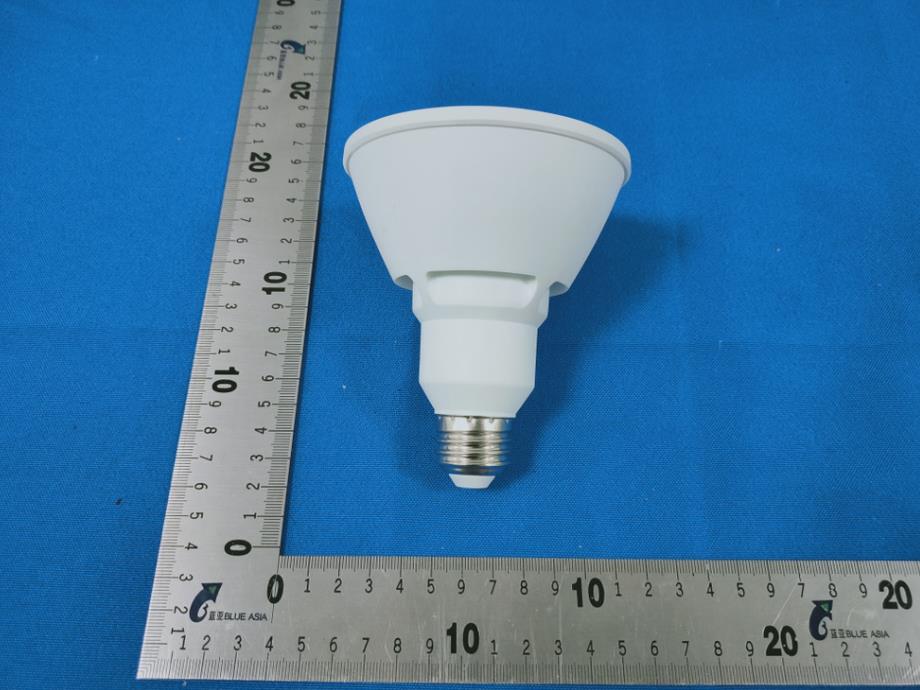

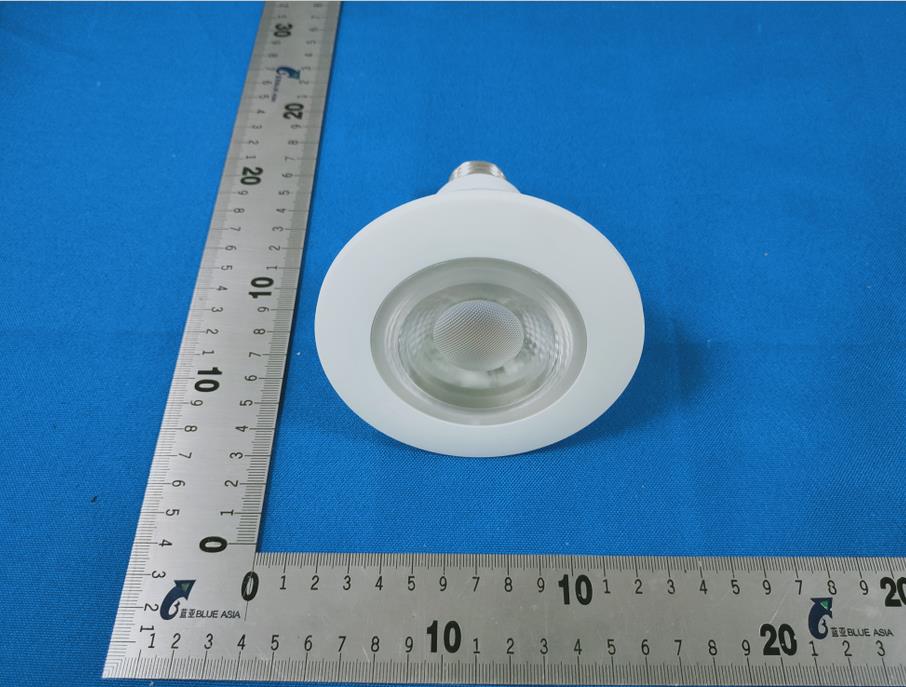

External Photos

Model No.: 34347*

Internal Photos

Model No.: 34347*

RF Exposure Info

Page 1 of 2 Product Name: WiFi LED Lamp Model No.:34347* FCC ID:2AQUQGB34347 RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain: 4.6dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.88 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: BLE: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result lowest 2402 -1.16 0.76560 0.00042 1.0 PASS 2.4G WIFI: 802.11n20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result lowest 2412 14.42 27.66942 0.01588 1.0 PASS Note: Refer to report No. BLA-EMC-202001-A12-01/02/03 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Test Report

Page 1 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : WiFi LED Lamp Brand Mark : NA Model No. : 34347* FCC ID : 2AQUQGB34347 Report Number : BLA-EMC-202104-A6402 Date of Sample Receipt : 2021/4/16 Date of Test : 2021/4/16 to 2021/5/13 Date of Issue : 2021/5/19 Test Standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Test Result : Pass Prepared for: Globe Electric Company Inc. 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/5/19 Report No.: BLA-EMC-202104-A6402 Page 2 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/5/19 Original Report No.: BLA-EMC-202104-A6402 Page 3 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 1 GENERAL INFORMATION .........................................................................................................................6 2 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 3 TEST ENVIRONMENT ................................................................................................................................7 4 TEST MODE ................................................................................................................................................7 5 MEASUREMENT UNCERTAINTY ..............................................................................................................7 6 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 7 LABORATORY LOCATION .........................................................................................................................8 8 TEST INSTRUMENTS LIST ........................................................................................................................9 9 ANTENNA REQUIREMENT ..................................................................................................................... 13 1.1 CONCLUSION ............................................................................................................................................................ 13 10 MINIMUM 6DB BANDWIDTH .................................................................................................................. 14 1.2 LIMITS ................................................................................................................................................................... 14 1.3 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 14 1.4 TEST DATA .............................................................................................................................................................. 14 11 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ)..................................................... 15 1.5 LIMITS ................................................................................................................................................................... 15 1.6 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 1.7 PROCEDURE .......................................................................................................................................................... 15 1.8 TEST DATA .............................................................................................................................................................. 17 12 CONDUCTED PEAK OUTPUT POWER ................................................................................................. 19 1.9 LIMITS ................................................................................................................................................................... 19 1.10 BLOCK DIAGRAM OF TEST SETUP ..................................................................................................................... 19 1.11 EST DATA ............................................................................................................................................................ 19 13 POWER SPECTRUM DENSITY ............................................................................................................... 20 1.12 LIMITS .............................................................................................................................................................. 20 1.13 BLOCK DIAGRAM OF TEST SETUP ..................................................................................................................... 20 1.14 TEST DATA .......................................................................................................................................................... 20 14 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 21 Report No.: BLA-EMC-202104-A6402 Page 4 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 1.15 LIMITS .............…

Text truncated - open the document above for the full version.

Test Report

Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Appendix 1:WIIF RF TEST DATA Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT b 2412 Sum 99.89 0 NVNT b 2437 Sum 99.87 0.01 NVNT b 2462 Sum 99.89 0 NVNT g 2412 Sum 99.26 0.03 NVNT g 2437 Sum 99.25 0.03 NVNT g 2462 Sum 99.27 0.03 NVNT n20 2412 Sum 99.22 0.03 NVNT n20 2437 Sum 99.21 0.03 NVNT n20 2462 Sum 99.22 0.03 NVNT n40 2422 Sum 98.41 0.07 NVNT n40 2437 Sum 98.43 0.07 NVNT n40 2452 Sum 98.41 0.07 Duty Cycle NVNT b 2412MHz Sum Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Duty Cycle NVNT b 2437MHz Sum Duty Cycle NVNT b 2462MHz Sum Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Duty Cycle NVNT g 2412MHz Sum Duty Cycle NVNT g 2437MHz Sum Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Duty Cycle NVNT g 2462MHz Sum Duty Cycle NVNT n20 2412MHz Sum Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Duty Cycle NVNT n20 2437MHz Sum Duty Cycle NVNT n20 2462MHz Sum Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Duty Cycle NVNT n40 2422MHz Sum Duty Cycle NVNT n40 2437MHz Sum Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Duty Cycle NVNT n40 2452MHz Sum Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 14.424 0 14.424 30 Pass NVNT b 2437 Ant1 13.291 0.01 13.301 30 Pass NVNT b 2462 Ant1 13.476 0 13.476 30 Pass NVNT g 2412 Ant1 11.431 0.03 11.461 30 Pass NVNT g 2437 Ant1 10.512 0.03 10.542 30 Pass NVNT g 2462 Ant1 10.227 0.03 10.257 30 Pass NVNT n20 2412 Ant1 11.439 0.03 11.469 30 Pass NVNT n20 2437 Ant1 10.225 0.03 10.255 30 Pass NVNT n20 2462 Ant1 10.546 0.03 10.576 30 Pass NVNT n40 2422 Ant1 10.555 0.07 10.625 30 Pass NVNT n40 2437 Ant1 9.961 0.07 10.031 30 Pass NVNT n40 2452 Ant1 10.59 0.07 10.66 30 Pass Power NVNT b 2412MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT b 2437MHz Ant1 Power NVNT b 2462MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT g 2412MHz Ant1 Power NVNT g 2437MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT g 2462MHz Ant1 Power NVNT n20 2412MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT n20 2437MHz Ant1 Power NVNT n20 2462MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT n40 2422MHz Ant1 Power NVNT n40 2437MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT n40 2452MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 10.046 0.5 Pass NVNT b 2437 Ant1 10.091 0.5 Pass NVNT b 2462 Ant1 10.073 0.5 Pass NVNT g 2412 Ant1 15.057 0.5 Pass NVNT g 2437 Ant1 16.293 0.5 Pass NVNT g 2462 Ant1 16.278 0.5 Pass NVNT n20 2412 Ant1 16.288 0.5 Pass NVNT n20 2437 Ant1 16.271 0.5 Pass NVNT n20 2462 Ant1 16.906 0.5 Pass NVNT n40 2422 Ant1 35.077 0.5 Pass NVNT n40 2437 Ant1 35.134 0.5 Pass NVNT n40 2452 Ant1 33.787 0.5 Pass -6dB Bandwidth NVNT b 2412MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -6dB Bandwidth NVNT b 2437MHz Ant1 -6dB Bandwidth NVNT b 2462MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -6dB Bandwidth NVNT g 2412MHz Ant1 -6dB Bandwidth NVNT g 2437MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -6dB Bandwidth NVNT g 2462MHz Ant1 -6dB Bandwidth NVNT n20 2412MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -6dB Bandwidth NVNT n20 2437MHz Ant1 -6dB Bandwidth NVNT n20 2462MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -6dB Bandwidth NVNT n40 2422MHz Ant1 -6dB Bandwidth NVNT n40 2437MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -6dB Bandwidth NVNT n40 2452MHz Ant1 Report:BLA-EMC-202104-A6402 BlueAsia of Technical Services(Shenzhen) Co., Ltd…

Text truncated - open the document above for the full version.

Test Report

Page 1 of65 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : WiFi LED Lamp Brand Mark : NA Model No. : 34347* FCC ID : 2AQUQGB34347 Report Number : BLA-EMC-202104-A6401 Date of Sample Receipt : 2021/4/16 Date of Test : 2021/4/16 to 2021/5/13 Date of Issue : 2021/5/19 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Globe Electric Company Inc. 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/5/19 Report No.: BLA-EMC-202104-A6401 Page 2 of65 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/5/19 Original Report No.: BLA-EMC-202104-A6401 Page 3 of65 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 TEST ENVIRONMENT ................................................................................................................................7 5 TEST MODE ................................................................................................................................................7 6 MEASUREMENT UNCERTAINTY ..............................................................................................................7 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 8 LABORATORY LOCATION .........................................................................................................................8 9 TEST INSTRUMENTS LIST ........................................................................................................................9 1 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ)..................................................... 12 1.1 LIMITS ................................................................................................................................................................... 12 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 12 1.3 PROCEDURE .......................................................................................................................................................... 12 1.4 TEST DATA .............................................................................................................................................................. 14 2 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 16 2.1 LIMITS ................................................................................................................................................................... 16 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 16 2.3 TEST DATA .............................................................................................................................................................. 17 3 ANTENNA REQUIREMENT ..................................................................................................................... 18 3.1 CONCLUSION ............................................................................................................................................................ 18 4 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 19 4.1 LIMITS ................................................................................................................................................................... 19 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 20 4.3 PROCEDURE .......................................................................................................................................................... 20 4.4 TEST DATA .............................................................................................................................................................. 22 5 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 30 5.1 LIMITS ................................................................................................................................................................... 30 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 31 5.3 PROCEDURE .......................................................................................................................................................... 31 5.4 TEST DATA .............................................................................................................................................................. 33 Report No.: BLA-EMC-2…

Text truncated - open the document above for the full version.

Test Setup Photos

Model No.: 34347*

Contact Information

Applicant

Celine Zhu(Senior Project Manager)
[email protected]+86-755-25192522Fax: 755 8225 7770

Test Firm

BlueAsia of Technical Services (Shenzhen)Blue Zheng
[email protected]+86 755-23059481-815

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.40 GHz - 2.48 GHz766.00 µW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device has 20 MHz and 40 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
