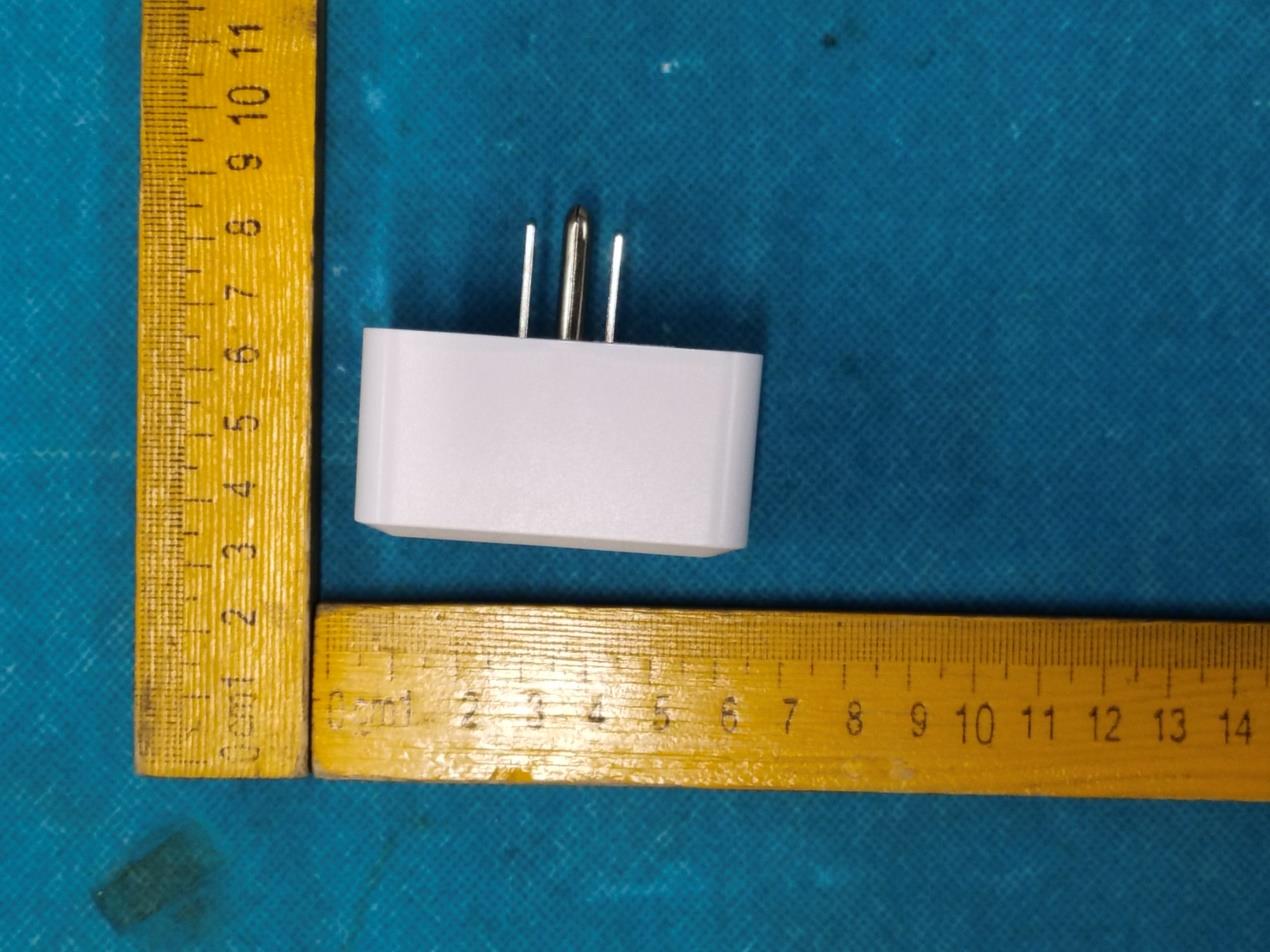

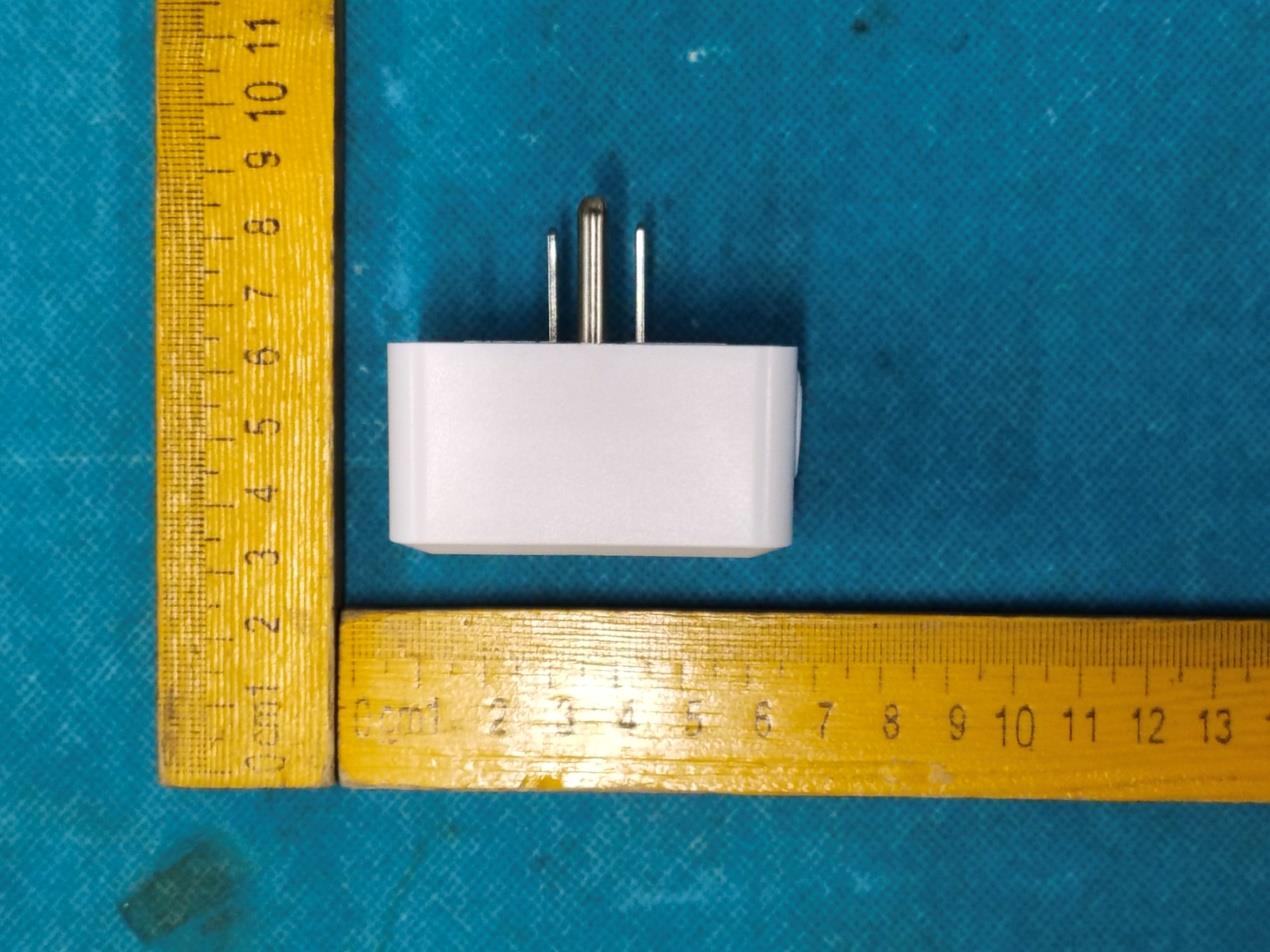

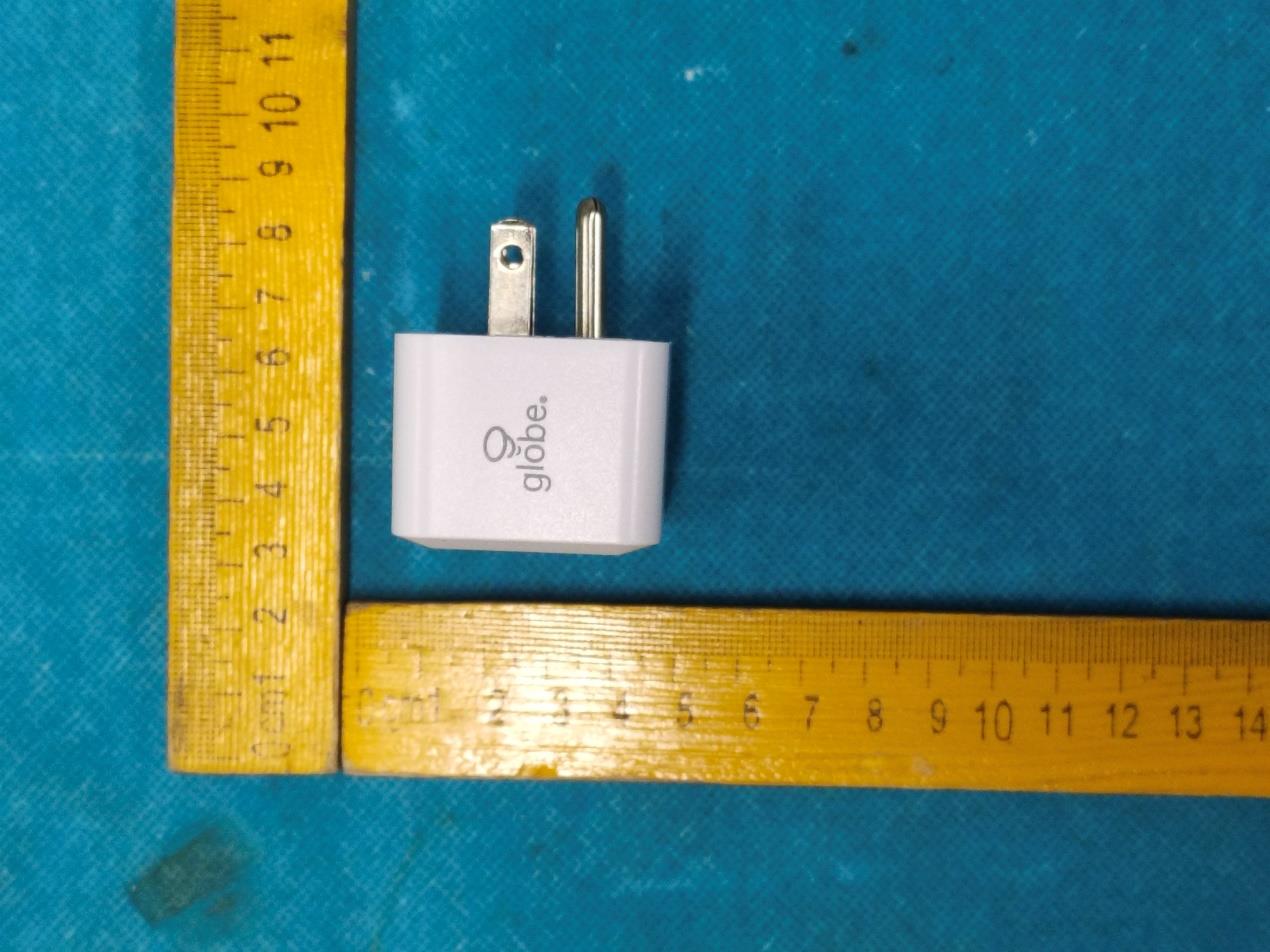

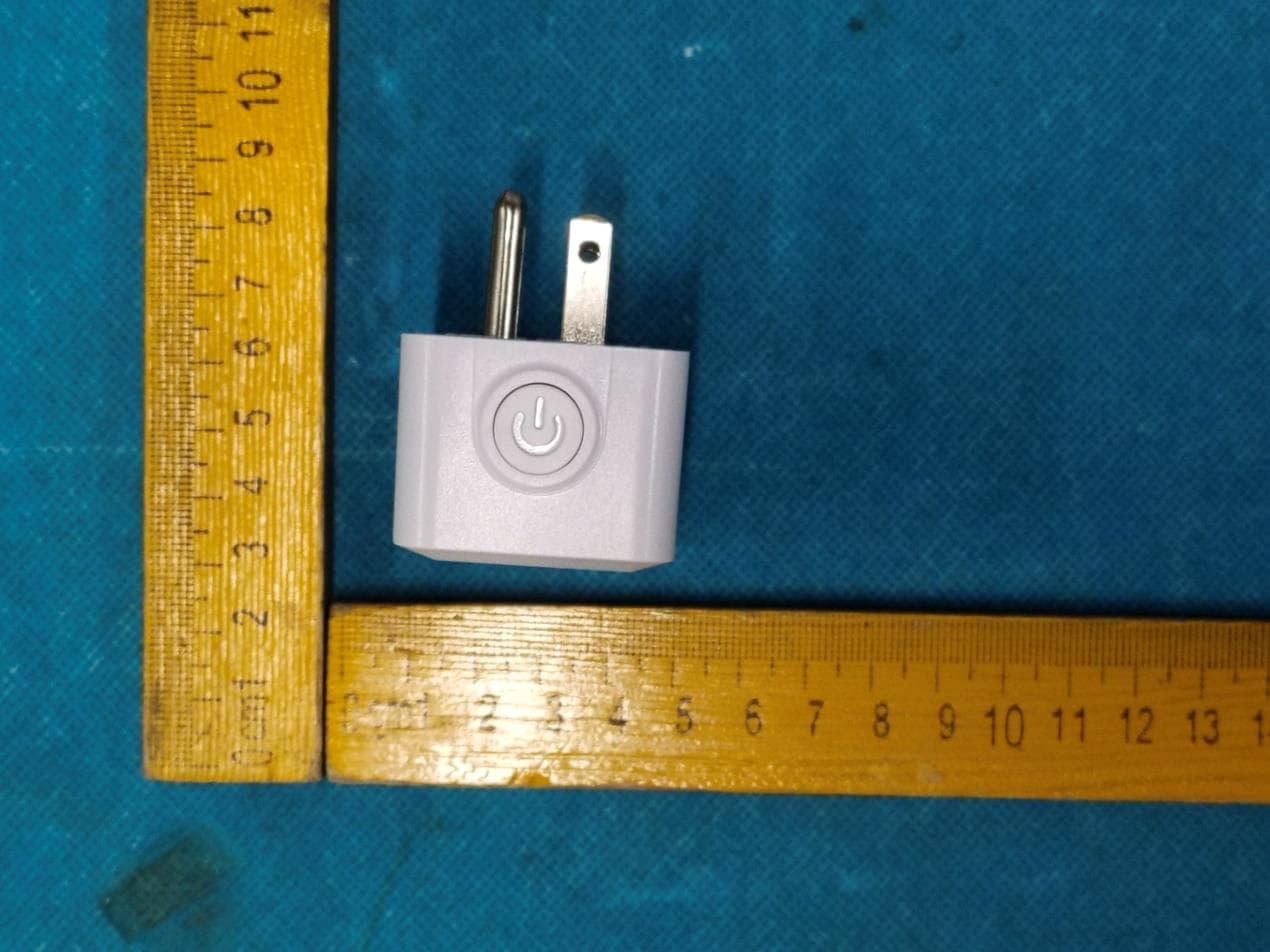

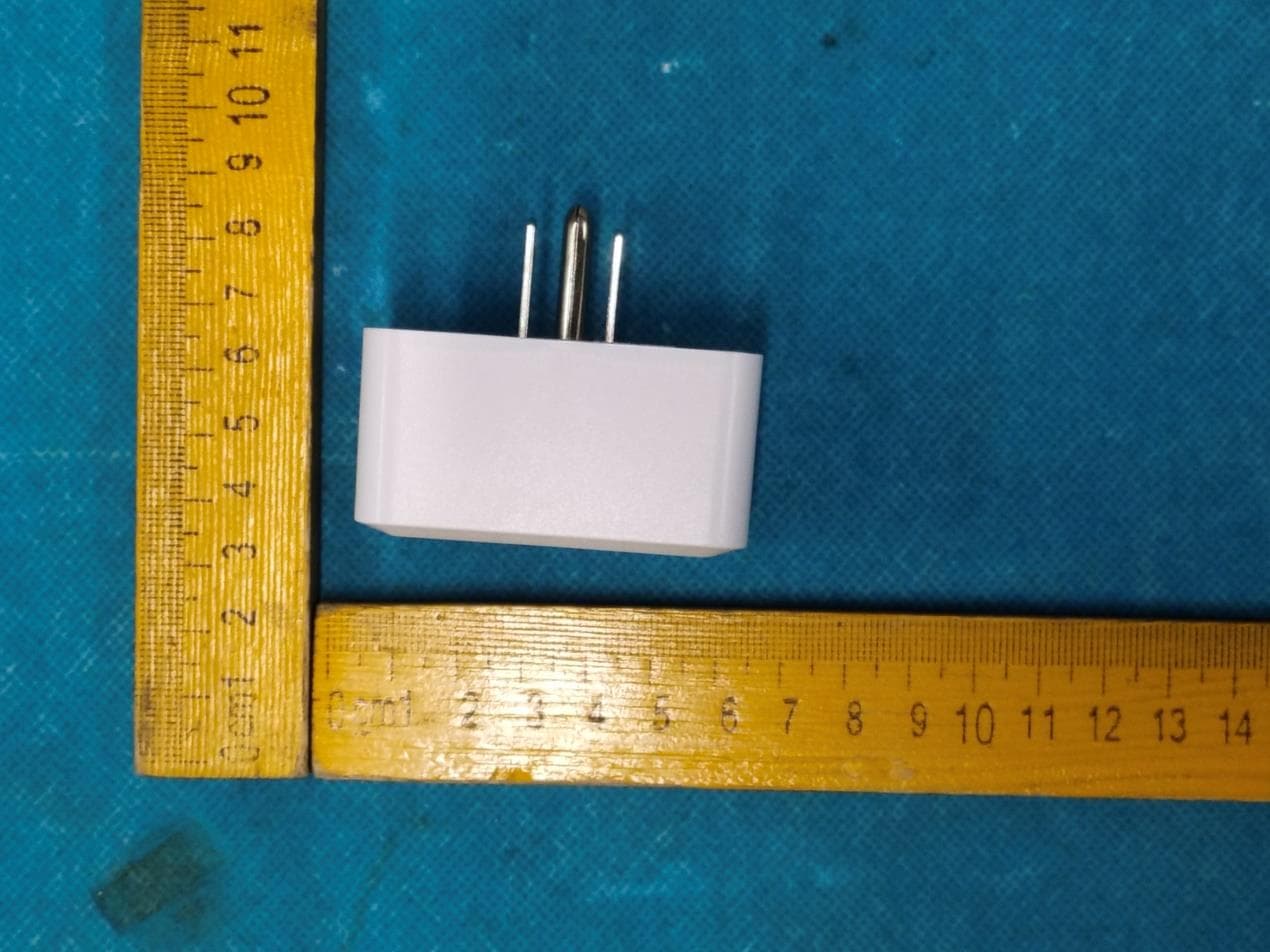

2AQUQGE50329ASmart Plug 50329

NO HUB REQUIRED SANS BORNE REQUISE Smart Plug Prise Intelligente 160x212x50mm CMYK+PANTONE 7540 C

WLAN/Bluetooth ANT

FCC ID: 2AQUQGE50329A RF Exposure Evaluation Limit The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1310 & 2.1091 Table 1-Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz Evaluation Method Transmission formula: P d = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm Conducted Power Results & Manufacturing tolerance Specification Operating Mode Conducted Peak Output Power (dBm) Target (dBm) Tolerance ±(dB) 2.4GWIFI 802.11b 16.15 15.5 1 802.11g 15.37 14.5 1 802.11n(HT20) 15.46 14.5 1 802.11n(HT40) 14.26 13.5 1 BLE GFSK 13.66 13 1 FCC ID: 2AQUQGE50329A Evaluation Results Spec. Operating Mode Antenna Distance (cm) Conducted Output Power Gain of antenna in linear scale Power Density (mW /cm 2 ) Limit (mW /cm 2 ) Result dBm mW 2.4GWIFI 802.11b 20 16.5 44.67 1.00 0.009 1 PASS 802.11g 20 15.5 35.48 1.00 0.007 1 PASS 802.11n(HT20) 20 15.5 35.48 1.00 0.007 1 PASS 802.11n(HT40) 20 14.5 28.18 1.00 0.006 1 PASS BLE GFSK 20 14 25.12 1.00 0.005 1 PASS Remark: 1. Output power including tune up tolerance; 2. The maximum 2.4G antenna gain is 0dBi 3. The exposure safety distance is 20cm. Simulation Transmission EUT can only work in 2.4GWIFI+BLE mode The formula of calculated the Simulation Transmission MPE is: CPD1/LPD1+CPD2/LPD2+......etc.＜1 CPD=Calculation Maximum Power Denisty Mode Calculate Limit Result 2.4GWIFI+BLE mode 0.014 1 Pass Conclusion The measurement results comply with the FCC Limit per 47 CFR 1.1310 & 2.1091 for the uncontrolled RF Exposure and MPE complicance per KDB 447498 v06.

RF Test Report For Globe Electric Company Inc. Test Standards: Part 15C Subpart C §15.247 RSS 247 Issue 2 Product Name: Smart Plug Tested Model: 50329* Brand Name: Globe FCC ID: 2AQUQGE50329A IC: 8290A-GE50329A Classification (DTS) Digital Transmission System Report No.: EC2108006RF01 Tested Date: 2021-08-09 to 2021-08-17 Issued Date: 2021-08-17 Prepared By: Jack Liu / Engineer Approved By: Tiny Yang / RF Manager Hunan Ecloud Testing Technology Co., Ltd. Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Liuyang Economic and Technological Development Zone, Hunan, P.R.C Tel.: +86-731-89634887 Fax.: +86-731-89634887 www.hn-ecloud.com Note: The test results in this report apply exclusively to the tested model / sample. Without written approval of Hunan Ecloud Testing Technology Co., Ltd., the test report shall not be reproduced except in full. Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 2 of 170 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2021.08.17 Valid Original Report Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 3 of 170 TABLE OF CONTENTS 1 TEST LABORATORY ................................................................................................................................. 5 1.1 Test facility ......................................................................................................................................... 5 2 GENERAL DESCRIPTION .......................................................................................................................... 6 2.1 Applicant ............................................................................................................................................ 6 2.2 Manufacturer ...................................................................................................................................... 6 2.3 General Description Of EUT .............................................................................................................. 6 2.4 Modification of EUT ........................................................................................................................... 7 2.5 Applicable Standards ......................................................................................................................... 7 3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 3.1 Descriptions of Test Mode ................................................................................................................. 8 3.2 Test Mode .......................................................................................................................................... 8 3.3 Support Equipment ............................................................................................................................ 9 3.4 Test Setup ....................................................................................................................................... 10 3.5 Measurement Results Explanation Example ................................................................................... 13 4 TEST RESULT .......................................................................................................................................... 14 4.1 DTS and Occupied Channel Bandwidth Measurement ................................................................... 14 4.2 Maximum Conducted Output Power Measurement ........................................................................ 15 4.3 Maximum Power Spectral Density Measurement ........................................................................... 16 4.4 Band Edges and Spurious Emission Measurement ........................................................................ 17 4.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 18 4.6 AC Conducted Emission Measurement......................................................................................... 102 4.7 Antenna Requirements .................................................................................................................. 105 5 LIST OF MEASURING EQUIPMENT ...................................................................................................... 106 6 UNCERTAINTY OF EVALUATION ......................................................................................................... 108 Appendix A: DTS Bandwidth ................................................................................................................ 109 Appendix B: Occupied Channel Bandwidth ....................................................................................... 116 Appendix C: Maximum conducted output power & E.I.R.P. ............................................................. 123 Appendix D: Duty Cycle ........................................................................................................................ 130 Appendix E: Maximum power spectral density .................................................................................. 137 Appendix F: Band edge measurements .............................................................................................. 144 Appendix G: Conducted Spurious Emission ..................................................................................... 149 Appendix H: Setup Photographs ......................................................................................................... 169 Report N…

Text truncated - open the document above for the full version.

Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 121 of 170 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 122 of 170 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 123 of 170 Appendix C: Maximum conducted output power & E.I.R.P. Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Antenna Gain(dBi) EIRP [dBm] EIRP Limit[dBm] Verdict 11B Ant1 2412 16.15 <=30 0 16.15 36.02 PASS 2437 15.86 <=30 0 15.86 36.02 PASS 2462 15.58 <=30 0 15.58 36.02 PASS 11G Ant1 2412 15.37 <=30 0 15.37 36.02 PASS 2437 15.04 <=30 0 15.04 36.02 PASS 2462 14.88 <=30 0 14.88 36.02 PASS 11N20SISO Ant1 2412 15.46 <=30 0 15.46 36.02 PASS 2437 15.21 <=30 0 15.21 36.02 PASS 2462 14.69 <=30 0 14.69 36.02 PASS 11N40SISO Ant1 2422 14.26 <=30 0 14.26 36.02 PASS 2437 13.74 <=30 0 13.74 36.02 PASS 2452 13.38 <=30 0 13.38 36.02 PASS Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 124 of 170 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 125 of 170 11B_Ant1_2462 11G_Ant1_2412 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 126 of 170 11G_Ant1_2437 11G_Ant1_2462 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 127 of 170 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 128 of 170 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 129 of 170 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 130 of 170 Appendix D: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 8.38 8.47 98.94 2437 8.38 8.47 98.94 2462 8.38 8.47 98.94 11G Ant1 2412 1.39 1.41 98.58 2437 1.39 1.41 98.58 2462 1.39 1.41 98.58 11N20SISO Ant1 2412 1.30 1.32 98.48 2437 1.30 1.32 98.48 2462 1.30 1.32 98.48 11N40SISO Ant1 2422 0.64 0.66 96.97 2437 0.65 0.66 98.48 2452 0.65 0.66 98.48 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 131 of 170 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 132 of 170 11B_Ant1_2462 11G_Ant1_2412 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 133 of 170 11G_Ant1_2437 11G_Ant1_2462 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 134 of 170 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 135 of 170 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 136 of 170 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Li…

Text truncated - open the document above for the full version.

Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 156 of 170 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 157 of 170 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 158 of 170 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 159 of 170 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 160 of 170 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 161 of 170 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 162 of 170 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 163 of 170 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 164 of 170 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 165 of 170 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 166 of 170 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 167 of 170 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 168 of 170 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500

RF Test Report For Globe Electric Company Inc. Test Standards: Part 15C Subpart C §15.247 IC RSS-247 Issue 2 Product Name: Smart Plug Tested Model: 50329* Brand Name: Globe FCC ID: 2AQUQGE50329A IC: 8290A-GE50329A Classification (DTS) Digital Transmission System Report No.: EC2108006RF02 Tested Date: 2021-08-09 to 2021-08-17 Issued Date: 2021-08-17 Prepared By: Jack Liu / Engineer Approved By: Tiny Yang / RF Manager Hunan Ecloud Testing Technology Co., Ltd. Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Liuyang Economic and Technological Development Zone, Hunan, P.R.C Tel.: +86-731-89634887 Fax.: +86-731-89634887 www.hn-ecloud.com Note: The test results in this report apply exclusively to the tested model / sample. Without written approval of Hunan Ecloud Testing Technology Co., Ltd., the test report shall not be reproduced except in full. Report No.: EC2108006RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 2 of 69 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2021.08.17 Valid Original Report Report No.: EC2108006RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 3 of 69 TABLE OF CONTENTS 1. TEST LABORATORY ................................................................................................................................. 5 1.1 Test facility ......................................................................................................................................... 5 2. GENERAL DESCRIPTION .......................................................................................................................... 6 2.1 Applicant ............................................................................................................................................ 6 2.2 Manufacturer ...................................................................................................................................... 6 2.3 General Description Of EUT .............................................................................................................. 6 2.4 Modification of EUT ........................................................................................................................... 7 2.5 Applicable Standards ......................................................................................................................... 7 3. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 3.1 Descriptions of Test Mode ................................................................................................................. 8 3.2 Test Mode .......................................................................................................................................... 8 3.3 Support Equipment ............................................................................................................................ 9 3.4 Test Setup ......................................................................................................................................... 9 3.5 Measurement Results Explanation Example ................................................................................... 12 4. TEST RESULT .......................................................................................................................................... 13 4.1 6dB and 99% Bandwidth Measurement .......................................................................................... 13 4.2 Peak Output Power Measurement .................................................................................................. 14 4.3 Power Spectral Density Measurement ............................................................................................ 15 4.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 16 4.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 17 4.6 AC Conducted Emission Measurement........................................................................................... 41 4.7 Antenna Requirements .................................................................................................................... 44 5. LIST OF MEASURING EQUIPMENT ........................................................................................................ 45 6. UNCERTAINTY OF EVALUATION ........................................................................................................... 47 APPENDIX A: DTS BANDWIDTH ................................................................................................................... 48 APPENDIX B: OCCUPIED CHANNEL BANDWIDTH .................................................................................... 51 APPENDIX C: MAXIMUM CONDUCTED OUTPUT POWER & E.I.R.P. ........................................................ 54 APPENDIX D: MAXIMUM POWER SPECTRAL DENSITY ............................................................................ 57 APPENDIX E: BAND EDGE MEASUREMENTS ............................................................................................ 60 APPENDIX F: CONDUCTED SPURIOUS EMISSION .................................................................................... 62 APPENDIX G: SETUP PHOTOGRAPHS ........................................................................................................ 68 Report No.: EC2108006RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Deve…

Text truncated - open the document above for the full version.

Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 169 of 170 Appendix H: Setup Photographs Fig. 1 Radiated emission setup photo(Below 30MHz) Fig. 2 Radiated emission setup photo(30MHz-1GHz) Report No.: EC2108006RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AQUQGE50329A IC : 8290A-GE50329A www.hn-ecloud.com Page 170 of 170 Fig. 3 Radiated emission setup photo(Above 1GHz) Fig. 4 Power line conducted emission setup photo --------------------------------------------------------End of the report--------------------------------------------------------
