2AQUQGE50367Smart Light Switch

Smart User Guide SMART SWITCH INTENDED USE 50367 SPECIFICATION FEATURES SAVE THESE INSTRUCTIONS • This switch can be installed in applications without a neutral wire present • Replace existing on/off switches and make them smart • Manually or remotely control your switch with the Globe Suite™ app • Pair with voice assistants to control your switch through voice commands• Set schedules and control your switch from anywhere • This product is intended to be used as a wall switch to control incandescent and LED light bulbs as part of Wire to wire connection120Vac / 60Hz9 watt or higher performance bulbs required<1 second Bluetooth Low EnergyBLE only for pairing phone and device Neutral wire is not required WiringRated input voltageBulb requirementMaximum LoadStandby PowerStart up TimeWireless control Module Thank you for selecting Globe as your smart home solution. With proper care, this product will provide years of pleasure and enjoyment. This Smart Switch is warranted to last 1 year f rom the date of purchase. If it fails before that time, we will replace it. Send Globe Electric the Smart Switch, proof of purchase and register receipt along with your complete name and address. See caution text for proper use . This warranty is void if this product is misused in any way. This replacement is the sole remedy available and liability for inciden tal or consequential damage is expressly excluded. For use only in 120V/60HZ circuits. Risk of electrical shock. Do not open, no user-serviceable parts inside. This device is not intended for use situation is undesirable for the application, follow the manufactur er’s instructions for replacing the device. Minimum operatin g temperature is 0°C (32°F).The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be inst alled and operated with minimum distance 20cm between the radiator and your body. CAUTION: This product comes with a 1 year product warranty effective from the date of purchase. If the failure of this product is cause d by defects in the material or workmanship, it will be repaired or replaced at no charge to you. You must supply a copy of your dat ed cash register receipt when you request warranty service. Return the product with your cash receipt as proof of purchase prepaid to Globe Elec tric Company Inc. Globe reserves the right to repair or replace the product at its option. Repair or replacement, as described above, shall be the sole remedy to the customer and there shall be no liability on the part of Globe for any special, indirect, incidental or consequential dam ages, including but safety instructions will void the warranty. Most electrical accidents are caused by carelessness or ignorance. If you combine a basic knowledge of electricity, a healthy respect for it, and a dose of common sense, you can safely tackle many household electrical repairs. Here are some basic guidelines for working with electricity: • Before working on a circuit, go to the main service panel and remove the fuse or trip the breaker that controls that circuit. Tape a sign to the panel warning others to leave the circuit alone while you work. • Before touching any wire, use a voltage tester to make sure it’s not live. Whenever you check for voltage in a receptacle, check both outlets—each may be controlled by a separate wiring circuit. • To protect children, place safety covers over any unused outlets. • Always work with enough light to see what you are doing; it’s easy to make mistakes when you’re working in dim light. Since 1932, Globe has taken pride in offering products of the highest quality, and a level of service unparalleled in the industry. feedback, you may contact us in the following ways:Toll Free Telephone: 1-888-543-1388 (North America Only) / Toll Free Fax: 1-800-668-4562 (North America Only)E-Mail: [email protected]: Globe Electric Customer Service Department150 Oneida, Montreal, Quebec, Canada H9R 1A8Please visit our website to discover other quality Globe products: http://www.globe-electric.com Manual Switch Switch type Single pole     !"#  $ %#  #   & LED Indicator Light Wi-Fi Suite™ This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operat ion.
Please                             authority to operate the equipment. This Class B digital apparatus complies with CAN ICES-005(B). WARNING:                        authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digi tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference i n a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordanc e with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: R eorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outle t on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV t…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Globe Electric Company Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07/07/2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AQUQGE50367 [Globe Electric Company Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Company name: Globe Electric Company Inc. Address: 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Name: Celine Zhu Phone: +86-755-25192522 Email: [email protected]

Rev 1/26/2023 Globe Electric Company Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07/07/2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AQUQGE50367 [Globe Electric Company Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Company name: Globe Electric Company Inc. Address: 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Name: Celine Zhu Phone: +86-755-25192522 Email: [email protected]

Rev 1/26/2023 Globe Electric Company Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07/05/2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AQUQGE50367 [Globe Electric Company Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, [Globe Electric] is our designated U.S. agent for service of process for the above referenced FCC ID. [Globe Electric Company Inc.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [Globe Electric] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Globe Electric FRN: 0033436957 Address: 2264 East 6th Street, San Bernardino, CA 92410, United States Contact Person: Celine Zhu Email: [email protected] Sincerely, Company: Globe Electric Company Inc. Designated Agent: Globe Electric Contact Name: Celine Zhu Designated Agent Representative: Celine Zhu Signature: Signature:

Rev 11/20/07 Globe Electric Company Inc. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AQUQGE50367 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description) (Block Diagram.pdf, Schematics.pdf, Operational Description.pdf”) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for 180 days from grant date: Exhibit Type File Name (External Photos, Internal Photos, Test Setup Photos, Manual) (External Photos.pdf, Internal Photos.pdf, Test Setup Photos.pdf, User Manual.pdf) Sincerely, Printed name: Celine Zhu

C:\Users\39640\Desktop\123456\回签文件\回签文件\POA_Letter.docx Globe Electric Company Inc. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-07-07 SUBJECT: FCC Application for FCC ID: 2AQUQGE50367 To Whom It May Concern: We, the undersigned, hereby authorize _ Damon Hu _ at _ Dongguan Dongdian Testing Service Co.,Ltd. _ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by _ Dongguan Dongdian Testing Service Co.,Ltd. _ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Name: Celine Zhu Title: Senior Project Manager

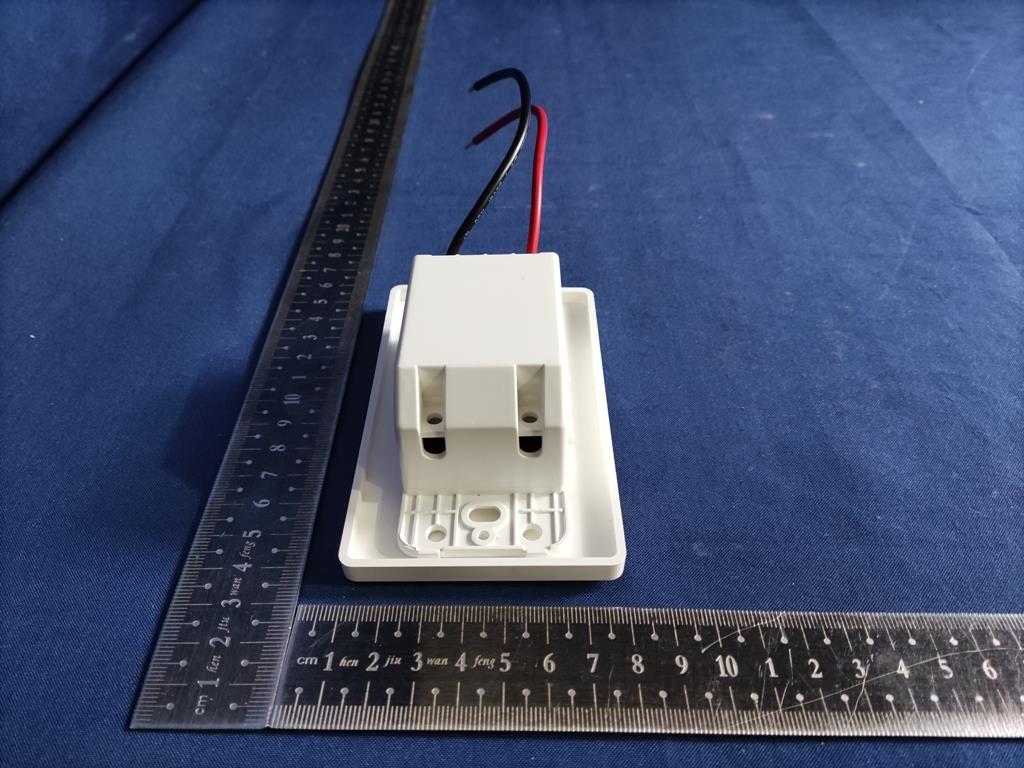

Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 1 of 8 AppendixI: Photos of the EUT Product Name : Smart Light Switch Model Number : 50367 Label Location Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 2 of 8 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 3 of 8

FCC ID:2AQUQGE50367 Lout Lin Label location

Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 4 of 8 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 5 of 8 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 6 of 8 Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 7 of 8 BT/ WiFi Antenna Dongguan Dongdian Testing Service Co., Ltd. Case No.: DDT-Q23062503 Page 8 of 8 END

Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23062503-2E03 TRF No.: KDB447498 D01 Ver.1.0 Page 1 of 7 RF EXPOSURE REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Equipment under Test : Smart Light Switch Model No. : 50367 Trade Mark : Globe FCC ID : 2AQUQGE50367 Manufacturer : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Report No.: DDT-RE23062503-2E03 Issued Date: Jun. 26, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23062503-2E03 TRF No.: KDB447498 D01 Ver.1.0 Page 2 of 7 Table of Contents Test report declares.......................................................................................................3 1. General Information ....................................................................................................... 5 1.1. Description of equipment ............................................................................................... 5 1.2. Assess laboratory ........................................................................................................... 5 2. RF Exposure Evaluation ................................................................................................ 6 2.1. Requirement ................................................................................................................... 6 2.2. Calculation method ........................................................................................................ 6 2.3. Estimation result ............................................................................................................. 7 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23062503-2E03 TRF No.: KDB447498 D01 Ver.1.0 Page 3 of 7 Test Report Declare Standard Used: KDB447498 D01 General RF Exposure Guidance v06 We Declare: The equipment described above is assessed by Dongguan Dongdian Testing Service Co., Ltd. and in the configuration assessed the equipment complied with the standards specified above. The assessed results are contained in this report and Dongguan Dongdian Testing Service Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these assess. After evaluation, our opinion is that the equipment In Accordance with above standard. Report No: DDT-RE23062503-2E03 Date of Receipt: Mar. 09, 2023 Date of Test: Mar. 09, 2023 ~ Apr. 20, 2023 Prepared By: Approved By: ____________________ ______________________ Bobo Chen/Engineer Damon Hu/EMC Manager Note: This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Dongguan Dongdian Testing Service Co., Ltd. Applicant : Globe Electric Company Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES Equipment under Test : Smart Light Switch Model No. : 50367 Trade mark : harman/kardon Manufacturer : Globe Electric Company Inc. Address : 8500 Balboa Boulevard, Northridge, CA 91329, UNITED STATES E S T T I N N A I G D S G E N R O V D I C E N A C U O G . , G L N T O D D . Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23062503-2E03 TRF No.: KDB447498 D01 Ver.1.0 Page 4 of 7 Revision History Rev. Revisions Issue Date Revised By --- Initial issue Jun. 26, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23062503-2E03 TRF No.: KDB447498 D01 Ver.1.0 Page 5 of 7 1. General Information 1.1. Description of equipment EUT* Name : Smart Light Switch Model Number : 50367 EUT function description : Please reference user manual of this device Power Supply : AC 120V/60Hz Radio Specification : Bluetooth V5.0 IEEE 802.11b/g/n/ax Operation Frequency : Bluetooth: 2402 MHz - 2480 MHz IEEE 802.11b: 2412MHz-2462MHz IEEE 802.11g: 2412MHz-2462MHz IEEE 802.11n HT20: 2412MHz-2462MHz IEEE 802.11n HT40: 2422MHz-2452MHz IEEE 802.11ax HE20: 2412MHz-2462MHz Modulation : Bluetooth: GFSK, /4-DQPSK, 8DPSK IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n HT20, HT40: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ax HE20: OFDM (64QAM, 16QAM, QPSK, BPSK) Data Rate : Bluetooth: 1 Mbps, 2 Mbps, 3 Mbps IEEE 802.11b: up to 11 Mbps IEEE 802.11g: up to 54 Mbps IEEE 802.11n HT20: up to 72.2 Mbps IEEE 802.11n HT40: up to 150 Mbps IEEE 802.11ax HE20: up to 86 Mbps Antenna Gain : PCB antenna, maximum PK gain:1.26 dBi Sample Type : Series production Sample Number : S23030729-02 for conductive S23030729-03 for radiation 1.2. Assess laboratory Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808. Tel.: +86-0769-38826678, http://www.dgddt.com, Email: [email protected]. CNAS Accreditation No. L6451; A2LA Accreditation Number: 3870.01 FCC Designation Number: CN1182, Test Firm Registration Number: 540522 Innovation, Science and Economic Development Canada Site Registration Number: 10288A Conformity Assessment Body identifier: CN0048 VCCI facility registration number: C-20087, T-20088, R-20123, R-20155, G-20118 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-RE23062503-2E03 TRF No.: KDB447498 D01 Ver.1.0 Page 6 of 7 2. RF Exposure Evaluation 2.1. Requirement Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Po…

Text truncated - open the document above for the full version.

AntennaSpecification Manufacture：TUYA ProductName：AXYUAntenna AntennaType：PCB TestDate：2021.11.02 Testedby：CaiQuan Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto......................................................................................7 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameAXYUAntenna Productmodel AXYU AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestSoftwarePassiveTest SoftwareVersionV2.7.0 TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 24000.4538.55 24100.6640.18 24200.8241.69 24300.9742.95 24401.0944.36 24501.1744.77 24601.2244.67 24701.2644.77 24801.244.26 24901.1842.95 25000.6338.11 4 3.2RadiationPattern Phi02D Phi902D Theta902D 5 2400MHz3D 2450MHz3D 2500MHz3D 6 4.AntennaDimensions 7 5.Test Setup Photo

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23062503-2E01 TRF No.: FCC Part 15C BLE Ver.1.0 Page 1 of 70 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Equipment under Test : Smart Light Switch Model No. : 50367 Trade Mark : Globe FCC ID : 2AQUQGE50367 Manufacturer : Globe Electric Company Inc. Address : 150 Oneida, Montreal, Quebec, Canada, H9R 1A8 Report No.:DDT-RE23062503-2E01 Issued Date: Jun. 26, 2023 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23062503-2E01 TRF No.: FCC Part 15C BLE Ver.1.0 Page 2 of 70 Table of Contents Test report declares.......................................................................................................4 1. Summary of Test Results ............................................................................................... 6 2. General Test Information ............................................................................................... 7 2.1. Description of EUT ......................................................................................................... 7 2.2. Accessories of EUT ........................................................................................................ 7 2.3. Assistant equipment used for test .................................................................................. 7 2.4. Block diagram of EUT configuration for test .................................................................. 8 2.5. Test environment conditions .......................................................................................... 8 2.6. Deviations of test standard............................................................................................. 8 2.7. Test laboratory ............................................................................................................... 8 2.8. Measurement uncertainty ............................................................................................... 9 3. Equipment Used During Test ....................................................................................... 10 4. 6 dB Bandwidth ............................................................................................................ 12 4.1. Block diagram of test setup .......................................................................................... 12 4.2. Limits ............................................................................................................................ 12 4.3. Test procedure ............................................................................................................. 12 4.4. Test result ..................................................................................................................... 12 4.5. Test graphs .................................................................................................................. 13 5. Maximum Peak Output Power ..................................................................................... 15 5.1. Block diagram of test setup .......................................................................................... 15 5.2. Limits ............................................................................................................................ 15 5.3. Test procedure ............................................................................................................. 15 5.4. Test result peak ............................................................................................................ 15 5.5. Test graphs peak.......................................................................................................... 16 6. Power Spectral Density ................................................................................................ 18 6.1. Block diagram of test setup .......................................................................................... 18 6.2. Limits ............................................................................................................................ 18 6.3. Test procedure ............................................................................................................. 18 6.4. Test result ..................................................................................................................... 18 6.5. Test graphs .................................................................................................................. 19 7. Band Edge Compliance (Conducted Method) ............................................................. 21 7.1. Block diagram of test setup .......................................................................................... 21 7.2. Limits ............................................................................................................................ 21 7.3. Test procedure ............................................................................................................. 21 7.4. Test result ..................................................................................................................... 21 7.5. Test graphs .................................................................................................................. 22 8. RF Conducted Spurious Emissions ............................................................................. 24 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23062503-2E01 TRF No.: FCC Part 15C BLE Ver.1.0 Page 3 of 70 8.1. Block diagram of test setup .......................................................................................... 24 8.2. Limits .............................................…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23062503-2E01 TRF No.: FCC Part 15C BLE Ver.1.0 Page 35 of 70 10. Radiated Emission 10.1. Block diagram of test setup In 3 m Anechoic Chamber, test setup diagram for 9 kHz - 30 MHz: In 3 m Anechoic Chamber, test setup diagram for 30 MHz - 1 GHz: Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23062503-2E01 TRF No.: FCC Part 15C BLE Ver.1.0 Page 36 of 70 In 3 m Anechoic Chamber, test setup diagram for frequency above 1 GHz: Note: For harmonic emissions test an appropriate high pass filter was inserted in the input port of AMP. 10.2. Limit (1) FCC 15.205 Restricted frequency band MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 1 0.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.1772&4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.2072&4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 108-121.94 1718.8-1722.2 13.25-13.4 6.31175-6.31225 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 ( 2 ) 13.36-13.41 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23062503-2E01 TRF No.: FCC Part 15C BLE Ver.1.0 Page 37 of 70 (2) FCC 15.209 Limit FREQUENCY MHz DISTANCE Meters FIELD STRENGTHS LIMIT V/m dB(V)/m 0.009 ~ 0.490 300 2400/F(kHz) 67.6-20log(F) 0.490 ~ 1.705 30 24000/F(kHz) 87.6-20log(F) 1.705 ~ 30.0 30 30 29.54 30 ~ 88 3 100 40.0 88 ~ 216 3 150 43.5 216 ~ 960 3 200 46.0 960 ~ 1000 3 500 54.0 Above 1000 3 74.0 dB(V)/m (Peak) 54.0 dB(V)/m (Average) Note: (1) The emission limits shown in the above table are based on measurements employing a CISPR QP detector except for the frequency bands 9 - 90 kHz, 110 - 490 kHz and above 1000 MHz. Radiated emissions limits in these three bands are based on measurements employing an average detector. (2) At frequencies below 30 MHz, measurement may be performed at a distance closer than that specified, and the limit at closer measurement distance can be extrapolated by below formula: Limit 3m (dBuV/m) = Limit 30m (dBuV/m) + 40Log(30m/3m) (3) Limit for this EUT The emissions appearing within 15.205 restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions shall be at least 20 dB below the fundamental emissions or comply with 15.209 limits. 10.3. Test Procedure (1) EUT was placed on a non-metallic table, 80 cm above the ground plane inside a semi- anechoic chamber for below 1 G and 150 cm above the ground plane inside a semi-anechoic chamber for above 1 G. (2) Test antenna was located 3 m from the EUT on an adjustable mast, and the antenna used as below table. Test frequency range Test antenna used Test antenna distance 9 kHz - 30 MHz Active Loop antenna 3 m 30 MHz - 1 GHz Trilog Broadband Antenna 3 m 1 GHz - 18 GHz Double Ridged Horn Antenna (1 GHz - 18 GHz) 3 m 18 GHz - 40 GHz Horn Antenna (18 GHz - 40 GHz) 1 m According ANSI C63.10:2013 clause 6.4.6 and 6.5.3, for measurements below 30 MHz, Antenna was located 3 m from EUT, the loop antenna was positioned in three antenna orientations (parallel, perpendicular, and round-parallel), for each measurement antenna alignment, the EUT Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-RE23062503-2E01 TRF No.: FCC Part 15C BLE Ver.1.0 Page 38 of 70 shall be rotated through 0°to 360°on a turntable, and the lowest height of the magnetic antenna shall be 1 m above the ground. For measurement above 30 MHz, the Trilog Broadband Antenna or Horn Antenna was located 3 m from EUT,…

Text truncated - open the document above for the full version.
