2AQUQGE50586Smart Switch

Globe Electric Company Inc.
Smart Switch - FCC ID 2AQUQGE50586 - Globe Electric Company Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 12, 2022
Application Purpose
Original Equipment
Date of Application
Jun 09, 2022
Equipment Note
Smart Switch
Frequency Range
2402.00000000 - 2480.00000000
Company
Globe Electric Company Inc.
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Smart User Guide ON/OFF SWITCH ON/OFF SWITCH INTENDED USE 50586 SPECIFICATION FEATURES SAVE THESE INSTRUCTIONS • Replace existing on/off or dimmer switches and make them smart • Manually or remotely control your wall switch with the Amazon Alexa app • Pair with Amazon echo to control your switch through voice commands • Set schedules and control your switch from anywhere • This product is intended to be used as a wall switch to control incandescent and Led light bulbs as part of permanent fixtures. It is intended to replace a standard switch receptacle. It can be connected and controlled through a WI-FI connection with the Amazon Alexa app or other external Alexa built-in devices. • Intended for household use only • Intended to be used in dry indoor areas only Switch type Single pole + 3-Way 120Vac / 60Hz Wiring Maximum Load Standby Power Start up Time Wireless Control Module Status Indicator On/Off switch Main unit <0.5W <1 second Wi-Fi 2.4GHz, IEEE 802.11 b/g/n Bluetooth Low Energy Does not support 5GHz networks, BLE only for pairing the phone and device Rated input voltage 108-132Vac Incandescent: 600W max. LED: 150W max. Input Voltage Range Wire to wire connection Neutral wire is required Thank you for selecting Globe as your smart home solution. With proper care, this product will provide years of pleasure and enjoyment. Step-by-step Product Instruction Video Scan with your mobile device This Smart Switch is warranted to last 1 year f rom the date of purchase. If it fails before that time, we will replace it. Send Globe Electric the Smart Switch, proof of purchase and register receipt along with your complete name and address. See caution text for proper use. This warranty is void if this product is misused in any way. This replacement is the sole remedy available and liability for incidental or consequential damage is expressly excluded. For use only in 120V/60HZ circuits. Risk of electrical shock. Do not open, no user-serviceable parts inside. This device is not intended for use with emergency exit fixtures or emergency exit lights, photocells and electronic timers. Do not use where directly exposed to water. If this situation is undesirable for the application, follow the manufacturer’s instructions for replacing the device. Minimum operating temperature is -20°C (-4°F). This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator & your body. User Manual Notice for LicenseExempt Radio Apparatus This device complies with Industry Canada licenseexempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-005 (B). Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. FCC Responsible party Globe Electric 15301 Shoemaker Ave, Norwalk, CA 90650 www.globe-electric.com ON/OFF SWITCH Most electrical accidents are caused by carelessness or ignorance. If you combine a basic knowledge of electricity, a healthy respect for it, and a dose of common sense, you can safely tackle many household electrical repairs. Here are some basic guidelines for working with electricity: • Before working on a circuit, go to the main service panel and remove the fuse or trip the breaker that controls that circuit. Tape a sign to the panel warning others to leave the circuit alone while you work. • Before touching any wire, use a voltage tester to make sure it’s not live. Whenever you check for voltage in a receptacle, check both outlets—each may be controlled by a separate wiring circuit. • To protect children, place safety covers over any unused outlets. • Always work with enough light to see what you are doing; it’s easy to make mistakes when you’re working in dim light. Before assembling your smart switch fixture, TURN OFF THE POWER and consult a qualified licensed electrician. STATUS INDICATOR & CONTROLSPRE-INSTALLATION 50586 INSTALLATION Planning Installation Compare all parts with the “Hardware Included” section. If any part appears missing or damaged, do not install this product and contact the Customer Service team at 1-888-543-1388 or e-mail to [email protected]. Tools Required flat head screwdriver phillips head screwdriver pliers electrical tester Hardware Included NOTE: Hardware is not shown to actual size. Status Indicator Light On/Off Buttons Green Blinking Ready for setup/ Setup is in progress Light is off Light is on Factory reset is complete Device registered and connected No Network Setup has timed out Turn the light on/off Factory reset Enter pairing mode Amber Indicator is off Red blinking Solid Red Short press power button (<1s) Press and hold power button (>10s) Red and Green blinking alternately Solid Green for 3 seconds WARNING:Improper wiring of …

Text truncated - open the document above for the full version.

Cover Letter(s)

2022.5.16 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,Iappoint BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd./BuildingC,No.107, ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China (NameofAgentcompanynameandaddress)toactasouragentinthepreparationofthis applicationforequipmentcertification.Icertifythatsubmitteddocumentsproperlydescribe thedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythateach unitmanufactured,importedormarketed,asdefinedintheFederalCommunications Commission’sregulationswillhaveaffixedtoitalabelidenticaltothatsubmittedfor approvalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonour behalf,Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditions forcertification,stillresideswith GlobeElectricCompanyInc./150Oneida,Montreal,Quebec, Canada,H9R1A8(ApplicantNameandaddress) <Signature> Name:Celine Title:SeniorProjectManager Company:GlobeElectricCompanyInc.

Cover Letter(s)

2022.5.16 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AQUQGE50586 Product Name: Smart Switch Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature Name:Celine Zhu Title:Senior Project Manager Company:Globe Electric Company Inc

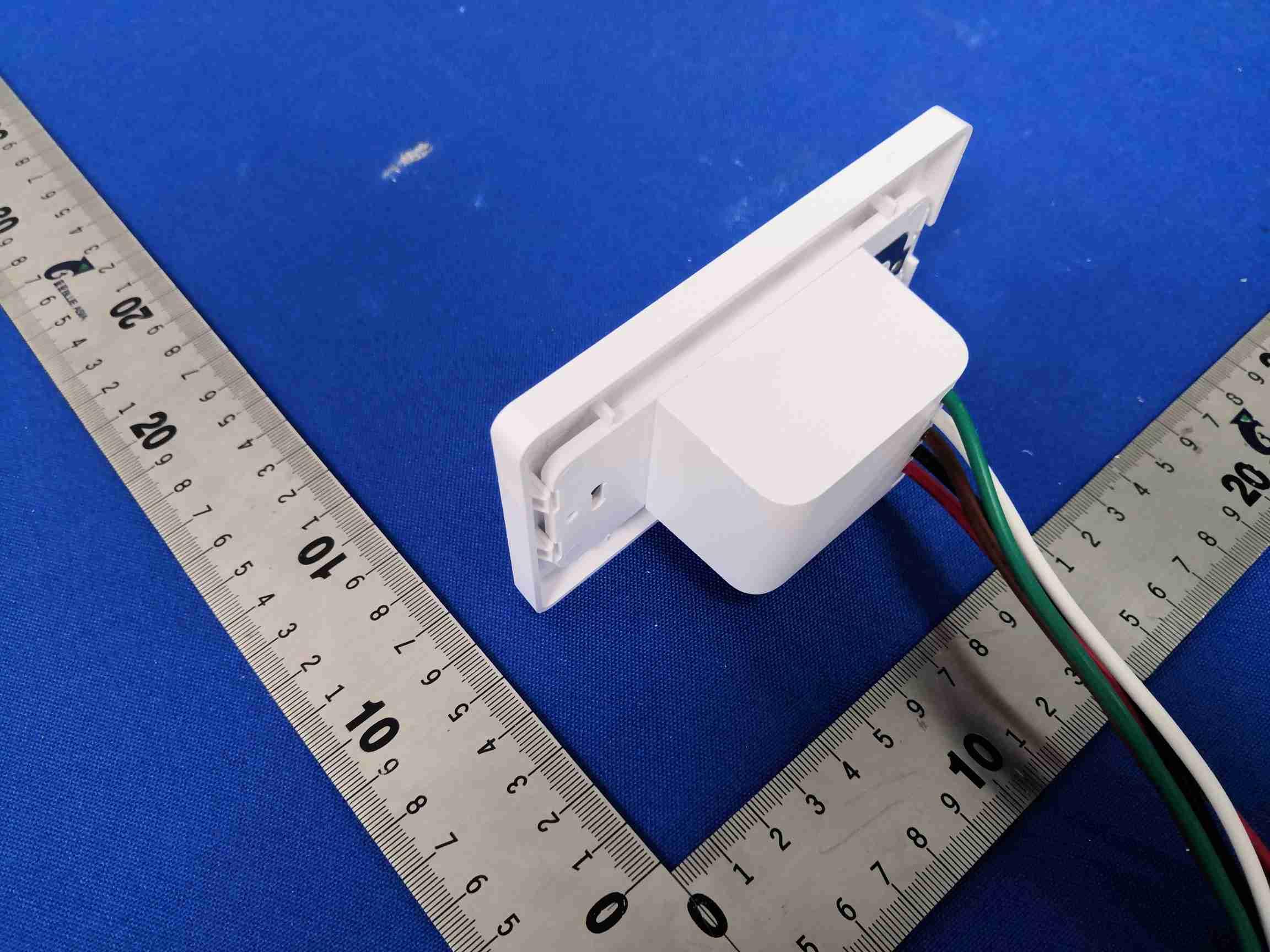

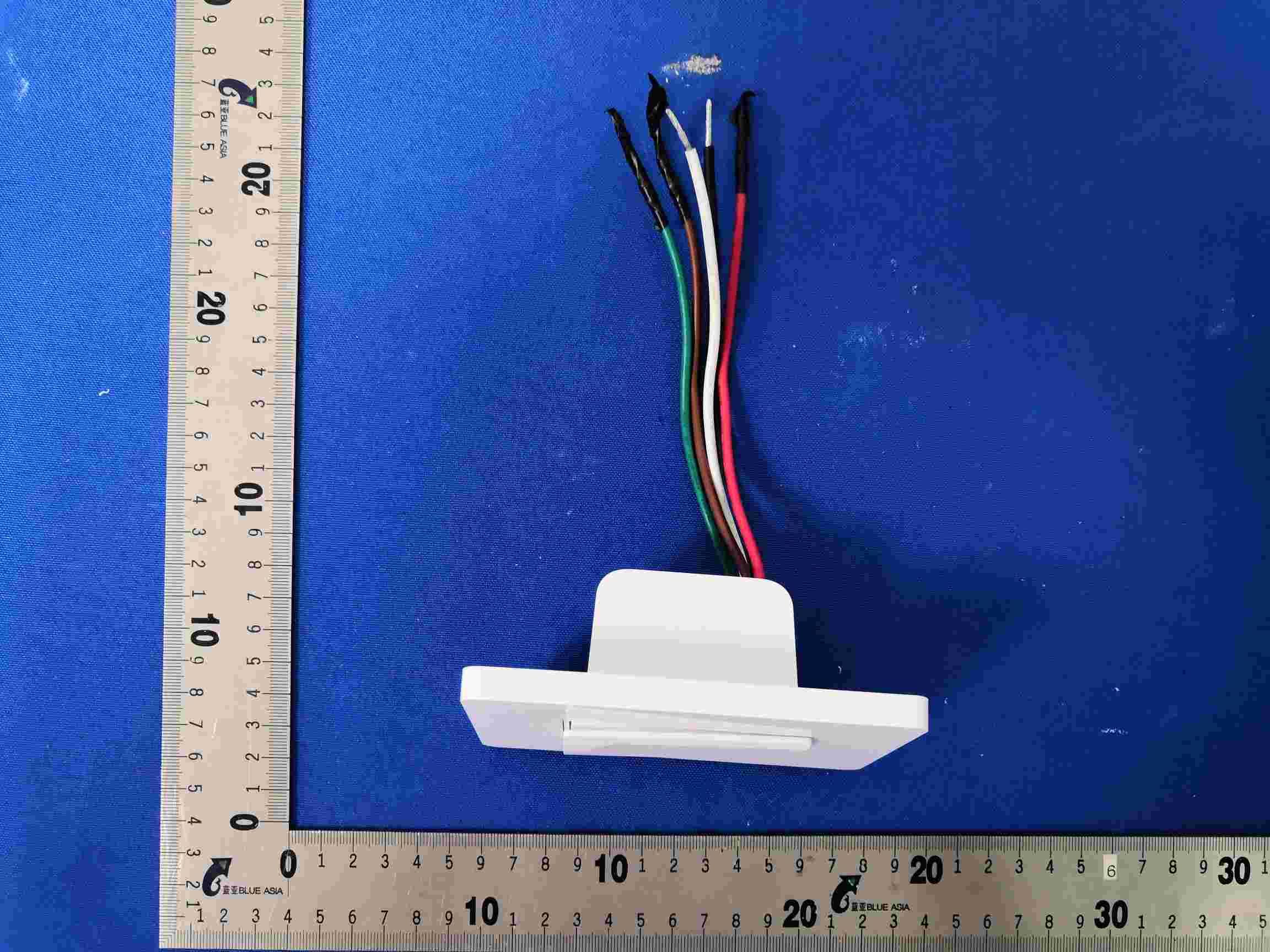

External Photos

ProductName: SmartSwitch

ID Label/Location Info

2022-02-16 邹福英 2022-02-16 廖万军 2022-02-16 李常青 WS23CDXA0 JXY7.074.321Y02 38 mm XXXXX-XXXXXXXXXXX ENTMMYY 38.3 2AQUQGE50586 50586 ENT为INNOTECH工厂代码 MM为生产月份 YY为生产年份 XXXXX-X XXXXX-X XXXXXXX

Internal Photos

ProductName: SmartSwitch

RF Exposure Info

Page 1 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: SmartSwitch BrandMark: Globe ModelNo.: 50586 FCCID: 2AQUQGE50586 ReportNumber: BLA-EMC-202205-A2103 DateofSampleReceipt: 2022/5/11 DateofTest: 2022/5/11to2022/6/1 DateofIssue: 2022/6/1 TestStandard: 47CFRPart1.1307,Part1.1310 TestResult:Pass Preparedfor: GlobeElectricCompanyInc. 150Oneida,Montreal,Quebec,Canada,H9R1A8 Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2022/6/1 ReportNo.:BLA-EMC-202205-A2103 Page 2 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002022/6/1Original ReportNo.:BLA-EMC-202205-A2103 Page 3 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................4 2GENERALINFORMATION.........................................................................................................................5 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................5 4LABORATORYLOCATION.........................................................................................................................6 5RFEXPOSURECOMPLIANCEREQUIREMENT......................................................................................7 5.1LIMITS........................................................................................................................................................................7 5.2TESTPROCEDURE..........................................................................................................................................................7 5.3EUTRFEXPOSUREEVALUATION.....................................................................................................................................8 ReportNo.:BLA-EMC-202205-A2103 Page 4 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 1TESTSUMMARY TestitemTestRequirementTestMethodClass/SeverityResult RFExposure 47CFRPart1.1307, Part1.1310 CFR47Part 1.1310 CFR47Part1.1310PASS ReportNo.:BLA-EMC-202205-A2103 Page 5 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 2GENERALINFORMATION ApplicantGlobeElectricCompanyInc. Address150Oneida,Montreal,Quebec,Canada,H9R1A8 ManufacturerGlobeElectricCompanyInc. Address150Oneida,Montreal,Quebec,Canada,H9R1A8 FactoryGlobeElectricCompanyInc. Address150Oneida,Montreal,Quebec,Canada,H9R1A8 ProductNameSmartSwitch TestModelNo.50586 3GENERALDESCRIPTIONOFE.U.T. HardwareVersionV1.4 SoftwareVersion35668225 LE OperationFrequency:2402MHz-2480MHz ModulationType:GFSK ChannelSpacing:2MHz NumberofChannels:40 AntennaType:PCBAntenna AntennaGain:3.96dBi(Providedbytheapplicant) WIFI OperationFrequency: 802.11b/g/n(HT20):2412MHzto2462MHz 802.11n(HT40):2422MHzto2452MHz ModulationType: 802.11b:DSSS(CCK,DQPSK,DBPSK) 802.11g/n:OFDM(64QAM,16QAM,QPSK,BPSK) ChannelSpacing:5MHz NumberofChannels: 802.11b/g/n(HT20):11 802.11n(HT40):7 AntennaType:PCBAntenna AntennaGain:3.96dBi(Providedbytheapplicant) ReportNo.:BLA-EMC-202205-A2103 Page 6 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 4LABORATORYLOCATION Alltestswereperformedat: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince, China Telephone:TEL:+86-755-28682673FAX:+86-755-28682673 Notestsweresub-contracted. ReportNo.:BLA-EMC-202205-A2103 Page 7 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 5RFEXPOSURECOMPLIANCEREQUIREMENT 5.1LIMITS AccordingtoFCCPart1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF)radiationas specifiedinpart1.1307(b) F=FrequencyinMHz FriisFormula Friistransmissionformula:Pd=(Pout*G)/(4*Pi*R2) Where Pd=powerdensityinmW/cm2 Pout=outputpowertoantennainmW G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaandthe totalpowerinputtotheantenna,throughthecalculation,wewillknowthedistancer wheretheMPElimitisreached. 5.2TESTPROCEDURE SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. ReportNo.:BLA-EMC-202205-A2103 Page 8 of 8 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 5.3EUTRFEXPOSUREEVALUATION AntennaGain:3.96dBi AntennaGain:ThemaximumGainmeasuredinfullyanechoicchamberis2.489inlinear scale. OutputPowerIntoAntenna&RFExposureEvaluationDistance: BLE2M Channel Frequency (MHz) MaxConducted PeakOutput Power(dBm) OutputPower toAntenna (mW) PowerDensity atR=20cm (mW/cm 2 ) LimitResult middle24420.804 1.2030.000596 1.0PASS 2.4GWIFI Channel Frequency (MHz) MaxConducted PeakOutput Power(dBm) OutputPower toAntenna (mW) PowerDensity atR=20cm (mW/cm 2 ) LimitResult Highest246214.879 30.7540.01523 1.0PASS Note:RefertoreportNo.BLA-EMC-202205-A2101/02forEUTtestMaxConductedPeakOutputPowervalue. Thedistancer(4thcolumn)calculatedfromtheFriestransmissionformulaisfargreaterthan 20cmseparationRequirement ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)shownin…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 78 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: SmartSwitch BrandMark: Globe ModelNo.: 50586 FCCID: 2AQUQGE50586 ReportNumber: BLA-EMC-202205-A2101 DateofSampleReceipt: 2022/5/11 DateofTest: 2022/5/11to2022/6/1 DateofIssue: 2022/6/1 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: GlobeElectricCompanyInc. 150Oneida,Montreal,Quebec,Canada,H9R1A8 Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2022/6/1 ReportNo.:BLA-EMC-202205-A2101 Page 2 of 78 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002022/6/1Original ReportNo.:BLA-EMC-202205-A2101 Page 3 of 78 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................7 5TESTMODE................................................................................................................................................7 6MEASUREMENTUNCERTAINTY..............................................................................................................7 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................8 8LABORATORYLOCATION.........................................................................................................................8 9TESTINSTRUMENTSLIST........................................................................................................................9 10CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ).....................................................12 10.1LIMITS................................................................................................................................................................12 10.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................12 10.3PROCEDURE.......................................................................................................................................................12 10.4TESTDATA...........................................................................................................................................................14 11CONDUCTEDBANDEDGESMEASUREMENT.....................................................................................16 11.1LIMITS................................................................................................................................................................16 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................16 11.3TESTDATA...........................................................................................................................................................17 12RADIATEDSPURIOUSEMISSIONS........................................................................................................18 12.1LIMITS................................................................................................................................................................18 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................19 12.3PROCEDURE.......................................................................................................................................................19 12.4TESTDATA...........................................................................................................................................................21 13RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................29 13.1LIMITS................................................................................................................................................................29 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................30 13.3PROCEDURE.......................................................................................................................................................30 13.4TESTDATA...........................................................................................................................................................32 14CONDUCTEDSPURIOUSEMISSIONS...................................................................................................36 14.1LIMITS................................................................................................................................................................36 ReportNo.:BLA-EMC-202205-A2101 Page 4 of 78 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 14.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................36 14.3TESTDAT…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 95 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: SmartSwitch BrandMark: Globe ModelNo.: 50586 FCCID: 2AQUQGE50586 ReportNumber: BLA-EMC-202205-A2102 DateofSampleReceipt: 2022/5/11 DateofTest: 2022/5/11to2022/6/1 DateofIssue: 2022/6/1 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: GlobeElectricCompanyInc. 150Oneida,Montreal,Quebec,Canada,H9R1A8 Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2022/6/1 ReportNo.:BLA-EMC-202205-A2102 Page 2 of 95 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002022/6/1Original ReportNo.:BLA-EMC-202205-A2102 Page 3 of 95 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................7 5TESTMODE................................................................................................................................................7 6MEASUREMENTUNCERTAINTY..............................................................................................................7 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................8 8LABORATORYLOCATION.........................................................................................................................8 9TESTINSTRUMENTSLIST........................................................................................................................9 10POWERSPECTRUMDENSITY...............................................................................................................12 10.1LIMITS................................................................................................................................................................12 10.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................12 10.3TESTDATA...........................................................................................................................................................12 11CONDUCTEDPEAKOUTPUTPOWER..................................................................................................13 11.1LIMITS................................................................................................................................................................13 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................13 11.3TESTDATA...........................................................................................................................................................14 12CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ).....................................................15 12.1LIMITS................................................................................................................................................................15 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................15 12.3PROCEDURE.......................................................................................................................................................15 12.4TESTDATA...........................................................................................................................................................17 13ANTENNAREQUIREMENT......................................................................................................................19 13.1CONCLUSION.........................................................................................................................................................19 14RADIATEDSPURIOUSEMISSIONS........................................................................................................20 14.1LIMITS................................................................................................................................................................20 14.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................21 14.3PROCEDURE.......................................................................................................................................................21 14.4TESTDATA...........................................................................................................................................................23 ReportNo.:BLA-EMC-202205-A2102 Page 4 of 95 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................31 15.1LIMITS................................................................................................................................................................31 1…

Text truncated - open the document above for the full version.

Test Setup Photos

ProductName: SmartSwitch ConductedEmissionsatACPowerLine(150kHz-30MHz) RadiatedSpuriousEmissions

Contact Information

Applicant

Celine Zhu(Senior Project Manager)
[email protected]+86-755-25192522Fax: 755 8225 7770

Test Firm

BlueAsia of Technical Services (Shenzhen)Blue Zheng
[email protected]+86 755-23059481-815

Technical Specifications

#Rule PartsFrequency RangePower Output
315C2.40 GHz - 2.48 GHz1.20 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode.The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
