2AQVT-KH-2100Self-Service Kiosk

SPECIFICATION Version 1.0 2023/09 Smart Self-Ordering Kiosk About this Document No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, magnetic, optical, chemical, manual, or otherwise), without prior written permission from Xiamen Maken Technology Co., Ltd. Information in this document is subject to change without notice. Maken reserves the right to modify this publication and make changes in the content from time to time without obligation to notify any person of such modifications or changes. For CE (EU) This equipment complies with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Warning： This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Precautions: Follow all warnings, precautions, and maintenance recommendations in this manual to extend product life. Do's： Turn off the product before cleaning. Use a soft cloth with mild neutral detergent to clean the outer casing. Use only high-quality, safety-approved AC/DC adapters. Unplug the power cord from the AC outlet if the product will not be used for a long time. Don'ts： Do not use abrasive cleaners, waxes, or solvents. Important Safety Instructions！ WARNING! – To prevent fire or shock hazard, do not expose this product to rain or moisture. WARNING! – Do not open or disassemble this product, as it may cause electric shock. Do not use the product under the following conditions: Extremely hot, cold, or humid environments. Areas with excessive dust or dirt. Near appliances that generate strong magnetic fields. Contents Chapter 1 1.1 Overview 1.2 Features 1.3 Specifications 1.4 System Block Diagram 1.5 Interface Description 1.6 Accessory Kit Chapter 2 2.1 VESA Mounting 2.1.1Display Installation 2.2 Operation Instructions Chapter 1 Product Introduction 1.1 Overview Smart Self-Ordering Kiosk, suitable for interactive self-ordering, payment, and other applications. 1.2 Features VESA mounting holes for various installation options High resolution FHD（1920x1080） Optional Windows or Android systems with flexible configurations to meet different customer requirements 1.3 Specifications Touch Screen Touch Type Projected Capacitive Touch Touch Points 10-point Response Time 10ms Display Type TFT-LCD Size 21.5 inch Resolution 1920x1080 Aspect Ratio 16:9 Brightness 500cd/m2 Contrast Ratio 1000:1 Response Time 14ms Viewing Angle H178º V178º Display Colors 16.7M Refresh Rate 60Hz Lifetime 30,000 hours host OS WIN10（trial version） Android 11 CPU Intel Celeron J6412 Rockchip RK3568 RAM 4G/8G 2G/4G Storage 128G/256G(SSD) 16G/32G/64G Speaker 5W*2 5W*2 I/O Ports USB*4/RJ45*1 USB*2/RJ45*1 Scanner HF521 HF521 Network Ethernet /WIFI Ethernet /WIFI Power Voltage 100-240VAC,50/60HZ Power Consumption 60W Enclosure Material SPCC Surface Finish Powder coated Color Black (customized) Dimensions Overall size 649.4mm*387.4mm*56mm Net Weight 8.5kg Package 729mm*144mm*536mm Gross Weight 11.5kg Environment Application Indoor Operating Temp. 0～40°C Storage Temp. -20～60°C Operating Humidity 20%～80% Storage Humidity 10%～90% 1.4 System Block Diagram The block diagram below shows the various electronic systems. 1.5 Interface Description 1.5.1Product Interface Interface layouts may vary depending on the mainboard version (Windows vs. Android, or different configurations). 1.Windows 6412 Power Adapter PC Mainboard 21.5-inch Touch Screen 21.5-inch LCD Panel Speaker Scanner Metal Button 2.Android 3568 1.5.2 Interface Details No. Windows Android 1 Power On Power On 2 DC IN DC IN 3 COM USB 4 HDMI OUT USB 5 USB*2 TF card 6 USB*2 HDMI IN 7 RJ45 RJ45 8 SPK SPK 9 Antenna Reset 10 Antenna 1.6 Accessory Kit Overview Product Power Adapter Certificate of Conformity Power Cord User Manual M3 Torx Wrench Card Reader Kit (Optional 1) M4*8 Phillips Pan Head-Optional Screw A upper column A lower column Large Base M6 Flat Washer Card Reader Kit (Optional 2) Screw M4*8 Phillips Countersunk Head-Optional Screw- Optional Screw M6 Spring Washer M6 Cheese Head Screw S5 L-shaped Wrench S4 L-shaped Wrench ST2.9*9.5 Self-Tapping Screw M6 Countersunk Head Screw Double-Sided Tape M4*8 Phillips Screw User Manual Chapter 2 Product Installation 2.1 VESA Mounting This product complies with the VESA Flat Display Mounting Interface Standard. The VESA mount is located on the rear of the device and corresponds to the bracket’s mounting plate. Mounting Holes on the Back of the Touch All-in-One 2.1.1Display Installation Note: Install or remove the product only when it is powered off. Warning! The distance between the rear cover surface and the bottom of the screw hole is 12–14 mm.Use M4 screws of appropriate length to mount the display. IMPORTANT: The mounting bracket must be capable of supporting at least 10 kg (15 kg recommended). 注意：安装支架必须能够支持至少33磅（15.0公斤） Step 1: Attach the mounting plate to the corresponding holes on the rear of the display using four cross- head screws, matching the orientation shown. Step 2: Hang the display (with plate attached) onto the bracket’s locking slots. Step 3: Tighten both sides using the hand screws. 2.3 Operation Instructions Instructions for power on/off, brightness adjustment, and volume control are provided. For other operations, follow the same procedures as a standard computer system. 2.3.1 Power On/Off 1、配送电源适配器， 2、适配器DC插头 3、适配器电源线再 电源线接入适配器 插入到机器DC插口 插入AC电源插座处 4、按下主机启动开关，启动后主机会发出一声 5、关机：如图点击 图标 “滴”的声音，表示主机已经通电开机，等待 从系统中把主机电源关闭，待 主机系统启动即可。请保证机器屏幕没有任何 设备关机后即可拔除电源线， 遮挡物，因机器触摸屏是通过非透明物质感应 请勿直接拔掉电源线，突然断 的，如有遮挡物会出现干扰触摸效果。 电。容易造成机器零部件坏。 Mounting plate Display 1、Power adapter is included. Connect the power cord to the adapter. 2、Insert the DC plug of the adapter into the DC jack of the unit. 3、Then plug the adapter power cord into the AC outlet. 4、Press the power button to start the unit. After startup, the unit will e…

Text truncated - open the document above for the full version.

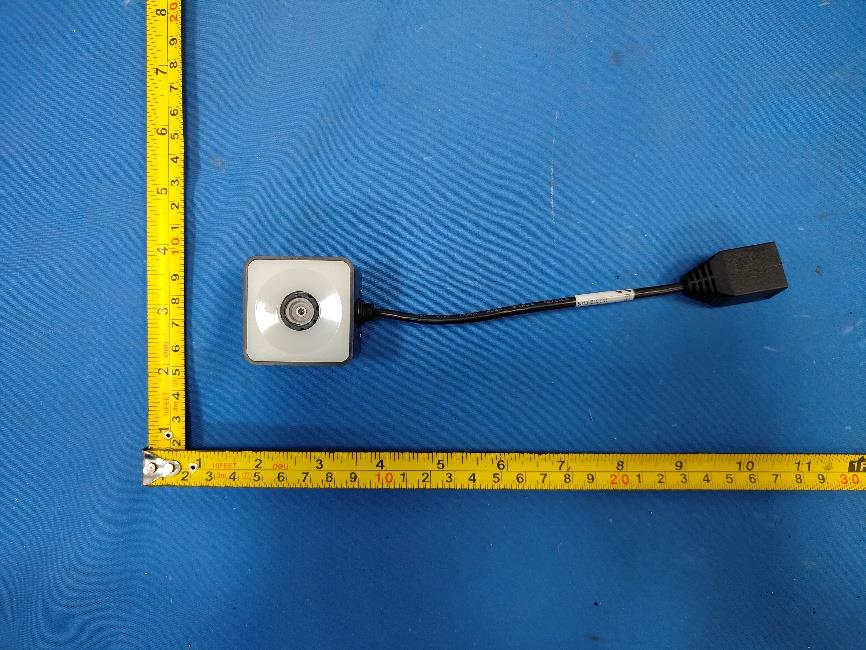

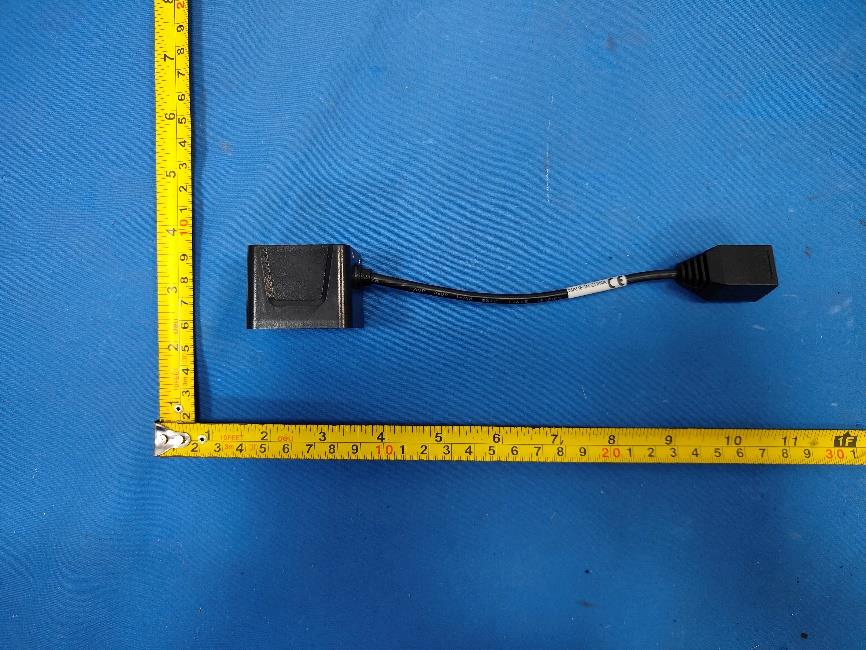

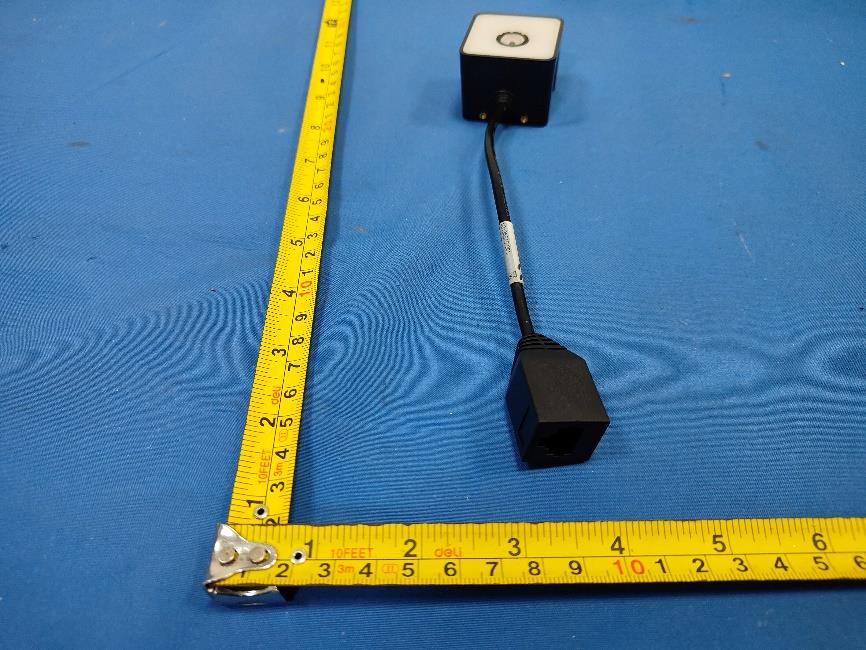

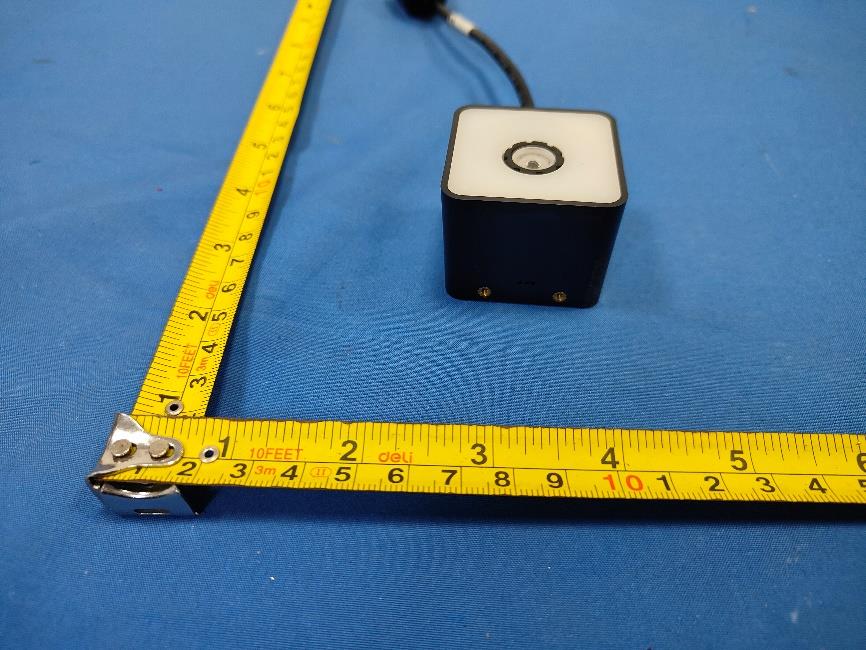

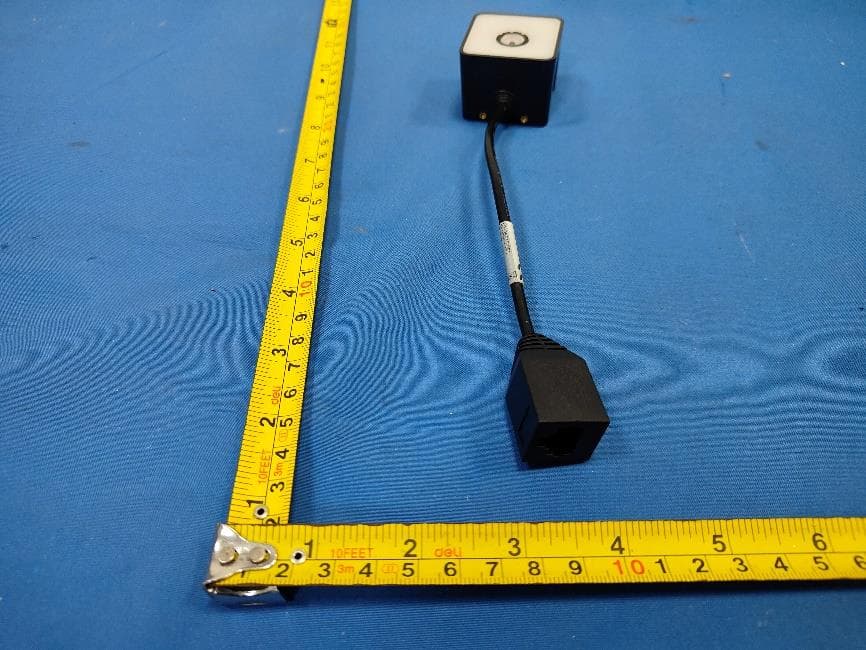

FCC ID: 2AQVT-KH-2100 External Photos of the EUT FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2AQVT-KH-2100

FCC ID: 2AQVT-KH-2100 Internal Photos of the EUT FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100 FCC ID: 2AQVT-KH-2100

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26042301102 2AQVT-KH-2100 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 26, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Xiamen maken technology co., LTD. Address............................................ : Room 1502, No.295 Bincheng Road, Huli District, Xiamen, Fujian xiamen, Fujian, 361006 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Self-Service Kiosk Trade Mark ....................................... : Maken Manufacturer .................................... : Xiamen maken technology co., LTD. Model/Type reference ...................... : KH-2100 Listed Models ................................... : KH-1500, KH-2110, KH-3220, KH-2730, KH-2710, KH-2700, KP- 2400, KR-1900, KR-1910, KR-2100, KR-2700, KR-2400, KR-2410, KS-2100, KS-2110, TC-2100, TC-2300, TC-2700, TC-3200 Rating ............................................... : Input: 12V5.0A Result ............................................... : PASS Report No.: CTA26042301102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Self-Service Kiosk Model /Type : KH-2100 Listed Models : KH-1500, KH-2110, KH-3220, KH-2730, KH-2710, KH-2700, KP-2400, KR-1900, KR-1910, KR-2100, KR-2700, KR-2400, KR-2410, KS-2100, KS-2110, TC-2100, TC-2300, TC-2700, TC-3200 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Xiamen maken technology co., LTD. Address : Room 1502, No.295 Bincheng Road, Huli District, Xiamen, Fujian xiamen, Fujian, 361006 China Manufacturer : Xiamen maken technology co., LTD. Address : Room 1502, No.295 Bincheng Road, Huli District, Xiamen, Fujian xiamen, Fujian, 361006 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042301102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneo…

Text truncated - open the document above for the full version.

第1页 产品规格书 PRODUCT SPECIFICATION Customer: Customer’s part number: Product description: 2.4G Terminal Antenna Uni Link’s part number: AH-2.4G-3DB-BT Issue Date: 2012-11-9 Note: 2400-2500MHZ,SMA, 一、目录 1、产品技术指标（PRODUCT TECHNICAL SPECIFICATION） 电性能指标Electrical S pecifications 频率范围Frequency Range (MHz) 2400-2500 频带宽度Bandwidth (MHz) 100 输入阻抗Input Impendence (Ω) 50 电压驻波比V.S.W.R ≤1.5 增益Gain (dBi) 3 极化形式Polarization Type 垂直Vertical 功率容量Power Capacity (w) 50 机械指标Mechanical Specifications 天线长度Antenna Length (mm) 105mm Xiamen maken technology co., LTD. 第2页 辐射体Radiator 铜Cuprum 连接器型号Connect Type SMA-Male 工作温度Working Temp(°C) -40~85 外壳颜色Radome Color 黑色Black 重量Weight (g) 15g 产品简介 该天线是专为无线上网卡设计生产的，天线具有外形美观，结构小巧， 安装方便的优点。 2、产品图片（PRODUCT PICTURE） 4、电气特性(ELECTRIC APPLIANCE CHARACTERISTICS) 项目ITEM 测试环境TEST CONDITION 规格SPECIFICATION 1 返回损耗 Return Loss 使用Agilent网络分析仪8753ET测量天线 S11之返回损耗参数 Using Agilent Network Analyzer 8753ET to Measure Antenna S11 Return Loss Characteristics. 0.01 2 电压驻波比 VSWR 使用Agilent网络分析仪8753ET测量天线 S11之电压驻波比参数 Using Agilent Network Analyzer 8753ET to Measure Antenna S11 VSWR Characteristics. ≤1.5 第3页 3 阻抗 Smith chart 使用Agilent网络分析仪8753ET测量天线 S11之史密斯阻抗参数 Using Agilent Network Analyzer 8753ET to Measure Antenna S11 Gain Response Characteristics. 50（Ω） 4 增益效应 Gain response 使用Agilent网络分析仪8753ET测量天线 S21之史密斯阻抗参数 Using Agilent Network Analyzer 8753ET to Measure Antenna S21 Gain Response Characteristics. 3DB 5、机械性能（MECHANICAL CHARACTERISTICS） 1 摇摆测试 BENDING TEST 放离接头30CM的线端上荷重120g，固 定接头后进行遥摆测试，遥摆角度左右各 60度， 遥摆1000次后测试特性. 遥摆1000次后测试 特性无任何现象显 示电器性能之损坏. 2 强度测试 STRENG TEST 一个15磅之静负荷施加放线端底部持续 一分钟. 无任何现象显示机 械及电器性能之损 坏. 第4页 3 拉力测试 PULLING FORCE 用拉力计接头及线材间进行拉力测试. 可承受拉力为7Kg 无任何现象显示电 器性能之损坏. 4 振动测试 VIBRATION TEST 以1.10mm和振幅和33.30Hz/sec振动频率 以X轴方向振动120分钟，Y轴方向振动 120分钟，Z轴方向振动240分钟. 无任何现象显示电 器性能之损坏. 6、耐久性测试（DURABILITY） 1 盐雾试验 SAIT SPRAY TEST 盐水喷雾试验：依GB1266-86标准 蒸馏水：一次蒸馏 PH6.5~7 喷雾量：1.4me80cm²/h 压缩空气压力：1Kgf/ cm² 试验相对度：98° 温度：45°~47° 压力温度：35° 测试时间：96hr 所有规格变化范 围初始值30% All characteristic range is 30% of 2 高温试验 HEAT TEST 在85+2°C环境中放96小时，再放在正常环 境中30分钟后进行测试 85+2°C for 96 hours, after keep in normal condition for 30mim the to test. 第5页 3 湿度试验 HUMIDITY TEST 在40+2°C 90-95%RH环境中放96小时， 再放在正常环境中30分钟后进行测试 40+2°C 90-95%RH for 96hours, after keep in normal condition for 30mim the to test. the initial value 无任何现象 显示电器性能之 损坏. 4 低温试验 COLD TEST 在-40+2°C 环境中放96小时，再置放正常 环境中30分钟后进行测试 -40+2°C for 96hours, after keep in normal condition for 30mim the to test. 7、驻波图（STATIONARY WAVE PATTERN） 第6页 8.产品规格图 Manufacturer: Xiamen maken technology co., LTD. Address: Room 1502, No.295 Bincheng Road, Huli District, Xiamen, Fujian xiamen, Fujian, 361006 China

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26042301101 2AQVT-KH-2100 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 26, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Xiamen maken technology co., LTD. Address ............................................ : Room 1502, No.295 Bincheng Road, Huli District, Xiamen, Fujian xiamen, Fujian, 361006 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Self-Service Kiosk Trade Mark ....................................... : Maken Manufacturer .................................... : Xiamen maken technology co., LTD. Model/Type reference ...................... : KH-2100 Listed Models ................................... : KH-1500, KH-2110, KH-3220, KH-2730, KH-2710, KH-2700, KP-2400, KR-1900, KR-1910, KR-2100, KR-2700, KR-2400, KR-2410, KS-2100, KS-2110, TC-2100, TC-2300, TC-2700, TC-3200 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 12V5.0A Result ............................................... : PASS Report No.: CTA26042301101 Page 2 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Self-Service Kiosk Model /Type : KH-2100 Listed Models : KH-1500, KH-2110, KH-3220, KH-2730, KH-2710, KH-2700, KP-2400, KR-1900, KR-1910, KR-2100, KR-2700, KR-2400, KR-2410, KS-2100, KS-2110, TC-2100, TC-2300, TC-2700, TC-3200 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Xiamen maken technology co., LTD. Address : Room 1502, No.295 Bincheng Road, Huli District, Xiamen, Fujian xiamen, Fujian, 361006 China Manufacturer : Xiamen maken technology co., LTD. Address : Room 1502, No.295 Bincheng Road, Huli District, Xiamen, Fujian xiamen, Fujian, 361006 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26042301101 Page 3 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT .....................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: CTA26042301101 Page 41 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042301101 Page 42 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042301101 Page 43 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042301101 Page 44 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042301101 Page 45 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042301101 Page 46 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26042301101 Page 47 of 47 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AQVT-KH-2100 Company : Xiamen maken technology co., LTD. EUT : Self-Service Kiosk Model Number : KH-2100 Report No. : CTA26042301101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.800 2404.120 2419.920 0.5 PASS 2437 15.880 2429.040 2444.920 0.5 PASS 2462 15.760 2454.080 2469.840 0.5 PASS 11N20SISO Ant1 2412 16.960 2403.640 2420.600 0.5 PASS 2437 16.160 2429.080 2445.240 0.5 PASS 2462 16.680 2453.720 2470.400 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.397 2405.3241 2418.7211 --- --- 2437 13.401 2430.3180 2443.7190 --- --- 2462 13.422 2455.3028 2468.7248 --- --- 11G Ant1 2412 16.857 2403.6030 2420.4600 --- --- 2437 16.812 2428.6412 2445.4532 --- --- 2462 16.817 2453.6319 2470.4489 --- --- 11N20SISO Ant1 2412 17.883 2403.0906 2420.9736 --- --- 2437 17.900 2428.0528 2445.9528 --- --- 2462 17.921 2453.0691 2470.9901 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.43 ≤30.00 PASS 2437 13.62 ≤30.00 PASS 2462 13.72 ≤30.00 PASS 11G Ant1 2412 14.16 ≤30.00 PASS 2437 14.29 ≤30.00 PASS 2462 14.36 ≤30.00 PASS 11N20SISO Ant1 2412 13.97 ≤30.00 PASS 2437 14.08 ≤30.00 PASS 2462 14.20 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.64 ≤8.00 PASS 2437 -12.48 ≤8.00 PASS 2462 -12.49 ≤8.00 PASS 11G Ant1 2412 -17.24 ≤8.00 PASS 2437 -17.71 ≤8.00 PASS 2462 -17.54 ≤8.00 PASS 11N20SISO Ant1 2412 -17.77 ≤8.00 PASS 2437 -17.41 ≤8.00 PASS 2462 -17.06 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.33 -46.15 ≤-18.67 PASS High 2462 1.42 -54.04 ≤-18.58 PASS 11G Ant1 Low 2412 -2.45 -35.15 ≤-22.45 PASS High 2462 -2.14 -57.21 ≤-22.14 PASS 11N20SIS O Ant1 Low 2412 -2.61 -33.21 ≤-22.61 PASS High 2462 -2.52 -57.5 ≤-22.52 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.51 0.51 --- PASS 30~1000 0.51 -67.29 ≤-19.49 PASS 1000~26500 0.51 -55.04 ≤-19.49 PASS 2437 Reference 0.54 0.54 --- PASS 30~1000 0.54 -66.63 ≤-19.46 PASS 1000~26500 0.54 -55.13 ≤-19.46 PASS 2462 Reference 0.65 0.65 --- PASS 30~1000 0.65 -67.7 ≤-19.35 PASS 1000~26500 0.65 -54.47 ≤-19.35 PASS 11G Ant1 2412 Reference -3.17 -3.17 --- PASS 30~1000 -3.17 -68.05 ≤-23.17 PASS 1000~26500 -3.17 -55.28 ≤-23.17 PASS 2437 Reference -2.83 -2.83 --- PASS 30~1000 -2.83 -67.21 ≤-22.83 PASS 1000~26500 -2.83 -55.4 ≤-22.83 PASS 2462 Reference -2.51 -2.51 --- PASS 30~1000 -2.51 -67.46 ≤-22.51 PASS 1000~26500 -2.51 -55.11 ≤-22.51 PASS 11N20SISO Ant1 2412 Reference -2.75 -2.75 --- PASS 30~1000 -2.75 -67.5 ≤-22.75 PASS 1000~26500 -2.75 -55.11 ≤-22.75 PASS 2437 Reference -2.28 -2.28 --- PASS 30~1000 -2.28 -67.23 ≤-22.28 PASS 1000~26500 -2.28 -55.39 ≤-22.28 PASS 2462 Reference -2.80 -2.80 --- PASS 30~1000 -2.80 -68.17 ≤-22.8 PASS 1000~26500 -2.80 -55.16 ≤-22.8 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500

34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.36 8.40 99.52 0.02 0.12 2437 8.35 8.39 99.52 0.02 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.22 81.82 0.87 5.56 2462 0.17 0.22 77.27 1.12 5.88 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.39 3.00 0.02 38.83 ≤54 PASS AV 2386.060 -53.09 3.00 0.02 45.13 ≤54 PASS AV 2390.000 -56.71 3.00 0.02 41.51 ≤54 PASS Peak 2310.000 -51.0 3.00 0.00 47.2 ≤74 PASS Peak 2385.800 -45.5 3.00 0.00 52.7 ≤74 PASS Peak 2390.000 -48.26 3.00 0.00 49.94 ≤74 PASS High 2462 AV 2483.500 -54.89 3.00 0.03 43.34 ≤54 PASS AV 2487.960 -52.88 3.00 0.03 45.35 ≤54 PASS AV 2500.000 -58.59 3.00 0.03 39.64 ≤54 PASS Peak 2483.500 -48.11 3.00 0.00 50.09 ≤74 PASS Peak 2488.070 -45.2 3.00 0.00 53.0 ≤74 PASS Peak 2500.000 -50.07 3.00 0.00 48.13 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.66 3.00 1.03 39.57 ≤54 PASS AV 2388.140 -58.42 3.00 1.03 40.81 ≤54 PASS AV 2390.000 -58.82 3.00 1.03 40.41 ≤54 PASS Peak 2310.000 -49.94 3.00 0.00 48.26 ≤74 PASS Peak 2312.090 -48.64 3.00 0.00 49.56 ≤74 PASS Peak 2390.000 -50.66 3.00 0.00 47.54 ≤74 PASS High 2462 AV 2483.500 -58.48 3.00 1.03 40.75 ≤54 PASS AV 2489.830 -57.9 3.00 1.03 41.33 ≤54 PASS AV 2500.000 -59.22 3.00 1.03 40.01 ≤54 PASS Peak 2483.500 -51 3.00 0.00 47.2 ≤74 PASS Peak 2484.550 -48.32 3.00 0.00 49.88 ≤74 PASS Peak 2500.000 -49.76 3.00 0.00 48.44 ≤74 PAS…
