2AQZU-18023CEILING FAN REMOTE CONTROLLER

DC POWER CEILING FAN WALL CONTROL MANUAL ACTIVATING THE LEARNING PROCESS 1. After installation is complete, AC power is turned on within 30 seconds, press and hold the LEARN button for 1~3 seconds. The receiver will make sound, Bi, once. This will indicate the receiver has learned the ID that was previously selected on the transmitter. Then the wall transmitter can control the receiver. 2. If user cannot finish the setting within the 30 seconds time frame, the main power must be turned off and re-started again. This will reset the unit. Repeat step 1 until the LEARNING feature is activated as indicated. LIGHT FUNCTION SELECT SWITCH If installed energy light onto ceiling fan, please set the “light function select switch” “light function select switch” to O position. If installed tungsten light onto ceiling fan, please set the “light function select switch” to D position. WALL TRANSMITTER OPERATION Press button 1~6 to set fan speed Press this button to turn the fan off. Press this button to set fan wind direction up or down. ON/OFF—Press this button and release instantly to turn on or off the light. DIMMER—Press and hold to dim or brighten lights to the desired level and release. (Tungsten bulb only) When pressing remote button, the LED indicator would be on. TRANSMITTER Installing Wall Control (TRANSMITTER): Remove wall plate, disconnect and remove the toggle switch from wall junction box. Using the wire connectors, make the electrical connections to the wall control (transmitter) unit. Carefully push all connected wires inside wall switch box. Secure wall control unit with 2 screws previously removed. Face plate could be locked onto the transmitter. To assure continued FCC compliance: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID：2AQZU-18023 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

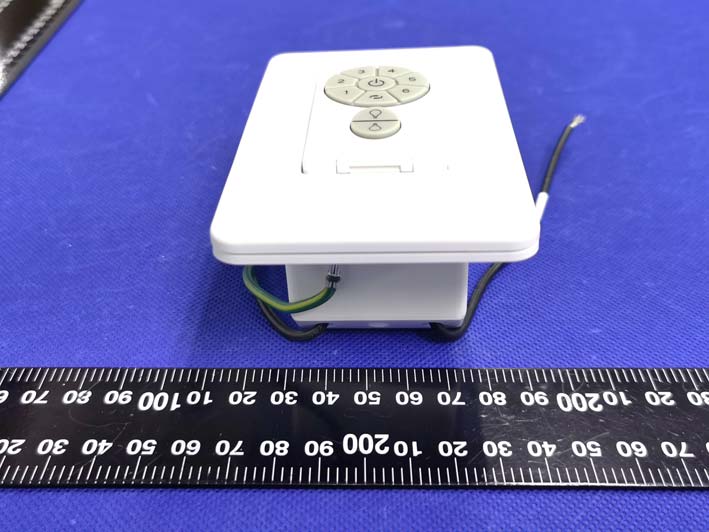

Reference No.: WTH20X12095309W Page 2 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTH20X12095309W Page 3 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTH20X12095309W Page 4 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTH20X12095309W Page 5 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7 EUT View 8

Reference No.: WTH20X12095309W Page 1 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AQZU-18023 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTH20X12095309W Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTH20X12095309W Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTH20X12095309W Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTH20X12095309W Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTH20X12095309W Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Antenna View

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 27 TEST REPORT Reference No. ....................: WTH20X12095309W FCC ID ............................... .: 2AQZU-18023 Applicant .......................... .: Satellite Electronic(Zhong shan)Ltd. Address ............................ .: No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. Product Name .................. .: CEILING FAN REMOTE CONTROLLER Test Model. ....................... .: TR340A-2 Standards ......................... .: FCC Part 15.231 Date of Receipt sample ... .: Dec.09, 2020 Date of Test....................... .: Dec.09, 2020 to Dec.18, 2020 Date of Issue .................... .: Dec.18, 2020 Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Jack Huang / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTH20X12095309W Page 2 of 27 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 6 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 7 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 8 3. ANTENNA REQUIREMENT .................................................................................................................................. 9 3.1 STANDARD APPLICABLE ......................................................................................................................................... 9 3.2 TEST RESULT.......................................................................................................................................................... 9 4. RADIATED EMISSIONS ....................................................................................................................................... 10 4.1 STANDARD APPLICABLE ....................................................................................................................................... 10 4.2 TEST PROCEDURE ................................................................................................................................................. 11 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 12 4.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 5. 20DB BANDWIDTH ............................................................................................................................................... 17 5.1 STANDARD APPLICABLE ....................................................................................................................................... 17 5.1 TEST PROCEDURE ................................................................................................................................................. 17 5.2 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 6. TRANSMISSION TIME ......................................................................................................................................... 19 6.1 STANDARD APPLICABLE ....................................................................................................................................... 19 6.2 TEST PROCEDURE ................................................................................................................................................. 19 6.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 19 7. DUTY CYCLE ......................................................................................................................................................... 21 7.1 STANDARD APPLICABLE ....................................................................................................................................... 21 7.2 TEST PROCEDURE ...........................................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTH20X12095309W Page 11 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Te s t S e t u p Radiation Emission Test Setup (Below 30MHz) Reference No.: WTH20X12095309W Page 12 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTH20X12095309W Page 13 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
