2AQZU-18042CEILING FAN REMOTE CONTROL

DC POWER CEILING FAN WALL CONTROL MANUAL ACTIVATING THE LEARNING PROCESS 1. Open the remote battery cover and install one 12VDC battery to remote. After the receiver installation is complete, AC power is turned on within 30 seconds, press and hold the remote LEARN button for 3 seconds. The receiver will make sound, Bi, once. This will indicate the receiver has learned the ID that was previously selected on the transmitter. Then the wall transmitter can control the receiver. 2. If user cannot finish the setting within the 30 seconds time frame, the main power must be turned off and re-started again. This will reset the unit. Repeat step 1 until the LEARNING feature is activated as indicated. DIP SWITCH – 0 & 1 0: All handsets and receivers are factory pre-set to the same channel. You can operate the fan without doing a channel setting above but we recommend that you set an individual channel for your fan. 1: This is to allow for each handset and receiver to be set on an individual channel. DIP SWITCH – O &D (LIGHT FUNCTION SELECT SWITCH) O: Light – on / off only D: Light – on / off and dimming WALL TRANSMITTER OPERATION : Press this button to turn the fan on or off. : Press button to set fan speed. : ON/OFF—Press this button and release instantly to turn on or off the light. DIMMER—Press and hold to dim or brighten lights to the desired level and release. (Only when the dip switch was set on “D” dimmer setting) : Press for color-temperature change setting. : Press for setting up that the ceiling fan will turn off after 2, 4 or 8 hours automatically. : Fan speed will modulate to simulate a natural breeze. TRANSMITTER Installing Wall Control (TRANSMITTER): Remove wall plate. Secure wall control unit with 2 screws previously removed. Face plate could be locked onto the transmitter. To assure continued FCC compliance: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID：2AQZU-18042 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Satellite Electronic(Zhong Shan)Ltd. No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China Date: 2023-03-27 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: 2AQZU Satellite Electronic(Zhong Shan)Ltd. certifies that, as of the date of the filing of the application, Orientalindustries Group is our designated U.S. agent for service of process for the above referenced Grantee Code. Satellite Electronic(Zhong Shan)Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Orientalindustries Group accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced Grantee Code. Designated U.S. Agent Information: Name: Orientalindustries Group FRN: 0033523226 Address: 1639 Clarks Lane,SanchezJoseCA95129,USA Contact Person: Mr. Simon Kang Chen Tel.: (650) 433 6921 Email: [email protected] Sincerely, Signed on behalf of Satellite Electronic(Zhong Shan)Ltd. Signed on behalf of rientalindustries Group Name: sean zheng Name: Mr. Simon Kang Chen Title: Manager Title: President Date: 2023-03-27 Date: 2023-03-27

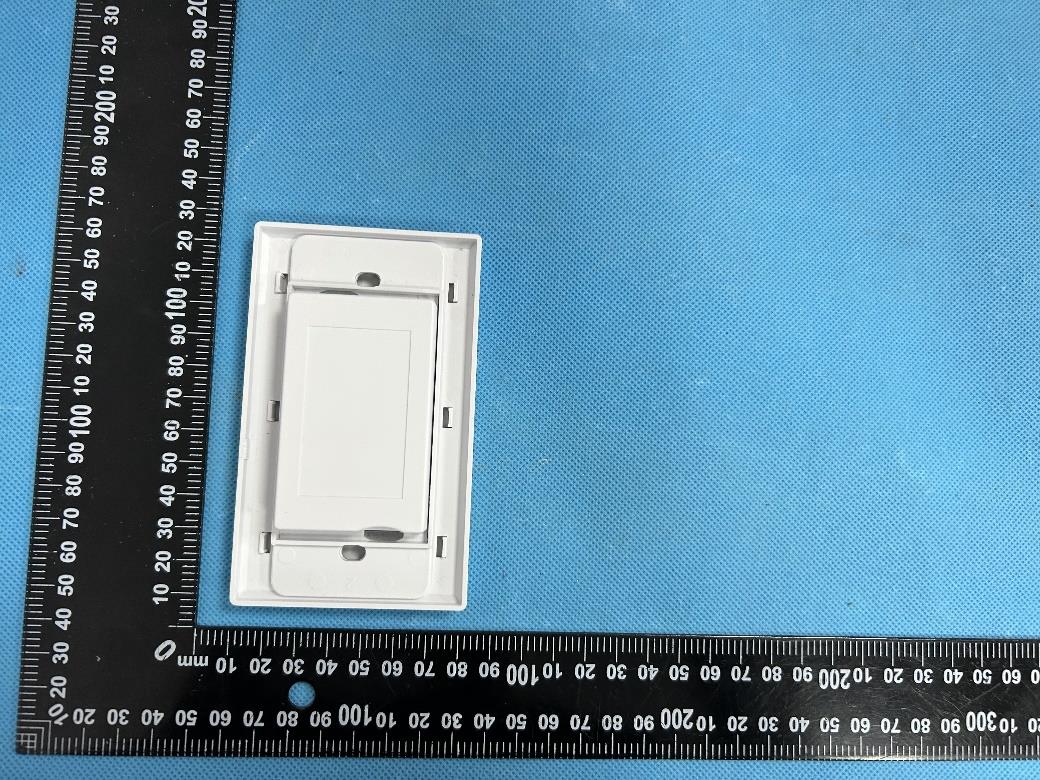

Reference No.: WTH23X07148534W Page 2 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTH23X07148534W Page 3 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTH23X07148534W Page 4 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTH23X07148534W Page 1 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AQZU-18042 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTH23X07148534W Page 5 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTH23X07148534W Page 6 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTH23X07148534W Page 7 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Satellite Electronic(Zhong shan)Ltd. Address of applicant: No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. Manufacturer: The same as Applicant Address of manufacturer: The same as Applicant General Description of EUT: Product Name: CEILING FAN REMOTE CONTROL Trade Name: / Model No.: TRA029J1M Adding Model(s): / Rated Voltage: DC12V Power Adapter Model: / FCC ID: 2AQZU-18042 Equipment Type: Portable device Technical Characteristics of EUT: Frequency Range: 304.25MHz Max. Field Strength: 75.74dBuV/m(3m) Data Rate: / Modulation: ASK Antenna Type: PCB Antenna Antenna Gain: 0dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Max. Field Strength Antenna Gain Output Power Tune-Up Power ERP (MHz) (dBuV/m) (dBi) (dBm) (dBm) (dBm) SRD 304.25 75.74 0 -19.52 -19.00 -21.15 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 304.25 A -- -21.15 0.01 1 0.01 Pass Note: 1. EIRP= E-104.8+20logD; Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Ratio 3 Simultaneous Ratio Limit Result Pass/Fail / / / / / / / Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 26 TEST REPORT Reference No. .................... : WTH23X07148534W FCC ID ................................ : 2AQZU-18042 Applicant ........................... : Satellite Electronic(Zhong shan)Ltd. Address ............................. : No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. Manufacturer ..................... : The same as Applicant Address ............................. : The same as Applicant Product Name ................... : CEILING FAN REMOTE CONTROL Model No... ......................... : TRA029J1M Standards .......................... : FCC Part 15.231 Date of Receipt sample .... : 2023-07-07 Date of Test........................ : 2023-07-07 to 2023-07-14 Date of Issue ..................... : 2023-07-14 Test Report Form No. ....... : WTX_Part 15_231W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Silin Chen Reference No.: WTH23X07148534W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 26 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................. 5 1.3 TEST METHODOLOGY ........................................................................................................................................... 5 1.4 TEST FACILITY ...................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. ANTENNA REQUIREMENT ................................................................................................................................. 12 3.1 STANDARD APPLICABLE ..................................................................................................................................... 12 3.2 TEST RESULT ...................................................................................................................................................... 12 4. RADIATED EMISSIONS ....................................................................................................................................... 13 4.1 STANDARD APPLICABLE ..................................................................................................................................... 13 4.2 TEST PROCEDURE .............................................................................................................................................. 14 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ........................................................................................... 15 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 15 5. 20DB BANDWIDTH ............................................................................................................................................... 18 5.1 STANDARD APPLICABLE ..................................................................................................................................... 18 5.1 TEST PROCEDURE .............................................................................................................................................. 18 5.2 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 18 6. TRANSMISSION TIME .......................................................................................................................................... 20 6.1 STANDARD APPLICABLE ..................................................................................................................................... 20 6.2 TEST PROCEDURE .............................................................................................................................................. 20 6.3 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 20 7. DUTY CYCLE ......................................................................................................................................................... 22 7.1 STANDARD APPLICABLE ..................................................................................................................................... 22 7.2 TEST PROCEDURE ............................................…
