2AQZU-18055CEILING FAN REMOTE CONTROL

CEILING FAN REMOTE CONTROL INSTALLATION & OPERATING INSTRUCTIONS WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER NOTE: The Universal Hand Held Remote System is equipped with a learning frequency function which has 256 code combinations to prevent potential interference from other remote units. The frequency on your Receiver and Transmitter units have been preset at the factory. We recommend changing the frequency while installing your ceiling fan instead of using the initial frequency set by the factory. (Fig. 1) Please use a small size tool to change the setting. Safety Precautions: WARNING: Disconnect source of electrical power by removing the fuse or switching off circuit breakers. • Do not use with solid state fans. • Electrical wiring must meet all local and national electrical code requirements. • Electrical source and fan must be 115/120 volts, 60 hz. Maximum fan motor amps 1.0. Maximum light watts 190-incandescent only. 1. RECEIVER INSTALLATION NOTE: Before the electrical power is disabled for the installation of the receiver and wall control; the light kit must be left on the on position and the ceiling fan on the highest speed. Step 1. Insert Receiver into Hanger Bracket with the flat side of the Receiver facing the ceiling. Step 2. Motor to Receiver Electrical Connections: Connect the WHITE wire from the fan to the WHITE wire marked “TO MOTOR N” from the Receiver. Connect the BLACK wire from the fan to the BLACK wire marked “TO MOTOR L” from the Receiver. Connect the BLUE wire from the fan to the BLUE wire marked “For Light” from the Receiver. (Fig. 2) Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked “AC in N” from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked “AC in L” from the receiver. Secure all wire connections with the plastic wire nuts provided. (Fig. 2) After all splices are made, check to make sure there are no loose strands. As an additional precaution we suggest to secure the plastic wire connectors to the wires with electrical tape. 2. OPERATING THE HAND HELD REMOTE CONTROL 1. Light Button: Press and release the button to turn the light ON or OFF. Press and hold the button to set the desired light brightness. The light will cycle between bright and dim settings as long as the button is pressed. The light key has an automatic auto-resume feature that allows the light to remain at the same brightness as the last time it was turned off. 2. Speed Buttons Press and release the button for the desired speed. 3. Stop Button This button stops the fan. Use the screw provided to install the wall holster on the wall or another convenient location of your choice. The installation of your new Universal Hand Held Remote System is complete. CREATING A UNIQUE FREQUENCY Step: 1. Within 60 seconds of turning the Receivers AC power ON. Press the transmitter’s “Stop” button. Step: 2. Hold the “Stop” button for over 3 seconds, once the receiver has detected the frequency, the down light will flash twice. This will indicate the receiver has learned the frequency that was previously selected on the transmitter. Note: After the AC power is on, do not press any other button on the transmitter before pressing the “Stop” button doing so will cause the procedure to fail. After completing the steps above, you should be able to operate the ceiling fan and light. If the fan is not responding to the transmitter, please turn the power off to the receiver. And repeat step 1 and 2. Install the A23, 12v battery included. Remove the battery if not used for long periods of time to prevent damage to the hand held remote NOTICE! Your ceiling fan and light kit assembly must meet the following requirements: T 1.Do Not install this fan with wall solid state speed control or wall light dimmer control. It will permanently damage the receiver of remote control and cause the fan function failure. CAUTION: Ceiling Angle shall Not Exceed 30 Degrees. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC ID：2AQZU-18055 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with th…

Text truncated - open the document above for the full version.

Satellite Electronic(Zhong Shan)Ltd. No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China Date: 2023-09-05 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 USA Ref: Attestation Statements Part 2.911(d) (7) Filing Grantee Code: 2AQZU Applicant FRN: 0027796747 Satellite Electronic(Zhong Shan)Ltd. certifies that, as of the date of the filing of the application, Oriental Industries Group is our designated U.S. agent for service of process for the above referenced Grantee Code. Satellite Electronic(Zhong Shan)Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Oriental Industries Group accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced Grantee Code. Designated U.S. Agent Information: Name: Oriental Industries Group U.S. Agent FRN: 0033523226 Address: 1639 Clarks Lane SanchezJose, CA 95129 United States Contact Person: Mr Simon Kang Chen Tel.: (650) 433-6921 Email: [email protected] Sincerely, Signed on behalf of Satellite Electronic(Zhong Shan)Ltd. Signed on behalf of Oriental Industries Group Name: sean zheng Name: Simon Kang Chen Title: Manager Title: President Date: 2023-09-05 Date: 2023-09-05

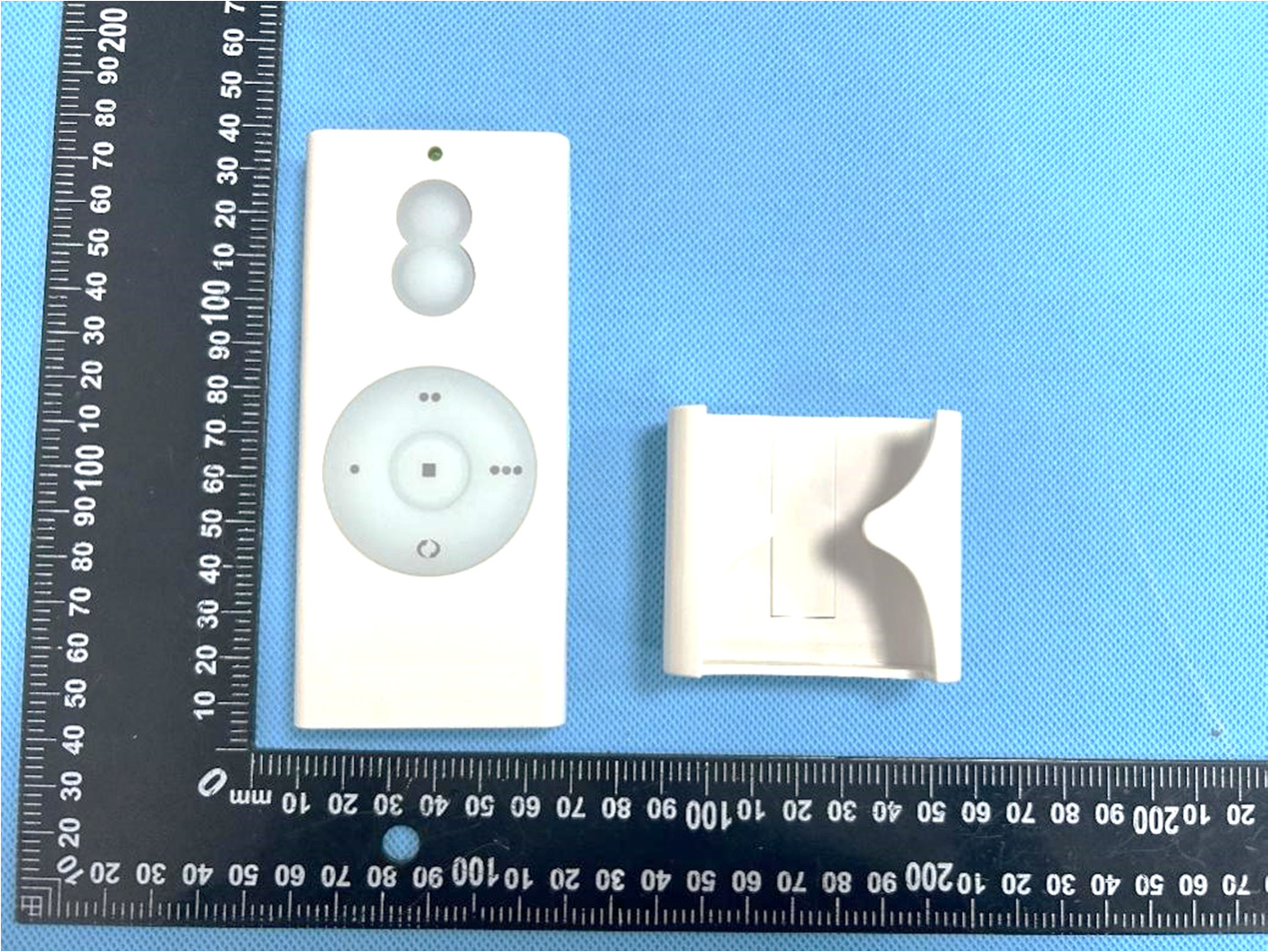

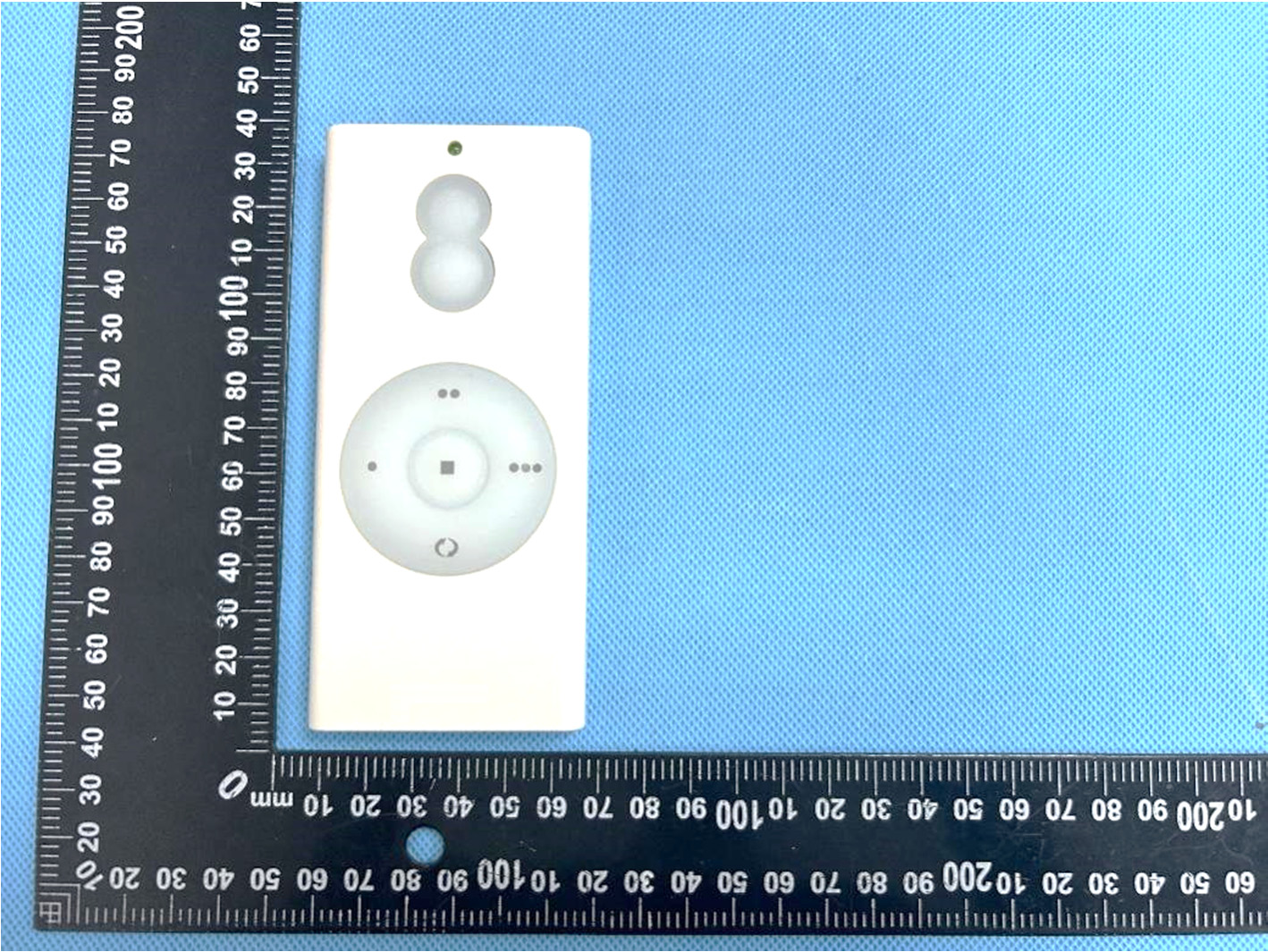

Reference No.: WTH24X07166516W Page 2 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTH24X07166516W Page 3 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTH24X07166516W Page 4 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTH24X07166516W Page 5 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTH24X07166516W Page 1 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AQZU-18055 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTH24X07166516W Page 6 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTH24X07166516W Page 7 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTH24X07166516W Page 8 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Satellite Electronic(Zhong shan)Ltd. Address of applicant: No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. Manufacturer: Satellite Electronic(Zhong shan)Ltd. Address of manufacturer: No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. General Description of EUT: Product Name: CEILING FAN REMOTE CONTROL Trade Name: / Model No.: TR110B Adding Model(s): / Rated Voltage: DC12V Power Adaptor : / FCC ID: 2AQZU-18055 Equipment Type: Portable device Technical Characteristics of EUT: Frequency Range: 304.25MHz Max. Field Strength: 304.25MHz: 79.36dBuV/m(3m) Data Rate: / Modulation: ASK Antenna Type: PCB Antenna Antenna Gain: 0dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Max. Field Strength Antenna Gain Output Power Tune-Up Power ERP (MHz) (dBuV/m) (dBi) (dBm) (dBm) (dBm) SRD 304.25 79.36 0 -15.90 -15.00 -17.15 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 304.25 B 0.5 -15.00 0.03 38.12 0.01 Pass Note: 1. EIRP= E-104.8+20logD; Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Ratio 3 Simultaneous Ratio Limit Result Pass/Fail / / / / / / / Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 26 TEST REPORT Reference No. .................... : WTH24X07166516W FCC ID ................................ : 2AQZU-18055 Applicant ........................... : Satellite Electronic(Zhong shan)Ltd. Address ............................. : No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. Manufacturer ..................... : Satellite Electronic(Zhong shan)Ltd. Address ............................. : No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China Product Name ................... : CEILING FAN REMOTE CONTROL Model No... ......................... : TR110B Standards .......................... : FCC Part 15.231 Date of Receipt sample .... : 2024-07-16 Date of Test........................ : 2024-07-16 to 2024-07-24 Date of Issue ..................... : 2024-07-24 Test Report Form No. ....... : WTX_Part 15_231W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Jason Su Reference No.: WTH24X07166516W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 26 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................ 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................. 4 1.2 TEST STANDARDS ................................................................................................................................... 5 1.3 TEST METHODOLOGY .............................................................................................................................. 5 1.4 TEST FACILITY ........................................................................................................................................ 5 1.5 EUT SETUP AND TEST MODE .................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................ 8 2. SUMMARY OF TEST RESULTS ............................................................................................................. 10 3. ANTENNA REQUIREMENT .................................................................................................................... 11 3.1 STANDARD APPLICABLE ......................................................................................................................... 11 3.2 TEST RESULT ........................................................................................................................................ 11 4. RADIATED EMISSIONS .......................................................................................................................... 12 4.1 STANDARD APPLICABLE ......................................................................................................................... 12 4.2 TEST PROCEDURE ................................................................................................................................ 13 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................. 14 4.4 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 14 5. 20DB BANDWIDTH ................................................................................................................................. 18 5.1 STANDARD APPLICABLE ......................................................................................................................... 18 5.1 TEST PROCEDURE ................................................................................................................................ 18 5.2 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 18 6. TRANSMISSION TIME............................................................................................................................. 20 6.1 STANDARD APPLICABLE ......................................................................................................................... 20 6.2 TEST PROCEDURE ................................................................................................................................ 20 6.3 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 20 7. DUTY CYCLE ........................................................................................................................................... 22 7.1 STANDARD APPLICABLE ......................................................................................................................... 22 7.2 TEST PROCEDURE ................................................................................................................................ 22 7.3 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................... 22 8. CONDUCTED EMISSIONS ....................…

Text truncated - open the document above for the full version.
