2AR82-SKIW7603101IEEE 802.11b/g/n 2T2R USB WiFi Module

版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 保密等级：机密 SPECIFICATION 产品规格书 SKI.W7603.1 IEEE 802.11b/g/n 2T2R USB Wi-Fi Module Approved by Shikun Checked by 审核 Rechecked by 复审 Approved by 批准 Please send the original back to us after you have approved and signed. 客户承认签章后敬请寄回正本一份。 Approved by customer Comments 确认意见 Approved by 批准签字 Company’s seal 盖章 Customer’s Name: 广 州 视 琨 电 子 科 技 有 限 公 司 Guangzhou Shikun Electronic Technology Company Limited 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 REVISION HISTORY VERSION DATE BOARD ID PAGE DESCRIPTION AUTHOR V0 2018.12.15 SKI.W7603.1 A18432 All First Issued. Candy V1 2019.02.14 SKI.W7603.1 A18432 1 Modified the features. Danny 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 Content 1. Introduction（简介） ...................................................... 1 2. FEATURES（特性） ....................................................... 1 3. Block Diagram（结构框图） ............................................... 1 4. Package Outline and Mounting（外形及安装尺寸） ......................... 2 5. Pin Definition（引脚定义） ................................................. 2 6. Product Pictures（实物图片） .............................................. 3 7. Key Materials（关键物料） ................................................. 3 8. General Requirements（一般要求） ........................................ 4 9. Electrical Characteristics（电气特性） ..................................... 4 9.1 IEEE 802.11b Section ................................................................ 4 9.2 IEEE 802.11g Section ................................................................ 5 9.3 IEEE 802.11n HT20 Section ........................................................ 6 9.4 IEEE 802.11n HT40 Section ........................................................ 7 10. Mechanical,Environmental and Reliability Tests（机械、环境和可靠性测试） 8 11. Package（包装） ....................................................... 10 12. Software Requirements（软件要求） .................................... 11 SKI.W7603.1 1 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 1. Introduction（简介） SKI.W7603.1 module is based on MEDIATEK MT7603U solution. The MT7603U is a highly integrated Wi-Fi single chip which supports 300 Mbps PHY rate. It fully complies with IEEE 802.11n and IEEE 802.11 b/g standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance. This documentation describes the engineering requirements specification. 2. FEATURES（特性） Reserving System 接收制式 IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n Chip Solution 芯片方案 MT7603U Band 波段 2.4GHz Dimensions 尺寸 20.0mm*16.0mm*2.45mm 型号 安装方式 支持标准 频段 天线接口 备注 SKI.W7603.1 SMD IEEE 802.11b/g/n 2.4GHz 邮票孔 20.0mm*16.0mm*2.45mm 3. Block Diagram（结构框图） SKI.W7603.1 2 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 4. Package Outline and Mounting（外形及安装尺寸） 5. Pin Definition（引脚定义） 正视图 PIN SYMBOL DESCRIPTION 1 GND Connected to Ground 2 ANT0 Antenna 0 3 GND Connected to Ground 4 GND Connected to Ground 5 ANT1 Antenna 1 6 GND Connected to Ground 7 GND Connected to Ground 8 USB_DP USB2.0 DP Signal 9 USB_DM USB2.0 DM Signal 10 VCC +3.3V DC Power supply input 11 SLEEP WiFi sleep 12 Wake WiFi wake host SKI.W7603.1 3 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 6. Product Pictures（实物图片） 正视图（top view） 背视图（bottom view） 7. Key Materials（关键物料） Número Componentes clave Model specificacio nes Observación Remark 1 Circuito integrado MT7603U 48-QFN MEDIATEK 2 PCB SKI.W7603.1 FR-4,4LAY -- 3 Oscilador de cristal 2.3.3.400001208 40MHz 8. General Requirements（一般要求） No. Feature Description 7-1 Operation Voltage 3.3V±0.3V 7-2 Current Consumption 430mA 7-3 Ripple ≤100mV 7-4 Operation Temperature 0°C to +40°C 7-5 Antenna Type External antenna 7-6 USB High Speed USB 2.0 Interface 7-7 Storage Temperature -40°C to +85°C SKI.W7603.1 4 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 9. Electrical Characteristics（电气特性） Electrical characteristics are based on test results of prototype conduction.Under the following extreme test conditions, the electrical characteristics can be met: temperature (0°C,+25°C,+40°C), voltage (3.0V,3.3V,3.6V). 电气特性指标基于样机传导测试结果。如下极端测试条件下，均可满足电气特性指标：温度 （0°C,+25°C,+40°C）、电压（3.0V,3.3V,3.6V）。 9.1 IEEE 802.11b Section Items Contents Specification IEEE802.11b Mode CCK Channel CH1 to CH13 Data rate 1, 2, 5.5, 11Mbps TX Characteristics Min. Typ. Max. Unit Remark 1. Power Levels(Calibrated) 1) For Each antenna port 14.5 16.5 18.5 dBm 2. Spectrum Mask @ target power 1) fc +/-11MHz to +/-22MHz - - -30 dBr 2) fc > +/-22MHz - - -50 dBr 3 Constellation Error(EVM)@ target power 1) 1Mbps - - -10 dB 2) 2Mbps - - -10 dB 3) 5.5Mbps - - -10 dB 4) 11Mbps - - -10 dB 4. Frequency Error -25 - 25 ppm RX Characteristics Min. Typ. Max. Unit 5 Minimum Input Level Sensitivity (each chain) 1) 1Mbps (FER ≦8%) - - -83 dBm 2) 2Mbps (FER ≦8%) - - -80 dBm 3) 5.5Mbps (FER ≦8%) - - -79 dBm 4) 11Mbps (FER ≦8%) - - -76 dBm SKI.W7603.1 5 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 6 Maximum Input Level (FER ≦8%) -10 - - dBm 9.2 IEEE 802.11g Section Items Contents Specification IEEE802.11g Mode OFDM Channel CH1 to CH13 Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps TX Characteristics Min. Typ. Max. Unit Remark 1. Power Levels 1) For Each antenna port 12 14 16 dBm 2. Spectrum Mask @ target power 1) at fc +/-11MHz - - -20 dBr 2) at fc +/-20MHz - - -28 dBr 3) at fc > +/-30MHz - - -40 dBr 3 Constellation Error(EVM)@ target power 1) 6Mbps - - -5 dB 2) 9Mbps - - -8 dB 3) 12Mbps - - -10 dB 4) 18Mbps - - -13 dB 5) 24Mbps - - -16 dB 6) 36Mbps - - -19 dB 7) 48Mbps - - -22 dB 8) 54Mbps - - -25 dB 4 Frequency Error -25 - 25 ppm RX Characteristics Min. Typ. Max. Unit 5 Minimum Input Level Sensitivity (each chain) 1) 6Mbps (PER ≦10%) - - -85 dBm 2) 9Mbps (PER ≦10%) - - -84 dBm 3) 12Mbps (PER ≦10%) - - -82 dBm 4) 18Mbps (PER ≦10%) - - -80 dBm 5) 24Mbps (PER ≦10%) - - -77 dBm 6) 36Mbps (PER ≦10%) - - -73 dBm 7) 48Mbps (P…

Text truncated - open the document above for the full version.

GuangzhouShikunElectronicsCo.,Ltd FederalCommunicationsCommission 7435OaklandMillsRoad ColumbiaMD21046 Subject:RequestforConfidentiality FCCID:2AR82-SKIW7603101 ToWhomItMayConcern: PursuanttotheprovisionsofSections0.457and0.459oftheCommission’srules(47CFR§§ 0.457,0.459),wearerequestingtheCommissiontowithholdthefollowingattachmentsas confidentialdocumentfrompublicdisclosureindefinitely. SchematicDiagram BlockDiagram TheoryofOperation Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublicdisclosureof abovedocumentsmightbeharmfultoourcompanyandwouldgivecompetitoranunfair advantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidentialdocuments andthoseinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. BestRegards CompanyName:GuangzhouShikunElectronicsCo.,Ltd ContactName:BingYi TitleofPerson:CertificationManager Address:NO.6LiankunRoad,HuangpuDistrictGuangzhou510530China Date:2020/09/29

Themoduletransmitterwillbeasinglemodule ModularApprovalRequestFCC(Per15.212) FCCID:2AR82-SKIW7603101 ItemstobecoveredAnswerFrom Applicant 1.Theradioelementsofthemodulartransmittermusthavetheirown shielding.Thephysicalcrystalandtuningcapacitorsmaybelocated externaltotheshieldedradioelements. Yes 2.Themodulartransmittermusthavebufferedmodulation/datainputs(if suchinputsareprovided)toensurethatthemodulewillcomplywithpart 15requirementsunderconditionsofexcessivedataratesorover- modulation. Yes 3.Themodulartransmittermusthaveitsownpowersupplyregulation.Yes 4.Themodulartransmittermustcomplywiththeantennaand transmissionsystemrequirementsof§§15.203,15.204(b)and 15.204(c).Theantennamusteitherbepermanentlyattachedoremploy a“unique”antennacoupler(atallconnectionsbetweenthemoduleand theantenna,includingthecable).The“professionalinstallation” provisionof§15.203isnotapplicabletomodulesbutcanapplytolimited modularapprovalsunderparagraph(b)ofthissection. Yes 5.Themodulartransmittermustbetestedinastand-alone configuration,i.e.,themodulemustnotbeinsideanotherdeviceduring testingforcompliancewithpart15requirements.Unlessthetransmitter modulewillbebatterypowered,itmustcomplywiththeACline conductedrequirementsfoundin§15.207.ACorDCpowerlinesand datainput/outputlinesconnectedtothemodulemustnotcontain ferrites,unlesstheywillbemarketedwiththemodule(see§15.27(a)). Thelengthoftheselinesshallbethelengthtypicalofactualuseor,if thatlengthisunknown,atleast10centimeterstoinsurethatthereisno couplingbetweenthecaseofthemoduleandsupportingequipment. Anyaccessories,peripherals,orsupportequipmentconnectedtothe moduleduringtestingshallbeunmodifiedandcommerciallyavailable (see§15.31(i)). Yes 6.Themodulartransmittermustbeequippedwitheitherapermanently affixedlabelormustbecapableofelectronicallydisplayingitsFCC identificationnumber. (A)Ifusingapermanentlyaffixedlabel,themodulartransmitter mustbelabeledwithitsownFCCidentificationnumber,and,iftheFCC identificationnumberisnotvisiblewhenthemoduleisinstalledinside anotherdevice,thentheoutsideofthedeviceintowhichthemoduleis installedmustalsodisplayalabelreferringtotheenclosedmodule.This exteriorlabelcanusewordingsuchasthefollowing:“Contains TransmitterModuleFCCID:XYZMODEL1”or“ContainsFCCID: XYZMODEL1.”Anysimilarwordingthatexpressesthesamemeaning Yes maybeused.TheGranteemayeitherprovidesuchalabel,anexample ofwhichmustbeincludedintheapplicationforequipmentauthorization, or,mustprovideadequateinstructionsalongwiththemodulewhich explainthisrequirement.Inthelattercase,acopyoftheseinstructions mustbeincludedintheapplicationforequipmentauthorization. (B)IfthemodulartransmitterusesanelectronicdisplayoftheFCC identificationnumber,theinformationmustbereadilyaccessibleand visibleonthemodulartransmitteroronthedeviceinwhichitisinstalled. Ifthemoduleisinstalledinsideanotherdevice,thentheoutsideofthe deviceintowhichthemoduleisinstalledmustdisplayalabelreferringto theenclosedmodule.Thisexteriorlabelcanusewordingsuchasthe following:“ContainsFCCcertifiedtransmittermodule(s).”Anysimilar wordingthatexpressesthesamemeaningmaybeused.Theuser manualmustincludeinstructionsonhowtoaccesstheelectronic display.Acopyoftheseinstructionsmustbeincludedintheapplication forequipmentauthorization. 7.Themodulartransmittermustcomplywithanyspecificrulesor operatingrequirementsthatordinarilyapplytoacompletetransmitter andthemanufacturermustprovideadequateinstructionsalongwiththe moduletoexplainanysuchrequirements.Acopyoftheseinstructions mustbeincludedintheapplicationforequipmentauthorization. Yes 8.Radiofrequencydevicesoperatingundertheprovisionsofthispart aresubjecttotheradiofrequencyradiationexposurerequirements specifiedin§§1.1307(b),1.1310,2.1091,and2.1093ofthischapter,as appropriate.Applicationsforequipmentauthorizationofmodular transmittersunderthissectionmustcontainastatementconfirming compliancewiththeserequirements.Themodulartransmittermust complywithanyapplicableRFexposurerequirementsinitsfinal configuration.Technicalinformationshowingthebasisforthisstatement mustbesubmittedtotheCommissionuponrequest. Yes Note:Ifcompliancewithoneormoreofthenumberedrequirements,listedabove, cannotbedemonstrated,itmaybepossibletoobtaina“LimitedModularApproval” (LMA). _____________________________ BingYi Title:CertificationManager GuangzhouShikunElectronicsCo.,Ltd

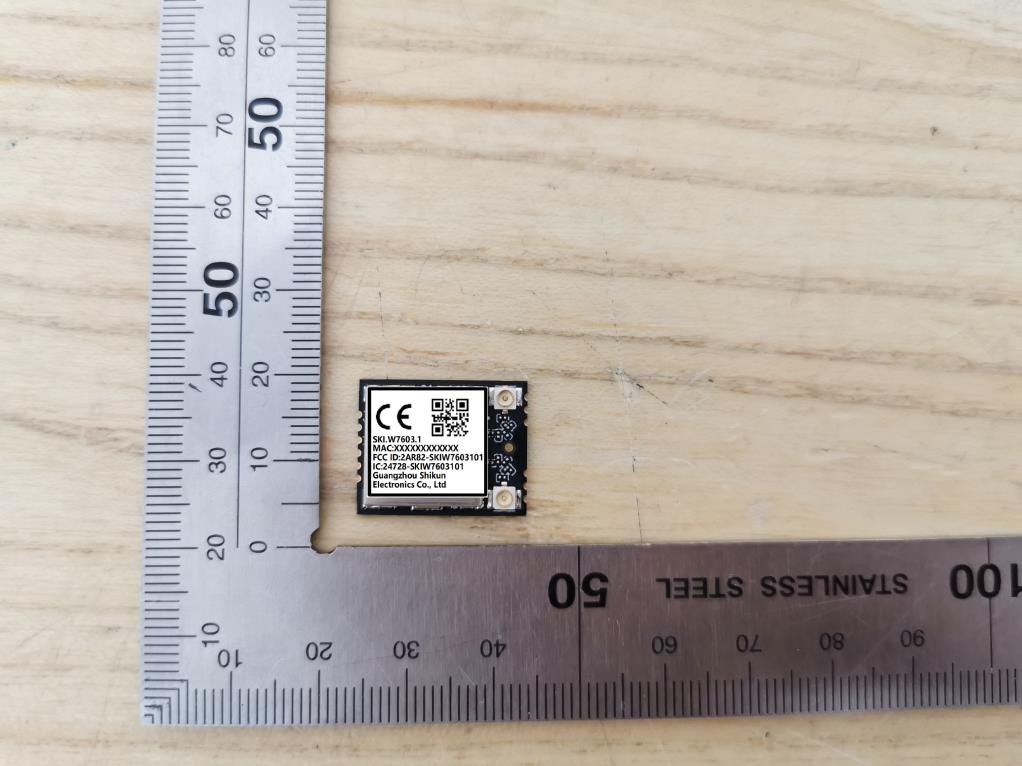

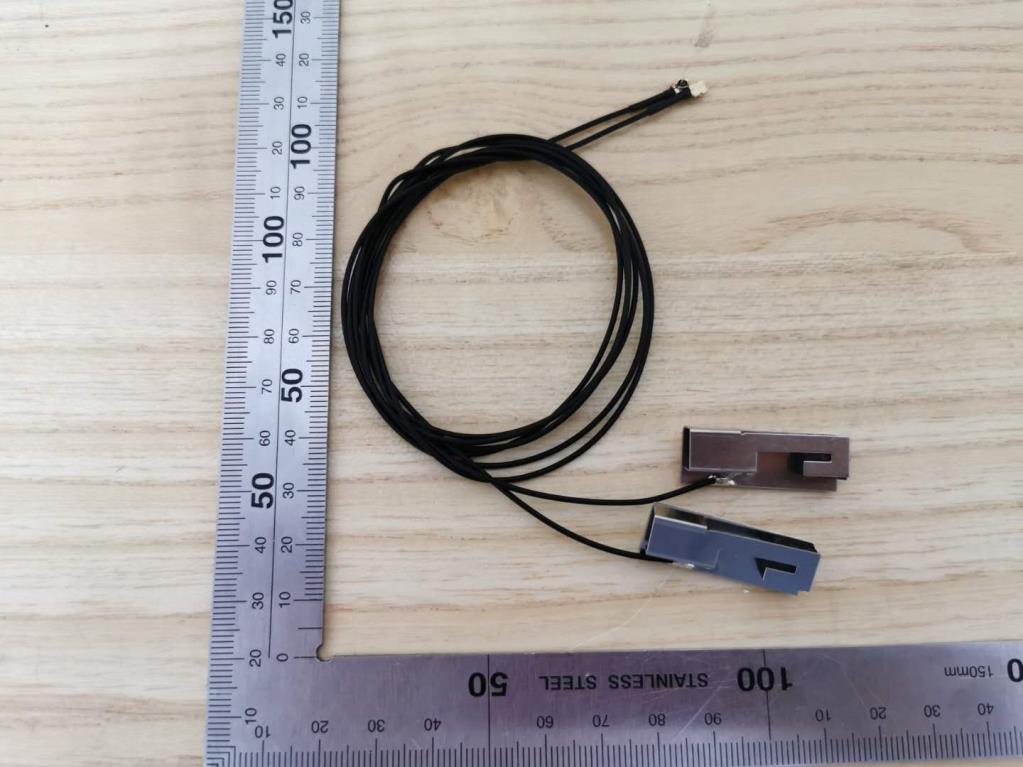

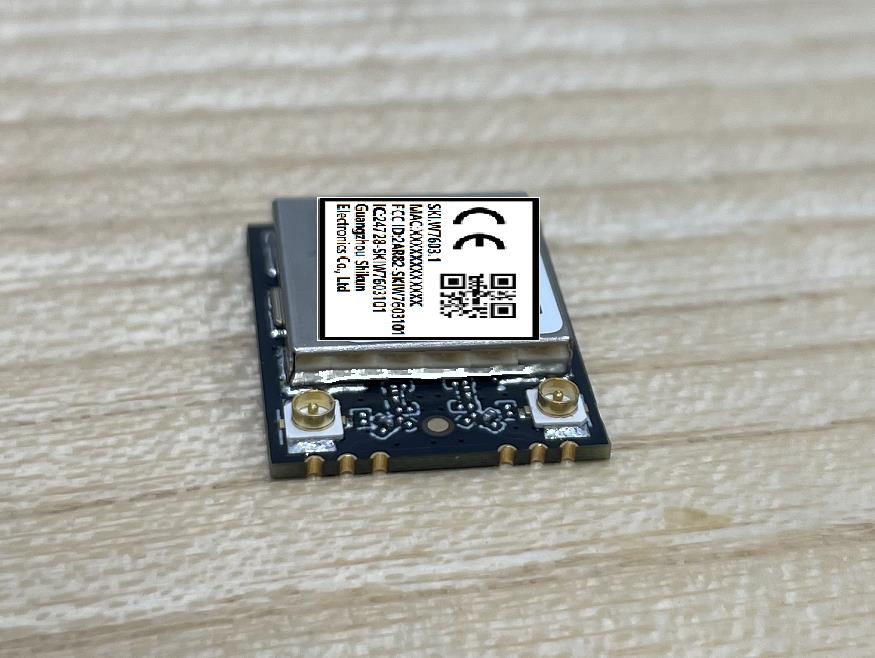

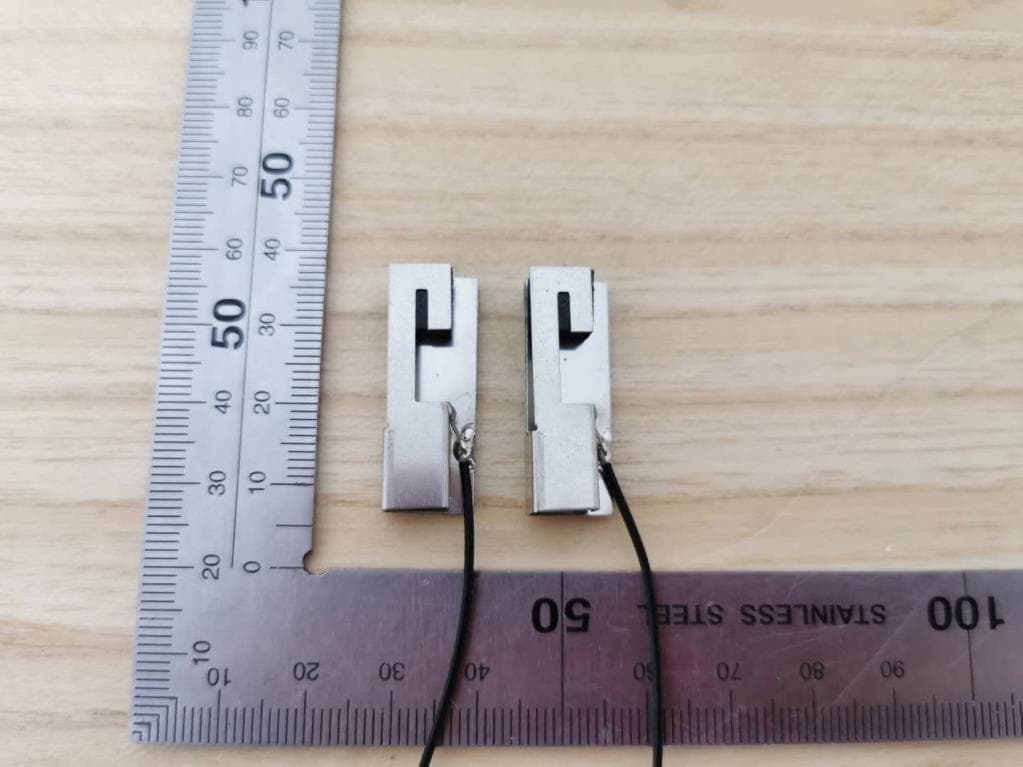

External Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 The gap size is 6mm*1mm Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 View of EUT-6 Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-7 View of EUT-8

Label: Label Location:

Internal Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT CERTIFICATION TEST REPORT For IEEE 802.11b/g/n 2T2R USB WiFi Module MODEL NUMBER: SKI.W7603.1 FCC ID: 2AR82-SKIW7603101 REPORT NUMBER: 4789631992-2 ISSUE DATE: November 05, 2020 Prepared for Guangzhou Shikun Electronics Co., Ltd NO.6 Liankun Road,Huangpu District,Guangzhou,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789631992-2 Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 11/05/2020 Initial Issue REPORT NO.: 4789631992-2 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. REQUIREMENT .................................................................................................................... 6 REPORT NO.: 4789631992-2 Page 4 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Guangzhou Shikun Electronics Co., Ltd Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China Manufacturer Information Company Name: Guangzhou Shikun Electronics Co., Ltd Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China EUT Information EUT Name: IEEE 802.11b/g/n 2T2R USB WiFi Module Model: SKI.W7603.1 Sample Received Date: September 18, 2020 Sample Status: Normal Sample ID: 3331747 Date of Tested: September 18, 2020~ September 30, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Mick Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4789631992-2 Page 5 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B, the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China. REPORT NO.: 4789631992-2 Page 6 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure RF EXPOSURE LIMIT Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 CALCULATION METHOD S=PG/4πR² Whe…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For IEEE 802.11b/g/n 2T2R USB WiFi Module MODEL NUMBER: SKI.W7603.1 FCC ID: 2AR82-SKIW7603101 IC: 24728-SKIW7603101 REPORT NUMBER: 4789631992-1 ISSUE DATE: November 05, 2020 Prepared for Guangzhou Shikun Electronics Co., Ltd NO.6 Liankun Road,Huangpu District,Guangzhou,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789631992-1 Page 2 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 11/05/2020 Initial Issue REPORT NO.: 4789631992-1 Page 3 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC Part 15.247 (b) (3) RSS-247 Clause 5.4 (d) Pass 3 Power Spectral Density FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) RSS-247 Clause 5.5 Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 RSS-GEN Clause 8.8 Pass 7 Antenna Requirement FCC Part 15.203 RSS-GEN Clause 6.8 Pass Note: 1.This test report is only published to a nd used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789631992-1 Page 4 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................ 7 3. FACILITIES AND ACCREDITATION .................................................................................... 7 4. CALIBRATION AND UNCERTAINTY .................................................................................. 8 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 8 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 8 5. EQUIPMENT UNDER TEST ................................................................................................. 9 5.1. DESCRIPTION OF EUT ................................................................................................. 9 5.2. CHANNEL LIST .............................................................................................................. 9 5.3. MAXIMUM OUTPUT POWER ........................................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................... 10 5.6. THE WORSE CASE CONFIGURATIONS.................................................................... 10 5.7. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 11 5.8. DESCRIPTION OF TEST SETUP ................................................................................ 12 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................... 13 7. ANTENNA PORT TEST RESULTS .................................................................................... 15 7.1. ON TIME AND DUTY CYCLE ...................................................................................... 15 7.2. 6 dB DTS BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ................................... 16 7.3. CONDUCTED OUTPUT POWER ................................................................................ 18 7.4. POWER SPECTRAL DENSITY ................................................................................... 19 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................ 21 8. RADIATED TEST RESULTS .............................................................................................. 23 8.1. RESTRICTED BANDEDGE ......................................................................................... 29 8.1.1. 802.11b SISO MODE ............................................................................................ 29 8.1.2. 802.11g SISO MODE ............................................................................................ 33 8.1.3. 802.11n HT20 MODE ......................................…

Text truncated - open the document above for the full version.

REPORT NO.: 4789631992-1 Page 123 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11B_Ant2_2437_30~1000 11B_Ant2_2437_1000~26500 REPORT NO.: 4789631992-1 Page 124 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 REPORT NO.: 4789631992-1 Page 125 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11B_Ant2_2462_1000~26500 11G_Ant2_2412_0~Reference REPORT NO.: 4789631992-1 Page 126 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 REPORT NO.: 4789631992-1 Page 127 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11G_Ant2_2437_0~Reference 11G_Ant2_2437_30~1000 REPORT NO.: 4789631992-1 Page 128 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11G_Ant2_2437_1000~26500 11G_Ant2_2462_0~Reference REPORT NO.: 4789631992-1 Page 129 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 REPORT NO.: 4789631992-1 Page 130 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2412_0~Reference 11N20MIMO_Ant1_2412_30~1000 REPORT NO.: 4789631992-1 Page 131 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2412_1000~26500 11N20MIMO_Ant2_2412_0~Reference REPORT NO.: 4789631992-1 Page 132 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_2412_30~1000 11N20MIMO_Ant2_2412_1000~26500 REPORT NO.: 4789631992-1 Page 133 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2437_0~Reference 11N20MIMO_Ant1_2437_30~1000 REPORT NO.: 4789631992-1 Page 134 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2437_1000~26500 11N20MIMO_Ant2_2437_0~Reference REPORT NO.: 4789631992-1 Page 135 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_2437_30~1000 11N20MIMO_Ant2_2437_1000~26500 REPORT NO.: 4789631992-1 Page 136 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2462_0~Reference 11N20MIMO_Ant1_2462_30~1000 REPORT NO.: 4789631992-1 Page 137 of 150 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_2462_1000~26500 11N20MIMO_Ant2_2462_0~Reference REPORT NO.: 4789631992-1 Page 138 of 150 UL Verification Services (Guangz…

Text truncated - open the document above for the full version.
