2AR82-SKIWB7638U2IEEE 802.11a/b/g/n 2T2R USB Wi-Fi Module Integrated Bluetooth 2.1+EDR/4.2/5.0

版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 保密等级：机密 SPECIFICATION 产品规格书 SKI.WB7638U.1_MT7638BUB IEEE 802.11a/b/g/n 2T2R USB Wi-Fi Module Integrated Bluetooth 2.1+EDR/4.2/5.0 Approved by Shikun Checked by 审核 Rechecked by 复审 Approved by 批准 Please send the original back to us after you have approved and signed. 客户承认签章后敬请寄回正本一份。 Approved by customer Comments 确认意见 Approved by 批准签字 Company’s seal 盖章 Customer’s Name: 广 州 视 琨 电 子 科 技 有 限 公 司 Guangzhou Shikun Electronic Technology Company Limited 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 REVISION HISTORY VERSION DATE BOARD ID PAGE DESCRIPTION AUTHOR V0 2020.09.01 SKI.WB7638U.1 _MT7638BU B19104 All First Issued. 念宇鹏 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 Content 1. Introduction（简介） ......................................................1 2. FEATURES（特性） .......................................................1 3. Block Diagram（结构框图） ...............................................2 4. Package Outline and Mounting（外形及安装尺寸） ..........................2 5. Pin Definition（引脚定义） .................................................3 6. Product Pictures（实物图片） ..............................................4 7. Key Materials（关键物料） .................................................4 8. General Requirements（一般要求） ........................................4 9. Electrical Characteristics（电气特性） .....................................5 10. Mechanical,Environmental and Reliability Tests .................................... 12 11. Package（包装） .......................................................14 12. Software Requirements（软件要求） ....................................15 SKI.WB7638U.1_MT7638BUB 1 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 1. Introduction（简介） SKI.WB7638U.1_MT7638BUB module is based on MEDIATEK MT7638BUN solution. MT7638BUN is a highly integrated single chip which features a low power 2x2 11a/b/g/n dual-band Wi-Fi subsystem and a Bluetooth subsystem. The Wi-Fi subsystem contains the 802.11a/b/g/n radio, baseband, and MAC that are designed to meet both the low power and high throughput application.The Bluetooth subsystem contains the Bluetooth radio which complies with Bluetooth v2.1+EDR, v4.2, and v5.0, baseband, link controller. This documentation describes the engineering requirements specification. SKI.WB7638U.1_MT7638BUB 模块基于 MEDIATEK MT7638BUN 解决方案。MT7638B 是一款高度集成的芯片，具有低功耗 2x2 11a/b/g/n 双频 Wi-Fi 子系统和蓝牙子系统。Wi-Fi 子系 统包含 802.11a/b/g/n 射频、基带和 MAC，旨在满足低功耗和高吞吐量应用。蓝牙子系统包含蓝 牙 2.1+EDR、v4.2 和 v5.0、基带和链路控制器。本文件描述了工程需求规范。 2. FEATURES（特性） Reserving System 接收制式 IEEE Std. 802.11a IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n Bluetooth 2.1+EDR/4.2/5.0 Chip Solution 芯片方案 MT7638BUN Band 波段 2.4/5GHz Dimensions 尺寸 32.0mm×22.0mm×3.0mm Type 型号 Mounting Method 安装方式 Protocol 支持标准 Frequency 频段 ANT Interface 天线接口 Remarks 备注 SKI.WB7638U. 1_MT7638BUB SMD IEEE 2.4/5GHz IPEX 32.0mm× 22.0mm×3.0mm 802.11a/b/g/n + Bluetooth 2.1+EDR/4.2/5.0 SKI.WB7638U.1_MT7638BUB 2 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 3. Block Diagram 4. Package Outline and Mounting（外形及安装尺寸） 模组主视图 模组侧视图 模组后视图 注意：1单位为mm 2模组外形尺寸公差为0.2mm，板厚以及未标注公差为0.1mm SKI.WB7638U.1_MT7638BUB 3 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 5. Pin Definition（引脚定义） PIN SYMBOL DESCRIPTION 1 WOW WIFI WAKE HOST \ WIFI 唤醒主机，模组 4.7Kohm 上拉到 3.3V，唤醒时模组输出低电平 2 WLAN RST WLAN RST \ WLAN 复位，模组 10Kohm 上拉到 3.3V，低电平触发模组复位 3 VDD_3.3V 3.3V input \ 3.3V 输入 4 USB_DM USB2.0 DM Signal \ USB2.0 差分负电压信号 5 USB_DP USB2.0 DP Signal \ USB2.0 差分正电压信号 6 GND Ground\地 7 BT SYNC Frame sync signals from TV to sync with 3D glass via Bluetooth\3D 帧同步信号 8 BT_WAKE_HO ST Bluetooth wakeup the host\蓝牙唤醒主机，模组 4.7Kohm 上拉到 3.3V，唤醒时模组输 出低电平 9 GND Ground\地 10 BT_RF BT RF Output, connect to external antenna\蓝牙射频输出，连接外置天线 11 GND Ground\地 12 GND Ground\地 13 WL_RF1 Wi-Fi RF port1, connect to external antenna\Wi-Fi 射频端口 1，连接外置天线 14 GND Ground\地 15 GND Ground\地 16 WL_RF0 Wi-Fi RF port0, connect to external antenna\Wi-Fi 射频端口 0，连接外置天线 17 GND Ground\地 SKI.WB7638U.1_MT7638BUB 4 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 6. Product Pictures（实物图片） 正视图（top view） 背视图（bottom view） 7. Key Materials（关键物料） 序号 No. 关键件名称Name 型号 Model 规格/材料 Spec. 备注 Mark 1 集成电路/IC MT7638BUN 76-QFN -- 2 PCB SKI.WB7638U.1 FR-4,4LAY -- 3 晶体振荡器 /Crystal 2.3.3.400001535 40MHz -- 4 双工器/ duplexer SLFD18-2R450G-13T -- -- 8. General Requirements（一般要求） No. Feature Description 8-1 Operation Voltage 工作电压范围 3.3V+/-0.3 8-2 Current Consumption 最大电流 700mA 8-3 Ripple 纹波 ≤100mV 8-4 Operation Temperature 工作温度范围 0°C to +40°C 8-5 Antenna Type 天线类型 External antenna 8-6 USB High Speed USB 2.0 Interface 8-7 Storage Temperature 存储温度 -40°C to +85°C SKI.WB7638U.1_MT7638BUB 5 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 9. Electrical Characteristics（电气特性） 除非另有说明，电气规范试验是在下列条件下进行，环境条件温度：25°C±5°C；电源电压：模块输 入电压 3.3V（±0.3V）； The Test for electrical specification was performed under the following condition unless otherwise specified. Ambient condition Temperature :25°C ± 5°C; Power supply voltages：3.3V (±0.3V) input power at the Module. SKI.WB7638U.1_MT7638BUB 6 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 10. Mechanical,Environmental and Reliability Tests （机械、环境和可靠性测试） Test Items Test Conditions Qty Criteria Condition 10-1 Drop test The packed samples within 1xBox 100Kg can be tested Drop height: Face Side: 800/600/450mm After drop test, the outer box and inner box will not been broken by appearance Edge line: 600/450/350mm visual inspection. Drop time: 1 each Face and edge. 10-2 Vibration test X-Y-Z direction, first Frequency changing from 10Hz to 30Hz to 10Hz,amplitude 0.75mm, 5 times vibrations, then frequency Changing from 30Hz to 55 Hz to 30 Hz, amplitude 0.15mm, 5 time vibration. 3 After test, the Appearance, Power EVM and Frequency error shall be satisfied with the specification. 10-3 Impact test Impact acceleration: 3 After test, the Appearance, Power EVM 50m/sec2; and Frequency error shall be satisfied Impact duratio…

Text truncated - open the document above for the full version.

Guangzhou Shikun Electronics Co., Ltd Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject:Request for Confidentiality FCC ID: 2AR82-SKIWB7638U2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation BOM list Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Guangzhou Shikun Electronics Co., Ltd Contact Name: Bing Yi Title of Person: Certification Manager Address: NO.6 Liankun Road,Huangpu District Guangzhou 510530 China Date:2021/1/12

The module transmitter will be a limited module Modular Approval Request FCC (Per 15.212) FCC ID: 2AR82-SKIWB7638U2 Items to be coveredAnswer From Applicant 1. The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over- modulation. Yes 3. The modular transmitter must have its own power supply regulation.Yes 4. The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes 5. The modular transmitter must be tested in a stand-alone configuration,i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). No The modular transmitter is not stand- alone, BT antenna connector and related matching circuit are located in the host circuit board. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning Yes maybeused.TheGranteemayeitherprovidesuchalabel,anexample ofwhichmustbeincludedintheapplicationforequipmentauthorization, or,mustprovideadequateinstructionsalongwiththemodulewhich explainthisrequirement.Inthelattercase,acopyoftheseinstructions mustbeincludedintheapplicationforequipmentauthorization. (B)IfthemodulartransmitterusesanelectronicdisplayoftheFCC identificationnumber,theinformationmustbereadilyaccessibleand visibleonthemodulartransmitteroronthedeviceinwhichitisinstalled. Ifthemoduleisinstalledinsideanotherdevice,thentheoutsideofthe deviceintowhichthemoduleisinstalledmustdisplayalabelreferringto theenclosedmodule.Thisexteriorlabelcanusewordingsuchasthe following:“ContainsFCCcertifiedtransmittermodule(s).”Anysimilar wordingthatexpressesthesamemeaningmaybeused.Theuser manualmustincludeinstructionsonhowtoaccesstheelectronic display.Acopyoftheseinstructionsmustbeincludedintheapplication forequipmentauthorization. 7.Themodulartransmittermustcomplywithanyspecificrulesor operatingrequirementsthatordinarilyapplytoacompletetransmitter andthemanufacturermustprovideadequateinstructionsalongwiththe moduletoexplainanysuchrequirements.Acopyoftheseinstructions mustbeincludedintheapplicationforequipmentauthorization. Yes 8.Radiofrequencydevicesoperatingundertheprovisionsofthispart aresubjecttotheradiofrequencyradiationexposurerequirements specifiedin§§1.1307(b),1.1310,2.1091,and2.1093ofthischapter,as appropriate.Applicationsforequipmentauthorizationofmodular transmittersunderthissectionmustcontainastatementconfirming compliancewiththeserequirements.Themodulartransmittermust complywithanyapplicableRFexposurerequirementsinitsfinal configuration.Technicalinformationshowingthebasisforthisstatement mustbesubmittedtotheCommissionuponrequest. Yes Note:Ifcompliancewithoneormoreofthenumberedrequirements,listedabove, cannotbedemonstrated,itmaybepossibletoobtaina“LimitedModularApproval” (LMA). ___________________________ BingYi Title:CertificationManager GuangzhouShikunElectronicsCo.,Ltd

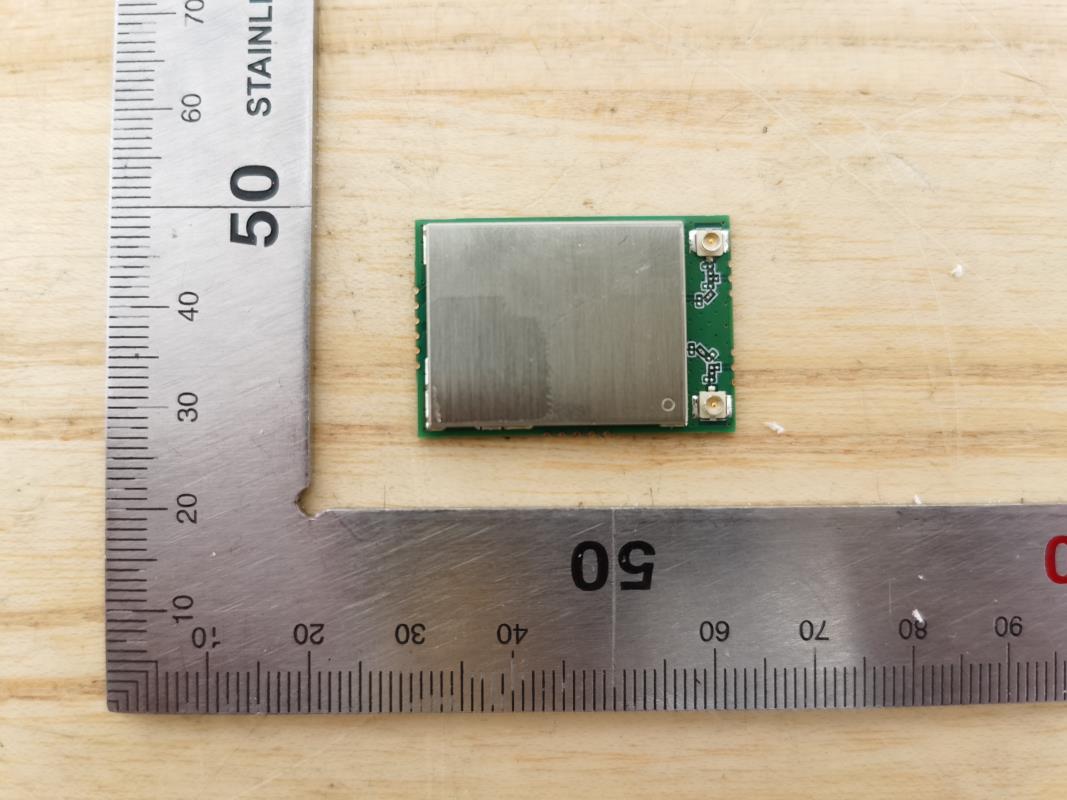

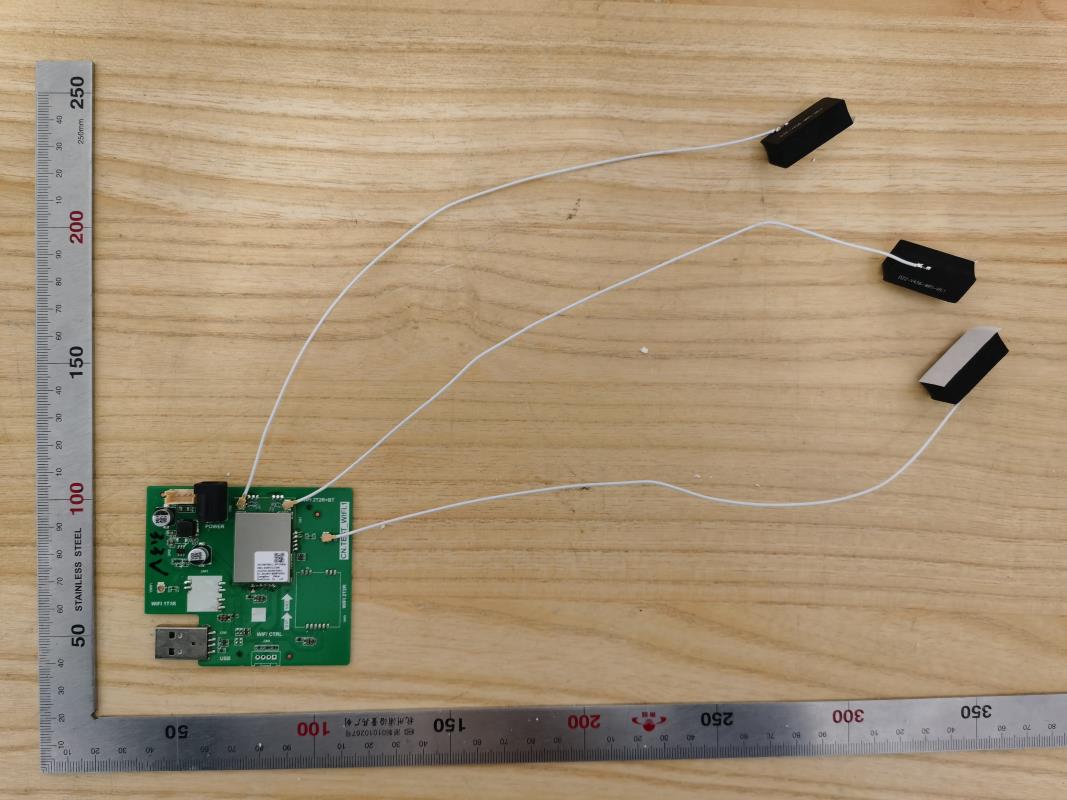

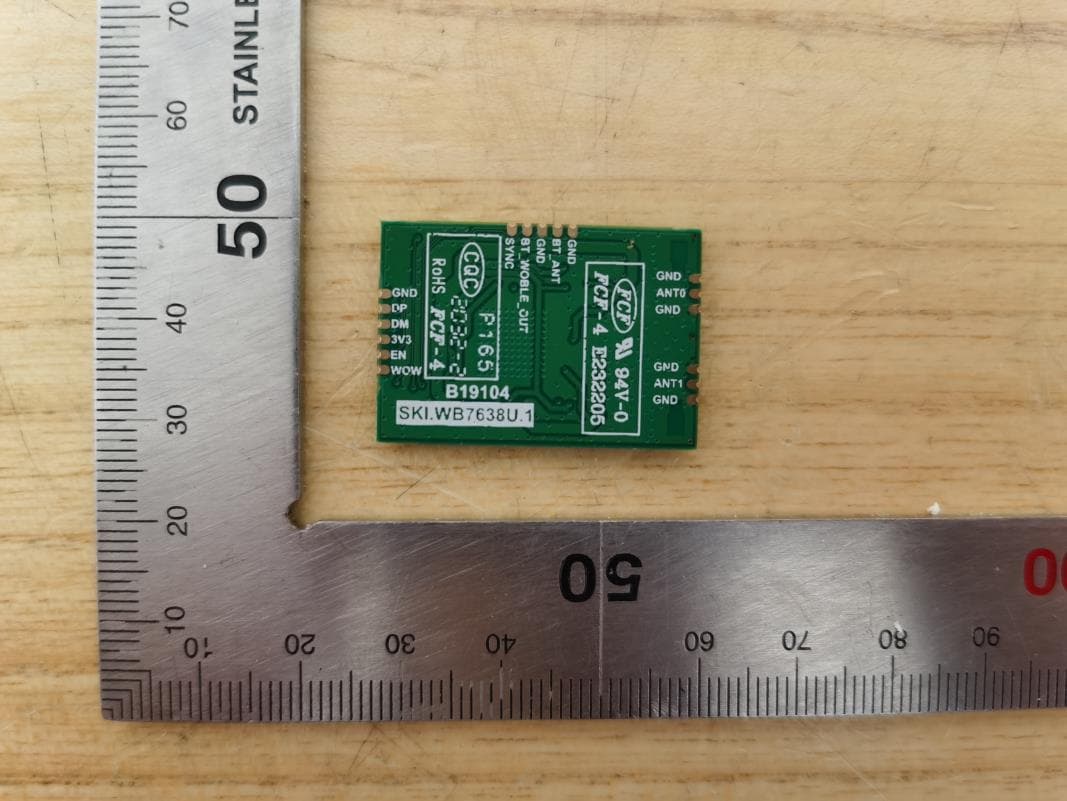

Appendix I External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4 WiFi Antenna Test fixture BT Antenna

Label: Label location:

Appendix II Internal Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For IEEE 802.11a/b/g/n 2T2R USB Wi-Fi Module Integrated Bluetooth 2.1+EDR/4.2/5.0 MODEL NUMBER: SKI.WB7638U.1_MT7638BUB FCC ID: 2AR82-SKIWB7638U2 REPORT NUMBER: 4789787344.1-5 ISSUE DATE: January 21, 2021 Prepared for Guangzhou Shikun Electronics Co., Ltd NO.6 Liankun Road,Huangpu District,Guangzhou,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789787344.1-5 Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 01/21/2021 Initial Issue REPORT NO.: 4789787344.1-5 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. REQUIREMENT .................................................................................................................... 6 REPORT NO.: 4789787344.1-5 Page 4 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Guangzhou Shikun Electronics Co., Ltd Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China Manufacturer Information Company Name: Guangzhou Shikun Electronics Co., Ltd Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China EUT Information EUT Name: IEEE 802.11a/b/g/n 2T2R USB Wi-Fi Module Integrated Bluetooth 2.1+EDR/4.2/5.0 Model: SKI.WB7638U.1_MT7638BUB Brand: / Serial Model: / Sample Received Date: January 7, 2021 Sample Status: Normal Sample ID: 3576248 Date of Tested: January 11, 2021 ~ January 21, 2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS KDB-447498 D01 V06 PASS Prepared By: Checked By: Denny Huang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4789787344.1-5 Page 5 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT NO.: 4789787344.1-5 Page 6 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not expo…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For IEEE 802.11a/b/g/n 2T2R USB Wi-Fi Module Integrated Bluetooth 2.1+EDR/4.2/5.0 MODEL NUMBER: SKI.WB7638U.1_MT7638BUB FCC ID: 2AR82-SKIWB7638U2 IC: 24728-SKIWB7638U2 REPORT NUMBER: 4789787344.1-2 ISSUE DATE: January 21, 2021 Prepared for Guangzhou Shikun Electronics Co., Ltd NO.6 Liankun Road,Huangpu District,Guangzhou,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789787344.1-2 Page 2 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 01/21/2021 Initial Issue REPORT NO.: 4789787344.1-2 Page 3 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 20dB Bandwidth and 99% Occupied Bandwidth FCC 15.247 (a) (1) RSS-247 Clause 5.1 (a) RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC 15.247 (b) (1) RSS-247 Clause 5.1 (b) Pass 3 Carrier Hopping Channel Separation FCC 15.247 (a) (1) RSS-247 Clause 5.1 (b) Pass 4 Number of Hopping Frequency 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 5 Time of Occupancy (Dwell Time) 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 6 Conducted Bandedge FCC 15.247 (d) RSS-247 Clause 5.5 Pass 7 Radiated Bandedge and Spurious FCC 15.247 (d) FCC 15.209 FCC 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 RSS-GEN Clause 8.10 Pass 8 Conducted Emission Test for AC Power Port FCC 15.207 RSS-GEN Clause 8.8 Pass 9 Antenna Requirement FCC 15.203 RSS-GEN Clause 6.8 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789787344.1-2 Page 4 of 91 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................ 7 3. FACILITIES AND ACCREDITATION .................................................................................... 7 4. CALIBRATION AND UNCERTAINTY .................................................................................. 8 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 8 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 8 5. EQUIPMENT UNDER TEST ................................................................................................. 9 5.1. DESCRIPTION OF EUT ................................................................................................. 9 5.2. MAXIMUM PEAK OUTPUT POWER ............................................................................. 9 5.3. PACKET TYPE CONFIGURATION ................................................................................ 9 5.4. CHANNEL LIST ............................................................................................................ 10 5.5. TEST CHANNEL CONFIGURATION ........................................................................... 10 5.6. WORST-CASE CONFIGURATIONS ............................................................................ 10 5.7. THE WORSE CASE POWER SETTING PARAMETER ............................................... 11 5.8. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 11 5.9. DESCRIPTION OF TEST SETUP ................................................................................ 12 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................... 13 7. ANTENNA PORT TEST RESULTS .................................................................................... 15 7.1. ON TIME AND DUTY CYCLE ...................................................................................... 15 7.2. 20 dB BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ......................................... 16 7.3. CONDUCTED OUTPUT POWER ................................................................................ 18 7.4. CARRIER FREQUENCY SEPARATION ...................................................................... 19 7.5. NUMBER OF HOPPING FREQUENCIES.................................................................... 21 7.6. TIME OF OCCUPANCY (DWELL TIME) ...................................................................... 23 7.7. CONDUCTED BANDEDGE AND SPURIOUS EMISSION ........................................... 25 8. RADIATED TEST RESULTS ........................…

Text truncated - open the document above for the full version.

Appendix III Setup Photographs Conducted Disturbance Radiated Disturbance below 1 GHz and above 30 MHz Radiated Disturbance below 30 MHz RADIATED RF MEASUREMENT SETUP (Above 1 GHz – X axis) RADIATED RF MEASUREMENT SETUP (Above 1 GHz – Y axis) RADIATED RF MEASUREMENT SETUP (Above 1 GHz – Z axis)
