2AR82-SKOW603601IEEE 802.11b/g/n 2T2R USB Wi-Fi Module

版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 保密等级：机密 SPECIFICATION 产品规格书 SKO.W603.6 IEEE 802.11b/g/n 2T2R USB Wi-Fi Module Approved by Shikun Checked by 审核 Rechecked by 复审 Approved by 批准 Please send the original back to us after you have approved and signed. 客户承认签章后敬请寄回正本一份。 Approved by customer Comments 确认意见 Approved by 批准签字 Company’s seal 盖章 Customer’s Name: 广 州 视 琨 电 子 科 技 有 限 公 司 Guangzhou Shikun Electronic Technology Company Limited 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 REVISION HISTORY VERSION DATE BOARD ID PAGE DESCRIPTION AUTHOR V0 2020.07.10 SKO.W603.6 A20233 First Issued. Lee V1 2020.08.26 SKO.W603.6 B20332 1\2\3\ 4 Modify the product pictures, dimensions and package outline. Lee Modify the product V2 2020.09.25 SKO.W603.6 B20332 3\4 \11 pictures and package. Delete software Lee requirements. V3 2020.11.17 SKO.W603.6 B20332 13\14\ 15\16 Add warning information. Lee 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 Content 1. Introduction（简介） ...................................................... 1 2. FEATURES（特性） ....................................................... 1 3. Block Diagram（结构框图） ............................................... 2 4. Package Outline and Mounting（外形及安装尺寸） ......................... 2 5. Product Pictures（实物图片） .............................................. 3 6. Key Materials（关键物料） ................................................. 4 7. General Requirements（一般要求） ........................................ 4 8. Electrical Characteristics（电气特性） ..................................... 4 8.1 IEEE 802.11b Section ................................................................ 5 8.2 IEEE 802.11g Section ................................................................ 5 8.3 IEEE 802.11n HT20 Section(2.4GHz) ............................................ 6 8.4 IEEE 802.11n HT40 Section(2.4GHz) ............................................ 7 9. Mechanical,Environmental and Reliability Tests（机械、环境和可靠性测试） . 9 10. Package（包装） ....................................................... 11 11. Socket Specification（插座规格） ........................................ 12 12. FCC Statement .............................................................................. 13 13. Canada Statement ......................................................................... 14 14. Notice to OEM integrator ................................................................. 16 SKO.W603.6 1 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 1. Introduction（简介） SKO.W603.6 module is based on MEDIATEK MT7603U solution. The MT7603U is a highly integrated Wi-Fi single chip which supports 300 Mbps PHY rate. It fully complies with IEEE 802.11n and IEEE 802.11 b/g standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance. This documentation describes the engineering requirements specification. SKO.W603.6 模块基于MEDIATEK MT7603U 解决方案。MT7603U 是一款高度集成的Wi-Fi 芯片，支持 300 Mbps 的物理速率。方案符合 IEEE 802.11n 和IEEE 802.11 b/g 标准，以高标 准提供功能丰富的无线连接，并在远距离提供可靠、经济高效的吞吐量。本文件描述了工程需求规 范。 2. FEATURES（特性） Reserving System 接收制式 IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n Chip Solution 芯片方案 MT7603U Band 波段 2.4GHz Dimensions 尺寸 57.0mm×30.0mm×3.2mm 型号 model 安装方式 Installati on method 支持标准 Support standard 频段 Band 天线接口 Antenna interface 备注 Remarks SKO.W603.6 外挂 Ext-WIFI IEEE 802.11b/g/n 2.4GHz 板载天线 On-board Antenna 57.0mm×30.0mm×3.2mm SKO.W603.6 2 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 4. Package Outline and Mounting（外形及安装尺寸） Note:1. The unit is mm. 2.The tolerance of the external dimensions of the module is ±0.2mm, and the tolerance of the board thickness and unmarked is ±0.2mm. 注意：1. 单位为 mm。 2.模组外形尺寸公差为±0.2mm，板厚及未标注公差为±0.2mm。 SKO.W603.6 3 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 Pin Definition（引脚定义） PIN SYMBOL DESCRIPTION 1 VDD_5V VDD 5.0V\+5.0V 直流供电输入 2 VDD_5V VDD 5.0V\+5.0V 直流供电输入 3 NC NC\悬空 4 GND Connected to Ground\连接到地 5 GND Connected to Ground\连接到地 6 USB_DM USB2.0 DM Signal\USB2.0 差分负电压信号 7 USB_DP USB2.0 DP Signal\USB2.0 差分正电压信号 8 GND Connected to Ground\连接到地 9 WoW Wake on Wireless LAN\唤醒引脚 （低电平有效，内有 10K 电阻到 3.3V 上拉） 10 RESET RESET\复位引脚 (低电平有效，内部没有上拉电阻，整机端需要加 10K 电阻到 3.3V 上拉) 5. Product Pictures（实物图片） 正视图（top view） SKO.W603.6 4 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 背视图（bottom view） 6. Key Materials（关键物料） 序号 关键件名称 型号 规格/材料 备注 1 集成电路 MT7603U 48-QFN 2 PCB SKO.W603.6 FR-4,2LAY 3 晶体振荡器 无源晶振,SPXO,± 10ppm,12pF,SMD3225 40MHz 7. General Requirements（一般要求） No. Feature Description 7-1 Operation Voltage 工作电压范围 5.0V+/-0.5 7-2 Current Consumption 最大电流 800mA 7-3 Ripple 纹波 ≤250Vp-p 7-4 Operation Temperature 工作温度范围 0°C to +40°C 7-5 Antenna Type 天线类型 Internal antenna 7-6 USB High Speed USB 2.0 Interface 7-7 Storage Temperature 存储温度 -40°C to +85°C 8. Electrical Characteristics（电气特性） The Test for electrical specification was performed under the following condition unless otherwise specified. Ambient condition Temperature :25°C ± 5°C; Power supply voltages：5.0V (±10%) input power at the Module. 除非另有说明，电气规范试验是在下列条件下进行的。 环境条件温度：25°C±5°C； 电源电压：模块上输入电压 5.0V（±10%） SKO.W603.6 5 QR-ZZPJ-017A 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 8.1 IEEE 802.11b Section Items Contents Specification IEEE802.11b Mode DBPSK, DQPSK and CCK and DSSS Channel CH1 to CH13 TX Characteristics Min. Typ. Max. Unit Remark 1. Power Levels(Calibrated) 1) For Each antenna port 14 16 18 dBm 2. Spectrum Mask @ target power 1) fc +/-11MHz to +/-22MHz - - -30 dBr 2) fc > +/-22MHz - - -50 dBr 3 Constellation Error(EVM)@ target power 1) 1Mbps - - -10 dB 2) 2Mbps - - -10 dB 3) 5.5Mbps - - -10 dB 4) 11Mbps - - -10 dB 4. Frequency Error -20 - 20 ppm RX Characteristics Min. Typ. Max. Unit 5 Minimum Input Level Sensitivity (each chain) 1) 1Mbps (FER ≦8%) - - -83 dBm 2) 2Mbps (FER ≦8%) - - -80 dBm 3) 5.5Mbps (FER ≦8%) - - -79 dBm 4) 11Mbps (FER ≦8%) - - -76 dBm 6 Maximum Input Level (FER ≦8%) -10 - - dBm 8.2 IEEE 80…

Text truncated - open the document above for the full version.

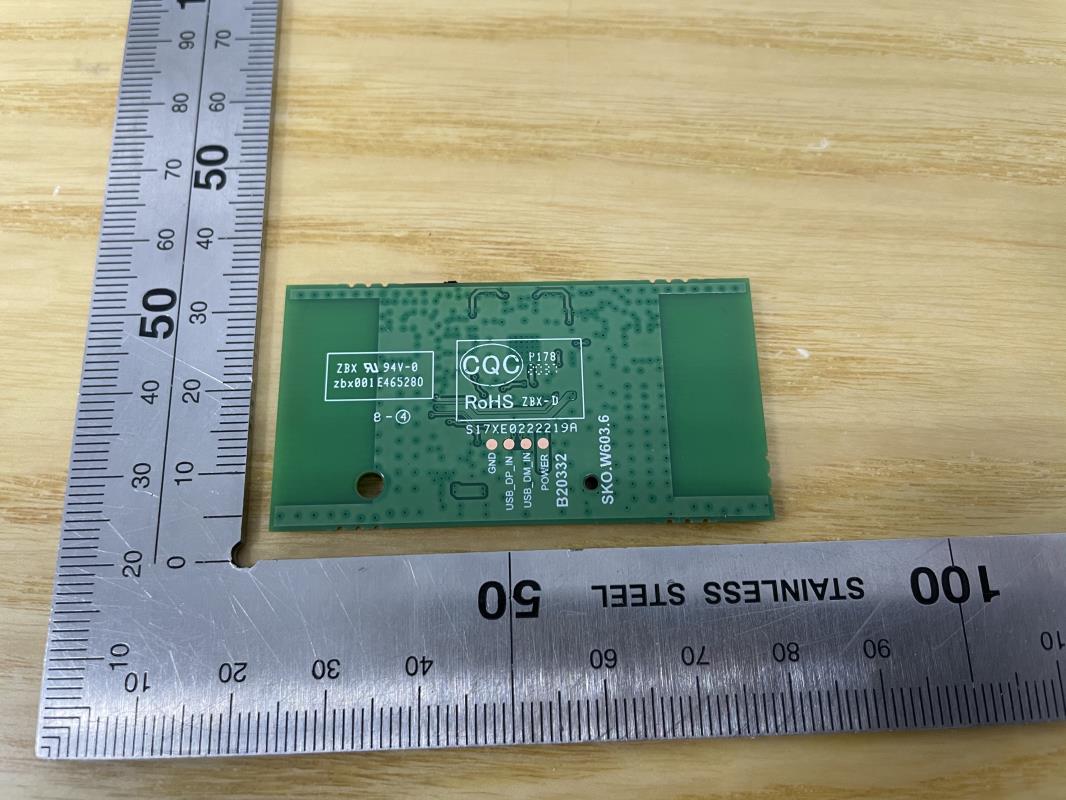

Appendix I External Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2

Appendix I Internal Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Antenna 1 Antenna 2

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For IEEE 802.11b/g/n 2T2R USB Wi-Fi Module MODEL NUMBER: SKO.W603.6 FCC ID: 2AR82-SKOW603601 REPORT NUMBER: 4789740323-2 ISSUE DATE: January 04, 2021 Prepared for Guangzhou Shikun Electronics Co., Ltd NO.6 Liankun Road,Huangpu District,Guangzhou,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789740323-2 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 3 2. TEST METHODOLOGY ........................................................................................................ 4 3. FACILITIES AND ACCREDITATION .................................................................................... 4 4. REQUIREMENT .................................................................................................................... 5 S =PG/(4πR 2 ) ................................................................................................................................ 5 REPORT No.: 4789740323-2 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Guangzhou Shikun Electronics Co., Ltd Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China Manufacturer Information Company Name: Guangzhou Shikun Electronics Co., Ltd Address: NO.6 Liankun Road,Huangpu District,Guangzhou,China EUT Information EUT Name: IEEE 802.11b/g/n 2T2R USB Wi-Fi Module Model: SKO.W603.6 Sample Received Date: December 1, 2020 Sample Status: Normal Sample ID: 3492101 Date of Tested: December 1, 2020~ December 11, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 PASS Tested By: Checked By: Kebo Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT No.: 4789740323-2 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30 MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30 MHz had been correlated to measurements performed on an OFS. REPORT No.: 4789740323-2 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public …

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For IEEE 802.11b/g/n 2T2R USB Wi-Fi Module MODEL NUMBER: SKO.W603.6 FCC ID: 2AR82-SKOW603601 IC: 24728-SKOW603601 REPORT NUMBER: 4789740323-1 ISSUE DATE: January 04, 2021 Prepared for Guangzhou Shikun Electronics Co., Ltd NO.6 Liankun Road,Huangpu District,Guangzhou,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789740323-1 Page 2 of 138 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 01/04/2021 Initial Issue REPORT NO.: 4789740323-1 Page 3 of 138 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC Part 15.247 (b) (3) RSS-247 Clause 5.4 (d) Pass 3 Power Spectral Density FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) RSS-247 Clause 5.5 Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 RSS-GEN Clause 8.8 Pass 7 Antenna Requirement FCC Part 15.203 RSS-GEN Clause 6.8 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789740323-1 Page 4 of 138 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................ 7 3. FACILITIES AND ACCREDITATION .................................................................................... 7 4. CALIBRATION AND UNCERTAINTY .................................................................................. 8 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 8 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 8 5. EQUIPMENT UNDER TEST ................................................................................................. 9 5.1. DESCRIPTION OF EUT ................................................................................................. 9 5.2. CHANNEL LIST .............................................................................................................. 9 5.3. MAXIMUM OUTPUT POWER ...................................................................................... 10 5.4. TEST CHANNEL CONFIGURATION ........................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................... 10 5.6. THE WORSE CASE CONFIGURATIONS.................................................................... 11 5.7. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 12 5.8. DESCRIPTION OF TEST SETUP ................................................................................ 13 6. MEASURING INSTRUMENT AND SOFTWARE USED ..................................................... 14 7. ANTENNA PORT TEST RESULTS .................................................................................... 16 7.1. ON TIME AND DUTY CYCLE ...................................................................................... 16 7.2. 6 dB DTS BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ................................... 17 7.3. CONDUCTED OUTPUT POWER ................................................................................ 19 7.4. POWER SPECTRAL DENSITY ................................................................................... 20 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................ 22 8. RADIATED TEST RESULTS .............................................................................................. 24 8.1. RESTRICTED BANDEDGE ......................................................................................... 30 8.1.1. 802.11b SISO MODE ............................................................................................ 30 8.1.2. 802.11g SISO MODE ............................................................................................ 34 8.1.3. 802.11n HT20 MIMO MODE ......................................…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (Below 30MHz) AC POWER LINE MEASUREMENT SETUP
