2AR82-SKOWB276P1IEEE 802.11b/g/n/a/ac/ax 2T2R PCIE WiFi Module Integrated BT 2.1+EDR/4.2/5.3

HostIntegrationGuide FCCID:2AR82-SKOWB276P1 IC:24728-SKOWB276P1 Themoduleisnotintendedforgeneralpublicandintegrators. Itisgenerallyforindustry/commercialuseandmustbeprofessionallyinstalled. Theconnectoriswithinthetransmitterenclosureandcanonlybeaccessedbydisassemblyofthe transmitterthatisnotnormallyrequired. Installationmustbecontrolledandrequiresspecialtraining. AccordingtoKDB996369D032.0INTEGRATIONINSTRUCTIONS(2.2-2.12) 2.2 ThismodulehasbeenassessedagainstthefollowingFCCruleparts:CFR47FCCPart15C(15.247, DTSandDSS)andCFR47FCCPart15E(NII).Itisapplicabletothemodulartransmitter. 2.3 ThisradiotransmitterFCCID:2AR82-SKOWB276P1hasbeenapprovedbyFederalCommunications Commissiontooperatewiththeantennatypeslistedbelow,withthemaximumpermissiblegainindicated. Antennatypesnotincludedinthislistthathaveagaingreaterthanthemaximumgainindicatedforany typelistedarestrictlyprohibitedforusewiththisdevice. Theconcretecontentstocheckarethefollowingthreepoints. 1.MustuseanantennasuchasdipoleAntennawithagainnotexceeding3.83dBiforBT/BLE/2.4GWIFI, 5.52dBifor5GWIFI,5.84dBifor6GWIFI;andminimum2.65dBifor6GWIFI.; 2.Shouldbeinstalledsothattheendusercannotmodifytheantenna. 3.Feedlineshouldbedesignedin50ohm Finetuningofreturnlossetc.canbeperformedusingamatchingnetwork. 2.4 ThemodulecomplieswithFCCPart15.247/Part15.407andapplyforSinglemoduleapproval. 2.5 Traceantennadesigns:Notapplicable. 2.6 Themoduleislimitedtoinstallationinmobileapplication.Hostdevicemustbeoperatedatminimumof 20cmbetweenpeople. HerearetwotypesofinstructionforRFexposure: 1;Thehostproductwhichthemoduleinstalledshallbemobileapplication. 2;Theendusermanualshallbeprovidedadditionaltextfromthehostproductmanufacturer.Itshall includeFCCcompliancestatementsrelatedtothetransmitterorlabelingrequirements.IfRFexposure statementsanduseconditionsarenotprovided,thenthehostproductmanufacturerisrequiredtotake responsibilityofthemodulethroughachangeinFCCID(newapplication). Aseparateapprovalisrequiredforallotheroperatingconfigurations,includingportableconfigurations withrespecttoPart2.1093anddifferentantennaconfigurations. 2.7 AbouttheAntenna: MustuseanantennasuchasdipoleAntennawithagainnotexceeding3.83dBiforBT/BLE/2.4GWIFI, 5.52dBifor5GWIFI,5.84dBifor6GWIFI;andminimum2.65dBifor6GWIFI.Theantennacomplies withFCCPart15.203.TheinstallershoulduseuniqueantennaconnectorandAntennatypesnot includedinthislistthathaveagaingreaterthanthemaximumgainindicatedforanytypelistedare strictlyprohibitedforusewiththisdevice.Themanufacturerofmodulewillinforminstallertomeetwiththe FCCpart15.203inthewarningpart.Pleaserefertosection2.3forthedetailoftheantennarequirements. 2.8 PleasenoticethatiftheFCCidentificationnumberisnotvisiblewhenthemoduleisinstalledinsidethe hostdevice,thentheoutsideofthedeviceintowhichthemoduleisinstalledmustalsodisplayalabel referringtotheenclosedmodule.Thisexteriorlabelshallusethewording:ContainsFCCID:2AR82- SKOWB276P1. PleasenoticethatiftheISEDCanadacertificationnumberisnotvisiblewhenthemoduleisinstalled insidethehostdevice,thentheoutsideofthedeviceintowhichthemoduleisinstalledmustalsodisplay alabelreferringtotheenclosedmodule.Thisexteriorlabelchallusethewording:ContainsIC:24728- SKOWB276P1. 2.9 Testingofthehostproductwithallthetransmittersinstalled–referredtoasthecompositeinvestigation test-isrecommended,toverifythatthehostproductmeetsalltheapplicableFCCrules.Theradio spectrumistobeinvestigatedwithallthetransmittersinthefinalhostproductfunctioningtodetermine thatnoemissionsexceedthehighestlimitpermittedforanyoneindividualtransmitterasrequiredby Section2.947(f).Thehostmanufacturerisresponsibletoensurethatwhentheirproductoperatesas intended,itdoesnothaveanyemissionspresentthatareoutofcompliancethatwerenotpresentwhen thetransmittersweretestedindividually. Ifthemodulartransmitterhasbeenfullytestedbythemodulegranteeontherequirednumberof channels,modulationtypes,andmodes,itshouldnotbenecessaryforthehostinstallertore-testallthe availabletransmittermodesorsettings.Itisrecommendedthatthehostproductmanufacturer,installing themodulartransmitter,performsomeinvestigativemeasurementstoconfirmthattheresulting compositesystemdoesnotexceedthespuriousemissionslimitsorbandedgelimits(e.g.,wherea differentantennamaybecausingadditionalemissions). Thetestingshouldcheckforemissionsthatmayoccurduetotheintermixingofemissionswiththeother transmitters,digitalcircuitry,orduetophysicalpropertiesofthehostproduct(enclosure).This investigationisespeciallyimportantwhenintegratingmultiplemodulartransmitterswherethecertification isbasedontestingeachoftheminastand-aloneconfiguration. 2.10 Anycompanyofthehostdevicethatinstallsthismodularshouldperformthetestofradiatedand conductedemissionandspuriousemissionetc.accordingtoFCCPart15C:15.247,15.209,&15.207, Part15E:15.407,15BclassBrequirement.OnlyifthetestresultcomplieswithFCCpart15C:15.247, 15.209,15.407&15.207,15BclassBrequirement,thenthehostcanbesoldlegally. ThehostproductmanufacturerisresponsibleforcompliancetoanyotherFCCrulesthatapplytothehost notcoveredbythemodulartransmittergrantofcertification.Ifthegranteemarketstheirproductasbeing Part15SubpartBcompliant(whenitalsocontainsunintentional-radiatordigitalcircuity),thenthegrantee shallprovideanoticestatingthatthefinalhostproductstillrequiresPart15SubpartBcompliancetesting withthemodulartransmitterinstalled. 2.11 ThehostmanufacturerisrecommendedtouseD04ModuleIntegrationGuiderecommendingas"best practice"RFdesignengineeringtestingandevaluationincasenon-linearinteractionsgenerateadditional non-compliantlimitsduetomoduleplacementtohostcomponentsorproperties. 2.12 Thismoduleisstand-alonemodular.IftheendproductwillinvolvetheMultiplesimultaneously transmittingconditionordifferentoperationalconditionsforastand-alonemodulartransmitterinahost, hostmanufacturerhavetoconsultwithmodulemanufacturerfortheinstallationmethodinendsystem. Formoreinformation,pleaserefertotheinKDB996369D03OEMManualandKDB996369D04Module integrationGuide. Aseparateapprovalisrequiredforallotheroperatingconfigurations,includingportableconfiguratio…

Text truncated - open the document above for the full version.

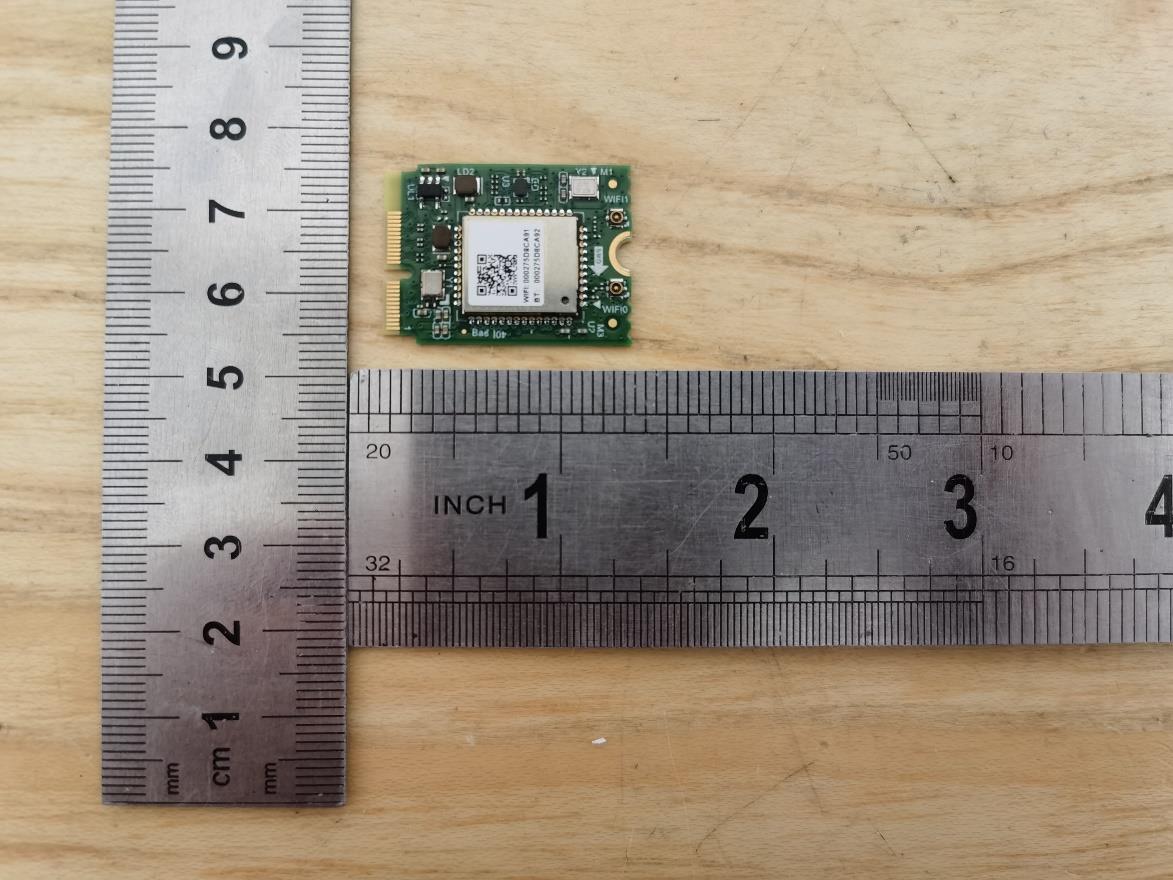

广州视琨电子科技有限公司 GuangzhouShikunElectronicTechnologyCompanyLimited 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 1 保密等级：机密 SPECIFICATION 产品规格书 SKO.WB276P.1B23453 IEEE802.11b/g/n/a/ac/ax2T2RPCIEWiFiModule IntegratedBT2.1+EDR/4.2/5.3 ApprovedbyShikun Checkedby审核Recheckedby复审Approvedby批准 李志明 Pleasesendtheoriginalbacktousafteryouhaveapprovedandsigned. 客户承认签章后敬请寄回正本一份。 Approvedbycustomer Comments确认意见Approvedby批准签字Company’sseal盖章 Customer’sName: 版权 CVTE 所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 1 REVISIONHISTORY. VERSIONDATEBOARDIDPAGEDESCRIPTIONAUTHOR V1.02023.06.07 SKO.WB276P.1 A23205 AllFirstIssuedLizhiming V1.12023.08.01 SKO.WB276P.1 A23205 All 更新描述 Lizhiming V1.22023.09.01 SKO.WB276P.1 B23342 All 更新描述 Lizhiming V1.32023.10.12 SKO.WB276P.1 B23342 All 更新描述 Lizhiming V1.42023.10.20 SKO.WB276P.1 B23342 All 更新描述 Lizhiming V1.52023.10.26 SKO.WB276P.1 B23342 All 更新描述 Lizhiming V1.62023.11.03 SKO.WB276P.1 B23342 All 更新描述 Lizhiming V1.72023.12.08 SKO.WB276P.1 B23453 All 更新实物图片 Lizhiming V1.82023.12.27 SKO.WB276P.1 B23342 All 更新描述 Lizhiming QR-ZZPJ-017A 版权CVTE所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 1 Content 1.Introduction（简介）...........................................................................1 2.Features（特性）................................................................................2 3.BlockDiagram（结构框图）..................................................................2 4.PackageOutlineandMounting（外形及安装尺寸）....................................3 5.PinDefinition（引脚定义）....................................................................3 6.ProductPictures（实物图片）................................................................5 7.KeyMaterials（关键物料）....................................................................5 8.GeneralRequirements（一般要求）.......................................................6 9.ElectricalCharacteristics（电气特性）....................................................6 9.1IEEE802.11bSection(2.4GHz).......................................................................6 9.2IEEE802.11gSection(2.4GHz).......................................................................7 9.3IEEE802.11nHT20Section(2.4GHz)...............................................................8 9.4IEEE802.11axSection(2.4GHz).......................................................................9 9.5IEEE802.11aSection(5GHz)........................................................................10 9.6IEEE802.11nHT20Section(5GHz)................................................................10 9.7IEEE802.11nHT40Section(5GHz).................................................................11 9.8IEEE802.11acSection(5GHz)........................................................................12 9.9IEEE802.11axSection(5GHz&6GHz).............................................................13 9.10BluetoothSection......................................................................................14 10.ReferenceDesign...........................................................................16 11.Package（包装）.............................................................................16 SKO.WB276P.1 QR-ZZPJ-017A 版权CVTE所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 1 1.Introduction （简介） SKO.WB276P.1moduleisbasedonAMPAKAP6276Psolution. AP6276Pisahighlyintegratedmodulewhichfeaturesalowpower2x211a/b/g/n/ac/ax dual-bandWi-FisubsystemandaBluetoothv5.3subsystem,offeringfeature-richwireless connectivityathighstandards,anddeliveringreliable,cost-effectivethroughputfroman extendeddistance. AP6276Pdatarateupto1200MbpswithPCIE3.0.OptimizedRFarchitectureand basebandalgorithmsprovidesuperbperformanceandlowpowerconsumption.Intelligent MACdesigndeploysahighefficientoffloadengine,andhardwaredataprocessing acceleratorswhichfullyoffloadsWi-Fitaskofthehostprocessor,AP6276Pisdesignedto supportstandardbasedfeaturesintheareasofsecurity,qualityofserviceandinternational regulations,givingendusersthegreatestperformanceanytimeandinany circumstance.Thisdocumentationdescribestheengineeringrequirementsspecification. SKO.WB276P.1模块基于正基AP6276P方案。AP6276P是一款高度集成的单模组，符合2x2 11a/b/g/n/ac/ax标准，支持低功耗的双频Wi-Fi和蓝牙v5.3子系统，提供功能丰富的无线标准接口， 以及可靠、高效的远距离吞吐量。 AP6276P使用PCIE3.0高速接口，数据速率高达1200Mbps，优化后的射频架构和基带算法提供了 卓越的性能，并且功耗很低。MAC部署了一个高效的卸载引擎和硬件数据处理加速器，可完全卸载主机处 理器的Wi-Fi任务。AP6276P安全、优异的性能，并且符合国际法律法规标准，无论何时何地都为用户 提供最好的应用体验。本文档描述了工程要求规范。 SKO.WB276P.1 QR-ZZPJ-017A 版权CVTE所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 2 2.Features （特性） ReservingSystem 接收制式 IEEEStd.802.11a IEEEStd.802.11b IEEEStd.802.11g IEEEStd.802.11n IEEEStd.802.11ac IEEEStd.802.11ax BT5.3 ModuleSolution模组方案 AP6276P Band波段 2.4GHz&5GHz&6GHz Dimensions尺寸22mm×30mm×2.65mm 3.BlockDiagram （结构框图） Figure1SKO.WB276P.1BlockDiagram 型号安装方式支持标准频段天线接口备注 SKO.WB276P.1M.2E-kye IEEE 802.11a/b/g/n/ac/ax BT2.1+EDR/4.2/5.3 2.4GHz/5GHz /6GHz 4代Ipex*2 22mm×30mm ×3.0mm SKO.WB276P.1 QR-ZZPJ-017A 版权CVTE所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 3 4.PackageOutlineandMounting （外形及安装尺寸） 模组俯视图模组侧视图模组底视图 注意：1.单位为mm。 2.模组外形尺寸公差为±0.2mm，板厚及未标注公差为±0.2mm。 3.平面度要求：＜0.15mm。 5.PinDefinition （引脚定义） 模组正视图 模组后视图 PINSYMBOLDESCRIPTION TOP 1GNDGND 3NCNotconnect 5NCNotconnect 7GNDGND SKO.WB276P.1 QR-ZZPJ-017A 版权CVTE所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何形式复制和传播。 4 9NCNotconnect 11NCNotconnect 13NCNotconnect 15NCNotconnect 17NCNotconnect 19NCNotconnect 21NCNotconnect 23NCNotconnect 33GNDGND 35PCIE_RXPDifferentialreceive 37PCIE_RXNDifferentialreceive 39GNDGND 41PCIE_TXPDifferentialtransmit 43PCIE_TXNDifferentialtransmit 45GNDGND 47PCIE_CKPDifferentialreferenceclock 49PCIE_CKNDifferentialreferenceclock 51GNDGND 53PCIE_CLKREQ PCIE_CLKREQ（3.3V） 55PCIE_WAKE PCIE_WAKE（1.8V） 57GNDGND BOTTOM 23V33V3 43V33V3 6NCNotconnect 8PCM_CLK PCM_CLOCK（1.8V） 10PCM_SYNC PCM_syncsignal（1.8V） 12PCM_OUT PCM_OUT（1.8V） 14PCM_IN PCM_IN（1.8V） 16NCNotconnect 18GNDGND 20BT_WAKE_H BT_WAKE_H（1.8V） 22UART_TXD UART_TX（1.8V） 32UART_RXD UART_RX（1.8V） 34UART_RTS UART_RXD（1.8V） 36UART_CTS UART_CTS（1.8V） 38H_WAKE_BT H_WAKE_BT（1.8V） 40WL_WAKE_H WL_WAKE_H（1.8V） SKO.WB276P.1 QR-ZZPJ-017A 版权CVTE所有，本文档内容属商业机密。未经允许，任何组织或个人不得以任何…

Text truncated - open the document above for the full version.

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ⚫ Reorient or relocate the receiving antenna. ⚫ Increase the separation between the equipment and receiver. ⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. List of applicable FCC rules This module has been tested and found to comply with part 15 requirements for Modular Approval. Antenna Placement Within the Host Platform The module is tested for standalone mobile RF exposure use condition. (1) The antenna must be installed such that 20 cm is maintained between the antenna and users, (2) The transmitter module may not be co-located with any other transmitter or antenna. In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Trace antenna designs Not applicable. RF exposure considerations This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. End Product Labeling When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: 2AR82-SKOWB276P1”. The FCC ID can be used only when all FCC compliance requirements are met. The end product shall bear the following 15.19 statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Information on test modes and additional testing requirements This transmitter is tested in a standalone mobile RF exposure condition and any co-located or simultaneous transmission with other transmitter(s) class II permissive change re-evaluation or new certification. Part 15 Subpart B disclaimer This transmitter module is tested as a subsystem and its certification does not cover the FCC Part 15 Subpart B rule requirement applicable to the final host. The final host will still need to be reassessed for compliance to this portion of rule requirements if applicable. As long as all conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Important Note In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for reevaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The host integrator must follow the integration instructions provided in this document and ensure that the composite-system end product complies with the requirements by a technical assessment or evaluation to the rules and to KDB Publication 996369. The host integrator installing this module into their product must ensure that the final composite product complies with the requirements by a technical assessment or evaluation to the rules, including the transmitter operation and should refer to guidance in KDB 996369. OEM/Host manufacturer responsibilities OEM/Host manufacturers are ultimately responsible for the compliance of the Host and Module. The final product must be reassessed against all the essential requirements of the FCC rule such as FCC Part 15 Subpart B before it can be placed on the US market. This includes reassessing the transmitter module for compliance with the Radio and EMF essential requirements of the FCC rules. This module must not be incorporated into any other device or syst…

Text truncated - open the document above for the full version.

GuangzhouShikunElectronicsCo.,Ltd Date:12/18/2023 FederalCommunicationsCommissions AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 RE:CFR47§2.911(d)(5)Attestation FCCID:2AR82-SKOWB276P1 Grantee’sFRN:0028116184 1.GuangzhouShikunElectronicsCo.,Ltd(“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. 2.GuangzhouShikunElectronicsCo.,Ltd(“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipmentandisnotanaffiliateorsubsidiaryofanentity identifiedontheCoveredList. Sincerelyyours, CompanyName:GuangzhouShikunElectronicsCo.,Ltd ContactName:BingYi TitleofPerson:CertificationManager Address:NO.6LiankunRoad,HuangpuDistrict,Guangzhou510530China Date:12/18/2023

Federal C Authoriza 7435 Oak Columbia RE: CFR FCC ID: Grantee ’ Guangzh designate applicant The appl the grant Commis s acknowle agent info U.S. Age Agent Co FCC FRN Agent Co Agent US Agent Em Sin cerel y Company Contact N Title of P Address: Date:12/ 2 ————— Communicat ation and Ev kland Mills R a, MD 21046 R 47 §2.911 ( 2AR82-SKO ’s FRN: 002 hou Shikun E es the follow t’s agent for icant acknow ee has term sion-related edges their r ormation cha ent Informat ompany Nam N: 00334028 ontact Name S Address : 3 mail Address y yours, y Name: Guan Name: Bing Y erson: Certif NO.6 Lianku 28/2023 ——————— Gua tions Comm valuation Div Road 6 (d)(7) Agent OWB276P1 28116184 Electronics C wing agent, lo service of p wledges that minated all m proceeding responsibility anges. tion: me: FCC US 884 e: Tim Payne 3722 Illinois s: Support@ ngzhou Shik Yi fication Mana un Road, Hua —————— angzhou Shiku issions vision t Designatio Co., Ltd (“the ocated in the rocess. t they will ma arketing and involving the y under CFR Agent, LLC e Avenue, S a @FCCUSAge kun Electroni ager angpu Distric —————— un Electronics on Attestati e applicant”) e United Sta aintain an ag d importation e equipment R 47 §2.929( C aint Charles, ent.com cs Co., Ltd ct, Guangzho s Co., Ltd ion as required ates, for purp gent for no l n or the conc t. T he applic (c) to inform , IL, 60174, U ou 510530 Ch Date by section 2 poses of act ess than on clusion of an cant further the FCC w h USA hina e: 12/28/202 2.911(d)(7), ing as the e year after ny henever the 23 Guangzhou Shikun Electronics Co., Ltd Company Name: FCC US Agent, LLC Contact Name: Tim Payne Title of Person: Manager

Guangzhou Shikun Electr onics Co., Ltd Date: 12/18/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2AR82-SKOWB276P1 Grantee’s FRN: 0028116184 Guangzhou Shikun Electronics Co., Ltd (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Agent Company Name:FCC US Agent, LLC FCC FRN: 0033402884 Agent Contact Name:Tim Payne Agent US Address : 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Agent Email Address: [email protected] Since rely yours, Company Name: Guangzhou Shikun Electronics Co., Ltd Contact Name: Bing Yi Title of Person: Certification Manager Address: NO.6 Liankun Road, Huangpu District, Guangzhou 510530 China Date:12/18/2023

GuangzhouShikunElectronicsCo.,Ltd Date:12/18/2023 FederalCommunicationsCommission 7435OaklandMillsRoad ColumbiaMD21046 Towhomitmayconcern: I,theundersigned,herebyauthorizeULVerificationServicesInc.toactonourbehalfinall mannersrelatingtoapplicationforequipmentauthorization,includingsigningofalldocuments relatingtothesematters.AnyandallactscarriedoutbyULVerificationServicesInc.onour behalfshallhavethesameeffectasactsofourown. I,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits,that includesFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C. 853(a). InauthorizingULVerificationServicesInc.asourrepresentative,westillrecognizethatweare responsibleto: a)complywiththerelevantprovisionsofthecertificationprogram; b)makeallnecessaryarrangementsfortheconductoftheevaluation,including provisionforexaminingdocumentationandaccesstoallareas,records(including internalauditreports)andpersonnelforthepurposesofevaluation(e.g.testing, inspection,assessment,surveillance,reassessment)andresolutionofcomplaints; c)makeclaimsregardingcertificationonlyinrespectofthescopeforwhich certificationhasbeengranted; d)donotuseourproductcertificationinsuchamannerastobringtheCertification Divisionintodisreputeandnotmakeanystatementregardingourproduct certificationwhichtheCertificationDivisionmayconsidermisleadingor unauthorized; e)uponsuspensionorcancellationofcertification,discontinueuseofalladvertising matterthatcontainsanyreferencetheretoandreturnanycertificationdocuments asrequiredbytheCertificationDivision; f)usecertificationonlytoindicatetheproductsarecertifiedasbeinginconformity withspecifiedstandards; g)endeavortoensurethatnocertificateorreportnoranypartthereofisusedina misleadingmanner; h)ensurethatanyreferencetoourproductcertificationincommunicationmediasuchas documents,brochuresoradvertising,complieswiththerequirementsofthe CertificationDivision; i)keeparecordofallcomplaintsmadeknowntousrelatingtotheproduct’s compliancewithrequirementsoftherelevantstandardandtomaketheserecords availabletothewhenrequested; j)takeappropriateactionwithrespecttosuchcomplaintsandanydeficienciesfoundin productsorservicesthataffectcompliancewiththerequirementsforcertification; k)documenttheactionstaken. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. SincerelyYours, Signedby: CompanyName:GuangzhouShikunElectronicsCo.,Ltd ContactName:BingYi TitleofPerson:CertificationManager Address:NO.6LiankunRoad,HuangpuDistrict,Guangzhou510530China Date:12/18/2023

GuangzhouShikunElectronicsCo.,Ltd FederalCommunicationsCommission 7435OaklandMillsRoad ColumbiaMD21046 Subject:RequestforConfidentiality FCCID:2AR82-SKOWB276P1 ToWhomItMayConcern: PursuanttotheprovisionsofSections0.457and0.459oftheCommission’srules(47CFR§§ 0.457,0.459),wearerequestingtheCommissiontowithholdthefollowingattachmentsas confidentialdocumentfrompublicdisclosureindefinitely. SchematicDiagram BlockDiagram TheoryofOperation Bomlist Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionareconsidered asproprietaryinformationinoperationoftheequipment.Thepublicdisclosureofabove documentsmightbeharmfultoourcompanyandwouldgivecompetitoranunfairadvantagein themarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatandcorrespondent duringcertificationreviewprocesscannotbegrantedasconfidentialdocumentsandthose informationwillbeavailableforpublicreviewoncethegrantofequipmentauthorizationis issued. BestRegards CompanyName:GuangzhouShikunElectronicsCo.,Ltd ContactName:BingYi TitleofPerson:CertificationManager Address:NO.6LiankunRoad,HuangpuDistrict,Guangzhou510530China Date:12/18/2023

GuangzhouShikunElectronicsCo.,Ltd DATE:12/18/2023 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 RequestforShort-TermConfidentiality Companyname:GuangzhouShikunElectronicsCo.,Ltd FCCID:2AR82-SKOWB276P1 FCCPart15Certification PursuanttoSections0.457and0.459ofthecommissionrules,andinaccordancewith theFCCPublicnoticedatedJune15,2004(DA04-1705),weherebyrequestshort-term confidentialityforthefollowingitemspriortomarketingthedevice.: (1)TestSetupPhotos (2)ExternalPhotos (3)InternalPhotos (4)UserManual Theapplicantrequeststheexhibitsselectedaboveasshorttermconfidentialbewithheld frompublicviewforaperiodof180daysfromthedateoftheGrantofEquipment Authorizationandpriortomarketing.Thisistoavoidprematurereleaseofsensitive informationpriortomarketingorreleaseoftheproducttothepublic. Sincerely, CompanyName:GuangzhouShikunElectronicsCo.,Ltd ContactName:BingYi TitleofPerson:CertificationManager Address:NO.6LiankunRoad,HuangpuDistrict,Guangzhou510530China Date:12/18/2023

ModularApprovalRequestFCC(Per15.212)FCCID:2AR82-SKOWB276P1 Itemstobecovered AnswerFrom Applicant 1.Theradioelementsofthemodulartransmittermusthavetheirown shielding.Thephysicalcrystalandtuningcapacitorsmaybelocatedexternal totheshieldedradioelements. Yes 2.Themodulartransmittermusthavebufferedmodulation/datainputs(ifsuch inputsareprovided)toensurethatthemodulewillcomplywithpart15 requirementsunderconditionsofexcessivedataratesorover-modulation. Yes 3.Themodulartransmittermusthaveitsownpowersupplyregulation. Yes 4.Themodulartransmittermustcomplywiththeantennaandtransmission systemrequirementsof§§15.203,15.204(b)and15.204(c).Theantennamust eitherbepermanentlyattachedoremploya“unique”antennacoupler(atall connectionsbetweenthemoduleandtheantenna,includingthecable).The “professionalinstallation”provisionof§15.203isnotapplicabletomodules butcanapplytolimitedmodularapprovalsunderparagraph(b)ofthis section. Yes 5.Themodulartransmittermustbetestedinastand-aloneconfiguration,i.e., themodulemustnotbeinsideanotherdeviceduringtestingforcompliance withpart15requirements.Unlessthetransmittermodulewillbebattery powered,itmustcomplywiththeAClineconductedrequirementsfoundin§ 15.207.ACorDCpowerlinesanddatainput/outputlinesconnectedtothe modulemustnotcontainferrites,unlesstheywillbemarketedwiththe module(see§15.27(a)).Thelengthoftheselinesshallbethelengthtypicalof actualuseor,ifthatlengthisunknown,atleast10centimeterstoinsurethat thereisnocouplingbetweenthecaseofthemoduleandsupporting equipment.Anyaccessories,peripherals,orsupportequipmentconnectedto themoduleduringtestingshallbeunmodifiedandcommerciallyavailable (see§15.31(i)). Yes 6.Themodulartransmittermustbeequippedwitheitherapermanently affixedlabelormustbecapableofelectronicallydisplayingitsFCC identificationnumber. (A)Ifusingapermanentlyaffixedlabel,themodulartransmittermust belabeledwithitsownFCCidentificationnumber,and,iftheFCC identificationnumberisnotvisiblewhenthemoduleisinstalledinside anotherdevice,thentheoutsideofthedeviceintowhichthemodule isinstalledmustalsodisplayalabelreferringtotheenclosedmodule. Thisexteriorlabelcanusewordingsuchasthefollowing:“Contains TransmitterModuleFCCID:XYZMODEL1”or“ContainsFCCID: XYZMODEL1.”Anysimilarwordingthatexpressesthesamemeaning maybeused.TheGranteemayeitherprovidesuchalabel,anexample ofwhichmustbeincludedintheapplicationforequipment authorization,or,mustprovideadequateinstructionsalongwiththe modulewhichexplainthisrequirement.Inthelattercase,acopyof theseinstructionsmustbeincludedintheapplicationforequipment Yes authorization. (B)IfthemodulartransmitterusesanelectronicdisplayoftheFCC identificationnumber,theinformationmustbereadilyaccessibleand visibleonthemodulartransmitteroronthedeviceinwhichitis installed.Ifthemoduleisinstalledinsideanotherdevice,thenthe outsideofthedeviceintowhichthemoduleisinstalledmustdisplaya labelreferringtotheenclosedmodule.Thisexteriorlabelcanuse wordingsuchasthefollowing:“ContainsFCCcertifiedtransmitter module(s).”Anysimilarwordingthatexpressesthesamemeaningmay beused.Theusermanualmustincludeinstructionsonhowtoaccess theelectronicdisplay.Acopyoftheseinstructionsmustbeincludedin theapplicationforequipmentauthorization. 7.Themodulartransmittermustcomplywithanyspecificrulesoroperating requirementsthatordinarilyapplytoacompletetransmitterandthe manufacturermustprovideadequateinstructionsalongwiththemoduleto explainanysuchrequirements.Acopyoftheseinstructionsmustbeincluded intheapplicationforequipmentauthorization. Yes 8.Ra…
