2AR8R-M9Thermal Printer

Meihengtong Intelligent Electronics (Guangzhou) Co., Ltd.
Thermal Printer - FCC ID 2AR8R-M9 - Meihengtong Intelligent Electronics (Guangzhou) Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 12, 2026
Application Purpose
Original Equipment
Equipment Note
Thermal Printer
Frequency Range
2402.00000000 - 2480.00000000
Company
Meihengtong Intelligent Electronics (Guangzhou) Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Attestation Statements

MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd. CoveredEquipmentCertificationAttestationLetter 2/6/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2AR8R-M9 MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd.(“theapplicant”)certifiesthat theequipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd.(“theapplicant”)certifiesthat, asofthedateofthefilingoftheapplication,theapplicantisnotidentifiedonthe CoveredListasanentityproducing“covered”equipment. MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd.(“theapplicant”)certifiesthat theequipmentforwhichauthorizationissoughtdoesnotincludecybersecurityoranti- virussoftwareproducedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsand assignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886 andKDB986446D01CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:BaganaRobinson Title:Manager CompanyName:MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd. Date:2/6/2026

Cover Letter(s)

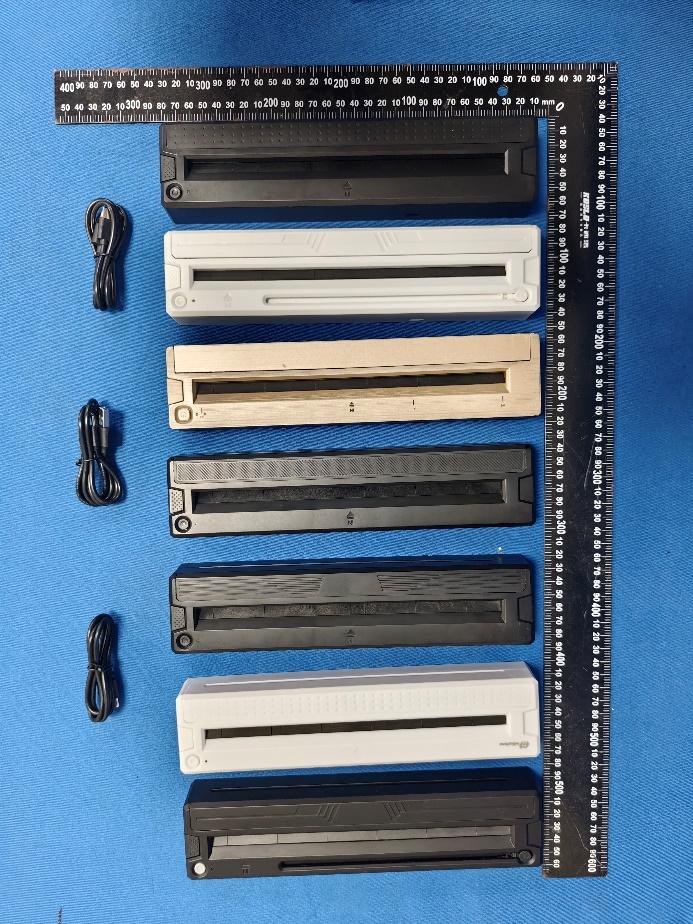

MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd. ProductSimilarityDeclaration Productname:ThermalPrinter Modelname:M9,M8,T11,T18,M11,A081 FCCID:2AR8R-M9 We(MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd.)herebystate thatallthemodelsareelectricalidenticalincludingthesamesoftware parameterandhardwaredesign(i.e.,circuitdesign,PCBLayout,RF module/circuit,antennatype(s)andantennalocation,componentsonPCB, etc.,),samemechanicalstructureanddesign(includingproductenclosure, materials,etc.,),onlytheappearancecolorandmodelnamearedifferent,the restarethesame. Signature: Printedname:BaganaRobinson Title:Manager

Cover Letter(s)

MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd. 2/7/2026 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa,Ontario,Canada K1V1H2 REQUESTFORCONFIDENTIALITY-FCC FCCID:2AR8R-M9 PursuanttoSections0.457(d)(1)(ii)and0.459oftheCommission’sRulesandFCCGuidance document726920,weherebyrequestconfidentialtreatmentofinformationaccompanyingthis applicationasoutlinedbelow: PERMANENTLONG-TERMCONFIDENTIALITY: Schematics BlockDiagrams TheoryofOperation Theaboveinformationcontainstradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthisinformationmightbeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors.TheApplicantunderstandsthatpursuanttoRule 0.457(d)(1)(ii),disclosureofthisApplicationandallaccompanyingmaterialswillnotbemadebefore thedateoftheGrantforthisApplication. Sincerely, Signed: Printedname:BaganaRobinson Title:Manager

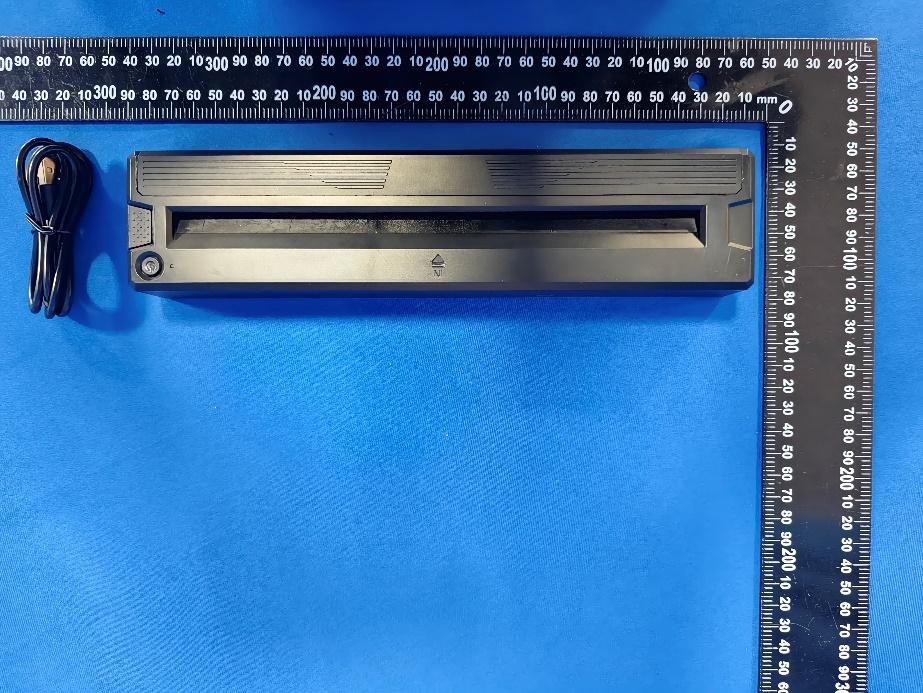

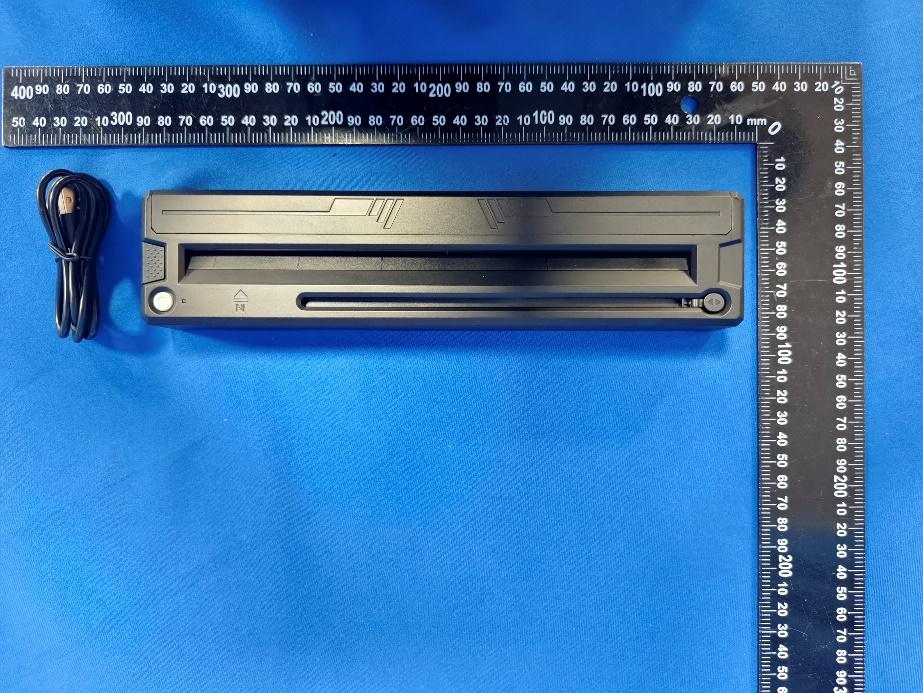

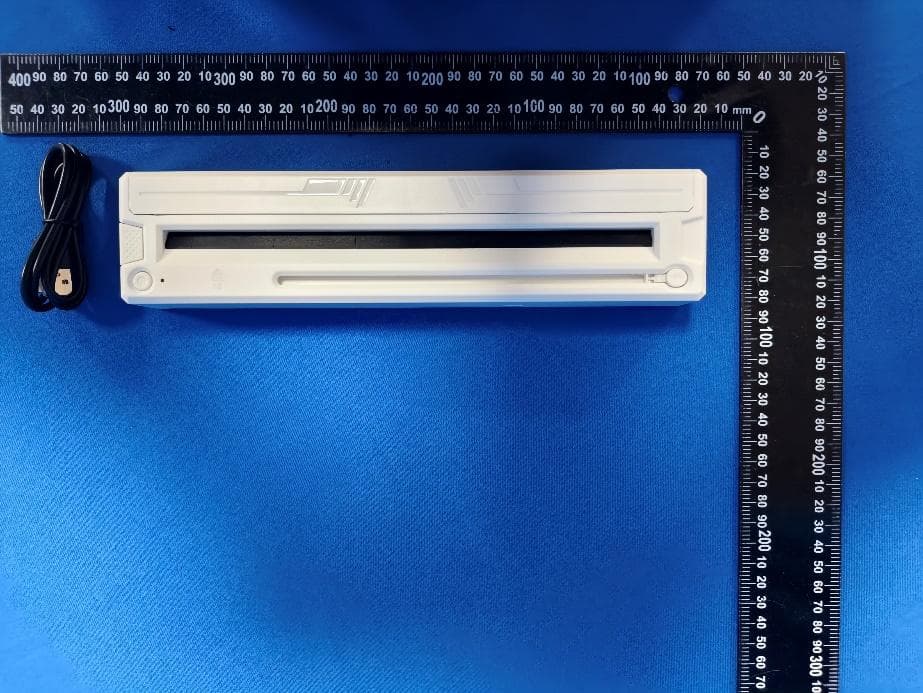

External Photos

FCCID:2AR8R-M9 FCCID:2AR8R-M9 FCCID:2AR8R-M9 FCCID:2AR8R-M9 FCCID:2AR8R-M9 FCCID:2AR8R-M9 FCCID:2AR8R-M9

ID Label/Location Info

LabelandLabelLocation

Internal Photos

FCCID:2AR8R-M9 FCCID:2AR8R-M9 FCCID:2AR8R-M9 FCCID:2AR8R-M9

RF Exposure Info

Page1of2 RFEXPOSUREEVALUATION FCCID:2AR8R-M9 ProductName:ThermalPrinter ModelName:M9,M8,T11,T18,M11,A081 BluetoothVersion:BT5.2BDR+EDR+BLE Operatingfrequency:2402-2480MHz NumbersofChannel: 79channelsforBDR+EDR 40channelsForDTS AntennaType:PCBantenna AntennaGain:1.7dBi TypeofModulation: GFSK,Π/4-DQPSK,8DPSKForDSS GFSK,ForDTS Powersupply: Input:DC5V/2A Li-ionBattery:18650 RatedVoltage:7.4V Capacity:1500mAh HardwareVersion:N/A SoftwareVersion:N/A Page2of2 StandardRequirement Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01 GeneralRFExposureGuidancev06,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≀50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]*[√f(GHz)]≀3.0for1-gSARand≀7.5for10-gSARextremitySAR,where ïŹf(GHz)istheRFchanneltransmitfrequencyinGHz ïŹPoweranddistanceareroundedtothenearestmWandmmbeforecalculation ïŹTheresultisroundedtoonedecimalplaceforcomparison. Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≀ 50mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurements orcomputersimulation.WhenroutineSARevaluationisnotrequired,portabletransmitters withoutputpowergreaterthantheapplicablelowthresholdrequireSARevaluationtoquality forTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTune UpPower (mW) Distance (mm) Calculation results Limit Operating Mode 2402 4.58 4.58±13.61409951.12025433DH5 24020.910.91±11.55238750.4811903BLE_1M AccordingtoKDB447498,ThedeviceonlysupportBTfunction,andnosimultaneousSAR measurementisrequired. Signature SimonPu Manager Date:2026-02-05

Test Report

Page1of70 FCCTESTREPORT FCCID:2AR8R-M9 Product: ThermalPrinter ModelName: M9,M8,T11,T18,M11,A081 Brand: N/A ReportNo.: PTC26012112201E-FC02 Preparedfor MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd. 2ndFloor,Factory#A,No.140,Taipingyangind,Zone,Xintang Town,Zengcheng,Guangzhou,Guangdong,CN(China) Preparedby PreciseTesting&CertificationCo.,Ltd Building1,No.6,TongxinRoad,DongchengStreet,Dongguan,Guangdong,China ReportNo.:PTC26012112201E-FC02 Page2of70 1TESTRESULTCERTIFICATION Applicant’sname: MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd. Address: 2ndFloor,Factory#A,No.140,Taipingyangind,Zone,Xintang Town,Zengcheng,Guangzhou,Guangdong,CN(China) Manufacture'sname: MeihengtongIntelligentElectronics(Guangzhou)Co.,Ltd. Address: 2ndFloor,Factory#A,No.140,Taipingyangind,Zone,Xintang Town,Zengcheng,Guangzhou,Guangdong,CN(China) Productname: ThermalPrinter Modelname: M9,M8,T11,T18,M11,A081 Standards:FCCCFR47Part15Section15.247 Testprocedure:ANSIC63.10-2020 TestDate: Jan.21,2026toFeb.5,2026 DateofIssue: Feb.5,2026 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyPTC,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlyto thetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofPTC,thisdocument maybealteredorrevisedbyPTC,personalonly,andshallbenotedintherevisionofthedocument. TestEngineer: Jackzhou/Engineer TechnicalManager: SimonPu/Manager ReportNo.:PTC26012112201E-FC02 Page3of70 Contents Page 1TESTRESULTCERTIFICATION...............................................................................................................................2 2TESTSUMMARY..........................................................................................................................................................5 2.1TESTSITE............................................................................................................................................................6 3GENERALINFORMATION.......................................................................................................................................7 3.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................7 3.2CHANNELLIST.....................................................................................................................................................8 4EQUIPMENTDURINGTEST....................................................................................................................................9 4.1EQUIPMENTSLIST.............................................................................................................................................9 4.2MEASUREMENTUNCERTAINTY.........................................................................................................................11 4.3DESCRIPTIONOFSUPPORTUNITS...................................................................................................................12 5CONDUCTEDEMISSION..........................................................................................................................................13 5.1E.U.T.OPERATION............................................................................................................................................13 5.2EUTSETUP.......................................................................................................................................................13 5.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION).................................................................................14 5.4MEASUREMENTPROCEDURE............................................................................................................................14 5.5CONDUCTEDEMISSIONLIMIT...........................................................................................................................14 5.6MEASUREMENTDESCRIPTION..........................................................................................................................14 5.7CONDUCTEDEMISSIONTESTRESULT.............................................................................................................14 6RADIATEDSPURIOUSEMISSIONS......................................................................................................................17 6.1EUTOPERATION...............................................................................................................................................17 6.2TESTSETUP......................................................................................................................................................18 6.3SPECTRUMANALYZERSETUP..........................................................................................................................19 6.4TESTPROCEDURE.............................................................................................................................................20 6.5SUMMARYOFTESTRESULTS...........................................................................................................................22 7CONDUCTBANDEDGEANDSPURIOUSEMISSIONSMEASUREMENT....................................................30 7.1TESTPROCEDURE.............................................................................................................................................30 7.2TESTSETUP......................................................................................................................................................31 7.3TESTRESULT....................................................................................................................................................32 ReportNo.:PTC26012112201E-FC02 Page4of70 86DBBANDWIDTHMEASUREMENT..............................................................................................................


Text truncated - open the document above for the full version.

Test Report

ReportNo.:PTC26012112201E-FC02 Page49of70 9MaximumPeakOutputPower TestRequirement:FCCCFR47Part15Section15.247 TestMethod:ANSIC63.10-2020 TestLimit: Regulation15.247(b)(3),Forsystemsusingdigitalmodulationinthe 902-928MHz,2400-2483.5MHz,and5725-5850MHzbands:1Watt.As analternativetoapeakpowermeasurement,compliancewiththeone Wattlimitcanbebasedonameasurementofthemaximumconducted outputpower. 9.1TestProcedure 1.TheRFoutputofEUTwasconnectedtothespectrumanalyzerbyRFcableandattenuator.The pathlosswascompensatedtotheresultsforeachmeasurement. 2.SettothemaximumpowersettingandenabletheEUTtransmitcontinuously. 3.Measuretheconductedoutputpowerandrecordtheresultsinthetestreport. 4.Thesignalanalyzerresolutionbandwidthwassetto2MHzandvideobandwidthof10MHz,Apeak detectorwasused,sweeptimewassettoautoandtracemodewasMaxHold.Thespanwassetto 10MHz.Amarkerwasplacedatthepeakofthesignalandtheresultsrecordedinthetablesbelow. 9.2TestSetup 9.3TestResult TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict BLE_1MAnt124020.91≀30PASS BLE_1MAnt12440-0.22≀30PASS BLE_1MAnt12480-2.6≀30PASS BLE_2MAnt124020.76≀30PASS BLE_2MAnt12440-0.24≀30PASS BLE_2MAnt12480-2.67≀30PASS ReportNo.:PTC26012112201E-FC02 Page50of70 TestGraphs: BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS ReportNo.:PTC26012112201E-FC02 Page51of70 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS ReportNo.:PTC26012112201E-FC02 Page52of70 BLE_2M-Ant1-2480-PASS ReportNo.:PTC26012112201E-FC02 Page53of70 10PowerSpectraldensity TestRequirement:FCCCFR47Part15Section15.247 TestMethod:ANSIC63.10-2020 TestLimit:Regulation15.247(f)Thepowerspectraldensityconductedfromthe intentionalradiatortotheantennaduetothedigitalmodulation operationofthehybridsystem,withthefrequencyhoppingoperation turnedoff,shallnotbegreaterthan8dBminany3kHzbandduring anytimeintervalofcontinuoustransmission. 10.1TestProcedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothe spectrum. 2.Setthespectrumanalyzer:RBW=3kHz.VBW=10kHz,Span=1.5timestheDTSchannelbandwidth(6 dBbandwidth).Sweep=auto;DetectorFunction=Peak.Trace=Maxhold. 3.Allowthetracetostabilize.Usethemarker-deltafunctiontodeterminetheseparationbetweenthepeaksof theadjacentchannels.ThelimitisspecifiedinoneofthesubparagraphsofthisSectionSubmitthisplot. 10.2TestSetup 10.3TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt12402-15.5≀8.00PASS BLE_1MAnt12440-16.79≀8.00PASS BLE_1MAnt12480-19.15≀8.00PASS BLE_2MAnt12402-17.01≀8.00PASS BLE_2MAnt12440-18.2≀8.00PASS BLE_2MAnt12480-20.83≀8.00PASS ReportNo.:PTC26012112201E-FC02 Page54of70 TestGraphs: BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS BLE_1M-Ant1-2480-PASS ReportNo.:PTC26012112201E-FC02 Page55of70 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2440-PASS ReportNo.:PTC26012112201E-FC02 Page56of70 BLE_2M-Ant1-2480-PASS ReportNo.:PTC26012112201E-FC02 Page57of70 1AntennaApplication 11.1AntennaRequirement Forintentionaldevice,accordingtoFCC47CFRSection15.203,anintentional radiatorshallbedesignedtoensurethatnoantennaotherthanthatfurnishedbythe responsiblepartyshallbeusedwiththedevice.AndaccordingtoFCC47CFRSection 15.247(b),iftransmittingantennasofdirectionalgaingreaterthan6dBiareused,the powershallbereducedbytheamountindBthatthedirectionalgainoftheantenna exceeds6dBi. 11.2Result TheEUT’Santenna,permanentattachedantenna,isinternalPCBantenna.The antenna’sgainis1.7dBiandmeetstherequirement. ReportNo.:PTC26012112201E-FC02 Page58of70 12TestSetup ConductedEmissions RadiatedSpuriousEmissions TestFrequencyFrom30MHzto1GHz ReportNo.:PTC26012112201E-FC02 Page59of70 TestfrequencyfromAbove1GHz ReportNo.:PTC26012112201E-FC02 Page60of70 13EUTPhotos ReportNo.:PTC26012112201E-FC02 Page61of70 ReportNo.:PTC26012112201E-FC02 Page62of70 ReportNo.:PTC26012112201E-FC02 Page63of70 ReportNo.:PTC26012112201E-FC02 Page64of70 ReportNo.:PTC26012112201E-FC02 Page65of70 ReportNo.:PTC26012112201E-FC02 Page66of70 ReportNo.:PTC26012112201E-FC02 Page67of70 ReportNo.:PTC26012112201E-FC02 Page68of70 ReportNo.:PTC26012112201E-FC02 Page69of70 ReportNo.:PTC26012112201E-FC02 Page70of70 ******THEENDREPORT******

Test Setup Photos

FCCID:2AR8R-M9 ConductedEmissions RadiatedSpuriousEmissions From30MHz-1000MHz FCCID:2AR8R-M9 TestfrequencyfromAbove1GHz

Contact Information

Applicant

Bagana Robinson(Manager)
[email protected]Fax: N/A

Technical Contact

MIRAMONT SOLUTIONS LLCWenyi Wang
[email protected]

19 GEORGETOWN, IRVINE, CA 92612 United States · IRVINE, California, 92612 · United States

Test Firm

Precise Testing & Certification Co., LTD.Yang Juan
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.23 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted.
