2AR95-WHM06Wireless doorbell Smart doorbell

Troubleshooting
and
troubleshooting: Technical
parameter Receiver
A
parameters
(Please
correspond
to
the
specific
model) Instructions Pairing
method Clear
code Wireless
Doorbell
User
Manual Installation
method Music
button Volume
button Pairing
button 1.
The
doorbell
does
not
ring:
Check
whether
the
receiver
is
plugged
in
and
the
socket
is
powered. 2.
Short
transmission
distance:
metal
objects
such
as
iron
gates,
iron
gates
and
iron
frames
will
affect
the
effective
transmission
distance.
Avoid
placing
the
transmitter
and
receiver
near
metal
objects,
walls
and
ceilings
also
affect
the
transmission
distance.
Interference
from
other
wireless
devices,
etc. 3.
Please
check
the
battery
level
in
time
to
replace
the
battery
when
the
indicator
light
of
the
transmitter
type
A
is
dark.
so
as
not
to
affect
the
launch
distance. (3)
3-level
volume
adjustable (4)
38
songs
to
choose
from (5)
Transmitter
IP44
waterproof
rating (6)
Learning
code
function Receiver
parameters Working
voltage:
AC
100-250V
50Hz/
60Hz Operating
frequency:
433.92MHz Power
consumption:
≤0.5W Volume:
25-105dB Music:
38
Music Receiver
A
size:
67x101x(50~70)mm Receiver
B
size:
80x54x(50~70)mm Receiver
C
size:
66x55x(50~70)mm






Transmitter
A
parameters Working
voltage:
DC
3V Transmit
power:
<10mW Battery
model:
CR2032
3V Dimensions:
41x70x16mm






Transmitter
B
parameters Working
voltage:
DC
12V Transmit
power:

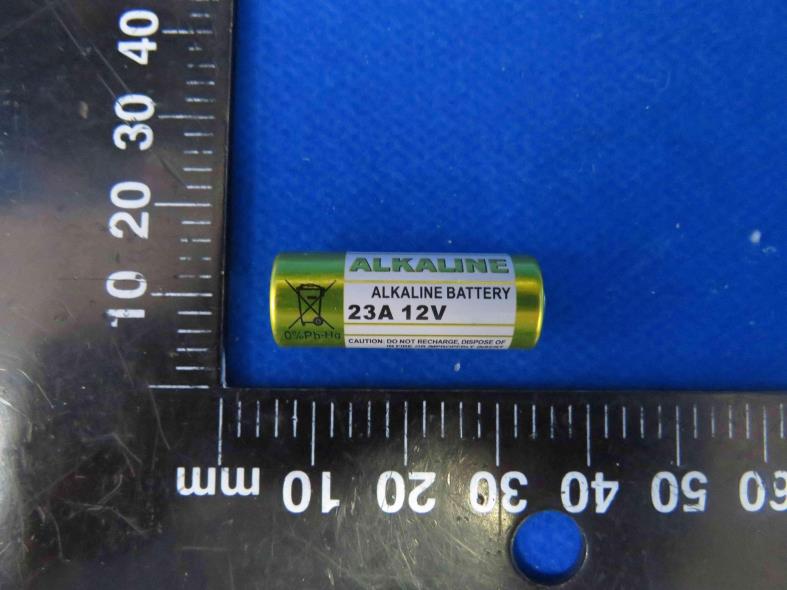

<10mW Battery
model:
23A
12V The
transmitter
can
be
placed
or
moved
at
will,
and
can
also
be
fixed
to
your
preferred
location.
Before
fixing,
please
put
it
in
the
required
fixing
position
to
try
it
out,
it
will
not
affect
the
normal
use
and
then
fix
it.
Fixed
as
follows: Special
Note: Please
avoid
installing
it
on
metal
objects
(iron
doors,
iron
windows,
etc.),
so
as
not
to
affect
the
launch
distance.
Please
try
it
out
before
fixing
it. signal),
press
it
on
the
wall
for
more
than
30
seconds
and
fix
it
firmly (3)
Plug
the
receiver
into
a
common
household
socket (4)
Press
the
music
button
of
the
receiver
to
select
the
appropriate
music (1)Tear
off
the
double-sided
tape
and
stick
it
on
the
back
of
the
transmitter,
press
firmly (2)Tear
off
the
double-sided
tape
on
the
other
side,
choose
the
installation
location
of
the
transmitter
and
wipe
it
clean
(try
not
to
get
close
to
iron
and
metal
objects,
metal
objects
will
affect
the
wireless
Note:
Please
remove
the
battery
insulation
sheet
before
performing
the
following
steps Transmitter

ATransmitter
B Receiver
A Receiver
A Receiver
B Receiver
B Receiver
C Receiver
C Pairing
button
/ music
button Pairing
button
/ music
button Volume
button
/
back
button Volume
button
/
back
button Indicator
light Indicator
light Product
description: 1.
Product
features:
wireless
doorbell,
drive
wireless
signal
by
pressing,
no
wiring,
simple
installation,
green
and
environmental
protection.
The
appearance
adopts
minimalist
design,
simple
and
elegant,
round
and
beautiful
in
appearance.
It
is
not
only
used
for
doorbells,
but
also
for
switches,
pagers,
etc.
various
fields. Note:
This
is
the
test
distance,
the
actual
distance
varies
depending
on
the
use
environment,
the
more
obstacles,
the
shorter
the
distance (1)
Wireless
transmission,
no
wiring
required (2)
Outdoor
open
space
is
between
100-300
meters The
packaged
products
are
paired
before
leaving
the
factory
and
do
not
need
to
be
paired
again. To
replace
transmitters
or
add
transmitters,
do
the
following: The
receiver
socket
is
plugged
into
a
regular
household
socket.
In
the
power-on
state,
(if
you
need
different
transmitters
to
correspond
to
different
ringtones
,
first
press
the
music
button
to
select
music)
and
then
long
press
the
receiver
pairing button
for
about
5
seconds
until
the
indicator
light
flashes,
enter
the
pairing
mode
,
at
this
time,
press
the
transmitter,
the
receiver
rings,
and
the
pairing
is
successful. Press
and
hold
the
receiver
pairing
button
for
about
10-13
seconds
until
the
indicator
light
flashes
rapidly
and
then
stops
flashing,
that
is,
all
pairing
codes
are
cleared. Double-sided
tape 尺寸：60x80mm FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Sincerely, Name/Title： Wenbing Wu/Manager Company: Shenzhen Wenhui Technology Development Co., Ltd. Address: 401, No.7, Xingye 3rd Road, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen China Phone: 13798446585 Fax: N/A E-Mail: [email protected]

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AR95-WHM06

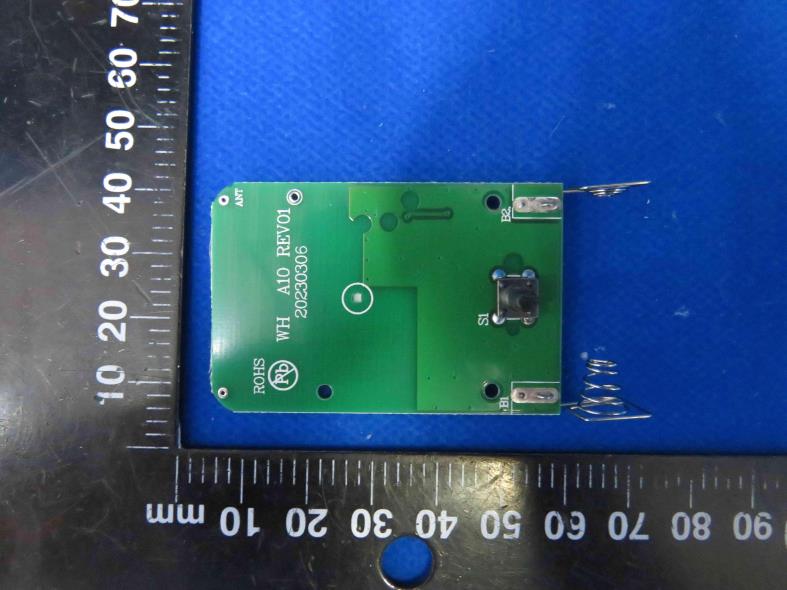

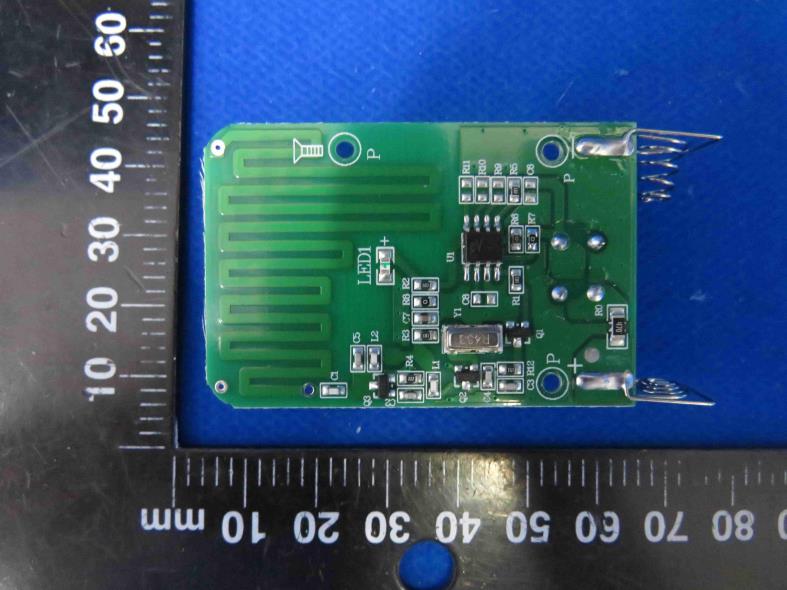

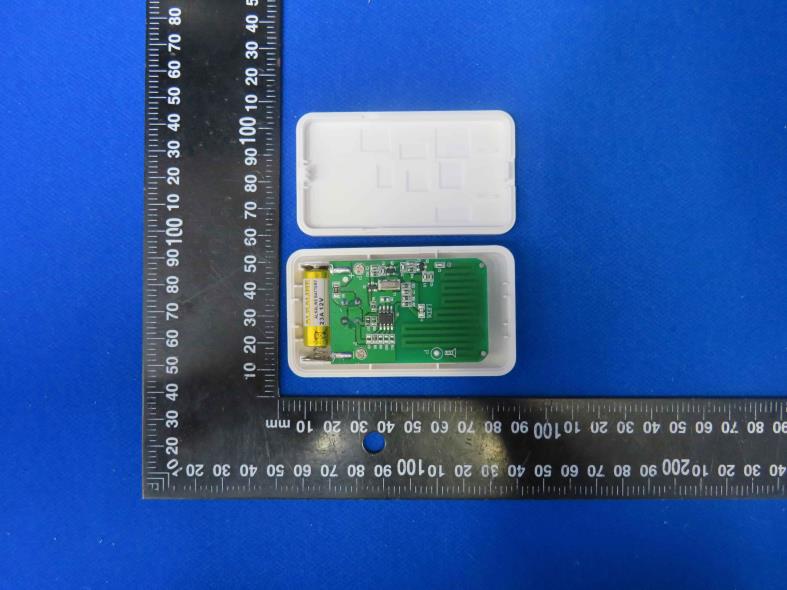

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202312058 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless doorbell Smart doorbell Model No.: WHM06 EUT Constructional Details Internal Photo Report No.: HTT202312058 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202312058 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

RF Exposure evaluation FCC ID: 2AR95-WHM06 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information WHM06 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: SRD / Internal antenna 0.00dBi for 433.9634MHz; 5. Manufacturing Tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 433.9634MHz 85.12 -10.14 -10±1 -9.0 Note: EIRP=E-104.8+20logD, D=3 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW SRD -9.0 0.1259 0.0 1.000 0.0000 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model WHM06 Frequency range 400-500 MHz Manufacturer Shenzhen Wenhui Technology Development Co., Ltd ANT Peak Gain 0.00 dBi 2. Antenna Photo:

Shenzhen HTT Technology Co., Ltd. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ............................................ : HTT202312058F01 2AR95-WHM06 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Dec. 08, 2023 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Wenhui Technology Development Co., Ltd. Address ............................................ : 401, No.7 Xingye 3rd Road, Fenghuang Community, Fuyong Street, Baoan, Shenzhen Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless doorbell Smart doorbell Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Wenhui Technology Development Co., Ltd. Model/Type reference....................... : WHM06 Listed Models .................................. : WHM01, WHM02, WHM03, WHM04, WHM05, WHM07, WHM08, WHM09, WHM10 Ratings ............................................. : DC 12.0V From Battery Modulation ....................................... : ASK Frequency .......................................... 433.9634MHz Result................................................ : PASS Report No.: HTT202312058F01 Page 2 of 18 T E S T R E P O R T Equipment under Test : Wireless doorbell Smart doorbell Model /Type : WHM06 Listed Models : WHM01, WHM02, WHM03, WHM04, WHM05, WHM07, WHM08, WHM09, WHM10 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Applicant : Shenzhen Wenhui Technology Development Co., Ltd. Address : 401, No.7 Xingye 3rd Road, Fenghuang Community, Fuyong Street, Baoan, Shenzhen Manufacturer : Shenzhen Wenhui Technology Development Co., Ltd. Address : 401, No.7 Xingye 3rd Road, Fenghuang Community, Fuyong Street, Baoan, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202312058F01 Page 3 of 18 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A ND R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 15 4.4 Deactivation Time 16 4.5 Antenna Requirement 17 5 T E ST S E T U P P H O T O S O F T HE E U T ......................................... 18 6 P H O T O S O F T H E E U T ........................................................... 18 Report No.: HTT202312058F01 Page 4 of 18 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: HTT202312058F01 Page 5 of 18 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Dec. 04, 2023 Testing commenced on : Dec. 04, 2023 Testing concluded on : Dec. 08, 2023 2.2 Product Description Product Name: Wireless doorbell Smart doorbell Model/Type reference: WHM06 Testing sample ID： HTT202312058-1# (Engineer sample), HTT202312058-2#(Normal sample) Power supply: DC 12.0V From Battery Modulation: ASK Operation frequency: 433.9634MHz Channel number: 1 Antenna type: Internal antenna Antenna gain: 0 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 12.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a Wireless doorbell Smart doorbell. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Power Report No.: HTT202312058F01 Page 6 of 18 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.8 Modifications No modifications were implemented …
