2ARB9-GPT-TXGpacers Poseidon Tracker

GPT-T1 GpacersPoseidonTracker User Guide Gpacers Technology FCC WARNING 15.19 •This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.105 (for FCC 15B devices) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. 15.21 (information for user) •Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. •This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. •End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. •For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible FCC RF Radiation Exposure Statement: Portable Device This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment for body-worn configuration in direct contact to the phantom. IMPORTANT NOTES Radio Frequency Safety Statement TheGpacersPoseidonTrackerisaradiofrequencyproductdevelopedwith theIoT technologyandshouldcomplywithRFregulationswhenusing. •Misuse of GPT’s DISTRESS Function may cause unnecessary rescue efforts. Please ONLY us e the DISTRESS Function in case of emergency and only use the Call Function during actual situations. •The antenna and the batteries are assembled and sealed inside the waterproof housing. If any component needs to be replaced, please ship the product back to Gpacers Technology or qualified distributors. Any modification or customization without permission might harm the product or violate the regulations. Please DO NOT replace the antenna or battery without authorization. •This product uses lithium batteries. Please refer to the relevant airline regulations when f lying. ONLINE DESCRIPTION OF GPT SYSTEM www.gpacers.com>> Poseidon Tracker>> GPT System Introduction GPT App Smart Safety Monitoring GPT Rescue and Transmission Distance Gallery>>Main product catalog Technical Support>> Tutorial_GPT Initial Setup Tutorial_GPT Wireless Charging Tutorial_GPT OLED Display Tutorial_GPT Maintenance Transportation Warranty Tutorial_GPT App Installation and Tips Tutorial GPT App User Guide Video Learning>> 1. GPT SYSTEM SUMMARY •The portable Gpacers Poseidon Tracking and Rescue System, known as GPT. The GPT devices provide divers with a real-time, long range, location index, mesh networking capacity and smart safety monitoring service. This fully autonomous system can be easily deployed in any remote area when needed. •Unlike other safety equipment only sends a distress signal after hazard occurred, it’s u nclear who will receive the signal and if a rescue operation will be launched. •However, the GPT devices perform safety monitoring tasks before starting activities with mu ltiple precautionary alerts for taking preventive measures to avoid danger. •GPT system can be applied to group activities such as sailing team, mountaineering team and army, multi-point to multi-point monitoring allows each member to know the status of others all the time. •Alerts can be sent by a diver in distress or used with a smart set up to include p recautions for (1) diving outside a certain zone (2) a poor or lost signal (3) vessel proximity notification. All data is recorded and can be replayed or shared later for additional analysis. •Optional to purchase a built-in satellite communication module or connect to an external satellite equipment, in addition to sending distress data to satellite, it can also communicate short messages via satellite with others at remote location. •Other features include wireless charging, battery endurance lasting up to 4 days in c ontinuous transmitting mode and a built-in LED light. Waterproof tested to 100~150m. Gpacers Poseidon Tracking And Rescue System Portable, Real-time, Easy To Operate GPT App Connection via Wi-Fi Conduct safety monitoring easily by using smartphone or tablet A1 Receiver Use A1 on the boat or on shore Size: 16x6.7x5(cm) A1 Repeater Placed at a higher altitude or in a drone, to overcome communication obstacles of various terrain features T1, A1 Transmitters Carried by diver Size:10x3x2.7(cm) Main features 1.Simultaneously tracking and monitoring up to 100 transmitters 2.Capable to check battery level of all GPT devices 3.Detailed maps available for downloading and using offline 4.Capable to run in the background 5.Built in alerts and diver activated distress functions 6.All data recorded and viewable on the App 7.User interface available for English, Traditional Chinese and Simplified Chinese languages GPT: A fully autonomous, networkable safety monitoring system TXRX Basic System TXRPRPRX Advanced Network Sy…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Gpacers Technology Address 4th Floor, No.168 Yongji Road, Xinyi District, Taipei 110, Taiwan Grantee Code 2ARB9 FCC ID 2ARB9-GPT-TX Authorized Contact Name YU LUNG WANG Contact Email [email protected] Contact Phone 02-2766-3399 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:February 9, 2021 Print Name: YU LUNG WANG Title: *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Date: February 9, 2021 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: 2ARB9-GPT-TX To whom it may concern: We, the undersigned, hereby authorize Kevin Tsai / Deputy Manager of SGS Compliance Certification Services Inc. to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Gpacers Technology. This authorization is valid until further written notice from the applicant. Gpacers Technology YU LUNG WANG / CEO Phone: 02-2766-3399 E-Mail: [email protected]

Date: February 9, 2021 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Gpacers Technology 4th Floor, No.168 Yongji Road, Xinyi District Taipei, 110, Taiwan Regarding: Confidentiality Request regarding application for FCC ID: 2ARB9-GPT-TX LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Gpacers Technology YU LUNG WANG / CEO Phone: 02-2766-3399 E-Mail: [email protected]

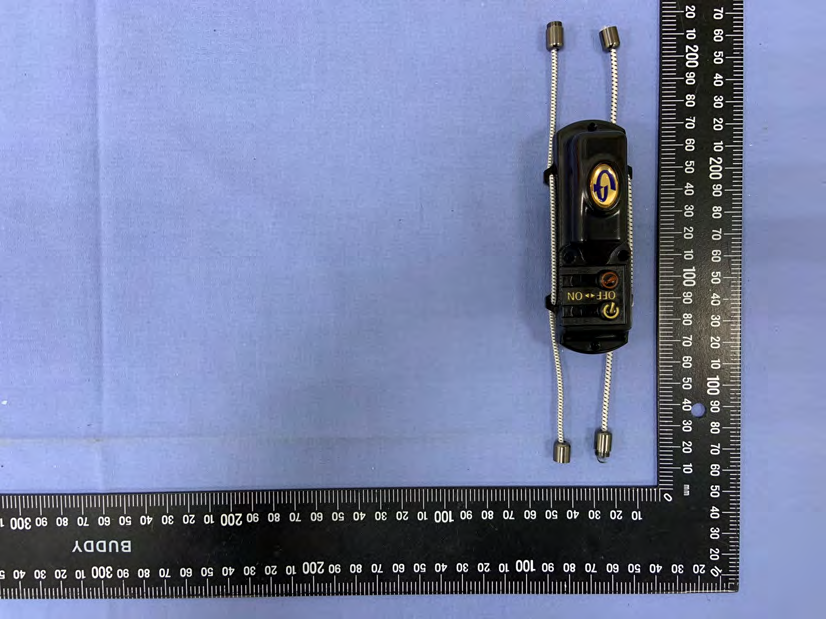

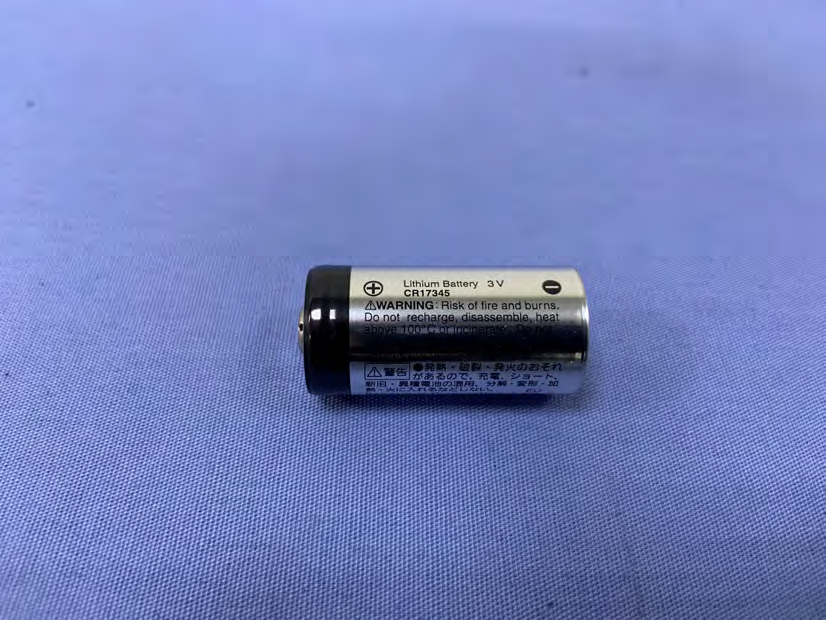

Page: 1 / 9 Report No.: T200923W01-1 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Page: 2 / 9 Report No.: T200923W01-1 Rev.: 00 Page: 3 / 9 Report No.: T200923W01-1 Rev.: 00 Page: 4 / 9 Report No.: T200923W01-1 Rev.: 00 Page: 5 / 9 Report No.: T200923W01-1 Rev.: 00 Battery

Label location Pasting on bottom of the housing Size: about 20*9 mm Front view Back view FCC Warning 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Removable label FCC/NCC Label

Page: 6 / 9 Report No.: T200923W01-1 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT Page: 7 / 9 Report No.: T200923W01-1 Rev.: 00 Page: 8 / 9 Report No.: T200923W01-1 Rev.: 00 RF IC Crystal Page: 9 / 9 Report No.: T200923W01-1 Rev.: 00 Antenna

Page: 1 / 46 Report No.: T200923W01-RP Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name Gpacers Poseidon Tracker Brand Name gpacers Model No. GPT-T1, GPT-T2 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Kevin Tsai Deputy Manager This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 46 Report No.: T200923W01-RP Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 25, 2021 Initial Issue ALL Mita Wu 01 March 05, 2021 See the following note Rev.(01) P.4-5, P.14 Mita Wu Rev.(01) 1. Revised EUT information remark and Antenna information remark description. 2. Revised Occupied Bandwidth (99%). This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 46 Report No.: T200923W01-RP Rev.: 01 Table of contents 1. GENERAL INFORMATION ........................................................................................ 4 1.1 EUT INFORMATION .................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ................................................................................ 5 1.3 ANTENNA INFORMATION ........................................................................................ 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................. 6 1.5 FACILITIES AND TEST LOCATION .......................................................................... 7 1.6 INSTRUMENT CALIBRATION ................................................................................... 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................. 8 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ............................................. 8 2. TEST SUMMERY ....................................................................................................... 9 3. DESCRIPTION OF TEST MODES............................................................................ 10 3.1 THE WORST MODE OF OPERATING CONDITION ................................................ 10 3.2 THE WORST MODE OF MEASUREMENT .............................................................. 11 3.3 EUT DUTY CYCLE ................................................................................................... 12 4. TEST RESULT ......................................................................................................... 13 4.1 AC POWER LINE CONDUCTED EMISSION ........................................................... 13 4.2 6dB BANDWIDTH AND OCCUPIED BANDWIDTH(99%) ........................................ 14 4.3 OUTPUT POWER MEASUREMENT ........................................................................ 16 4.4 POWER SPECTRAL DENSITY ................................................................................ 18 4.5 CONDUCTED BAND EDGE AND SPURIOUS EMISSION ...................................... 20 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION .......................................... 23 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 46 Report No.: T200923W01-RP Rev.: 01 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant Gpacers Technology 4th Floor, No.168 Yongji Road, Xinyi District, Taipei 110, Taiwan Manufacturer Gpacers Technology 4th Floor, No.168 Yongji Road, Xinyi District, Taipei 110, Taiwan Equipment Gpacers Poseidon Tracker Model No. GPT-T1, GPT-T2 Model Discrepancy The additional automatic water triggered function to send the distress signal designed in GPT-T2 is the major difference between the GPT-T1. Trade Name gpacers Received Date Sep…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 FCC ID: 2ARB9-GPT-TX Page: 1 / 1 Report No.: T200923W01-MF Rev.: 00 FCC ID: 2ARB9-GPT-TX According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 19.5 dBm, therefore the highest tune-up power is 19.5 dBm(89.13 mW)@ 924.5 MHz Since the duty cycle: 2.6%. So, 89.13mW * 0.026 = 2.32 mW When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, ( 2.32mW / 5mm) * (0.9245GHz ^0.5 )= 0.45 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.45 < 3.0 Therefore, standalone SAR measurements are not required for both head and body. Note: 1. The tune up power referred the AVG power of the test report T200923W01-RP for SAR test exclusion purpose.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-1 / A-2 Report No.: T200923W01-RP Rev.: 01 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-2 / A-2 Report No.: T200923W01-RP Rev.: 01 Conducted Emission Set up Photo
