2ARC7-FT6FR6Wireless Monitor

FT6FR6 5.5′′WirelessMonitor HDMI/3DLUT/HDR UserManual 1 ProductOverview Thankyouforpurchasingourwirelessvideomonitor.Theproductisa setoftouch-screenmonitorswithabuilt-inwirelessreceiveranda built-inwirelesstransmitter,respectively.Thehighestresolutionof wirelesstransmissionis1080P/60Hz,using2*2dBiantennatechnology andH.264encodinganddecodingtechnologyforprofessionalimage processing,clearerimageandlowerdelay. FullHDcolorLCDmonitor,whichadoptsadvancedintegrateddigital signalprocessingcircuitsandprofessionalIPSLEDpanel,whichmakes ithighbrightness,lowpowerconsumption,stableperformance,etc. ThismonitorhasHDMIinputandoutput,auxiliarypoweroutput,touch screenmenuoperation,supportuser3DLUTuploadandHDRetc.It hassmallsize,simpleoperation,portableconvenienceandwide applicationrange.AdvancedfeaturesincludeParade,Vector, Histogram,AudioMeter,FocusAssist,FalseColor,ZebraExposure, PixeltoPixel,CenterMarker,SafetyMarker,MarkerMat,Monochrome, ImageFreeze,Zoom,Anamorphicetc.Theintegrationofimage transmissionandmonitoringbringingyoumoreprofessionaland convenientenjoyment. Themonitorisequippedwithdualbatteryplates;youcanusethepower adaptersupplyorusetheexternalbatteryforpowersupply. Toinsurethebestuseoftheunit,pleasereadthe user’smanualcarefully 2 CAUTION ●Thisproductshouldnotbeexposeddrippingorsplashing. ●Pleaseplacethewirelessmonitoronaflatwithhardandstable surface. ●Inordertoreducetheriskofelectricshockoffire,pleasedonot exposethereceiver/transmittertorainormoisture. ●Pleaseavoidtheheavyimpactanddropontothegroundwhen movetheproduct. ●Thescreenofthisproductismadeofglass.Pleasedonotdropthe screentowardstheground.Keepawayfrominjuryifthescreenis broken. ●Keeptheproductawayfromtheheatsource,andavoidthe prolongedexposurestothesunastheLCDscreenwillbe damaged. ●Toavoiddamagingtheproduct,pleasedonottakeapartorrepair theunitbyyourselfwithouttheadjustablecomponentsintheunit. ●InordertobettermaintaintheLCDscreenandprotectthecover, pleasefollowthefollowingwaystoavoiddamages. 1.Pleaserefrainfromusingthehardobjectstohitthescreen. 2.Pleasedonotforcetowipethescreen. 3.Pleasedonotusethechemicalsolutionstocleanthescreen. 4.Pleasedonotsprayanydetergentonthescreen. 5.Pleasedonotwriteonthescreendirectly. 6.Pleasedonotstickonthescreen. 7.Pleasesimplywipewithacleansoftclothandmakesureno wateronthescreen. 3 SpecialNotice ●Theimpactofradiowaves(suchasthefollowingenvironmentmay causetheabnormalaudioandvideo(blockedimage,noise...etc.). 1)Transmitnearthewallwhichishardfortheradiowavestoget through. 2)Quiteclosetotherefrigerator,metalfitmentandappliances,or nettothecrowdedsituation. ●Thisproducthasbeentestedandmanufacturedtocomplywith nationalelectricalsafetyrules,however,therewillbenoisecausedby theinterferencewithothermachinesinrarecased.Iftheinterference ishappened,pleasekeepacertaindistanceawayfromother machines. ●Theproductissusceptibletointerferencefrom5GHzwirelesslocal areanetworkorotherwirelessdevices. ●Optimalrangebetweentransmitterandreceiverisbetween1meter and30meterswithinlineofsightindoor. ●Itwilltake30-40secondstobootthesystembeforewireless communicationstart,themediareceivercannotbeoperatedduring thistime. Features ●Upto250m/800fttransmissionrange(LOS) ●Ultra-lowdelay:70ms ●Upto1080P60Hz ●Supportmultiplechannelsselection ●SupportfrequencymodulationoneitherthewirelessmonitorTXor RX. 4 ●Boththetransmitter(TX)andreceiver(RX)supportHDMIINand HDMIOUTinterface(samescreendisplay). ●Supporttheopeningandclosingfunctionofthewireless transmissionmodule,whichcanbeusedasamonitoraloneoras anintegratedwirelessmonitor. ●5.5inches1920x1080fullHDIPSscreen,touchscreenmenu operation ●Support3DLUTLogtoREC.709anduser3DLUTupload ●SupportHDRmonitoring ●AllWavesdisplay,Parada,Vector,Histogram,Focusassist,False colorandotherfunctions,helpyouaccuratelyexposeandfocus ●DC8VpowerouttopoweryourDSLRcameraormirrorlesscamera ●Externalsunshade,sunlightreadable 5 CONTENTS 1.ProductDescription-----------------------------------------6 1.1ButtonInstruction---------------------------------------------7 1.2PortInstruction(bottom)------------------------------------7 1.3PortInstruction(right)---------------------------------------8 1.4PowerSupplyWay-------------------------------------------9 1.5MountPoints---------------------------------------------------9 1.6Sunshade------------------------------------------------------10 2.MenuOperationInstruction------------------------------11 3.MenuFunctionInstruction--------------------------------14 4.TechnicalParameters---------------------------------------18 5.TroubleShooting---------------------------------------------20 6 1.ProductDescription FrontPanel BackPanel 7 1.1ButtonInstruction :Longpresstoturnonandoffthepower;shortpressto turnonandoffthescreentouchfunction MENU:Longpresstoopenthemainmenuandshortpresstoopen theshortcutmenu.Rotatethewheeltoselectamenuitem,pressit againtoopenthecorrespondingmenufunction. (Seedetails:2.MenuOperationInstruction) 1.2PortInstruction(Bottom) Type-C:For3DLUTuploadviatype-ctoUSBandforfirmwareupgrade DCOUT8V:DCpoweroutputinterface,polarityastheoutputpower 8 Barreloutputforpoweringyourcamerawithaseparatelyavailable DCcouplerviaadaptor(NP-FW50Sony&LP-E6 Canon&DMW-BLF19Panasonic).Moreadapterscomingsoon. 1.3PortInstruction(Right) TX:Transmitter RX:Receiver HDMIIN:1.4,HDMIsignalinput HDMIOUT:1.4,HDMIsignaloutput DCIN12V:DCpowerinput,polarityastheinputpower :3.5mmearphoneportoutput 9 1.4PowerSupplyWay (1)TherearcoverofthemonitorisequippedwithF970dualbattery plates,whichisapplicabletoF970seriesofbatteries. ●SonyF970batteryplateforbatteryofSonyDV: SonyF970F960F950F930F770F750F730F570F550F530 QM91DQM91QM90DQM90QM71DQM71QM70DQM70QM51D QM51FM71FM70series ●Batteryswitchinginstruction Whenthetwobatteryplatesareinstalledwithbatteries,theupperright cornerofthemonitorwilldisplaythebatterylevel.Whiteindicatesthe usingbattery,grayindicatesnonusingbattery.Double-clickthebattery icon,afterabout3secondsswitchtoanotherbattery. (2)Barrel(5.5mmouter,2.1mminner)atthebottomofthe monitor,DC7~24VInput. Rema…

Text truncated - open the document above for the full version.

Zhangzhou Seetec Optoelectronics Technology co., Ltd Agent Authorization Company: Zhangzhou Seetec Optoelectronics Technology co., Ltd Address: No.9A, Fuxing Industrial Park, No.9th, Jinmin Road, Jinfeng Development Zone, Zhangzhou, Fujian, China Product Name: Wireless Monitor Trade Mark: / Model Number(s): FT6/FR6 FCC ID: 2ARC7-FT6FR6 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-12-30 Name: Jianhe Cai Title: Engineer Company: Zhangzhou Seetec Optoelectronics Technology co., Ltd

Zhangzhou Seetec Optoelectronics Technology co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-30 Subject; Request for Confidentiality FCC ID: 2ARC7-FT6FR6 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jianhe Cai Title: Engineer

FCC Software Configuration Control Declaration Rev1.1 Zhangzhou Seetec Optoelectronics Technology co., Ltd FCC Software Configuration Control Declaration Date: December 30, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: Wireless Monitor Model Number: FT6/FR6 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D02 U-NII Device Security v01r03. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature: Date: 2020-12-30 Name: Jianhe Cai Title: Engineer Company: Zhangzhou Seetec Optoelectronics Technology co., Ltd

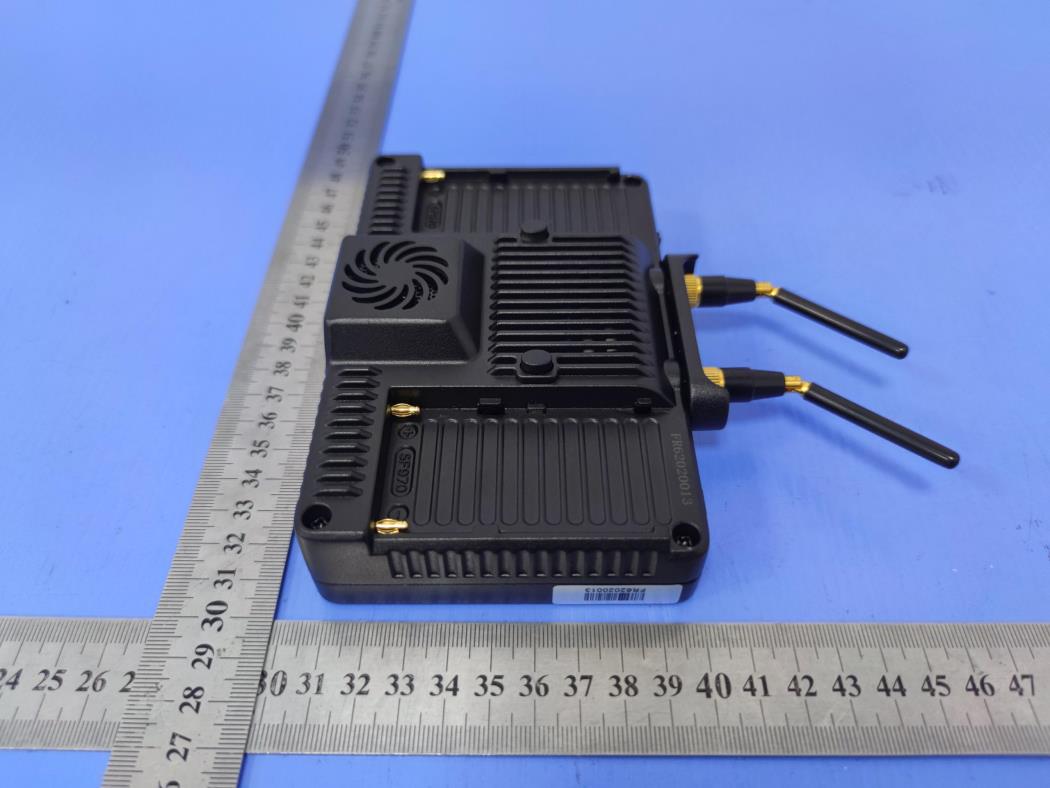

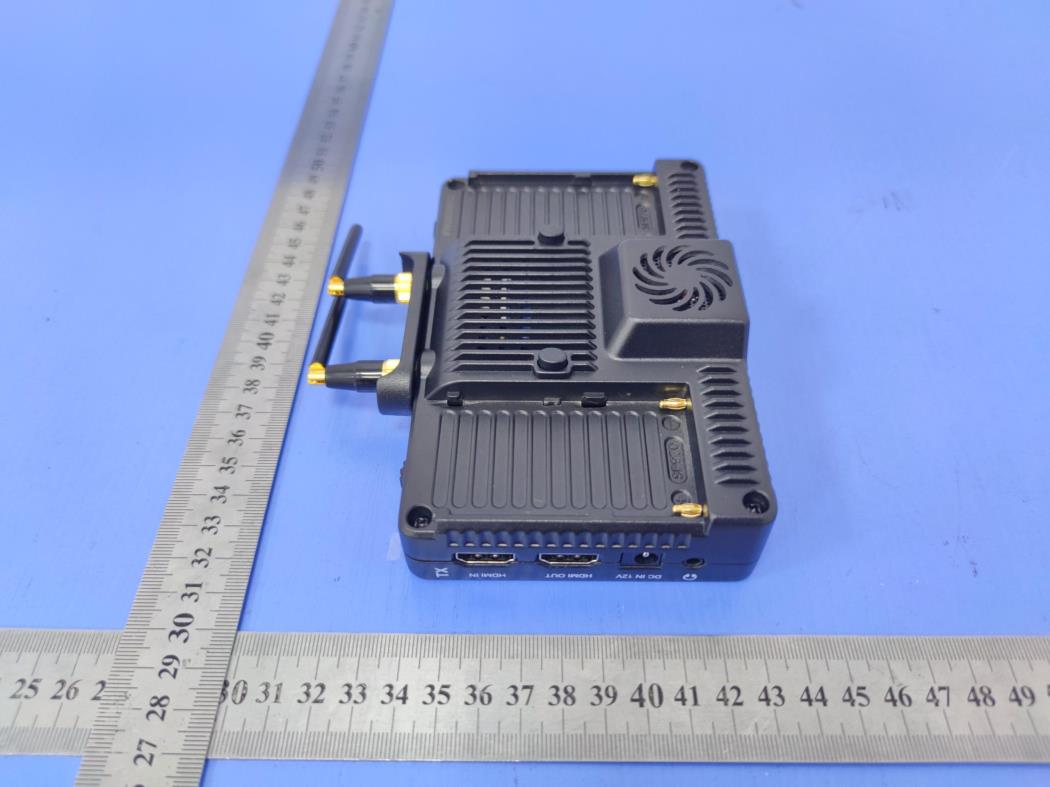

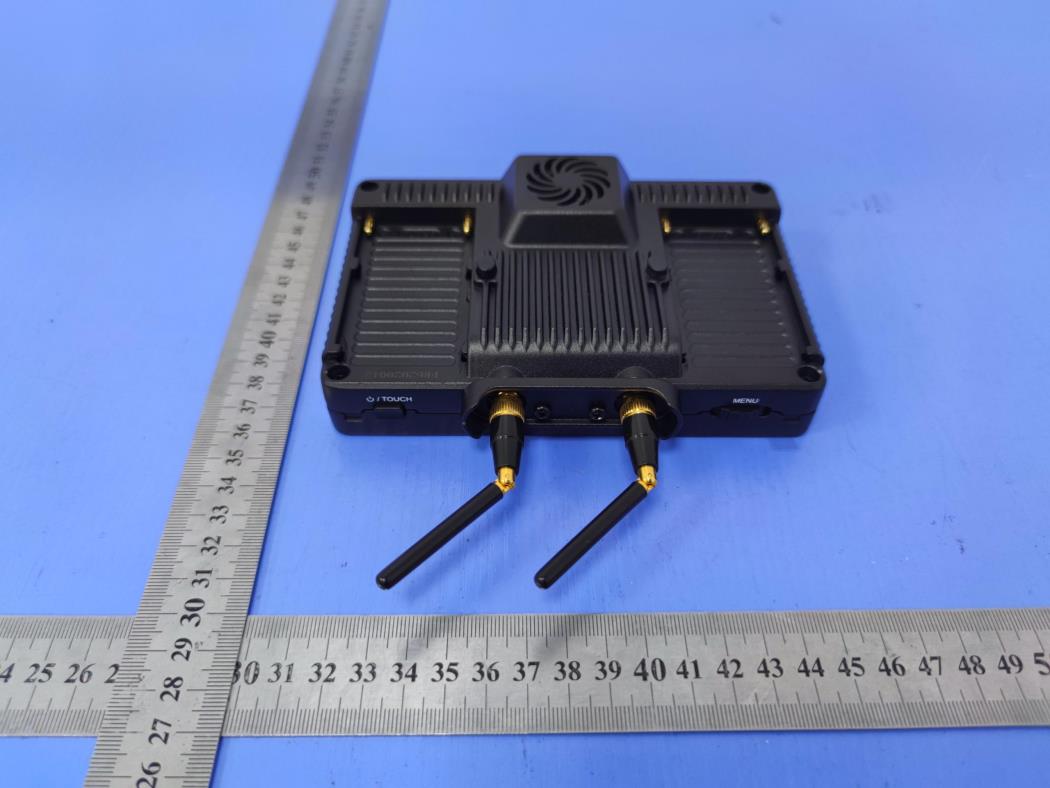

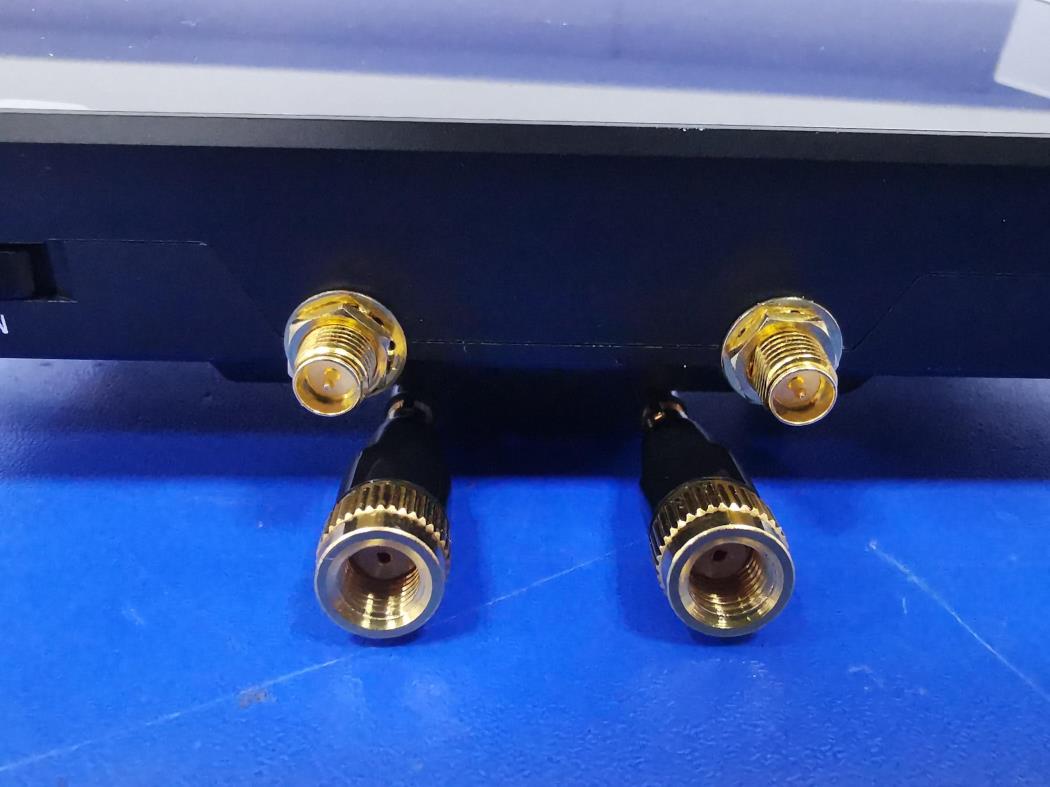

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 External Photos of the EUT Fig.1 Fig.2 TX RX SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 ANT0 ANT1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 25mm*W: 15mm Label Location Wireless Monitor Model No.: FT6/FR6 FCC ID : 2ARC7-FT6FR6 Input: DC 12V, 1000mA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Internal Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig.13 Fig.14

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID 2ARC7-FT6FR6 Product Name Wireless Monitor Test Model FT6/FR6 Power Supply Input: DC 12V, 1000mA For AC Input: 100-240V, 50/60Hz, 0.5A Output: DC 12V, 1000mA, 12W Modulation Type IEEE 802.11n: OFDM Antenna Type External Antenna Antenna Gain Antenna 0: External Antenna; 0dBi(Max.) Antenna 1: External Antenna; 0dBi(Max.) Hardware Version / Software Version / Frequency Range 5180MHz-5230MHz/5745MHz-5795MHz Channel Number 4 channels for 20MHz bandwidth(5180MHz-5240MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) 5 channels for 20MHz bandwidth(5745MHz-5825MHz) 2 channels for 40MHz bandwidth(5755MHz~5795MHz) Exposure Category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method and Limit Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information FT6/FR6 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna 0 External Antenna 5000 MHz – 6000 MHz 0dBi WLAN Antenna Antenna 1 External Antenna 5000 MHz – 6000 MHz 0dBi WLAN Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ARC7-FT6FR6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 6. Conducted Power Results [5.2GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) SISO (ANT 0) SISO (ANT 1) MIMO (ANT 0 + ANT 1) 11N20 36 5180 15.16 15.24 18.21 40 5200 14.81 13.87 17.38 48 5240 14.25 13.44 16.87 11N40 38 5190 15.26 13.84 17.62 46 5230 14.72 13.85 17.32 [5.8WIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) SISO (ANT 0) SISO (ANT 1) MIMO (ANT 0 + ANT 1) 11N20 149 5745 13.85 12.35 16.17 157 5785 13.55 11.53 15.67 165 5825 13.12 11.81 15.52 11N40 151 5755 14.38 12.79 16.67 159 5795 13.91 12.97 16.48 Note: The EUT can simultaneous transmit at 802.11n mode. 7.Manufacturing Tolerance 5.2GWIFI (ANT 0) IEEE 802.11n HT20 Channel Channel 36 Channel 40 Channel 48 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n40 Channel Channel 38 Channel 46 / Target (dBm) 15.0 15.0 / Tolerance ±(dB) 1.0 1.0 / 5.2GWIFI (ANT 1) IEEE 802.11n HT20 Channel Channel 36 Channel 40 Channel 48 Target (dBm) 15.0 14.0 14.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n40 Chan…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 1 of 26 Appendix A RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: Wireless Monitor Trade Mark: N/A Test Model: FT6/FR6 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Ben Jin Supervised by: Li Huan A.1 Duty Cycle ANT0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 On Time and Duty Cycle IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 2 of 26 IEEE 802.11n HT40 ANT1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 3 of 26 On Time and Duty Cycle IEEE 802.11n HT20 IEEE 802.11n HT40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 4 of 26 A.2 Maximum Conduct Output Power ANT0 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor (dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 36 5180 15.16 0 15.16 24 Pass 40 5200 14.81 0 14.81 Pass 48 5240 14.25 0 14.25 Pass 11N40 SISO 38 5190 15.26 0 15.26 24 Pass 46 5230 14.72 0 14.72 Pass ANT1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor (dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 36 5180 15.24 0 15.24 24 Pass 40 5200 13.87 0 13.87 Pass 48 5240 13.44 0 13.44 Pass 11N40 SISO 38 5190 13.84 0 13.84 24 Pass 46 5230 13.85 0 13.85 Pass Combined Ant0 and Ant1 Test Mode Channel Frequency (MHz) Report Conducted Power (dBm) Limit (dBm) Ant_0 Ant_1 Sum 11N20 36 5180 15.16 15.24 18.21 24 40 5200 14.81 13.87 17.38 48 5240 14.25 13.44 16.87 11N40 38 5190 15.26 13.84 17.62 24 46 5230 14.72 13.85 17.32 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 5 of 26 A.3 Power Spectral Density ANT0 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MHz) Verdict 11N20 SISO 36 5180 4.41 0 4.41 11 Pass 40 5200 4.53 0 4.53 Pass 48 5240 3.45 0 3.45 Pass 11N40 SISO 38 5190 2.02 0 2.02 11 Pass 46 5230 1.88 0 1.88 Pass ANT1 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MHz) Verdict 11N20 SISO 36 5180 4.33 0 4.33 11 Pass 40 5200 2.92 0 2.92 Pass 48 5240 3.49 0 3.49 Pass 11N40 SISO 38 5190 -0.22 0 -0.22 11 Pass 46 5230 0.00 0 0.00 Pass Combined Ant0 and Ant1 Test Mode Channel Frequency (MHz) Report Power Density (dBm/MHz) Limit (dBm/MHz) Ant_0 Ant_1 Sum 11N20 36 5180 4.41 4.33 7.38 11 40 5200 4.53 2.92 6.81 48 5240 3.45 3.49 6.48 11N40 38 5190 2.02 -0.22 4.05 11 46 5230 1.88 0.00 4.05 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 6 of 26 ANT0 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 7 of 26 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 8 of 26 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 9 of 26 ANT1 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 10 of 26 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 11 of 26 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 12 of 26 A.4 Emission Bandwidth ANT0 Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11N20 SISO 36 5180 21.68 No Limit Pass 40 5200 22.00 Pass 48 5240 22.02 Pass 11N40 SISO 38 5190 43.96 No Limit Pass 46 5230 43.61 Pass 26dB Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 13 of 26 IEEE 802.11n20 / Channel 40 / 5200MHz IEEE 802.11n20 / Channel 48 / 5240MHz 26dB Bandwidth IEEE 802.11n40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 14 of 26 IEEE 802.11n40 / Channel 46 / 5230MHz ANT1 Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11N20 SISO 36 5180 22.23 No Limit Pass 40 5200 22.49 Pass 48 5240 21.88 Pass 11N40 SISO 38 5190 44.55 No Limit Pass 46 5230 44.54 Pass 26dB Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 15 of 26 IEEE 802.11n20 / Channel 40 / 5200MHz IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 16 of 26 26dB Bandwidth IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEA Page 17 of 26 A.5 Undesirable Emissions Measurement ANT0 Test Mode Channel Frequency (MHz) Conducted Power (dBm) Antenna Gain (dBi) Ground Reflection Factor (dB) Covert Radiated E Level At 3m (dBuV/m) Detector Limit (dBuV/m) Verdict 11N20 SISO 36 4500.0 -50.64 2.00 0 44.59 Peak 74.00 P…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 1 of 27 Appendix B RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: Wireless Monitor Trade Mark: N/A Test Model: FT6/FR6 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Ben Jin Supervised by: Li Huan B.1 Duty Cycle ANT0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5785 100 0.00 0.01 11N40 SISO 5755 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 2 of 27 On Time and Duty Cycle IEEE 802.11n HT20 IEEE 802.11n HT40 ANT1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11N20 SISO 5785 100 0.00 0.01 11N40 SISO 5755 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 3 of 27 On Time and Duty Cycle IEEE 802.11n HT20 IEEE 802.11n HT40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 4 of 27 B.2 Maximum Conduct Output Power ANT0 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 149 5745 13.85 0 13.85 30 Pass 157 5785 13.55 0 13.55 Pass 165 5825 13.12 0 13.12 Pass 11N40 SISO 151 5755 14.38 0 14.38 30 Pass 159 5795 13.91 0 13.91 Pass ANT1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11N20 SISO 149 5745 12.35 0 12.35 30 Pass 157 5785 11.53 0 11.53 Pass 165 5825 11.81 0 11.81 Pass 11N40 SISO 151 5755 12.79 0 12.79 30 Pass 159 5795 12.97 0 12.97 Pass Combined Ant0 and Ant1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Limit (dBm) Ant0 Ant1 Sum 11N20 149 5745 13.85 12.35 16.17 30 157 5785 13.55 11.53 15.67 165 5825 13.12 11.81 15.52 11N40 151 5755 14.38 12.79 16.67 30 159 5795 13.91 12.97 16.48 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 5 of 27 B.3 Power Spectral Density ANT0 Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11N20 SISO 149 5745 -1.29 0 2.218 0.93 30 Pass 157 5785 -1.54 0 2.218 0.67 Pass 165 5825 -1.60 0 2.218 0.62 Pass 11N40 SISO 151 5755 -3.57 0 2.218 -1.35 30 Pass 159 5795 -4.04 0 2.218 -1.82 Pass ANT1 Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11N20 SISO 149 5745 -2.55 0 2.218 -0.33 30 Pass 157 5785 -2.43 0 2.218 -0.22 Pass 165 5825 -3.96 0 2.218 -1.74 Pass 11N40 SISO 151 5755 -5.40 0 2.218 -3.18 30 Pass 159 5795 -5.18 0 2.218 -2.96 Pass Combined Ant0 and Ant1 Test Mode Channel Frequency (MHz) Report Power Density (dBm/500KHz) Limit (dBm) Ant0 Ant1 Sum 11N20 149 5745 0.93 -0.33 3.36 30 157 5785 0.67 -0.22 3.26 165 5825 0.62 -1.74 2.61 11N40 151 5755 -1.35 -3.18 0.84 30 159 5795 -1.82 -2.96 0.66 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 6 of 27 ANT0 Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 7 of 27 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 8 of 27 Power Spectral Density IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 9 of 27 ANT1 Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 10 of 27 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 11 of 27 Power Spectral Density IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ARC7-FT6FR6 Report No.: LCS201123088AEB Page 12 of 27 B.4 Emission Bandwidth ANT0 Test Mode Channel Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Verdict 11N20 SISO 149 5745 17.72 >=0.5 Pass 157 5785 17.74 Pass 165 5825 17.73 Pass 11N40 SISO 151 5755 36.52 >=0.5 Pass 159 5795 36.54 Pass 6dB Bandwidth IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN L…

Text truncated - open the document above for the full version.
