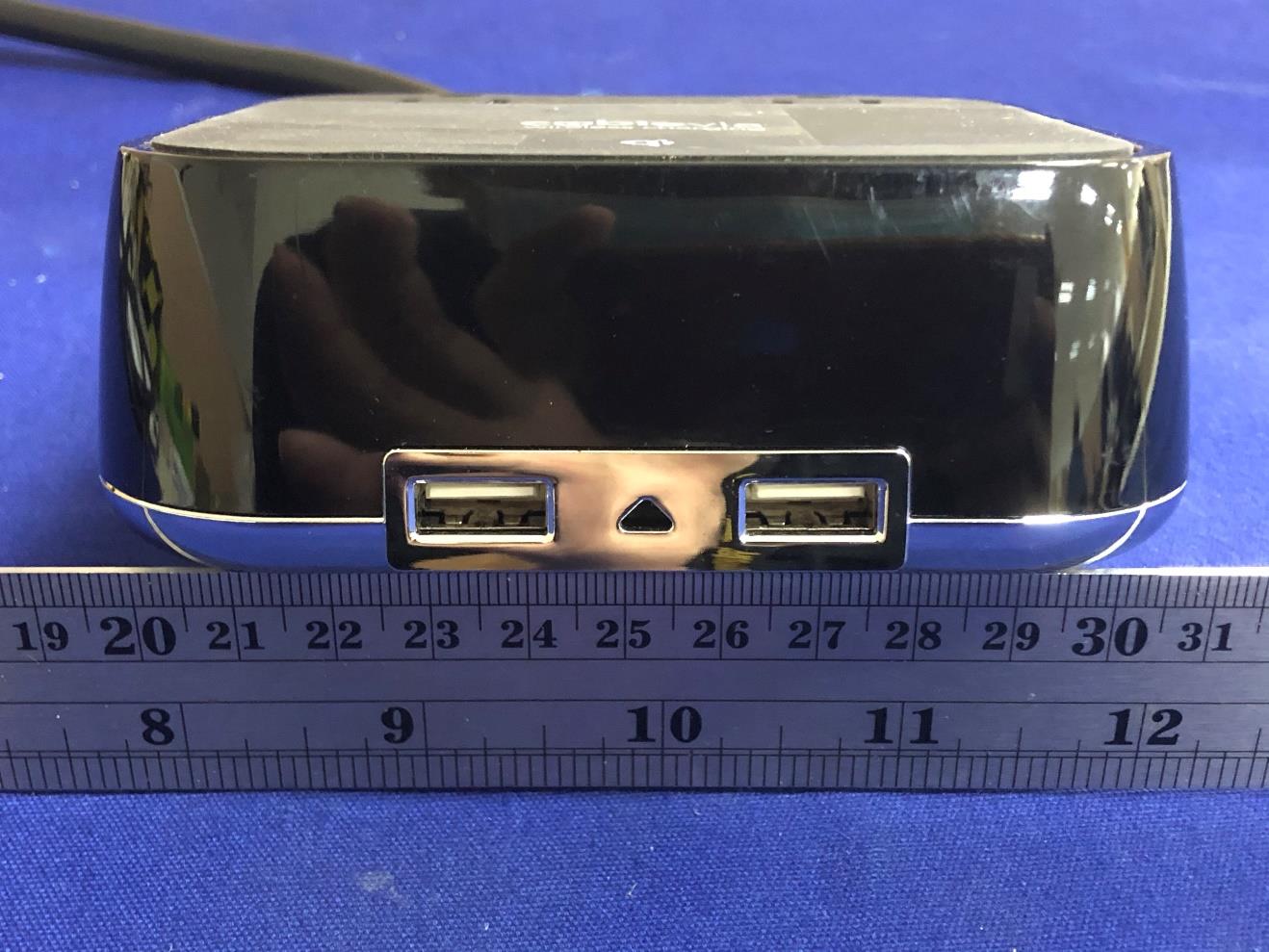

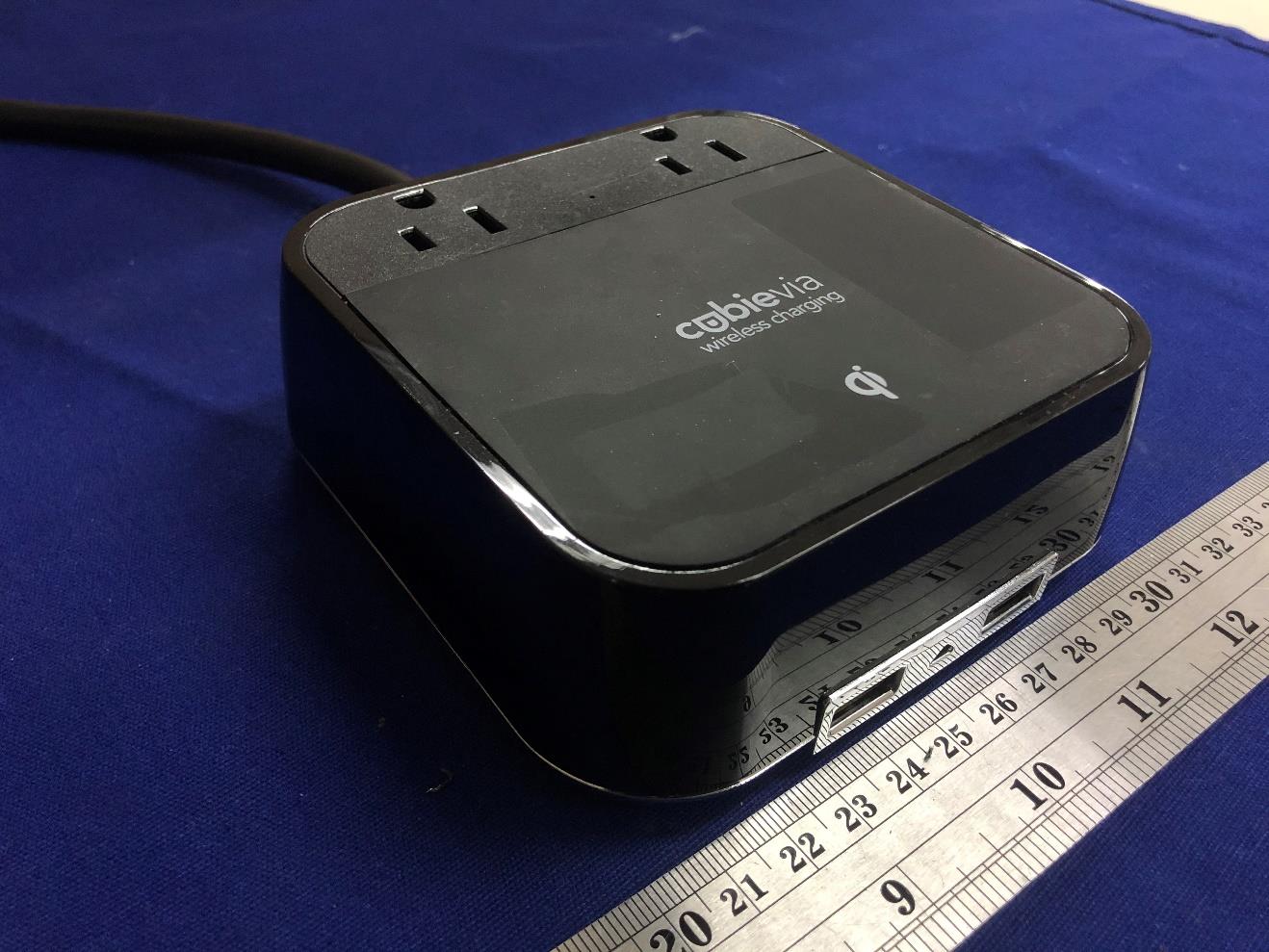

Important Safeguards • CAUTION: Do not install this device if there is not at least 10 meters (30feet) or more of wire between the electrical outlet and the electrical service panel. Ensure the unit is plugged into an AC 120V-60Hz outlet. The use of incorrect outlets could cause the unit to malfunction or catch fire. • To reduce the risk of fire or electrical shock, do not use this device with a receptacle in which the slot openings do not align with the blades. • Do not allow children to operate the unit without adult supervision. •Always ensure the product is unplugged from the electrical outlet before relocating or cleaning it. • Keep the power cord and product away from heated surfaces. • The unit should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on or around the product. It should not be used with aquariums or other water-related products. • Do not place or drop product into water or other liquids. If product falls into water, immediately unplug it from the electrical outlet. • Do not put any stress on the power cord where it connects to the product as the power cord could fray and break. • Do not plug/unplug the product into/from the electrical outlet with a wet hand. • Do not operate the product if it has a damaged or cut power cord or adapter, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if it is dropped in or exposed to water. • Place unit where there is good air circulation. • The product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Only qualified service personnel should perform the servicing. • No open flames sources, such as candles should be placed on the product. • Product should only be used indoors and in dry locations. Limited 1 Year Warranty Products are warranted by Brandstand against manufacturing defect in material and workmanship under normal use for one year from the date of purchase. Defective products will be exchanged for the same or comparable item. Return Policy For a refund or exchange, products must be returned within 30 days of original purchase date. Customers must contact Brandstand to obtain a Return Merchandise Authorization (RMA) number and specific shipping instructions prior to returning the product. Any product returned without a RMA will be refused. Product must be in original box with original accessories and packaging undamaged, clean and brand-new condition. Products that are incomplete, damaged or have been used will require a deduction in refund. There is a 30% restocking fee on all returned products. Refunds will be issued by check. Refund checks are mailed the 10th day from the date the product is returned. Delivery charges and customized products are non-returnable. Disclaimer of Damages In no event shall Brandstand Products, or its suppliers, be liable for indirect, incidental, or consequential damages, loss of profit, loss of use or data, or interruption of business, whether the alleged damages are labeled in tort, contract, or indemnity, even if Brandstand Products or its suppliers has been advised of the possibility of such damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply. Important: This product’s USB outlets cannot be used as a USB hub and does not transmit data. The powered USB outlets on this unit are intended solely for charging devices that can be charged via a USB interface. Unpacking and Set up: 1. Carefully remove from packaging. Verify that you have all necessary components before you dispose of box and packaging. Component List: • CubieVia Main Unit • Security C-Clamp • 2 Wood Screws 2. Place in desired location. Note: This product is designed to be used on a level, stable, flat surface such as a table, desk, shelf or stand, convenient to an AC outlet, out of direct sunlight and awat from sources of excess heat, dust, moisture or vibration. 3. Plug directly into wall AC outlet. Do not plug into another surge protector or extension cord. 4. Secure cord with Security C-Clamp to back of nightstand or desk. Wood screws are included. Technical Specifications Continuous Duty Electrical Rating 125VAC 12A 60Hz 1500W Maximum Energy Dissipation 555J L-N 185J L-G 185J N-G 185J Maximum Spike Current L-N 3000A L-G 3000A N-G 3000A UL Clamping Voltage (3-line) VPR L-N 1900V, L-G 1900V, N-G 1900V AC Outlets Output 125V 12A Powered USB Output 5V/2.4A shared Wireless Charging Output 5V/1A, 9V/1.1A, Up to 10W Wireless Charging Charging distance≤ 5mm Charging efficiency≥ 72% EMI/RFI Filtration 150kHz-1000MHz up to 40db Surge Response Time (ns) <20 ns Working Temperature 0º to +25º C Power Cord 6ft 14AWG 3-line Housing Material UL94V-0 Working Surroundings Indoor Fixed Mount Brandstand 801 E. Campbell Rd. Suite 620 Richardson, TX 75081, USA 877-843-3681 www.brandstand.com © 2020 TXS Industrial Design Inc. d.b.a. Brandstand Products CubieVia and Brandstand are registered trademarks of TXS Industrial Design, Inc. in the United States. The Brandstand Difference Surge Protection Liquid Spill Testing For enhanced safety, the Cubie Product Line was designed for and successfully passed a UL spill test conducted by our ETL testing lab. Pass-Through Power The pass-through power plug allows another device (i.e. lamp or alarm clock) to be plugged into the same wall outlet used by the Cubie Product. CubieVia- Top/Front View Product Introduction Thank you for purchasing the Brandstand CubieVia ® . This product allows the hotel to offer guest wireless charging, more power outlets,USB charging to their guests at the desk level. Please be sure to read this User Manual carefully to ensure proper installation. CubieVia’ s elegant design is applicable for phones and devices in line with Wireless Power Consortium, Qi standards. Enjoy the cable-free, safe power charging experience. The information in this document is subject to change and do…

Text truncated - open the document above for the full version.



      

  ­




€ ‚ ƒ„€… ­€…­…†‡ˆ‰‡‡Š ‹Œƒ‹‹€­ Ž… €‘’‚­‡‡€‘’“­‡‡€‚’“­‡‡€ Š”„‘„ŒŒ‹‹‹‡Š”•­…•Ž’ƒ„€… ‚Œ‹‘Œ• †­–†—’ ‚Œ‹‘Œ• ŽŽ˜ ‚Œ‹‘Œ• ˜†­… „””„•Œ…Œ• ­­ ­‚ –‡— „””„•Œ…Œ• ­­ ­‚ †­–†—’ „””„•Œ…Œ• ­­ ­‚ ­ …‹”‚’„•‹„ˆ„”Œ™„‘„”Œˆ™’”‚•‹Œ„”‚•š‘…”‚Œ‚‘š …„‚”‚’‹‹‚„‹”‘”Œ…”‚”‚›”„‹„•…‚Œ•„Œ„‚•”ŒŒ„ŒŒ„‹‘„„‚

      

  ­




€ ‚ ƒ„€… ­€…­…†‡ˆ‰‡‡Š ‹Œƒ‹‹€­ Ž… €‘’‚­‡‡€‘’“­‡‡€‚’“­‡‡€ Š”„‘„ŒŒ‹‹‹‡Š”•­…•Ž’ƒ„€… ‚Œ‹‘Œ• †­–†—’ ‚Œ‹‘Œ• ŽŽ˜ ‚Œ‹‘Œ• ˜†­… „””„•Œ…Œ• ­­ ­‚ –‡— „””„•Œ…Œ• ­­ ­‚ †­–†—’ „””„•Œ…Œ• ­­ ­‚ ­ …‹”‚’„•‹„ˆ„”Œ™„‘„”Œˆ™’”‚•‹Œ„”‚•š‘…”‚Œ‚‘š …„‚”‚’‹‹‚„‹”‘”Œ…”‚”‚›”„‹„•…‚Œ•„Œ„‚•”ŒŒ„ŒŒ„‹‘„„‚ size: 50.8*25.4mm

TXS Industrial Design Inc. d.b.a Brandstand Products TEST REPORT SCOPE OF WORK SAR Assessment– BPEVA REPORT NUMBER 200309042SZN-002 ISSUE DATE [REVISED DATE] 20 March 2020 [--------------------] PAGES 6 DOCUMENT CONTROL NUMBER RF Exposure © 2017 INTERTEK TEST REPORT Intertek No.: 200309042SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page 1 of 6 RF Exposure 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Test Report Applicant : TXS Industrial Design Inc. d.b.a Brandstand Products 801 E Campbell Rd. #620, Richardson, TX 75081, United States Sample Description Product : CubieVia Model No. : BPEVA Brand Name : BRANDSTAND Electrical Rating : Input: AC125V, 12A 60Hz, 1500W USB-Total Output: DC5 V/2.4A Wireless Output: DC 5V/1A, DC 9V/1.1A Date Received : 9 March 2020 Date Test Conducted : 9 March 2020 to 18 March 2020 Test Requested : Test for compliance with CFR 47 part 1 Test Method : Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(c) and (d), 1.1310 Test Result : Pass Conclusion : When determining of test conclusion, measurement uncertainty of tests have been considered. ******************************** End of Page ******************************** Prepared and Checked By: Approved By: Jeff Liang Kidd Yang Engineer Technical Supervisor Date: 20 March 2020 TEST REPORT Intertek No.: 200309042SZN-002 Version: 01-November-2017 Page 2 of 6 RF Exposure Test Report Test Setup Configuration Note - The RF exposure test is performed in the shield room. - The test distance is between the edge of the charger and the geometric centre of probe. Test Equipment List Name of instrument Model Manufacturer Cal. Date Due Date Electric and Magnetic Field Analyzer EHP-50F Narda 2019-06-27 2020-06-27 TEST REPORT Intertek No.: 200309042SZN-002 Version: 01-November-2017 Page 3 of 6 RF Exposure Reference Limit: Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(c) and (d), 1.1310 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range ( MHz ) Electric Field strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 (100) * 6 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 (100) * 30 Note: * = Plane wave equivalent power density Test Result: H-Field Strength at 15 cm surrounding the EUT and 20cm above the top surface of the EUT Frequency Range (MHz) EUT Operation mode Probe Position Front (A/m) Probe Position Rear (A/m) Probe Position Left (A/m) Probe Position Right (A/m) Probe Position Top (A/m) Limits (A/m) 0.110- 0.205 10% Battery Level 0.0475 0.0468 0.0698 0.0475 0.0469 1.63 0.110- 0.205 50% Battery Level 0.0482 0.0474 0.0733 0.0802 0.0478 1.63 0.110- 0.205 90% Battery Level 0.0473 0.0471 0.0712 0.0479 0.0474 1.63 0.110- 0.205 Stand-by 0.0434 0.0440 0.0451 0.0448 0.0441 1.63 E-Field Strength at 15 cm surrounding the EUT and 20cm above the top surface of the EUT Frequency Range (MHz) EUT Operation mode Probe Position Front (V/m) Probe Position Rear (V/m) Probe Position Left (V/m) Probe Position Right (V/m) Probe Position Top (V/m) Limits (V/m) 0.110- 0.205 10% Battery Level 0.4869 0.4419 0.5571 0.4982 0.6369 614 0.110- 0.205 50% Battery Level 0.4973 0.4522 0.5637 0.5041 0.6474 614 0.110- 0.205 90% Battery Level 0.4911 0.4497 0.5594 0.5004 0.6402 614 0.110- 0.205 Stand-by 0.4082 0.4121 0.4213 0.4311 0.4124 614 TEST REPORT Intertek No.: 200309042SZN-002 Version: 01-November-2017 Page 4 of 6 RF Exposure Configuration photo of the test: H-Field & E-Field Strength test photos Front Rear TEST REPORT Intertek No.: 200309042SZN-002 Version: 01-November-2017 Page 5 of 6 RF Exposure Left Right TEST REPORT Intertek No.: 200309042SZN-002 Version: 01-November-2017 Page 6 of 6 RF Exposure Top ****************************** End of Report******************************

TXS Industrial Design Inc. d.b.a Brandstand Products TEST REPORT SCOPE OF WORK FCC TESTING–BPEVA REPORT NUMBER 200309042SZN-001 ISSUE DATE [REVISED DATE] 20 March 2020 [--------------------] PAGES 19 DOCUMENT CONTROL NUMBER FCC ID 209_b © 2017 INTERTEK Test Report This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 19 FCC ID 209_b 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com TXS Industrial Design Inc. d.b.a Brandstand Products Application For Certification FCC ID: 2ARD4-BPEVA CubieVia Model: BPEVA Brand name: BRANDSTAND Transmitter Report No.: 200309042SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Jeff Liang Kidd Yang Engineer Technical Supervisor Date: 20 March 2020 Test Report Intertek Report No.: 200309042SZN-001 Version: 01-November-2017 Page: 2 of 19 FCC ID 209_b MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DCD - Part 15 Low Power Transmitter Below 1705 kHz Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-18] Edition] provision. Report prepared by: Jeff Liang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8614 0743 Fax: (86 755) 8601 6751 Test Report Intertek Report No.: 200309042SZN-001 Version: 01-November-2017 Page: 3 of 19 FCC ID 209_b Table of Contents 1.0 Summary of Test Results ..................................................................................... 4 2.0 General Description .............................................................................................. 5 2.1 Product Description .............................................................................................. 5 2.2 Related Submittal(s) Grants ................................................................................. 5 2.3 Test Methodology ................................................................................................ 5 2.4 Test Facility ......................................................................................................... 5 3.0 System Test Configuration ................................................................................... 6 3.1 Justification ......................................................................................................... 6 3.2 EUT Exercising Software ..................................................................................... 6 3.3 Special Accessories ............................................................................................. 6 3.4 Equipment Modification ........................................................................................ 6 3.5 Measurement Uncertainty .................................................................................... 7 3.6 Support Equipment List and Description ............................................................. 7 4.0 Measurement Results ........................................................................................... 8 4.1 Field Strength Calculation .................................................................................... 8 4.2 Radiated Emission Configuration Photograph .................................................... 9 4.3 Radiated Spurious Emission ................................................................................ 9 4.4 Conducted Emission Configuration Photograph ................................................. 12 4.5 Conducted Emission.......................................................................................... 12 5.0 Equipment Photographs .................................................................................... 15 6.0 Product Labelling ................................................................................................ 15 7.0 Technical Specifications .................................................................................... 15 8.0 Instruction Manual .............................................................................................. 15 9.0 Miscellaneous Information ................................................................................. 16 9.1 20dB Bandwidth .........................................................…
