2ARDU-IPMX-DB20IRNetwork Doorbell

Quick Start Guide 2MP IR WiFi/ PoE Network Doorbell Table Of Contents MARGIN GUIDES To see the guides to go: View / Guides / Show Guides www.icrealtime.com IMPORTANT SAFEGUARDS AND WARNINGS Electrical Safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12–33 VDC in the IEC60950-1. This series product supports PoE as well. Please note: Do not connect these two power supplying sources to the device at the same time; it may result in device damage! We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modification or attempted repair. Transportation Security Care must be given to avoid heavy stress, violent vibration or water damage during transportation, storage and installation. Installation Do not apply power to the Doorbell before completing installation. Please install the proper power cut-off device during the installation connection. Always follow the instruction guide the manufacturer recommended. Make sure the back plate is installed before powering up otherwise the Tamper Alarm will sound. Qualified engineers needed All the examination and repair work should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair. Environment This series network Doorbell should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. Please keep it away from the electromagnetic radiation object and environment. Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device. Otherwise it may result in CCD (CMOS) optical component damage. Please keep the sound ventilation. Do not allow the water and other liquid falling into the Doorbell. Lightning-proof device is recommended to be adopted to better prevent lightning damage. The grounding studs of the product are recommended to be grounded to further enhance the reliability of the Doorbell. Daily Maintenance Please shut down the device and then unplug the power cable before you begin daily maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the Doorbell. Accessories Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package. Features and Specifications A.Overview B.Doorbell Interface Doorbell Installation A.Installation Steps B.Door Lock Wiring C.Factory Reset and SD Card location Quick Configuration Tool A.Overview B.Operation Web Operation A.Network Connection B.Login and Logout Appendices C.FAQ D.Toxic or Hazardous Elements 2 2 3 4 5 5 5-6 7 7-8 9 9-10 MARGIN GUIDES To see the guides to go: View / Guides / Show Guides 2 | www.icrealtime.com 1A. OVERVIEW This IC Realtime series doorbell is intended to be used with a third-party SIP client for full functionality- Including calling, answering and unlocking function. The Doorbell supports the IR night vision function. In the night environments, the device can use the IR light to highlight the object which is suitable for the surveillance function in the low illumination environments. The waterproof design conforms to the IP65 level. It can be used standalone or with a network video recorder. If used standalone, it is able to utilize IC Realtime’s software suite including IC Now, IC View and IC Now Pro. 1B. Device Interface Figure 1-1 Refer to Figure 1-1 for Doorbell interface information. Note: Your model may vary in appearance. NumberNameFunction 1MicrophoneAudio input. 2CameraCapture images/ record videos 3Doorbell buttonRings/ Calls 4Card swiping areaSwipe the registered cards to unlock doors. 5SpeakerAudio output. 6Network port Connects to the network. Powers using PoE. 7SD card slotFor storing images/ recorded videos 8Reset button Press and hold the button for at least 30 seconds to reset to factory settings. Use if the password has been lost. 9Multi-function portSee the diagram below for functions. MARGIN GUIDES Stay within the yellow box. Do not let text go beyond, instead move to the next column or start a new page. 5 | www.icrealtime.com 2A. INSTALLATION STEPS Step 1 Use the included holes in the back of the mount to drill the appropriate mounting holes and cable exit. Install the expansion screws first, then place the mount on the installation surface. Screw in the installation screws to hold the mount to the installation surface. See Figure 2-1 for the Sun Shade Mount and Figure 2-2 for Standard Mount. Step 2 Connect all necessary wiring to the doorbell, then install the Doorbell into the mount by pushing it into the upper recess of the mount. Once inside the recess, push down so that the rear of the Doorbell catches on the mount interface. See Figure 2-3. Figure 2-1 (Sun Shade Mount) Figure 2-2 (Standard Mount) Figure 2-3 Figure 2-4 Step 3 Install grub screw to hold the Doorbell to the mount. See Figure 2-4. MARGIN GUIDES Stay within the yellow box. Do not let text go beyond, instead move to the next column or start a new page. 4 | www.icrealtime.com Figure 2-5 2B. Door Lock Wiring See Figure 2-5 to 2-7 for wiring diagrams using Electronic, Solenoid, and Motorized Locks. Figure 2-6 Figure 2-7 2C. RESTORE FACTORY DEFAULTS AND SD CARD INSTALLATION Important: ●Make sure the device is powered when attempting to press the R…

Text truncated - open the document above for the full version.

IC Realtime LLC 2025-11-18 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2ARDU-IPMX- DB20IR) [ICRealtime LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Matt Sailor CEO IC Realtime LLC 3050 N. Andrews AVE EXT, Pompano Beach, Florida, United States, 33064 IC Realtime LLC 2025-11-18 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2ARDU-IPMX- DB20IR) [ICRealtime LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Matt Sailor CEO IC Realtime LLC 3050 N. Andrews AVE EXT, Pompano Beach, Florida, United States, 33064

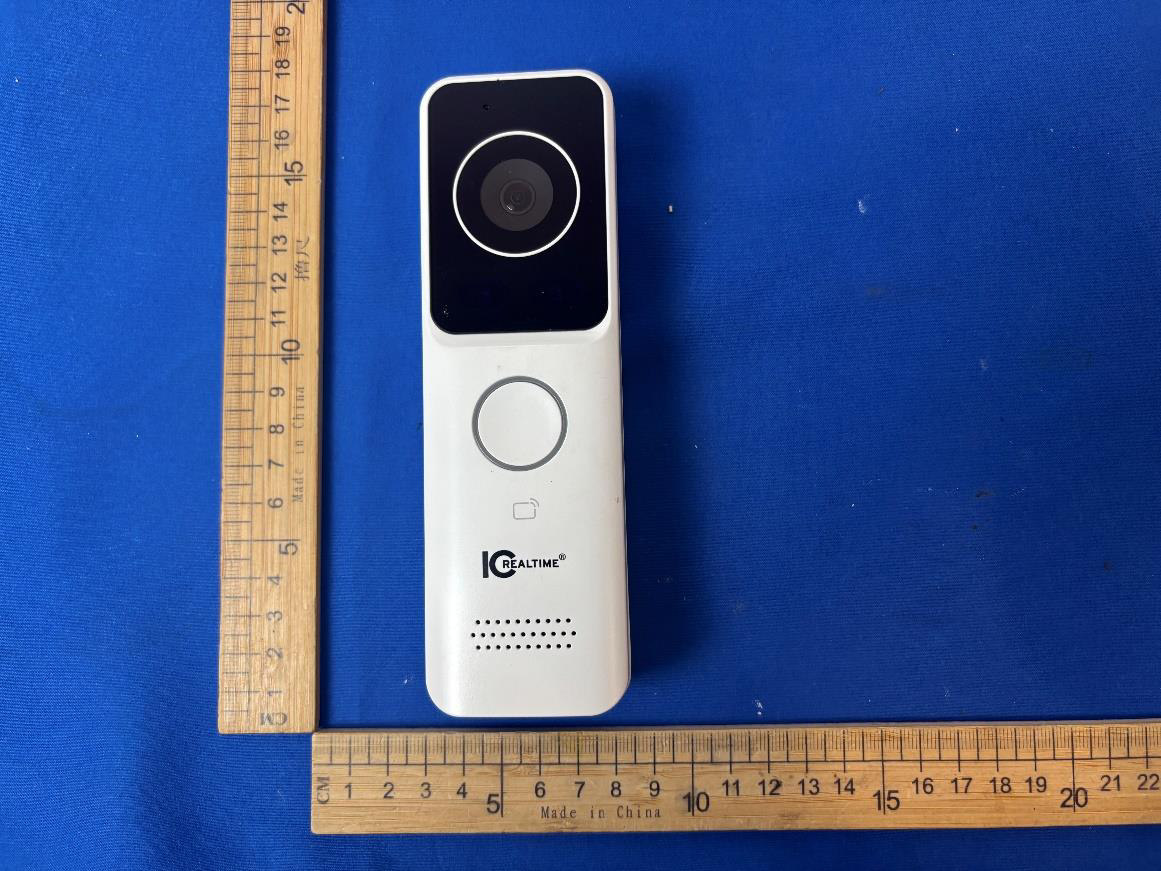

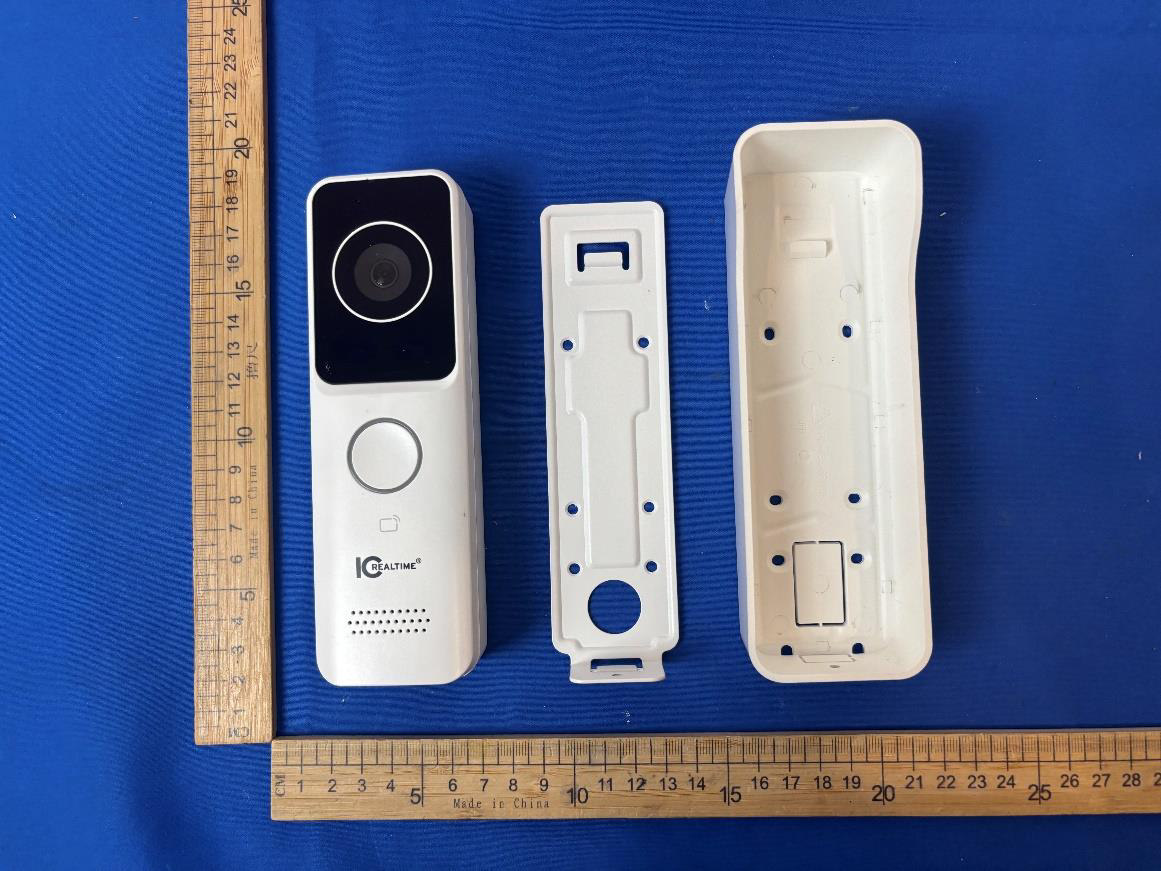

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7 View of EUT-8

Size: 19mm*32mm

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Antenna Page 2 of 7 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 7 Internal View of EUT-5 Internal View of EUT-6 Page 4 of 7 Internal View of EUT-7 Internal View of EUT-8 Page 5 of 7 Internal View of EUT-9 Internal View of EUT-10 Page 6 of 7 Internal View of EUT-11 Internal View of EUT-12 Page 7 of 7 Internal View of EUT-13 Internal View of EUT-14

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2ARDU-IPMX-DB20IR EUT Specification EUT Network Doorbell Frequency band (Operating) WIFI: 2.412GHz ~ 2.462GH Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.4G WIFI 802.11b: 16.65 dBm 802.11g: 15.03 dBm 802.11n HT20: 14.09 dBm 802.11n HT40: 13.12 dBm Antenna gain (Max) 2.04dBi Evaluation applied MPE Evaluation SAR Evaluation Page 2 of 3 Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. Page 3 of 3 Measurement Result 2.4G WIFI: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11b 16.65 16±1 17 50.119 2.04 1.60 0.015953 1 802.11g 15.03 15±1 16 39.511 2.04 1.60 0.020592 1 802.11n HT20 14.09 14±1 15 31.623 2.04 1.60 0.022648 1 802.11n HT40 13.12 13±1 14 25.119 2.04 1.60 0.022987 1 No SAR is required. Signature: Shawn Wen Date: 2025-10-16

ShenZhen VLG Wireless Technology Co,.Ltd Product NAME Nanhai Project Plastic 2.4G Antenna frequency band 2400~2500MHz model code V1350-115-A-01 Version A manufacturer ShenZhen VLG Wireless Technology Co,.Ltd type 2.4GHZ, Plastic Photo and dimensions （9mm * 37.7mm） ： operating temperature -20 ~ +70 °C storage temperature -20 ~ +80 °C frequency range 2400-2500 MHz contact resistance 50 ohm voltage standing wave ratio <3 antenna effeciency 48.50~ 54.38 % gain 0.98 ~ 2.04 DBi radiation direction all-around power capacity 33 dBm polarization linear polarization Connector types IPEX Generation I Figure 1 the 2.4G plastic antenna for the South China project. 1.1 frequency range 2400-2500MHz。 1.2 Matching Circuit of Antenna Nanhai Project plastic version - 2.4G antenna matching is provided by the main board itself. 2. VSWR 2.3.1 S11 2.3.2 Test results of passive antenna 2.3.3 directional diagram 2D directional diagram 3D directional diagram

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DTS) TEST REPORT For Network Doorbell MODEL NUMBER: IPMX-DB20-IRW1, IPMX-DB20-IRB1 REPORT NUMBER: E04A25080014F00101 ISSUE DATE: October 16, 2025 FCC ID:2ARDU-IPMX-DB20IR Prepared for IC Realtime LLC 3050 N. Andrews AVE EXT, Pompano Beach, Florida, United States, 33064 Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25080014F00101 Page 2 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 October 16, 2025 Initial Issue REPORT NO.: E04A25080014F00101 Page 3 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.3 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.11 & Clause 11.12 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DTS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25080014F00101 Page 4 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. Maximum Conducted Output Power .......................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 6dB Bandwidth ........................................................................................................ 15 7.3. Power Spectral Density ........................................................................................... 17 7.4. Conducted Band edge and spurious emission ........................................................ 18 7.5. Duty Cycle .............................................................................................................. 20 8. RADIATED TEST RESULTS ............................................................................................... 21 8.1. Radiated Band edge and Spurious Emission .......................................................... 26 9. ANTENNA REQUIREMENT ................................................................................................ 42 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 43 11. TEST DATA - Appendix A ..................................................................................... 46 REPORT NO.: E04A25080014F00101 Page 5 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: IC Realtime LLC Address: 3050 N. Andrews AVE EXT, Pompano Beach, Florida, United States, 33064 Manufacturer Information Company Name: IC Realtime LLC Address: 3050 N. Andrews AVE EXT, Pompano Beach, Florida, United States, 33064 EUT Information Product Description: Network Doorbell Model: IPMX-DB20-IRW1 Series Model: IPMX-DB20-IRB1 Brand: ICREALTIME Sample Received Date: September 29, 2025 Sample Statu…

Text truncated - open the document above for the full version.

REPORT NO.: E04A25080014F00101 Page 61 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 13.433 NVNT b 2437 Ant1 13.469 NVNT b 2462 Ant1 13.337 NVNT g 2412 Ant1 16.582 NVNT g 2437 Ant1 16.6 NVNT g 2462 Ant1 16.618 NVNT n20 2412 Ant1 17.704 NVNT n20 2437 Ant1 17.722 NVNT n20 2462 Ant1 17.68 NVNT n40 2422 Ant1 36.26 NVNT n40 2437 Ant1 36.308 NVNT n40 2452 Ant1 36.284 REPORT NO.: E04A25080014F00101 Page 62 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 REPORT NO.: E04A25080014F00101 Page 63 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 REPORT NO.: E04A25080014F00101 Page 64 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 REPORT NO.: E04A25080014F00101 Page 65 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 REPORT NO.: E04A25080014F00101 Page 66 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. OBW NVNT n20 2462MHz Ant1 OBW NVNT n40 2422MHz Ant1 REPORT NO.: E04A25080014F00101 Page 67 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. OBW NVNT n40 2437MHz Ant1 OBW NVNT n40 2452MHz Ant1 REPORT NO.: E04A25080014F00101 Page 68 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -9.18 8 Pass NVNT b 2437 Ant1 -9.1 8 Pass NVNT b 2462 Ant1 -9.91 8 Pass NVNT g 2412 Ant1 -18.19 8 Pass NVNT g 2437 Ant1 -17.88 8 Pass NVNT g 2462 Ant1 -18.96 8 Pass NVNT n20 2412 Ant1 -19.22 8 Pass NVNT n20 2437 Ant1 -19.26 8 Pass NVNT n20 2462 Ant1 -19.75 8 Pass NVNT n40 2422 Ant1 -22.68 8 Pass NVNT n40 2437 Ant1 -23.58 8 Pass NVNT n40 2452 Ant1 -22.83 8 Pass REPORT NO.: E04A25080014F00101 Page 69 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 REPORT NO.: E04A25080014F00101 Page 70 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 REPORT NO.: E04A25080014F00101 Page 71 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 REPORT NO.: E04A25080014F00101 Page 72 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 REPORT NO.: E04A25080014F00101 Page 73 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. PSD NVNT n20 2462MHz Ant1 PSD NVNT n40 2422MHz Ant1 REPORT NO.: E04A25080014F00101 Page 74 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. PSD NVNT n40 2437MHz Ant1 PSD NVNT n40 2452MHz Ant1 REPORT NO.: E04A25080014F00101 Page 75 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -52.07 -20 Pass NVNT b 2462 Ant1 -58.92 -20 Pass NVNT g 2412 Ant1 -37.23 -20 Pass NVNT g 2462 Ant1 -48.57 -20 Pass NVNT n20 2412 Ant1 -36.95 -20 Pass NVNT n20 2462 Ant1 -46.09 -20 Pass NVNT n40 2422 Ant1 -36.72 -20 Pass NVNT n40 2452 Ant1 -45.58 -20 Pass REPORT NO.: E04A25080014F00101 Page 76 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 77 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 78 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 79 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 80 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 81 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 82 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT n40 2422MHz Ant1 Ref Band Edge NVNT n40 2422MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 83 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT n40 2452MHz Ant1 Ref Band Edge NVNT n40 2452MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 84 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -51.27 -20 Pass NVNT b 2437 Ant1 -54.04 -20 Pass NVNT b 2462 Ant1 -52.35 -20 Pass NVNT g 2412 Ant1 -45.45 -20 Pass NVNT g 2437 Ant1 -44.17 -20 Pass NVNT g 2462 Ant1 -44.33 -20 Pass NVNT n20 2412 Ant1 -44.73 -20 Pass NVNT n20 2437 Ant1 -44.22 -20 Pass NVNT n20 2462 Ant1 -43.68 -20 Pass NVNT n40 2422 Ant1 -40.21 -20 Pass NVNT n40 2437 Ant1 -37.91 -20 Pass NVNT n40 2452 Ant1 -40.8 -20 Pass REPORT NO.: E04A25080014F00101 Page 85 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 86 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 87 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission REPORT NO.: E04A25080014F00101 Page 88 of 96 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurio…

Text truncated - open the document above for the full version.

Setup Photographs AC Power Line Conducted Emission Radiated Band edge and Spurious Emission Page 2 of 2
