2ARDY-T580-FMagnetic Wireless Charging Pad

Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

Declaration I am the signer Honglei Jia The two models are electrically identical, only model name is different. Item Name: Magnetic Wireless Charging Pad Model Number：T580‐F, T517 FCC ID：2ARDY‐T580‐F <Signature> Name: Honglei Jia Title: General Manager Company: SHENZHEN DAK TECHNOLOGY CO.,LTD

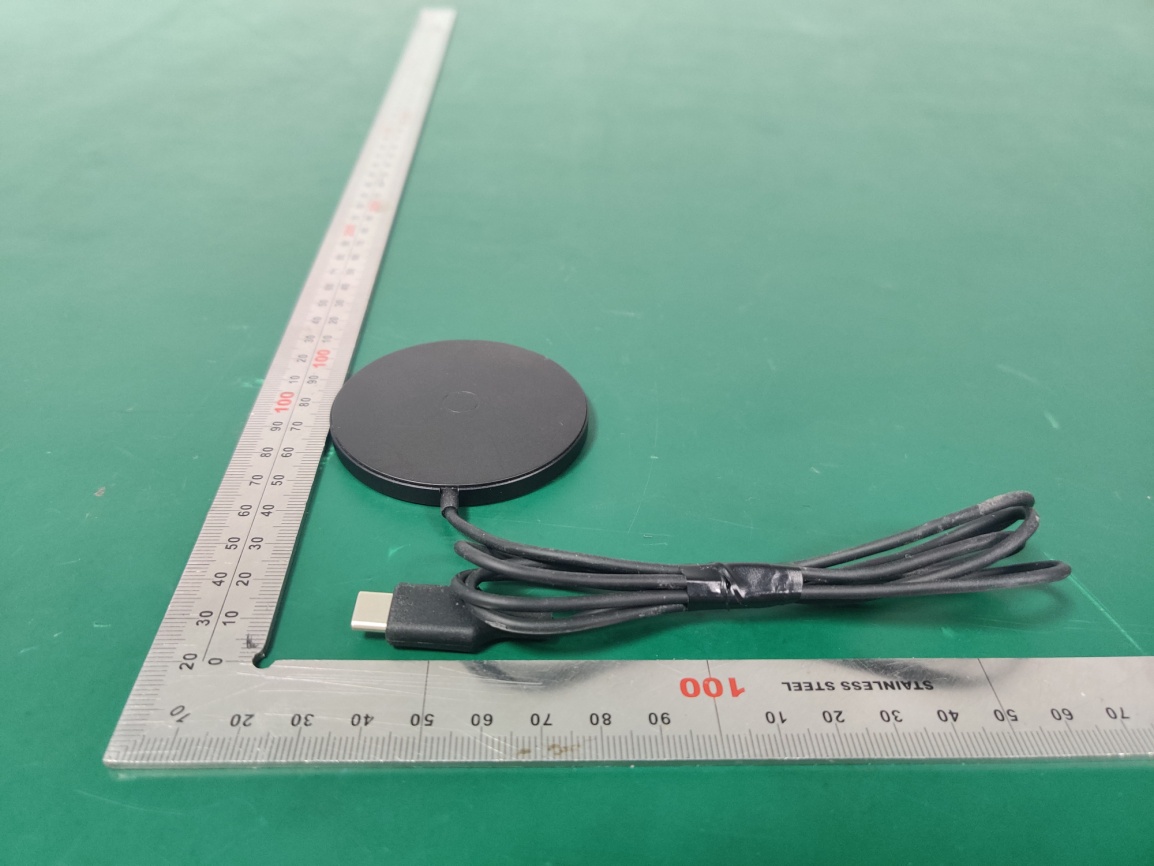

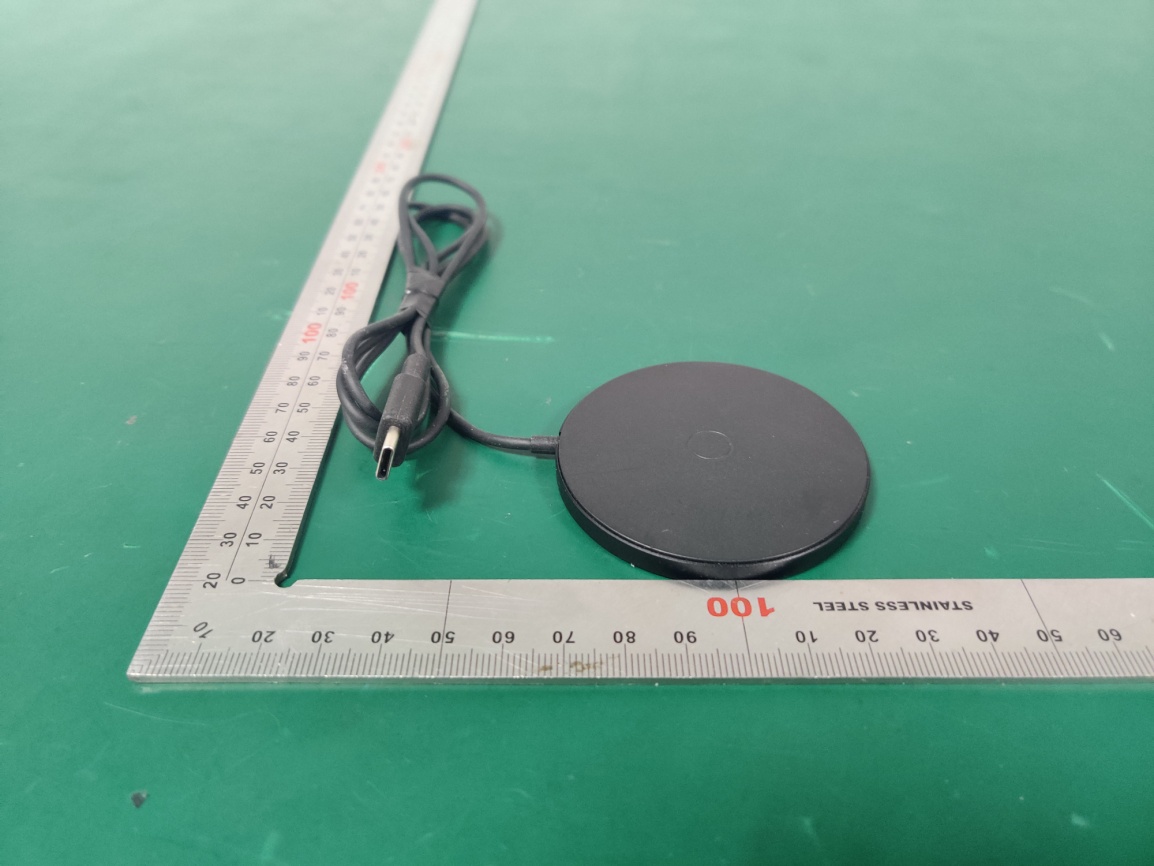

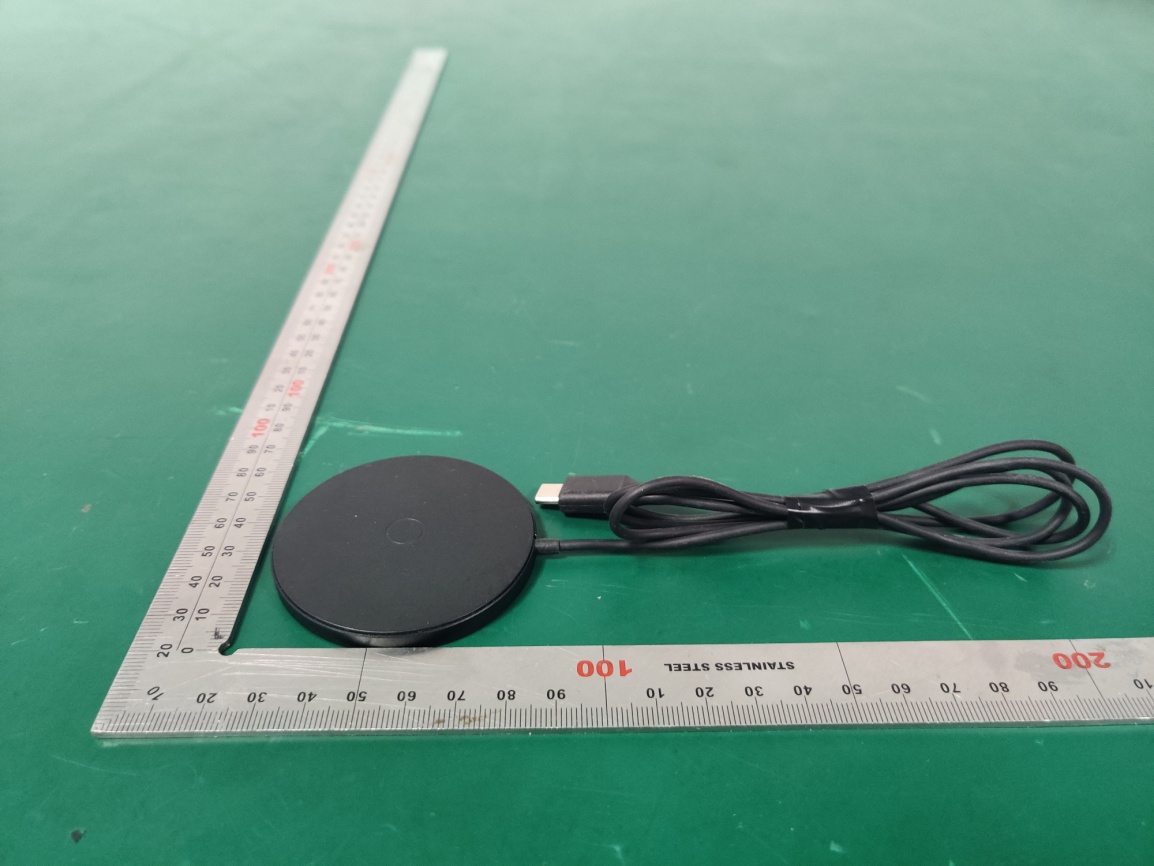

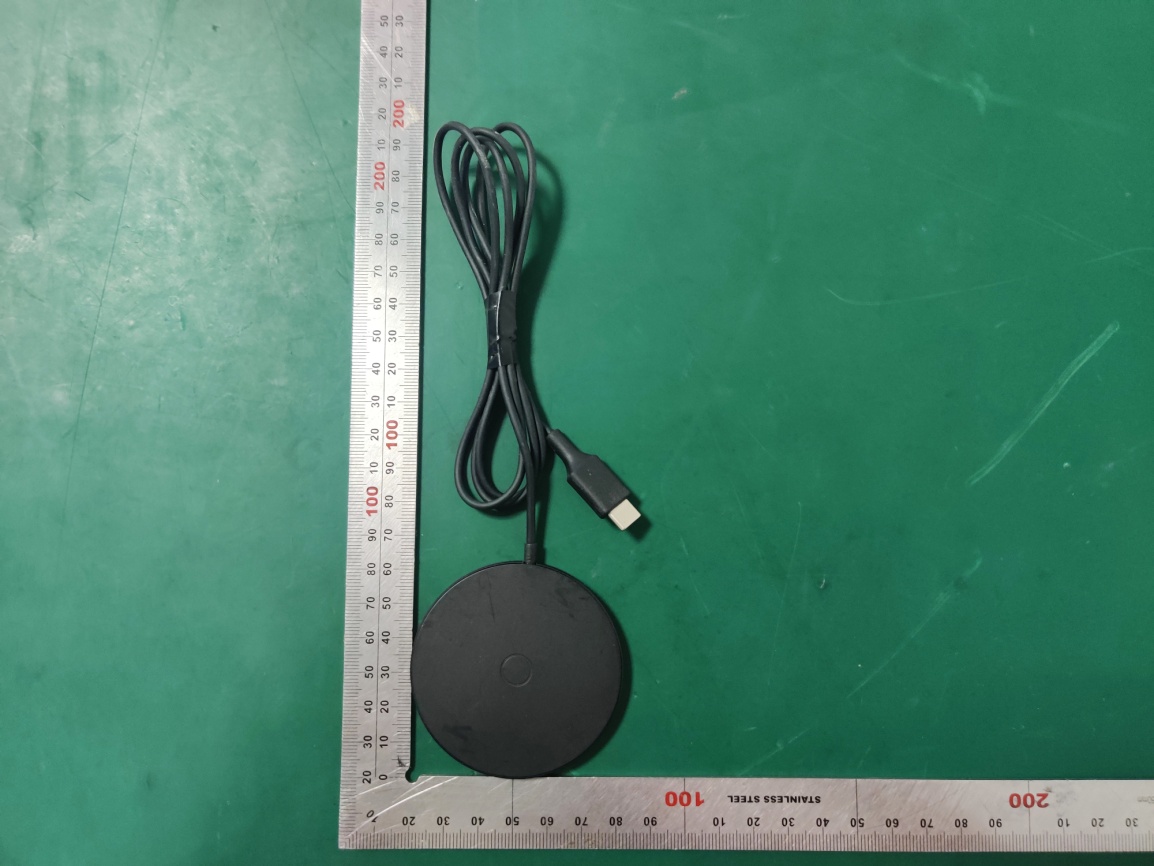

External Photos M/N: T580-F External Photos M/N: T580-F External Photos M/N: T580-F

Label

Internal Photos M/N: T580-F Coil Antenna Internal Photos M/N: T580-F Coil Antenna Internal Photos M/N: T580-F

FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010150 Page 1 of 15 RF EXPOSURE REPORT FOR CERTIFICATION On Behalf of SHENZHEN DAK TECHNOLOGY CO.,LTD Magnetic Wireless Charging Pad Model Number: T580-F Additional Model: T517 FCC ID: 2ARDY-T580-F Prepared for: SHENZHEN DAK TECHNOLOGY CO.,LTD 3-4/F,BLDG D,Demei Industrial CTR, Donghuan 2nd RD,Longhua St.,Longhua District, Shenzhen, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2010150 Date of Test: Oct. 19~21, 2020 Date of Report: Oct. 23, 2020 FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010150 Page 2 of 15 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. SUMMARY OF TEST ......................................................................................................................... 4 1.1. Summary of test result ...................................................................................................................... 4 1.2. Test Mode ......................................................................................................................................... 4 1.3. Test Equipment List ......................................................................................................................... 4 2. MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 5 2.1. Limit ................................................................................................................................................. 5 2.2. Test Setup ......................................................................................................................................... 6 2.3. Test Procedure .................................................................................................................................. 6 2.4. Equipment Approval Considerations ............................................................................................... 7 2.5. Test Result for Test setup A: ............................................................................................................ 8 2.6. Test Result for Test setup B: ............................................................................................................ 9 3. TEST SETUP PHOTO ................................................................................................................. 10 FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010150 Page 4 of 15 1. SUMMARY OF TEST 1.1. Summary of test result Report Section Description of Test Item FCC Standard Section Results 3 Maximum Permissible Exposure Part 1.1307(b)&1.1310 PASS 1.2. Test Mode 1.3. Test Equipment List Equipment ManufacturerModel No.Serial No.Last Cal. Next Cal. Electric and Magnetic Field Probe-Analyzer Narda S.T.S./PMM EHP-200A EST-E106Feb.14,20 1 Year Simulated load(Full) / / EST-306 N/A N/A Simulated load(Half) / / EST-307 N/A N/A Test Software Narda EHP200-TSRel 1.92 N/A N/A Test Item Test Mode Maximum Permissible Exposure Wireless Charging with Empty Load Wireless Charging with Half Load Wireless Charging with Full Load FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010150 Page 5 of 15 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Limit Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 Note: 1. f = frequency in MHz * = Plane-wave equivalent power density. 2. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010150 Page 6 of 15 2.2. Test Setup 2.3. Test Procedure a. The test was performed on turn table in anechoic chamber with a dummy load. b. The dummy load must be placed horizontal of the EUT at the top (Parallel to the coil). c. The probe was placed at 15 cm surrounding the device and 20 cm above the top of the charger and the geometric centre of the probe. d. The highest emission level was recorded and compared with limit as soon as measurement of each point; A, B, C, D, E were completed. FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010150 Page 7 of 15 2.4. Equipment Approval Considerations Inductive wireless power transfer applications with supporting field strength results and meeting all of the following requirements are not required to submit a KDB inquiry for devices approved using SDoC or a PAG for equipment approved using certification to address RF exposure compliance. 1. Power transfer frequency is less that 1 MHz YES; the device operated in the frequency range from 110.5-168KHz. 2. Output power from each primary coil is less than or equal to 15 watts. YES; the maximum output power of the primary coil is 15W. 3. The transfer system…

Text truncated - open the document above for the full version.

FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010149 Page 1 of 31 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of SHENZHEN DAK TECHNOLOGY CO.,LTD Magnetic Wireless Charging Pad Model Number: T580-F Additional Model: T517 FCC ID: 2ARDY-T580-F Prepared for: SHENZHEN DAK TECHNOLOGY CO.,LTD 3-4/F,BLDG D,Demei Industrial CTR, Donghuan 2nd RD,Longhua St.,Longhua District, Shenzhen, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2010149 Date of Test: Oct. 19~21, 2020 Date of Report: Oct. 23, 2020 FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010149 Page 2 of 31 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 4 1.1. Description of Device (EUT) ........................................................................................................... 4 2. SUMMARY OF TEST ......................................................................................................................... 5 2.1. Summary of test result ...................................................................................................................... 5 2.2. Test Facilities ................................................................................................................................... 6 2.3. Measurement uncertainty ................................................................................................................. 7 2.4. Assistant equipment used for test ..................................................................................................... 7 2.5. Block Diagram ................................................................................................................................. 7 2.6. Test Mode ......................................................................................................................................... 8 2.7. Test Equipment List ......................................................................................................................... 8 3. RADIATED EMISSION ...................................................................................................................... 9 3.1. Limit ................................................................................................................................................. 9 3.2. Test Setup ....................................................................................................................................... 10 3.3. Spectrum Analyzer Setting ............................................................................................................. 11 3.4. Test Procedure ................................................................................................................................ 11 3.5. Test Result ...................................................................................................................................... 12 4. AC POWER LINE CONDUCTED EMISSIONS .................................................................................... 18 4.1. Limit ............................................................................................................................................... 18 4.2. Test Setup ....................................................................................................................................... 18 4.3. Spectrum Analyzer Setting ............................................................................................................. 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ...................................................................................................................................... 19 5. ANTENNA REQUIREMENTS ............................................................................................................ 23 5.1. Limit ............................................................................................................................................... 23 5.2. Test Result ...................................................................................................................................... 23 6. TEST SETUP PHOTO ................................................................................................................. 24 7. EUT PHOTO ................................................................................................................................ 26 FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010149 Page 4 of 31 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Note: For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. Product Name : Magnetic Wireless Charging Pad Model Number : T580-F Operation Frequency : 110.5KHz-168 KHz Max Wireless Charge Power : 15W Max Field Strength of Fundamental : 71.88dBμV/m Modulation Type : FSK Antenna Type : Induction coil Sample Type : Prototype production FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010149 Page 5 of 31 2. SUMMARY OF TEST 2.1. Summary of test result Report Section Description of Test Item FCC Standard Section Results 3 Radiated Emission 15.205 15.209 PASS 4 AC Power Line Conducted Emissions 15.207 PASS 5 Antenna Requirement 15.203 PASS Note: 1. “N/A” denotes test is not applicable in this test report FCC ID: 2ARDY-T580-F EST Technology Co., Ltd Report No. ESTE-R2010149 Page 6 of 31 2.2. Test Facilities EMC Lab : Certificated by CNAS, CHINA Registration No.: L5288 This Certificate is…

Text truncated - open the document above for the full version.

Conducted Emissions Test Radiated Test (Below 30MHz) Radiated Test (Above 30MHz)
