2ARFH-T15NOSTALGIA BLUETOOTH 7 IN 1 MUSIC SYSTEM

INSTRUCTION MANUAL PLEASE REA D CAREFULL Y BEFORE OPER ATION This product has been manufactured and sold under the responsibility of CURTIS INTERNATIONAL LTD. PROSCAN, and the PROSCAN logo are trademarks used under license by CURTIS INTERNATIONAL LTD. – further information at www.proscan-brand.com. All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners. ANALOG TUNER MIN MAX MODE/REC NOSTALGIA BLUETOOTH 7 IN 1 MUSIC SYSTEM Cleaning The Music System Wipe the music system with a soft ,dry, lint-free cloth. Do not: Immerse the music system in water or any other liquid. Expose the media centre to liquid,moisture or humidity to avoid the unit’s internal circuit being affected. Use any abrasive cleaning solvents to clean the music system, as this can cause damage. Expose the music system to extremely high or low temperatures,as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts. Drop the music system,as the internal circuit may become damaged. Attempt to disassemble the media centre,as this may cause damage to the unit. Dispose of the music system in a fire ,as it will result in an explosion. Getting Started In the Box Remove the unit from the box. Remove any packaging from the unit. Place the packaging inside the box and either store or dispose of safely. Nostalgia Bluetooth 7 in 1 music system AC Power Adaptor RCA Cable Instruction Manual 4 legs 5 Location Of Controls Front View AM FM ANALOG TUNER MIN MAX MODE/REC 1 2 3 4 5 6 7 8 9 111012 1314 151617 Back View 1: Frequency Display 2: Open / Close Button 3: Stop Button 4: On / Off / Volume Control Dial 5: Play/Pause Button 6: Mode / Encoding Short press to switch mode Long press to USB Encoding 7: Skip-Button (PREV) 8: AM/FM Radio Control Dial 9: Skip+Button (NEXT) 10: Speakers 11: Disc Tray 12: LED Display 13: USB Input Port 14: TF Card Input Port 15: RCA Input Ports 16: DC Input Socket 17: FM Antenna 6 Location Of Controls 1918 20 21 22 23 25 26 27 24 Side View Turntable 23: Tone Arm 24: Auto Stop On/Off Switch 25: Speed Selector 26: Tone Arm Holder 27: Turntable Pickup 20: Turntable 21: 45 RPM adapter 22: Lever 18: Tape Eject / Fast Forward 19: Cassette 7 Assembly Carefully turn the Nostalgia Bluetooth 7 in 1 music system over so that lid is resting on the floor,place it onto a soft surface to protect it from scratches. Screw the four legs onto the underside of the 7 in 1 music system. Stand the Nostalgia Bluetooth 7 in 1 music system on a flat ,stable surface Using music system Basic Functionality Plug the DC input jack on the power adaptor into the DC input socket on the reverse of the music system and then plug the adaptor into the mains power supply and switch it on . Turn on the music system by rotating the on/off/volume control dial in a clockwise direction,until it clicks . Short Press “MODE/REC “ button until your desired operation is selected (Bluetooth,CD,Turntable, FM,AM,Aux,USB,TAPE ). Long press “MODE/REC “ button to USB encoding (Only encoding during turntable mode) . Rotate the AM/FM Radio control dial in a clockwise direction to your desired radio mode Adjust volume by rotating the on/off/volume control dial . Rotate in a clock direction to increase the volume and Rotate in an anticlockwise direction to decrease the volume. To pause the track,press PLAY/PAUSE button, push it again to resume the track. Switch to next track by pressing “Next” button; play previous track by pressing “PREV” button. To open the Disc tray by pressing “OPEN/CLOSE” button, press “OPEN/CLOSE” button again to close Disc tray. To Stop CD play by pressing “Stop” button. To turn off the music system,rotate the on/off/volume control dial in an anticlockwise direction,until it clicks. Listening to a Record STEP 1: Turn on the music system by rotating the ‘On/Off/ Volume Dial’ in a clockwise direction . STEP 2: Short press the “MODE/REC “ button to turntable mode . STEP 3: Remove the protective white needle cover by gently sliding it away from the tone arm. STEP 4: Carefully place a record onto the turntable,remembering to apply the 45 rpm adapter first, if listening to a 45 rpm record with a large centre hole. STEP 5: Unlock the tone arm from the arm lock by pushing it aside. STEP 6: Raise the tone arm using the arm raising lever or by carefully lifting it . STEP 7: Move the tone arm across to the outlet edge of the record and gently lower it , the turntable will begin to spin and play automatically. STEP 8: Once the tone arm reaches the end of the record at the centre of the turntable,the turntable will stop.Lift away the tone arm and place it back into the armrest. STEP 9: Secure the tone arm once more by engaging the arm lock. STEP 10: Rotate the “On/Off/ Volume Dial” in an anticlockwise direction unit it clicks ,to turn off Turntable . Note: Always ensure that the tone arm is secured before transporting . Instructions For Use 8 Replacing The Stylus The music system stylus should last approximately 400~450 hrs under normal use .However, it is recommended that the stylus be replaced as soon as a change in sound quality is noticed. Prolonged use of a wore-out stylus may damage any records and the highest speed 78rpm records will wear out the stylus more quickly. Removing the old stylus STEP 1: Carefully place a screwdriver at the tip of the stylus and push downward (A) . STEP 2: Remove the old stylus by gently pulling it down and forward simultaneously . Installing a New Stylus STEP 1: Hold the stylus at front edge(needle side) and insert the rear edge onto the tone arm(B). STEP 2: Push the stylus upward ,until it locks into position©. Caution: The music system must be powered off using the on/off /volume control dial before replacing the stylus. Do not bend the stylus or touch the needle,as the may cause injury. Playing with CD Inserting a CD STEP 1: To access the built-in CD player, eject the disc tray by press…

Text truncated - open the document above for the full version.

Shenzhen Sign GaoLe Technology Co.,Ltd 2/F, Building A, Xufa Technology Park, Phoenix Second Industrial Zone, Fuyong Town, Bao’an District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/27/2023 U.S. Agent Designation Shenzhen Sign GaoLe Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ARFH-T15): Name and company of U.S. agent: Formates LLC Physical U.S. address of agent: 1400 Hudson St, Hoboken, New Jersey, 07030, USA FRN of U.S. agent: 0033456468 Email address of U.S. agent: [email protected] Formates LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Sign GaoLe Technology Co.,Ltd Shenzhen Sign GaoLe Technology Co.,Ltdwith the FRN 0027890177 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Guibin Liu Shenzhen Sign GaoLe Technology Co.,Ltd Signature Abi Aribisala Project Manager Formates LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

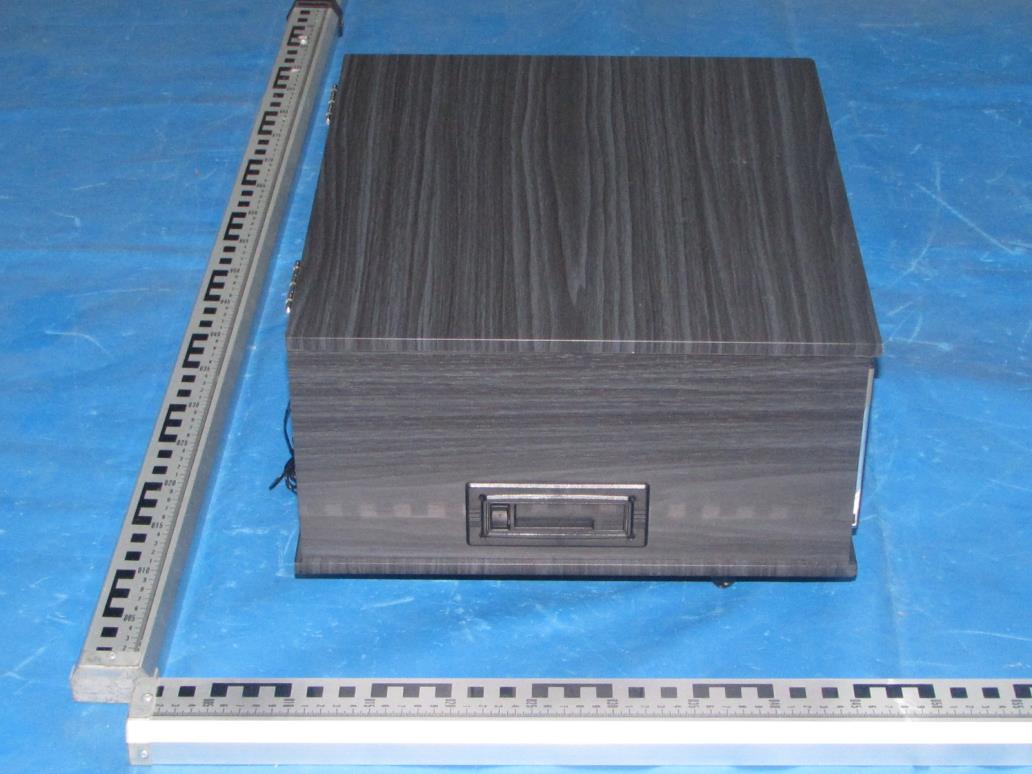

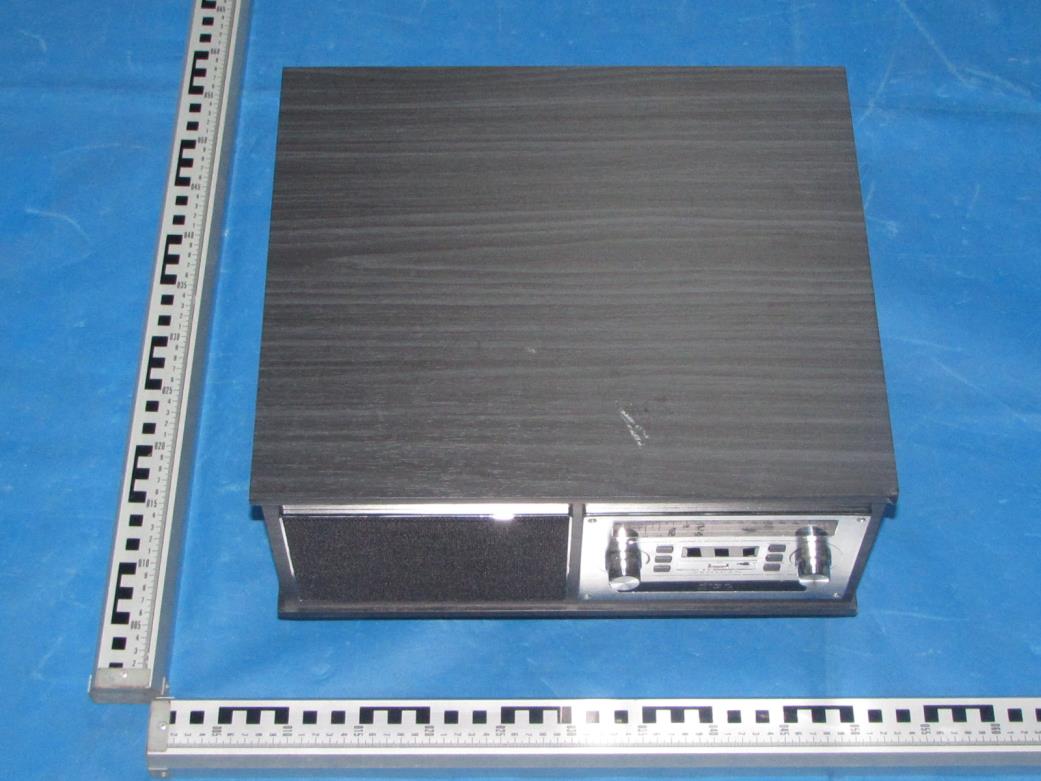

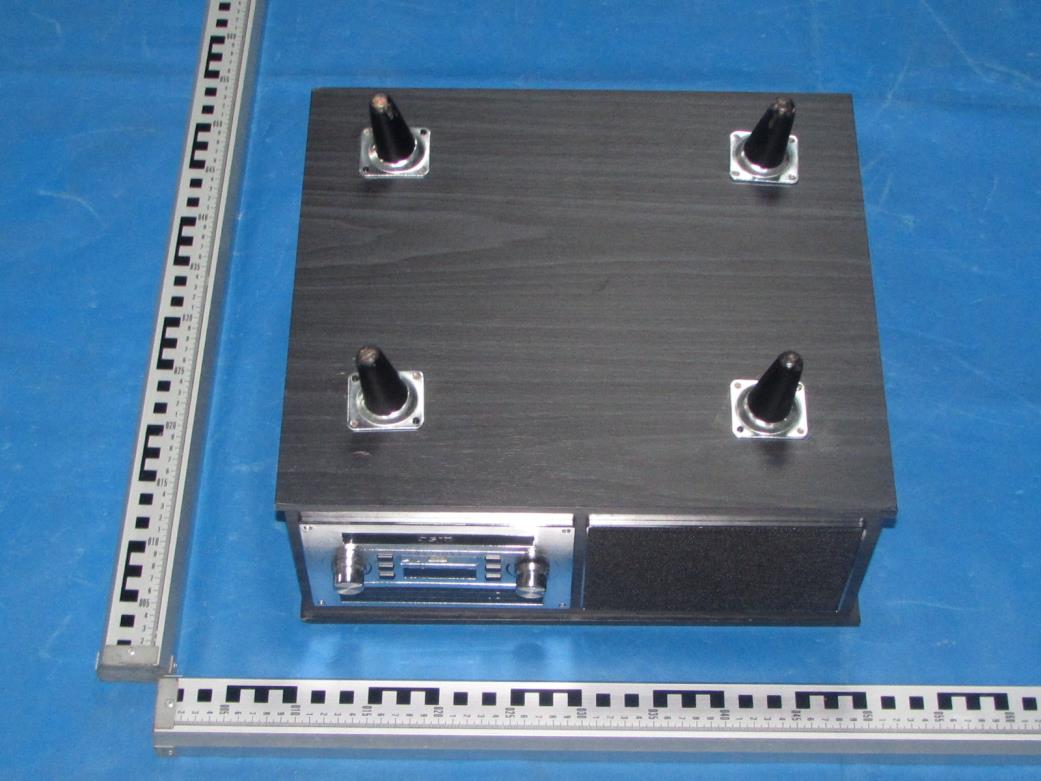

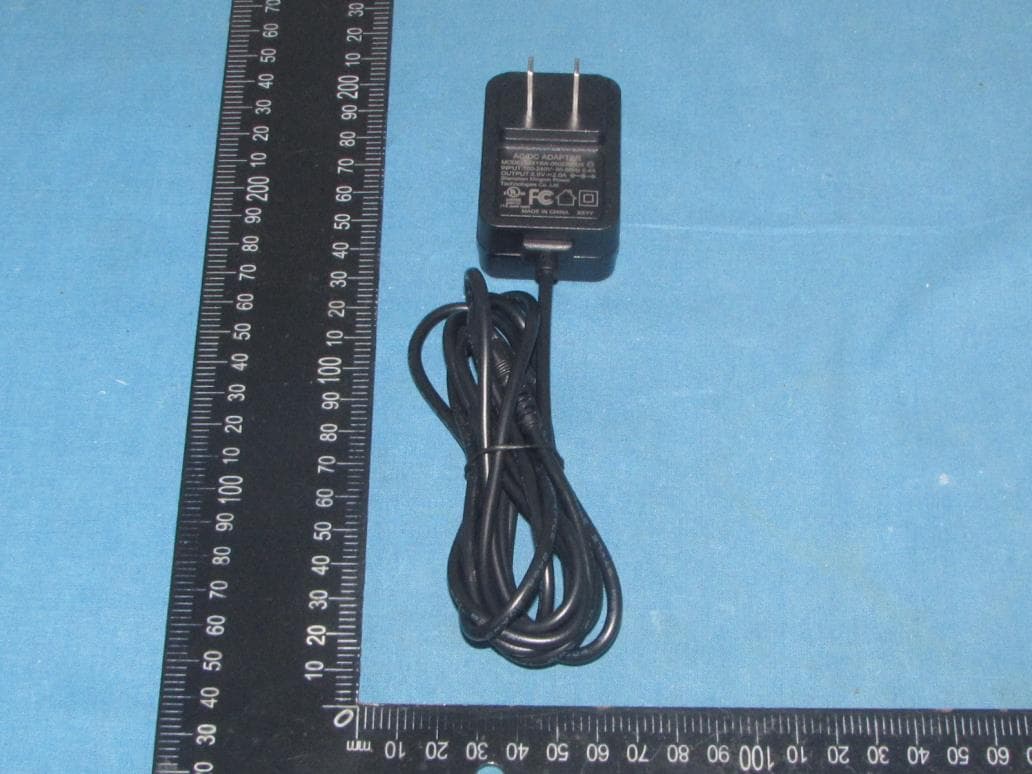

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Fig.8

Label Location: FCC ID: 2ARFH-T15

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 2.07 39 2441 3.5 78 2480 -0.21 π/4-DQPSK 00 2402 -1.59 39 2441 -0.17 78 2480 0.24 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.0 3.0 -0.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -0.5 0.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 3.0 3.58 2.28 3 2441 4.0 4.58 2.87 3 2480 0.5 1.08 1.28 3 π/4-DQPSK 2402 -1.0 -0.42 0.91 3 2441 0.5 1.08 1.28 3 2480 1.0 1.58 1.44 3 The antenna gain of the EUT for BT is -0.58dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 1 of 34 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: NOSTALGIA BLUETOOTH 7 IN 1 MUSIC SYSTEM Trade Mark: Sign Test Model: T15 FCC ID: 2ARFH-T15 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.891 2401.511 2402.402 --- --- 2441 0.894 2440.508 2441.402 --- --- 2480 0.939 2479.508 2480.447 --- --- 2DH5 Ant1 2402 1.278 2401.313 2402.591 --- --- 2441 1.266 2440.310 2441.576 --- --- 2480 1.359 2479.292 2480.651 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 2 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 3 of 34 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 4 of 34 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.84221 2401.5378 2402.3800 --- --- 2441 0.84121 2440.5377 2441.3789 --- --- 2480 0.85269 2479.5344 2480.3871 --- --- 2DH5 Ant1 2402 1.1887 2401.3705 2402.5592 --- --- 2441 1.1888 2440.3687 2441.5575 --- --- 2480 1.1886 2479.3665 2480.5551 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 5 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 6 of 34 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 7 of 34 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 2.07 ≤30 PASS 2441 3.5 ≤30 PASS 2480 -0.21 ≤30 PASS 2DH5 Ant1 2402 -1.59 ≤20.97 PASS 2441 -0.17 ≤20.97 PASS 2480 0.24 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 8 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 9 of 34 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 10 of 34 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.144 ≥0.939 PASS 2DH5 Ant1 Hop 1.014 ≥0.906 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 11 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 12 of 34 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.879 80 0.23 ≤0.4 PASS 2DH5 Ant1 Hop 2.885 60 0.173 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 13 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 14 of 34 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 15 of 34 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 16 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 17 of 34 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 1.49 -26.9 ≤-18.51 PASS High 2480 -0.92 -43.52 ≤-20.92 PASS Low Hop_2402 -3.98 -50.43 ≤-23.98 PASS High Hop_2480 -1.04 -49.29 ≤-21.04 PASS 2DH5 Ant1 Low 2402 -3.83 -31.34 ≤-23.83 PASS High 2480 -1.14 -43.58 ≤-21.14 PASS Low Hop_2402 -5.05 -50.27 ≤-25.05 PASS High Hop_2480 -2.85 -49.73 ≤-22.85 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 18 of 34 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 19 of 34 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 20 of 34 2DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 21 of 34 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference 0.90 0.90 --- PASS 30~1000 0.90 -62.95 ≤-19.1 PASS 1000~26500 0.90 -38.52 ≤-19.1 PASS 2441 Reference 2.27 2.27 --- PASS 30~1000 2.27 -63.01 ≤-17.73 PASS 1000~26500 2.27 -39.7 ≤-17.73 PASS 2480 Reference -1.38 -1.38 --- PASS 30~1000 -1.38 -62.06 ≤-21.38 PASS 1000~26500 -1.38 -44.93 ≤-21.38 PASS 2DH5 Ant1 2402 Reference -6.60 -6.60 --- PASS 30~1000 -6.60 -62.81 ≤-26.6 PASS 1000~26500 -6.60 -48.91 ≤-26.6 PASS 2441 Reference -4.81 -4.81 --- PASS 30~1000 -4.81 -63.04 ≤-24.81 PASS 1000~26500 -4.81 -47.34 ≤-24.81 PASS 2480 Reference -4.78 -4.78 --- PASS 30~1000 -4.78 -62.53 ≤-24.78 PASS 1000~26500 -4.78 -46.66 ≤-24.78 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 22 of 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 Report No.: TZ230604446-E Page 23 of 34 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,L…

Text truncated - open the document above for the full version.

Report No.: TZ230604446-E Page 1 of 38 FCC TEST REPORT Test report On Behalf of Shenzhen Sign GaoLe Technology Co.,Ltd For NOSTALGIA BLUETOOTH 7 IN 1 MUSIC SYSTEM Model No: T15, PRCD906BT-BROWN, PRCD906BT-BLACK, PRCDXXXXX( X means A~Z or 0 ~10) FCC ID: 2ARFH-T15 Prepared for : Shenzhen Sign GaoLe Technology Co.,Ltd 2/F, Building A, Xufa Technology Park, Phoenix Second Industrial Zone, Fuyong Town, Bao’an District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/6/17–2023/6/25 Date of Report: 2023/6/25 Report Number: TZ230604446-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230604446-E Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Sign GaoLe Technology Co.,Ltd Address .................................. : 2/F, Building A, Xufa Technology Park, Phoenix Second Industrial Zone, Fuyong Town, Bao’an District, Shenzhen, China Manufacture's Name ............ : Shenzhen Sign GaoLe Technology Co.,Ltd Address .................................. : 2/F, Building A, Xufa Technology Park, Phoenix Second Industrial Zone, Fuyong Town, Bao’an District, Shenzhen, China Product description Trade Mark ............................. : Sign Product name ........................... : NOSTALGIA BLUETOOTH 7 IN 1 MUSIC SYSTEM Model No ................................ : T15, PRCD906BT-BROWN, PRCD906BT-BLACK, PRCDXXXXX( X means A~Z or 0 ~10) Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2023/6/17-2023/6/25 Date of Issue ......................................... : 2023/6/25 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230604446-E Page 3 of 38 Revision History Revision Issue Date Revisions Revised By 00 2023/6/25 Initial Issue Andy Zhang Report No.: TZ230604446-E Page 4 of 38 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 EUT configuration ......................................................................................................................................... 5 The following peripheral devices and interface cables were connected during the measurement: ....... 5 1.4 External I/O Cable ........................................................................................................................................ 5 1.5 Description of Test Facility .......................................................................................................................... 6 1.6 Statement of the Measurement Uncertainty ............................................................................................. 7 1.7 Measurement Uncertainty ........................................................................................................................... 7 1.8 Description of Test Modes .......................................................................................................................... 7 2. TEST METHODOLOGY ...................................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................................ 8 2.3 General Test Procedures ............................................................................................................................ 8 2.4. Test Sample ................................................................................................................................................. 8 3. SYSTEM TEST CONFIGURATION .................................................................................................. 9 3.1 Justification .................................................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................................... 9 3.3 Special Accessories ..................................................................................................................................... 9 3.4 Block Diagram/Schematics ......................................................................................................................... 9 3.5 Equipment Modifications ............................................................................................................................. 9 3.6 Test Setup ..........................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2ARFH-T15 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Emission
