2ARGE-7432Digital Media Receiver

User Manual Product Information Safety and Compliance Information Using Your Device Around Other Electronic Devices The Device, uses, and can radiate radio frequency (RF) energy and, if not used in accordance with its instructions, may cause interference to radio communications and electronic equipment. External RF signals may affect improperly installed or inadequately shielded electronic operating systems, entertainment systems, and personal medical devices. While most modern electronic equipment is shielded from external RF signals, if in doubt, check with the manufacturer. For personal medical devices (such as pacemakers and hearing aids), consult with your physician or the manufacturer to determine if they are adequately shielded from external RF signals. There are some places where RF signals could constitute a hazard, such as health care facilities, and construction sites. If you are not sure, look around for signs indicating that two-way radios or mobile phones should be turned off. FCC Compliance Information Radio Frequency Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications that are not expressly approved by the party responsible for compliance could make the device no longer comply with the FCC Rules. Information on your device is on file with the FCC and can be found by inputting your device’s FCC ID, which can be found on the back of Device, into the FCC ID Search form available at transition.fcc.gov/oet/ea/fccid. IC Compliance Information Radio Frequency Information This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. This device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. Information Regarding Exposure to Radio Frequency Energy This equipment complies with IC RSS-102 RF exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. CAN ICES-3(B)/NMB-3(B) Recycling Product Properly In some areas, the disposal of certain electronic devices is regulated. Make sure you dispose of or recycle the Products in accordance with your local laws and regulations. For information about recycling the Products, go to www.amazon.com/devicesupport. Product Specifications Model Number: O2T2V3 Power: 100-240VAC 50/60Hz, 1.5A Max Operating temperature: 0°C to 35°C Connectivity: Wi-Fi (2.4/5GHz) 802.11 a/b/g/n/ac; BT BDR/EDR, BLE, Zigbee Plug in Your Device Plug your device into an outlet using the included power cord. A blue light ring will spin around the top. In about a minute, you can follow the instruction in App to finish the setup. Getting to know your Device

Date: February 9, 2022 To the Certification Body, Flake LLC hereby authorizes Sporton International Inc., located at No. 52, Hwa Ya 1st Rd ., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan, R.O.C., to provide and prepare all documentation relating to our product certification, including the signing of application forms for Model Name O2T2V3 (“Product”), FCC ID: 2ARGE-7432, directly to the Certification Body on our behalf. Sporton International Inc. is also authorized under this letter to respond on our behalf directly to the Certification Body’s questions about the Product and Reports as necessary to assist the Certification Body in the FCC certification. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is valid until further written notice from the Flake LLC Sincerely, Flake LLC By: _______________ Name: Carrie Tillman Address: 4321 W. College Avenue; Suite 200, Appleton, Wisconsin 54914, United States Telephone: 302-691-6241 Email: [email protected]

Flake LLC 4321 W. College Avenue; Suite 200, Appleton, Wisconsin 54914, United States Tel: 302-691-6241 Date: February 9, 2022 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2ARGE-7432 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune up procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Carrie Tillman [email protected]

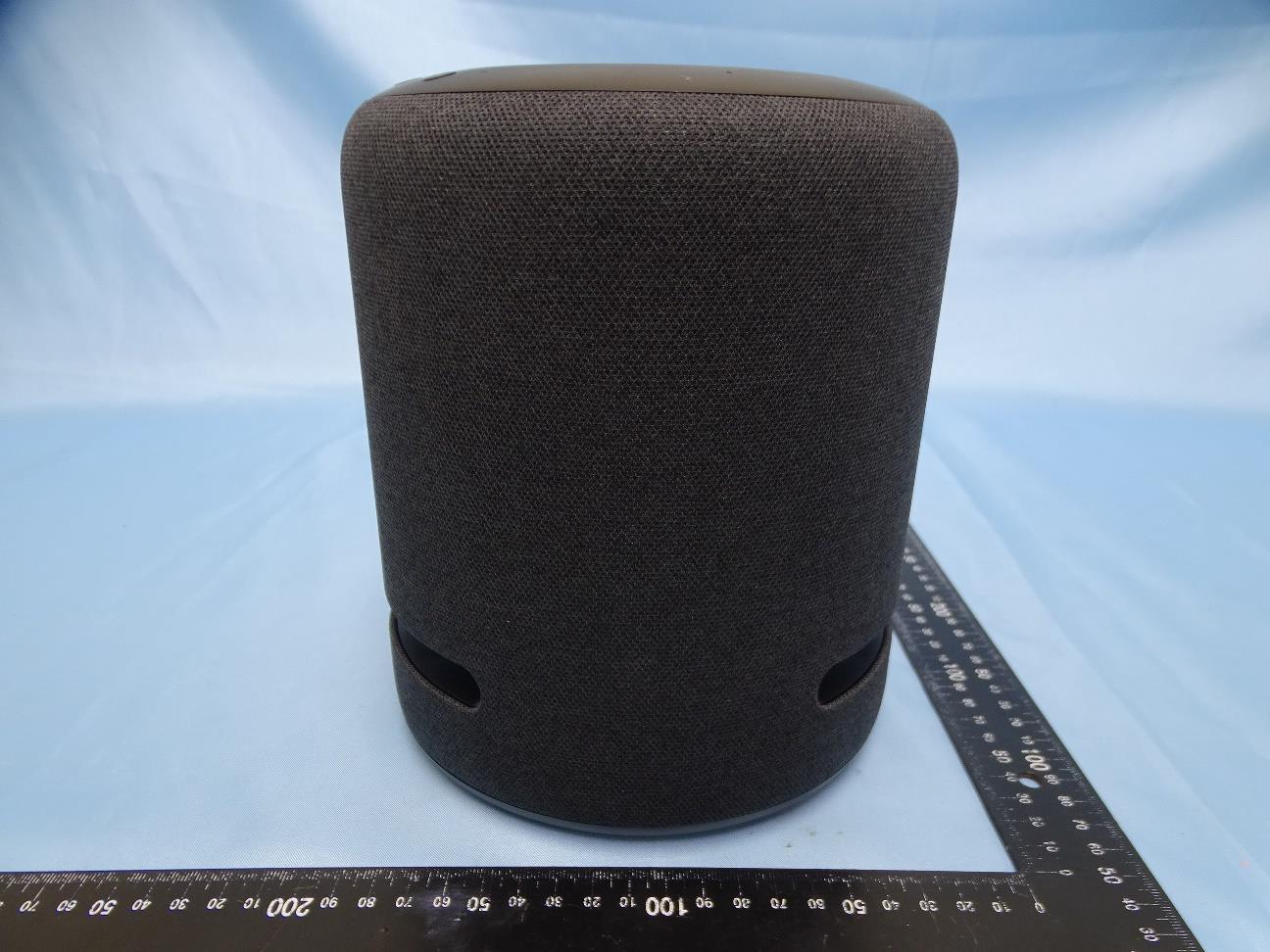

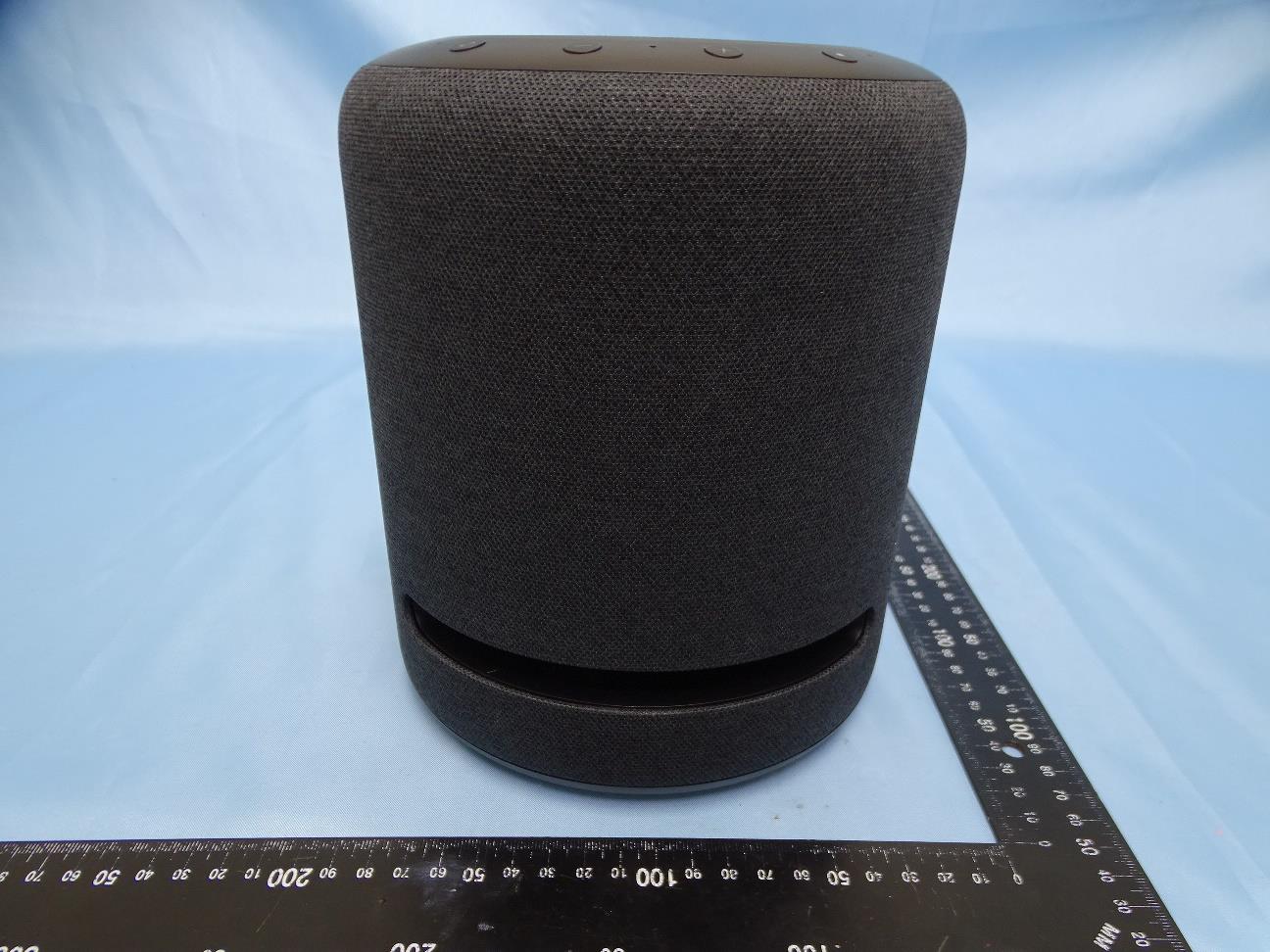

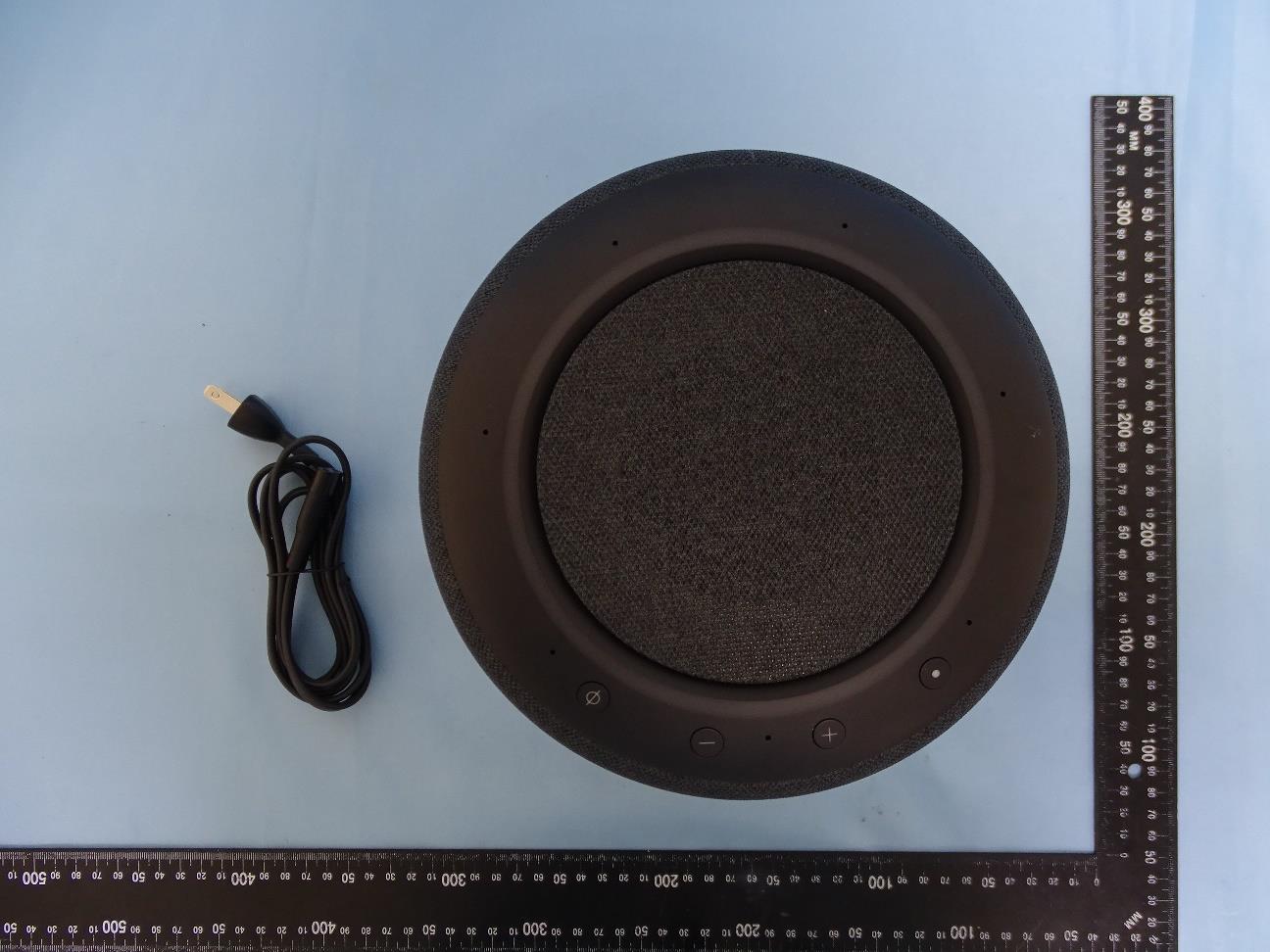

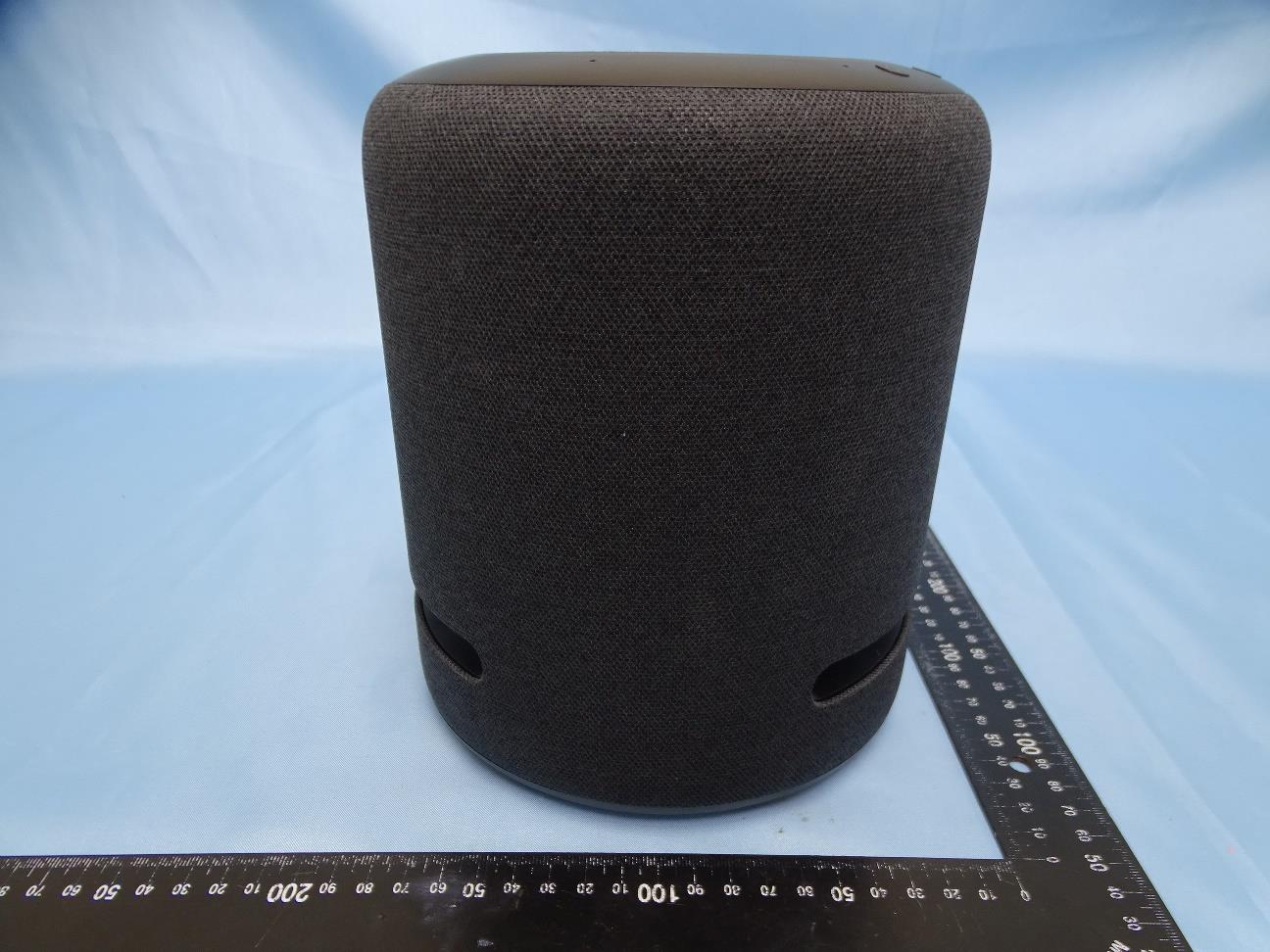

PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 External Photograph of EUT Model Name: O2T2V3 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 7 of 7 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 ─────THE END────

Label:

PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 1 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 Internal Photograph of EUT Model Name: O2T2V3 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 2 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 3 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 4 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 5 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 6 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 7 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 8 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 9 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 10 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 11 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 12 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 13 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 14 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 15 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 16 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 17 of 17 FAX : 886-3-328-4978 Issued Date : Jan. 25, 2022 Report Version : 01 ─────THE END──── 720510

PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 1 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 14, 2022 Report Version : 02 Antenna Photograph of EUT Model Name: O2T2V3 720510 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 2 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 14, 2022 Report Version : 02 Bluetooth / Bluetooth – LE Antenna 2 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 3 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 14, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 4 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 14, 2022 Report Version : 02 Zigbee Antenna PHOTOGRAPHS OF EUT Report No.: EP1N2620 TEL : 886-3-327-3456 Page Number : 5 of 5 FAX : 886-3-328-4978 Issued Date : Mar. 14, 2022 Report Version : 02 ─────THE END────

TEL : 886-3-327-3456 Page : 1 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA1N2620 RF EXPOSURE EVALUATION REPORT FCC ID : 2ARGE-7432 Equipment : Digital Media Receiver Model Name : O2T2V3 Applicant : Flake LLC 4321 W. College Avenue; Suite 200 Appleton, Wisconsin 54914 Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part2.1091 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA1N2620 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 4 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 5 4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 6 4.1. Standalone Power Density Calculation ............................................................................................. 6 TEL : 886-3-327-3456 Page : 3 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA1N2620 History of this test report Report No. Version Description Issued Date FA1N2620 Rev. 01 Initial issue of report Jan. 18, 2022 TEL : 886-3-327-3456 Page : 4 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA1N2620 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Digital Media Receiver Model Name O2T2V3 FCC ID 2ARGE-7432 Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2400 MHz ~ 2483.5 MHz WLAN 5.2GHz Band: 5150 MHz ~ 5250 MHz WLAN 5.3GHz Band: 5250 MHz ~ 5350 MHz WLAN 5.5GHz Band: 5470 MHz ~ 5725 MHz WLAN 5.8GHz Band: 5725 MHz ~ 5855 MHz Bluetooth: 2400 MHz ~ 2483.5 MHz Zigbee: 2405 MHz ~ 2475 MHz Mode WLAN: 802.11a/b/g/n/ac HT20/HT40/VHT20/VHT40/VHT80 Bluetooth BR/EDR/LE Zigbee: OQPSK Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Reviewed by: Jason Wang Report Producer: Daisy Peng 2. Maximum RF average output power among production units <Non-beamforming mode> Mode Maximum Average Power (dBm) 2.4GHz WLAN 802.11b 21.5 802.11g 21 802.11n-HT20 21 5GHz WLAN 802.11a 21 802.11n-HT20 21 802.11n-HT40 21.5 802.11ac-VHT20 21 802.11ac-VHT40 21 802.11ac-VHT80 21 Bluetooth 8.5 Zigbee 16 <Beamforming mode> Mode Maximum Average Power (dBm) 5GHz WLAN 802.11ac-VHT20 17 802.11ac-VHT40 17 802.11ac-VHT80 17.5 TEL : 886-3-327-3456 Page : 5 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA1N2620 3. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna TEL : 886-3-327-3456 Page : 6 of 6 FAX : 886-3-328-4978 Issued Date : Jan. 18, 2022 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA1N2620 4. Radio Frequency Radiation Exposure Evaluation 4.1. Standalone Power Density Calculation <Non-beamforming mode> Band Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) Power Density / Limit 2.4GHz WLAN 4.60 21.50 26.100 0.407 407.380 0.081 1.000 0.081 5GHz WLAN 5.70 21.50 27.200 0.525 524.807 0.104 1.000 0.104 Bluetooth 5.10 8.50 13.600 0.023 22.909 0.005 1.000 0.005 Zigbee 4.90 16.00 20.900 0.123 123.027 0.024 1.000 0.024 <Beamforming mode> Band Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) Power Density / Limit 5GHz WLAN 8.51 17.50 26.010 0.399 399.025 0.079 1.000 0.079 Note: 1 For conservativeness, the lowest uplink frequency of each band is used to determine the MPE limit of that band. 2 This device supports Beamforming for WLAN 5GHz VHT20/VHT40/VHT80 only; therefore, in the table above which consider maximum directional 8.51dBi for WLAN 5GHz Beamforming mode. 2.4GHz WLAN Power Density / Limit 5GHz WLAN Power Density / Limit Bluetooth Power Density / Limit Zigbee Power Density / Limit Σ(Power Density / Limit) 0.081 0.104 0.005 0.024 0.214 Note: 1. Σ(Power Density / Limit): This is a summation of [(power density for each transmitter/antenna included in the simultaneous transmission)/ (corresponding MPE limit)], for WLAN+Bluetooth+Zigbee. 2. Considering the all of the EIRP performance listed in the table above, the aggregated (power density /limit) is smaller than 1, and MPE of 4 collocated transmitters is compliant Conclusion: According to 47 C…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : 1 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2019 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR8O0521-02B FCC RADIO TEST REPORT FCC ID : 2ARGE-6383 Equipment : Digital Media Receiver Model Name : O2T2V3 Applicant : Flake LLC 4321 W. College Avenue; Suite 200 Appleton, Wisconsin 54914 Standard : FCC Part 15 Subpart C §15.247 The product was received on Jan. 22, 2019 and testing was started from Apr. 27, 2019 and completed on Jul. 10, 2019. We, SPORTON INTERNATIONAL INC., EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Approved by: Jones Tsai SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2019 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR8O0521-02B Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ........................................................................................ 5 1.2 Product Specification of Equipment Under Test ................................................................................ 5 1.3 Modification of EUT ........................................................................................................................... 5 1.4 Testing Location ................................................................................................................................ 6 1.5 Applicable Standards ......................................................................................................................... 6 2 Test Configuration of Equipment Under Test ......................................................................................... 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 EUT Operation Test Setup .............................................................................................................. 10 2.6 Measurement Results Explanation Example ................................................................................... 10 3 Test Result ................................................................................................................................................ 11 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 18 3.3 Power Spectral Density Measurement ............................................................................................ 19 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 26 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 35 3.6 AC Conducted Emission Measurement........................................................................................... 39 3.7 Antenna Requirements .................................................................................................................... 41 4 List of Measuring Equipment ................................................................................................................. 42 5 Uncertainty of Evaluation........................................................................................................................ 44 Appendix A. Conducted Test Results Appendix B. AC Conducted Emission Test Result Appendix C. Radiated Spurious Emission Appendix D. Radiated Spurious Emission Plots Appendix E. Duty Cycle Plots TEL : 886-3-327-3456 Page Number : 3 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2019 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR8O0521-02B History of this test report Report No. Version Description Issued Date FR8O0521-02B 01 Initial issue of report Jul. 14, 2019 TEL : 886-3-327-3456 Page Number : 4 of 44 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2019 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR8O0521-02B Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) 3.1 15.247(a)(2) 6dB Bandwidth Pass 3.1 2.1049 99% Occupied Bandwidth Reporting only 0 15…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : 1 of 96 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2019 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR8O0521-02C FCC RADIO TEST REPORT FCC ID : 2ARGE-6383 Equipment : Digital Media Receiver Model Name : O2T2V3 Applicant : Flake LLC 4321 W. College Avenue; Suite 200 Appleton, Wisconsin 54914 Standard : FCC Part 15 Subpart C §15.247 The product was received on Jan. 22, 2019 and testing was started from Apr. 26, 2019 and completed on Jul. 10, 2019. We, SPORTON INTERNATIONAL INC., EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Approved by: Jones Tsai SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 96 FAX : 886-3-328-4978 Issued Date : Jul. 14, 2019 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR8O0521-02C Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description .................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ........................................................................................ 5 1.2 Product Specification of Equipment Under Test ................................................................................ 5 1.3 Modification of EUT ........................................................................................................................... 6 1.4 Testing Location ................................................................................................................................ 6 1.5 Applicable Standards ......................................................................................................................... 7 2 Test Configuration of Equipment Under Test .......................................................................................... 8 2.1 Carrier Frequency and Channel ........................................................................................................ 8 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 EUT Operation Test Setup .............................................................................................................. 10 2.6 Measurement Results Explanation Example ................................................................................... 10 3 Test Result ................................................................................................................................................. 11 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 13 3.3 Power Spectral Density Measurement ............................................................................................ 14 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 16 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 87 3.6 AC Conducted Emission Measurement........................................................................................... 91 3.7 Antenna Requirements .........................................................................…

Text truncated - open the document above for the full version.
