2ARGZPHALCON-NTMarine radar transponder RACON

Page 1 of 28 Document Reference Phalcon NT, Issue 9 and Date 07/04/2020 THIS IS THE PROPERTY OF PHAROS MARINE AUTOMATIC POWER LIMITED. DISCLOSURE OR REPRODUCTION IS FORBIDDEN UNLESS AUTHORISED User Equipment Manual for Phalcon NT Report Ref: Phalcon NT Issue: 10 Classification: Commercial in Confidence Dated: 21/05/2020 Approval: Name Project Role Signature P Hayter Technical Authority S Green Manufacturing N Sparling Technical Director I Duke Quality Assurance Page 2 of 28 Document Reference Phalcon NT, Issue 9 and Date 07/04/2020 THIS IS THE PROPERTY OF PHAROS MARINE AUTOMATIC POWER LIMITED. DISCLOSURE OR REPRODUCTION IS FORBIDDEN UNLESS AUTHORISED Table of Contents Introduction. ..................................................................................................................................................................... 4 Equipment Description...................................................................................................................................................... 4 Equipment Identification .................................................................................................................................................. 4 Block Diagram and Construction ....................................................................................................................................... 5 Specification ...................................................................................................................................................................... 7 Environmental ............................................................................................................................................................... 9 Interfaces..................................................................................................................................................................... 10 Mechanical .................................................................................................................................................................. 10 Parts List .......................................................................................................................................................................... 11 Software and Transponder Setup ................................................................................................................................... 11 Installation ....................................................................................................................................................................... 11 Electrical Connection ....................................................................................................................................................... 12 Connection process ..................................................................................................................................................... 13 Operation .................................................................................................................................................................... 13 Battery Operation ....................................................................................................................................................... 13 Disconnection in the event of a fault .......................................................................................................................... 13 Fault Diagnosis and Repair .............................................................................................................................................. 14 Safety ............................................................................................................................................................................... 14 Appendix A. Mechanical Details ...................................................................................................................................... 15 Mounting hole locations (distribute fixings evenly about the circumference) ........................................................... 15 External Dimensions .................................................................................................................................................... 16 Appendix B. Electrical Connection Points ....................................................................................................................... 17 Connector Positioning ................................................................................................................................................. 17 Connector Pin outs ...................................................................................................................................................... 18 Appendix C. Transponder Configuration GUI .................................................................................................................. 21 Overview ..................................................................................................................................................................... 21 Configuration GUI Setup ............................................................................................................................................. 21 Configuring the Transponder ...................................................................................................................................... 22 Buoy Character ........................................................................................................................................................ 22 Response Length ..................................................................................................................................................... 23 Page 3 of 28 Document Reference Phalcon NT, Issue 9 and Date 07/04/2020 THIS IS THE PROPERTY OF PHAROS MARINE AUTOMATIC POWER LIMITED. DISCLOSURE OR R…

Text truncated - open the document above for the full version.

Page 1 of 57 Document Reference Phalcon-NT11, Issue 2 and Date 24/10/18 THIS IS THE PROPERTY OF Pharos Marine Automatic Power. DISCLOSURE OR REPRODUCTION IS FORBIDDEN UNLESS AUTHORISED Registered Address: 14 Castle Mews, Hampton, England, TW12 2NP  Company Reg. No. 06757705  VAT Reg. No. GB222645483 Phalcon-NT Equipment Manual. (Trained and Approved Technicians) Report Ref: Phalcon-NT11 Issue: 2 Classification: Commercial in Confidence Dated: 24/10/2018 Approval: Name Project Role Signature P Hayter Technical Authority S Green Manufacturing N Sparling Technical Director I Duke Quality Assurance Page 2 of 57 Document Reference Phalcon-NT11, Issue 2 and Date 24/10/18 THIS IS THE PROPERTY OF Pharos Marine Automatic Power. DISCLOSURE OR REPRODUCTION IS FORBIDDEN UNLESS AUTHORISED Registered Address: 14 Castle Mews, Hampton, England, TW12 2NP  Company Reg. No. 06757705  VAT Reg. No. GB222645483 Table of Contents Introduction. ..................................................................................................................................................................... 7 Equipment Description...................................................................................................................................................... 7 Equipment Identification .................................................................................................................................................. 8 Block Diagram and Construction ....................................................................................................................................... 9 Specification .................................................................................................................................................................... 10 Environmental ................................................................................................................................................................. 13 Interface .......................................................................................................................................................................... 13 Mechanical ...................................................................................................................................................................... 14 Parts List .......................................................................................................................................................................... 15 External Parts .............................................................................................................................................................. 15 Software and Transponder Setup ................................................................................................................................... 15 Installation ....................................................................................................................................................................... 15 Electrical Connection ................................................................................................................................................... 16 Connection process ..................................................................................................................................................... 16 Operation ........................................................................................................................................................................ 17 Battery Operation ....................................................................................................................................................... 17 Disconnection in the event of a fault .......................................................................................................................... 17 Fault Diagnosis and Repair .............................................................................................................................................. 17 Safety ............................................................................................................................................................................... 18 Regulatory Compliance ................................................................................................................................................... 18 Appendix A. Mechanical Details ...................................................................................................................................... 19 Mounting hole locations (distribute fixings evenly about the circumference) ........................................................... 19 External Dimensions .................................................................................................................................................... 20 Appendix B. Electrical Connection Points ....................................................................................................................... 21 Connector Positioning ................................................................................................................................................. 21 Connector Pin outs ...................................................................................................................................................... 22 Appendix C. Transponder Command Reference ............................................................................................................. 24 Console Interface ............................................................................................................................................................ 28 Console Configuration ................................................................................................................................................. 28 Computer Tools ...................................…

Text truncated - open the document above for the full version.

21817 USCG Notification Not Required: PHALCON-NT Page 1 of 1 Professional Testing (EMI) Inc. 1601 North A.W. Grimes Blvd., Suite B Round Rock, TX 78665 e-mail: [email protected] (512) 244-3371 Fax: (512) 244-1846 Regarding: US Coast Guard Notification Requirement As an exclusively designed radar transponder (RACON), this device is intended for installation at fixed locations to mark maritime navigational hazards by responding to signals from a passing ships radar. RACONs are not subject to USCG notification prior to FCC authorization. USCG notification is required for other technology (AIS-SART, VDSMS, EPIRB) as specified in FCC R&O 16-119. This is generally VHF/UHF radio devices using maritime radio channels for active navigation. Such devices are used on board ships or are for search and rescue locators. https://en.wikipedia.org/wiki/AIS-SART https://en.wikipedia.org/wiki/Emergency_position-indicating_radiobeacon_station Signed: Eric Lifsey ***

Phalcon-NT12 Technical Control File Report Ref: Phalcon-NT12 Issue: 2 Classification: Commercial in Confidence Dated: 24/10/2018 THIS IS THE PROPERTY OF Pharos Marine Automatic Power . DISCLOSURE OR REPRODUCTION IS FORBIDDEN UNLESS AUTHORISED Registered Address: 14 Castle Mews, Hampton, England, TW12 2NP  Company Reg. No. 06757705  VAT Reg. No. GB222645483 TCF Index Equipment Description .......................................................................................................................... 2 Equipment Identification ....................................................................................................................... 2 Variant Differences : .............................................................................................................................. 2 THIS IS THE PROPERTY OF Pharos Marine Automatic Power . DISCLOSURE OR REPRODUCTION IS FORBIDDEN UNLESS AUTHORISED Registered Address: 14 Castle Mews, Hampton, England, TW12 2NP  Company Reg. No. 06757705  VAT Reg. No. GB222645483 Pharos Marine Automatic Power Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Equipment Description The equipment is a marine radar beacon system (RACON) capable of responding to S-band and X- band pulsed radars in compliance with the ITU recommendations ITU-R M.824-2 ‘Technical Parameters of Radar Beacons’. The RACON is a receiver/transmitter transponder device used as a navigation aid, identifying landmarks or buoys on a shipboard marine radar display. The RACON responds to a received radar pulse by transmitting an identifiable mark back to the radar set. The displayed response has a length on a radar monitor corresponding to a few nautical miles and is encoded as a Morse character beginning with a dash for identification. Equipment Identification The RACON will be labelled with the manufacturer’s part number as well as the purchasers name and logo. External connection points will also be identified. Manufacturer Part: Phalcon-NT Manufacturer: Variant Differences: This unit conforms in all respects with the LW26-701189, also manufactured by Linwave Technology, Ltd excepting that the external logo label refers to Pharos Marine Automatic Power, references its address and their type number. Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: 0001 THIS IS THE PROPERTY OF Pharos Marine Automatic Power . DISCLOSURE OR REPRODUCTION IS FORBIDDEN UNLESS AUTHORISED Registered Address: 14 Castle Mews, Hampton, England, TW12 2NP  Company Reg. No. 06757705  VAT Reg. No. GB222645483 The TCF for the LW26-701189 therefore fully describes the build standard and performance of the Phacon-NT brand and it will be maintained appropriately for the two brands. Due to the purely cosmetic nature of the differences between the two brands Linwave Technology Ltd asserts that the testing carried out on the LW26-701189 is also valid for the Phalcon-NT brand and that this also means the Phalcon-NT brand does not require additional testing to support certification. Linwave Technology Ltd grants Pharos Marine Automatic Power the rights to use the related I.P, test results and submissions for its prior LW26-701189 certification.

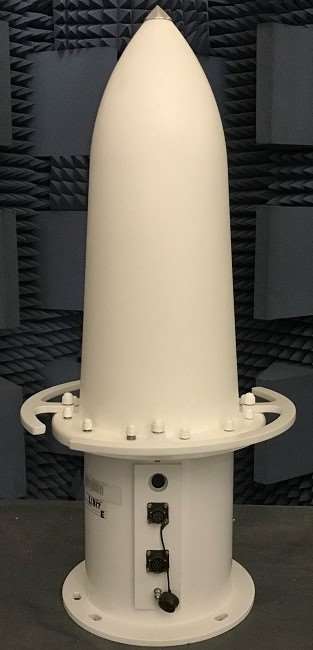

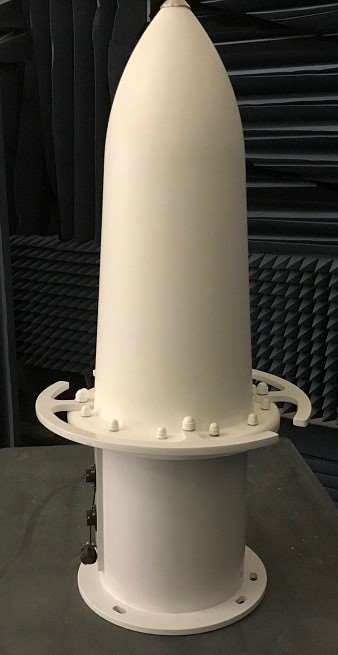

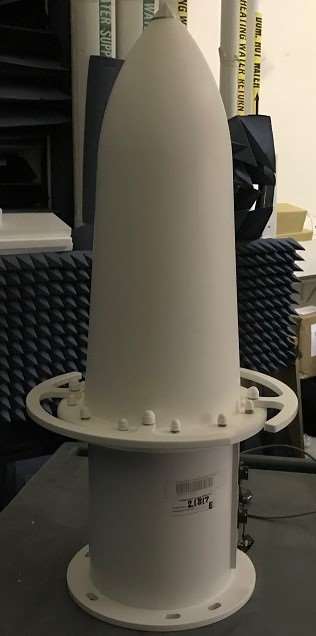

21817 External Photos Page 1 of 6 Side 1 of 6 Side 2 Side 3 Side 4 Side 5 Side 6 of 6 ***

3980-701189_03 Label – Marine transponder CHANGE HISTORY ISSUE DESCRIPTION BY ACT No. APPROVED DATE 01 Initial issue NS N/A NS 06/11/2017 02 New Phalcon-NT Label MS 3577 NS 31/08/2018 03 Included FCC type number (FCC ID) MS 3690 NS 26/10/2018 DRAWING NO.: 3980-701189 MATERIAL: L7167 REVISION: 03 TITLE: Label – Marine transponder FINISH: Overglaze (1000-00185) Having fitted the label cover the label with Overglaze, cut to be slightly larger than the label itself, typically 2- 3mm. 3980-701189_03 Label – Marine transponder Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHLCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx Unit 2 Lancelot Road Beacon Business Park Great Yarmouth NR31 7BF Model: PHALCON-NT FCC ID 2ARGZPHALCON-NT Serial Number: xxxx

3980-701190_02 Label – Warning label CHANGE HISTORY ISSUE DESCRIPTION BY ACT No. APPROVED DATE 01 Initial issue MS N/A NS 26/10/2018 02 UPDATED TO INCLUDE DETAILS OF FCC COMPLIANCE MS 3691 NS 26/10/2018 DRAWING NO.: 3980-701190 MATERIAL: L7167 REVISION: 02 TITLE: Label – Warning notice – Marine transponder FINISH: Overglaze (1000-700185) Having fitted the label cover the label with Overglaze, cut to be slightly larger than the label itself, typically 2- 3mm. 3980-701190_02 Label – Warning label Internal RF Hazard. No attempt should be made to remove the external Radome without first removing power from the device. Trained personnel only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Internal RF Hazard. No attempt should be made to remove the external Radome without first removing power from the device. Trained personnel only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Internal RF Hazard. No attempt should be made to remove the external Radome without first removing power from the device. Trained personnel only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Internal RF Hazard. No attempt should be made to remove the external Radome without first removing power from the device. Trained personnel only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Internal RF Hazard. No attempt should be made to remove the external Radome without first removing power from the device. Trained personnel only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Internal RF Hazard. No attempt should be made to remove the external Radome without first removing power from the device. Trained personnel only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

21817 Label Location Page 1 of 1 ***

21817 Internal Photos, Dome Removed Page 1 of 10 Dome Removed Views Antennas and Main Shielded Enclosure Revealed, Side 1 of 4 Narrow rod on top earths/grounds the lightning cap on top. It has no other function. Dome Removed, Antenna and Main Shielded Enclosure Revealed, Side 2 of 4 Dome Removed, Antenna and Main Shielded Enclosure Revealed, Side 3 of 4 Dome Removed, Antenna and Main Shielded Enclosure Revealed, Side 4 of 4 S-Band Antenna, Omnidirectional Slot Array X-Band Antenna, Omnidirectional Slot Array RF Cabling Cables from section to section of main enclosure. Cables from main enclosure to antennas. SMA filters shown are removed during measurements. Another view of RF cables connecting to antennas. Green ground/earth bonding cable visible. Wiring, power and I/O, side of main enclosure, with earth/grounding cable. Far side of main enclosure. ***

Project 21817-15 Pharos Marine Automatic Power Phalcon-NT RACON Radar Transponder Band S Section Wireless Certification Report Prepared for: Pharos Marine Automatic Power Systems 10810 W Little York St. Suite 130 Houston TX 77041 By Professional Testing (EMI), Inc. 1601 North A.W. Grimes Blvd., Suite B Round Rock, Texas 78665 25 Sep 2020 Reviewed by Written by Larry Finn Chief Technical Officer Eric Lifsey EMC Engineer Pharos Marine Automatic Power Systems – Phalcon-NT – S-Band Section 21817 Professional Testing (EMI) Inc. Page 2 of 32 Revision History Revision Number Description Date Draft 02 Add emission data above 26 GHz. 25 Sep 2020 Final1 19 Oct 2020 Final2A Add radiated emission data 18-26.5 GHz. Correct typos & cal date. Add antenna gain for EIRP. 22 Oct 2020 Errata: Pharos Marine Automatic Power Systems – Phalcon-NT – S-Band Section 21817 Professional Testing (EMI) Inc. Page 3 of 32 Table of Contents Revision History ...............................................................................................................................2 1.0 Introduction ..........................................................................................................................6 1.1 Scope ................................................................................................................................6 1.2 EUT Description ..............................................................................................................6 1.3 EUT Operation .................................................................................................................6 1.4 Modifications to EUT ......................................................................................................6 1.5 Measurement Correction Methods ...................................................................................7 1.6 Test Site ...........................................................................................................................7 1.7 Test Setup Diagram..........................................................................................................7 2.0 Applicable Documents .........................................................................................................8 3.0 Conducted Output Power at Antenna Terminal, Clause 80.215(n)(3), 2.1046....................9 3.1 Test Procedure .................................................................................................................9 3.2 Test Criteria .....................................................................................................................9 3.3 Test Results ......................................................................................................................9 4.0 Occupied Bandwidth, Clause 2.1049 .................................................................................10 4.1 Test Procedure ...............................................................................................................10 4.2 Test Criteria ...................................................................................................................10 4.3 Test Results ....................................................................................................................10 5.0 Spurious Emissions at Antenna Terminals, Clause 80.211(f)(1) .......................................12 5.1 Test Procedure ...............................................................................................................12 5.2 Test Criteria ...................................................................................................................12 5.3 Test Results ....................................................................................................................12 5.3.1 Bottom Channel .........................................................................................................13 5.3.2 Middle Channel ..........................................................................................................14 5.3.3 Top Channel ...............................................................................................................15 6.0 Field Strength of Spurious Emissions, Clause 80.211(f)(1) ..............................................16 6.1 Test Procedure ...............................................................................................................16 6.2 Test Criteria ...................................................................................................................16 6.3 Test Results ....................................................................................................................16 6.3.1 Middle Channel to 1 GHz ..........................................................................................17 6.3.2 Middle Channel 1 to 18 GHz .....................................................................................18 6.3.3 Middle Channel 18 to 26.5 GHz ................................................................................19 6.3.4 Middle Channel 26.5 to 40 GHz ................................................................................20 6.3.5 Bottom Channel 1 to 18 GHz.....................................................................................21 6.3.6 Bottom Channel 18 to 26.5 GHz................................................................................22 6.3.7 Bottom Channel 26.5 to 40 GHz................................................................................23 Pharos Marine Automatic Power Systems – Phalcon-NT – S-Band Section 21817 Professional Testing (EMI) Inc. Page 4 of 32 6.3.8 Top Channel 1 to 18 GHz ..........................................................................................24 6.3.9 Top Channel 18 to 26.5 GHz .....................................................................................25 6.3.10 Top Channel 26.5 to 40 GHz ..................................................…

Text truncated - open the document above for the full version.

Project 21817-15 Pharos Marine Automatic Power Phalcon-NT RACON Radar Transponder Band X Section Wireless Certification Report Prepared for: Pharos Marine Automatic Power Systems 10810 W Little York St. Suite 130 Houston TX 77041 By Professional Testing (EMI), Inc. 1601 North A.W. Grimes Blvd., Suite B Round Rock, Texas 78665 28 Sep 2020 Reviewed by Written by Larry Finn Chief Technical Officer Eric Lifsey EMC Engineer Pharos Marine Automatic Power Systems – Phalcon-NT – X-Band Section 21817 Professional Testing (EMI) Inc. Page 2 of 33 Revision History Revision Number Description Date Draft 01 For review. 28 Sep 2020 Final1 19 Oct 2020 Final2 Add radiated emission data 18-26.5 GHz. Correct certificate page reference from S to X Band. Correct typos & cal date. 22 Oct 2020 Errata: Pharos Marine Automatic Power Systems – Phalcon-NT – X-Band Section 21817 Professional Testing (EMI) Inc. Page 3 of 33 Table of Contents Revision History ...............................................................................................................................2 1.0 Introduction ..........................................................................................................................6 1.1 Scope ................................................................................................................................6 1.2 EUT Description ..............................................................................................................6 1.3 EUT Operation .................................................................................................................6 1.4 Modifications to EUT .........................................................…

Text truncated - open the document above for the full version.
